Damage to the cell waste recycling system in the brain of people with Huntington's disease

Huntington's disease (HD) is caused by a mutation in the gene encoding the huntingtin protein (HTT) resulting in expansion of the polyglutamine (polyQ) stretch on its amino-terminus (1 –4). In the neostriatum, the brain region most vulnerable and devastated by pathology in HD, the spatiotemporal advance of atrophy dorso-ventrally, caudo-rostrally, and medio-laterally has been used to stage disease pathology severity as Vonsattel's Grades 0–4 (HD0-HD4) (5, 6). Striatal GABA-containing medium spiny projection neurons are most susceptible to cell death, even in premanifest HD0, while other striatal neuronal populations, such as aspiny interneurons, seem more resistant to toxicity (6 –8). Widespread heterogeneous loss of total neurons and pyramidal cells have also been observed across many cerebral cortical regions, especially in the more advanced disease stages (9, 10). More recent studies have revealed that loss of Layer Va pyramidal neurons, identified as corticostriatal cells, can occur in the early stages of HD (11).

As in other neurodegenerative diseases, a common theme is proteinopathy due to occurrence and build-up of aggregated proteins. In HD brains neuronal intranuclear inclusions (NII) and neuropil inclusions are present (12) and these are positive for mutant huntingtin (mHTT) and ubiquitin (Ub) (12 –14), suggesting that there may be a deficiency in the proteolytic machinery responsible for normally clearing these proteins, resulting in their accumulation. Autophagy is generally the principal mechanism by which cells clear organelles, long-lived proteins and damaged, misfolded, or aggregated proteins that are poor substrates for the ubiquitin–proteasome system (UPS). Both autophagy and the proteasome are implicated in HD pathogenesis (15 –17). The weight of -omic evidence in mouse model Q175 and in HD brain supports the idea that proteostasis is disturbed in HD through both UPS and ALP routes (18 –20). In the case of a number of proteinopathic neurodegenerative disorders (AD, PD, HD, ALS and prion diseases), aggregates are associated with and contribute to decrease in UPS (21, 22), e.g., due to proteotoxicity (23, 24) or blockage of the proteasome entrance by aggregated proteins (25). In cell or mouse models of HD, HTT accumulates in autophagosomes (AP) and autolysosomes (AL) along with lysosomal cathepsin D (CTSD) in proportion to HTT polyQ length. This has suggested that the autophagy-lysosomal pathway (ALP) may be a significant pathway for HTT proteolysis, particularly forms that misfold and potentially aggregate (26 –30).

Studies in the past decade, conducted primarily with cell and/or animal models, have demonstrated multiple roles of HTT and mHTT in autophagy in relation to HD (31 –33). Wild type HTT participates in normal autophagy by (1) releasing unc-51 like autophagy activating kinase 1 (ULK1) from the inhibition of the mechanistic target of rapamycin kinase (mTOR) and (2) serving as a scaffold to facilitate cargo sequestration through improving the interaction of Sequestosome 1 (SQSTM1, p62) with ubiquitinated cargos and with microtubule-associated protein 1 light chain 3 (LC3) (34, 35). mHTT influences autophagy in HD settings in multiple ways. Although mHTT may activate autophagy by sequestering mTOR and thereby reducing mTOR activity (36), most reported mHTT effects on the ALP appear to be inhibitory for autophagy, impairing earlier stages such as initiation signaling, phagophore nucleation and cargo recognition/AP formation. These additional reported mechanisms include: binding to Rheb and promoting mTOR signaling (37); interfering with ULK1 activities leading to impairment of the BECN1-PIK3C3/VPS34 and ATG14 complex (38); impairing autophagosomal cargo recognition (35, 39); and interfering with the interaction between Ataxin 3 and BECN-1, resulting in BECN-1 degradation by the UPS (40). Additional reported effects of mHTT on the endo-lysosomal system include inducing extensive endosomal tubulation (29), reducing exocytosis and promoting AL accumulation (41), and decreasing transport of late autophagic structures from the neurites to the soma (42).

It should be noted, however, that most of the above findings have been obtained from cell and/or mouse models of HD, including recent studies using induced neurons through reprogramming human fibroblasts (42, 43). By contrast, there is a relative paucity of studies that evaluate potential alterations of the ALP in the human HD brain as compared with Alzheimer's disease (AD) (44 –47) (see below). Furthermore, investigations themselves are limited in scope, often focusing on evaluations of one or a few components of interest. For example, early studies show that activities of a small cohort of lysosomal enzymes (β-glucuronidase, α-glucosidase, dipeptidyl aminopeptidase II and CTSH) are altered in brains of patients with HD (48, 49). Fragmentary information on early neuropathological characterization of HD brain has suggested an association of HTT with endo-lysosomal compartments such as multivesicular bodies (50), and an increased frequency of dystrophic neurites (51, 52) although the extent and the specific nature and composition of dystrophic neurites in HD brain are little known.

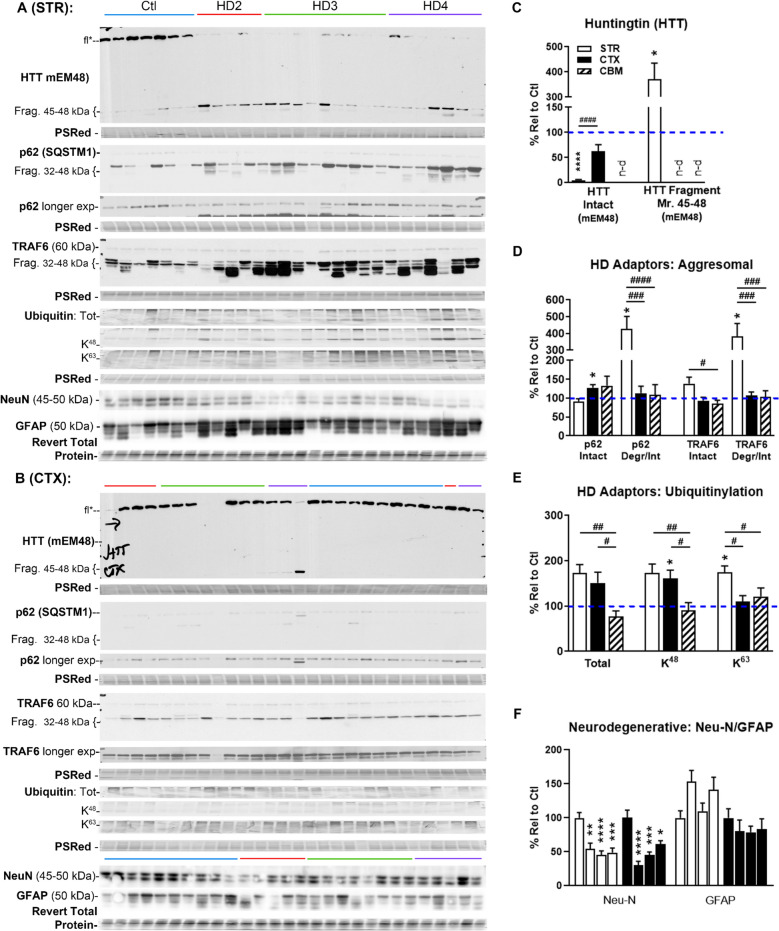

Levels of intact HTT (i.e., full-length HTT) were greatly reduced in the STR of HD cases (as early as HD2) compared to controls when detected by an N-terminal antibody, mEM48 (13) (Fig. 3A, fl (full-length)*; Fig. 3C, left), while the difference in the levels of this HTT species in the CTX between the control and HD cases was only marginal (Fig. 3B, fl*; Fig. 3C, left). The decline of the intact HTT in the STR of HD stages was accompanied by a marked accumulation of 45–48 kDa N-terminal fragments of HTT (Fig. 3A; Fig. 3C, right), while such fragments were largely absent in the CTX (Fig. 3B; Fig. 3C, right) (see Discussion). Both intact HTT and fragments of HTT were undetectable in CBM samples (Suppl. Fig. S2; Fig. 3C, left and right).

Immunoblotting analyses of p62 and TRAF6, two adaptor proteins known to interact with each other, revealed that these two proteins also generated proteolytic fragments (32–48 kDa) which, interestingly, also selectively increased in the HD STR at a level of nearly fourfold over the controls (Fig. 3A, and D), similar to the selective accumulation of mHTT fragments in the HD STR described above. By contrast, there were no differences in the levels of such fragments between HD and control cases in the CTX (Fig. 3B and D) or in CBM (Suppl. Fig. S2; Fig. 3D). In addition, analysis of ubiquitination revealed a significant increase in K⁴⁸ and K⁶³ ubiquitination and a strong trend of elevation in Total ubiquitination (p = 0.06) in the STR and a significant increase only in K⁴⁸ ubiquitination in the CTX (Fig. 3A, B and E), implying that there might be a compensatory but still impaired response of the UPS to protein aggregates, whereas CBM is largely unchanged (Suppl. Fig. S2, quantitation in Fig. 3E). Together, the generation/accumulation of proteolytic fragments of mHTT, p62 and TRAF6, and the increase in ubiquitination in the STR appear to be disease-related and brain region-selective.

Levels of neuron-specific NeuN and astrocyte marker GFAP were also assayed by western blot to use as a proxy to evaluate neuronal cell death and active gliotic changes with HD staging in STR and CTX. As shown in Fig. 3A and B, NeuN immunoreactivity appears decreased, verified by significant decrease in both STR and CTX to similar levels across all HD pathological staging (Fig. 3F), whereas GFAP levels trended up in the STR, but were relatively stable in the CTX (Fig. 3A, B, F).

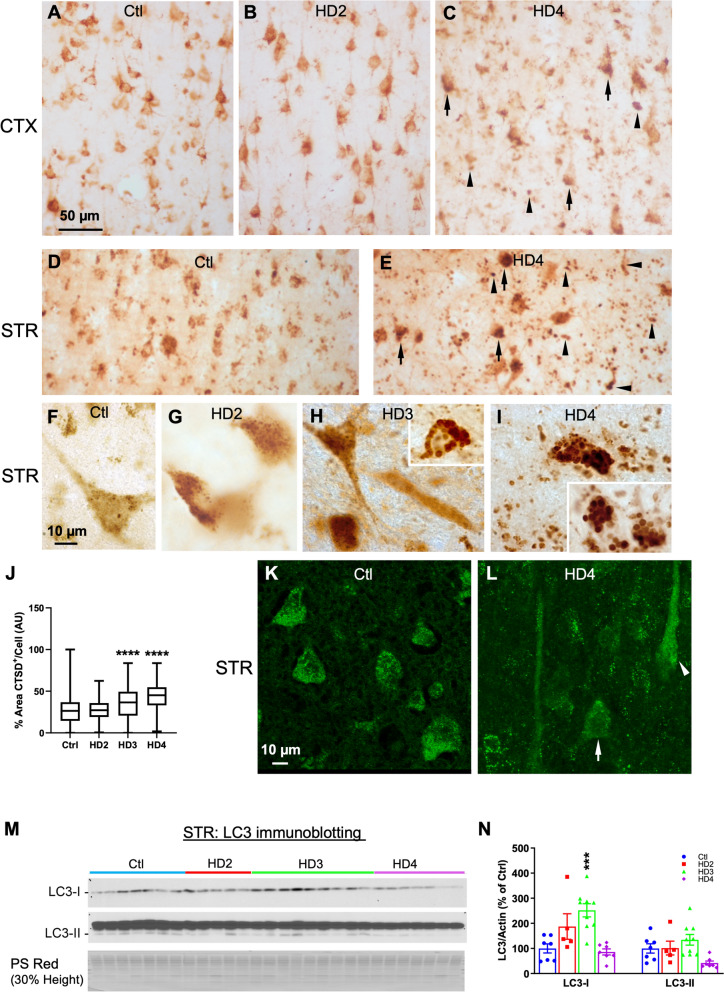

Immunolabeling with LC3, another marker for the ALP, revealed LC3 staining (both diffuse and punctate) in neurons in the control and HD STR (Fig. 4K, L). However, even at HD4, there were no evident changes (Fig. 4L) beyond the range seen in control brains (Fig. 4K) where some neurons were labeled more strongly but diffusely (Fig. 4L, arrowhead), and others exhibited a trend of reduced staining (Fig. 4L, arrow). We further assessed the status of LC3 protein in STR samples with LC3 immunoblotting (Fig. 4M). A significant increase was detected in HD3 samples for LC3-I (Fig. 4N) whereas no differences were found for LC3-II levels (after normalizing to loading control) between Ctl and either of HD2 or HD4 even if there was a trend of LC3-II reduction in HD4 and a significant difference between HD3 and HD4 (Fig. 4N). When analyzed for the ratio of LC3-II/-I, there were no changes detected (not shown). Taken together, while the CTSD IHC was able to report defects at the later stages of the ALP, the LC3 data, including the numbers of LC3 puncta and size distribution and the levels of LC3-II, did not suggest robust alterations reflecting impairments in these particular steps of the ALP (e.g., AP formation, AP-LY fusion or AL clearance).

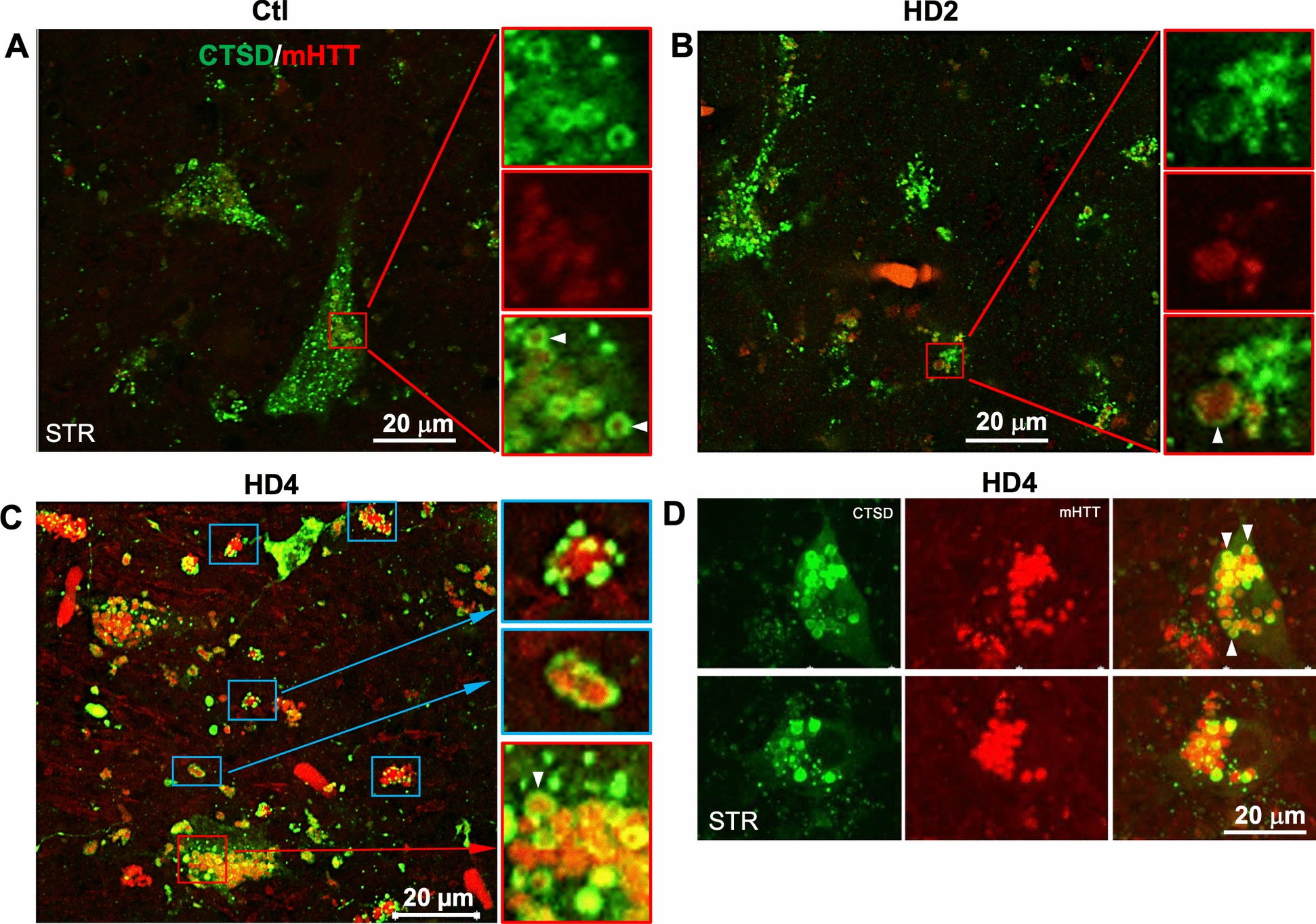

The lysosomal pathology in affected neurons in late-stage HD brains (Figs. 4, 5) involved the accumulation of CTSD positive vesicles, which were decorated by HTT (Fig. 5B–D) and concentrating in one pole of the neuron (Figs. 4C, E and 5D), a distribution pattern associated with lipofuscin granules. This was consistent with the abundance of lipofuscin granules and clusters seen under EM (see below).

The above single and double immunostaining demonstrate that a dominant vesicular pathology in affected neurons of late-stage HD that involves the accumulation and enlargement of CTSD positive vesicles which correspond to AL/LY and lipofuscin granules. We then extended our EM analysis to verify the incidence of these structures and to further assess autophagy related or unrelated vesicular structures in brain samples from a HD4 case with exceptional morphological integrity, in addition to the previously described details of cytoplasmic inclusions shown with EM in Fig. 1K.

Notably, there were clusters of clear vesicles of varying sizes characterized by their minimal intralumenal content (i.e. "empty"), most of which were single membrane-limited (Fig. 6E, F), single arrowheads; also see Fig. 6D), while some exhibited a double membrane appearance (Fig. 6F, double arrowheads), raising the possibility that the latter type represents the "empty AP" due to defective cargo sequestration (39). On the other hand, however, mitochondria were seen in double membrane vesicles (Fig. 6E, double arrowheads), implying that at least sequestration of this cargo, is unimpeded.

To survey ALP-related biochemical changes in HD brain regions demonstrating regional changes we analyzed protein markers of the different phases of the ALP (i.e., autophagy induction signaling, AV formation and lysosomal substrate clearance) on staged brains from HD2—HD4 and control cases compared in STR and CTX using immunoblotting, again noting these are the same samples assessed by transcriptomic assays (see Table 1 Demographics). Notably, the majority of marker proteins for the early phases of the ALP, including p-p70S6 (as an indicator for mTOR inhibition), BECN1, ATG5, ATG7 and LC3, showed no changes apparent with disease progression in these regions (Fig. 4M, N; Fig. S3), in line with qPCR results shown above.

Most of the knowledge about the relationship of the ALP with HD including the roles of HTT/mHTT in autophagy has been obtained from studies using cell and animal models. However, here, we analyzed a relatively large number of human brain samples from controls and HD2-HD4 patients, which has provided human brain-derived information that can expand our knowledge about the status of ALP in HD brain, its relationship to the development of mHTT aggresome/inclusion pathology, and the relevance of animal models as surrogates to characterize HD neuropathology and pathobiology. Moreover, the findings we have described have implications as support for the potential therapeutic value of specific strategies of autophagy modulation in HD.

At a global level, we have demonstrated in the human brain that HTT/mHTT are substrates of ALP. Moreover, in HD brain, our collective data suggest that the ALP in affected neurons is relatively competent to maintain autophagy flux clearance capacity at an early disease stage, but that at later stages, autophagy flux declines and AL are laden with substrates including HTT that accumulate. The later stage pattern is a pathological state associated with neurodegeneration in a number of major adult-onset neurodegenerative diseases (60). A gradual bidirectional pathological relationship (a "vicious cycle") is suggested between mHTT build-up within AL and the decline in autolysosomal clearance efficacy that is likely multifactorial (60, 61). The relative competence of autophagy flux at an early disease stage of symptomatic HD contrasts with the temporal pattern in AD, where impaired flux emerges very early in pre-symptomatic disease as a result of direct impact of disease-related genetic factors on AL/LY proteolytic efficacy (44, 47, 60, 61) and autophagy failure progresses to an unusually extreme degree as disease advances (45, 62). Preservation of autophagy early in symptomatic HD suggests the potential opportunity to intervene therapeutically at this stage to stimulate autophagy flux with less concern than applies to AD where overburdening failing AL/LY and exacerbating build-up of toxic metabolites within the pathway may be counter-productive.

At the early HD2 stage, there is limited evidence suggesting a major alteration in autophagy induction and upstream steps of autophagy, such as AP formation or AP-LY fusion. We cannot, however, exclude possible impairment in the engagement of certain autophagy cargoes by adaptor proteins which might impede sequestration and reduce ALP flux. We observed varying size clusters of double membrane limited vesicular profiles containing minimal intralumenal content (Fig. 6E, F), raising the possibility that they represent the "empty AP" described previously in mouse, cell, and patient fibroblast models of HD (39). Because these patterns were also often seen in fresh postmortem brains from individuals with AD clinical diagnoses in our other studies (Fig. S4A,B,D,E), but not seen in our previously published analyses of biopsied brain from AD patients (46), we are inclined to attribute much of this pattern to postmortem and fixation artifact, mainly resulting in a swelling and vacuolization of endoplasmic reticulum. This is supported by the common observation in the HD brain of mitochondria within AP (mitophagy) and by our further immunogold labeling by an anti-calnexin antibody in HD brain which yielded a significant decoration of these vesicular membranes (not shown). Artifactual vacuolization of lipid granules in lipofuscin may also give rise to a somewhat similar membrane pattern (Fig. S4C). Thus, our studies so far neither give significant support to the presence of empty APs nor refute the notion that they may be present in HD cells and cell models (63).

Interestingly, we detected spatial differences in the early ALP responses between the STR and the CTX. In the STR, there was a decreased correlation of both CTSD and HEXA with disease progression, while increased protein levels of LAMP1 that imply lysosomal membrane expansion suggesting a possible compensatory upregulation in lysosomal biogenesis. The absence of changes in levels of upstream ALP components (e.g., BECN1, ATG5, ATG7) supports lack of deficiency in AP formation or compartment size although a caveat is the potential for glial cell autophagy systems to mask changes in neuronal levels in immunoblot analyses at the brain tissue level.

The less vulnerable but still affected CTX displayed no significant alterations in all the ALP protein markers examined by immunoblotting and in enzymatic activities of lysosomal proteases although a number of RNA markers appeared to be elevated to a varying degree, suggesting that an apparently normal ALP machinery is maintained in this brain region. Such biochemical changes, together with the mild morphological changes [e.g. AL clustering revealed by CTSD IHC (Fig. 4, top), inclusion formation revealed by mHTT IHC with mEM48 (Fig. S1c)], and minimal HTT fragment generation (Fig. 3B), highlight the bifurcation between CTX and STR relative to the severity of pathological changes.

Neuronal autophagy occurs at both perikarya and neurites. In the latter location, AP usually form at the terminals of neurites, are transported retrogradely towards the cell body and eventually fuse with LY (and/or vesicles containing degradative lysosomal enzymes) at the proximal portion of neurites and/or the perikarya (64, 65). In line with this, we observed HTT signal within CTSD positive AL in both neuronal soma (Fig. 5B–D) and neuropil (Fig. 5C, the second inset), suggesting HTT as a cargo of autophagy. In this respect these inclusions share a strikingly similar morphology that is analogous to AD neuritic dystrophy observed by Bordi et al. (44) in AD hippocampus with vesicular structures filled with LC3 rather than HTT and circumscribed by a ring of vesicles that are filled with lytic CTSD. That these appear in the more highly vulnerable regions of striatum in HD and hippocampus in AD may prove to be a point of commonality for advanced HD with AD where clearance of substrates becomes compromised. Additionally, in neurons at late stages of disease, HTT/mHTT-containing CTSD-positive AL are abnormally enlarged and clustered. The continuing accumulation of these protein aggregates in the HD brain, especially in the STR, may be explained as a result of continuing overload of the aggregation-prone proteins on to the neurons which is beyond the degradative capacities of both macroautophagy (this study) and chaperone-mediated autophagy, which is known to play a role in HTT clearance and be upregulated in experimental HD models (66). Consistent with this, larger mHTT inclusions were also observed in the neuropil without being completely contained within AL (Fig. 5C, the first inset), suggesting that increasing amounts of mHTT accumulation at the late stage of disease progression led to the formation of aggregates outside the confines of vesicular structures that are too large to be processed by autophagy. However, we cannot exclude a scenario wherein impairments in the interactions of adaptor proteins with autophagy cargoes could lead to slower rates of clearance of substrates including mHTT (34, 35).

We observed nuclear, neuritic and cytoplasmic inclusions and various subtypes in each category, particularly at the ultrastructural level. Although certain of these are described previously in literature (12, 13, 67 –69), they have not been presented collectively or described systematically and therefore what we present here likely represents a relatively comprehensive collection of the inclusion types in the human HD brain. Among the NIIs, the main subtype is the pale-staining, spherical/ovoid fine granular and/or fibrous inclusion (Fig. 1A, left). This likely represents the most commonly reported inclusion type in brains of both human HD (12, 68, 69) and HD mouse models including R6/2, YAC128, HdhQ92 (70 –72) and Q175 (our own study) (53). Among the neuritic inclusion subtypes we identified (Fig. 1D–J), the major subtype (Fig. 1G) also exhibited a similar aggregate ultrastructure to the aforementioned main NII subtype (i.e., spherical/ovoid fine granular and/or fibrous inclusion), along with additional AV and mitochondria inside and surrounding the inclusion. This subtype was also observed in other studies of human HD brain by HTT IEM (12, 13) and in HD mouse models (53, 73, 74). Again, similar aggregate ultrastructure of this type was also seen in some cytoplasmic inclusions (Fig. 1K, left). Together, this fine granular and/or fibrous structure of aggregates appears to represent the primary morphology, implying that the source of the aggregate material may be the same.

Another major ultrastructural feature of aggregates is a fiber-bundle subtype with variable shapes: rod- or comet-shaped or just parallelly arranged, which is more common in the neuritic inclusions (Fig. 1H–J), but can be occasionally seen in the nucleus (Fig. 1A, middle, arrowhead) and the cytoplasm as well (Fig. 1A, left, arrow). The fingerprint-like features of neuritic inclusions (Fig. 1H) were considered as fibrillary fascicles from abnormal mitochondria in a previous study (67). However, we interpret them as HTT-derived fibrillar bundle aggregates as revealed from our high-resolution EM images (Fig. 1H, enlarged images), and therefore include them within this fiber-bundle category.

These two ultrastructural aggregate types (compact fine granular and/or fine fibrous aggregate vs. fiber-bundle aggregate) apparently represent different morphologies, although they likely arise from and/or are primarily composed of aggregated mHTT, particularly N-terminal Exon 1 fragments, which is supported by the following considerations. First, both types were positively labeled by anti-HTT antibodies by IEM in both human and mouse brains, and both fine granular/fibrous and bundle structures can be detected even in the same single inclusion (12, 13, 74). Secondly, studies using recombinant or overexpressed mHTT N-terminal fragments have demonstrated that in addition to oligomers and protofibrils, there are two mature aggregated forms, i.e., short fibrils and more aggregated bundles similar to the two types of ultrastructural elements in the HD brain described above. In addition, these studies found that these multiple aggregation states in vitro were interconvertible (75 –78). Experimental conditions, peptide sequence length, posttranslational modifications, and lipids, proteins and cellular membranes existing in an in vivo environment (79 –81) can further influence aggregation and the final ultrastructural morphology of aggregates in vitro or in vivo.

mHTT fragments are believed to be critical for the pathogenesis of HD and numerous studies have reported the presence of N-terminal and C-terminal fragments in human STR samples (82). Fragments may be generated by aberrant splicing of HTT or proteolytic cleavage of HTT (83). Particularly, more studies have focused on N-terminal fragments and revealed their pathological significance including their contribution to the formation of inclusions (70, 84 –86). Multiple sites for cleavages by proteases like caspases and calpains and for posttranslational modifications have been identified in the N-terminus (87 –92). In HTT-Knock-In mice, the majority of N-terminal fragments are most likely proteolytic products while the smallest fragment, i.e., the exon 1 protein, may be a product of incomplete splicing (93).

An early study had reported the presence of 40 kDa HTT fragments in cortical samples from juvenile HD patients (65- > 70 CAG) but not in those from controls which are the predominant species in the nuclear fraction (12), implying a primary role in NII formation. In our immunoblotting studies of the two brain regions, fragments of HTT (45–48 kDa) were not detected in the CTX but were readily detected in the STR where they were present at much higher levels in samples of HD patients than those of control cases. Together with the data from DiFiglia et al. (12), our data suggest region-specific, disease severity-dependent, and/or CAG length related generation of the fragments. These 45–48 kDa species can be considered as N-terminal fragments detected by the N-terminal antibody mEM48 but not by the Ab D7F7 which targets residues surrounding Pro1220 (not shown). Further, based on their size of 45–48 kDa, it is possible that they are generated from the cleavage at one of the calpain proteolytic sites, 437 (88), but not from other known calpain and caspase cleavages downstream (i.e., calpain at 469 and 536; caspase at 513, 552 and 586) (87, 88) to yield larger fragments. However, these fragments could also arise from sequential proteolytic cleavages of initial fragments generated by these proteases (88, 89). In addition, contribution of aspartic endopeptidases (86) and/or matrix metalloproteinase (at aa 402) (94) to the generation of these fragments may also be considered. On the other hand, such interpretations may not be accurate or necessary given that many posttranslational modifications may occur at the N-terminus (87) and that the gel migration of the HTT fragments are retarded by the expanded polyQ tract as mentioned previously (83, 95). All of these possibilities for fragment speciation make it difficult to establish the actual aa sequence size and the responsible protease(s). However, no matter how these fragments are generated, their specific increase in the HD STR (vs the controls) starting at HD2 may suggest their involvement in inclusion formation and proclivity to form inclusions rather than indicate only a deficit in their clearance by the proteolytic systems.

Pharmacologically targeting ALP is currently being debated as a potential therapeutic strategy for HD, yet our understanding of the role of ALP in human HD pathogenesis is limited. In our investigation, we assessed, for the first time, the competence of the multiple steps in ALP in the highly vulnerable striatum as well as in the neocortex of the HD brain and controls at early and late stages of disease progression. Our analyses have yielded evidence that ALP function is unimpaired during the early symptomatic stages of HD. By contrast, evidence for failure of the lysosomal-related clearance steps of ALP contributing to progressive HTT build-up emerges mainly at advanced disease stages. Our findings underscore the importance of ALP as a clearance mechanism for clearing pathogenic mHTT in at-risk individuals and likely for delaying disease onset. Equally importantly for the clinical translation of these findings, the preservation of competent autophagy early in symptomatic HD supports a potential opportunity to intervene therapeutically during these early stages of HD by stimulating autophagy flux with pharmacological inducers, as proposed by others (36, 96). In this vein, administration of an mTOR inhibitor to 6-mo-old Q175 mice successfully normalized LY number, ameliorated aggresome pathology while reducing the levels of HTT-, p62- and Ub-immunoreactivity (53).

Brain tissue: Brain samples were obtained from the following brain banks: Harvard Brain Tissue Resource Center (HBTRC), Emory Center for Neurodegenerative Disease (ECND) and New York Brain Bank at Columbia (NYBBC). These banks use Vonsattel's grading system of neuropathological severity to stage brains from individuals diagnosed clinically as having HD as Grade 0 to Grade 4 (HD0 – HD4) (5). Three brain regions were used in this study (STR = caudate nucleus of the striatum, CTX = prefrontal cortex, CBM = cerebellum) as indicated in Table 1 which provides detailed demographic information.

Antibodies for immunohistochemistry (IHC), western blotting (WB): The following primary antibodies were used in this study. (1) from Cell Signaling Technology: tHTT rabbit mAb (clone D7F7, #5656, targeting residues surrounding Pro1220 of human HTT and detecting total HTTs), p70S6K pAb (#9202), p-p70S6K (T389) pAb (#9205), ULK1 pAb (#4773), p-ULK1 (S757) pAb (#6888, #14202; detecting S757 or S758 of mouse or human ULK1, respectively), ATG5 rabbit mAb (#12994), ATG7 pAb (#2631), ATG13 rabbit mAb (#13273), p-ATG13 (S355) rabbit mAb (#26839), VPS34 rabbit mAb (#81453), TRAF6 rabbit mAb (#8028), Calnexin rabbit mAb (#2679). (2) from Millipore-Sigma: ntHTT mAb (N-Terminus-specific, mEM48, #MAB5374, preferentially recognizing aggregated HTT)(13), ATG5 pAb (#ABC14), K48- or K63-specific ubiquitin mAb (#05–1307, #05–1308, respectively), βIII-tubulin mAb (#SAB4700544), β–actin mAb (#A1978). (3) from other vendors: BECN1 mAb (BD Biosciences, #612113); LC3 pAb (Novus Biologics, #NB100-2220), ATG9 (Novus Biologics, #B-110–56893); p62 mAb (BD Biosciences, #610832) or C-term-specific p62 Guinea Pig pAb (Progen Biotechnik, #C-1620); total ubiquitin pAb (Dako Agilent, #Z0458), LAMP1 or LAMP2 rat mAb (Developmental Studies Hybridoma Bank, University of Iowa, #H4A3 or #H4B4, respectively); CTSD sheep pAb (D-2–3, in-house made) (97); CTSD pAb (Scripps Laboratories, #RC245), CTSD mAb (CD1.1, in-house made) (65); CTSB pAb (Cortex Biochemicals, #CR6009RP), CTSB goat pAb (Neuromics, #GT15047).

The following secondary antibodies and reagents for immunoperoxidase labeling were purchased from Vector Laboratories (Burlingame, CA): biotinylated goat anti-rabbit or -mouse IgG/IgM, Vectastain ABC kit (PK-4000), and DAB Peroxidase Substrate Kit (SK-4100). The following secondary antibodies for immunofluorescence were purchased from Thermo Fisher Scientific (Waltham, MA): Alexa Fluor 568-conjugated goat anti-mouse IgG (A11031), Alexa Fluor 488-conjugated goat anti-rabbit IgG (A11034), and Alexa Fluor 568-conjugated goat anti-rabbit IgG (A11036).

Immunolabeling of brain sections: Formalin-fixed tissue blocks of human brain (Table 1) were sectioned at 40 µm on a vibratome, or paraffin embedded and sectioned at 7 µm. Sections were deparaffinized as necessary. Antigen-retrieval was performed by boiling sections in sodium citrate buffer at 95 °C for 30 min. Sections were blocked and incubated in primary antibody O/N (up to 3 days in some cases) at 4 °C. Alexa-Fluor conjugated secondary antibodies were used for immunofluorescence and ABC detection method was used for immunoperoxidase labeling with DAB. Autofluorescence was quenched with 1% Sudan black (Sigma-Aldrich; St. Louis, MO) in 70% ethanol for 20 min. DAB labeling was inspected on a Zeiss AxioSkop II equipped with a HrM digital camera (Carl Zeiss, Germany). Immunofluoescent images were collected on a Zeiss LSM510 Metal confocal microscope.

Ultrastructural analyses: For EM, vibratome sections of human brain (Table 1) were post-fixed in 1% osmium tetroxide. Following alcohol dehydration, sections were embedded in Epon (EMS, Hatfield, PA). One-micron-thick sections were stained with toluidine blue for light microscopic examination and ultrathin sections prepared and stained with uranyl acetate and lead citrate. Material was viewed with a Philips CM 10 electron microscope equipped with a digital camera (Hamamatsu, model C4742-95) aided by AMT Image Capture Engine software (version 5.42.443a).

Post-embedding IEM with gold-conjugated secondary antibody was performed to detect mHTT (antibody mEM48), pan-Ub, p62 and CTSD signal in neuronal cell bodies and the neuropil using a previously described protocol (88). Ultrathin sections were placed on nickel grids, air-dried, and etched briefly with 1% sodium metaperiodate in PBS followed by washing in filtered double-distilled water and incubated with 1% BSA for 2 h. Sections then were incubated overnight in the Rabbit anti-CTSD antibody (RU2, 1:1000) in a humidified chamber overnight at 4 °C, washed in PBS, and incubated in an anti-Rabbit IgG secondary antibody conjugated with 10-nm gold particles (Amersham, Buckinghamshire, UK) for 2 h at room temperature. Grids were washed and briefly stained with uranyl acetate and lead citrate before examination.

Please note that the majority of EM images were from one HD4 case which had shorter PMI and exhibited an exceptionally high level of preservation of ultrastructure compared to over 20 postmortem HD brains surveyed. We did examine additional HD4 and HD3 cases (Table 1) to survey similar info to what we found from the above HD4 case, however, their ultrastructure was suboptimal for performing quantitative EM analyses.

Preparation of tissue extracts: Grey matter (0.5 g) was dissected from the STR and the CTX (Brodmann's area 9/10) of human brains (Table 1) and homogenized in RIPA buffer (50 mM Tris/HCl pH 7.4; 0.15 M NaCl; 5 mM EDTA; 1 mM EGTA; 0.5% Sodium deoxycholate; 1% NP40, 0.1% SDS with protease inhibitors 1 mM AEBSF (Gold Biotechnology, St. Louis, MO) and 20 µg/ml of leupeptin and pepstatin (US Biochemicals, Cleveland, OH), and phosphatase inhibitor microcystin LR (1 ng/ml, Enzo). Lysates were frozen and thawed 3 times followed by centrifugation at 10,000 g for 30 min to yield a total tissue lysate supernatant. Protein content was determined by the BCA method (98). Brain lysates were examined by western blotting for various marker proteins for the ALP.

SDS-PAGE and western blotting: Lysate extracts (10–40 µg total protein) were separated on 4–20% or 10% Tris–glycine SDS-PAGE gels and transferred to nitrocellulose (Pall, Pensacola, FL) for probing with antisera as noted along with appropriate external controls. Blots were blocked for 1 h at 37 °C in 1 × TBST containing 5% blotting grade dry milk (W/V), incubated in 1° Ab in block solution O/N at 4 °C, washed 3 × 10 min in TBST at RT followed by incubation with 2° Ab conjugated to horseradish peroxidase diluted in block solution for 90 min at RT. Blots were washed 3 × 10 min and immunoreactive bands were visualized with ECL reagent (RPN2209, Millipore Sigma) and the bands were quantified using MultiGauge V. 3.0 (Fuji Film) software. Target proteins were normalized following stripping and reprobing against ACTB as a housekeeping protein, and/or with bands on uncompressed original total protein-stained blots with Ponceau S Red stain or Revert 700 Total Protein Staining (Li-Cor, Lincoln, NE) prior to immunostaining.

It is important to note that lysates for regional analyses were run together, transferred to the same membrane for immunoreaction and imaging together to normalize results (see Source Data files). Exposures were approximated for multiple conditions based on levels found for external controls as noted in Results. In some cases, especially in cases of assaying housekeeping or other highly expressed antigens that exposure times are difficult to control and maintain signal linearity on film, blots were developed using DAB enhanced with nickel. Blots were stripped in 0.2 M HCl, pH 2.2 containing 0.1% SDS and 1% Triton X-100 for 1.5 h at 25 °C and reprobed using the above protocol.

RNA preparation: For routine qPCR analyses 100 mg of grey matter from the STR and the CTX (Brodmann's area 9/10) of human brains (Table 1) was dissected and extracted in 1.5 ml Trizol reagent (ThermoFisher/Life Technologies, 15,596,026) using a hand-held homogenizer (6 × 15 s bursts)(Pro-Scientific, Oxford, CT) followed by mixing with 300 µL of chloroform. Samples were centrifuged at 12,000 g for 15 min at 4 °C. The aqueous phase was collected and 750 µL isopropanol was added; samples were spun again at 12,000 g for 10 min at 4 °C. Supernatant was removed and pellet washed 2 times with 75% ice-cold ethanol and centrifuged 7500 g for 5 min at 4 °C. The pellet was redissolved in 100 µL of RNAase-free distilled water. Total RNA quality (RNA Integrity Number, RIN) was assessed on an Agilent Bioanalyzer using an RNA Nanochip (2100; Agilent Technologies; Santa Clara, CA). RNA quantity was interpolated from the Agilent chip by using an RNA ladder with a known concentration of 150 ng.

Preparation of cDNA and qPCR: Starting concentrations of total RNA were normalized for samples whose concentrations were estimated on different Agilent chips. cDNA was prepared using TaqMan Reverse Transciption Reagent kit (Applied Biosystems; Branchburg, NJ) according to manufacturer's instructions. Following reverse transcription, sample cDNA was loaded in triplicate into wells of a 96-well optical reaction plate containing appropriate target gene primer (Applied Biosystems, Branchburg, NJ). GAPDH (glyceraldehyde 3-phosphate dehydrogenase), ACTB (actin β), and HPRT1 (hypoxanthine phosphoribosyltransferase 1) were run as housekeeping genes, also in triplicate, for each sample and on the same plate, as endogenous controls. Total reaction volume per well was 20µL. qPCR was performed in the ABI Prism 7900HT Sequence Detection System (Applied Biosystems Branchburg, NJ) as described previously (99).

Calculation of qPCR results: Following qPCR, the target genes were normalized against housekeeping genes GAPDH and ACTB. Results were calculated using the ΔΔCt method (Applied Biosystems, Branchburg, NJ Bulletin #2). Control values were averaged, and sample values were recalculated and expressed as percent of control. Outliers were recognized as values falling beyond two standard deviations of mean and were discarded from the analyses.

Enzymatic assays in brain homogenates: CTSB and CTSL were assayed by measuring the release of 7-amino-4-methylcoumarin (amc) from Z-Phe-Arg-amc at pH 5.5 (substrate recognized by both enzymes (Enzo, Plymouth Reading, PA) modified from the method of Barrett and Kirschke (100) to utilize microplate procedures. Typically, assays were performed in black microplates in a volume of 100 µl mixture (1–5 µl of enzyme in 50 mM NA-Acetate, pH 5.5 containing 1 mM EDTA and 10 µM Z-Phe-Arg-amc). Fluorescence of amc released was read at different time points in a Wallac Victor-2 spectrofluorimetric plate reader with a filter set optimized for detection of amc standard solution with excitation at 365 nm and emission at 440 nm. The reaction was linear up to 2 h. Enzyme activity was expressed as the amount of amc released per hour per mg protein.

CTSD was assayed at 37 °C at pH 4.0 by measuring the release of amc containing peptide, 7-methoxycoumarin-4-acetyl-Gly-Lys-Pro-Ile-Leu-Phe from 7-methoxycoumarin-4-acetyl-Gly- Lys-Pro-Ile-Leu-Phe-Phe-Arg-Leu-Lys (Dnp)-D-Arg-NH2 (BioMol-Enzo, Plymouth Reading, PA), according to the method of Yasuda et al. (101). Assays were performed in black microplates in a total volume of 100 µl (0.1 M sodium acetate buffer pH 4.0 containing 20 µM substrate with and without 3 µg of pepstatin) for one hour. Fluorescence released was read in a Wallac Victor-2 Spectroflurimetric plate reader with a filter optimized for detection of amc standard solution with excitation at 365 nm and emission at 440 nm. However instead of using amc standard, a quenched standard 7-methoxycoumarin-4-acetyl-Pro-Leu-OH was used for expressing enzyme activity to account for the release of peptide containing amc instead of free amc. Enzyme activity was expressed as the relative amount of quenched standard released per hour per mg protein. The specific activity of cathepsins were calculated by calculating the ratio of enzyme activity to the densitometric data obtained from western blots for each enzyme.
