Generation of hiPSC-Derived Brain Microvascular Endothelial Cells Using Directed Differentiation and Transcriptional Reprogramming

All RNA sequencing data generated by this study have been made publicly available at the Gene Expression Omnibus repository and can be accessed with the reference number GSE267498. All other data that support the findings of this study are available from the corresponding author upon reasonable request.

All experiments were performed using the human control iPSC line IMR90-cl.4 (WiCell).IMR90-cl.4 iPSCs with heterogenous or homozygous() mutationwere also used for experiments described in Figure, and the mutation was confirmed by genotyping before differentiation. For key validation of EC identity and BBB structural and functional properties, we repeated a subset of experiments in other iPSC lines, namely, human control iPSC line FA0000010 (FA10), ND50031 (NCRM-5), and ND50025 (NCRM-4; RUCDR). IMR90-cl.4 and NCRM-4 were derived from female donors, while FA10 and NCRM-5 were from male donors. All commercial cell lines were previously authenticated and tested for pluripotency.For differentiation into bpECs or neural progenitor cells (NPCs), iPSCs were maintained on feeder culture of irradiated CF1 mouse embryonic fibroblasts with the human embryonic stem cell medium: knockout DMEM (Dulbecco's Modified Eagle Medium), 20% knockout serum replacement (Thermo Fisher), 2-mmol/L Glutamax (Thermo Fisher), 0.1-mmol/L MEM nonessential amino acids (Thermo Fisher), 1% penicillin-streptomycin (Thermo Fisher), and 0.1-mmol/L β-mercaptoethanol (Thermo Fisher) supplemented with 20-ng/mL bFGF (basic fibroblast growth factor; R&D) and passaged when 80% to 90% confluent. Feeder-free hiPSCs were maintained in StemFlex medium (Thermo Fisher) containing penicillin-streptomycin (Thermo Fisher) on Cultrex-coated plates (Bio-Techne). hiPSCs were frozen in 45% knockout serum replacement, 45% StemFlex, and 10% dimethyl sulfoxide. Cultures were passaged 1:3-1:6 using ReLeSR (StemCell Technologies) every 3 to 4 days. Mycoplasma testing was performed when cells were initially acquired and periodically thereafter. Please see thein thefor more details. ³⁶ Lon , ^{37 38} , ^{36 39} APP V717I 5 Major Resources Table Supplemental Material

hiPSCs were differentiated into bpECs as previously reported with slight modifications.hiPSCs were dissociated with collagenase-IV, and cell aggregates were plated in chemically defined media: 50% IMDM (Thermo Fisher), 50% Ham's F12 (Thermo Fisher), 5-mg/mL BSA (Thermo Fisher), 15-µg/mL transferrin (Sigma-Aldrich), 0.1-mmol/L β-mercaptoethanol (Thermo Fisher), 7-µg/mL insulin (Sigma-Aldrich), 1% penicillin-streptomycin (Thermo Fisher), or 1-µg/mL fibronectin (Sigma-Aldrich) coated 10-cm dishes from one well of a 6-well plate to 1 10-cm dish. Chemically defined media were supplemented with 10-ng/mL BMP4 (R&D) for 1.5 days and 50-ng/mL BMP4 and 20-ng/mL bFGF (R&D) for the next 3.5 days for the generation of mesodermal lineage cells. From days 5 to 10, endothelial differentiation was initiated by supplementing chemically defined media with 50-ng/mL VEGF (vascular endothelial growth factor)-A(R&D) and 100-ng/mL thymosin-β4. ECs were purified at days 10 and 11 by fluorescence-activated cell sorter (FACS) for CD31/cadherin-5cells. These ECs, now termed bpECs, were plated on collagen IV/fibronectin-coated plates at a density of 30 000 to 35 000 cells/cmand fed EC medium (human endothelial serum-free medium [Thermo Fisher]) supplemented with 1% human serum (Sigma-Aldrich) supplemented with 50-ng/mL VEGF-A(R&D), 20-ng/mL bFGF (R&D), and 10-μM SB431542 (Sigma-Aldrich). bpECs were expanded and passaged 1:2 to 1:3 every 7 to 10 days and generally used for 5 passages. ³⁵ + + 2 165 165

bpECs were plated at 30 000 to 35 000 cells/cmon collagen IV/fibronectin-coated plates using EC media supplemented with 50-ng/mL VEGF165, 20-ng/mL bFGF, and 10-µM SB431542. On day 2, bpECs were transduced with FOXF2 (≈1×10lentiviral p24 units/mL of medium) and ZIC3 (≈7.5×10lentiviral p24 units/mL of medium) as determined by Lenti-X GoStix (Takara). Successfully infected cells were selected with 1-µg/mL puromycin (Sigma) for 24 to 48 hours. Infected bpECs were purified via FACS for CD31/VE-cadherin (vascular endothelial cadherin)cells on day 14. FACS-purified and infected bpECs, referred to as rBMECs, were plated on collagen IV/fibronectin-coated plates at 25 000 to 35 000 cells/cmand expanded until confluent. rBMECs were passaged at high density using 1:2 to 1:3 splits every 7 to 10 days and used within 5 passages. 2 6 5 + + 2

FOXF2 and ZIC3 were subcloned into pLex_307, which was a gift from David Root (Addgene), and verified by Sanger sequencing (Azenta). FUW-tetO-NFIA was a gift from Lorenz Studer (Addgene).FUdeltaGW-rtTA was a gift from Konrad Hochedlinger (Addgene).psPAX2 was a gift from Didier Trono (Addgene). VSV.G was a gift from Tannishtha Reya (Addgene).Lentiviral particles for FOXF2, ZIC3, NFIA (nuclear factor 1 A-type), and rtTA (reverse tetracycline-controlled transactivator) were generated in HEK293 as described previously,using the psPAX2/VSV.G second-generation system. Efficacy of lentiviral particles was confirmed by infection and subsequent qPCR (quantitative polymerase chain reaction). ^{40 41 42 43}

Cells were dissociated into a single-cell suspension using Accutase (Thermo Fisher) and washed with basal medium. Cell suspensions were incubated with FACS buffer (10% knockout serum replacement in DPBS) with fluorescently tagged antibodies (CD31-fluorescein isothiocyanate and VE-cadherin-APC) for 30 minutes at room temperature, protected from light. Cell suspensions were washed with FACS buffer, and cell pellets were resuspended for FACS by filtering through 0.45-μM filters (Fisher Scientific) to remove cell aggregates. bpECs or rBMECs were sorted on the Sony MA900 cell sorter, and CD31/VE-cadherincells were subsequently expanded. + +

HBMECs (Cell Systems) were cultured in Endothelial Cell Growth Medium MV 2 (Promocell). Pericytes were cultured in pericyte media (PM; ScienCell), and astrocytes were cultured in astrocyte media (AM; ScienCell). HBMECs and pericytes were plated onto collagen IV and fibronectin-coated plates, while astrocytes were plated onto either Matrigel- or Cultrex-coated plates. All cells were supplemented with media every other day and passaged using Accutase once 90% confluent.

Briefly, feeder-free iPSCs were differentiated into neural crest pericytes following an established protocol, where iPSCs were treated with a neural crest differentiation medium supplemented with CHIR99021 and subsequently treated with PM (ScienCell).Cells were later sorted on CD146+/PDGFRβ+ to ensure a homogeneous population before introduction into the 3D NVU triculture system. ⁴⁴

hiPSCs were first differentiated into NPCs using dual-SMAD inhibition in embryoid bodies as previously describedand then differentiated into astrocytes (iPSC-derived astrocytes [iACs]).On day −1, NPCs were dissociated using Accutase and plated at a density of 15 000 cells/cmin N2/B27 media on Cultrex-coated plates. On day 0, the media was replaced with supplemented AM (ScienCell). On day 1, differentiating cells were transfected with lentiviral particles carrying dox-inducible NFIA and rtTA (Addgene). Cells were fed every other day using AM supplemented with doxycycline (2 μg/mL; Sigma-Aldrich). Cells were split at 90% to 95% confluence roughly once every 7 days and replated at a density of 15 000 cells/cmfor 30 days. At this stage, astrocytes were split 1:3 once 90% to 95% were confluent and were expanded, banked, and utilized. ^{45 46} 2 2

RNA was extracted using the RNeasy Plus Micro Kit (Qiagen) and resuspended in 30 µL of RNAse-free water. RNA quantity and quality were assessed with a Nanodrop One (Thermo Scientific). For qPCR, 100 to 250 ng of RNA was transcribed into cDNA using the Maxima First Strand cDNA Synthesis Kit (Thermo Fisher). Gene expression was assessed using the FAST SYBR Green Master Mix (Thermo Fisher Scientific) with primer sets (Integrated DNA Technologies) for target genes on a QuantStudio 7 Flex system (Applied Biosystems) and CFX Opus 384 (Bio-Rad). Gene expressions for target genes were normalized to GAPDH, and fold changes were calculated as ΔΔC. t

ECs were harvested using RIPA Lysis Buffer supplemented with Halt protease and phosphatase inhibitors single-use cocktails (Thermo Fisher) on ice; 10 μg of lysates and 1× Laemmli sample buffer/5% β-mercaptoethanol were boiled at 95° C for 5 minutes. SDS-PAGE was performed by loading samples on Bolt 4% to 12% gradient Bis-Tris gels using Bolt MOPS buffer (Thermo Fisher) or Tris-Acetate 3% to 8% gels using NuPAGE Tris-Acetate Running Buffer for ABCC4 (Thermo Fisher). Nitrocellulose membranes were first blocked with Superblock TBS buffer/0.1% Tween-20 (Thermo Fisher) for 1 hour and then incubated overnight at 4° C with the following primary antibodies diluted in Superblock/0.1% Tween-20: CLDN-5 (claudin-5; 1:1000; Thermo Fisher), OCLN (1:1000; Thermo Fisher), VCAM-1 (vascular cell adhesion molecule-1; 1:1000, Abcam), pSTAT3 (phosphorylated signal transducer and activator of transcription-3; 1:1000, BioLegend), STAT3 (signal transducer and activator of transcription 3; 1:1000, BioLegend), total CAV1 (caveolin-1; 1:1000, Sigma-Aldrich), p-CAV1 (phosphorylated caveolin-1; 1:1000, Cell Signaling), ABCC4 (ATP-binding cassette sub-family C member 4; 1:1000, Cell Signaling), and GAPDH (1:5000; Sigma). After 3 washes with TBS/0.1% Tween-20, membranes were then incubated with the appropriate HRP-conjugated secondary antibody (1:5000, Thermo Fisher) or IRdye 800 secondary antibody (1:20 000, LicorBio) for 1 hour and washed 3 more times with TBS/0.1% Tween-20. Pierce ECL Western blotting substrate or SuperSignal West Pico PLUS chemiluminescent substrate (Thermo Fisher) was used to develop chemiluminescence, and blots were imaged using the Bio-Rad Chemidoc MP system. IRDye-stained blots were imaged directly using the 800 Channel on the LICOR Odyssey SA.

TEER measurements were performed using the ECIS (Electric Cell-substrate Impedance Sensing) Z-theta instrument on the 96W20idf array at 4000-Hz frequency. Briefly, 20 000 cells/well were plated on poly-D-lysine and collagen IV/fibronectin-coated 96-well electrode array plates in the respective medium for each cell type. Resistance was recorded for 250 to 300 hours, and the medium was changed every other day. The resistance curve was generated using PRISM (GraphPad), and the area under the curve was measured either for the last 100 hours of recording or for the duration of oAβ42 or cytokine treatment (72 or 24 hours) from 6 to 8 wells/sample using the area under the curve PRISM function.

Tracer permeability assay for the determination of paracellular permeability was performed as previously described.rBMECs, bpECs, and hBMECs were cultured on 12-well polycarbonate Transwell inserts (0.4 µM, Corning) for 10 days to ensure a complete monolayer. Growth factors were removed for 24 hours before assay. A full media change was performed on the bottom chamber (1.5 mL), and all 3 tracers (sodium fluorescein, 10 µg/mL; 3-kDa dextran, 25 µg/mL; and 70-kDa dextran, 25 µg/mL) were added to the top chamber in 0.5-mL medium to start the assay. As soon as tracers were added, 100-µL medium was collected from the bottom chamber as a 0-minute collection and replaced with 100-µL fresh media for each well, followed by serial collection every 10 minutes for up to 60 minutes. Fluorescent intensities were measured, and clearance slopes were calculated using ⁴⁷

ΔV=C×V/C bottom bottom upper.

Cand Care fluorescent intensities measured for each tracer in the top and bottom chambers, respectively, and Vis the volume of media in the bottom chamber (1.5 mL) bottom upper bottom

P=PS/s and P=PS/s. filter filter cell+filter cell+filter

Pand Pare permeability coefficients for blank insert and insert with cells, and PSand PScan be obtained by a regression plot of ΔV against time for blank insert and insert with cells filter cell+filter filter cell+filter

1/P=1/P−P. e cell+filter filter

Pe is the permeability coefficient for EC monolayers.

Cells were plated at a density of 100K/well (24-well plate). Once confluent, cells were fed their standard media absent VEGF and bFGF supplementation. Monolayers were scratched in the center of each well using the Autoscratch machine (BioTek). Wells were then treated with either control media, 100-ng/mL VEGF, or an angiogenic cocktail consisting of VEGF (37.5 ng/mL), bFGF (37.5 ng/mL), and HGF (37.5 ng/mL). Plates were cultured and imaged automatically every 6 hours using the Cytation5 plate reader (BioTek) and software for HBMECs (24 hours) and bpECs and rBMECs (36 hours) during culture in a BioSpa incubator (BioTek). Each well was quantified for the % surface area of the wound utilizing an ImageJ plug-in for identifying the area of the scratch,which was then normalized to the original size of the wound for each well. To compare cell types, we calculated an angiogenic potential, where ⁴⁸

After the wound scratch assay was performed, cells were fixed with 4% PFA. Cells were blocked as described above and stained with Ki67 (Antigen Kiel 67) antibody (1:500). Cells were labeled with a GFP (green fluorescent protein) secondary antibody and 4′,6-diamidino-2-phenylindole (DAPI). Wells were imaged for DAPI and GFP fluorescence on the BioSpa as done previously. Each well was quantified for proliferative index, where

Cells were identified as Ki67 or DAPI positive using the annotation machine learning tool from the QuPath software. ⁴⁹

As previously described,cells were plated at a density of 100K/well (24-well plate) and subcultured until confluent. First, cells were incubated with either 1-mg/mL unlabeled BSA or 1-mg/mL BSA-Alexa 594 for 1 hour at 37 °C. Cells were then dissociated into a single-cell suspension, stained for eFluor 780, fixed with 4% PFA, and analyzed for Alexa594 median fluorescence intensity (MFI). For the transporter assay, cells were incubated with Rhodamine 123 (10 µM) for 1 hour at 37 °C. To assess the effect of PGP (P-glycoprotein) efflux, cells were pretreated with PSC-833 (a specific PGP inhibitor) for 1 hour before Rhodamine treatment. Cells were dissociated into a single-cell suspension, stained for eFluor 780, fixed with 4% PFA, and analyzed for Rhodamine MFI. NPCs were utilized as a positive control due to their low level of PGP efflux. Data were normalized to the unstained MFI for each cell type, which we termed fold change in MFI. To calculate PGP efflux, we calculated the percent change in MFI with and without PSC-833 ⁵⁰

Amyloid-β42 was monomerized, stored, and later oligomerized as previously described.In brief, Aβ(1-42; rPeptide, 1 mg) vial was allowed to equilibrate to room temperature. Peptides were resuspended in ice-cold hexafluoroisopropanol (Sigma-Aldrich) to achieve a 1-mmol/L concentration directly in a vacuum-sealed vial using a Hamilton syringe. The suspension was divided into 8 equal aliquots by volume using a Hamilton syringe into low protein–binding Eppendorf tubes, incubated at room temperature for 2 hours, and dried on speedvac at 800for 25 °C. Upon drying, monomerized Aβ(1-42) films can be stored at −80 °C in sealed tubes. For generating oligomers, Eppendorf tubes containing Aβ(1-42) peptide films were equilibrated to room temperature, resuspended in dimethyl sulfoxide to achieve a 5-mmol/L concentration, and sonicated at 17 °C for 10 minutes for complete resuspension. Oligomerization was induced by adding phenol red–free F12 to achieve a final concentration of 100 µM and incubating at 4 °C for 24 to 48 hours. rBMEC monolayers were treated with oAβ at 500 nmol/L or 1 µM for the indicated time, and F12 was used as a vehicle control. , ^{51 52} g

OrganoPlate 3-lane-64 plates (MIMETAS) were used to generate a 3D microfluidic system of the NVU. In each chip, the center channel was filled with an ECM gel, an endothelial tubule was generated in the right channel, and a mixture of iPSC-derived astrocytes and pericytes was seeded in the left channel and allowed to migrate toward the ECs during culture upon a bidirectional OrganoFlow rocker (MIMETAS).

On day 10 post-seeding, a 70-kDa dextran (0.5 µg/mL) and biocytin tracer (0.5 µg/mL) were introduced into the right inlet and outlet wells (40 and 30 µL, respectively). The gel inlet, left inlet, and left outlet wells were filled with 20-µL media without tracer. Then, the plate was placed onto the OrganoFlow rocker and imaged every 15 minutes in the LI-COR. The fluorescence intensity for each well was quantified with the Odyssey SA system. Analysis was performed as the normalized fluorescence intensity over the ECM channel center well, which represented the leakage from the right (vascular) channel into the left (brain) channel

where ECM chips only had a control gel, representing the leakage without cells present.

Chips were assayed for TEER on day 10 post-seeding. After the plate was introduced into the OrganoTEER device, TEER values were measured for the vascular channel using the low-TEER setting, which is suitable for ECs, per the manufacturer.

Total RNA was extracted as previously described.RNA samples underwent quality assessment using the Qubit 2.0 Fluorometer, and RNA integrity was assessed using the Agilent TapeStation 4200. Subsequently, RNA sequencing libraries were prepared using the NEBNext Ultra II RNA Library Prep Kit following the manufacturer's protocol. The samples were sequenced in a 2x150bp Paired-End configuration using the Illumina NovaSeq instrument. Previously published samples were obtained from Gene Expression Omnibus data sets, including GSE138025, GSE40291, GSE57662, GSE131039, GSE97575, GSE73721, GSE97324, GSE138025, GSE122588, GSE129290, GSE97100, GSE126449, GSE108012, GSE151976, GSE85403, GSE82207, GSE77250, GSE82207, GSE157852, GSE243193, GSE225549, and GSE227501. Quality control for the samples was conducted using FastQC,followed by adapter trimming with Skewer (version 0.2.2).The resulting reads were aligned to the human reference genome (hg38) using the STAR aligner,and counts were generated using Subread.Normalization was performed using the trimmed mean of M-values method implemented in the edgeR package.Fragments per kilobase of transcript per million mapped reads and Logcounts per million matrices were generated to account for library size variations. Differential expression analysis was performed using the edgeR package, considering<0.05 and a logfold change <−0.25 or >0.25. Adjustedvalues were calculated using the Benjamini-Hochberg procedure implemented in edgeR. Principal component analysis was performed, and Pearson correlation values were computed using the resulting Logcounts per million values. Heatmaps were generated with the pheatmap packageusing min-max scaling on normalized counts. ^{24 53 54 55 56 57 58} 2 adj 2- 2 P P

Human single-cell RNA sequencing data sets were collected from multiple publicly available resources.All data sets were downloaded and subjected to quality control using the Seurat, version 5.1.0, R package.ECs were identified, captured, and subsequently isolated across all data sets. To generate pseudobulk profiles, the AggregateExpression function was utilized, and raw count data were exported. Following pseudobulk data generation, principal component analysis was performed, and Pearson correlation coefficients were computed based on Log-transformed counts per million values. – ^{59 78 79} 2

Trimmed mean of M-values–normalized counts obtained from edgeR were directly incorporated into the standard Gene Set Enrichment Analysis (GSEA)workflow. Novel gene sets associated with pathways, biological processes, and specific cell types of interest, including VEGF-A signaling, canonical Wnt/β-catenin signaling, noncanonical Wnt signaling, chemokine-cytokine signaling, TGF-β signaling, ECM, cell-cell adhesion, transporters, Notch signaling, angiogenesis, EC proliferation, EC migration, apoptosis, antigen processing and presentation, BBB, inflammation, EndoMT (endothelial-to-mesenchymal transition), and tip cells, were compiled as part of the GSEA analysis (). These gene sets were sourced from the Gene Ontology,KEGG (Kyoto Encyclopedia of Genes and Genomes),DAVID (Database for Annotation, Visualization, and Integrated Discovery),and GSEAdatabases, as previously described.The ranked list of differentially expressed genes, along with the curated gene sets, was uploaded into GSEA 4.3.2 software and analyzed using the Gsea module with the following settings: number of permutations=10 000; collapse/remap to gene symbols=no_collapse; permutation type=gene set; enrichment statistic=classic; and maximum gene set size=1500. All other parameters were kept at their default values. Gene sets with a false discovery rate q value ≤0.01 were classified as significantly enriched (na_pos) or depleted (na_neg). ^{80 81 82 83 80 84} Data Set S1H

Data were analyzed using GraphPad Prism. Individual wells, inserts, or chips were considered biological replicates. All key experiments were repeated independently, and detailed information about sample size, error bars, and the number of experiments is provided in each figure legend, whilevalues are provided in the figure. For comparisons between 2 groups in which data were normally distributed, we performed an unpaired Studenttest if homogeneity of variance was satisfied or an unpairedtest with the Welch correction if homogeneity of variance was not satisfied. For comparisons between >2 groups in which data were normally distributed, we performed an ordinary 1-way ANOVA if homogeneity of variance was satisfied or a Welch ANOVA if homogeneity was not satisfied. For comparisons between >2 groups in which homogeneity of variances was satisfied but data were not normally distributed, we performed the Kruskal-Wallis test. For experiments with 2 independent variables, a 2-way ANOVA with the Bonferroni post hoc test was performed. A repeated measures 2-way ANOVA was utilized to assess changes to wound area at multiple timepoints in the wound scratch assay in FigureI.<0.05 was considered statistically significant. P t t P 1

During early mammalian embryonic development, the mesodermal layer gives rise to generic ECs. These generic ECs surround the neural tube and generate the CNS vasculature under the guidance of VEGF-A (vascular endothelial growth factor A) and Wnt/β-catenin signaling. We hypothesized that iPSC-derived rBMECs could be generated using a 2-step approach mirroring CNS vascular development (FigureA). In the first step, iPSCs were differentiated into bpECs by sequential exposure initially to BMP4 (bone morphogenic protein 4)/bFGF (basic fibroblast growth factor) to generate a mesodermal intermediate followed by VEGF-A/thymosin-β4 using a published protocol with minor modifications(FigureA). bpECs were purified from other mesodermal cells by high expression for CD31(platelet/EC adhesion molecule [PECAM1/CD31])/VE-cadherin(vascular endothelial cadherin, CDH5) using FACS on day 10 of the differentiation (sort A) and expanded on collagen IV/fibronectin-coated dishes in human endothelial serum-free media (FigureA;; see Methods section). Sort A efficiency was similar across all tested iPSC lines (IMR90, FA0000010 [FA10], and NCRM-5;) in line with previously published iPSC-derived EC protocols.In the second stage, bpECs were transduced with lentiviruses expressing FOXF2 and ZIC3. Transduced and reprogrammed bpECs were expanded and repurified by FACS (fluorescence activated cell sorting; sort B) to generate a pure population of rBMECs that could be expanded reliably for 5 passages after purification (FigureA;). After sort B, rBMECs expressed higher levels of CD31 and VE-cadherin proteins on the cell surface compared with bpECs (FigureB andE) with comparable efficiency across iPSC lines (). 1 1 1 1 1 1 ³⁵ + + – ^{85 87} Figure S1A Figure S1C Figure S1A Figure S1D

During barrier genesis, brain ECs express a unique repertoire of TJ proteins and transporters, and decrease caveolar-mediated transcellular transport to protect the brain parenchyma from exposure to various substrates and toxins. To assess rBMECs for structural and functional BBB properties, we first examined the expression of several EC and BBB proteins. The bpECs and rBMECs derived from all 3 iPSC lines expressed high levels of key EC identity proteins (eg, VE-cadherin and CD31; FigureB andE) and BBB TJ proteins (CLDN-5, OCLN, and ZO-1 [zonula occludens-1]) by immunofluorescence staining (FigureC andD;). rBMECs had higher CLDN-5 and OCLN protein levels compared with bpECs by Western blot (FigureF andG). In addition, rBMECs expressed lower total CAVEOLIN-1 protein compared with bpECs although these levels were higher than those present in primary HBMECs (). The ratio of the phosphorylated to total CAVEOLIN-1 proteins, a proxy for transcellular transport, was lower in rBMECs compared with bpECs and equivalent to that of HBMECs (). rBMECs also expressed similar levels of ABCC4 (ATP-binding cassette sub-family C member 4) transporter protein compared with bpECs (). Importantly, rBMECs did not express EpCAM (epithelial cell adhesion molecule) on their surface by flow cytometry (), indicative of an endothelial identity. 1 1 1 1 1 1 Figure S1E through S1J Figure S1K and S1M Figure S1K and S1N Figure S1L and S1O Figure S1B

Angiogenesis occurs before barriergenesis and decreases during CNS development. To assess the angiogenic ability of rBMECs, we measured the proliferative index of hiPSC-derived ECs by immunofluorescence staining for Ki67 and DAPI. rBMECs proliferated at a similar rate to bpECs but at a lower rate than primary HBMECs when cultured in the absence of growth factors (VEGF-A and bFGF; FigureH). To assess the response to angiogenic stimuli, we performed a wound scratch assay on EC monolayers (bpECs, rBMECs, and HBMECs) treated with either basal media or media supplemented with an angiogenic cocktail. We analyzed the area of wound closure over time as a readout of cell migration and proliferation and calculated the angiogenic potential (see Methods section; FigureI andJ;). By 36 hours, rBMEC migration increased in response to the angiogenic cocktail compared with control conditions (FigureI). Primary HBMECs and rBMECs exhibited a comparable angiogenic potential, while bpECs responded more strongly to the angiogenic stimuli (FigureJ). In summary, rBMECs express both key EC and BBB proteins, and proliferate and migrate in response to angiogenic stimuli similar to primary HBMECs, which is a fundamental feature of EC identity. 1 1 1 1 1 Figure S1P through S1Q

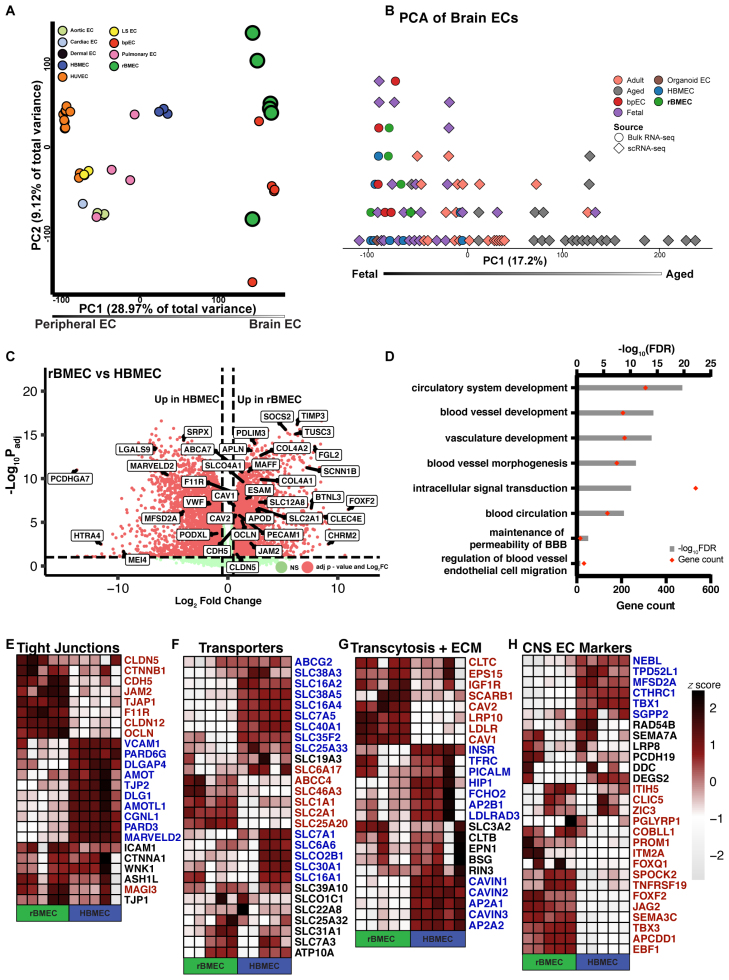

To better characterize the brain-specific EC identity and BBB gene expression repertoire of rBMECs, we performed bulk RNA sequencing (bulk RNA-seq) studies. We used principal component analysis to assess the brain specificity of the rBMEC transcriptome by comparing our data set to the published transcriptome data sets of human peripheral ECs generated in vitro or isolated from specific organs in vivo including cardiac, dermal, pulmonary, and aortic ECs.Based on this analysis, rBMECs clustered closely with bpECs, while primary HBMECs clustered more closely with ECs derived from other organs/tissues (FigureA;). Next, we compared published transcriptome data sets of brain ECs from fetal, adult, and aged sampleswith that of rBMECs to approximate their level of developmental maturity. rBMECs, along with bpECs, cluster more closely to fetal brain ECs and brain organoid ECs and further away from aged brain ECs, suggesting that they are immature in development, similar to other iPSC-derived cells (FigureB;). Finally, we compared the rBMEC transcriptome with that of previously published iBMECs,which verified that rBMECs are not epithelial in nature (;). These transcriptomic analyses confirm that rBMECs have a brain endothelial identity and resemble fetal brain ECs. ,– ^{24 88 90} –,–,–,, ^{59 63 66 73 75 78 91 92 24} 2 2 Data Set S1A Data Set S1B Figure S2A Data Set S1C

We performed differential gene expression analysis between rBMECs and HBMECs, or bpECs, to identify which brain EC identity and BBB gene signatures are distinct among them. Many BBB-relevant genes were differentially expressed between rBMECs and HBMECs (FigureC;), and rBMECs and bpECs (;). Gene Ontology analysis revealed that pathways related to blood vessel development, vasculature development, maintenance of BBB permeability, and regulation of blood vessel EC migration were upregulated in rBMECs compared with HBMECs (FigureD;). Several BBB genes encoding for TJs (eg, CLDN-5, OCLN, and JAM2 [junctional adhesion molecule 2]), transporters (eg, SLC2A1 [solute carrier family 2 member 1], ABCC4, and SLC1A1 [solute carrier family 1 member 1]), receptor-mediated transcytosis (eg, CAV1, CAV2 [caveolin-2], and LRP10 [LDL receptor related protein 10]), and ECM components (eg, COL4A1 [collagen type IV alpha 1 chain] and COL4A2 [collagen type IV alpha 2 chain]) were higher in rBMECs compared with HBMECs (FigureE throughG; red); however, other BBB genes within these categories were either not different or lower in expression (FigureE throughG, black and blue). In addition, rBMECs expressed higher levels of brain EC identity markers (eg, FOXF2, JAG2 [jagged canonical notch ligand 2], SPOCK2 [SPARC, cwcv and kazal like domains proteoglycan 2], TNFRSF19 [NF receptor superfamily member 19], PROM1 [prominin 1], and APCDD1 [adenomatosis polyposis coli down-regulated 1]) compared with primary HBMECs (FigureH), suggesting a closer proximity to a brain EC identity. Although rBMECs shared a similar gene expression profile with bpECs (), several key BBB genes (eg, CDH5, APCDD1, SPOCK2, CLDN-5, OCLN, LRP8 [low-density lipoprotein receptor related protein 8], and JAG2 [jagged canonical notch ligand 2]) were upregulated significantly in rBMECs compared with bpECs (), suggesting improvement in some BBB gene signatures. Moreover, rBMECs showed reduced expression of LAMs (eg, VCAM-1 [vascular cell adhesion molecule -1] and SELP [P-selectin]) compared with either HBMECs or bpECs, indicative of a more mature brain EC identity. We then analyzed the expression of specific zonation markers across arterial, capillary, and venous ECs (see Methods section). Compared with HBMECs, the rBMEC transcriptome showed higher expression of capillary (139) and arterial (115) markers and fewer venous (71) markers (), suggesting that rBMECs have a mixed arterial and capillary zonation identity at the population level. In summary, the rBMEC transcriptome shows stronger expression of several brain EC identity and BBB gene signatures compared with primary HBMECs and bpECs. 2 2 2 2 2 2 2 Data Set S1D Figure S2B Data Set S1F Data Set S1E Figure S2B Figure S2C through S2F Figure S2G

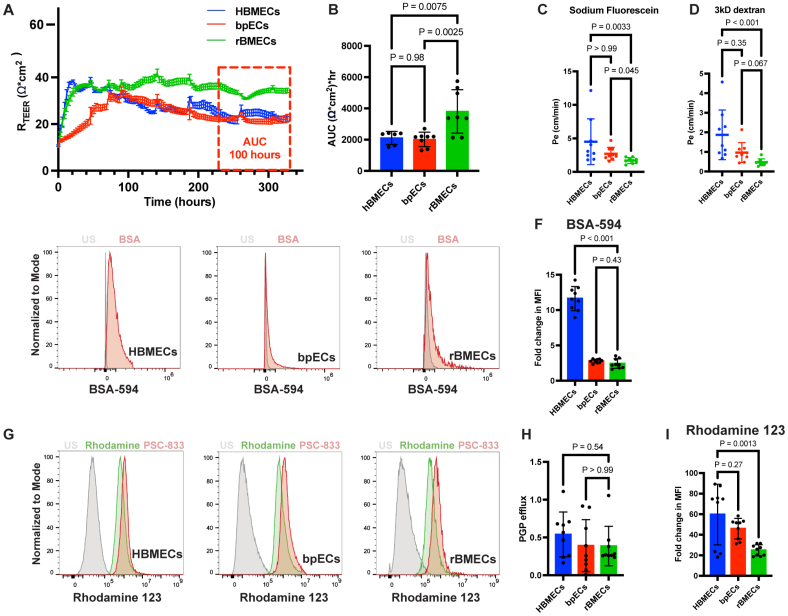

During BBB maturation, brain ECs reduce their paracellular and transcellular permeability via expression of TJ proteins, reduced caveolar-mediated transcytosis, and upregulation of efflux transporters. Therefore, we compared these BBB functions in rBMECs, bpECs, and primary HBMECs. First, we measured TEER over time as a readout of the paracellular EC barrier formed by TJs. IMR90-derived rBMECs had a higher average TEER (40.5±4.2 Ω*cm) compared with either bpECs (25.0±0.4 Ω*cm) or primary HBMECs (24.7±3.0 Ω*cm). The area under the curve for the last 100 hours of TEER recording was 2-fold higher in rBMECs compared with HBMECs (FigureA andB). TEER was also increased in rBMECs derived from 2 other hiPSC lines (FA10 and NCRM-5) compared with primary HBMECs (). Next, we used 3 different molecular weight tracers, sodium fluorescein (=376 Da), and 3- and 70-kDa dextrans to assess their diffusion across the EC monolayer in a transwell system. rBMECs showed a reduced Pe for the smallest tracer (sodium fluorescein) across the monolayer compared with bpECs and HBMECs, indicative of a tighter paracellular barrier (FigureC). Although HBMECs showed a significantly higher Pe compared with rBMECs for the medium-sized tracer (3-kDa dextran), there was no difference between rBMECs and bpECs (FigureD). In contrast, the Pe for the 70-kDa dextran was low across all 3 EC types (rBMECs, bpECs, and HBMECs), suggesting low transcellular-mediated transport (). Overall, these functional data demonstrate that rBMECs have a tighter paracellular barrier compared with bpECs and primary HBMECs. 2 2 2 3 3 3 3 Figure S3A, S3B, S3E, and S3F Figure S3C and S3D

To assess transcellular rBMEC barrier properties, we examined caveolar-mediated transcytosis by incubating EC monolayers with a fluorescently labeled BSA (molecular weight, MW=60 kDa) and measuring its uptake inside cells by flow cytometry. rBMECs and bpECs showed very small changes in the MFI of intracellular fluorescently labeled BSA compared with HBMECs (FigureE andF), indicative of low caveolar-mediated uptake. Finally, we assessed the function of PGP (P-glycoprotein encoded by the ABCB1 [ATP-binding cassette subfamily B member 1]), a transporter that effluxes drugs from the brain to the blood.We incubated HBMEC, bpEC, and rBMEC monolayers with Rhodamine 123, a compound that is pumped out of the brain ECs by PGP,in the presence or absence of a PGP-specific inhibitor, PSC-833. Cells were subsequently analyzed by flow cytometry to assess changes in the MFI of Rhodamine 123, and we calculated the efflux rate based on the MFI change in the presence/absence of the inhibitor as a readout of efflux transporter activity. HBMECs, bpECs, and rBMECs had comparable efflux rates in response to PSC-833, suggesting similar PGP activity (FigureG andH). However, rBMECs had a lower fold change in Rhodamine 123 MFI compared with HBMECs (FigureI), suggesting an overall greater efflux of the dye. These data suggest that rBMECs have an increased efflux of Rhodamine 123 compared with bpECs and HBMECs although PGP activity is similar in all 3 EC subtypes. 3 3 3 3 3 ^{93 94}

The acquisition and maintenance of the BBB occur through local interactions of brain ECs with mural cells and astrocytes via the ECM. We investigated whether rBMECs can interact with iPSC-derived astrocytes and pericytes to generate a fully iPSC-derived human NVU in a 3D microfluidic system (FigureA). We individually differentiated iPCs from a neural crest intermediate following an established protocol with minor modifications() and reprogrammed iACs from NPCs (neural progenitor cells) as previously described(). Then, we cocultured all 3 NVU cell types using the microfluidic 3-lane MIMETAS 64-chip OrganoPlate.rBMECs or HBMECs were introduced on day 0 in the right blood channel against a collagen I/IV gel in the middle ECM channel to enable formation of EC tubules. iACs and iPCs were introduced in the left brain channel after 2 days, and the system was allowed to mature for 10 days with bidirectional flow in a rocking platform(FigureA). By 10 days, rBMECs formed continuous tubules, and iACs and iPCs migrated toward the blood vessel channel to make contact with the brain EC tubules (FigureB). rBMEC tubules were positive for the CD31, VE-cadherin, and BBB TJ proteins, CLDN-5 and ZO-1 (FigureC;). In 3D cocultures of rBMECs with iACs and iPCs, ZO-1ECs were in close proximity to S100β(astrocyte) and PDGFRβ(pericyte) cells, suggesting that iACs and iPCs migrated across the middle ECM channel to contact the rBMEC tubules, which had formed an open lumen (FigureD andE;). Therefore, rBMECs can form tubules and interact with iPSC-derived astrocytes and pericytes to generate a 3D human NVU that incorporates flow in the MIMETAS platform. 4 4 4 4 4 4 ^{44 46} , ^{95 96} , ^{95 96} + + + Figure S4A and S4C Figure S4B and S4D Videos S1 and S2 Videos S3 and S4

To determine whether rBMEC tubules within the 3D microfluidic system showed improved BBB properties when cultured with iPCs and iACs, we performed tracer diffusion studies using small (biocytin, 890 Da) and large (70-kDa dextran) tracers. We introduced the tracers into the EC tubules in the blood channel, allowed them to diffuse across the EC tubules, and measured the normalized fluorescence intensity in the middle ECM channel as a readout of tracer leakage through the EC tubule at 3 distinct time points (15, 30, and 45 minutes). rBMEC tubules exhibited a significantly lower leakage for both biocytin and 70-kDa dextran compared with primary HBMEC tubules, indicative of tighter barrier properties (FigureF throughH). Moreover, rBMEC tubules cocultured with iACs and iPCs exhibited lower permeability to biocytin compared with rBMEC tubules cultured alone for 45 minutes, suggesting that iPCs/iACs increase the barrier properties of rBMEC tubules (FigureH). We then measured TEER across the EC tubule in the 3D microfluidics system using the OrganoTEER instrument from MIMETAS.While there was some variability across experiments consistent with prior published studies in this 3D system,rBMEC tubules displayed, on average, a higher TEER compared with HBMEC tubules alone (FigureI). rBMEC tubules also had a significantly higher TEER when cocultured with iACs/iPCs (FigureI), consistent with reduced tracer diffusion across the 3D iPSC-derived NVU system (FigureH). Thus, rBMECs form stable and continuous tubules in the 3D microfluidic MIMETAS system, and they interact with iPCs/iACs to form an iPSC-derived NVU network with tighter BBB properties resembling more closely the human BBB properties in vivo. 4 4 4 4 4 4 ⁹⁵ , ^{97 98}

Finally, we compared transcriptome changes in rBMECs after culture in the 3D microfluidic system with those in a monolayer culture (2-dimensional). We collected mRNA from 3D rBMEC tubules cultured alone in the MIMETAS for bulk RNA sequencing and compared their transcriptomes to rBMEC samples cultured in static 2D monolayers from Figure(). A subset of BBB-related genes was upregulated in rBMECs after 3D culture including TJ proteins primarily of the MARVEL domain-containing protein (TAMP) subfamily, which are highly expressed by brain ECs (TJP1 [tight junction protein 1], OCLN, MARVELD2 [MARVEL domain containing 2; tricellulin], and CGNL1 [cingulin-like 1]), the regulator of caveolar-mediated transcellular transport MFSD2A (major facilitator superfamily domain-containing protein 2A),several transporters for the thyroid hormone, large neutral amino acids and anions (eg, SLC16A2 [solute carrier family 16 member 2) and SLC7A5 (solute carrier family 7 member 5), and brain EC identity genes (eg, FOXF2, TNF4SF19 [tumor necrosis factor receptor superfamily member 19], TBX1 [T box transcription factor 1], and MARVELD2;). Furthermore, pathways related to EC proliferation, angiogenesis, TJs, adherens junctions, and noncanonical Wnt signaling were also upregulated in 3D-cultured rBMEC tubules compared with 2D rBMEC monolayers by GSEA using a BBB-specific gene list(). This significant transcriptome shift suggests that rBMECs respond robustly to shear stress to upregulate a subset of brain EC identity and BBB-related genes. The upregulation of pathways relating to angiogenesis and proliferation aligns with a prior study showing that shear stress increases expression of angiopoietin-2.Finally, the upregulation of tight and adherens junctions, and other BBB-related genes suggests that rBMECs strengthen their barrier properties in the 3D system. 2 Figure S4E Figure S4F and S4H through S4K Figure S4G ^{99 84 100}

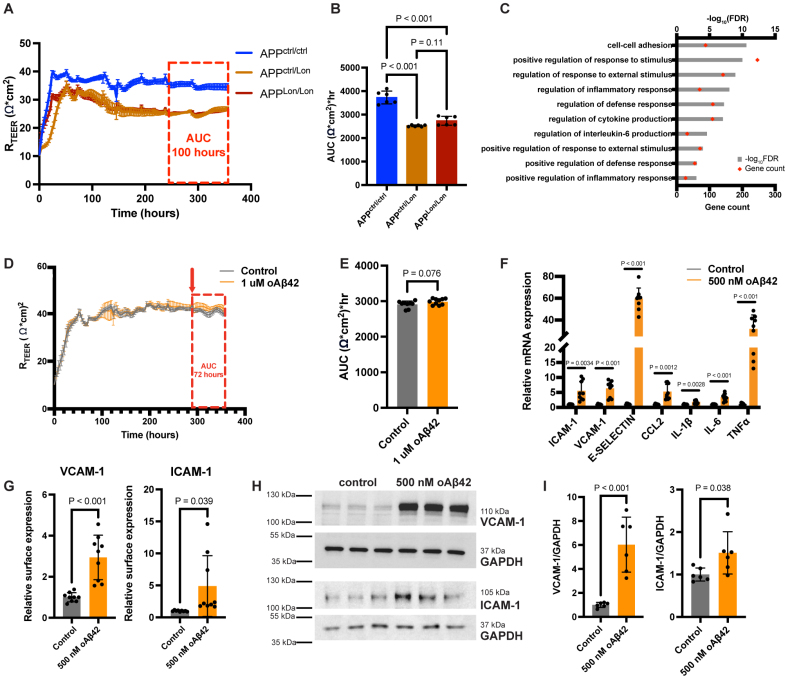

In neurodegenerative diseases such as Alzheimer disease, BBB dysfunction exacerbates disease pathogenesis. However, brain ECs may also be vulnerable at earlier stages of disease, before overt neurodegeneration and BBB leakage.We investigated how an fAD mutation may affect BBB function by generating rBMECs from hiPSCs in which an autosomal dominant mutation(London;) was introduced via CRISPR (clustered regularly interspaced short palindromic repeats) technology.Causative of early onset fAD,, is associated with cerebral amyloid angiopathy in patients and transgenic mouse models.We compared the TEER of rBMECs carrying 1 or 2 copies ofto that of isogenic control rBMECs, which revealed thatrBMECs had reduced TEER (FigureA andB), indicative of reduced barrier integrity. Simultaneously, we performed bulk RNA sequencing to compare the transcriptomes ofand isogenic control rBMECs.rBMECs showed upregulated expression of many inflammatory pathways (FigureC) and several inflammatory cytokines and a subset of LAMs (). These data demonstrate that themutation drives both upregulation of neuroinflammatory signatures and barrier dysfunction in rBMECs. ¹⁰¹ Lon , ^{38 102} , ^{103 104} Lon APP APP V717I APP Lon APP V717I APP Lon APP Lon APP Lon APP 5 5 5 Figure S5A

Because most patients with Alzheimer disease have amyloid deposits in the brain vasculature,we investigated whether treatment of control rBMECs with low concentrations of pathogenic oAβ42 could reproduce the effects seen withbecause this mutation affects Aβ processing. First, we assessed whether oAβ42 affects the paracellular barrier properties of rBMECs. In contrast to published studies showing that treatment with high doses of oAβ42 (10 µM) decreases the TEER of brain ECs,we observed no change in TEER over 72 hours when rBMECs were exposed to either 500-nmol/L or 1-µM oAβ42 (FigureD andE). However, 2 proinflammatory cytokines, TNFα (tumour necrosis factor-alpha) and IL1β (interleukin-1 beta), significantly reduced rBMEC TEER over 24 hours, confirming that control rBMECs can respond to inflammatory molecules to increase their barrier permeability (). Therefore, rBMECs can model both barrier-disruptive conditions driven by neuroinflammation (TNFα and IL1β) or genetic drivers ().Moreover, these findings suggest thataffects brain EC barrier properties independently of Aβ accumulation, similarly to what has been described in APP mutant hiPSC–derived neuronal models. – ^{105 107} Lon ¹⁰⁸ Lon ¹⁰² – ^{109 111} APP APP APP Lon 5 5 Figure S5C and S5D

To determine if oAβ42 affects EC inflammatory activation, we measured changes in LAMs and chemokines via qPCR. VCAM-1 and ICAM-1 (intercellular adhesion molecule-1) were increased after 72 hours of treatment with 1-µM oAβ42 (). CCL2 (C-C motif chemokine ligand 2), a key leukocyte attractant,was also upregulated in rBMECs (). Therefore, rBMECs respond to oAβ42 by upregulating expression of LAMs and proinflammatory cytokines/chemokines. To examine the acute effects of oAβ42, we treated rBMECs with 500-nmol/L oAβ42 for 6 hours and analyzed changes in LAMs and proinflammatory cytokines/chemokines, as possible downstream effectors of oAβ42-mediated BBB dysfunction. oAβ42 increased mRNA expression of ICAM-1, VCAM-1, E-SELECTIN,, IL-1, IL-6 (interleukin 6), and TNFwithin 6 hours (FigureF). In addition, ICAM-1 and VCAM-1 total and surface protein levels assessed by Western blotting and flow cytometry, respectively, were upregulated in rBMECs after acute oAβ42 treatment (FigureG throughI). Finally, we examined potential signaling pathways that might contribute to oAβ42-induced inflammatory phenotypes in rBMECs. Phosphorylation of STAT3 (signal transducer and activator of transcription 3), a key mediator of proinflammatory processes in brain ECs,was elevated in rBMECs treated with oAβ42 (). Therefore, β-amyloid peptides may act as a proinflammatory stimulus in rBMECs to upregulate expression of a subset of the EC inflammatory gene repertoire relevant for increased interactions with immune cells. Overall, these data show that rBMECs have strong functional BBB properties and are suitable to study neuroinflammatory and neurodegenerative states, suggesting that they could be a valuable model for future investigations of BBB contribution to disease. Figure S3G Figure S5B Figure S5E and S5F ¹¹² , ^{113 114} CCL2 β α 5 5 5

While rBMECs have robust brain EC molecular identity and BBB functional properties, they do not fully recapitulate all aspects of the BBB transcriptome including expression of some BBB-specific transporters such as MSFD2A. Furthermore, lentiviral-mediated overexpression of FOXF2 and ZIC3 may present challenges in reproducibility due to variable lentiviral efficiency and triggering potential antiviral immune responses. It should also be noted that although multiple lots of primary HBMECs from a commercial source were used for comparison with bpECs and rBMECs, other groups have reported better properties of these cells than those reported here, which likely reflects variability among individual commercial lots. Despite these limitations, primary HBMECs are a more appropriate control to compare the rBMECs rather than iPSC-derived iBMECs generated by prior protocolsbecause iBMECs have molecular and transcriptome features of epithelial cells. – ^{17 23 24}

The authors thank Raphael Lis for providing FOXF2 (forkhead box F2) and ZIC3 (zic family zinc finger 3) expression plasmids and Paroma Mallick in Alejandro Chavez's laboratory for subcloning FOXF2 and ZIC3 into pLEX_307 plasmid. Flow cytometry and cell sorting experiments were performed in the Columbia Stem Cell Initiative Flow Cytometry Core Facility under the guidance of Michael Kissner.

A. Cui, R. Patel, P. Bosco, D. Agalliu, and A.A. Sproul designed the research study. A. Cui, R. Patel, P. Bosco, E. Richters, and P. Barrilero Delgado performed the experiments. A. Cui, R. Patel, P. Bosco, and U. Akcan analyzed the data. A. Cui, R. Patel, P. Bosco, D. Agalliu, and A.A. Sproul wrote and edited the manuscript. D. Agalliu and A.A. Sproul provided funding support for the study.

This work was supported by grants from the(R61/R33 HL159949) and the(RF1AG078352). A. Cui, U. Akcan, and D. Agalliu are also supported by grants from the(R01EY033994), the(R21NS130265), the, the, the, and the. A.A. Sproul is also supported by theand the National Heart, Lung, and Blood Institute National Institute on Aging National Eye Institute National Institute of Neurological Disorders and Stroke International OCD Foundation PANDAS (Pediatric Autoimmune Neuropsychiatric Disorder Associated with Streptococcus) Network PANDAS Physician Network Global Lyme Alliance Henry and Marilyn Taub Foundation Thompson Family Foundation.
