Mother and child nervous system coordination linked to parental stress over 24 hours

The application of RPs has proven instrumental in comprehending diverse physiological processes. In 1994, Webber and Zbilut [17] defined five nonlinear variables derived from RPs that were diagnostically useful for quantitatively assessing physiological systems and states. Subsequently, numerous studies have used RPs to measure respiratory and cardiac activities [18 –21]. Previous studies have focused on mental state prediction. For example, Elalamy et al. [22] employed RP and transfer learning of physiological signals for emotion recognition. Ledesma-Ramírez et al. [23] found statistically significant changes in the quantification results from the RP of electroencephalogram signals between the rest and mental states of the brain. Sharif and Khan [24] compared mental stress between two groups of subjects, who are/are not examinees, using RP to measure the ECG signals.

As an extension of the RP, the CRP can measure nonlinear recurrent patterns between two signal sources, making it applicable to socially interactive contexts. Recent studies have extended CRP methods to account for time series of unequal lengths, improving their applicability to naturalistic data collection settings where minor discrepancies in sampling length or completeness are common [25], which extended the applications of CRPs to long-term data with complex dependencies across systems. CRP can be utilized to visualize and quantify coordination or synchrony in socially engaging partners that span various modalities, including behavioral and physiological studies [26]. For example, Veerabhadrappa, Hettiarachchi, and Bhatti [27] applied CRP to body motion, eye tracking, and HRV data to measure synchrony and predict social-physiological compliance in team workers. Adam, Mohammed, and Hui [28] explored the utilization of CRP for pattern matching of multidimensional physiological signals, classifying healthy and cardiac disease populations.

Researchers have also used CRP to study child-caregiver interactions. Xu and Yu [29] proposed a CRP-based representation to quantify the joint activities between children and their caregivers, revealing developmental changes in coordinative behavioral patterns. In Li at el. [30], CRP was employed to measure vocal coordination between children and their mothers in day-long audio recordings. Numerous studies have considered different modality data, such as co-movements [31,32], co-visualization [33], and motion regulation measured by gaze, voice, and motor [34]. However, compared to using CRP in behavioral data, using that in physiological data in the natural context of child-caregiver interactions has been scarce [35]. The development of measurement and assessment systems that focus on physiological indicators is extremely important because daily, especially long-term, physiological data monitoring is useful for early detection and prevention of mental health risks.

Research on the utilization of RPs or CRPs to analyze child-caregiver interactions is limited. Existing research often overlooks the broader temporal context, neglecting information embedded in global timescales such as circadian rhythms. Circadian rhythms play an important role in regulating various physiological processes such as hormone secretion, body temperature, and sleep-wake cycles [36,37]. These rhythms exhibit intricate patterns over the course of the day, influencing an individual's overall well-being and stress resilience. CRPs are uniquely positioned to capture interactive patterns between physiological signals, which are crucial for understanding the nuanced dynamics of stress within interpersonal interactions. The interplay between circadian rhythms and social interactions is complex and extends beyond linear relationships. CRPs provide a robust framework for unraveling these intricate connections, allowing a holistic examination of the influence of circadian rhythms on social dynamics.

Three ANS activity-related indices were derived from the ECG data: the Standard Deviation of N-N Intervals (SDNN), the Cardiac Sympathetic Index (CSI), and the Cardiac Vagal Index (CVI).

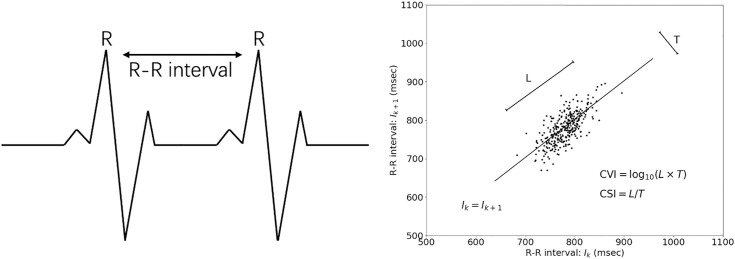

The SDNN—a measure of the standard deviation of N-N intervals—was obtained by filtering artifacts and noise from the R–R intervals in the heartbeat data. This reflected the overall HRV, as shown in Fig 3 (left). The CSI serves as an indicator of sympathetic nervous system activity, whereas the CVI serves as an indicator of parasympathetic nervous system activity, as illustrated in Fig 3 (right). Both the CSI and CVI were calculated from the Lorenz plot [40] generated by plotting each R-R interval time length (Ik) against the subsequent interval time length (Ik+1) for a limited number of R-R intervals (k). Sympathetic and parasympathetic toni were estimated from the Lorenz plot, denoted as L/T for the CSI and log10(L×T) for the CVI, where T and L represent the lengths of the (inverse) diagonal, respectively. In this study, a window with a width of 300 s and a grid interval of 60 s was employed to extract the CSI and CVI. Datasets with artifacts exceeding 5% were excluded from the analysis.

Mental stress significantly influences ANS activities that are measured by HRV indices, including decreased SDNN and CVI, and increased CSI [41]. This is because mental stress is activated and influenced by the sympathetic branch of the ANS, leading to an elevated heart rate and reduced variability between consecutive heartbeats. The ANS activity exhibits nonlinear rhythms and plays an essential role in regulating various bodily functions. This regulation is governed by two branches of the autonomic nervous system—the sympathetic and parasympathetic nervous systems—which maintain a delicate balance known as the autonomic balance. The interactions between these branches are nonlinear—a characteristic often manifested in the observed recurrence patterns within the ANS.

Furthermore, the ANS is subject to the influence of a myriad of internal and external factors, such as stress and sleep, resulting in alterations in HRV recurrence patterns [42]. For example, stress can induce an increase in sympathetic activity, thereby disrupting the regularity of recurrence patterns. Sleep introduces day-night differences in ANS rhythms, with daytime activities affecting ANS activity during the night.

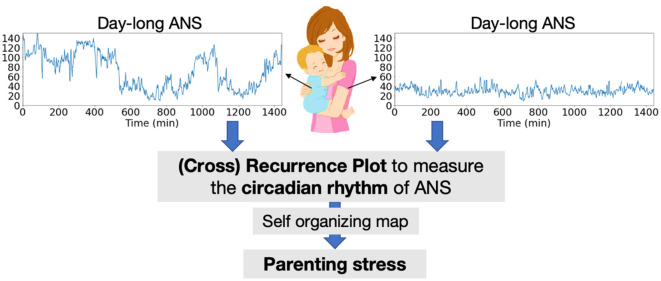

Day-long ANS data contained a wealth of information, so we incorporated CRPs to visualize and quantify the interactive patterns exhibited by the ANS activities of the mothers and their children. CRPs were selected because they are specifically designed to visualize and quantify nonlinear interdependencies and synchronization between two physiological signals. The nonlinear dynamics refer to the complexity and irregularity in time series signals that result from the intricate feedback mechanisms regulating heart rate variability, which linear methods cannot adequately describe.

We first used SOM to downsize the dimensions of the input data, that is, the RGB data of the CRPs to quantify the rich and complex information on the CRPs. Then, we used the low-dimensional representations obtained from the SOM to predict the PSI. As CRP is an extended technology of RP, we first described the RP technology before investigating the utilization of CRP for a natural illustration.

RP is used to analyze and represent patterns and relationships in time-series data, particularly in the context of nonlinear and complex systems. It is commonly used in physics, engineering, biology, and neuroscience, to study the dynamics and interactions within systems.

An RP is a graphical representation of the recurrence of a data point in a time series. In other words, it visualizes the times at which the same or similar values occur again in the same time series. A traditional RP converts the time-series data into a binary matrix where the elements are either 1 (indicating recurrence) or 0 (indicating no recurrence). The diagonal elements of the matrix represent self-recurrence, and the off-diagonal elements represent the recurrence of data points. Fig 4 (left) shows an example of an RP created by a sine sequence with n data points, X=[x1, x2,…, xt, …, xn] represents a time point. The exampled RP shows the recurrent pattens of a 12-second sine signal with a frequency of 0.4 Hz, made up by the recurrences Rij, when |xi−xj|≤ε, where the xi and xj are the values of the time series at time point i and j, and ε is a tolerance defined by the user.

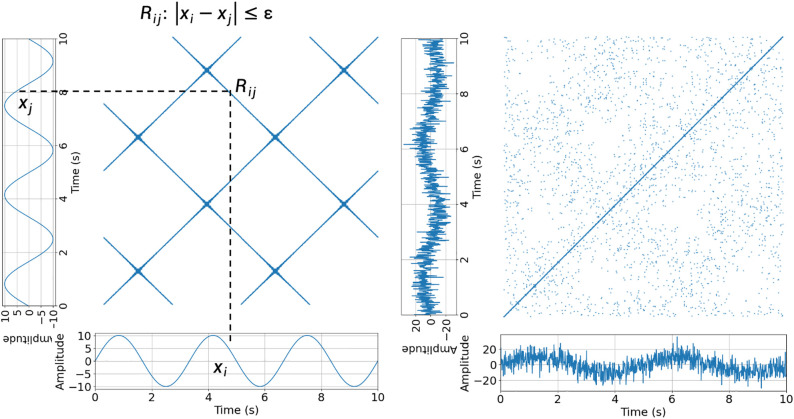

The diagonal lines on the RP indicate the periods when the system remained in a similar state. Moreover, the clusters or structures on the plot present the patterns of recurrence that indicate specific behaviors or dynamics in the input data. For example, Fig 4 shows two sine signals with the same frequency. However, the signal on the right figure adds white noise, making the periodic patterns on the left figure more difficult to identify.

CRP extends the concept of RP to analyze the similarity between two different time series across different time points. It shows the recurrence between corresponding points in the two time series, providing insights into the synchronization, coupling, and interactions between the two systems. CRP is particularly useful for studying interactions in complex systems. Fig 5 shows a CRP constructed using two sine sequences with different frequencies, for example, X=[x1, x2,…, xt, …, xn]. The CRP in the example presents the synchrony between X and Y by showing the recurrence Rij created when |xi−xj|≤ε, where the xi and yj are the values of the two time series at time point i and j, and ε is a tolerance defined by the user.

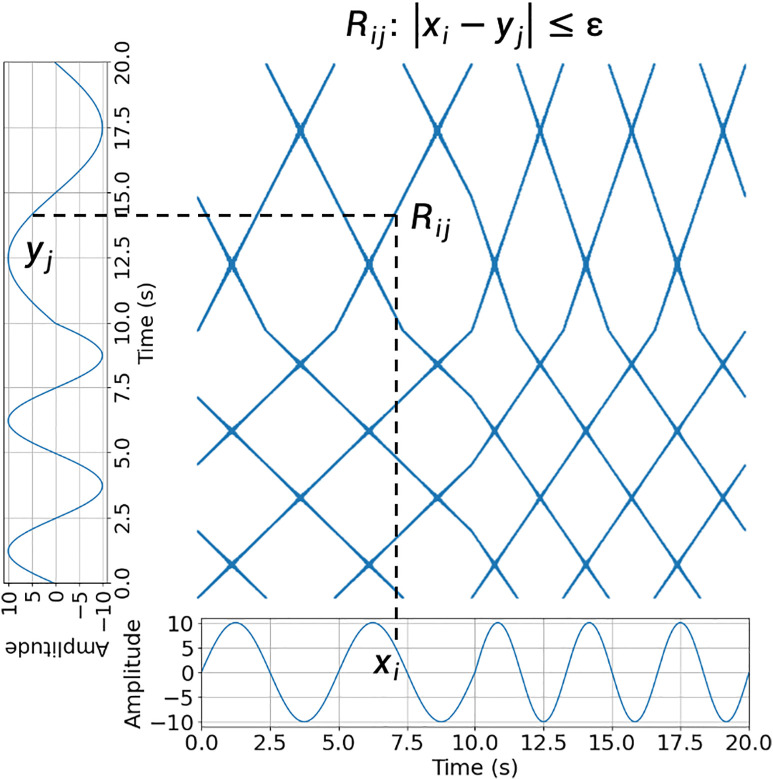

Like RP, the diagonal lines in CRP represent synchronized or similar behaviors between the two systems, and the off-diagonal elements indicate the presence of non-synchronized or different behaviors between the two systems. As shown in Fig 5, the two sine signals were synchronized from 0 to 10 s, whereas the latter parts were asynchronized. Thus, different patterns were observed for CRP levels.

Both the RP and CRP provide a visual representation of the underlying dynamics of complex systems and can reveal important information about patterns, periodicities, and interactions that may not be apparent through traditional time-series analysis techniques. Particularly, CRPs visually quantify how two separate physiological signals simultaneously exhibit similar or synchronous nonlinear dynamics, reflecting complex physiological feedback loops that regulate the autonomic nervous system, which linear statistics fail to capture.

An SOM is an unsupervised neural network model for producing a low-dimensional expression from high-dimensional data. The goal of training an SOM is to represent an input space with high dimensions as a map space with low (typically two) dimensions. A map space is constructed by "nodes" or "neurons," which are arranged as a hexagonal or rectangular grid in a 2-dimension case. Each node in the map space is associated with a "weight" vector, which is the position of the node in the input space. Training is the procedure for updating weights to minimize their distances to the input data with the remaining topology induced from the map space. During training, the SOM adjusts the weight of each neuron based on the similarity between its weight vector and the input data. The result of this process is a map in which similar inputs are grouped in the same area of the grid. The concept of neuron distribution used in this study is presented in Fig 6.

In this study, CRPs were constructed using dyad data to explore the interaction of circadian rhythms between the two parties. This approach allows for a nuanced examination of the coordinated patterns in the circadian fluctuations of the ANS within the dyadic interactions.

The input data for CRPs underwent the following pre-processing procedures:

Following these preprocessing steps, a dataset comprising 57 days of data from 32 mothers and their children was utilized for the subsequent analysis, in which 9, 42, and 2 dyads had 1, 2, and 3 days of data, respectively.

The preprocessed ANS indices for the child-mother dyads were utilized to construct each CRP. In Fig 7 (right), the CVI data of the mother are plotted along the horizontal axis, whereas the child's data are plotted along the vertical axis. If the values of the input ANS indices from the mother and her child at time point i are equal, the recurrence Rxy_i is visible on the plot, where x and y represent the time series from the two parties. The recurrences displayed on the CRPs illustrate the synchronization between the mothers and their children in terms of ANS indices.

For instance, in Fig 7 (right), it is evident that the circadian rhythm of the dyad's CVI shows clear day-night differences. This circadian rhythm on CRP results from the recurrence of the CVIs of the mother and her child, which show similar and clear patterns for both day and night (Fig 7, left and middle). Please note that the CRP is not created by the RPs but is directly produced using the CVI data from the two subjects. The RPs presented here provide an easier understanding of the recurrent circadian rhythms of the CRPs. The CRPs provide a visual representation of the coordinated dynamics in the circadian rhythms of ANS activities within the dyadic interaction.

The CRPs were used as inputs to train the SOMs. We trained different SOMs for each input ANS index, that is, the SDNN, CSI, and CVI, from mothers and their children. The same hyperparameters were set for the maps, which had the shape of 4 × 4 nodes. Each SOM was trained 25 times with different initializations, and similar results were obtained. Only one result for each SOM was presented in this study.

Furthermore, all the neuron activities in each SOM were measured for each input CRP. Multiple regressions were then conducted between the neuron activities and the PSI using the function (1) to investigate the predictability of the proposed methods.

whereis the PSI from motherandrepresents the neuron activities measured from the SOM trained by and the CRPs of SDNN, CSI, or CVI from subject. In this study, the neuron activities were represented by the distance between the input CRP and the trained weights of each neuron. Thus, for each CRP,, wherewas calculated using the Euclidean distance between the input CRP and the trained weights of neuron. The Root Mean Squared Error (RMSE), Mean Absolute Error (MAE),, and thewere used to evaluate the efficiency of the multiple regression models. P S I i i A c t i v i t y i n d i c e _ i i i A c t i v i t y i n d i c e _ i d 1 d 2 d k d 1 6 = [ , , , , , ] … … d k k R 2 p v a l u e s _

The interactive patterns of ANS indices between the two participants in a dyad were measured using CRPs. Figs 8 and 9 show the CRP results generated from the SDNN and the SOM, respectively. See S2 Figs in S1 File for the CRPs produced by the CSI and CVI data and their SOMs.

The different patterns of recurrence of the mother-child ANS activities among the dyads are shown in Figs 8 and 9. After the SOM training, the CRPs were distributed in a 4 × 4 map, and each CRP was close to the neuron that had trained weights similar to its value. We assumed that the CRPs near the same neuron would have similar patterns; as a result, in Fig 9, only one represented CRP located at each neuron's location was presented. For ease of illustration, we focused on the example CRPs at the four corners of the trained SOM, that is, those in the red rectangle in Fig 9. The CRP in the upper right corner shows a clear circadian rhythm and good recurrence between the SDNN of the mother and her child. Compared to the right-upper CRP, the CRP at the bottom-right corner had fewer recurrences, that is, more blank areas appeared. This pattern indicates that the mother-child dyad shares little recurrence of SDNN data, either at night or during the day.

Moreover, compared to the figures in the right panel, those in the left panel have more recurrent patterns but show unclear circadian rhythms, which indicates that neither the SDNN data of the mother nor the child showed clear day-night differences.

Fig 10 (bottom panel) presents the results of multiple regression analyses of the CRPs using function (1). To ensure that the CRPs involving interactive patterns between the two partners were more effective at predicting parenting stress, we created RPs using mothers' and their children's data separately. We then used them to train the SOMs and estimate multiple regressions between neuronal activities and PSIs. The results of the RPs are shown in the upper two panels of Fig 10. S3 Figs in S1 File presents the RPs and their SOM results.

The adjustedwere used to estimate the efficiency of the multiple regression models, which are presented at the top of each figure. A value ofwas assumed to be significant. The figures for the models with significant results are shown in green. The lower RMSE and MAE values indicate a better model fit. The model with the best fit is labeled in red. The red dashed line shows the ideal prediction; that is, the predicted value is equal to the actual value. The shadow represents the tolerance range, defined as the region where the predicted values are within one standard deviation () of the residuals around the actual values. More points located in the shadow and a shorter distance to the ideal line indicate a better prediction. R 2 , , , f p v a l u e R M S E a n d t h e M A E _ f p v a l u e 0 5 _ < . ± 1 σ

As presented in Fig 10, only one of the models from the RPs constructed by the ANS indices of the mother or the child significantly predicted PSI, whereas the CRPs from all three indices significantly predicted the PSI. Additionally, the best-fitting model was provided by the CRPs constructed from the mother-child dyadic CSI data, with the lowest RMSE and MAE values. These results show that, compared to the circadian rhythm quantified by the ANS indices from either the mother or the child alone, the interactive patterns between the partners better predicted the mothers' mental stress.

The presented study found that the CRPs, which quantify mother-child physiological interaction patterns, significantly outperformed individual RPs in predicting maternal parenting stress. Regression models using SOM-represented CRP features showed consistently higher explanatory power across all indices, with the strongest prediction from CRPs constructed using the CSI index. In contrast, only one RP-based model reached statistical significance, and it demonstrated lower predictive accuracy. These results suggest that measures of physiological synchrony and co-regulation, as captured by CRPs, provide richer and more relevant information for assessing parental stress than individual physiological dynamics.

The CRPs were constructed by mapping the co-occurrence of similar physiological states between mother and child over 24 hours, capturing both within-day synchrony and transitions across circadian phases. In contrast, the RPs only mapped recurrence within a single individual's ANS signal, omitting interpersonal synchrony. Maternal stress emerges from the mother's internal state and the dynamic interaction between the caregiver and the child. CRPs reflect this dyadic physiological synchrony by capturing how two systems, i.e., mother and child, co-evolve over time. In contrast, RPs analyze only individual dynamics, ignoring the inter-personal coupling that is central to relational stress.

Moreover, the ANS signals are nonlinear, shaped by feedback loops, circadian modulation, and context-dependent adaption. When two non-linear systems interact, they often exhibit coupled oscillatory behavior. CRPs can detect patterns, including the joint recurrence structures, temporal lags and phase shifts, and the periodic synchrony between two systems, which are important information for predicting maternal stress and cannot be quantified by RPs. As a result, the CRP-derived models performed better than those using individual RPs.
