Metabolic changes in host cells caused by a key protein from Entamoeba histolytica revealed by multi-omics analysis

Central carbon metabolism refers to the process by which cells take up glucose and decompose it to produce ATP through complex biochemical reactions, such as glycolysis, the tricarboxylic acid (TCA) cycle, and oxidative phosphorylation. Based on our initial proteomic research, to further study the metabolic reprogramming of host cells induced by Igl from the perspective of metabolites, we first designed targeted metabolomics for the corresponding substances. For an overview analysis based on quality control (QC) samples, the relative standard deviations (RSDs) of all reported ion peaks were <0.5, whereas the median and mean were both <0.2 (). In the case of clear stratification among the different groups, the QC samples were well concentrated in principal component analysis (PCA) (). The RSD of the stable isotope-labeled internal standard was <0.2, indicating that all samples were properly injected during the detection process (). Fig. S1A Fig. S1B Fig. S1C

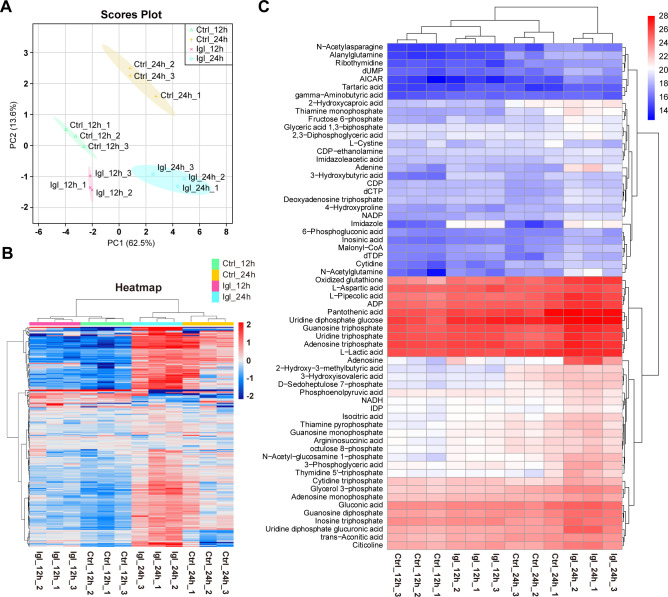

As shown in the PCA, the differences within each group were small, whereas those between groups were significant (Fig. 1A). With persistent Igl stimulation, changes in central carbon metabolism in Caco-2 cells became more significant. The 232 detected metabolites were mapped onto a global heat map to reflect the overall changes and clustering of metabolites in Caco-2 cells, where each column represents a sample and each row represents a metabolite ion peak (Fig. 1B). Using log2FC (fold change) > 0.4 or log2FC < −0.4 and false discovery rate (FDR) value < 0.16 (Student's t-test with multiple hypothesis testing correction) as the criteria to determine the significance of changes, 63 intracellular metabolites changed markedly after Igl stimulation for 12 or 24 h, accounting for 27.16% of all metabolites detected in the cells (Fig. 1C). The significantly altered metabolites were mainly related to cellular energy supply and redox homeostasis and involved various amino acids, suggesting that E. histolytica Igl stimulation could affect the central carbon and amino acid metabolism of host cells.

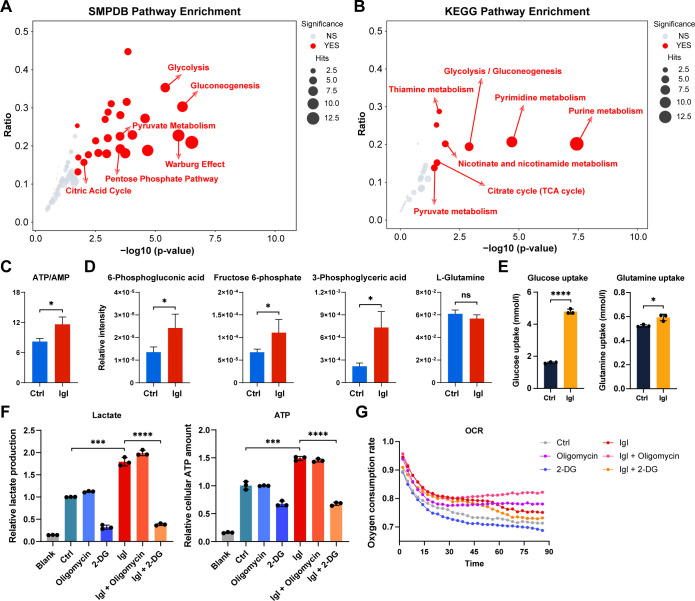

To explore the functions and pathways of the differentially regulated metabolites, functional annotation and enrichment analysis of differential metabolites were performed using the SMPDB and KEGG (Kyoto Encyclopedia of Genes and Genomes) databases. Setting P < 0.05 (with multiple hypothesis testing correction) as the criterion, the metabolic pathways that were significantly regulated after IgG stimulation are shown in bubble charts. SMPDB enrichment analysis showed that the changes in metabolites were concentrated in pathways closely related to aerobic respiration, anaerobic respiration, glucose decomposition, and anabolism (Fig. 2A). Meanwhile, the results of the KEGG enrichment analysis exhibited that Igl stimulation was related not only to central carbon metabolism but also to the nucleotide metabolism of host cells (Fig. 2B).

To further study the specific regulatory mechanism of Igl in host cells, relevant metabolite data detected by targeted metabolomics were applied to generate histograms (Fig. 2C). After Igl stimulation for 24 h, the ratio of cellular ATP to AMP significantly increased, indicating an enhancement in energy supply. The levels of 6-phosphogluconic acid, fructose 6-phosphate, and 3-phosphoglyceric acid (the intermediate molecules of glycolysis) were significantly increased, while the level of L-glutamine (the substrate for glutaminolysis) in Caco-2 cells remained unchanged, indicating that the enhancement in energy supply occurred through the heightening of glycolysis, and Igl had little effect on glutaminolysis (Fig. 2D). Subsequently, quantitative detection kits for metabolites were used for validation (Fig. 2E). Caco-2 cells exhibited a significant increase in glucose uptake, while that of glutamine only had a slight change. We separately added oligomycin and 2-deoxyglucose to inhibit the oxidative phosphorylation and glycolysis of the cells, finding that the increases in lactate production and cellular ATP amount caused by Igl treatment could be significantly inhibited by 2-deoxyglucose, while oligomycin was ineffective (Fig. 2F). Finally, variations in oxygen consumption rate of Igl-treated Caco-2 cells under oligomycin or 2-deoxyglucose inhibition were detected for confirmation (Fig. 2G).

Our results showed that E. histolytica Igl stimulation could induce metabolic reprogramming in host cells. Through the detection of energy substance uptakes and the use of energy metabolism inhibitors, this Igl-mediated metabolic reprogramming was confirmed to be mainly achieved through an enhancement of glycolysis and a transition from aerobic respiration to anaerobic respiration. During this process, only the central carbon metabolism significantly shifted, and glutaminolysis was not found to be directly affected. Owing to the lowered efficiency of glucose decomposition to produce ATP, Caco-2 cells took up more glucose and produced more lactate to maintain their energy supply, which is similar to the process of aerobic glycolysis in tumor cells (the Warburg effect).

In the normal aerobic respiration of cells, glucose is decomposed into pyruvate, which is then converted into acetyl-CoA and enters the TCA cycle, producing abundant ATP. However, when the cellular oxygen supply is insufficient, anaerobic respiration is mainly used to supply energy, and pyruvate is eventually converted to lactate. In this study, glucose in the Caco-2 cell medium was completely replaced with [¹³C₆]-glucose, followed by E. histolytica Igl addition to the experimental group wells for 24 h (Fig. 3A). Under the influence of Igl, the lactate content in both Caco-2 cells and culture supernatants was significantly upregulated, suggesting that the aerobic glycolysis of host cells was activated (Fig. 3B). Meanwhile, the proportion of carbon replaced by ¹³C (annotated as M + 3) in lactate exceeded 99%, indicating that the isotope-labeled cell metabolism had already stabilized.

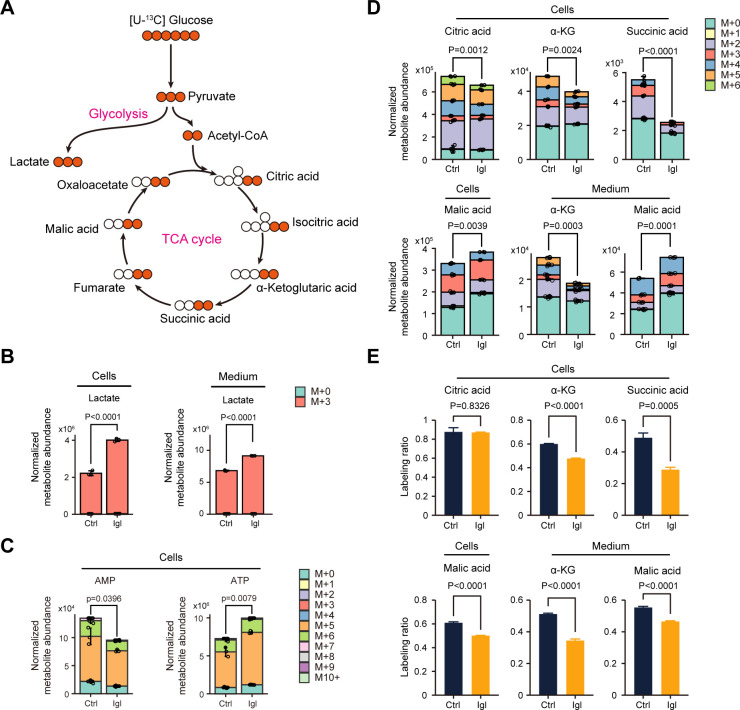

Activation of aerobic glycolysis leads to an increased conversion of pyruvate to lactate, which may result in aerobic respiration inhibition and TCA cycle blockage. After E. histolytica Igl stimulation, total AMP was significantly downregulated, and total ATP was significantly upregulated in Caco-2 cells (Fig. 3C). Analysis of TCA cycle intermediates revealed that Igl treatment significantly decreased citric acid, α-ketoglutaric acid (α-KG), and succinic acid levels, while malic acid levels were significantly elevated (Fig. 3D). Similarly, in culture supernatants, α-ketoglutaric acid content decreased, and malic acid content increased after Igl stimulation.

To further investigate the variation trends of aerobic respiration and the TCA cycle, the percentage of isotopomers among these key intermediates (the sum of each metabolite detected, except M + 0) was analyzed. As shown in Fig. 3E, the isotopomers of the above metabolites were significantly downregulated in both Caco-2 cells and culture supernatants, suggesting that Igl treatment inhibited the TCA cycle pathway. Notably, the percentage of malic acid isotopomers detected in the cells and supernatants decreased, whereas the total malic acid content increased. This result showed that the consumption of malic acid was inhibited; that is, the production of oxaloacetic acid from malic acid in the TCA cycle was inhibited by Igl.

Using Cell Ranger version 7.1.0, data QC was conducted to filter low-quality information, such as fragmented, double, and dead cells, after single-cell sequencing (Fig. S2A). The filtering criteria were set as follows: 200 < total expressed gene number < 10,000, transcript number > 500, and mitochondrial gene content < 10%. This process yielded 9,069 and 8,713 single cells from control (Ctrl) and experimental (Igl) samples, respectively, for subsequent analysis. Single cells from the control and Igl-treated samples were clustered and visualized, as shown in Fig. S2B. In the integrated analysis of all single-cell transcriptional data, 10,045 genes were detected, among which log2FC > 0.25 or log2FC < –0.25 and P < 0.05 (Student's t-test with P value corrected by multiple hypothesis testing) were set as the criteria to determine the significance of gene expression changes. A volcano plot was constructed with the relative difference in gene expression as the horizontal coordinate and log2FC as the vertical coordinate, where red dots represent genes with significantly upregulated expression and green dots represent genes with significantly downregulated expression after Igl stimulation (Fig. S2C). Compared to the control group, the expression of 558 genes was significantly altered, including 266 upregulated and 292 downregulated ones.

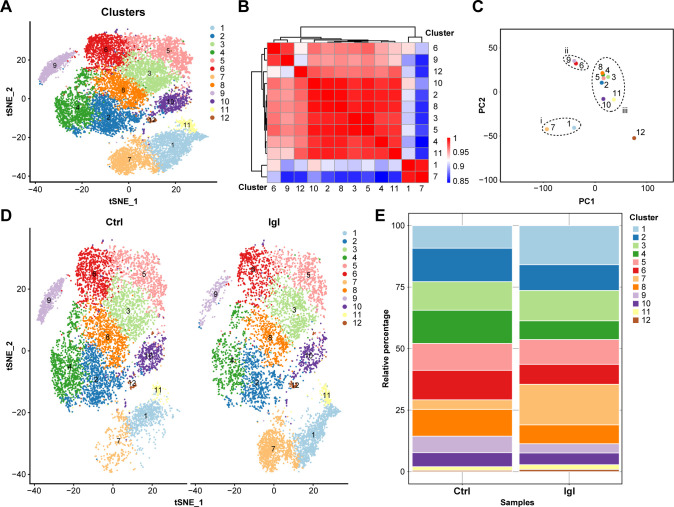

Owing to cell heterogeneity, a few cells with significant changes during Igl stimulation may be masked by most cells. Thus, in the present single-cell analysis, Caco-2 cells were clustered, and the marker genes of each cluster were identified for in-depth comparison. A total of 17,782 cells from both the control and experimental groups were integrated and clustered to obtain 12 different clusters in various cell states (Fig. 4A). As shown in the correlation heat map, strong correlations existed between clusters 1 and 7, clusters 6 and 9, and clusters 2, 3, 4, 5, 8, 10, and 11 (Fig. 4B). In the PCA, clusters with strong correlations were close to each other, whereas those with weak correlations were clearly separated (Fig. 4C). The effects of Igl stimulation on each cell cluster are shown in Fig. 4D. Subsequently, the relative cell number of each cluster in control and experimental groups was counted and chi-square tested, exhibiting a significant increase in cell numbers of clusters 1 (P < 0.0001), 7 (P < 0.0001), 11 (P < 0.05), and 12 (P < 0.01), and a significant decrease in cell numbers of clusters 2 (P < 0.0001), 4 (P < 0.0001), 6 (P < 0.0001), 8 (P < 0.0001), 9 (P < 0.0001), and 10 (P < 0.01) (Fig. 4E).

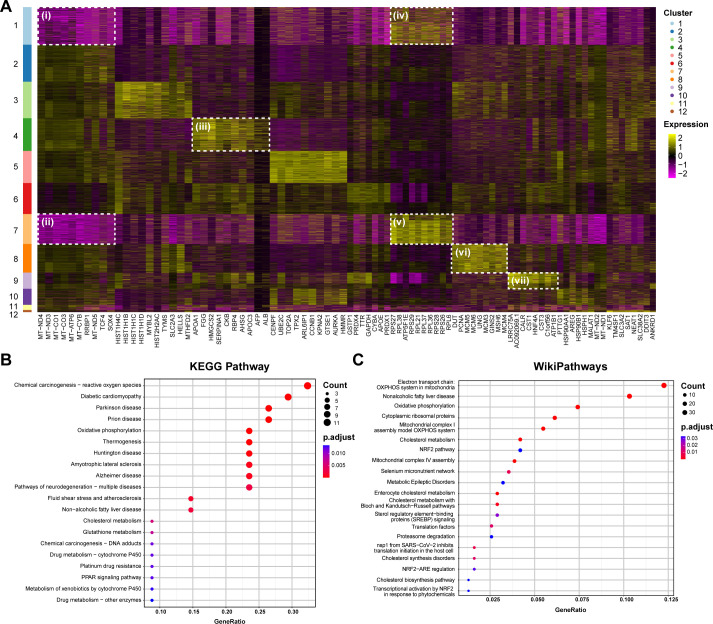

Using the FindAllMarkers function in Seurat, the marker genes of each cell cluster were further screened, and the top 10 most significantly different genes were selected for visual heat map enrichment (Fig. 5A), with P < 0.05 and FC ≥ 1.5 set as the criteria. Compared to other clusters, the transcription levels of mitochondria-related genes, such as NADH-ubiquinone oxidoreductase chain genes, cytochrome C oxidase genes, and ATP synthase genes, in clusters 1 and 7 were significantly downregulated (Fig. 5A, panels i and ii). These genes are all involved in respiration and energy supply, and their reduction suggests that cellular respiration was inhibited in clusters 1 and 7. In contrast, the transcript levels of genes related to mitochondrial respiration and ATP synthesis in cluster 2 were higher than those in the other clusters. After Igl stimulation, the proportion of cells in clusters 1 and 7 increased, and the proportion of cells in cluster 2 decreased, indicating that Igl generally inhibited cellular respiration and normal energy supply. In addition, the transcription levels of ribosome-related and transcription-related genes were significantly higher in clusters 1 and 7, suggesting that Igl stimulation may affect the normal transcription and translation processes in Caco-2 cells (Fig. 5A, panels iv and v).

After Igl treatment, the cell proportions of clusters 11 and 12 also increased, and the expression of their transcription factor KLF6, transmembrane protein TM4SF1, amino acid transporters SLC3A2 and SLC38A2, acetyltransferase SAT1, and DNA damage-inducible transcript DDIT3 was significantly higher, indicating that Igl may activate various transcription factors and enhance the transmembrane transport of amino acids to promote the cell response to external stress. Combined with the reduced cell number in cluster 4 and the function of its highly expressed genes, Igl may inhibit lipid transport, ketogenesis, and endocytosis in host cells (Fig. 5A, panel iii). Ketogenesis is a stress response to insufficient glucose uptake or lack of energy reserves. This suggests that E. histolytica Igl can induce metabolic reprogramming and affect the normal energy supply in host cells. Additionally, the results of cluster 8 indicated Igl inhibition of DNA replication, division, and proliferation in host cells, while the results of cluster 9 suggested Igl inhibition of genes related to innate immunity (Fig. 5A, panels vi and vii).

To more intuitively show the relationship between differentially expressed genes (DEGs) and the corresponding molecular pathways induced by Igl, KEGG pathway enrichment analysis and WikiPathways enrichment analysis were performed, in which the top 20 entries with the highest enrichment and the most genes were displayed as dot plots. In the KEGG enrichment results, transcriptional changes induced by Igl were focused on pathways such as oxidative phosphorylation, thermogenesis, cholesterol metabolism, glutathione metabolism, and the peroxisome proliferator-activated receptor signaling pathway (Fig. 5B). The results of WikiPathways enrichment analysis showed that differentially expressed genes in Caco-2 cells were mainly related to the mitochondrial electron transport chain, oxidative phosphorylation, cytoplasmic ribosomal proteins, cholesterol metabolism, proteasome functions, mammalian target of rapamycin (mTOR) signaling pathway, and autophagy, which were generally consistent with those of the KEGG pathway enrichment analysis (Fig. 5C; Table S1).

As a key molecule that regulates energy metabolism, AMPK responds to changes in intracellular ATP levels and regulates metabolic processes such as glucose uptake, glycolysis, fatty acid oxidation, and autophagy through a series of signaling pathways (16). In addition to AMPK, AKT is another important molecule that responds to energy stress and redox stress, which not only promotes cell survival and inhibits apoptosis but also regulates glucose metabolism and glycolysis (17). Western blotting was performed to detect changes in intracellular AMPK and AKT phosphorylation levels after Igl stimulation. As expected, the phosphorylation levels of AMPK and AKT significantly increased, with the former being more significant at 12 h and the latter being more significant at 24 h (Fig. 6A and B).

Phosphorylation of AMPK and AKT can activate corresponding downstream pathways and regulate cell growth and stress, which involve various molecules, including Unc-51-like autophagy-activating kinase 1 (ULK1) and mTOR (16). After Igl stimulation, changes in ULK1, mTOR, raptor, and p62 (an autophagy marker) protein levels in Caco-2 cells were detected (Fig. 6C). The expression of ULK1, mTOR, and raptor significantly increased, whereas that of p62 significantly decreased, suggesting that the parasite could activate autophagy through Igl. Notably, the upregulation of ULK1 and raptor was most significant at 12 h, indicating that host cell autophagy might be more intense in the early stage. In addition to detecting autophagy markers, the autophagy status of cells can be determined by labeling autophagosomes with monodansylcadaverine. Both confocal microscopy and microplate reader quantification revealed significantly enhanced autophagosome signals in the Igl-stimulated group, indicating that Igl activates host cell autophagy (Fig. 6D and E).

RNA interference experiments were designed to verify the effect of E. histolytica Igl on host cell autophagy when PRKAA1 (responsible for AMPK expression) was silenced (Fig. 6F). Microtubule-associated protein 1 light chain 3 (LC3) is another important autophagy marker, and the levels of LC3-I and LC3-II reflect changes in autophagy. After PRKAA1 silencing, the expression of AMPK, phosphorylated AMPK, LC3-I, and LC3-II proteins stimulated by IgG was significantly inhibited, suggesting that autophagy was inhibited. Rapamycin is an inhibitor of mTOR that mainly promotes autophagy by inhibiting mTOR activity. After treatment with 20 nM rapamycin, LC3-I levels in Caco-2 cells decreased, and LC3-II levels were upregulated relative to LC3-I levels, demonstrating the ability of rapamycin to activate autophagy (Fig. 6G). Igl stimulation increased the expression of both LC3-I and LC3-II in Caco-2 cells, whereas rapamycin pretreatment inhibited the increase in LC3-II protein levels induced by Igl and weakened the upregulation of LC3-II relative to LC3-I, suggesting that mTOR is indeed involved in the regulation of Igl-induced host cell autophagy.

Trophozoites of E. histolytica HM-1:IMSS were grown axenically at 36.5°C in BI-S-33 medium containing 10% adult bovine serum (Sigma-Aldrich, St. Louis, MO, USA). Human intestinal epithelial cells (Caco-2) were grown in Eagle's minimum essential medium (MEM) (#10-010-CV; Corning, Manassas, VA, USA) supplemented with 20% fetal bovine serum (HyClone Laboratories, Logan, UT, USA), MEM non-essential amino acids (Gibco, Grand Island, NY, USA), 2 mM L-glutamine (Gibco, Grand Island, NY, USA), and 1 mM sodium pyruvate (Gibco, Grand Island, NY, USA) at 37°C in a 5% CO₂ incubator (31). Human embryonic kidney (HEK) 293 cells were cultured in OPM-293 CD05 medium (81075-001; Opmbiosciences, Shanghai, China) at 37°C, 5% CO₂, and 120 rpm shaking.

Eukaryotic Igl was expressed and purified as previously described (8). The full-length Igl1 gene (GenBank: AF337950.1↗) was amplified via PCR and subcloned into a pCMV6 plasmid (PS100001; OriGene) by double digestion with the restriction enzymes Sgf I and Mlu I (Fig. S3A). The primer sequences were as follows: forward, CCGCGATCGCATGGATTATACTGCTGATAAGCTC; reverse, CGACGCGTGAACATAAATGCTAACATGACTATCA. The pCMV6-Igl plasmid was amplified by Escherichia coli DH5α competent cells, then purified using the EndoFree Plasmid Maxi Kit (Qiagen, Hilden, Germany) (Fig. S3B). Plasmids were transiently transfected into HEK 293 cells using polyethyleneimine for protein expression. After 48 h of shaking, cells were harvested and lysed using 25 mM Tris-HCl (pH 7.4), 150 mM NaCl, 1% (vol/vol) NP-40, and 1 mM EDTA. Eukaryotic Igl was purified via anti-FLAG tag affinity chromatography and eluted with 0.1 M glycine (pH 2.75). The purity and immunoreactivity of the product were confirmed using 10% SDS-PAGE and western blotting (Fig. S3C and D). Hamster serum from amoebic liver abscess, hamster serum from Igl immunization, murine monoclonal antibody EH3015, and murine monoclonal antibody EH3077 were used as primary antibodies (1:100 dilution), while horseradish peroxidase-conjugated goat anti-mouse IgG and goat anti-hamster IgG (Abcam, Cambridge, United Kingdom) were used as secondary antibodies (1:500 dilution) (7). Protein bands were detected with an enhanced chemiluminescence Western Blotting Substrate Kit (Tanon, Shanghai, China).

For targeted metabolomics and metabolic flux analysis, Caco-2 cells were first seeded in six-well culture plates with a density of 5 × 10⁵ cells per well. In MEM (targeted metabolomics) or Dulbecco's modified Eagle medium containing 4.5 mg/mL [¹³C₆]-glucose (metabolic flux analysis), 5 µg/mL eukaryote-expressed Igl was added for 12 h or 24 h stimulation. The cell culture supernatant was transferred for later use, while 500 µL extraction solution and 44 µL termination solution were successively added to each well. Due to the rapid metabolic rate of metabolites in processes such as glycolysis and tricarboxylic acid cycle, PBS washing was skipped and direct extraction was performed. Samples were stored at −80℃, then transferred to 4℃ and centrifuged at 15,000 rpm for 10 min before mass spectrometry. For single-cell transcriptomics, Caco-2 cells were cultured in T25 culture flasks. When the cell density reached 80%, 5 µg/mL eukaryote-expressed Igl was added for 24 h stimulation. After digestion and washing, 30 µm filter SmartStrainers (Miltenyi Biotec, Auburn, CA, USA) were used for filtration to obtain a single-cell suspension. The cell concentration was adjusted to 1,000 cells/µL.

Chromatography separation was performed using the AB SCIEX ExionLC AD system equipped with an iHILIC-(P) Classic HPLC HILIC column (150 × 2.1 mm, 5 µm). Mobile phase A consisted of 95% water, 5% acetonitrile, 20 mM ammonium acetate, and 10 mM ammonia (50 mM methylene diphosphonic acid was added for non-targeted metabolic flux detections), while organic phase B consisted of 100% acetonitrile. The auto-sampler temperature was 6°C, the column temperature was 30°C, the flow rate was 0.2 mL/min, and the sample load was 5 µL. Liquid phase gradients were set as follows: 0 min, 85% B; 2 min, 85% B; 7 min, 60% B; 12 min, 35% B; 12.1 min, 20% B; 15.9 min, 20% B; 16 min, 85% B; 23 min, 85% B. Mass spectrometry of targeted metabolomics or metabolic flux analysis was performed using the AB SCIEX QTRAP 6500+ system (MRM scanning mode) or the TripleTOF 6600+ system (TOFMS+ production scanning mode), respectively. Positive and negative modes were separately scanned. Electrospray ionization source conditions were set as follows: ion source gas 1 as 60 psi, ion source gas 2 as 60 psi, curtain gas as 35 psi, source temperature as 500°C, ion spray voltage as 5,500 V or −4,500 V in positive or negative modes. Finally, ProteoWizard MSConvert was used to convert the original data format, EI-MAVEN was used for peak extraction to obtain the response information of each metabolite, and R version 4.3.1 was used for data analysis.

Caco-2 cells were loaded onto a 10X Genomics Chromium iX instrument, then single-cell libraries were prepared using a Single Cell 3′ library and Gel Bead Kit v3.1 in accordance with the manufacturer's protocols. Generation of gel beads in emulsion (GEMs), barcoding, GEM-RT clean-up, complementary DNA (cDNA) amplification, and library construction were successively performed. After assessing the cDNA quality with a Qubit dsDNA HS Assay Kit (Invitrogen, Carlsbad, CA, USA), the final library pool was sequenced on an Illumina Novaseq 6000 platform using 150 bp paired-end reads.

Sample demultiplexing, barcode processing, alignment to the human genome (GRCh38), and raw gene expression counting were performed using Cell Ranger version 7.1.0 pipeline. Using R version 4.3.1, raw single-cell expression matrices were analyzed by the Seurat package version 4.3.0.1, while ambient RNA was removed by the SoupX package version 1.6.1. The criteria for the removal of low-quality cells were set as follows: (i) >10% unique molecular identifiers (UMIs) derived from the mitochondrial genome, (ii) <200 genes or >10,000 genes, and (iii) <500 UMIs. Doublets were identified by the DoubletFinder package version 2.0.3 with default settings, leaving 13,848 cells (both control and Igl-stimulated groups) and 24,520 genes for further analysis. After gene expression normalization using SCTransform version 2.0.3.5, single-cell RNA-seq data matrices from the two samples were integrated using the FindIntegrationAnchors and IntegrateData functions to remove the batch effect. Subsequently, linear dimensional reduction was performed with the RunPCA function, nonlinear dimensional reduction was performed with the RunUMAP or RunTSNE function, and cluster analysis was performed with the FindNeighbors and FindClusters functions.

For cell type annotation and cluster marker identification, the Shared Nearest Neighbor clustering algorithm from Seurat was used, with a resolution of 0.9. Cell types were assigned by examining the expression of marker genes and the top differentially expressed genes in each cluster. Cell clusters were visualized by the t-distributed stochastic neighbor embedding clustering algorithm. Signature genes of each cell cluster were identified by the FindAllMarkers function from Seurat. Percentages of different cell types were calculated accordingly.

DEGs were identified by the FindMarkers function from Seurat with the following parameters: min.pct = 0.1; test.use = bimod. Genes with average log2 fold change (log2FC) value > 0.25 and adjusted P value < 0.05 were identified as DEGs, while genes with average log2FC value > 0.5 and adjusted P value < 0.05 were identified as significant DEGs. Gene Ontology, KEGG, Disease Ontology, and Reactome and Molecular Signatures Database enrichment analyses were conducted using the ClusterProfiler package version 4.8.2. Over representation analysis and gene set enrichment analysis were also conducted on DEGs. In the bioinformatic section, R version 4.3.1 was used for all statistical analyses, with a P value < 0.05 or an adjusted P value < 0.05 being considered statistically significant.
