Genes linked to mitochondrial function that may predict outcomes in diffuse large B-cell lymphoma identified using combined bulk and single-cell RNA data

Among the datasets used in this study, GSE32018 (GPL6480) and GSE11318 (GPL570) datasets were classic bulk RNA sequencing (RNA-seq) datasets from the Gene Expression Omnibus (GEO) database (https://www.ncbi.nlm.nih.gov/geo/↗). The GSE32018 dataset contained 199 DLBCL tissue samples (DLBCL group) and 7 normal lymph-node tissue samples (control group) from individuals. Besides, the GSE32018 dataset contained 199 DLBCL tissue samples from individuals, which comprised clinical and survival information (the sample with a survival time of 0 was excluded). In addition, another RNA-seq dataset, the TCGA-DLBCL dataset, which included 47 DLBCL tissue samples from individuals (with all samples containing information on clinical outcomes and survival), was acquired from The Cancer Genome Atlas (TCGA) database (https://portal.gdc.cancer.gov/↗) (June 5, 2024). On the other hand, a dataset from single-cell RNA sequencing (scRNA-seq), which included 2 DLBCL tissue samples (DLBCL1 and DLBCL2) (DLBCL group) and 2 normal paraneoplastic tissue samples (rLN1 and rLN2) (control group) from individuals, was achieved from the heiDATA database (https://heidata.uni-heidelberg.de/↗) (Supplementary Figure S1).

Moreover, 23 mitochondrial dynamics-related genes (MDRGs) were obtained from the literature (32) (Supplementary Table S1). The integration of genes from the Reactome database (http://www.reactome.org↗), including mitophagy (R-HSA-5205647), pink1-prkn-mediated mitophagy (R-HSA-5205685), and receptor-mediated mitophagy (R-HSA-8934903), yielded 29 MRGs for downstream analysis (Supplementary Table S2).

The GSE32018 dataset was analyzed using the ssGSEA algorithm from the GSVA package (v 1.46.0) (33) to calculate MDRGs and MRGs scores of all samples, aiming to assess the connection between mitochondrial dynamics, mitophagy and DLBCL progression. The Wilcoxon rank sum test was used to evaluate score differences between the DLBCL and control groups (P< 0.05). Furthermore, after removing unqualified samples by conducting hierarchical clustering analysis on all samples in the GSE32018 dataset via GoodSamplesGenes, WGCNA was executed with the WGCNA package (v 1.71) (34), yielding genes (among MDRGs and MRGs) associated with DLBCL. Specifically, to establish a scale-free co-expression gene network, optimal soft thresholding was then set according to the scale-free fit index (signed R2) and mean connectivity (close to 0) through the pickSoftThreshold function. Subsequently, genes were divided into different modules according to the hybrid dynamic tree cutting criteria, with a minimum number of 50 genes per gene module and a module fusion threshold of 0.25. Afterward, the MDRGs and MRGs were respectively used as phenotypes. The Spearman function was applied to assess correlations between module eigengene (ME) scores of modules and phenotypes, and genes within the module that had ME scores strongly correlated with both phenotypes were identified as potential key module genes(|correlation coefficients (cor)|> 0.8, P< 0.05). Following a comprehensive analysis of gene-module interactions and module-trait relationships, we identified critical module genes showing significant connections with MDRGs and MRGs based on predefined criteria (|module membership (MM)| > 0.8, and |gene significance (GS)| > 0.6).

The limma package (v 3.54.0) (35) was applied to the GSE107943 dataset to perform differential expression analysis, aiming to identify differentially expressed genes (DEGs) between DLBCL and control groups (|log2fold change (FC)| > 2, and adjusted P< 0.05). Volcano plot visualization and hierarchical clustering analysis were implemented using ggplot2 ggplot2 (v 3.4.1) (36) and pheatmap (v 1.0.12) (37) packages, respectively, with the top 10 most significantly upregulated and downregulated DEGs selected based on |log2FC|. Afterward, gene screening was conducted using the ggvenn package (v 0.1.9) (38) to detect MDRGs-and MRGs-associated biomarkers in DLBCL. Candidate genes were defined as those demonstrating overlap between DEGs and core module genes through Venn analysis.

Subsequently, functional characterization of candidate genes was systematically performed through ontological enrichment analysis. Utilizing the clusterProfiler package (v 4.2.2) (39), we conducted Gene Ontology (GO) annotation encompassing biological processes (BP), cellular components (CC), and molecular function (MF) categories, along with Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway analyses (P< 0.05). The enrichment landscape was visualized by GOplot (v 1.0.2) (40), depicting the five most enriched GO terms per category and the top twenty KEGG pathways.

To explore the interactions of the candidate genes at the protein level, the Search Tool for the Retrieval of Interacting Genes/Proteins (STRING) database (https://string-db.org/↗) was employed to establish a PPI network (confidence score > 0.4). The Cytoscape software (v 3.10.2) (41) was then used to visualize proteins with high-quality interactions.

To assess the potential value of MDRGs and MRGs for predicting overall survival (OS) of DLBCL patients, within the GSE11318 dataset, the survival package (v3.3.1) (42) was applied to conduct univariate Cox analysis on candidate genes (hazard ratio (HR) ≠1, P< 0.2). A threshold of P< 0.2 was adopted for variable screening to avoid overlooking potential confounding factors or variables with weak effects. This approach aligns with recommendations in statistical theory regarding variable selection (43, 44) and has been applied in practical research settings (45). The genes that remained were tested for the proportional hazards (PH) assumption (P > 0.05) via the coxph function. The results of univariate Cox analysis were visualized by the forest plot package (v3.1.1) (46), and the genes that met the PH assumption criteria were defined as candidate prognostic genes. Then, the glmnet package (v4.1.2) (46) was employed for a 10-fold cross-validation LASSO regression to analyze candidate prognostic genes. The remaining genes were subjected to backward elimination (HR ≠1, P< 0.1), identifying prognostic genes linked to mitochondrial dynamics and mitophagy.

Besides, GSEA was performed on each prognostic gene to understand their biological roles in DLBCL. Specifically, the psych package (v2.2.9) (47) facilitated a Spearman correlation analysis between prognostic genes and all the other genes, arranging them by |cor| in descending order. Subsequently, GSEA was performed using the clusterProfiler package (v4.2.2) (|normalized enrichment score| >1, P< 0.05). The gene set referenced was "c2. cp.kegg.v7.5.1. symbols.gmt", sourced from the Molecular Signatures Database (MSigDB) (https://www.gsea-msigdb.org/gsea/msigdb↗). The leading five significant pathways of each prognostic gene were visualized by the enrichplot package (v1.18.3) (48), respectively. On the other hand, for an understanding of the molecular regulatory mechanisms of prognostic genes in DLBCL, miRDB (https://mirdb.org/↗) and miRanda (http://mirtoolsgallery.tech/mirtoolsgallery/node/1055↗) databases were applied to predict microRNAs (miRNAs) targeting prognostic genes, and the predicted miRNAs were then applied to predict corresponding long non-coding RNAs (lncRNAs) in the lncBase database (www.microrna.gr/LncBase↗). Besides, the NetworkAnalyst database (https://www.networkanalyst.ca/↗) was employed to forecast transcription factors (TFs) targeting prognostic genes. Finally, the lncRNA-miRNA-mRNA and TF-mRNA regulatory networks were visualized using Cytoscape software (v3.10.2).

The risk model was formulated using the GSE11318 dataset and employed backward elimination to select prognostic genes related to mitochondrial dynamics and mitophagy. The risk score for each patient was calculated using the following formula:

Where, n represents the number of prognostic genes, and i denotes the serial number of each gene.

Based on an optimal threshold for these risk scores, DLBCL samples were stratified into high-risk (HRG) and low-risk (LRG) groups. The ggplot2 package (v3.4.1) was used to illustrate the distribution of risk scores and survival status in these two groups. Besides, expression trends of prognostic genes were also illustrated by ComplexHeatmap (v2.15.1) (37). Kaplan-Meier (KM) survival curves were generated for the two groups using the survival package (v 3.3.1), and survival differences were compared using a log-rank test (P< 0.05). Moreover, receiver operating characteristic (ROC) curves were plotted using the survivalROC package (v1.0.3) (49) for survival at 1, 3, and 5 years (an area under the curve (AUC) > 0.6 indicated good predictive performance). Besides, the TCGA-DLBCL dataset was used to validate the risk model, assessing its accuracy and generalizability.

In GSE11318 dataset, for screening independent predictors of prognosis and assessing the clinical use of risk assessment scores related to mitochondrial dynamics and mitophagy, age, gender, lactate dehydrogenase (LDH) ratio, extranodal, Eastern Cooperative Oncology Group performance status (ECOG PS), stage, and risk score were sequentially subjected to univariate Cox analysis (HR ≠1, P< 0.05), PH assumption test (P > 0.05), and multivariate Cox analysis (HR ≠1, P< 0.05) via survival package (v 3.3.1). The remaining factors were defined as independent prognostic factors and visualized by the forestplot package (v3.1.1). The rms package (v6.5.0) (50) was employed to establish a nomogram model that combines the risk score with clinical features derived from independent prognostic factors, aiming to predict 1, 3, and 5-year survival probabilities of DLBCL patients. Besides, the ROC curves (AUC > 0.6) were plotted using pROC (v1.18.0) (51) to verify model discrimination.

Using the GSE11318 dataset, the tumor microenvironment (TME) of HRG and LRG was explored. The CIBERSORT algorithm was used to evaluate the differences in the abundance of 22 types of immune cells (52) between HRG and LRG, excluding samples with P values greater than 0.05. Differential immune infiltrating cell types were then obtained through the Wilcoxon rank sum test (P< 0.05). Next, the psych package (v 2.2.9) was applied to conduct Spearman correlation analysis among differential immune cell types and prognostic genes (|cor| > 0.3, P< 0.05). Subsequently, expression differences in 20 m6A-related genes (53) (VIRMA was replaced with KIAA1429) between HRG and LRG were evaluated via the Wilcoxon rank sum test (P< 0.05). Similarly, the psych package (v 2.2.9) was employed to analyze the correlations among differentially expressed m6A-related genes, and prognostic genes were analyzed via Spearman correlation analysis (|cor| > 0.3, P< 0.05). All results were visualized using the ggplot2 package (v 3.4.1).

Finally, the oncoPredict package (v0.2) (54) was applied to calculate the 50% inhibitory concentration (IC₅₀) of 198 chemotherapy drugs from the Genomics of Drug Sensitivity in Cancer (GDSC) database (https://www.cancerrxgene.org↗) for DLBCL patients in HRG and LRG groups. In addition, drugs with notable differences in IC₅₀ between HRG and LRG were acquired using the Wilcoxon rank sum test (P< 0.05). The top 20 medications with significant changes in IC₅₀ between groups were visualized. Besides, the psych package (v 2.2.9) was utilized to conduct Spearman correlation analysis (|cor| > 0.3, P< 0.05) among differential drugs and prognostic genes. These results were visualized by the ggplot2 package (v 3.4.1).

Further investigations were performed on the scRNA-seq dataset to explore the expression of prognostic genes linked to mitochondrial dynamics and mitophagy at the single-cell level.

First, the PercentageFeatureSet function in the Seurat package (v5.0.1) (55) was used to filter scRNA-seq data (5%< nFeature RNA percent of mitochondrial genes< 5%). Specifically, data evaluation and cell screening were conducted based on the following 3 parameters: nFeature_RNA (the number of genes detected in each cell, with the lowest and highest 5% of all its values used to identify cells with low expression levels or poor quality, and those with high expression levels or other issues respectively), nCount_RNA (the total number of unique molecular identifiers (UMIs) in each cell, and the highest 5% of its values were used to identify cells with abnormally high UMI counts due to high expression or technical problems), and the proportion of mitochondrial genes (with a cutoff of less than 0.05 set to screen for normal cells). The quality control chart was generated by the ggplot2 package (v3.4.1). Next, the PercentageFeatureSet function in the Seurat package (v5.0.1) was applied to identify 2,000 genes with the largest variation (the 10 genes with the largest variation were labeled in a volcano plot generated by the LabelPoints function). Furthermore, the ScaleData function in the Seurat package (v5.0.1) was used to normalize the samples. Subsequently, an analysis using principal component analysis (PCA) was conducted on the 2000 most highly variable genes. The dimensionality reduction results were visualized in an inflection point plot via the Elbowplot function. Next, the PCA replacement test was conducted through the Jackstraw function and the principal components (cells) that could be used for later analyses (P< 0.05).

After PCA downscaling, the uniform manifold approximation and projection (UMAP) clustering method was used to identify cell clusters (resolution =0.1). Afterwards, cell annotation was conducted. Specifically, the marker genes from the CellMarker database (http://bio-bigdata.hrbmu.edu.cn/CellMarker↗) were applied to annotate the cell types of the different clusters. The annotation results were visualized in the UMAP plot, and the expression of marker genes in different cell types was illustrated via the ggplot2 package (v3.4.1). Subsequently, the R package CellChat (v 1.6.1) (56) was used to analyze ligand-receptor pairs and molecular interactions among different annotated cell types in the disease and control groups (P< 0.05, Log2 (mean (Molecule1, Molecule2)) ≥ 0.1), and visualized the communication networks to compare the number and strength of communication networks between the two groups.

Based on all samples, the distribution of prognostic genes was analyzed, and the data were presented in UMAP plots. Besides, the expression differences of prognostic genes between DLBCL and control groups were compared by employing the Wilcoxon rank sum test (P< 0.05). Notably, the cell type exhibiting significant differences in the expression of most prognostic genes between groups was defined as the key cell type. Furthermore, to reveal the related biological functions of key cell types, functional analysis was conducted via the ReactomeGSA package (v1.16.1) (57) (P< 0.05).

Based on all samples, the key cell type was further clustered into distinct subtypes by UMAP downscaling. Subsequently, the Monocle2 package (v2.26.0) (58) was employed to conduct cell trajectory analysis, by which the differentiation of key cell types was simulated, and the expression trends of prognostic genes at different developmental stages in key cell types were illustrated.

To investigate gene expression changes in each cell during critical cellular state transitions, cell trajectory and pseudotime analysis were performed using the plot_genes_in_pseudotime algorithm from the R package monole (v 2.26.0) (59). To reduce dimensionality, the RunPCA function from the R package Seurat (v 5.0.1) (55) to perform PCA analysis on the selected highly variable genes. The Jackstraw function was used for significance testing (P< 0.05), and the ElbowPlot function was employed to rank principal components (PCs), selecting effective PCs for subsequent analysis.

To understand key cell heterogeneity, the FindClusters function in the R package Seurat (v 5.0.1) was used to perform cluster analysis on the PCs (resolution set to 0.2), yielding distinct subpopulations. The RunUMAP function visualized the clustering results. Subsequently, key cell subpopulations were annotated based on marker genes provided by the FindAllMarkers function, referencing literature (60). After removing non-key cell types, an UMAP projection plot was generated. Subsequently, pseudotime trajectory analysis was performed on key cell subpopulations, and developmental trajectory plots were visualized with color coding based on pseudotime, differentiation stage, and developmental time. Finally, the plot_genes_in_pseudotime function from the monole package (v 2.26.0) was used to plot the dynamic trends of prognostic gene contributions during cell differentiation.

Additionally, metabolic enrichment analysis was performed to explore the metabolic characteristics of different key cell subpopulations.

To validate the levels of expression for prognostic genes in clinical samples, RNAs of 5 DLBCL tissue samples and 5 control samples from individuals were isolated using TRIzol reagent (R401-01, Ambion, America). The collection was performed at the First Affiliated Hospital of Fujian Medical University in Fujian province. The isolated RNAs were then used for cDNA synthesis employing the Hifair^® III 1st Strand cDNA Synthesis SuperMix for qPCR kit (11141ES60, Yisheng, China). Subsequently, RT-qPCR was executed using 2×Universal Blue SYBR Green qPCR Master Mix (G3326-05, Servicebio, China). Primers for prognostic genes and the internal reference gene (GAPDH) were listed in Supplementary Table S3. The reaction system and program were performed according to the reagent's instructions. Following the RT-qPCR procedure, the 2^-ΔΔCт method was applied to determine relative expression levels. A t-test (P< 0.05) was applied to evaluate differences between groups, and data visualization was conducted using Graphpad Prism 5 software (v8.0) (61). Ethical approval for this study was granted by the Branch for Medical Research and Clinical Technology Application, Ethics Committee of the First Affiliated Hospital of Fujian Medical University. Approval No. MRCTA, ECFAH of FMU [2023]350. Written informed consent was obtained from all participants.

R language (v 4.3.1) was utilized to perform all bioinformatic analyses. Besides, the Wilcoxon rank sum test, the log-rank test, and the t-test were employed in this study to assess differences between groups, setting the significance threshold at P< 0.05. To validate the appropriateness of the Wilcoxon rank sum test, the data was examined for normality using the Shapiro-Wilk test and a QQ plot. Results indicated that the data did not follow a normal distribution (W = 0.9046, P< 2.2e-16, Supplementary Figure S2).

Based on the GSE32018 dataset, the DLBCL group exhibited significantly higher scores for MDRGs and MRGs compared to the control group, which revealed that mitochondrial dynamics and mitophagy were strongly associated with DLBCL progression (Supplementary Figures S3A, B). Furthermore, after removing unqualified samples by sample clustering (cutHeight = 290) (Supplementary Figure S3C), WGCNA was undertaken to identify key module genes associated with mitochondrial dynamics and mitophagy. The optimal soft thresholding was set at 8 according to the scale-free fit index (R² = 0.9) and mean connectivity (close to 0). A gene co-expression network was established with 14 gene modules, excluding the gray module (Supplementary Figures S3D, E). Notably, candidate key module genes strongly correlated with MDRGs and MRGs were obtained from blue (cor (MDRGs) = 0.84, cor (MRGs) = 0.92) and brown (cor (MDRGs) = -0.91, cor (MRGs) = -0.82) modules (P< 0.0001) (Supplementary Figures S3F, G). Subsequently, 931 key module genes were selected based on the predefined criteria(|MM| > 0.8, |GS| > 0.6) (Supplementary Figures S3H, I).

Besides, analysis of the GSE32018 dataset identified 158 DEGs in the DLBCL group, including 14 up-regulated and 144 down-regulated genes (P< 0.05) (Supplementary Figure S4A). Afterward, 98 candidate genes were identified from the intersection of DEGs and key module genes (Supplementary Figure S4B). Importantly, candidate genes were significantly enriched in GO entries and KEGG pathways, including cytokine-mediated signaling pathway and lymphocyte differentiation (P< 0.05) (Supplementary Figure S4C). Furthermore, the PPI network revealed 42 proteins formed 41 interacting pairs, including proteins such as COX6A2 and UTS2R (Supplementary Figure S4D). These findings provide a better understanding of the multiple roles of mitochondrial dynamics and mitophagy in DLBCL progression.

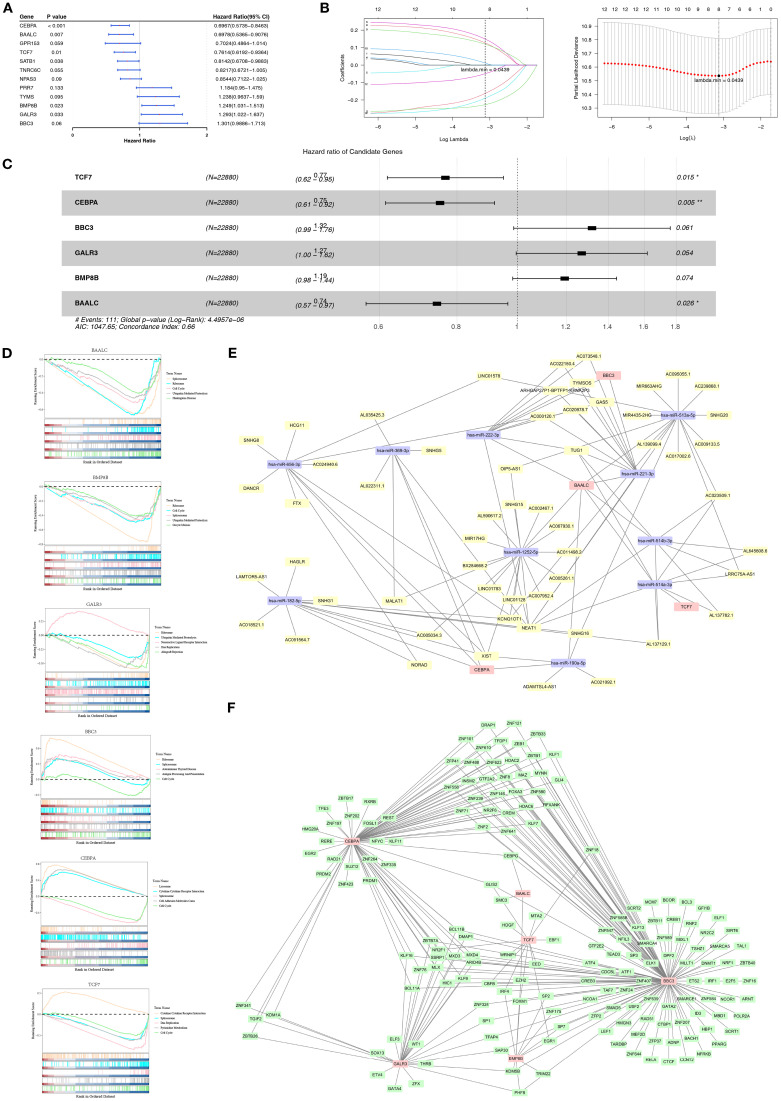

Based on the GSE11318 dataset, 12 candidate prognostic genes associated with OS of DLBCL patients were identified through univariate Cox analysis (P< 0.2) and PH assumption test (P > 0.05) (Figure 1A, Supplementary Table S4). After LASSO regression analysis, 8 candidate prognostic genes (TCF7, CEBPA, BBC3, GALR3, BMP8B, PRR7, BAALC, and NPAS3) were retained (lambda.min = 0.0439) (Figure 1B). Following this, six prognostic genes linked to mitochondrial dynamics and mitophagy were identified using backward elimination (P< 0.1), including TCF7, CEBPA, BBC3, GALR3, BMP8B, and BAALC (Figure 1C). TCF7, CEBPA, and BAALC were associated with better prognosis (HR< 1), suggesting that they might inhibit DLBCL progression. Conversely, BBC3, GALR3, and BMP8B were associated with adverse prognosis (HR > 1), indicating they could facilitate the advancement of DLBCL.

Furthermore, biological pathways related to prognostic genes in DLBCL were discovered using GSEA. Specifically, prognostic genes were found to be associated with pathways like cytokine-cytokine receptor interaction, lysosome, ribosome, and spliceosome (Figure 1D). Based on the above findings, it can be inferred that mitochondrial dynamics and mitophagy exhibit pivotal roles in DLBCL progression by affecting these pathways.

Furthermore, regulatory elements targeting prognostic genes were predicted. The constructed lncRNA-miRNA-mRNA network comprised miRNAs (such as has-miR-1252-5p and has-miR-222-3p) targeting specific prognostic genes (TCF7/CEBPA/BBC3/BAALC) and lncRNAs (such as NEAT1 and XIST) targeting specific miRNAs (Figure 1E). Besides, the TF-mRNA network revealed prognostic genes (TCF7/CEBPA/BBC3/GALR3/BMP8B/BAALC) that were regulated by specific TFs like SMC3 and FOXM1 (Figure 1F). These findings are crucial for elucidating the pathophysiological mechanisms related to mitochondrial dynamics and mitophagy in DLBCL.

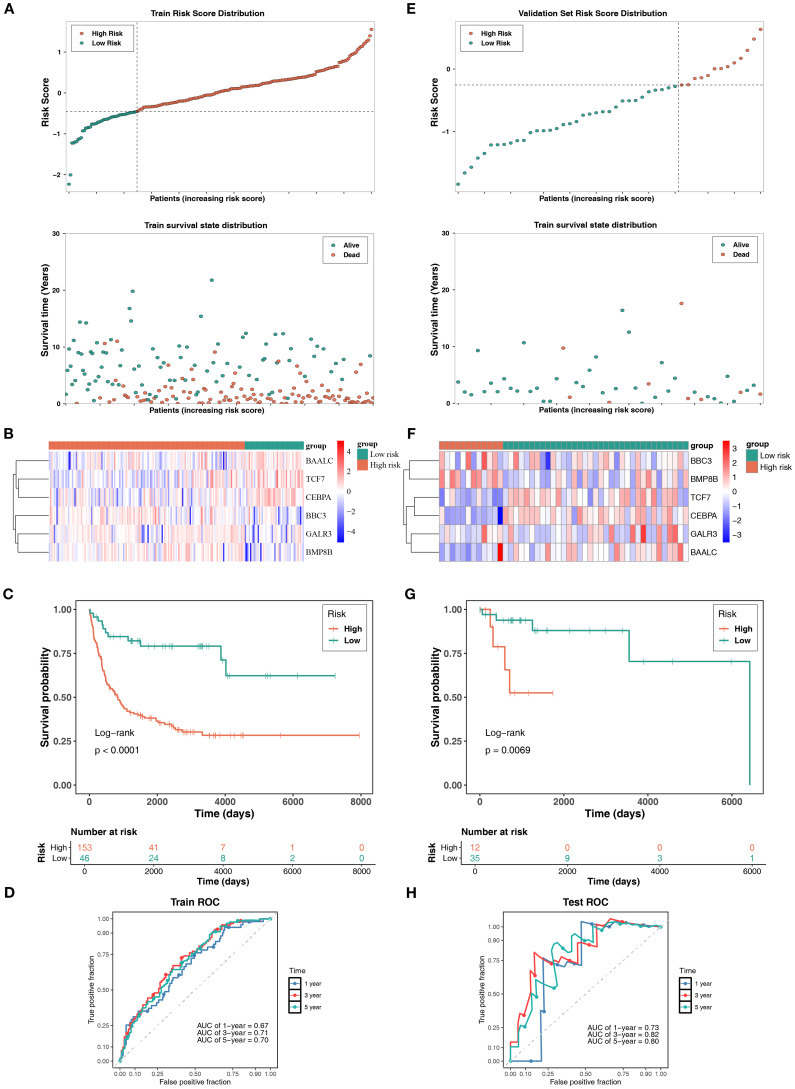

Within the GSE11318 dataset, after obtaining prognostic genes, a risk model related to mitochondrial dynamics and mitophagy was constructed: risk score = (-0.26622943) × TCF7 expression level + (-0.285915897) × CEBPA expression level + (0.276313141) × BBC3 expression level + (0.238247261) × GALR3 expression level + (0.175169469) × BMP8B expression level + (-0.297403233) × BAALC expression level. Next, DLBCL patients were divided into HRG and LRG (153: 46) based on an optimal cutoff value of -0.4496605. The distribution of risk scores and survival status within risk groups illustrated that mortalities of DLBCL patients increased with increasing risk scores (Figure 2A). Notably, BBC3, GALR3, and BMP8B exhibited higher expression in HRG, while BAALC, TCF7, and CEBPA exhibited higher expression in LRG (Figure 2B). Besides, KM survival curves revealed that DLBCL patients in LRG exhibited markedly higher survival probabilities (P< 0.0001) (Figure 2C). Besides, the AUC of ROC curves at 1, 3, and 5 years all exceeded 0.6, reflecting the good prognostic performance of this risk model (Figure 2D).

Besides, the risk model underwent validation using the TCGA-DLBCL dataset. DLBCL patients in this dataset were classified into HRG and LRG (12: 35) using an optimal risk score threshold of -0.2549045. The results, including the risk score, survival status (Figure 2E), prognostic gene expression trends (except GALR3) (Figure 2F), KM survival curves (P< 0.01) (Figure 2G), and ROC curves (AUC all exceeded 0.7) (Figure 2H), were largely aligned with the GSE11318 dataset. The risk model related to mitochondrial dynamics and mitophagy demonstrated robust generalizability, suggesting its huge potential for tailored prognostic evaluation in the clinical management of DLBCL.

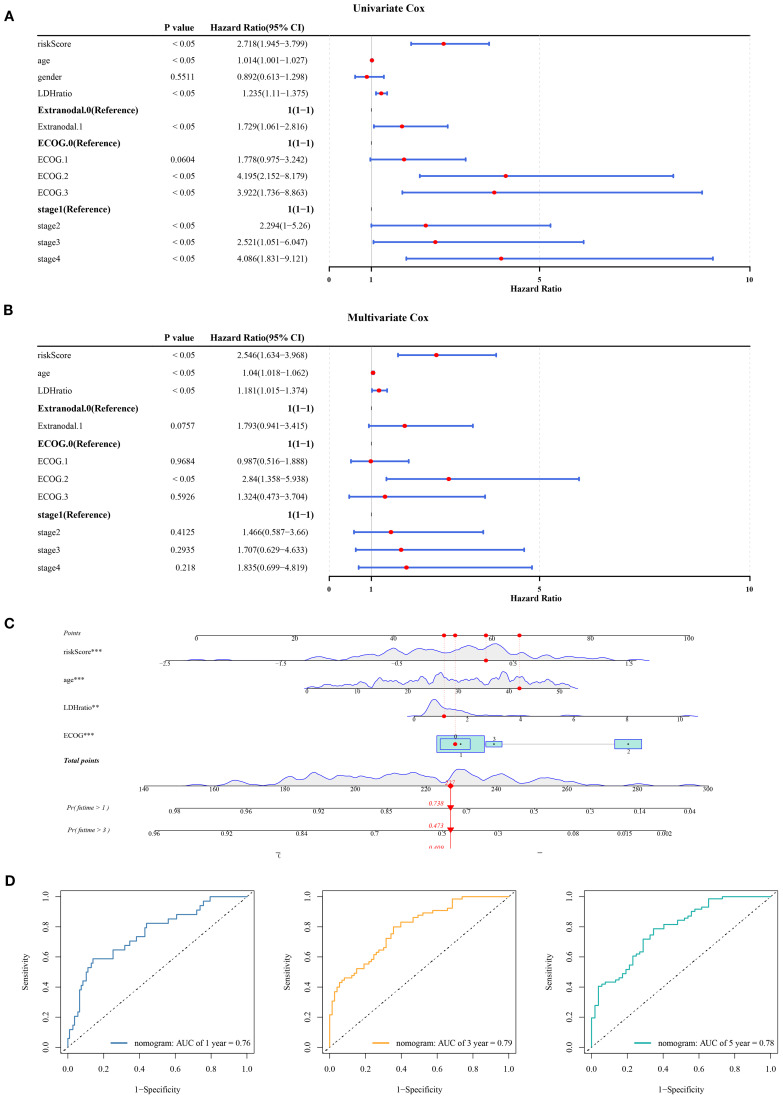

In the GSE11318 dataset, the clinical applicability of risk scores related to mitochondrial dynamics and mitophagy was evaluated by Cox regression analysis. Specifically, a total of 6 factors (age, LDH ratio, extranodal, ECOG PS, stage, and risk score) were identified as significant predictors of prognosis (P< 0.05) and satisfied the proportional hazards assumption (P > 0.05) (Figure 3A, Supplementary Table S5). Following this, these factors were evaluated through multivariate Cox analysis, with age, LDH ratio, ECOG PS, and the risk score identified as independent predictors of prognostic (P< 0.05) (Figure 3B). Notably, these factors were associated with an adverse prognosis of DLBCL patients (HR > 1). Subsequently, a nomogram integrating independent prognostic factors was established (Figure 3C). Notably, DLBCL patients with higher total points have lower chances of survival at 1, 3, and 5 years. ROC analysis showed that the AUC at 1, 3, and 5 years all exceeded 0.7 (Figure 3D), demonstrating that the discrimination ability of this nomogram model was superior, further highlighting the remarkable clinical utility of risk scores related to mitochondrial dynamics and mitophagy in prognostic evaluation of DLBCL.

On the one hand, the TME profiles of HRG and LRG in the GSE11318 dataset were analyzed (Supplementary Figure S5A). Notably, 8 differential immune infiltrating cell types, including M0 macrophages and T follicular helper cells, were identified (P< 0.05) (Supplementary Figure S5B). Moreover, a strong correlation was observed among these differential immune infiltrating cell types. For example, the most significant positive correlation was observed between T follicular helper cells and regulatory T cells (Tregs)/gamma delta T cells (cor = 0.35). In contrast, the most significant negative correlation was observed between memory B cells and gamma delta T cells (cor = -0.45) (P< 0.01). Besides, the prognostic genes were markedly correlated with specific differential immune infiltrating cell types. For instance, CEBPA showed the strongest positive correlation with M0 macrophages (cor = 0.52), while the strongest negative correlation was observed between CEBPA and memory B cells (cor = -0.49) (P< 0.001) (Supplementary Figure S5C). The above findings suggest that the TME profiles of HRG and LRG are different and associated with the expression of prognostic genes and specific immune cells. Consequently, the prognostic genes related to mitochondrial dynamics and mitophagy could serve as potential new targets for personalized therapeutic approaches in DLBCL.

On the other hand, the expression of 10 m6A-related genes like YTHDC1 and HNRNPC demonstrated significant differences between HRG and LRG (P< 0.05) (Supplementary Figure S5D) (RBMX was not expressed in the samples). Besides, the prognostic genes were notably associated with specific m6A-related genes. For instance, BBC3 exhibited a significant negative correlation with YTHDF3 (cor = -0.42), and CEBPA showed a significant negative correlation with HNRNPA2B1 (cor = -0.40) (P< 0.001) (Supplementary Figure S5E). These results suggest that the prognostic genes could regulate tumor cell behavior by influencing the dynamic regulation of m6A modification, which in turn alters RNA stability, translation efficiency, or splicing patterns.

Regarding therapeutic drugs, the IC₅₀ values for specific therapeutic drugs varied significantly between HRG and LRG (P< 0.05). The IC₅₀ of drugs like dihydrorotenone, elephantin, and fulvestrant were significantly lower in LRG (P< 0.0001) (Supplementary Figure S5F). Notably, a lower IC₅₀ value indicated greater drug efficacy. Notably, CEBPA exhibited markedly strongly positive correlations with most drugs, especially Vorinostat_1012 (cor = 0.56) (P< 0.001) (Supplementary Figure S5G). Consequently, these differential drug sensitivities might be due to different drug metabolism mechanisms affected by specific prognostic genes in DLBCL patients from varying risk groups.

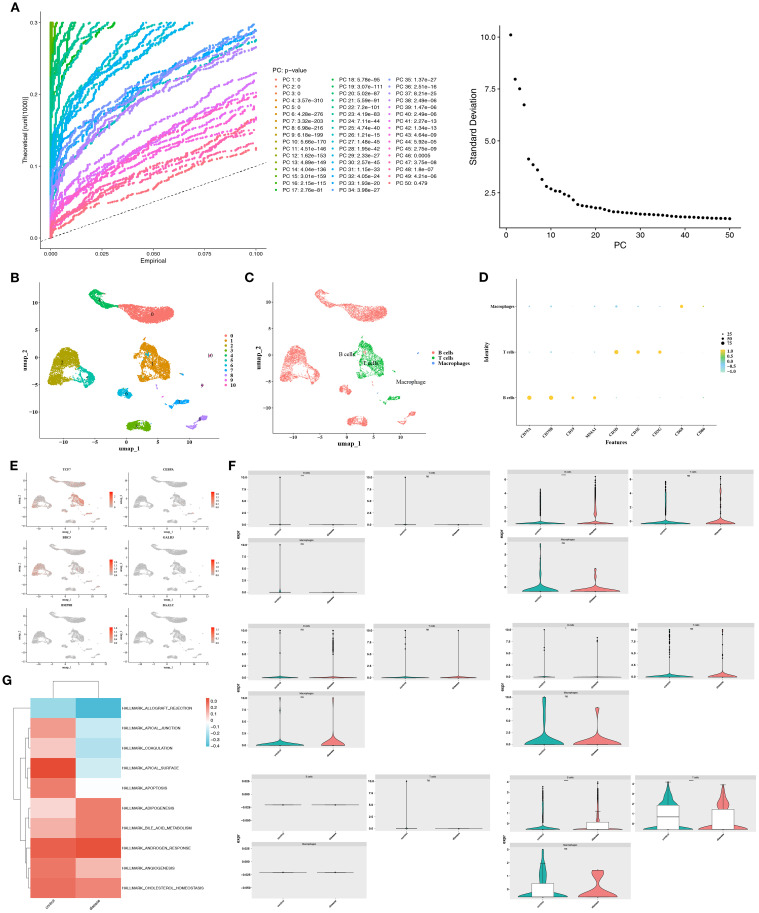

To investigate the mechanisms related to mitochondrial dynamics and mitophagy in DLBCL at a single-cell resolution, scRNA-seq data were filtered. The integrated data contained 12,087 cells and 23,432 genes (Supplementary Figure S6). The variability among these genes was assessed (Supplementary Figure S7), and the top 10 most variable genes were identified. PCA was performed for dimensionality reduction (Supplementary Figure S8). Both the inflection point plot and PCA replacement test indicated that the top 20 principal components should be retained for downstream analysis (Figure 4A). The retained principal components (cells) were subsequently clustered and labeled. These cells were classified into 11 clusters (Figure 4B). Based on the application of marker genes, cell clusters were further annotated into 3 types, including B cells (marker genes: CD79A, CD79B, CD19, and MS4A1), T cells (marker genes: CD3D, CD3E, and CD3G), and macrophages (marker genes: CD68 and CD86) (Figure 4C). Besides, the expression of marker genes in different cell types was illustrated (Figure 4D). Furthermore, the distribution of two prognostic genes, TCF7 and BBC3, was also mapped across the annotated cell types (Figure 4E). Notably, given that the B cells exhibited significant differences in the expression of most prognostic genes (BAALC, BBC3, CEBPA, TCF7) between the two groups, they were defined as the key cell type (Figure 4F). Moreover, it was found that B cells were notably associated with functions, encompassing allograft rejection, apical junction, and coagulation (Figure 4G). Cell communication analysis revealed that in the disease group, B cells exhibited a higher number of communication events with T cells, albeit with weaker intensity, while communication between B cells and themselves was stronger (Supplementary Figure S9A). Conversely, in the control group, communication between T cells and B cells appeared to be stronger. The absence of normal T-B cell communication in the disease group suggested that the disease might have induced T cell immune imbalance (Supplementary Figure S9B). Ligand-receptor interaction bubble plots further revealed that in the disease group, B cells most frequently communicated with themselves via the MIF pathway (Supplementary Figure S9C). In the control group, T-cell-B-cell communication also primarily occurred through the MIF pathway, exhibiting the highest communication probability (Supplementary Figure S9D).

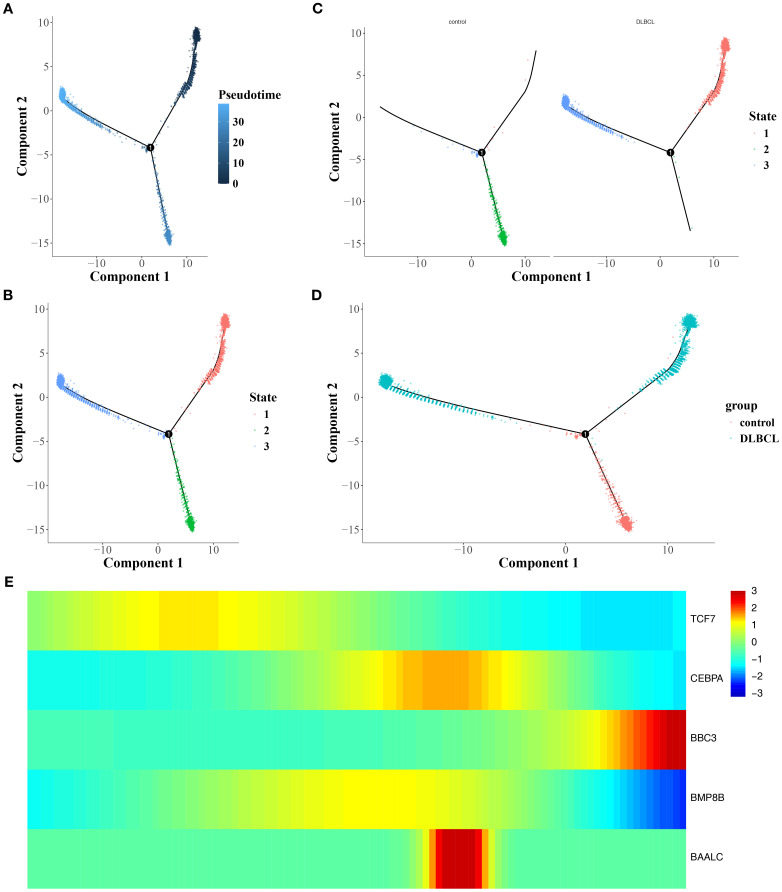

An analysis of B cell trajectories was performed, revealing their differentiation over time. The differentiation trajectory is visualized with a color gradient, where darker colors indicate earlier differentiation stages (Figure 5A). The analysis clearly revealed three distinct states of B cell differentiation (Figures 5B, C). In the differentiation trajectory, B cells from control samples predominantly clustered in the middle stage of differentiation, whereas those from DLBCL samples formed large aggregates in the early and late stages (Figure 5D).

Besides, it was found that TCF7 and BBC3 were highly expressed during the early and late stages of B cell differentiation, respectively. In addition, CEBPA, BAALC, and BMP8B showed elevated expression during the middle stage of B cell differentiation (Figure 5E). In summary, the influence of mitochondrial dynamics and mitophagy on DLBCL progression might be linked to the differentiation stages of B cells and the expression of prognostic genes across these stages.

To explore prognostic gene expression changes within B-cell subpopulations, PCA analysis was first performed, selecting the top 10 PCs for subsequent analysis (). Clustering analysis ultimately identified seven distinct cell subpopulations (). Subsequently, annotation of these cell subpopulations yielded seven distinct cell types: IgE-MemB/PB, GC-LZ-like (SOX4+), GC-DZ (Cycling), FolB IgM+CD23+, Non-B (Epithelial-like), Non-B (Stromal/Metab.), and T (,). After removing contaminated cell types, four cell types were ultimately retained: FolB IgM+CD23+, GC-LZ-like (SOX4+), GC-DZ (Cycling), and IgE-MemB/PB (). 1 1 1 1 1

Further analysis revealed that key cell differentiation trajectories originate from dark regions, with light regions representing cell types at the differentiation terminus. During differentiation, GC-DZ (Cycling) cells were present in both early and late stages. IgE-MemB/PB cells predominantly occupied the early stage, GC-LZ-like (SOX4+) cells primarily occupied the late stage, while FolB IgM+CD23+ cells resided in a lower branch. Furthermore, key cells were categorized into three stages: most cells resided in the red Stage 1, followed by green Stage 2, with a minority in blue Stage 3. Comparing cell distributions between disease and control groups revealed significantly more cells in the disease group, while the lower branches exhibited richer distribution in the control group (). 1

Regarding prognostic genes, the expression heatmap of the differentiation timeline showed that BBC3 gradually increased in expression during the third and terminal stages of differentiation, while TCF7 exhibited a trend of initial increase followed by decline (Figures 6A, B). Furthermore, TCF7 and BBC3 were notably expressed in B cells, whereas other prognostic genes showed weaker expression in B cells (Figure 6C). Metabolic analysis revealed that IgE-MemB/PB enriched sterol and amino acid metabolism, suggesting this subpopulation may favor secretory lineages (e.g., ER/membrane lipid biogenesis and antibody glycosylation substrate supply). The GC-LZ-like subpopulation enriched for BCAA, alanine, aspartate, glutamate, and sulfur metabolism, indicating that the light zone selection period relies on amino acid carbon-nitrogen flux and glutathione antioxidant functions to maintain signaling and cell survival. The GC-DZ (Cycling) subpopulation enriched for pyrimidine, folate, and one-carbon metabolism aligns with the high demand for nucleotide synthesis and one-carbon donors during dark-phase proliferation. Conversely, the FolB IgM+CD23+ subpopulation enriched for glycerolipid metabolism and fatty acid chain elongation suggests this subset may participate in early-stage membrane lipid replenishment and receptor signaling platform remodeling (Figure 6D). The above findings provide an in-depth perspective that helps elucidate how B cell subsets function in immune responses through gene expression and metabolic pathways, while also revealing the potential clinical applications of these cellular characteristics.

In DLBCL, the expression of CEBPA, BBC3, GALR3, BMP8B, and BAALC was markedly higher than in the control group (P< 0.05) (Figures 7A–E). Although TCF7 expression tended to be downregulated in DLBCL, the differences were not significant, possibly due to the limited sample size (Figure 7F). The differential expression of these genes further underscored their prognostic value for DLBCL.
