How protein coating on fat-based particles reduces mRNA delivery efficiency

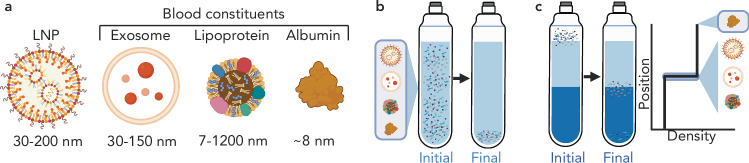

A further challenge of isolating protein-LNPs is the low density of these soft nanoparticles. For denser substrates such as polymeric nanoparticles, standard centrifugation is sufficient to pellet protein-nanoparticle complexes from free proteins that remain suspended in-solution, leading to well-established protein corona-isolation techniques⁴⁴. In contrast, the low density of LNPs renders these particles buoyant in common buffers such as phosphate-buffered saline (PBS), even upon incubation with biological fluids. This buoyancy prevents LNP pelleting via tabletop centrifugation. We demonstrate this challenge by characterizing a potent LNP synthesized with the lipidoid, 306O₁₀, as a model LNP^12,19. We used dynamic light scattering (DLS) to measure the hydrodynamic diameters of constituents in the supernatant post centrifugation for 30 minutes at 4 °C and 20,000 × g (Supplementary Fig. 1a). Alternatively, higher g-forces (ultracentrifugation) have been shown to result in aggregation⁴⁵ or disruption⁴⁶ of these low-density lipid-based particles, as we also confirm by ultracentrifugation for 2 hours at 4 °C and 160,000 × g (Supplementary Fig. 1a). Ultracentrifugation also fails to provide LNP separation from biofluid-derived particles, as all particles eventually sediment to the bottom of the tube at longer time scales (Fig. 1b). Other techniques such as size exclusion chromatography (SEC) generally preserve particle stability but fail to effectively separate endogenous particles⁴⁵. Additionally, sucrose cushions, which isolate LNPs at an interface between fluids of different densities, trap endogenous particles with the protein-LNP complex (Fig. 1c) and a lack of plasma controls makes it challenging to distinguish between proteins interacting with LNPs and proteins interacting with endogenous similarly-sized particles, such as exosomes.

Some methods have been developed in recent years such as photoaffinity-based⁴⁷, antibody-based⁴⁸, and magnetic-based⁴⁹ isolations that are high-throughput and include wash steps to remove native particles. However, photoaffinity-based and magnetic-based approaches require modifications of the lipid-based formulations that may impact the corona proteins identified, whereas antibody-based pulldowns targeting PEG may be biased by PEG desorption from the LNP surface⁵⁰. These methods have been highly valuable in enabling larger formulation screens, whereas a method that does not alter LNP-corona formation or rely on PEG presence is still needed for further mechanistic studies of protein-LNP complexes. Another approach that can be used to study LNP corona proteins while avoiding the contribution of endogenous particles is to use plasma depleted of lipoproteins, yet the use of depleted plasma fails to capture interactions between apolipoproteins and the LNP, which are often associated with the mechanism of LNP uptake, such as ApoE²⁵.

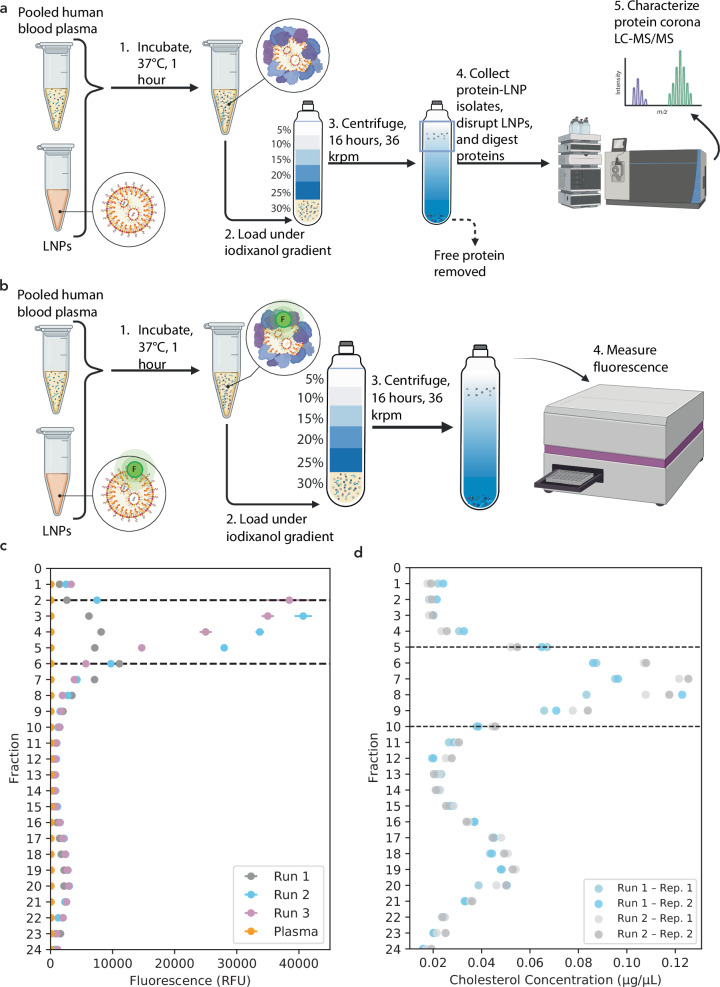

Density gradient ultracentrifugation (DGC) is a promising method that is gentle on the protein corona, does not require changes to the LNP formulation, and enables relative separation from more dense lipoproteins. Within a density gradient, the medium may vary in density in a linear or stepwise manner depending on the medium selected and the centrifugation conditions. As samples are centrifuged in a density gradient, lower-density particles, including LNPs, float towards the top, while denser plasma protein components, like serum albumin, sink to the bottom. Previous studies characterizing the LNP corona using this approach separate particles at relatively short time scales (3–4 hours)^28,51 and thus fail to effectively separate protein-LNP complexes from the more abundant plasma proteins and endogenous nanoparticles (Supplementary Fig. 1b). As a result, protein corona characterization from these studies includes proteins recovered both from LNPs and from biofluid-derived particles, making it difficult to assess which of these proteins originated from the LNP corona itself^18,28,51. In contrast, most methods for separating exosomes from biofluids within a density gradient use longer centrifugation times of ~16–24 hours to accomplish a clean separation^52,53. Here, we postulated that by (1) providing adequate separation time to isolate protein-LNP complexes and (2) accounting and correcting for native particle contamination, we could identify and quantify the presence of proteins that adsorb to the LNP surface in human biofluids.

After centrifugation, we used fluorescence measurements to track LNP localization and selected fractions for collection. Based on our DLS measurements (Supplementary Fig. 1a) and prior DLS characterization of LNPs¹⁷, we determined that our synthesized LNPs possessed a low polydispersity and a narrow diameter range. This suggested that LNPs would distribute within a small range of fractions within the iodixanol gradient. We identified fractions containing LNPs by synthesizing an LNP sample with a fluorescently tagged lipid (1,2-dioleoyl-sn-glycero-3-phosphoethanolamine-N-(lissamine rhodamine B sulfonyl)) and running the fluorescent LNPs through the iodixanol gradient (Fig. 2b). 0.5-mL fractions were collected top to bottom and fluorescence was measured to quantify LNP localization (Fig. 2c) as well as absorbance to confirm linearity of the iodixanol gradient (Supplementary Fig. 4). Based on our fluorescence measurements, we found that ~68% of LNPs localized within fractions 2–6 of the iodixanol gradient, denoted as a single sharp peak in the early gradient fractions (Fig. 2c, Supplementary Table 1). We observed a broad minor second fluorescence peak at higher fraction numbers (Fig. 2c), which is likely due to fluorophores dissociating from the LNP as previously demonstrated⁵⁷. The autofluorescence of proteins in blood plasma was found to be negligible.

To examine the degree of separation from lipoproteins, which are endogenous particles that confound LNP protein corona results, we quantified the presence of total cholesterol as a key lipoprotein constituent throughout the gradient (Fig. 2d). We found that most cholesterol is present in fractions 5–10 and later fractions, which have limited overlap with the localization of the LNPs. To further validate the localization of lipoproteins, we quantified the presence of the most abundant apolipoprotein in human plasma, apolipoprotein AI (ApoA-I). We confirmed that 99.5% of ApoA-I localizes to fractions 12–24 through an enzyme-linked immunosorbent assay (ELISA; Supplementary Fig. 5). Previous work has already determined that exosomes, another type of endogenous particle, are not present in the first 5 fractions of the density gradient⁵⁴. By pooling fractions 2–6 for characterization via liquid chromatography-tandem mass spectrometry (LC-MS/MS), the concentration of LNPs was maximized relative to amounts of native particles present in the control sample. We elected to keep the marginal fractional overlap between localization of the LNPs and lipoproteins in fraction 5–6 to have sufficient protein amounts for proteomic processing and to avoid biasing the recovery of proteins from LNPs of slightly smaller size or higher density. Importantly, our control sample accounts for the fractional overlap of LNPs and lipoproteins through proteomic comparison. This process of fraction selection allows us to minimize contributions of endogenous blood particles and predominantly focus on LNP corona proteins for downstream analysis.

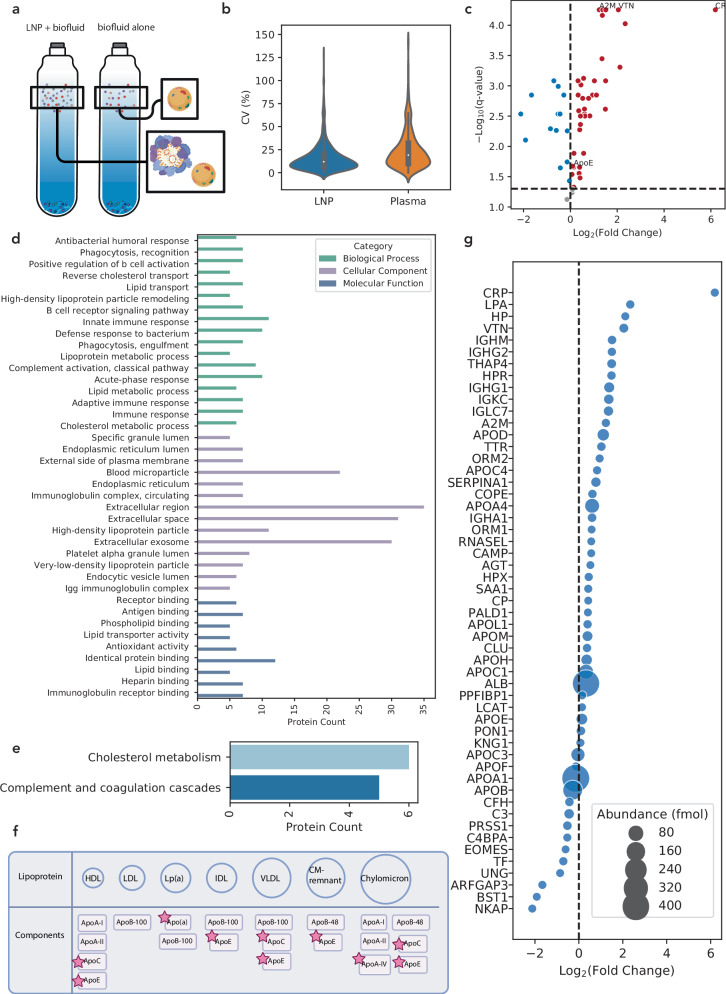

We next categorized proteins enriched in the LNP corona based on their gene ontology, specifically, their biological process, cellular component, and molecular function (Fig. 3d). We found that the biological processes of these proteins are associated with both the innate and adaptive immune responses, as well as lipid transport and metabolism. As anticipated, the cellular component characterization of these proteins reveals their associations with the extracellular space, exosomes, and microparticles. Their molecular functions were associated with lipid-binding, immunoglobulin receptor-binding, and heparin-binding functions. Further analysis also revealed that enriched LNP-corona proteins were involved in biological pathways including cholesterol metabolism (Fig. 3e) and components in apolipoproteins (Fig. 3f). Despite ApoA-I and apolipoprotein A-II (ApoA-II) being the two most abundant apolipoproteins in blood plasma⁵⁸, we do not identify ApoA-I or ApoA-II as enriched in the protein corona, suggesting we are selectively identifying apolipoproteins that interact with LNPs. Additionally, we find that proteins implicated in complement and coagulation cascades are enriched in the corona phase (Fig. 3e).

We compared the fold change in protein abundance relative to plasma alone (Fig. 3g), which revealed enriched proteins such as c-reactive protein (CR) that have a high affinity for the LNPs. In previous methods, this low-abundance protein would be challenging to identify as an enriched protein due to high levels of contamination from high-abundance proteins, such as serum albumin and apolipoproteins. We also found that vitronectin, a cell adhesion and spreading factor that interacts with glycosaminoglycans and proteoglycans, is highly enriched in the LNP protein corona, in agreement with prior work²⁸.

To highlight the merits of this approach, we examined the relationship between proteomic analyses that considered the relative protein abundance only upon LNP incubation and our approach that quantifies differences between the LNP sample and a biofluid control (Supplementary Fig. 6a). In previous LNP corona work²⁸, the relative abundance was reported as the percent abundance of each protein identified in the LNP experiment without a biofluid-alone control. In contrast, we quantify the absolute protein abundance and report the fold change in the LNP sample relative to the biofluid control. We found a near-zero and negative correlation for our data analysis (fold change relative to plasma) and previous approaches for reporting top-enriched proteins (relative abundance (%)) for all identified proteins and apolipoproteins, respectively (Supplementary Fig. 6b, c). These results suggest that examining the relative abundance in an LNP sample is not sufficient for selective identification of proteins that comprise the LNP protein corona. Analyzing the LNP sample by highest relative abundance (%) likely biases toward higher abundance plasma proteins. As such, proteins that are more abundant in the biofluid, including ApoA-I, may appear highly enriched in the corona. Therefore, characterizing the LNP protein corona with centrifugation-based approaches by only considering the most abundant proteins in the corona is less accurate and is largely overwhelmed by proteins introduced by particles native to plasma, and not by interaction with the LNPs.

Ultimately, we are interested in studying how proteins consistently enriched in the LNP protein corona affect LNP transfection efficiency. Our analysis thus far highlights the proteins most enriched in the LNP protein corona from three technical replicates. Our group has previously shown that experimental replicates, particularly those performed on different days and analyzed at different LC-MS/MS core facilities, exhibit very high variability, with <2% common proteins identified from different LC-MS/MS core facilities from otherwise identical protein corona samples^59,60. Therefore, we performed three independent experimental replicates of our protein isolation workflow to assess the true variation within our method. To do so, we compared enriched proteins from samples processed in parallel, which have limited LC-MS/MS instrument variation, and samples processed via LC-MS/MS independently across different weeks, each with three replicates of the isolation workflow. This experiment ensures that proteins we find across several independent and time-separated replicate datasets are consistently enriched in the corona. Samples processed in parallel (Supplementary Fig. 7) show similar proteins enriched in the corona. We therefore conclude that these proteins have a high association with the LNP surface, and their consistent enrichment through the density gradient isolation strategy suggests that these proteins are likely "hard corona" proteins.

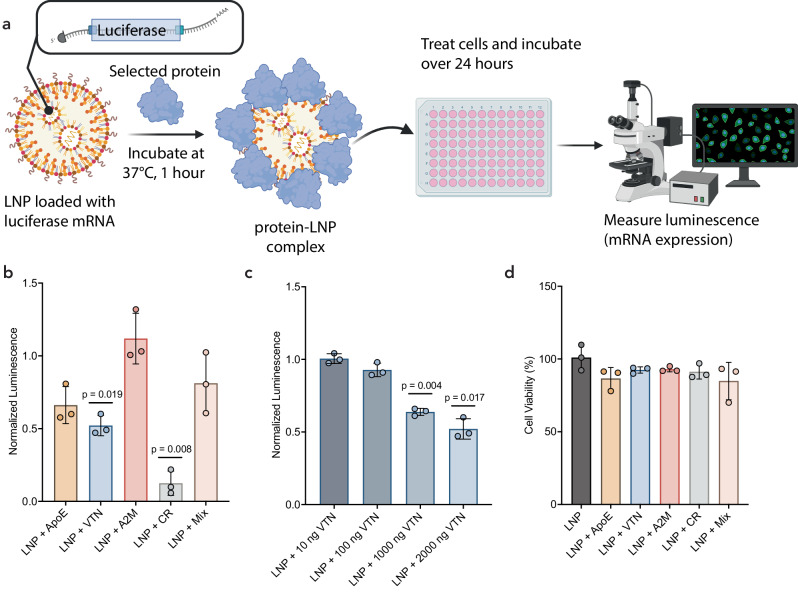

To understand the effect of corona proteins on LNP-mediated mRNA delivery, we assessed the mRNA delivery and protein expression efficiency in cell culture for LNPs with coronas pre-formed using proteins identified in our proteomic analysis (Table 1). We considered both single protein-LNP coronas and an LNP corona formed from the combination of the selected top-enriched proteins. LNPs were loaded with a luciferase mRNA that provides a quantitative, luminescent readout upon successful luciferase mRNA translation to protein. 2 µg of each protein (0.05 ng mRNA: 1 ng protein, 0.01 mg/mL protein), an amount that is in excess of its presence in the corona as measured by LC-MS/MS (Supplementary Table 4), was incubated for 1 hour at 37 °C with each LNP formulation before LNP introduction to HepG2 human liver cells in serum-free media for attempted transfection. Of note, protein concentrations are within the same order of magnitude as native plasma protein concentrations, except for A2M, which is more highly abundant in plasma (Supplementary Table 5). We measured the increase in the hydrodynamic radii of the LNPs after the protein incubations, confirming that these select proteins form an associated LNP corona (Supplementary Table 6) prior to their introduction to cells.

We next investigated the concentration dependence of the VTN corona on mRNA expression. A dose-response experiment reveals that pre-incubating LNPs with VTN protein concentrations above 0.005 mg/mL (1000 ng added) exhibited significantly decreased mRNA expression efficiency relative to LNPs without a protein corona (Fig. 4c). This protein concentration at 0.005 mg/mL represents a lower VTN concentration than found in native plasma (Supplementary Table 5). We also considered that LNPs with pre-formed coronas may affect cell viability and thus indirectly affect transfection efficiency. However, we found that the pre-formed single-constituent protein coronas had no significant impact on cell viability (Fig. 4d), demonstrating that the decrease in mRNA expression is not due to lower cell viability.

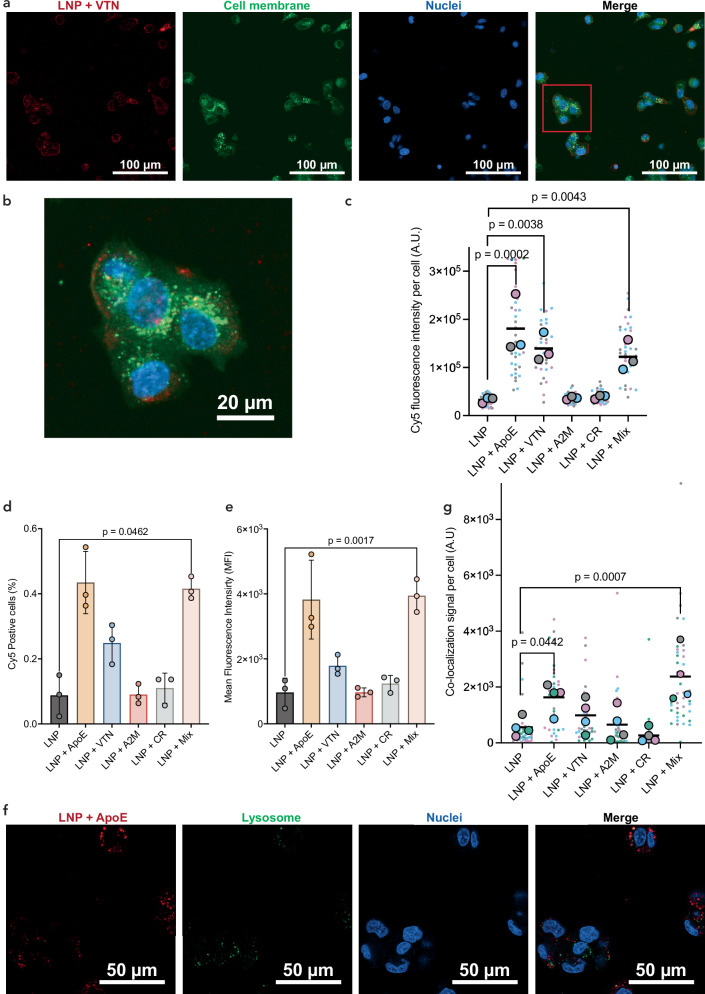

We investigated whether the increase in Cy5 signal per cell may be due to LNPs associating with the outer membrane of the cell rather than being fully internalized. Images were collected from adherent cells with a 4.5 µm offset from the bottom of the cell, enabling visualization through an intermediate slice of each cell (Supplementary Fig. ). This approach enables us to observe LNP association within the membrane as a signal localized to the outer region of the cell. Through an erosion analysis of the cell within this focal plane, we studied the relative signal from the outer region of the cell, where LNPs may be stuck on the cell surface, and the inner region of the cell (Supplementary Fig. ). We calculated the fraction of Cy5 signal from the outer region relative to Cy5 signal from the entire cell (Supplementary Fig. ) and found that the LNPs incubated with ApoE, VTN, or a mixture of pre-formed coronas had more signal in this outer cell region compared to cells incubated with LNPs alone, though these differences were not statistically significant. Specifically, relative to the LNP-only cell incubation, cells incubated with VTN-LNPs or protein mixture-LNPs showed 8.5% and 9.4% increased Cy5 signal originating from the putative cell surface, respectively. These results suggest that the increased Cy5 signal associated with VTN-LNP or protein mixture-LNP incubated cells relative to LNP only incubated cells may be partially due to protein corona-induced LNP adhesion to the outer cell membrane. 10 9b, c 9d, e

To further validate differences in internalization for LNPs with pre-formed coronas observed during confocal microscopy, we used flow cytometry to measure cellular internalization of fluorescently labeled LNPs (Fig. 5d, e, Supplementary Fig. 11a, b). LNPs with and without a pre-formed corona were incubated with HepG2 cells for 1 hour at 37 °C before the cells were washed to remove LNPs on the outer surface. We found that uptake trends quantified with flow cytometry are consistent with the confocal microscopy data for both the percentage of Cy5-positive cells (Fig. 5d) and the difference in mean Cy5 fluorescence intensity between cells incubated with LNPs with a pre-formed protein corona compared to LNPs without a pre-formed corona (Fig. 5e). Specifically, we observe that cells exposed to LNPs pre-incubated with the protein mixture had four-fold higher levels of Cy5 mean fluorescence intensity than those exposed to LNPs without a pre-formed corona. Cells exposed to LNPs with an ApoE or VTN corona had a four-fold and 1.9-fold higher mean fluorescence intensity, respectively, though this difference was not statistically significant. In contrast, cells exposed to LNPs pre-incubated with A2M or CR had similarly low levels of mean fluorescence intensity as cells exposed to LNPs alone. These results provide an orthogonal method of validating our microscopy data, further supporting the aforementioned LNP internalization trends showing that certain protein coronas increase cellular uptake of LNPs. This counterintuitive result, that certain single-component pre-formed protein coronas and the select corona mixtures increase cell uptake while decreasing transfection efficiency, suggests that corona proteins may affect the efficiency of LNP endosomal escape.

Next, we considered whether pre-formed LNP coronas further affect LNP-cell interactions by influencing LNP endosomal escape, driving the observed discrepancies between LNP uptake and mRNA expression. For effective cargo delivery, LNPs must escape the endosome before being trafficked to the lysosome for degradation². To investigate differences between pre-formed coronas during intracellular trafficking, we compared the co-localization of lysosomes and LNPs. We quantified the co-localization of the Cy5-tagged LNP with the lysosome signal and normalized this signal per cell by the nuclei. We found significantly increased lysosomal co-localization for LNPs with pre-formed ApoE or mixed protein coronas and no significant difference in lysosomal co-localization signal for LNPs with pre-formed VTN, A2M, or CR coronas (Fig. 5f–g). Specifically, we observe fourfold higher levels of LNP and lysosomal co-localization per cell for LNPs with a mixed protein corona compared to the LNPs without a pre-formed protein corona. We also found that LNPs with pre-formed ApoE coronas had approximately three-fold higher co-localization with lysosomes than the control protein-free LNP. Although we observe no statistically significant difference between the VTN-LNPs and LNPs without coronas, our data suggests that the LNPs with the pre-formed VTN corona have the next highest lysosomal colocalization signal. These results, in combination with the trends observed for the impact of protein coronas on mRNA expression, suggest that proteins influence LNP delivery efficiency at the level of both cell uptake and lysosomal trafficking.

Helper lipids (1,2-dioleoyl-sn-glycero-3-phosphoethanolamine: DOPE, 850725), C-14-PEG-2000 (880150 P), and Liss Rhod PE (810150) were purchased from Avanti Polar Lipids. Cholesterol (C8667) was purchased from Sigma-Aldrich. Cre recombinase and luciferase mRNA were acquired from Translate Bio, now Sanofi. EZ Cap^TM Cy5 Firefly Luciferase mRNA (R1010) was purchased from ApexBio Technology. Thermo Scientific™ Slide-A-Lyzer™ dialysis cassettes (66330) were purchased from Thermo Fisher Scientific. Pooled human blood plasma (991-58-P-RC) was purchased from Lee BioSolutions. OptiPrep Density Gradient Medium (ab286850) was purchased from Abcam. Open-top polyclear 12-mL ultracentrifuge tubes (NC9863486) were purchased from Thermo Fisher Scientific. The 21-gauge needles (305167) were purchased from BD. Cholesterol assay kit (AB65390) and Human Apolipoprotein AI ELISA kit (ab108803) were purchased from Abcam. The protein detergent removal kit (1632130) was purchased from Bio-Rad. Trypsin/Lys-C Mix (V5073) was purchased from Promega. Amicon 0.5-mL 3-kDa (UFC5003) and 30-kDa (UFC503024) molecular weight cut-off (MWCO) centrifugal filters were purchased from Sigma-Aldrich. EZQ Protein Quantitation Kit (R33200) and Pierce Peptide Quantitation Kit (23290) were purchased from Thermo Fisher Scientific. Escherichia coli chaperone protein ClpB, Hi3 E. coli standard (186006012) was purchased from Waters. Recombinant human ApoE (AB280330), recombinant human vitronectin (ab217407), recombinant human C-reactive protein (ab167710), and native human alpha-2-macroglobulin (ab77935) were purchased from Abcam. Greiner white-bottom 96-well plates (655083) and PerkinElmer black, clear-bottom 96-well plate (6055300) were purchased. The Bright-Glo™ Luciferase Assay System kit (E2610) was purchased from Promega. The CyQUANT™ MTT Cell Viability Assay kit (V13154) was purchased from Thermo Fisher Scientific. Hoechst 33342 (H1399) was purchased from Fisher Scientific. CellBrite™ Cytoplasmic Membrane Labeling Kit (30021) was purchased from Biotium. Invitrogen™ LysoTracker™ Green DND-26 (L7526) was purchased from Fisher Scientific.

LNPs were synthesized according to our previously published work⁷³. Lipidoid (306O₁₀), helper lipids (DOPE), cholesterol, and C-14- poly(ethylene glycol)(PEG)-2000 were dissolved in reagent-grade ethanol at 10 mg/mL. The lipidoid, helper lipid, cholesterol, and PEG were mixed in a 35:16:46.5:2.5 molar ratio, respectively. Subsequently, the citrate buffer was added to the lipid solution in a 1:10 volumetric ratio. Cre recombinase or luciferase mRNA was dissolved in 10 mM sodium citrate buffer at 1 mg/mL. Cre recombinase mRNA was used in LNPs for protein corona composition experiments, and luciferase mRNA was used in LNPs for in vitro experiments. The lipid solution was added to the mRNA solution at a 10:1 lipidoid to mRNA mass ratio and mixed by pipetting. The solution was then diluted with an equal volume of PBS saline. Lastly, the LNPs were dialyzed against 2 L of PBS for 1 hour in 0.5-mL 3.5-kDa MWCO Thermo Scientific™ Slide-A-Lyzer™ dialysis cassettes. LNPs for protein corona isolation and in vitro studies were formulated at final mRNA concentrations of 0.05 and 0.01 mg/mL mRNA, respectively.

Fluorescently tagged LNPs were synthesized based on the standard LNP synthesis method described above, with the addition of 0.5 mol % fluorescently tagged lipid, 1,2-dioleoyl-sn-glycero-3-phosphoethanolamine-N- (lissamine rhodamine B sulfonyl) (Liss Rhod PE). The lipidoid, helper lipid, fluorescently tagged lipid, cholesterol, and PEG were mixed in a 35:15.5:0.5:46.5:2.5 molar ratio, respectively.

Hydrodynamic size distribution of LNPs was determined in a 10-fold PBS dilution to a concentration of 0.005 mRNA mg/mL LNPs using DLS (Malvern ZetaSizer Nano, Malvern Instruments).

LNPs synthesized at a concentration of 0.05 mg/mL mRNA with Cre recombinase mRNA were incubated with an equal volume (400 μL) of pooled human blood plasma at 37 °C, the physiologically relevant temperature, for 1 hour, which has previously been determined as sufficient time for corona formation to occur⁴⁰. Simultaneously, a PBS control was incubated with equal volume (400 μL) of pooled human blood plasma at 37 °C for 1 hour. Iodixanol solutions were prepared the same day and chilled on ice prior to gradient preparation according to protocols established for exosome purification⁵⁵. Directly after incubation, each sample was diluted to a final concentration of 30% iodixanol (OptiPrep Density Gradient Medium) with a total volume of 2 mL and loaded into the bottom of a polyclear 12-mL ultracentrifuge tube. This bottom layer was followed by 2-mL layers of 25%, 20%, 15%, 10%, and 5% iodixanol, resulting in a six-layer iodixanol gradient. These layers were added to the tube with a 21-gauge needle beginning from the bottom layer to the top layer, proceeding slowly to avoid splashing/mixing of layers and avoiding the introduction of bubbles, which disrupt the gradient during centrifugation. The difference in density between each of the six gradient layers should be visible (Supplementary Fig. 12). Two tubes, one containing the LNPs incubated with plasma and one with a plasma control, were centrifuged for 16 hours at 36,000 rpm (160,000 × g) and 4 °C with minimum acceleration and no braking in a SW 41 Ti Beckman swinging bucket rotor. Post centrifugation, 0.5-mL volume fractions were collected from the top to the bottom of the tube by careful pipetting. We added Triton-X 100 to the selected fractions as determined by the fluorescence assay to a final concentration of 2% Triton-X 100 to disrupt LNPs and then pooled them together using Amicon 0.5-mL 3-kDa MWCO centrifugal filters pre-rinsed with 50 mM Tris-HCl pH 8 at 4 °C according to manufacturer's instructions.

Following sample pooling, an acid-based protein precipitation method (Bio-Rad detergent removal kit) was used to remove ionic contaminants that interfere with LC-MS/MS, including detergents and free lipids. Further sample preparation followed our previously established protocols³². Proteins were reduced by heating at 37 °C for 60 min in urea/dithiothreitol (DTT) reducing buffer (8 M urea, 5 mM DTT, 50 mM Tris-HCl, pH 8). Proteins were alkylated with 15 mM iodoacetamide for 30 minutes in the dark. Next, 500 mM DTT was added to quench excess iodoacetamide in a volume ratio of 3:1 and incubated for 20 minutes. These samples were concentrated and filtered with 0.5-mL 3-kDa MWCO centrifugal filters pre-rinsed with 50 mM Tris-HCl pH 8. Protein concentration was determined with the EZQ Protein Quantitation Kit before 1:1 dilution with 50mM Tris-HCl, pH 8, to allow enzymatic protein digestion. In-solution protein digestion was done with a ratio of 1:25 weight/weight Trypsin/Lys-C (Mass Spectrometry Grade) to protein, overnight at 37 °C. Any remaining large contaminants were removed by filtering with pre-rinsed Amicon 0.5-mL 30-kDa MWCO centrifugal filters. Peptide concentration was determined with the Pierce Peptide Quantitation Kit, and samples were then normalized to the same mass concentration. Peptide solutions were spiked with 50 fmol of E. coli housekeeping peptide (Hi3 E. coli Standard, Waters) per 5 μL sample volume to enable protein quantification. Digestion was stopped by freezing samples to −20 °C.

Samples of proteolytically digested proteins were analyzed using a Synapt G2-Si ion mobility mass spectrometer that was equipped with a nanoelectrospray ionization source (Waters, Milford, MA). The Synapt G2-Si was connected in line with an Acquity M-class ultra-performance liquid chromatography system that was equipped with reversed-phase trapping (Symmetry C18, inner diameter: 180 μm, length: 20 mm, particle size: 5 μm, part number 186007496) and analytical (HSS T3, inner diameter: 75 μm, length: 150 mm, particle size: 1.8 μm, part number 186007473, Waters) columns. The mobile phase solvents were water and acetonitrile, both of which contained 0.1% formic acid and 0.01% difluoroacetic acid (volume/volume)⁷⁴. Data-independent, ion mobility-enabled, high-definition mass spectra and tandem mass spectra were acquired using the positive ion mode^75–78. Instrument control and data acquisition were performed using MassLynx software (version 4.1, Waters). Peptide and protein identification and quantification using a label-free approach were performed using Progenesis QI for Proteomics software (version 4.2, Waters Nonlinear Dynamics)^79,80. Escherichia coli chaperone protein ClpB (accession P63284, Hi3 E. coli standard) was used as an internal standard for protein quantification. Data were searched against the human protein database to identify tryptic peptides using ion accounting as peptide identification method, trypsin as digest reagent allowing up to three missed tryptic cleavages, carbamidomethylcysteine as a fixed post-translational modification, methionine sulfoxide as a variable post-translational modification, a target false discovery rate of less than four percent, three or more fragment ions per peptide, seven or more fragment ions per protein, one or more peptides per protein, and a minimum score of four⁸¹.

Proteins were filtered for q values (FDR-adjusted p values) <0.05. Database for Annotation, Visualization and Integrated Discovery (DAVID) was used for functional annotation of gene ontology (GO), and Kyoto Encyclopedia of Genes and Genomes (KEGG) was used for pathway analysis of enriched proteins^82,83. KEGG analysis relates known biological pathway maps to protein IDs of interest^84–86. For GO and KEGG analysis using DAVID, the thresholds were based on the count (number of IDs) and EASE score (a modified Fisher Exact p-value for gene-enrichment analysis) which were set to 5 and 0.05, respectively.

HepG2 cells were sourced from the University of California, Berkeley Cell Culture Facility. HepG2 cells were cultured in Eagle's Minimum Essential Medium with 10% fetal bovine serum (volume/volume) and 1% penicillin-streptomycin (volume/volume)⁸⁷. Before plating, cells were washed with serum-free media and seeded into a white-bottom 96-well plate (surface area = 0.32 cm² per well) at a density of 15,000 cells per well. The cells were incubated at 37 °C for 24 hours in serum-free media. LNPs synthesized with luciferase mRNA at 0.01 mg/mL mRNA were incubated with proteins for 1 hour at 37 °C to a final LNP concentration of 0.005 mg/mL mRNA. The LNPs were incubated with 2000 ng of each protein (0.05 ng mRNA:1 ng protein, 0.01 mg/mL protein) unless otherwise specified. Following the incubation, each well was incubated with 20 µL of LNPs with or without the pre-formed protein corona at 0.005 mg/mL mRNA (100 ng mRNA per well) as optimized previously¹⁹. After 24 hours, Brightglow Bright-Glo™ Luciferase Assay System kit and a plate reader were used to quantify mRNA expression via luminescence. Cell viability was also assessed at this time via the CyQUANT MTT assay. Endocytosis inhibition experiments were performed as described above with the addition of 50 μm Dynasore endocytosis inhibitor prior to LNP introduction to HepG2 cells.

HepG2 cells were cultured and plated according to conditions for the in vitro luciferase delivery assay. Cells were washed with serum-free media and were seeded into a black, clear-bottom 96-well plate at a density of 15,000 cells per well and incubated at 37 °C for 24 hours in serum-free media. LNPs were synthesized with EZ Cap^TM Cy5 Firefly Luciferase mRNA at 0.01 mg/mL mRNA and incubated with proteins for 1 hour at 37 °C to a final LNP concentration of 0.005 mg/mL mRNA and 0.01 mg/mL protein concentration unless otherwise specified. Following the incubation, each well was incubated with 20 µL of LNPs with or without the pre-formed protein corona at 0.005 mg/mL mRNA (100 ng mRNA per well). For cell uptake experiments, 1.5 hours after LNP addition, cells were stained with Hoechst 33342 and CellBrite™ Cytoplasmic Membrane Labeling Kit. Images were acquired using a ZEISS Celldiscoverer 7 with n = 3 biological replicates and n = 4 technical replicates, with three fields of view (FOV) per technical replicate. Fields of view were collected in an unbiased automated fashion throughout each well at a focal plane offset of 4.5 µm from the bottom of the adherent cells using an air objective, ×20 (0.95) magnification, 0.5× tube lens, and a 43-second frame time. Images were collected with 0.8%, 0.1%, and 3% laser power for Cy5, CellBrite, and Hoechst, respectively. These acquisitions were taken by sequentially exciting Cy5 at 640 nm, CellBrite at 488 nm, and Hoechst at 405 nm. Emission was collected in the 617–700 nm range, 490–600 nm range, and 400–485 nm range, respectively. Images were batch processed by first creating a mask for the cell membrane based on the CellBrite dye. Then, the Cy5 signal within the mask was quantified and normalized according to the nuclei count per image. We calculated the fluorescence intensity as the summation of the Cy5 signal per FOV, with values from three FOVs mean-aggregated to a single technical replicate. For the erosion analysis, the inner membrane mask was acquired by eroding the membrane mask n = 10 times. The outer membrane mask was the exclusive disjunction of the total membrane mask and the inner membrane mask. Intensity was summed within each outer and inner mask, and the fraction was calculated based on Cy5 intensity within the membrane mask. For lysosomal colocalization of LNP analysis, 1.5 hours after LNP addition, cells were stained with Hoechst 33342 and Invitrogen™ LysoTracker™. Images were acquired using a ZEISS Celldiscoverer 7 with n = 4 biological replicates and n = 4 technical replicates, with three FOC per technical replicate. Fields of view were collected in an unbiased automated fashion throughout each well at a focal plane offset of 4.5 µm from the bottom of the adherent cells with a water immersion objective, ×50 (1.2) magnification, 0.5× tube lens, and a 34-second frame time. Images were collected with 0.8%, 0.2%, and 2% laser power for Cy5, Invitrogen™ LysoTracker™, and Hoechst, respectively. These acquisitions were taken by sequentially exciting Cy5 at 640 nm, Invitrogen™ LysoTracker™ at 488 nm, and Hoechst at 405 nm. Emission was collected in the 620–700 nm range, 490–602 nm range, and 400–495 nm range, respectively. Zen Blue 3.2 software was used for data collection. These images were batch processed by creating a mask for the lysosomes based on the Invitrogen™ LysoTracker™. Then, the Cy5 signal within the lysosome mask was quantified and normalized according to the nuclei count per image. We calculated the fluorescence intensity as the summation of the Cy5 signal per FOV, with values from three FOVs mean-aggregated to a single technical replicate. Further detailed analysis is available (https://github.com/tengjuilin/internalization-analysis↗). No statistical difference in cell count was observed for images between the LNP control and pre-formed coronas in internalization and lysosomal co-localization experiments (Supplementary Fig. 13).

HepG2 cells were cultured and plated according to conditions for the in vitro luciferase delivery assay. Cells were washed with serum-free media and were seeded into a white-bottom 96-well plate at a density of 15,000 cells per well and incubated at 37 °C for 24 hours in serum-free media. LNPs were synthesized with EZ CapTM Cy5 Firefly Luciferase mRNA at 0.01 mg/mL mRNA and incubated with proteins for 1 hour at 37 °C to a final LNP concentration of 0.005 mg/mL mRNA and 0.01 mg/mL protein concentration unless otherwise specified. Following the incubation, each well was incubated with 20 µL of LNPs with or without the pre-formed protein corona at 0.005 mg/mL mRNA (100 ng mRNA per well). The cells were then incubated for 1 hour at 37 °C. The cells were then washed with PBS, removed from plates via trypsin digestion, and resuspended with FACS buffer (PBS, 2% FBS). Samples were acquired on a Thermo Fisher Attune NxT Acoustic Focusing Cytometer (Thermo Fisher Scientific), and data were analyzed using FlowJo v10 (FlowJo Inc) with the Cy5 mRNA positive gate set based on a control of non-treated cells (Supplementary Fig. ). 14

Statistical analysis and visualization were performed with GraphPad Prism (v.10.2.3) and Python (v3). For in vitro studies, all samples had at least n = 3 biological replicates, and no statistical methods were used to predetermine sample size. Investigators were not blinded during the data analysis. See figure legends for full details of replicates, statistical testing, and significance. For proteomic analysis, see the methods section for full details on analysis and significance.
