TLR4 and TLR7/8 Adjuvant Combinations Generate Different Vaccine Antigen-Specific Immune Outcomes in Minipigs when Administered via the ID or IN Routes

The animal studies were approved by the Ethical Review Board of St. George's, University of London where the experiments were carried out and work was performed in strict compliance with project and personal animal experimentation licences granted by the UK government in accordance with the Animals in Scientific Procedures Act (1986). Animals received minimal handling and their physical condition was monitored at least twice daily. All procedures were performed under isoflourane anesthesia when appropriate, and all efforts were made to minimize suffering. All animals enjoyed excellent health for the duration of the experiment and none became severely ill or died at anytime prior to the experimental endpoint. There was a detailed protocol in place, as per requirement of the humane endpoints described in the animal licence, for early euthanasia in the event of onset of illness or significant deterioration in condition. For mini-pigs the humane endpoints included; loss of appetite sufficient to lead to weight loss—the animals were monitored for weight daily, loss of movement, sedentary state, calls of distress indicating pain or discomfort, bruising at site of blood withdrawal, excessive or uncontrolled bleeding from site of blood withdrawal, incontinence, breathing difficulty, infection or necrosis at site of sampling (snout and vaginal). The presence of one of these indicators would lead to an assessment by a veterinary surgeon and the further welfare of the animals would be directed by them. In the case of an emergency if an animal became seriously ill or injured at any point when they were on the designated premises then the animal would be first stunned by captive bolt and then killed by exsanguination before the animal regains consciousness (a non-schedule 1 method). If it was possible to handle the animal without causing it further stress and/or injury to it or staff then a schedule 1 method would be used. The captive bolt would be administered by a person licensed to use a captive bolt. At the end of the experiment all animals were culled using a schedule 1 method and death confirmed before necropsy. Food and water were supplied ad libitum.

The proteins used in this study were purified formulations of native proteins or recombinant proteins expressed in either prokaryotic or eukaryotic systems. Keyhole limpet haemocyanin (KLH) was separated from the limpet haemolymph by ammonium sulphate precipitation and further purified by chromatographic separation (Sigma, UK). Ovalbumin was directly purified from chicken egg whites and supplied as a lyophilized powder (Sigma, UK). Tetanus toxin was isolated from Clostridium tetani then inactivated by formaldehyde treatment and the toxoid derivative purified from solution by ammonium sulphate precipitation and resuspension in PBS (Pfenex Inc, USA). Recombinant HIV nef, produced in E. coli, was obtained from the Programme EVA Centre for AIDS reagents (NIBSC, UK and Diatheva, Italy) as a soluble protein in a 10% glycerol aqueous buffer. Beta-galactosidase was produced in E. coli and reconstituted from lyophilized powder (Sigma, UK). Recombinant M. tuberculosis early secreted antigenic target-6 kDa (ESAT-6) protein was produced in E. coli and purified by ion affinity and UF concentration solvent extraction (ImmunoDX, LLC, USA). Recombinant M. tuberculosis culture filtrate protein-10 kDa (CFP10) protein was produced in E. coli and purified by ion affinity, solvent extraction and UF concentration (ImmunoDX, LLC, USA). The hemagglutinin (HA) antigens were components of the Fluzone vaccine (Sanofi Pasteur, France) and contained HA from the 2011–2012 influenza season; A/California/07/2009 X-179A (H1N1), A/Victoria/210/2009 X-187 (H3N2) and B/Brisbane/60/2008. The HA proteins were separated from the virus by non-ionic surfactant (Triton® X-100) disruption of the formaldehyde inactivated influenza virions, producing a 'split virus' from which the HA proteins are further purified and then resuspended in PBS. HIV gp140, a trimeric gp140 clade C envelope (gp120 plus the external domain (ED) of gp41) and designated CN54gp140, was produced as a recombinant product in CHO cells and the protein manufactured to GMP specification by Polymun Scientific (Vienna, Austria). The identity of the product was confirmed by mass spectrometric analysis of tryptic fragments by the Medical Biomics Centre at St. George's, University of London. The trimeric product was stable, and has been extensively tested to validate stability even when kept at room temperature (D. Katinger—personal communication) and has previously been reported to be immunogenic. All proteins were sourced from suppliers who were able to provide information on endotoxin levels and confirmed that the proteins were endotoxin low/free. We further tested the LPS endotoxin level of the material we used to vaccinate the pigs using a chromagenic HEK-Blue LPS detection sytem (Invivogen, UK) and confirmed that the LPS contamination was <0.05EU/ml.

A micellar formulation of a synthetic MPLA analogue has been denoted previously as IDRI-AQ001 and is more generally denoted as GLA-AF [18]. The biological and physicochemical characterization of GLA-AF has been published previously [7]. Resiquimod (R848) (Invivogen, UK) was reconstituted in endotoxin free water and one or both of these adjuvants were admixed with the recombinant proteins prior to administration.

Ellegaard Göttingen minipigs were used in all experiments (Dalmose, Denmark). These pigs are a genetically managed strain of animals originally bred in the 1960s by combining Vietnamese potbelly, Minnesota Minipig and German Landrace lines, and maintained as a stable genetically coherent but outbred population. We first immunized five groups of female minipigs (n = 4 per group) aged 20 weeks with protein antigens and a dose titration of the TLR7/8 agonist adjuvant R848 or the aqueous formulation TLR4 agonist adjuvant GLA-AF (Table 1). Each adjuvant was tested for potency after topical mucosal application to the IN membrane and parenterally with an ID injection. We then combined a vaccine antigen with the optimal quantity of R848 (50 μg) together with increasing doses of GLA-AF to determine the optimally effective adjuvant combination (Table 2). The relative contribution of the addition of GLA-AF adjuvant to an optimal R848 dose was also assessed after an IN (mucosal) or ID (systemic) inoculation. Each antigen was administered twice in the presence of the adjuvant formulations with an interval of four weeks. Inoculations were staggered and alternate routes used each week to allow for completion of the phase 1 vaccination schedule in 8 weeks while preventing cross-stimulation with residual adjuvants. Likewise, the phase 2 schedule was completed after a further 2 months. The studies utilizing the model antigen CN54 HIVgp140 used seven animals per adjuvanted group with 3 control animals that received the antigen without adjuvantation. The pigs were vaccinated at three week intervals to allow development of somatically hypermutated antigen-reactive B cells in the draining lymph nodes. Each antigen dose was administered in a total volume of 200 μl, 100 μl into each nostril or 100 μl in two sites into the dermis of the pig ear. Pigs were sampled weekly. Blood drawn from the carotid artery was allowed to clot at room temperature for 30 min then centrifuged at 500 × g for 10 min and the serum removed and stored in aliquots at -80°C. Vaginal washes were performed by inserting a 1 cm bore tube into the vagina and washing the vault with 3 ml of 2 × PBS (FBB), then aspirating the wash fluid and adding 1/10 recovered volume of 10 × protease inhibitor cocktail set I (Millipore, UK). The vaginal wash sample was then centrifuged through a Spin-X column to remove large debris and frozen at -80°C. Nasal samples were taken using a Wek-Cel sponge (Beaver-Visitec, UK) from the mucosal membrane of the pig nares. The sponge sample was placed into a Spin-X column and the antibody eluted from the sponge using a high salt elution, effectively a 2 × PBS solution containing protease inhibitors. The sample was then centrifuged through a Spin-X column to remove large debris and frozen at -80°C.

Serum and mucosal antigen-specific binding antibodies against the various recombinant proteins were measured using standardized ELISAs. Maxisorp high binding 96-well plates were coated with 100 μl recombinant proteins at 5 μg/ml in PBS overnight at 4°C. The standard immunoglobulins were captured with either a goat anti-pig IgG Fc (plate coated with 100 μl of a 1:2400 dilution) or a goat anti-pig IgA (100 μl of a 1:2000 dilution) (Bethyl laboratories, UK). These capture antibodies were coated onto the Maxisorp plates overnight at 4°C. Coated plates were washed three times in PBS-T before blocking with 200 μl PBS-T containing 1% bovine serum albumin for 1 hour at 37°C. After further washing, sera diluted 1/100, 1/1000 and 1/10,000 or mucosal wash samples diluted 1/10, 1/50 and 1/250 were added to the antigen coated wells and a standard titration of pig IgG or IgA immunoglobulin standards added to the respective capture antibody coated wells at 50 μl/well and incubated for 1 hour at 37°C. Plates were washed four times before the addition of 100 μl of a 1/6,000 dilution of goat anti-pig IgG-HRP or a 1/8,000 dilution of goat anti-IgA biotinylated secondary antibody and incubated for 1 hour at 37°C. The plates were washed four times and developed with 50 μl/well of KPL SureBlue TMB substrate (Insight Biotechnology, UK). The IgA isotype, that was biotin labeled, required a further streptavidin-HRP (R&D systems) amplification step prior to TMB development. The reaction was stopped after 5 min by adding 50 μl/well 1 M H₂SO₄, and the absorbance read at 450 nm on a VersaMax spectrophotometer using SoftmaxPro software.

The avidity indices of serum samples were determined by their antibody-antigen binding resistance to 8 M urea. Serum samples were pre-diluted to give an OD_{450 nm} readout between 1.0 and 1.5 in an ELISA and were added to CN54gp140 (5 μg) coated plates. The wells were then washed three times with either PBS-T or 8 M urea in PBS-T, before incubating with an anti-pig IgG-HRP secondary antibody. The plates were developed with TMB as described above. The avidity index was calculated as the percentage of average urea treated OD_{450 nm}/average PBS-T OD_{450 nm}. Antisera with index values exceeding 50% (retention in binding antibody) were ascribed to have high avidity, 30–50% were ascribed as intermediate avidity and <30% were considered to have low avidity binding.

HIV-1 serum neutralization assays were performed using a luciferase-based assay in TZM.bl cells as described previously [19]. Briefly, 3-fold serial dilutions of serum samples in 10% D-MEM growth media (100 μl/well) were performed in duplicate in 96 well plates. A 50 μl volume of virus was added to each well and the plates incubated for 1 hour at 37°C. TZM.bl cells in growth media (1x10⁴ cells/well per 100 μl volume) containing 11 μg/ml DEAE-Dextran (Sigma, USA) were then added to each well. The neutralization assay used replicate wells of TZM.bl cells alone (cell control) and TZM.bl cells with virus (virus control). Following a 72 hour incubation at 37°C, supernatant was removed, and cells were washed with sterile PBS, then treated with 1 × Reporter Lysis buffer (Promega) and frozen at -80°C for a minimum of two hours to lyse cells. A 50 μl volume of lysate was mixed with 50 μl of Luciferase Assay system substrate and luminescence was measured using Fluostar spectrophotometer, using Omega software (BMG Labtechnologies). The 50% inhibitory concentration (IC50) titer was calculated as the serum dilution that caused a 50% reduction in relative luminescence units (RLU) compared to virus control wells after subtraction of cell control RLUs. The viral strains used in the neutralization assays were CN54 (homologous) and ZM197 Clade C viruses, the same viral clade as the vaccine antigen.

The mean serum, mucosal antibody and avidity indices were compared using two-tailed Mann Whitney non-parametric tests or an unpaired t-test with Welch's correction if the data variance was not equal.

We first assessed the capacity of R848 or GLA to enhance antigen-specific humoral immune responses in the minipig model on co-administration with a range of purified protein antigens. Different antigens were used to allow the overlapping study of the different routes of delivery whilst reducing animal usage, the antigens selected are common model antigens.

Adjuvants were titrated by route of administration to establish an effective dose for each molecular adjuvant, and animals were vaccinated at 0 and 4 weeks (Table 1). Antibody responses to each model antigen were measured by semi-quantitative antigen-specific ELISA and compared to control animals that received antigen in the absence of any adjuvant. The lowest dose of R848 (50 μg) administered by either the IN and ID routes significantly augmented the antigen-specific IgG immune response one week after boost vaccination (week 5, p = 0.0286) with no further advantage seen at higher doses (S1 and S2 Figs). Subsequently, a 50 μg dose of R848 was selected for all further investigations. Antigen-specific IgA responses were only observed following IN administration and were 1–2 logs lower than those seen for IgG. GLA-AF enhanced serum specific IgG responses when administered ID, with maximal effects in the 10–20 μg range. However, GLA-AF provided no apparent adjuvantation when administered IN and induced no detectable specific IgA responses following ID or IN administration. (S3 and S4 Figs).

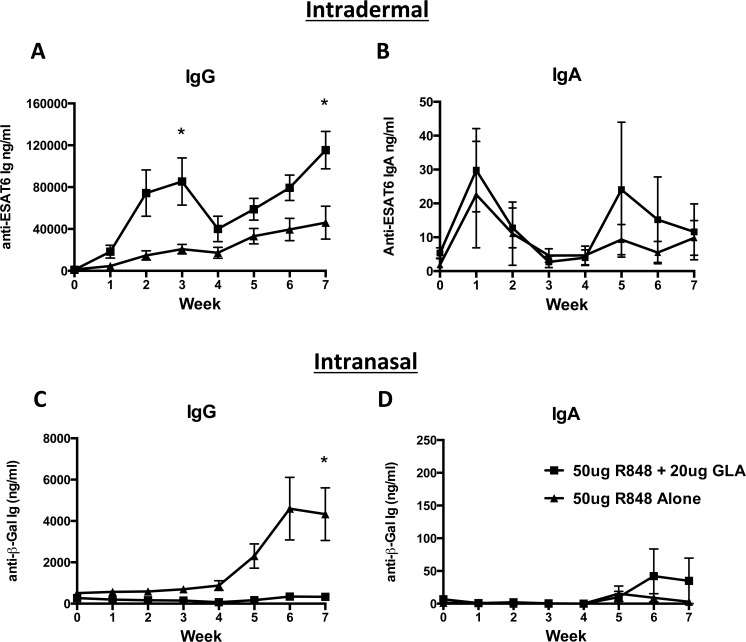

Using a fixed dose of R848 adjuvant (50 μg), we next assessed the potential impact of combining R848 with increasing concentrations of GLA-AF, when administered via the ID or IN routes (Table 2 and S5 and S6 Figs). A dose of 20 μg GLA-AF had a significant additive effect on antigen-specific antibody responses when combined with R848 and injected ID, achieving a 4-fold increase in peak mean specific IgG response compared with R848 alone (85.4 vs 20.8 μg/ml of specific antibody respectively (p = 0.0335)), three weeks after the primary vaccination, and a 2.5-fold increase three weeks after a boost inoculation (R848 + GLA (115.4 μg) vs R848 alone (46.1 μg) (p = 0.0338)). It remains unclear when comparing the GLA-AF augmentation of the response to ID administered OVA antigen and the combination ESAT-6 as to whether R848 provided any benefit to the GLA-AF induced response. Further studies to clarify the relative contribution of GLA-AF and R848 will be needed. The TLR ligands either alone or in combination had minimal effect on circulating antigen-specific IgA when administered by ID injection (Fig 1A and 1B, S5 Fig). A contrasting picture was observed with IN administration, where a 20 μg dose of GLA-AF completely suppressed R848-induced antibody immune responses after IN inoculation (p = 0.0261; Week 7) (Fig 1C and 1D). Furthermore, addition of as little as 5 μg of GLA-AF was sufficient to reduce adjuvantation by R848 (S6 Fig; p = 0.0315–50 μg R848 alone vs 50 μg R848 + 5 μg GLA-AF; Week 7). Based on these initial findings we selected 50 μg R848 plus 20 μg GLA-AF as an optimal combination for ID vaccination and 50 μg R848 alone for IN inoculation.

Using the adjuvant doses selected above we next investigated the impact of mixed route prime-boost combinations on the induction of systemic and mucosal antibody responses using a model HIV envelope glycoprotein antigen, CN54gp140 [20]. Responses were compared to antigen administered in the absence of adjuvant that typically elicits only low-level systemic immunity [21 –23]. We compared the immune outcomes in animals that received 3 × IN priming vaccinations followed by 2 × ID booster vaccinations (Group A) to animals that received 3 × ID priming vaccinations followed by 2 × IN boosts (Group B), each administered with three-week intervals between each vaccination (n = 7 per group).

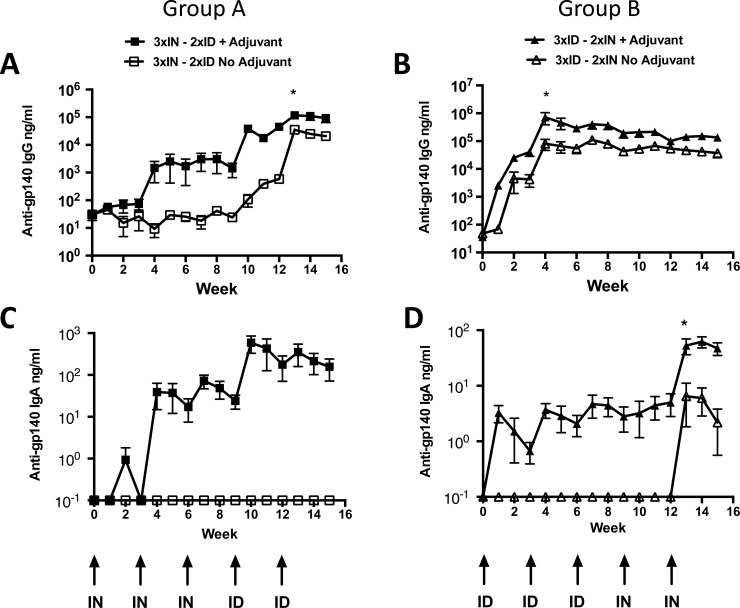

Animals in group A, receiving three initial IN inoculations with CN54gp140 antigen combined with R848 (50 μg) elicited mean serum antigen-specific antibody levels of 3 μg/ml. These responses were significantly enhanced by subsequent ID injections, adjuvanted with the R848 (50 μg) + GLA-AF (20 μg) combination, rising to a peak value of 116 μg/ml CN54gp140-specific IgG (mean) one week after the second ID vaccination (Fig 2A). In contrast, animals that received IN protein in the absence of adjuvant failed to mount any detectable response to IN administration but displayed some evidence of an anamnestic response after the first ID injection, rising from a mean of 25 ng/ml antigen-specific Ab to 582 ng/ml, suggesting that the three IN inoculations in the absence of adjuvantation were seen by the immune system but had little immunological impact. However, one week following the second ID immunization, serum antibody levels (35 μg/ml) were approximately 1/3 that of the adjuvanted group but were significantly lower (p = 0.0167; Week 13) (Fig 2A). For IgA, animals that received vaccination in the presence of adjuvant demonstrated detectable levels of antibody. The level of vaccine antigen-specific IgA generated in the serum was low, reaching a peak of 590 ng/ml at week 10, one week after the first ID inoculation. The unadjuvanted animals had no specific IgA response (Fig 2C).

Conversely, animals in group B, receiving three initial ID injections co-administered with combined adjuvants (R848 (50 μg) + GLA-AF (20 μg)), displayed robust CN54gp140 antigen-specific IgG responses with mean serum IgG responses reaching 719 μg/ml, one week after the second ID administration with subsequent ID and IN vaccinations providing no additional augmentation of response. This was 6-fold higher than those following three IN and 2 × ID administrations in Group A (Fig 2A). Animals in Group B that received 3 × ID + 2 × IN immunizations with CN54 gp140 in the absence of adjuvantation demonstrated reasonable antigen-specific antibody elicitation after the second and third ID injection, with a mean peak serum antigen specific IgG concentrations of 109 μg/ml (Fig 2B), similar to the maximum peak achieved with the unadjuvanted Group A 3 × IN + 2 × ID schedule (Fig 2A). This 3 × ID + 2 × IN regimen also generated vaccine antigen-specific IgA responses, although ten-fold lower than the Group A regimen, reaching a peak of 53 ng/ml at week 13 and was significantly elevated over the unadjuvanted regimen (p = 0.0370)(Fig 2D).

When comparing the antibody profile of the two prime boost regimes (Group A vs B), although each group provided an initial advantage with respect to serum IgA or IgG induction (group A and B respectively), by the end of each series of vaccinations the immune outcome in both converged to similar serum antibody levels for both IgG and IgA (S7 Fig). This was also the case for the non-adjuvanted controls, although the absolute levels of elicited specific IgG levels were significantly reduced in comparison to those in the adjuvanted groups (IgG week 14 adjuvanted vs unadjuvanted p = 0.0167). IgA was mostly below the limits of detection in the unadjuvanted groups (S7 Fig).

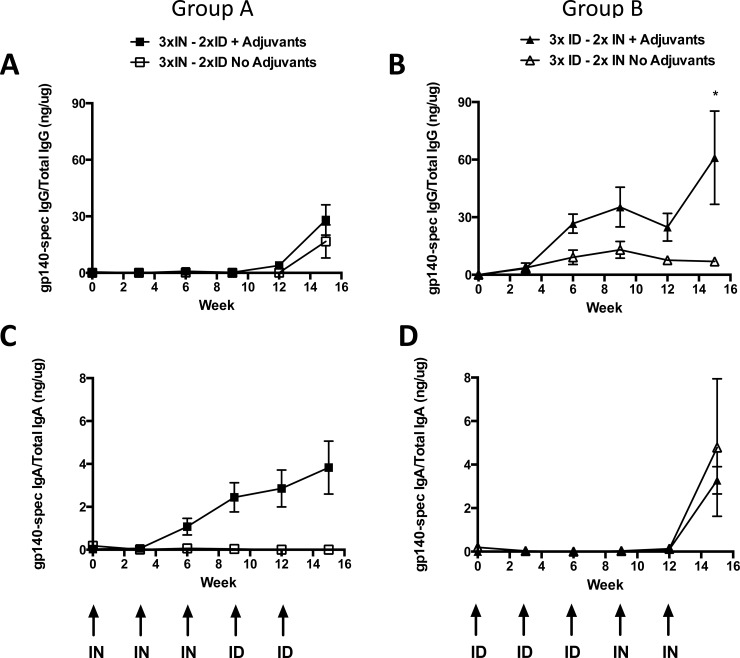

We then measured mucosal antibody present in the IN cavity, with samples being taken before inoculation to prevent complications that might arise from potential adjuvant induced mucosal inflammation as this was a site of administration (Fig 3A–3D). The measured levels of specific IgG were low but mirrored the elicitation profiles observed in serum leading us to conclude that mucosal antibody likely resulted from serum exudation into the nasal cavity rather than being locally produced. Animals in Group A failed to induce detectable local specific IgG responses following 3 × IN primes, however responses were induced on subsequent ID boosts. In contrast, animals in Group B that received 3 × ID priming vaccinations achieved statistically significant higher levels of specific IgG per μg of total IgG than unadjuvanted animals (Fig 3B; p = 0.0167; week 15) and also animals in Group A receiving 3xIN inoculations (S8 Fig; p = 0.0006). Furthermore, the second IN boost rather than the first in Group B enhanced ID primed antigen-specific IgG response (Fig 3B).

A different pattern was observed for local IgA responses: here, 3 × IN priming inoculations (Group A) were able to elicit local specific IgA that was maintained, though not enhanced by subsequent ID injections. Furthermore, although ID priming in Group B had no impact on apparent local specific IgA induction, 2 × IN boosts were sufficient to induce similar local levels of specific IgA to those in Group A (Fig 3C and 3D).

Thus mirroring serum responses, the final IN antigen-specific antibody responses in both groups were essentially the same, approximately 30 ng gp140-specific IgG per 1 μg of total IgG present, or 3% of the available IgG, irrespective of the order of administration. However in the mucosal nasal site the antigen-specific IgA was only 10-fold lower than IgG and constituted around 0.3% of the total IN IgA and not 1000-fold lower as observed in the serum, indicating a mucosal IgA bias of antigen-specific secreted IgA (Fig 3C and 3D).

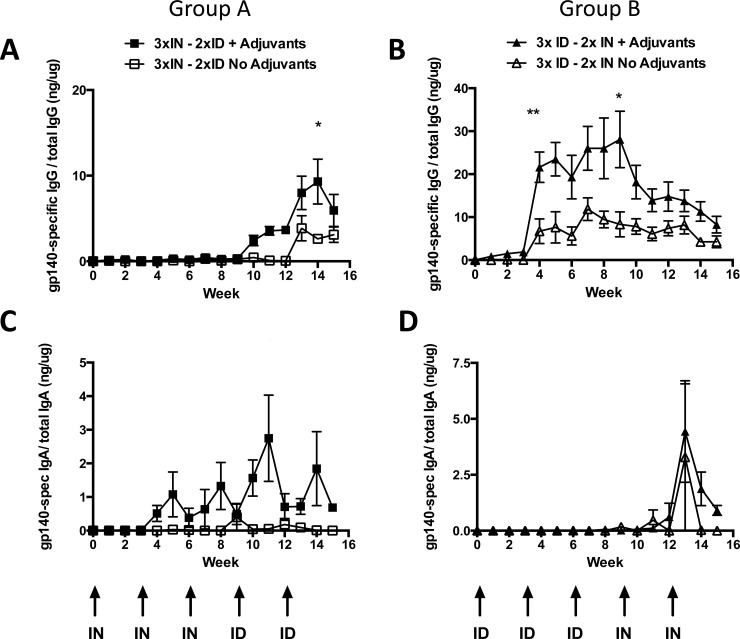

As we were interested to explore the potential immunological linkage between the nasal associated lymphoid tissue (NALT) and the lower genital tract [24, 25], being the primary site of HIV infection in women, we also assessed antigen-specific antibody response in vaginal lavage. Levels of specific antibody detected were similar in quantity to that measured in the nasal cavity (Fig 4A and 4B). Animals in Group A receiving 3 × IN + 2 × ID only elicited antigen-specific vaginal IgG responses after ID boosts, where responses were higher in the adjuvanted group (p = 0.0167; Week 14). Animals in Group B that initially received three adjuvanted ID immunisations exhibited the highest levels of specific antibody per μg of total IgG present in the vaginal wash (Fig 4B; p = 0.0069; week 4 and p = 0.0247; week 9), however, these responses rapidly waned and were not maintained or enhanced by subsequent IN vaccine boosts. This contrasts with the nasal cavity where the second IN boost was able to increase the local IgG (Fig 3B). Vaginal IgA was boosted by the second and third IN inoculation as well as by the first ID injection, reaching a peak level of 3 ng/μg total IgA. The second ID injection had no further boosting effect (Fig 4C). In contrast, the ID injections in Group B had little ability to generate vaginal IgA responses with antigen-specific IgA only being detectable after the second IN inoculation (Fig 4B). Again, both route regimens achieved similar mucosal antigen-specific immunoglobulin profiles at the end of each vaccination schedule. IgG reached a level of 10 ng specific IgG antibody per 1 μg of total IgG antibody indicating that approximately 1% of the IgG antibody present in the vaginal vault was specific for the vaccine antigen, and approximately 1 ng of antigen-specific IgA per 1 μg total or 0.1% of the IgA. Thus, antigen-specific IgA mucosal levels were again 10-fold lower than mucosal IgG, in contrast to the larger differential in the serum compartment, and were elicited in response to IN prime (Group A) or boost (Group B) immunizations (Fig 4C and 4D).

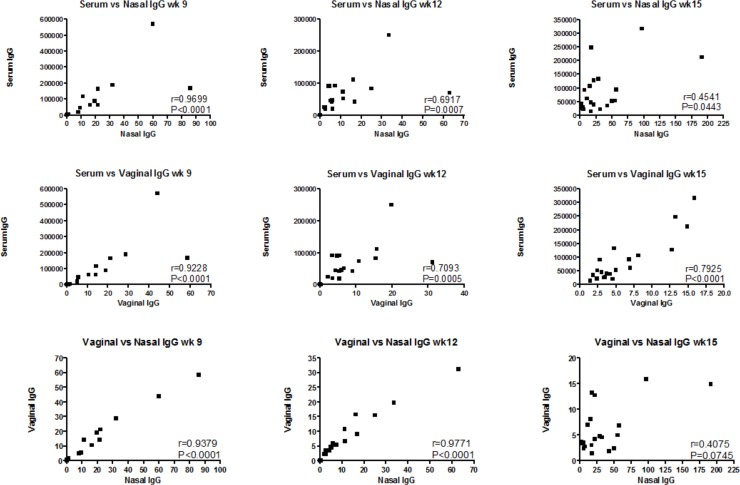

A Spearman rank correlation was carried out to test the relationship between the vaccine antigen-specific antibody levels measured in each of these compartments, the vaginal vault, the IN cavity and the serum. A strong correlation was observed between all the compartments at week 9 (after the initial 3xIN or 3xID vaccinations) and after week 12 (post the first boost by the alternate route). However, at the end of each schedule the IgG levels in the nasal compartment began to separate from the serum and vaginal sites, losing the strong degree of correlation with the serum and failing to correlate with the IgG in the vaginal compartment. The second and final IN administration increased the specific IgG antibody present in the nasal cavity while the vaginal and serum levels continued to decrease, perhaps suggesting a local increase of antibody producing cells at the site of vaccination (Fig 5).

As each regimen elicited similar quantitative levels of CN54gp140 antigen-specific serum and mucosal antibody at the end of the vaccine regimen we next assessed whether the serum antibodies generated from each schedule had the same or different qualitative characteristics. Although functional assays for polyclonal pig anti-sera are limited we were able to assess the avidity and the neutralisation capacity of sera from each animal. Firstly, using a urea-denaturation avidity assay we determined that by week 5, after just two priming immunisations, the adjuvanted ID injections in Group B were able to elicit intermediate avidity antigen-specific responses, while in Group A serum antibodies elicited by two IN inoculations exhibited an overall low avidity index (Fig 6). Importantly, these assays measure the avidity index from an input-normalised quantity of specific antibody, as each individual sera is diluted to provide an ELISA OD reading of between 1 and 1.5, the linear part of the titration curve. At week 8, after the first three inoculations via the initial route and at week 14, at the end of the respective schedules, we noted that both regimens elicited sera with a high avidity index with no statistical difference between the groups. The animals in Group A that were primed intranasally and boosted by ID injections continued to show a slight upward trend towards higher avidity antisera, while animals in Group B that were primed intradermally and boosted by IN inoculations demonstrated a slight decrease in the overall sera avidity suggesting that the ID route was able to maintain high avidity serum indices generated after vaccination while the IN route was less able to do so (Fig 6). We also determined whether the sera samples from each animal exhibited any differential capacity to neutralise two HIV-1 strains in a TZM-bl viral infectivity assay. We used CN54 (homologous) and ZM197 Clade C viruses which are the same viral clade as the vaccine antigen. Sera from both animal groups exhibited some capacity to prevent viral infection with every animal in Group B (3 × ID + 2 × IN) being able to reduce viral infectivity by 50%, while in Group A, 4 of the seven animals displayed the same level of measureable inhibition against the CN54 homologous clade C virus. Overall, the viral inhibition capacity from the sera of each group of animals was not statistically distinguishable (Fig 7).
