What this is
- This research develops a protein-based gene editing method for insect .
- The method aims to enhance biopharmaceutical production by knocking out specific genes.
- A significant knockout efficiency of 68% was achieved, improving cell viability during baculovirus infection.
Essence
- An efficient RNP delivery method was established for knocking out genes in Sf9 insect cells, achieving a 68% knockout rate. This led to improved apoptosis resistance and enhanced production of influenza virus-like particles.
Key takeaways
- The RNP complex delivery strategy improved gene editing efficiency in . A knockout rate of 68% was achieved when targeting the fdl gene, compared to 12% with previous methods.
- Knocking out the initiator caspase gene Sf-Dronc resulted in enhanced apoptosis resistance and delayed cell viability drop during baculovirus infection, indicating potential for improved cell line stability.
- The deletion of Sf-Dronc led to over a twofold increase in the production of influenza virus-like particles compared to wild-type , demonstrating the method's effectiveness in enhancing biopharmaceutical production.
Caveats
- The method did not improve production of all biologics; specifically, rAAV and PfRipr5 titres were unaffected. This variability suggests that the benefits of gene knockout may be product-specific.
- Challenges remain in achieving consistent monoclonality in cell lines, which is essential for regulatory compliance in biopharmaceutical production.
Definitions
- CRISPR-Cas9: A gene editing technology that uses RNA-guided Cas9 nuclease to create targeted DNA modifications.
- Sf9 cells: Insect cells derived from Spodoptera frugiperda, commonly used in biopharmaceutical production.
Simplified
Introduction
The insect cell–baculovirus expression vector system (IC-BEVS) has become a viable alternative expression system for industrial-scale production of therapeutic proteins, vaccines, and gene therapy vectors. In order to better leverage this system into industry and increase productivity, efforts have been made in bioprocess (Fernandes et al. 2020, 2022; Correia et al. 2020, 2022) and baculovirus engineering (Hong et al. 2022). However, improvements in titres through host cell engineering have been limited (Hong et al. 2022). Cell line development in insect cells has focused on improving N-glycan to better mimic humanized proteins, i.e. by knockout of the fdl gene encoding for the enzyme responsible for the removal of the N-terminal acetylglucosamine (Mabashi-Asazuma and Jarvis 2017). Another common strategy aims at delaying apoptosis during the infection process by knocking out or knocking down caspases involved in the apoptotic cascade or expressing anti-apoptotic genes (Lai et al. 2012; Steele et al. 2017; Zhang et al. 2018; de Malmanche et al. 2022), with the objective of increasing cell life span throughout the production phase and consequently improving titres. Unfortunately, this strategy has achieved limited success, largely due to the redundancy of multiple caspases existing in the Spodoptera frugiperda (Sf9) cell line and the inherent capacity of the baculovirus to inhibit host gene expression (Mabashi-Asazuma and Jarvis 2017; Zhang et al. 2018, 2021b; de Malmanche et al. 2022).
A recent milestone in genome editing was the discovery of CRISPR-Cas9, a RNA-guided Cas9 nuclease technology adapted from the microbial clustered regularly interspaced short palindromic repeats (CRISPR) adaptive immune system (Jinek et al. 2012). CRISPR-Cas9 has been demonstrated to make precise cuts to target genome sequences, creating indels and subsequently frame-shift mutations that inhibit gene expression (Adli 2018). As such, CRISPR-Cas9 gene editing has great promise in improving industry relevant cell lines (Grav et al. 2017). This technology has been applied to modify insect Sf9 cells (Mabashi-Asazuma and Jarvis 2017), e.g. establishing caspase-1 knockout clones (de Malmanche et al. 2022), highlighting an important milestone for that cell line and for the IC-BEVS. Despite this success, the reported plasmid-based approach has been associated with limitations, such as low editing efficiencies and unwanted plasmid DNA insertions, among others (Mabashi-Asazuma and Jarvis 2017; Zhang et al. 2021a). This low efficiency is partially attributed to the U6 promoter, which is less effective at driving gRNA expression in Sf9 cells, resulting in a time-consuming process (Mabashi-Asazuma and Jarvis 2017). As such, newer CRISPR-Cas9 delivery approaches in insect Sf9 cells are needed to accelerate the usage of genetic engineering in enhancing production processes.
Direct delivery of single-guide RNA (sgRNA) and Cas9 as a ribonucleoprotein (RNP) complex has emerged as a powerful and widely adopted alternative in CRISPR/Cas9 genome editing in several organisms. Delivering the system in RNP format addresses many of the drawbacks associated with plasmid-based methods, including reduced off-target effects, a lower risk of integration, and improved editing efficiencies (Zhang et al. 2021a; Du et al. 2023).
Taking advantage of this delivery format, the goal of this study was the implementation of a CRISPR/Cas9 RNP complex delivery strategy in Sf9 insect cells. Several transfection methods were tested to efficiently deliver RNP complexes to the cells while maintaining high viability post-transfection. Moreover, we also assessed the applicability of this protocol by knocking out the initiator caspase gene Sf-Dronc, recently identified to be differentially expressed in infection processes and responsible for signalling for the activation of effector caspases such as Sf-caspase-1 (Huang et al. 2013; Virgolini et al. 2023). Established clones were evaluated for improved apoptosis resistance as well as the production of three different biologics: a recombinant adeno-associated virus (rAAV), a virus-like particle displaying the influenza M1 protein (hereby named iVLPs), and a recombinant antigen against malaria (named PfRipr5).
Materials and methods
Cell lines and culture media
Sf9 cells (derived from Spodoptera frugiperda, Invitrogen, Cat#: 11496-015) and Sf-Dronc knockout clones were sub-cultured in serum-free Sf900-II™ SFM medium (Thermo Fisher Scientific) in shake flasks (Corning) using 10% (v/v) working volume, maintained at 27 °C and 100 rpm shaking in an Inova 44R shaking incubator (orbital motion diameter of 2.54 cm, Eppendorf). Cells were sub-cultured at 0.6–1 × 106 cell.mL−1, when reaching a cell concentration of 2–4 × 106 cell.mL−1. Cells maintained in culture plates (Corning) were sub-cultured when reaching confluency, using manual detachment and twofold dilution in fresh culture media. Culture plates were maintained in a static incubator at 27 °C.
CRISPR-Cas9 knockout strategy
Ribonucleoprotein complex delivery
Single guide RNA (sgRNA) and Cas9 were purchased from IDT (Alt-R® CRISPR-Cas9 sgRNA and Alt-RTM S.p.Cas9 V3 products, respectively) and designed using IDT software or obtained from literature (Table S1). Sf-Dronc reference sequence (LOC118266887) was obtained from NCBI's S. frugiperda Annotation Release 101 (RefSeq assembly accession: GCF_011064685.1) (Xiao et al. 2020). Ribonucleoprotein (RNP) complexes were formed by combining sgRNA with Cas9 according to the respective delivery method (lipofection or electroporation).
For lipofection, RNP complexes were formed during a 10-min incubation at room temperature using 15.5 pmol Cas9 and 30 pmol sgRNA in 250 µL Opti-MEM™ (Thermo Fisher Scientific). RNP vesicle formation was achieved by the addition of equal volumes of 6% (v/v) lipofection reagent (RNAiMax™, TransIT™, and Cellfectin™—all Thermo Fisher Scientific) in Opti-MEM™ and incubation at room temperature for 10 min. Finally, 0.6 × 106 cell.mL−1 were transfected by adding 10% (v/v) delivery solution to each well.
For electroporation, 19.2 pmol Cas9 and 36 pmol sgRNA were complexed in 30 µL SF Nucleofector™ solution containing 18.2% (v/v) Nucleofector™ Supplement using the SF Cell Line 4D-Nucleofector™ X Kit (Lonza). After 15 min incubation at room temperature, 0.5 × 106 cells were pelleted by centrifugation and resuspended in 20 µL nucleofection solution. Nucleofection was achieved in a 4D Nucleofector (Lonza) using a Nucleocuvette™ strip and the CM104 program. Immediately after nucleofection, 100 µL of fresh culture medium was added, and the cells was transferred to a culture plate.
Evaluating editing efficiency
To evaluate CRISPR-Cas9 editing efficiency, DNA was extracted with the DNeasy® Blood and Tissue Kit (Qiagen) according to the manufacturer's instructions. Next, purified DNA was quantified using NanoDrop™ (Thermo Fisher Scientific), and 150 ng was subjected to subsequent target gene amplification using specific primers (primer pair 1 for Sf-Dronc, Table S1) at a concentration of 0.5 µM (Table S1) and PlatinumTM SuperFi II Green PCR Master Mix (Invitrogen) according to the manufacturer's instructions. PCR conditions are shown in Table S2. Sequence amplification was confirmed by gel electrophoresis using a 1% agarose gel for 1 h at 100 V.
CRISPR-Cas9 editing efficiency was evaluated by using the EnGen® mutation detection kit (New England Biolabs) as instructed by the manufacturer. Briefly, the method involves PCR amplification of the target locus of edited cell DNA and then denaturing and re-annealing the PCR products. Heteroduplex DNA formed by annealed edited and nonedited amplimers is cleaved by T7 endonuclease. Briefly, 150 ng of target gene amplification product was digested using T7 endonuclease, and afterwards, reaction products were fractionated by polyacrylamide gel electrophoresis (PAGE) using a 4–20% gradient gel (TBE) (Invitrogen) for 1 h at 120 V in 0.5 × TBE buffer (Novex). Bands were then revealed by UV after staining with a 0.005% (v/v) aqueous RedSafe solution and subsequent washing steps using distilled water to reduce background signal. Editing efficiency was evaluated according towhere the fraction cleaved is calculated according to \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$${\% efficiency}=100 \times [ 1-{\left(1-\text{fraction cleaved}\right)}^\frac{1}{2}]$$\end{document} \% efficiency = × [ - ] 100 1 1 - fraction cleaved 1 2 \documentclass[12pt]{minimal} \usepackage{amsmath} \usepackage{wasysym} \usepackage{amsfonts} \usepackage{amssymb} \usepackage{amsbsy} \usepackage{mathrsfs} \usepackage{upgreek} \setlength{\oddsidemargin}{-69pt} \begin{document}$$\text{fraction cleaved}=\frac{\text{intensity digested bands}}{(\text{intensity digested band}+\text{ intensity undigested band})}$$\end{document} fraction cleaved = intensity digested bands ( + ) intensity digested band intensity undigested band
Single cell cloning
Single-cell clones were obtained by limited dilution using conditions as reported elsewhere (Fernandes et al. 2012). An estimated five cells per well were introduced, and colony growth was supported by using conditioned media (supernatant of exponentially growing Sf9 cells) supplemented with 10% (v/v) fetal bovine serum (FBS) (Gibco). This setup was chosen to maximize the likelihood of obtaining single-cell colonies per well, accounting for expected cell loss due to stress during serial dilutions and plating, and to support the growth of single-cell clones following limited dilution. To confirm that colonies derived from a single cell, pictures of each well were taken after inoculation (day 0) and after colony growth (~ day 14–21), using a Cytation 3 Cell Imaging Reader (BioTek).
Nanopore sequencing
Nanopore sequencing was used to confirm successful editing of the targeted DNA sequence. For genomic and cDNA sequencing, a 3000 bp and 1200 bp amplicon, respectively, were amplified from both wild-type and Sf-Dronc clones using primer pair 2 (Table S1) and then purified using AMPure XP-PCR beads (Beckman) according to the manufacturer's instructions. Briefly, PCR products were mixed with magnetic beads in a 1:1 ratio and incubated for 5 min at room temperature. Next, the beads were pelleted using a magnetic rack (Biorad) and washed twice for 30 s with 70% ethanol. Residual ethanol was removed by air drying the beads, after which DNA was eluted from the beads using TE buffer. The purified PCR product was then collected and sent for Nanopore sequencing using Eurofin's Genomic™ Linear Amplicon workflow. The acquired data was evaluated using the Epi2Me™ amplicon workflow and visualized using IGV™, using the Sf-Dronc amplicon amplified and purified from wild-type as the reference sequence.
Gene expression analysis
Total RNA was extracted with High Pure RNA Isolation kit (Roche) according to the manufacturer's instructions. RNA was quantified using a NanoDrop™ One/OneC (Thermo Fisher Scientific) and stored at −80 °C until further analysis. Reverse transcription was performed using Transcriptor High Fidelity cDNA Synthesis Kit (Roche) according to the manufacturer's instructions with anchored-oligo (dT)18 Primer and 1 µg of RNA within a 40 µL reaction. Samples were diluted 1:5 within nuclease-free water (Gibco) and used alongside respective primers and LightCycler 480 SYBR Green I Master Kit (Roche). RT-qPCR reactions were performed in a LightCycler 480 Instrument II 384-well block (Roche) and quantification cycle values (Cts), and melting curves were determined using the LightCycler 480 Software version 1.5 (Roche). All data was analysed relative to the housekeeping gene Actin A1 (accession number HQ008727.1) and presented by employing the 2−ΔΔCT method for relative expression analysis as fold change. Primers were designed to target the mutation site (with cDNA primer pair 1).
Toxicity resistance assay
Responses to cellular stress were evaluated by MTT assay using Zeocin® (Invivogen). Briefly, 0.5 × 105 cells were seeded per well and incubated until the cells were settled. Next, the supernatant was removed and replaced by twofold dilutions of Zeocin™ (0.001–4 mg.mL−1) in 100 µL Sf-900 II SFM media; non-treated cells were used as the control. Cells were incubated for 4 days at 27 °C, after which 0.05 mg thiazolyl blue tetrazolium bromide (MTT) (Abcam) was added per well. After allowing crystal formation for 4 h at 27 °C, the supernatant was removed, and the formed crystals were dissolved in dimethylsulphoxide (DMSO) (Sigma-Aldrich), by incubating for 15 min at room temperature. Finally, the absorbance at 570 and 690 nm (reference) was measured, and the IC50 value was determined by non-linear regression of normalized values using GraphPad Prism.
Recombinant baculovirus amplification and storage
Recombinant baculoviruses (rBAC) containing transgenes of interest were amplified as described elsewhere (Vieira et al. 2005). Briefly, insect Sf9 cells were infected at a concentration of 1 × 106 cell.mL−1 using an MOI of 0.1 plaque-forming units per viable cell (pfu.cell−1). When cell viability reached approximately 80%, rBAC was harvested by performing two centrifugation steps (200 × g for 10 min at 4 °C and 2000 × g for 20 min at 4 °C). The clarified supernatant was then aliquoted and stored at 4 °C until further use.
Production of rAAV, iVLPs, and PfRipr5
The established Sf-Dronc knockout clones were assessed for the production of three different biologics: a recombinant adeno-associated virus (rAAV), a virus-like particle displaying the influenza M1 protein (hereby named iVLPs), and a recombinant antigen against malaria (named PfRipr5).
rAAV carrying a GFP transgene expression cassette was produced using two rBACs, namely rBAC-REP/CAP (carrying AAV2 rep and cap genes as established in-house using Addgene plasmid #65214) (Smith et al. 2009; Pais et al. 2019) and rBAC-GFP (incorporating a gfp transgene flanked by AAV serotype 2 inverted terminal repeats as reported previously) (Virgolini et al. 2023). iVLPs were produced using one rBAC, carrying both the influenza M1 (from A/California/06/2009 H1N1 strain) and the HA (from A/Brisbane/59/2007 strain) genes; this rBAC was generated as described elsewhere using FlashBac™ (Correia et al. 2025). PfRipr5 was expressed using one rBAC as described elsewhere (Correia et al. 2022).
Production of all three biologics was initiated by infecting Sf9 and Sf-Dronc knockout clones at a cell concentration of infection (CCI) of 2 × 106 cell.mL−1, with a multiplicity of infection (MOI) of 0.1. As two rBACs were required for rAAV production, both viruses were added with an MOI of 0.05 pfu.cell−1. Samples for cell concentration, viability, and product titre assessment were taken approximately every 24 h.
Analytics
Cell concentration and viability
The trypan blue dye exclusion method was used to determine viable cell concentration and cell viability (Tennant, 1964), utilizing automatic counting by the Cedex HiRes Analyzer (Roche) or the ViCell Blue (Beckman Coulter).
rAAV quantification
Samples for rAAV titre determination were processed as described elsewhere (Pais et al. 2019) and stored at −80 °C until further analysis. Intracellular samples were digested as previously reported (Virgolini et al. 2023). Intracellular rAAV viral genomes (VG) were estimated by real-time quantitative PCR (RT-qPCR), as described previously with primers and probes in Table S1 (Pais et al. 2019). Total particles using ELISA were performed using the AAV2 Xpress kit by Progen™ according to the manufacturer's instructions.
Hemagglutination assay
HA titre was determined by hemagglutination assay, as described elsewhere 4. Briefly, samples were serially diluted 1:1 in 1 × PBS (Corning), using V-bottom plates (Sarstedt). Next, samples were mixed 1:1 with 1% chicken erythrocytes (Rockland), after which they were incubated for 30 min at 4 °C. After visual inspection, the HA titre was estimated as being the inverse of the highest sample dilution with no detectable hemagglutination.
Western blot
Expression of PfRipr5 was assessed in culture supernatants by western blot, as shown elsewhere (Correia et al. 2022). iBright™ (Thermofisher) imaging system was used to take pictures of the resulting membranes, while GelAnalyzer™ was utilized for densitometry analysis of protein bands.
Baculovirus titration
Recombinant baculovirus was titrated using the MTT assay as described elsewhere (Mena et al. 2003; Roldão et al. 2009).
Results
Ribonucleoprotein delivery in insect Sf9 cells
Given the current state of the art and the lack of publications describing generating gene knockout (KO) Sf9 cell line clones in the industry, we recognized the need for a more efficient and thus faster CRISPR-Cas9 based pipeline. For this, CRISPR-Cas9 ribonucleoprotein complexes (RNP) delivery was evaluated using various transfection methods and compared to the reported plasmid-based delivery strategy described previously to be successful in the insect Sf9 cell line (Mabashi–Asazuma).

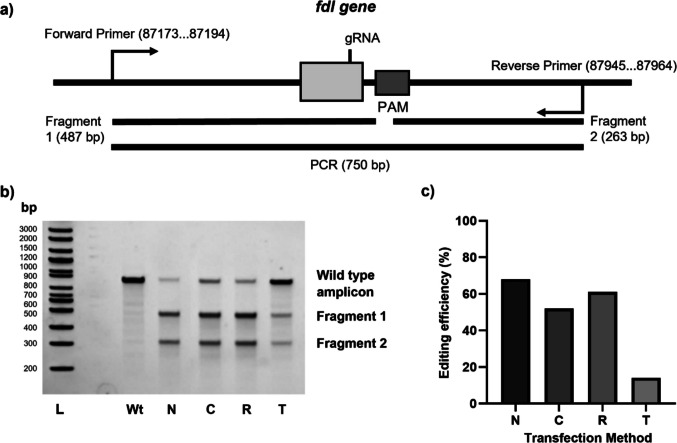

Evaluation of editing efficiencies using different CRISPR-Cas9 ribonucleoprotein (RNP) complex delivery methods:Target region representation of genome and expected fragments according to gRNA target region;Evaluation by T7 assay of edited amplicons derived from PCR, with different delivery strategies represented; N, Nucleofection™; C, Cellfectin™; R, RNAiMAX™; T, TransIT™; Wt, wild type; L, molecular weight ladder;Efficiency evaluation across delivery methods a b c
Targeting Sf-Dronc
The applicability of the method was demonstrated by successfully deleting the Sf-Dronc gene. Apoptosis has been shown to play a significant role in the lytic IC-BEVS system, decreasing cell lifespan and thereby affecting product titres and/or quality (Hong et al. 2022). However, since caspases are present within cells in an inactive state, silencing caspases (using methods such as dsRNA) has a limited effect, allowing caspases to contribute to apoptosis induction (Huang et al. 2013). Initiator caspases, such as Sf-Dronc, a homologue to the Drosophila dronc gene and recently identified to be differentially expressed during infection processes, have not been studied extensively (Virgolini et al. 2023). With the limitation of the lytic nature of the BEVS system, knocking out caspases has the potential to enhance product titre and/or quality of ATMPs by avoiding the accumulation of uncleaved (or inactive) caspase within the cytoplasm and therefore caspase activation.

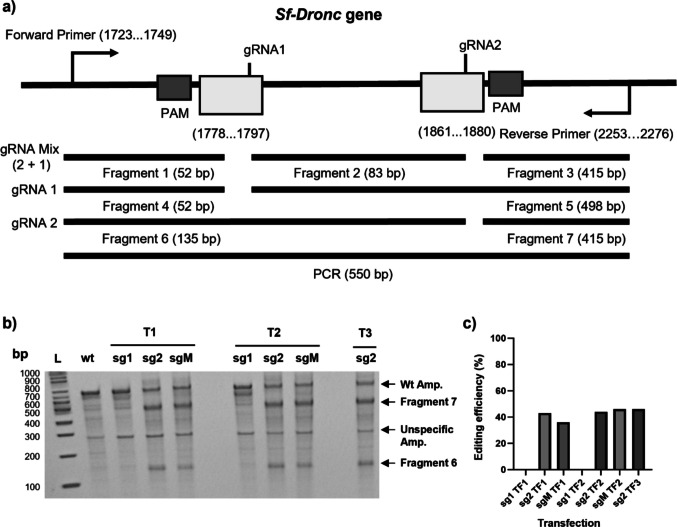

Evaluation ofknockout:Target region representation of gene and expected fragments according to gRNA target region; b Evaluation by T7 assay of edited amplicons derived from PCR, where T1, T2, and T3 correspond to first, second, and third transfection and sg1, sg2, and sgM correspond to delivery of gRNAs in a single or mixed format; Efficiency evaluation across transfections Sf-Dronc a c
Sf-Dronc knockout clones screening

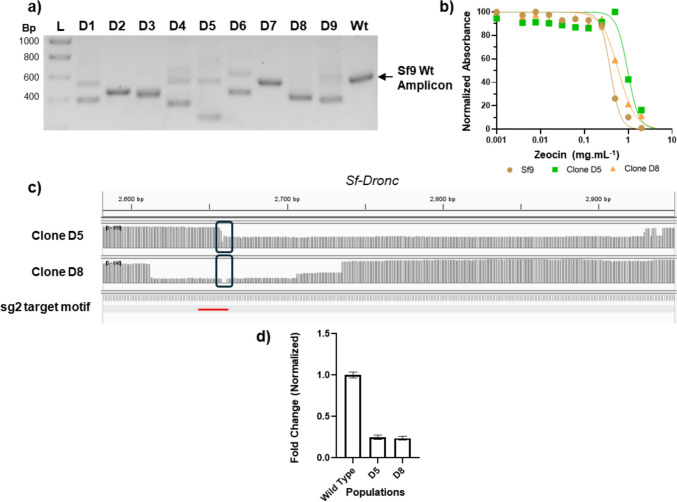

Knockout ofgene:evaluation by colony-PCR of amplicon size observed in clones D1–D9 and comparison with wild type (Wt) amplicon; Characterization of cellular response to apoptosis induction by Zeocin™ as assessed by MTT assay and evaluated using GraphPad Prism™; results are shown as average of eight biological replicates ( = 8), error bars represent standard deviation;Amplicon coverage of mutants D5 and D8 (genomic sequence) when comparing to amplicon present in wild type cells as seen using IGV™ to visualize Nanopore sequencing data; box highlights the region of interest, featuring the target motif in red; Relative expression profile measured by RT-qPCR oftranscripts in mutant populations when compared with wild-type, normalized to Actin-b Sf-Dronc n Sf-Dronc a b c d
Assessing Sf-Dronc knockout clones for production of rAAV, iVLPs, and PfRipr5

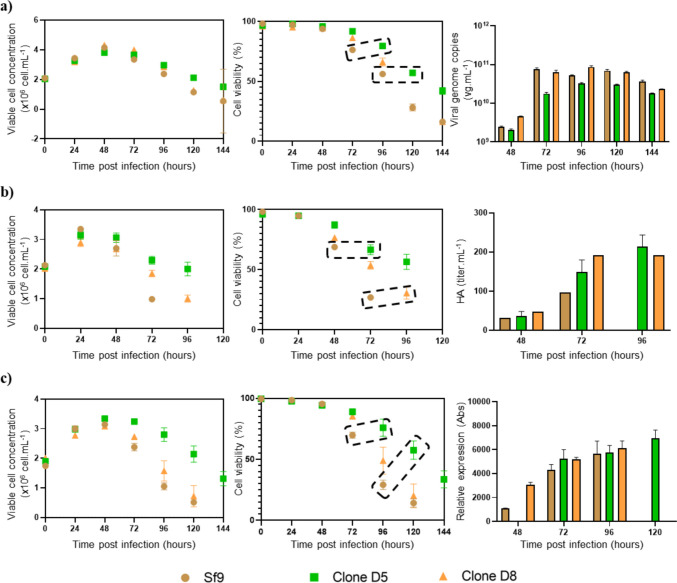

Kinetics and productivity during infection of knockouts and wild type using recombinant baculoviruses:production of recombinant adeno-associated viruses;production of virus-like particles displaying influenza-HA;production of a PfRipr5, a malaria subunit, with viable cell concentration on the right, cell viability in the centre, and productivity on the right. Viability drop delay highlighted by dashed boxes. For: results represent the average of three biological replicates ( = 3); error bars represent standard deviation a b c a–c n
Discussion
CRISPR-Cas9 is a powerful tool to establish targeted and accurate gene knockouts (Doudna and Charpentier 2014) and has shown great potential in increasing product titres and/or quality in producer cell lines (Raab et al. 2019; Ley et al. 2019). Previous work of Mabashi-Asazuma and Jarvis (2017) reports the use of a plasmid-based method for the delivery of the necessary genes for CRISPR-Cas9 in insect cells. However, results achieved showed limited efficiency, mostly as a consequence of the lack of knowledge surrounding efficient promoters in insect cells (Mabashi-Asazuma and Jarvis 2017). The discovery of more efficient promoters has been the object of recent studies, leading to some advancements which can better leverage the plasmid-based delivery into the editing of insect cells (Miyata et al. 2019). In our study, we developed a CRISPR-Cas9 delivery method using ribonucleoprotein (RNP) complexes which have shown to be efficient, resulting in higher editing efficiencies compared to previously established plasmid-based delivery methods (Mabashi-Asazuma and Jarvis 2017). As such, this pipeline has the potential to accelerate genetic engineering applications in the insect cell-baculovirus expression vector system (IC-BEVS), enabling the rapid and effective generation of mutant phenotypes.
Engineering insect Sf9 cells presents two major challenges: a biological constraint arising from their mixed diploid/tetraploid nature (Jarman-Smith et al. 2004) and a technical limitation associated with their low survival as single‑cells that complicates conventional cloning approaches (Vidigal et al. 2013; Ma et al. 2019). Regarding the biological constraint, the simultaneous deletion of all alleles and the subsequent identification of complete knockout clones is considered challenging, prompting the need for tools capable of generating high frequencies of editing in a population and reliably determining the resulting mutations. While standard Sanger sequencing is sufficient for detecting mutations in bi-allelic populations, it is not feasible for resolving the complex mixture of alleles typically present in Sf9 cells. Techniques such as Nanopore sequencing or RT‑qPCR are more suitable for characterizing heterogeneous editing outcomes and assessing the extent of gene disruption. Nanopore sequencing shows that mutations and large deletions are present in the genome of the sequenced clones and that the same mutations found in the target region can be seen in the cDNA. These mutations impacted gene expression, evidenced by the reduced levels of Sf-Dronc transcripts in mutant populations compared to wild-type, as measured by RT-qPCR. Importantly, the transcripts that remain detectable likely correspond to hypomorphic alleles carrying some of them indel mutations, resulting in non-functional Sf-Dronc expression. Although we were unable to directly assess protein abundance due to the lack of a suitable antibody, our data suggest that the expression of the functional initiator caspase SfDronc is markedly diminished due to the indels generated. Regarding the technical constraint, Sf9 cells display very low survival under strict ≤ 1 cell‑per‑well limiting‑dilution conditions. To accommodate this limitation, the cloning step in this workflow was adapted to the biological characteristics of Sf9 cells by using a slightly higher seeding density together with imaging‑based monitoring to ensure that the selected colonies originated from single cells. Although suitable for R&D‑focused gene‑editing workflows, stricter ≤ 1 cell‑per‑well cloning procedures remain the standard for clinical or regulatory‑grade cell line development. Future implementations of this workflow, particularly for applications requiring formal clonality assurance, will incorporate such stringent single‑cell cloning procedures despite the associated viability challenges in Sf9 cells.
In the IC-BEVS, production is severely limited by the lytic nature of the system. Despite the viral expression of anti-apoptotic genes, we previously confirmed the activation of the apoptotic pathway during baculovirus infection (Virgolini et al. 2023). As such, targeting the apoptosis pathway might result in insect cell lines showing delayed onset of cell viability drop upon baculovirus infection, potentially improving product titres and/or quality. To date, effector caspases like caspase-1 have been investigated through inhibition, knockout, or both. These studies have resulted in mutant clones exhibiting enhanced apoptosis resistance under non-infectious conditions, though they have yielded inconsistent outcomes in improving viability during infectious processes (Hebert et al. 2009; Lai et al. 2012; Huang et al. 2013; Yang et al. 2016; Zhang et al. 2018, 2021b; de Malmanche et al. 2022). Initiator caspases, such as Sf-Dronc, which are found downregulated during baculovirus infection in one of our previous studies (Virgolini et al. 2023), have not been extensively explored. These molecules are known to activate effector caspases (i.e. caspase-1) in insect cells (Meier et al. 2000; Huang et al. 2013) and thus might prove more efficient in preventing apoptosis initiation during infection processes. Indeed, the dronc knockout clones established herein highlighted a delayed onset of cell viability drop during baculovirus infection, likely correlated with improved apoptosis resistance and similar to what has been achieved previously using RNAi gene silencing (Huang et al. 2013).
Inhibiting apoptosis has been associated with improving product titres and/or quality in IC-BEVS (Steele et al. 2017; Zhang et al. 2018, 2021b) and other expression systems (e.g. Chinese Hamster Ovary cells) (Grilo and Mantalaris 2019). However, a recent study in IC-BEVS could neither confirm a delayed onset of cell viability drop during infection nor improved product titres when knocking out or inhibiting caspase-1, hypothesizing that previous improvements were product-dependent and/or associated with off-target effects (de Malmanche et al. 2022). In this study, the Sf-Dronc knockout clones established successfully improved cell viabilities after infection; while this enabled a > twofold increase in iVLP production compared to wild-type populations, no improvements were observed for rAAV2 or PfRipr5 titres.
This variability in phenotype may reflect the limitations of targeting apoptosis alone to enhance production processes; nonetheless, it may also underscore the influence of two key factors: population heterogeneity prior to single-cell cloning and product–process-specific constraints. Regarding population heterogeneity, single-cell cloning has long been critical in biotechnological applications, with regulatory agencies requiring proof of clonality for cell lines used in biopharmaceutical production. Monoclonality ensures consistent population behaviour, product quality, and genetic stability (Yang et al. 2022; Boulenouar et al. 2023). In the context of CRISPR-Cas9 gene editing, monoclonality prior to transfection minimizes genetic variability among generated mutants, while post-transfection it enables the selection of clonal populations carrying complete knockout mutations with uniform deletions (Giuliano et al. 2019). Although our current workflow includes single-cell cloning after transfection, initiating editing from a genomically homogeneous population could further reduce variability and simplify downstream characterization. For future applications of the CRISPR-Cas9 system reported herein, assuring monoclonality prior to transfection could facilitate screening and interpretation of phenotypic outcomes and enhance the industrial applicability of engineered cell lines. To achieve this, cell line engineering should focus on using wild-type clone-derived populations that demonstrate genomic stability across passages and on identifying markers associated with this trait (Wurm and Wurm 2017; Cordova et al. 2024).
Regarding product–process-related limitations, rAAV2 is an intracellular product, and, as such, cell productivities might be restricted by the cell machinery and the cell's capacity to produce and accumulate intracellular proteins, and/or molecular precursors. Additionally, the low multiplicity of infection (MOI < 1 pfu/cell) used for rAAV2 production requires baculovirus replication and release from insect cells, events that may be impacted/hindered by the mutation introduced in the cell. Further evaluations and optimization of infection conditions (e.g. different MOIs) are needed to assess the potential of Sf-Dronc knockout clones in improving rAAV2 titres. For iVLP production, the only condition used was one that was previously optimized for Sf9 cells, and indeed in this case, it was possible to observe not only a larger variance in the viability profiles of the knockout populations, but also a positive impact in productivity, suggesting a product-specific benefit.
Conclusion
This study presents a novel and efficient CRISPR-Cas9–based gene editing pipeline for Sf9 insect cells, serving as a proof of principle for enhancing genetic engineering in insect cell lines. The method successfully delivered a ribonucleoprotein (RNP) complex consisting of Cas9 and guide RNA into Sf9 cells, significantly improving previous systems. Using the system, a new cell line was established showing improved apoptosis resistance, as highlighted by a delayed onset of cell viability drop during baculovirus infection. While this phenotype could not lead to enhanced rAAV2 nor PfRipr5 product titres, iVLP production was positively impacted. Overall, this study further enhances genetic engineering applications in the industrial relevant Sf9 insect cell line, providing a fast and efficient CRISPR-Cas9 gene knockout pipeline that can be leveraged to improve insect cell phenotypes towards enhanced protein expression.
Supplementary information
Below is the link to the electronic supplementary material. ESM 1 (PDF 1.80 MB)
