A dual-branch hybrid network for predicting CRISPR-Cas9 cutting efficiency

To comprehensively evaluate the predictive performance of the CRISPR-FMC model across diverse experimental settings and sample sizes, nine publicly available CRISPR-Cas9 on-target efficiency datasets were employed. These datasets span multiple Cas9 variants, various cell types, and high-throughput screening experiments of different scales. All datasets are widely adopted in prior studies and serve as benchmark resources for modeling CRISPR-Cas9 on-target activity.

The datasets are categorized into three groups based on sample size (see Table 1):

Large-scale datasets. The WT (Wang et al., 2019), ESP (Wang et al., 2019), and HF (Wang et al., 2019) datasets comprise 55,603, 58,616, and 56,887 sgRNA sequences, respectively. These datasets originate from genome-wide screening experiments conducted by Wang et al. (2019) using SpCas9 and its high-fidelity variants (e.g., eSpCas9(1.1), SpCas9-HF1). Due to their broad genomic coverage and substantial sequence diversity, they serve as ideal benchmarks for evaluating model performance and stability under large-sample conditions.

Medium-scale datasets. The xCas9 Kim et al. (2020), SpCas9-NG (Kim et al., 2020), and Sniper-Cas9 Kim et al. (2020) datasets contain 37,738, 30,585, and 37,794 sgRNA sequences, respectively. These datasets were derived from experiments summarized in Kim et al. (2020), where predictive models were built for a series of PAM-variant SpCas9 systems.

Small-scale datasets. The HCT116 (Hart et al., 2015), HELA (Hart et al., 2015), and HL60 (Wang T. et al., 2014) datasets contain 4,239, 8,101, and 2,076 sgRNA sequences, respectively. These datasets were originally compiled by Chuai et al. (2018), who integrated four independently validated CRISPR screening datasets involving 1,071 genes across multiple human cell lines. We selected three of these cell line-specific datasets—HCT116, HELA, and HL60—for our experiments. Redundant entries were removed to ensure non-overlapping, high-confidence training samples.

Each sample consists of a 23-nucleotide sequence, comprising a 20-nt sgRNA protospacer and a 3-nt PAM (e.g., NGG) located at the 3′ end. The sgRNA guides the Cas9 protein to the target site via complementary base pairing, while the PAM—though not directly involved in hybridization—is essential for Cas9 binding and cleavage. To preserve the integrity of both sequence context and cleavage specificity, the full 23-nt sgRNA-PAM sequence was used as input to our model, enabling richer representation learning.

To maintain consistency across datasets originating from heterogeneous experimental conditions, all indel frequencies were scaled to the [0,1] interval through Min-Max normalization (Saini et al., 2024). Table 1 summarizes the Cas9 variant, cell type, and sample size associated with each dataset. Model training and evaluation were conducted based on a five-fold cross-validation protocol. In each fold, 80% of the data served as the training set and the remaining 20% as the test set; additionally, 10% of the training data was set aside as a validation subset for hyperparameter tuning and early stopping. This evaluation strategy ensures robust and unbiased performance estimation across datasets with varying distributions.

To comprehensively characterize sgRNA sequences and enhance the model's capacity to capture both fine-grained local patterns and broader contextual dependencies, we propose a dual-branch sequence encoding strategy that integrates conventional one-hot encoding with semantic embeddings derived from a pre-trained RNA-FM module, as illustrated in Figure 1. This hybrid representation framework is designed to provide the model with both interpretable low-level compositional signals and enriched high-level contextual semantics, thereby enhancing predictive performance and feature expressiveness (Song X. et al., 2024).

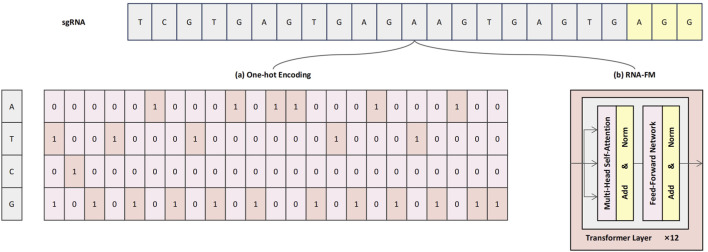

Specifically, the One-hot encoding branch (Figure 1a) preserves the exact nucleotide composition of each base in the sgRNA sequence. In this scheme, each nucleotide—A, T, G, and C—is represented by a four-dimensional One-hot vector: A = [1, 0, 0, 0], T = [0, 1, 0, 0], C = [0, 0, 1, 0], and G = [0, 0, 0, 1]. As a result, the full 23-nucleotide sgRNA sequence—comprising a 20-base protospacer and a 3-base PAM—is encoded as a 23×4 binary matrix. This sparse yet structured format is particularly well-suited for convolutional modules, enabling the model to effectively capture local sequence motifs and positional dependencies.

However, One-hot encoding alone lacks the capacity to capture semantic relationships or contextual dependencies among nucleotides. To address this limitation, RNA-FM embeddings are incorporated as a complementary representation (Figure 1b). RNA-FM is a Transformer-based RNA language model that was pre-trained on a large-scale corpus of over 240 million non-coding RNA sequences, capable of modeling rich contextual semantics through its core self-attention mechanisms (Huang et al., 2023). This allows the model to learn complex relationships between nucleotides that are distant in the primary sequence, thereby implicitly capturing information regarding potential secondary structures and other conserved functional motifs. During encoding, the mean vector from the final Transformer module is extracted to produce a 640-dimensional dense embedding that encapsulates these learned long-range dependencies, structural preferences, and contextual sequence features.

By integrating the explicit base identity information from One-hot encoding with the context-aware semantic representations provided by RNA-FM, the proposed dual-branch encoding scheme enables complementary feature fusion at both compositional and semantic levels. This multimodal sequence representation (Xie J. et al., 2023) allows the subsequent network modules to jointly learn localized structural features and global contextual dependencies, thereby improving the model's ability to accurately predict sgRNA on-target editing efficiency (Xiang et al., 2021).

Recent advances in deep learning have catalyzed the development of a diverse array of models designed to improve the accuracy and robustness of CRISPR-Cas9 on-target activity prediction (Elkayam and Orenstein, 2022; Bao and Liu, 2024; Zhu et al., 2024). However, existing methods still face significant challenges in modeling the high-dimensional structure of biological sequences and effectively integrating multimodal information. Specifically, the sgRNA sequence encodes hierarchical semantic features (Sun et al., 2024) that are difficult to fully represent through a single encoding scheme. In addition, local pattern recognition and global dependency modeling are often treated independently, which hinders joint optimization. Furthermore, the absence of deep semantic alignment (Ates et al., 2023) during heterogeneous modality fusion can lead to feature redundancy and semantic inconsistency, ultimately limiting predictive performance.

To address these limitations, we propose a structurally innovative dual-branch deep neural network (Luo et al., 2024), CRISPR-FMC, which integrates MSC, Transformer encoders, BiGRU, and a bidirectional cross-attention mechanism. The architecture is designed to enhance model expressiveness along three key dimensions: diversity of input representations, coordination of feature extraction, and depth of semantic fusion (Qin and Song, 2022). As illustrated in Figure 2, CRISPR-FMC consists of four primary modules: (a) Pre-training (Figure 2a, b) Multimodal Processing (Figure 2b, c) Cross-modal Interaction (Figure 2c,d) Prediction Output (Figure 2d).

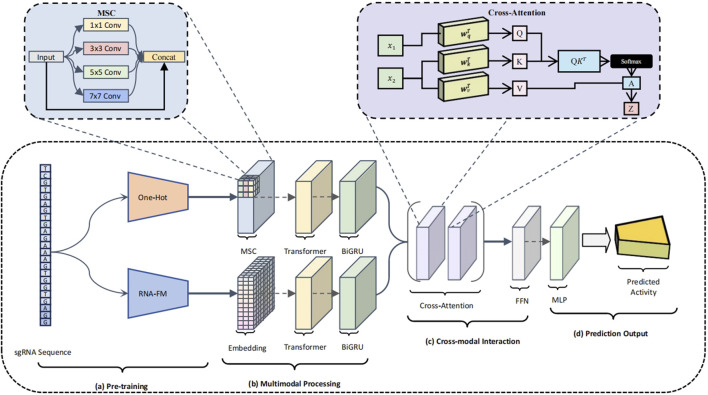

To effectively capture both the structural and semantic characteristics of sgRNA sequences, CRISPR-FMC adopts a dual-branch input framework (Figure 2A). This architecture enables the model to simultaneously learn from low-level compositional features and high-level contextual representations. The first branch applies conventional one-hot encoding, converting each sgRNA into a 23×4 binary matrix that preserves nucleotide-specific structural information. The second branch utilizes RNA-FM, a pre-trained RNA language model, to generate a 640-dimensional continuous embedding for each sgRNA, capturing rich semantic context. As a foundation model trained on large-scale RNA sequence corpora, RNA-FM has demonstrated strong performance in downstream tasks such as RNA secondary structure prediction and functional element annotation (Yu et al., 2024). However, its application to CRISPR-Cas9 activity modeling remains largely unexplored. The combination of discrete and continuous representations allows the model to access complementary information from distinct feature spaces, thus establishing a multi-resolution, semantically enriched foundation for downstream feature learning.

To effectively capture multi-scale sequence dependencies, CRISPR-FMC constructs separate feature extraction pipelines for the One-hot and RNA-FM branches (Figure 2B), each comprising an MSC module, a Transformer encoder, and a BiGRU module arranged sequentially. In the One-hot encoding branch, input sequences are first processed by a MSC module composed of parallel convolutional layers with kernel sizes of 1×1, 3×3, 5×5, and 7×7. This architectural design enables the model to extract local features across multiple receptive fields, thereby capturing diverse sequence motifs of varying lengths. MSC has demonstrated effectiveness across a range of domains, including traffic sign recognition (Sermanet and LeCun, 2011) and image forensics (Liu et al., 2018), and is employed here to enhance the model's sensitivity to local structural variations intrinsic to CRISPR sequence data. The resulting multi-scale convolutional features are subsequently passed through a Transformer encoder, which employs multi-head self-attention mechanisms to capture long-range dependencies across nucleotide positions. The encoder incorporates residual connections, layer normalization, and a position-wise FFN to promote training stability and enhance representational flexibility. The Transformer output is then fed into a BiGRU module, which captures bidirectional temporal dependencies and enables context-aware sequence modeling. This Transformer–BiGRU combination has demonstrated strong performance in tasks such as text classification (Shaheen et al., 2020) and clinical time-series prediction (Song Z. et al., 2024), motivating its adoption here for joint modeling of global attention and sequential dependencies. For the RNA-FM branch, the 640-dimensional input vector is first linearly projected and reshaped, then processed by an independent Transformer–BiGRU stack. Given the semantic gap between RNA-FM embeddings and One-hot encodings, separate parameter sets are employed in the RNA-FM pathway to preserve semantic fidelity and mitigate representational interference. By maintaining distinct feature extraction paths for each modality, the model preserves their intrinsic heterogeneity and prevents premature fusion, which could otherwise lead to information entanglement or redundancy. The outputs from both branches are high-level feature tensors of shape [B,23,256], which are forwarded to the fusion module.

To enable deep semantic alignment and effective integration of heterogeneous feature representations, CRISPR-FMC incorporates a bidirectional cross-attention mechanism within its cross-modal interaction module (Figure 2C). Feature embeddings from both branches are linearly projected into a shared space of dimension [B,23,64] and alternately serve as the Query and Key/Value components within the cross-attention framework. This mechanism allows One-hot features to absorb contextual signals from RNA-FM embeddings, and vice versa, thereby facilitating mutual enhancement and semantic coherence across modalities.

The attention-refined features are further processed via residual connections and layer normalization to stabilize training and preserve gradient flow. Bidirectional outputs are concatenated along the feature dimension to form a unified representation of shape [B,23,128]. A residual feedforward network (FFN) is then applied to introduce nonlinear transformations while preserving the original signal, enhancing feature discriminability. The fused representation is flattened and passed to a Multi-Layer Perceptron (MLP) for regression-based prediction, as shown in Figure 2d. The MLP comprises three hidden layers with 80, 40, and 20 neurons, each followed by ReLU activation and dropout layers with rates of 0.4, 0.3, and 0.2 to mitigate overfitting Taud and Mas (2017). The output layer contains a single neuron that produces the predicted on-target cleavage efficiency. Serving as the decision head of CRISPR-FMC, the MLP maps the fused features to the final prediction.

Model training and evaluation were conducted on a local high-performance computing platform with an NVIDIA GeForce RTX 2080Ti GPU (22 GB VRAM), an Intel Core i5-12400F CPU, and 32 GB RAM, running Windows 11. The model was implemented in PyTorch 1.8.1 with Python 3.9. All dependencies, including,,,,, and, were managed via Conda and PyPI to ensure experimental reproducibility. numpy pandas scikit-learn matplotlib scipy fair-esm

Based on the datasets described in Section 2.1 and summarized in Table 1, model training and evaluation were performed independently on each of the nine publicly available CRISPR-Cas9 datasets. These datasets encompass a wide range of cell types and sgRNA activity measurements across varying experimental scales. A dual-branch architecture was employed to capture multi-level sequence representations, with the corresponding encoding strategies detailed in Section 2.2.

All target values were scaled to therange through Min-Max normalization. A five-fold cross-validation scheme was employed with a fixed random seed (2024) to ensure reproducibility. Training was conducted with a batch size of 4,096 for up to 200 epochs. The model was optimized with the Adamax algorithm, initialized with a learning rate of. Early stopping was applied to prevent overfitting, and training was terminated if the validation loss failed to improve for 10 consecutive epochs. The model checkpoint corresponding to the lowest validation loss was retained for final evaluation. [ ] 0,1 3 1 × 0 − 4

The regression objective was defined based on the Log-Cosh loss (Equation 1), which combines the smooth optimization characteristics of the mean squared error (MSE) Marmolin (1986) with the robustness of the mean absolute error (MAE) Chai and Draxler (2014) against outliers. The Log-Cosh loss is defined as:LLogCosh=1N∑i=1Nlogcoshy^i−yi,(1)where y^i denotes the predicted value, yi is the ground truth, and N represents the number of training samples. For comparison, the conventional MSE (Equation 2) and MAE (Equation 2) losses are formulated as:LMSE=1N∑i=1Ny^i−yi2,LMAE=1N∑i=1Ny^i−yi.(2)

Compared to MSE and MAE, the Log-Cosh (Xu et al., 2020) loss behaves similarly to MSE for small residuals, providing smooth gradients, and transitions to MAE-like behavior for large residuals, thereby enhancing robustness to outliers. This property makes it well suited for biological prediction tasks that involve experimental noise or measurement variability.

Throughout training, the loss at each epoch was recorded to monitor convergence and assess training dynamics. For each cross-validation fold, the model with the lowest validation loss was selected and retained for subsequent inference.

To comprehensively assess the predictive performance of CRISPR-FMC for sgRNA on-target activity, two regression-based evaluation metrics were employed: Spearman's rank correlation coefficient (SCC) (Equation 3) (Zar, 2005) and Pearson correlation coefficient (PCC) (Equation 4) (Benesty et al., 2008). SCC quantifies the strength of a monotonic relationship between predicted and actual values, reflecting the model's ability to preserve the relative ranking of sgRNA activity. In contrast, PCC measures the linear correlation between predicted scores and ground truth, indicating the model's capacity to capture numerical agreement in regression.

Letanddenote the predicted and true values, respectively. The evaluation metrics are defined as follows:whereanddenote the ranks ofandin their respective sets, andis the total number of samples.whereandrepresent the means of the predicted and true values, respectively. Y ^ { } y ^ 1 y ^ 2 y ^ N , , … , = Y = { } y 1 y 2 y N , , … , r ( ) y ^ i r ( ) y i y ^ i y i N y ^ ¯ y ¯ SCC = − 1 6 ∑ i = 1 N r r y ^ i y i − 2 N N 2 − 1 (3) PCC = ∑ i = 1 N y ^ i − y ^ ¯ y i − y ¯ ∑ i = 1 N y ^ i − y ^ ¯ 2 ∑ i = 1 N y i − y ¯ 2 (4)

All evaluations were conducted on the test folds of five-fold cross-validation. Metric computation was performed with themodule in Python to ensure standardized and reproducible evaluation. scipy.stats

To rigorously evaluate the effectiveness of the proposed CRISPR-FMC model in predicting CRISPR-Cas9 sgRNA activity, we conducted comparative experiments against several state-of-the-art baseline methods across nine publicly available datasets (see Table 1 for details). The competing methods include CrnnCrispr (Zhu et al., 2024), CRISPR-ONT (Zhang et al., 2021), TransCrispr (Wan and Jiang, 2022), and C-RNNCrispr (Zhang et al., 2020), each representing a distinct network design paradigm and feature modeling strategy. To ensure a fair and reproducible comparison, all baseline results presented in this study were independently reproduced by our team. We utilized publicly available source code for each model and trained and evaluated them under the same five-fold cross-validation protocol used for CRISPR-FMC. Specifically, CrnnCrispr integrates CNN and BiGRU modules to capture local sequence motifs and contextual dependencies. CRISPR-ONT incorporates an attention mechanism to enhance the identification of key functional sites. TransCrispr employs a hybrid CNN–Transformer architecture to strengthen the modeling of long-range dependencies. C-RNNCrispr, on the other hand, adopts a recursive convolutional structure to facilitate hierarchical feature extraction across multiple semantic levels.

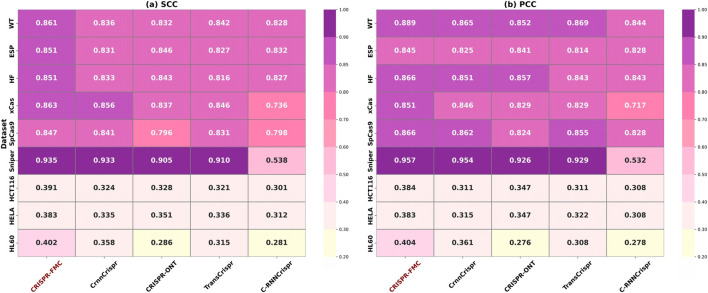

The experimental results are summarized in Figure 3. CRISPR-FMC consistently achieved the highest performance across all nine datasets. On large-scale datasets such as WT, ESP, and HF, the model attained SCC values of 0.861, 0.851, and 0.851, along with PCC scores of 0.889, 0.845, and 0.866, respectively—showcasing robust predictive capability in data-rich settings. The margins over the best-performing baseline (e.g., CrnnCrispr or TransCrispr) were moderate, typically ranging from 1.5% to 2.5%.

Notably, on the Sniper dataset, CRISPR-FMC achieved the highest performance with SCC = 0.935 and PCC = 0.957, outperforming the second-best model (CrnnCrispr) which scored 0.933 and 0.954, respectively. This result demonstrates the model's effectiveness on variant-specific Cas9 datasets.

The model also performed well on small-scale datasets such as HCT116, HELA, and HL60. On the HL60 dataset, CRISPR-FMC reached SCC = 0.402 and PCC = 0.404, surpassing CrnnCrispr, which achieved SCC = 0.358 and PCC = 0.361. These results confirm that CRISPR-FMC maintains strong generalization ability even under limited data availability.

The overall performance advantage can be attributed to the model's dual-branch architecture and multimodal feature fusion, combining One-hot encoded features and RNA-FM embeddings. The design enables the capture of both low-level sequence motifs and high-level contextual dependencies through MSC, BiGRU, and cross-attention modules, thereby enhancing prediction robustness across different datasets.

To systematically assess the contribution of each architectural component within the CRISPR-FMC model to sgRNA activity prediction, we performed a series of comprehensive ablation experiments across nine publicly available CRISPR-Cas9 datasets. In each experiment, a single submodule was removed or replaced, while the remaining model architecture and training protocol were kept unchanged. This controlled design ensures that any observed performance variation can be directly attributed to the specific structural modification. The key components examined are summarized in Table 2, and the selected datasets (Table 1) encompass a wide range of sequence complexities and sample sizes.

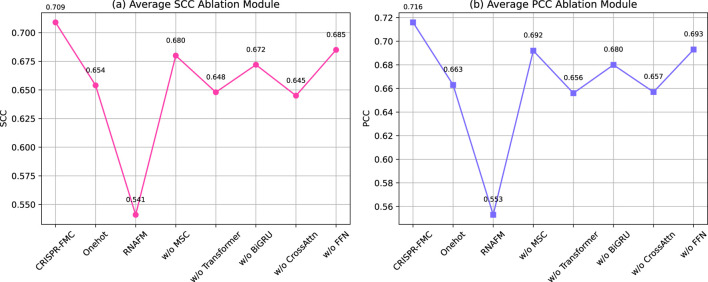

As shown in Figure 4, the complete CRISPR-FMC model achieves the highest average SCC and PCC values of 0.709 and 0.716, respectively. Excluding either input encoding branch leads to notable performance degradation. Retaining only one-hot encoding still yields reduced performance (SCC: 0.654, PCC: 0.663), while relying solely on RNA-FM embeddings results in the most significant drop (SCC: 0.541, PCC: 0.553). These findings demonstrate that the two encoding schemes capture complementary aspects of sgRNA sequence information and jointly contribute to a robust feature representation.

In the sequence modeling pipeline, ablation of the MSC module (replaced with a fixed-size 5×5 convolution) reduces performance to 0.680 in SCC and 0.692 in PCC. This confirms the importance of capturing multi-scale motif patterns, particularly for datasets like HF, ESP, and WT. Similarly, removing the Transformer block results in SCC and PCC values of 0.648 and 0.656, respectively, underscoring its role in modeling long-range dependencies. The BiGRU module is also essential for contextual modeling, with its removal lowering performance to 0.672 in SCC and 0.680 in PCC. These trends align with observations from the CRISPR-MFH study by Zheng et al. (2025) and the TransCrispr model by Wan and Jiang (2022).

The cross-modal interaction mechanism is further tested via an additional variant, oCrossAttn, which retains only the bidirectional cross-attention module while removing other fusion components. This version yields lower average scores (SCC: 0.645, PCC: 0.657), indicating that although cross-attention facilitates inter-modality alignment, it cannot fully replace the complete multimodal fusion framework. Lastly, eliminating the FFN module results in SCC and PCC scores of 0.685 and 0.693, respectively, suggesting its role in refining the fused representation through high-order nonlinear transformation.

Taken together, these ablation results validate the functional necessity and complementary contributions of each structural component in CRISPR-FMC. The observed performance declines confirm the value of multi-level encoding, hierarchical feature extraction, and semantic fusion.

To further validate these findings, we conducted a detailed per-dataset ablation analysis and found that the contribution of each encoding branch varies with dataset size. Specifically, the one-hot branch dominates performance on large datasets (e.g., WT, ESP, HF), where abundant data allows the model to learn directly from sequence. In contrast, the RNA-FM branch is more effective on small datasets (e.g., HCT116, HELA, HL60), acting as a regularizer and injecting prior biological knowledge. Detailed SCC and PCC results are visualized in,, and the encoding contribution trend is highlighted in. Supplementary Figures 6 7 Supplementary Figure 6

To evaluate the transferability and generalization capability of the CRISPR-FMC model across different data distributions, we conducted a cross-dataset migration experiment. Specifically, the model was independently trained on two large-scale datasets, WT and ESP, and subsequently evaluated on a small-scale dataset (HL60). The performance was assessed based on SCC and PCC. This setup simulates real-world application scenarios in which the model must generalize from well-annotated source data to novel cellular contexts characterized by limited annotations or high noise levels (Wang et al., 2020).

As shown in Table 3, CRISPR-FMC achieves superior and stable cross-dataset generalization under both training settings. When trained on the WT dataset, the model attains an SCC of 0.468 and a PCC of 0.459 on HL60, outperforming competing models such as CrnnCrispr (SCC: 0.456, PCC: 0.438) and TransCrispr (SCC: 0.448, PCC: 0.432). When trained on the ESP dataset, CRISPR-FMC still maintains top performance with an SCC of 0.448 and a PCC of 0.432, again surpassing baselines such as CRISPR-ONT (SCC: 0.432, PCC: 0.421) and C-RNNCrispr (SCC: 0.434, PCC: 0.429).

Overall, CRISPR-FMC consistently achieves the highest SCC and PCC values on HL60 across both training sources, highlighting its robustness in cross-cell line migration tasks (Wang C. et al., 2014). Notably, HL60 represents a challenging test case due to its small sample size and high noise levels, yet CRISPR-FMC maintains strong predictive accuracy and correlation.

This strong generalization performance can be attributed to the architectural design of CRISPR-FMC. The dual-branch encoding scheme—combining one-hot and RNA-FM representations—enables the model to simultaneously capture local structural patterns and global semantic context. The integration of multi-scale convolution (MSC), BiGRU modules, and a bidirectional cross-attention mechanism further enhances feature expressiveness and semantic alignment, collectively improving the model's adaptability to distributional shifts and noise.

To gain a deeper understanding of the decision-making process of the CRISPR-FMC model, we conducted a base substitution experiment to analyze the positional sensitivity of the model's predicted cleavage efficiency. In this experiment, the original nucleotide at each position was sequentially replaced with each of the other three bases (A, T, C, G), and the resulting changes in the model's predictions were recorded. The impact of each substitution was quantified by calculating the Z-score (Ma et al., 2016), which reflects the magnitude of change in the predicted output.

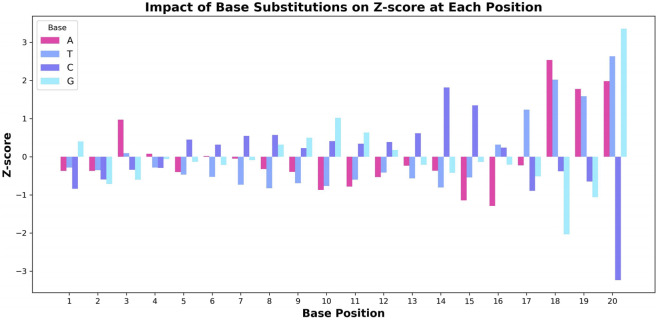

Figure 5 illustrates the effect of different base substitutions on the Z-score. The model exhibits the highest sensitivity in the PAM-proximal region (positions 16–20), where substitutions consistently lead to large fluctuations in the Z-score. For instance, positions 18 and 20 show particularly strong effects. Other positions, such as position three and 14, also demonstrate notable sensitivity, indicating their contribution to the model's predictions. This observation aligns with established biological mechanisms, especially regarding the binding affinity of Cas9 to the target DNA. Previous studies, including those by Doench et al. (2016) and Duan et al. (2014), have reported that mutations in the PAM-proximal region can substantially influence Cas9 cleavage activity, reflecting the sequence-specific binding nature of the Cas9 protein.

Through this analysis, we have gained insights into how the CRISPR-FMC model prioritizes specific nucleotide positions when predicting cleavage efficiency. This understanding provides valuable guidance for optimizing sgRNA sequence design and offers a targeted strategy for enhancing CRISPR editing performance.
