Improving cystic fibrosis gene therapy by optimizing precise gene editing and lung-targeted delivery particles

The HEK293 cell line was obtained from Leibniz-Institute DSMZ (Germany), while the 508del carrying cell line was a kind gift of Prof. Dr. Ignatova from Hamburg University. Both cell lines were regularly tested for the presence of mycoplasma (Venor GeM Advance, Minerva Biolabs, Germany) and found to be negative. To verify that the F508del carrying cell line carries the expected homozygous mutation, we sequenced the genomic region surrounding the mutation via Nanopore sequencing. The results showed that the cells were not homozygous for the F508del mutation as 83% of sequenced cells showed no mutation in the expected region. Besides this mutation, the V470M mutation was also detected, which the cell line appears to be homozygous for. In the following, the partly F508del carrying cell line is referred to as CFBE-X.

HEK293 and CFBE-X cell lines were cultivated in DMEM (Capricorn Scientific, Germany), which was supplemented with 10% (v/v) fetal bovine serum (StemCell Technologies, Germany) and 1% penicillin-streptomycin (P/S; Capricorn Scientific, Germany). The cells were maintained at 37 °C in a 5% CO₂ atmosphere (standard cultivation conditions). The cultures were passaged every 3–4 days upon reaching 90% confluency using Trypsin/EDTA (StemCell Technologies, Germany).

The cells were seeded on 24-well plates (Sarstedt, Germany) at a density of 5 × 10⁴ cells/well and transfected after 24 h. The fluorescent protein mVenus expressing plasmid pZMB0938 (Supplementary Table S1) was used as positive control for the transfection process and untreated cells were classified as negative control. The total amount of plasmid used with Lipofectamine transfection was 500 ng, comprising 50 ng of PEAR target plasmid, 150 ng of pegRNA, and 300 ng of prime editor (PE) coding plasmid adapted from Simon et al. (2022). In all experiments, the pCMV-PE6c (Simon et al., 2022; Bulcaen et al., 2024) plasmid was used as the PE expressing plasmid. The Lipofectamine transfection process was carried out in accordance with the manufacturer's guidelines, utilizing Lipofectamine 3000 (Thermo Fisher Scientific, Germany).

For transfection with LNPs, 50 µL per well of the LNP solution containing 1,000 ng RNA was slowly dripped onto the cells in a 24-well plate in DMEM containing 10% FBS as well as 1% P/S and then cultivated under standard conditions.

For the transfection process using Polyethylenimine (PEI), a fresh mixture was prepared. For each well, 1,000 ng of plasmid DNA were mixed 100 µL of serum-free Opti-MEM. Subsequently, PEI (Thermo Scientific, Germany) at a concentration of 0.5 μg/μL was added at a ratio of 1:4 (i.e. 400 µL of PEI). The mixture was gently stirred and incubated at room temperature for 10–20 min to allow PEI to bind DNA. The cells were then washed with phosphate buffered saline (NaCl 137 mM, KCl 2.6 mM, Na₂HPO₄ 10 mM, KH₂PO₄ 1.8 mM; pH 7-7,4) to remove excess serum. The PEI-DNA-Opti-MEM mixture was added directly to the cells prior to incubation with the transfection mixture at 37 °C for 4–6 h. After incubation, the mixture was removed and replaced with DMEM.

The cells were analyzed 72 h post transfection by fluorescence microscopy (Leica DMI6000 B at 20× magnification, Leica Microsystems, Germany) to assess their viability. All cells were washed with phosphate buffered saline and detached with Accutase (Capricorn, Germany) for 10 min under standard cultivation conditions. The cells were analyzed by flow cytometry with BD Accuri C6 Plus flow cytometer (BD Biosciences, United States). For each sample, typically 1 × 10⁶ events were measured by exciting at 488 nm and measuring FL1 channel (533/30 nm). Events which displayed a fluorescence higher than 99% of viable cells of the control were counted as fluorescent cells. Analysis was carried out using FlowJo 10.9 (BD Biosciences, United States).

All plasmids used for cloning were purchased from Addgene (Supplementary Table S1). The PEAR_CFTR plasmid (pDas12124_PEAR-GFP-F508del) was constructed by digesting pDas12124_PEAR-GFP-preedited (Addgene: 177179) (Simon et al., 2022) with NheI (NEB, Germany) and Xhol (NEB, Germany), followed by Gibson cloning of the modified sequence mimicking the genomic target site (GFP-GGTdel) kindly provided as gene synthesis from Integrated DNA Technologies (United States). Digestions and Gibson cloning were done according to NEBcloner and Gibson Assembly Master Mix-Assembly (E2611) protocols from NEB (Germany). The pegRNA expression vectors were created by golden gate cloning of annealed oligonucleotides into the pU6-pegRNA-GG-acceptor plasmid (Addgene: 132777) according to the cloning protocol established by Anzalone et al., 2019. Correct cloning of all plasmids was validated through Sanger sequencing of the cloning sites. All oligonucleotides for pegRNA construction, primers for colony PCR and fragment amplification as well as gene syntheses are listed in Supplementary Tables S1–S3.

The web tool pegFinder (Chow et al., 2021) was used to create the first versions of pegRNAs which were then refined rationally. The choice of spacer, the basis for pegRNA design, was aided by the software CRISPick (Doench et al., 2016), which was used to evaluate off-target sites and cleavage potential.

Genomic DNA was extracted from the CFBE-X cell line using the NEB Monarch Genomic DNA purification Kit according to the manufacturer's instructions. The extracted genomic DNA was subjected to PCR amplification using Taq DNA Polymerase (NEB, Germany) according to protocol and specific primers (Supplementary Tables S2 and S3) for the CFTR region of interest. The amplified PCR products were purified using NucleoSpin Gel and PCR clean-up (Macherey-Nagel, Germany) according to the manufacturer's instructions. The purified products were then subjected to Nanopore sequencing using a ligation sequencing kit (SQK-NBD114.96). Long read data were produced on R10.4.1 flowcells (ONT) and basecalled with Dorado v. 7.6.7 in super-accuracy mode. The resulting reads were mapped to a reference sequence using minimap2 (Li, 2018) and visualized using IGV (Thorvaldsdottir et al., 2013) to confirm and quantify the presence of the F508 sequence.

Prior to RNA synthesis, the plasmid pCMV-PE6c was linearized using the restriction enzyme PvuI (NEB, Germany) in 10× CutSmart Buffer (NEB, Germany) for 3 h at 37 °C. After 2.5 h, the reaction was treated with Antarctic Phosphatase with corresponding buffer (NEB, Germany). Successful digestion was confirmed via analytical agarose gel electrophoresis, followed by purification of the linearized DNA using the NEB Monarch DNA purification Kit, with elution in 20 µL of ultrapure water. Concentration and purity of the treated DNA were assessed using spectrophotometry (Nanodrop 2000, Thermo Scientific, Germany). For RNA synthesis, the High ScribeT7 High Yield RNA Synthesis Kit (NEB, Germany) was used, along with a 3′-O-Me-m7G (5′)ppp (5′)G cap analog (NEB, Germany). The reaction was incubated at 37 °C for 1.5 h. ATP, UTP, and CTP were added at a final concentration of 5 mM, and GTP at a final concentration of 1 mM and the incubation continued at 37 °C for 1.5 h. Following synthesis, a DNase I (NEB, Germany) digestion step was performed, according to the NEB protocol, to remove residual DNA. The RNA was then subjected to poly(A) tailing using the NEB Poly(A) Polymerase Kit to enhance transcript stability and translational efficiency. Post-reaction purification was carried out with the Monarch RNA clean up Kit (NEB, Germany). The RNA concentration and purity were determined via spectrophotometry (Nanodrop 2000, Thermo Scientific, Germany).

Chitosan with a viscosity of 5 centipoise and ultra-low molecular weight (Glentham Life Sciences, Germany) was prepared by dissolving 1 g in 100 mL of 1% acetic acid overnight, followed by autoclaving. The pH was adjusted to 5.5 using NaOH, and dilutions of 5,000 ng/μL and 2,000 ng/μL were prepared. For chitosan complex formation, RNA and chitosan solution were each heated to 50 °C. Then pegRNA (5,000 ng/μL) with chitosan (5,000 ng/μL) and the PE6c RNA (2,000 ng/μL) with chitosan (2,000 ng/μL) were mixed at a ratio of 1.5:1 (RNA volume: chitosan volume) by pipetting ten times.

The LNP formulation process consisted of two main steps: preparation of the lipid mixture and formation of the LNPs with the RNA-chitosan complexes. Lipid stock solutions were prepared in 99% ethanol with the following final concentrations: 4A3-SC8 (Echelon Bioscience, United States) 150 mg/mL, DOPE (1,2-di-(9Z-octadecenoyl)-sn-glycero-3-phosphoethanolamin, Avanti Polar Lipids, United States) 10 mg/mL, cholesterol (Cayman, United States) 10 mg/mL, mPEG-2000-DSPE, Na (sodium;[(2R)-2,3-di(octadecanoyloxy)propyl] 2-(2-methoxyethoxycarbonylamino)ethyl phosphate, Corden Pharma, Switzerland) 10 mg/mL, and DOTAP (1,2-dioleoyl-3-trimethylammonium-propane, Corden Pharma, Switzerland) 32.4 mg/mL. In a separate formulation, a plant-based cholesterol, BotaniChol (Corden Pharma, Switzerland), was used at the same concentration (10 mg/mL) as the standard cholesterol. The final lipid mixture was prepared by combining 6.7 μL 4A3-SC8 solution, 50.7 μL DOPE solution, 52.7 μL cholesterol or BotaniChol solution, 34.2 μL mPEG-2000-DSPE solution, and 40.0 μL DOTAP, resulting in a molar ratio of 14.5:14.5:28.9:2.7:39.4, followed by mixing until a clear solution was obtained.

For RNA mixture formation, the PE6c RNA-chitosan complex and the pegRNA-chitosan complex were combined at a 2:1 (m:m) in 8 μL and added to 52 μL citrate buffer (10 mM, pH 4; Thermo Scientific, Germany). In the next step 19.44 μL lipid mixture were combined with 0.66 μL 99% ethanol and the RNA mixture was rapidly and pipetted up and down for 30 s. The final ratio of aqueous to ethanol solution was 3:1 (v:v). LNPs were then incubated for 15 min at room temperature, followed by overnight dialysis against 1× phosphate buffered saline to remove ethanol and acidic buffer.

Size and size distribution of the LNPs were assessed using Zetasizer measurements and cryo-transmission electron microscopy (cryo-TEM). Zetasizer analysis (Microtrac, Germany) included dynamic light scattering (DLS) to determine particle size distribution, polydispersity index (PDI) as a measure of size homogeneity, and zeta potential to evaluate surface charge. For these measurements, 600 µL of LNP solution was analyzed. Dialysis was performed in ultrapure water instead of phosphate buffered saline to reduce background charge and minimize any interference with the measurements. For structural analysis, LNP samples were vitrified on holey carbon TEM grids (Lacey Carbon Film, 200 mesh; Science Services, Germany) using a Leica EM GP Blotting and Plunging System (Leica, Germany). The grids were rapidly immersed in liquid ethane, cooled with liquid nitrogen, ensuring ultra-fast vitrification. Samples were then transferred to a cryo-transfer and tomography holder (Fischione Model 2550, E.A. Fischione Instruments, United States) to maintain cryogenic conditions during imaging. Image acquisition and processing were conducted using Digital Micrograph GMS 3 (Gatan, United States).

In preparation for the cytotoxicity assay, 1 × 10⁴ CFBE-X cells per well were seeded in a 96-well-plate in 50 μL cell culture medium. Background fluorescence was measured using triplicates of 100 µL medium. For evaluating the cytotoxicity of LNPs without cargo, serial dilutions at different concentrations were prepared, followed by the addition of 50 µL of the LNP solution into the well plate. The samples were incubated for 24 h at 37 °C. After incubation, the samples were treated with 10 µL of 0.1 g/L resazurin stock solution. Measurements were performed using a microplate reader (Microplate-reader Infinite M Plex, Tecan, Switzerland) at an excitation wavelength of 545 nm, and an emission wavelength of 590 nm. Data collection took place several times over 4 h.

To determine prime editing efficiency, two different approaches were used depending on the system applied. In the reporter plasmid system (pPEAR_CFTR), prime editing restores green fluorescent protein (GFP) fluorescence upon successful editing of a mutated splice site. The editing efficiency was calculated by normalizing the fluorescence signal of edited cells to that of cells transfected with a GFP-expressing control plasmid, which represents the maximum achievable fluorescence signal under our transfection conditions. p r i m e e d i t i n g e f f i c i e n c y 1 = × % F l u o r e s c e n t C e l l s e d i t e d % F l u o r e s c e n t C e l l s G F P c o n t r o l 100

This calculation provides a relative measure of editing efficiency, contextualized to the maximum observable GFP signal. It accounts for variability in transfection efficiency and allows comparison between different pegRNAs.

Unless otherwise described, all statistical analyses were performed using Prism 5 (GraphPad Software, United States) and one-way ANOVA, followed by Tukey's post hoc test to determine significant differences (p < 0.05). Data is presented as mean ± standard error (SE), with n = 3. Identical letters indicate groups that are not significantly different, whereas different letters represent statistically distinct datasets. Background noise was accounted by corresponding negative and positive controls as described in the figure legends.

In this work, the fluorescence-based PEAR system, introduced by Simon et al., in 2022, was contextualized to resemble the prime editing target site of genomic CFTR. The PEAR system is based on a GFP coding sequence, that is divided into two pieces by an intron from the mouse Vim gene. The splice donor site and the surrounding region are mutated in a way that disables splicing, thus preventing correct GFP expression. Prime editing can then be used to correct the mutated splice site and restore fluorescence in the cell. A Cas9 PAM sequence was identified 9 nt downstream of the CTT deletion on the template strand, with the 20 nt following on the coding strand making up the corresponding protospacer (Figure 3A). This PAM showed high in silico predicted cutting efficiency and proximity to the target mutation, while leaving room for an intact splice donor site flanking sequence (Figure 3A). This, combined with no immediate off-target sites, made it a promising candidate for use with the PEAR system. The pDas12124_PEAR-GFP-preedited plasmid with intact splice donor site was used as a starting point. A 3 bp deletion, found in F508del, was introduced into the splice site, removing the GT bases of the donor site as well as an additional base from the 5′ flanking sequence. This was done to ensure a low level of noise in GFP expression before editing. Downstream of the 4 bp 3′ flanking sequence, a 27 bp sequence was replaced with the sequence from genomic CFTR, including PAM sequence, protospacer as well as 4 bp for closer resemblance to the genomic target site. The upstream region of the newly introduced mutation contains the GFP coding sequence, which did not allow for major modification. Still, to emulate the AT-rich region upstream of the genomic CTT deletion, four silent mutations were added (Figure 3A).

The flow cytometry analyses of the different prime editor systems pCMV-PE2 and pCMV-PE6c showed that the pCMV-PE6c system had a 1.55-time higher prime editing efficiency compared to pCMV-PE2 (). Supplementary Figure S1

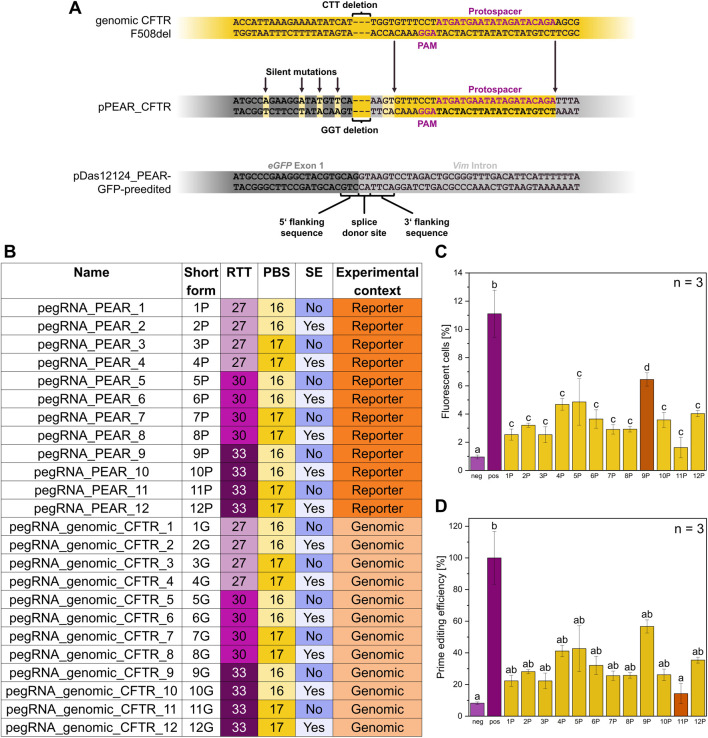

To assess the relationship between pegRNA structure and prime editing efficiency, different pegRNA variants were examined by editing the constructed pPEAR_CFTR plasmid (Figure 3C) in CFBE-X cells. In the following, pegRNAs targeting the pPEAR_CFTR plasmid are referred to as pegRNA_PEAR. The different numerical suffixes indicate variations in their structure and are listed in Figure 3B. This experiment was also carried out in HEK293 cells (Supplementary Figure S2). The flow cytometry analysis demonstrated that pegRNA_PEAR_9 (PBS: 16 nt, RTT: 33 nt, no silent edits) exhibited the most significant prime editing efficiency, reaching approximately 6.5% fluorescent cells. Notably, its editing efficiency accounts for more than half of that observed in the positive control, highlighting its superior performance. Most other pegRNA_PEARs, except for pegRNA_PEAR_4 (PBS: 17 nt, RTT: 27 nt, silent edits) and pegRNA_PEAR_5 (PBS: 16 nt, RTT: 30 nt, no silent edits) with around 4.7% fluorescent cells, displayed relatively similar editing efficiencies (2.5%–3.6% fluorescent cells). Among all tested constructs, pegRNA_PEAR_11 (PBS: 17 nt, RTT: 33 nt, no silent edits) exhibited the least significant editing efficiency at approximately 1.6% fluorescent cells (Figure 3C). Overall, pegRNA_PEAR_9 achieves the most significant prime editing efficiency, thus identifying its architecture as the most promising for the CFTR F508del mutation. Therefore, pegRNA_PEAR_9 was subsequently used for further experiments.

To assess the LNP formulation, its physicochemical properties, including transfection efficiency, zeta potential, size distribution, and uniformity, were measured to evaluate the impact of different components and loading conditions.

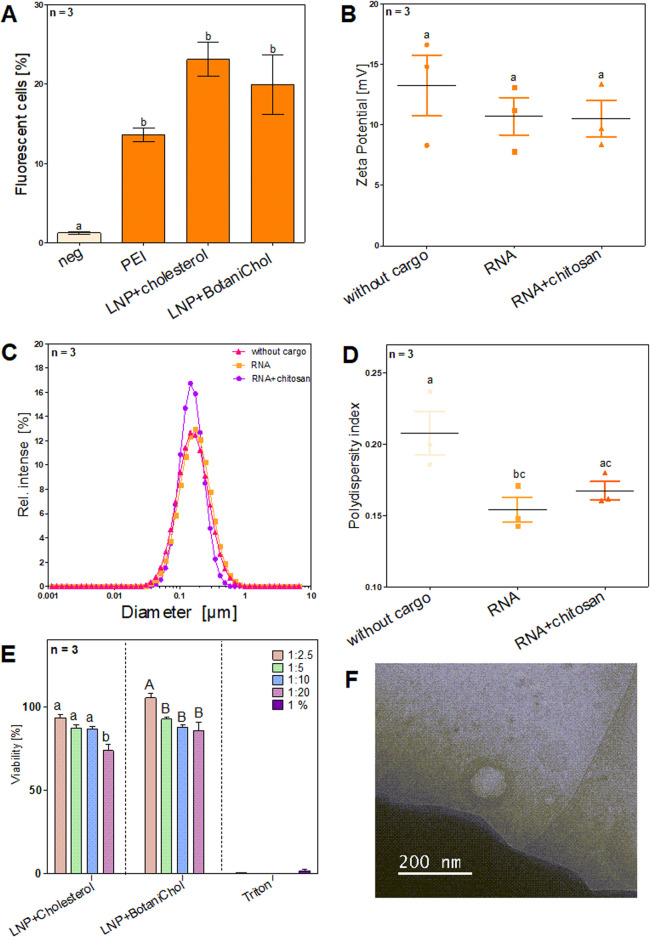

The percentage of fluorescent cells was measured to assess transfection efficiency across different formulations via flow cytometry (Figure 4A). PEI-based transfection resulted in a moderate increase in fluorescent cells, reaching approximately 10%. Among the LNP formulations, LNPs containing cholesterol exhibited the highest transfection efficiency, with over 20% fluorescent cells. LNPs formulated with BotaniChol showed a slightly lower transfection rate but remained comparable to the cholesterol-based LNPs. Error bars indicate variability within the replicates, with LNP-based formulations showing greater variation compared to PEI. All three transfection methods showed a significant difference compared to the negative control. LNPs without cargo exhibited the highest zeta potential, with a median of 14.5 mV (range: 8–16 mV). RNA loading resulted in a decrease, with a median zeta potential of ∼11 mV (range: 9–12 mV). The addition of chitosan to RNA-loaded LNPs led to a further slight reduction, yielding a median of ∼10 mV (range: 8–12 mV). Statistical analysis showed no significant difference between the three groups (Figure 4B).

The size distribution of LNP formulations was analyzed using DLS (Figure 4C). All formulations exhibited a similar size distribution, with a peak around 0.1 µm (∼100 nm). The relative intensity of scattered light was slightly higher for the RNA + chitosan formulation. No substantial shift in particle size was observed between formulations.

Analysis of the PDI revealed the highest value for LNPs without cargo, with a mean of ∼0.21, indicating greater heterogeneity. RNA-loaded LNPs exhibited a lower PDI (∼0.16), suggesting improved uniformity, while RNA + chitosan LNPs displayed a similar PDI (∼0.17) to the RNA-loaded group. Statistic analysis identified a significant difference in PDI between the LNP and LNP+RNA, whereas differences between LNP+RNA+Chitosan and LNP or LNP+RNA, despite seemingly present, were not significant. (Figure 4D).

The viability analysis revealed a largely constant cell survival rate in all tested conditions across all time points. Cell viability remained stable in all experimental groups and showed no significant deviations between the different time points (Supplementary Figures S3,S4). The non-loaded, cholesterol-containing LNPs showed significantly less viability when a 1:20 dilution was used. The non-loaded BotaniChol-containing LNPs showed significantly higher viability when 1:2.5 dilution was used. In contrast, the 1% Triton-X control led to a strongly reduced viability, as expected (Figure 4E). Moreover, the size of the LNP was determined using cryogenic transmission electron microscopy (Figure 4F). In summary, the results demonstrated that LNP formulations, particularly those containing cholesterol, achieved the highest transfection efficiency, significantly surpassing the negative control and PEI transfection. While Zeta potential and PDI measurements indicated slight variations, no significant differences were found between RNA and RNA + chitosan LNPs. Cell viability remained stable across all conditions, with notable exceptions for specific LNP dilutions, and cytotoxicity was observed in the 1% Triton-X control, as expected (Figure 4).

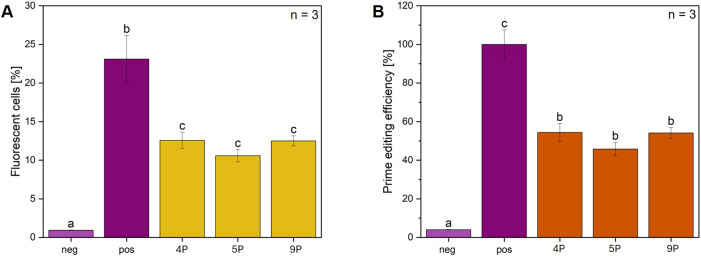

To enhance prime editing efficiency, chitosan and cholesterol complexed LNP were selected to target pPEAR-CFTR transfected in CFBE-X cells (Figure 5). The results show a significant increase in fluorescent cells for all three pegRNA_PEAR variants compared to control (Figure 5A). All tested pegRNA_PEAR constructs (pegRNA_PEAR_4, 5, and 9) resulted in values of fluorescent cells ranging between 10% and 13%. The highest fluorescence was observed for pegRNA_PEAR_4 and pegRNA 9, both reaching around 12%–13%, whereas pegRNA_PEAR_5 showed a lower efficiency of approximately 10%. Furthermore, the efficiency of prime editing was assessed and normalized to the positive control (Figure 5B). During this analysis, pegRNA_PEAR_4 and pegRNA_PEAR_9 exhibited comparable editing efficiencies of 56%, whereas pegRNA_PEAR_5 demonstrated a reduced efficiency of around 50%. Statistical analysis reveals no significant difference among the pegRNA_PEAR groups, suggesting comparable efficiency. As expected, the transfection efficiency increased by using LNPs by a factor of 1.5 compared to that of PEI tranfection.

In the next step, pegRNAs were specifically designed to target the CFTR-F508del region in the CFBE-X cell line, followed by a subsequent prime editing experiment and sequencing (Figure 6). Note that sequencing prior editing unexpectedly revealed, that the CFBE-X cell line carries the correct sequence in ∼83% of cases, and only ∼17% are editable. Again, the PE6c prime editor was used combined with the designed pegRNA_genomic_CFTR variants. The length of PBS and RTT and the silent edits were used as in the pegRNA_PEAR variants 4, 5, 9, 10 and 12 which showed the highest prime editing efficiency (Figure 3D). The genomic DNA of the cells was extracted and next-generation sequencing was used to analyze the percentage of sequencing reads containing the corrected F508 sequence. PegRNA_genomic_CFTR_4, 5, and 9 achieved the highest rates of correct DNA sequences, (∼85–88%), while pegRNA_genomic_CFTR_10 and 12 exhibit lower but comparable values (∼82–84%) (Figure 6).

The testing of pegRNA variants is of critical importance, as the pegRNA plays a decisive role, among other factors, in editing efficiency. It is important to note that the effectiveness of pegRNAs is highly context-dependent, meaning that there is not a universally optimal pegRNA. Instead, the pegRNA must be tailored to the specific application. To this end, a systematic testing of pegRNA variants was conducted using the constructed reporter system, with the objective of identifying the most suitable candidates for application within the given genomic context.

For precise genome editing, the selection of the spacer sequence in the pegRNA is critical, as it serves as the primary determinant of target specificity and potential off-target effects. To minimize such off-target activity, we used the CRISPick software (Doench et al., 2016) to evaluate candidate spacers and selected the one predicted to have the lowest off-target propensity. Furthermore, to increase stability, a structural motif was incorporated into the pegRNAs, which protects the pegRNAs from rapid degradation by ribonucleases, thereby increasing their lifespan in the cellular environment. Specifically, the tevopreQ1 stem loop was chosen, as established by Nelson et al. (2022). Since PBS and RTT lengths are highly context-dependent, several variants with different PBS and RTT lengths, as well as their combinations, were tested to determine the optimal length configuration for the target in question. We took into consideration that regions with a low GC content, as in this case (23.5% for a PBS length of 17 nt and 25% for a PBS length of 16 nt), typically require the use of longer PBS sequences, e.g., over 13 nt, for effective priming as shown by Anzalone et al., 2019. This is consistent with the energetic demands of the hybridization of the nicked DNA strand to the pegRNA PBS (Anzalone et al., 2019). Based on the results generated by the pegFinder software (Chow et al., 2021), variants with PBS lengths of 16 and 17 nt were tested. Additionally, six RT templates were evaluated, varying in length (27, 30 and 33 nt) and differing in the implementation of silent edits (being imperative to consider the silent edit leading to the PAM disrupt) – leading to a total of 12 pegRNA variants tested. It is noteworthy that RT templates which position a C adjacent to the 3-hairpin of the single guide RNA (sgRNA) scaffold generally result in reduced editing efficiency, so this was deliberately avoided when designing the pegRNAs (Anzalone et al., 2019). PegRNA variants with and without silent edits (Supplementary Table S3) were designed to evaluate their impact on editing efficiency and to determine whether such modifications improve or degrade performance.

The results show a strong dependence of prime editing efficiency on even small variations of pegRNA features. For example, pegRNA_PEAR_11 (PBS: 17 nt, RTT: 33 nt, no silent edits) and pegRNA_PEAR_12 (PBS: 17 nt, RTT: 33 nt, silent edits) yielded substantial differences in editing efficiency, varying from approximately 1.6%–4.0% fluorescent cells. Furthermore, no PBS or RTT length was strictly predictive of editing efficiency, suggesting that other factors such as RT template secondary structure also influence editing activity (Figure 3B). These findings are consistent with those previously reported by Anzalone et al., 2019, thereby providing further support for the conclusion.

The incorporation of silent edits leads to enhanced editing efficiency when using an RTT length of 27 nucleotides. However, this effect is not consistently observed across all RT lengths. For other pegRNA variants, the presence of silent edits does not necessarily improve editing efficiency and, in some cases, even reduces it. This is particularly evident in the case of pegRNA_PEAR_9 (PBS: 16 nt, RTT: 33 nt, no silent edits), which exhibits the highest editing efficiency without silent edits while showing a 1.8-fold increase in editing efficiency compared to pegRNA_PEAR_10 (PBS: 16 nt, RTT: 33 nt, silent edits). The findings suggest that the impact of silent edits is also context-dependent and influenced by the specific RT template length (Figure 3C). The conclusions drawn by Li et al., 2022, who reported a substantial enhancement in efficiency for base editing, up-to 4,976-fold, through the implementation of same-sense mutations led to the formulation of a hypothesis that predicts a comparable effect for multi-base edits. However, our data do not support this hypothesis. Consequently, further research is necessary, particularly concerning the evaluation of various silent edits and their combinations.

In the context of gene delivery, it is well-established that the efficiency of transfection is influenced by the formulation and the resulting cellular uptake and endosomal escape of the delivery system. As PEI, a widely used non-viral transfection method, has been associated with high cytotoxicity and suboptimal biocompatibility depending on molecular size (Moghimi et al., 2005), we investigated delivery via LNPs. Our results show that the tested LNP formulations achieve a higher transfection rate compared to that of the PEI control but without significant cytotoxicity (Figures 4A,E). In LNP formulations PEGylation is an important factor providing stability, solubility and stealth functionality by preventing aggregation, unintended adherence, and detection by immune cells. However, it has been shown that excessive PEG modification hinders transfection efficiency by reducing cellular uptake and impeding the endosomal escape of the complexes (Binici et al., 2025). Our results did not show reduced transfection rates although the PEG concentration with molar 2.7 % in our formulation was high. This suggests that in our LNP formulation and used transfection conditions, the increased PEG content did not have a negative effect on the transfection rate (Figure 4A).

Another important ingredient in LNP formulation is cholesterol, since it is critical for stabilizing the lipid layer, particle formation or enhancing the efficiency of gene transfection by facilitating the endosomal escape (Zidovska et al., 2009). In addition, studies demonstrated that cholesterol analogs enhanced transfection rates compared to standard cholesterol, as they improve the polymorphic shape of lipid nanoparticles and enhance intracellular mRNA delivery (Patel et al., 2020). We explored the use of a plant-derived cholesterol as a vegan alternative to conventional animal-based cholesterol. For that, we evaluated a plant-derived cholesterol named 'BotaniChol', which is labeled as >99% pure. As expected, the results showed no significant change in transfection efficiency (Figure 4A) and there were no notable differences in cytotoxicity between the two formulations (Figure 4E). This suggests that plant-based cholesterol may be used as a replacement.

Zeta potential analysis showed no significant differences among the three tested groups, suggesting that neither the presence of cargo nor chitosan complexation substantially alters surface charge (Figure 4B). Despite the incorporation of the cationic lipid 4A3 SC8 and 39.4% DOTAP, which would typically result in a more positively charged LNP, our formulation exhibited a relatively low zeta potential between 10 and 13 mV. This can possibly be attributed to the presence of the high PEG concentration in our LNP formulation, which likely shields surface charge and influences zeta potential measurements, a phenomenon previously reported in the literature (Choi et al., 2025).

Distinct differences were observed in PDI. LNPs without cargo exhibited a higher PDI and a broader distribution range, suggesting greater variability in size distribution. Conversely, LNPs loaded with RNA, as well as those containing RNA-chitosan complexes, showed a lower mean PDI and a more uniform size distribution (Figure 4D). This indicates that the incorporation of cargo facilitates the formation of LNPs with consistent size. While the addition of chitosan influenced the size distribution, the observed differences between RNA-loaded LNPs with and without chitosan were not significant (Figure 4D).

These findings highlight the importance of optimizing LNP composition to balance stability, transfection efficiency, and homogeneity. Further investigations should focus on refining PEG content and exploring alternative strategies to enhance endosomal escape while maintaining effective cellular uptake stability. Despite these promising results, several challenges remain. An important factor for the potential application of LNP-mediated gene therapy in CF patients that still requires thorough evaluation is the impact of the viscous mucus accumulation that occurs in vivo on the therapeutic effectiveness. While this study focused on optimizing the LNP formulation for compatibility with the therapeutic mRNA and a lung cell line, the formulation needs to be further optimized for in vivo application. In addition to the affinity of the LNPs to the mucus, the size is also a key factor in mucus penetration. While larger LNPs may bind to the mucus but not necessarily pass through it, smaller LNPs (up to 500 nm) can efficiently pass through the barrier and reach the epithelial lining (Zhao et al., 2022). With a diameter of just over 100 nm (Figure 4C), our LNPs showed the optimal prerequisite for overcoming the mucus barrier.

Prior to the administration of LNP-based therapeutics via inhalation, the airway mucus barrier can be modulated to facilitate particle penetration. In CF patients, the mucus layer is pathologically thickened and exhibits increased viscoelasticity, impeding the diffusion of inhaled nanoparticles toward the epithelial surface. Inhalation of hypertonic saline has been demonstrated to exert mucolytic effects and to enhance mucociliary clearance by hydrating and partially restoring the periciliary liquid layer lining the airways (Reeves et al., 2012). Another way to make mucus more penetrable is to use the mucolytic properties of N-acetylcysteine. This active ingredient is already used for inhalation in CF patients and, in addition to its mucolytic properties, also has antioxidant and antibiofilm benefits (Guerini et al., 2022). Administering hypertonic saline or N-acetylcysteine before LNP inhalation is anticipated to transiently reduce mucus viscosity and improve its permeability, thereby enabling more efficient traversal of the mucus mesh by LNPs and enhancing their subsequent interaction with target epithelial cells.

In subsequent experimental stages, the LNP formulation could be further engineered to achieve selective delivery to basal epithelial cells within the airway epithelium through a dual-display surface strategy. In this design, one moiety would serve as a transcytosis ligand, such as albumin, to mediate passage through the overlying epithelial cell layer via receptor-dependent vesicular transport. The second moiety would be a basal cell–targeting ligand, for example through targeting basal cell markers like Trp-63 (p63) and cytokeratin 5 and 14 (Krt5/14), to promote preferential uptake by basal cells through receptor-mediated endocytosis (Rock et al., 2009). This combinatorial targeting approach would enable the LNPs to traverse the differentiated epithelial layer intact and subsequently bind to and be internalized by basal cells, where the therapeutic payload would be released following endosomal escape.

The efficiency of prime editing depends on various factors that can be specifically optimized. For example, the impact of pegRNA design on editing efficiency demonstrates that even small sequence variations can lead to significant differences. While certain trends, such as the influence of silent edits and PBS/RTT lengths, were observed, optimal pegRNA design remains highly context dependent. The PE6c system with pegRNA_PEAR_4 or pegRNA_PEAR_9, mediated by LNP and chitosan, achieved a prime editing efficiency of 54% in pPEAR_CFTR transfected CFBE-X cells (Figure 5B) while the use of LNPs resulted in approximately twice the transfection efficiency compared to transfection without LNPs (Figure 4A). This demonstrates that LNPs significantly enhance the uptake and expression of the delivered components. To put the results into perspective, similar efficiencies of over 53% were achieved in HEK293-Gal9-GFP cells using LNPs loaded with PE3 and pegRNA (Herrera-Barrera et al., 2023). Additionally, PE6c-mediated correction of the pathogenic RECQL3 (Bloom Syndrome) mutation at nt 2,281 (6 bp deletion/7 bp insertion) in HEK293T cells resulted in a prime editing efficiency of nearly 32% without detectable indels (Doman et al., 2023). Furthermore, the efficiency of prime editing is not only determined by the pegRNA design, but also influenced by the cellular environment, the transfection method and the prime editing system used. In the context of prime editing, the pPEAR_CFTR model provides proof of concept for the targeted correction of F508del mutation. Through targeted screening experiments, these variables can be systematically optimized to adapt prime editing to specific cell types and therapeutic applications.

The final experiment in this study targeted the F508del mutation in the CFTR gene. For this approach, the PE6c prime editor was used alongside the pegRNA variants that showed the highest prime editing efficiency with the reporter system. In these preliminary experiments, the best RTT and PBS lengths and the use of silent edits were investigated. The analysis shows that the use of pegRNA_genomic_CFTR_4, 5, and 9 resulted in a significant proportion of reads with the correct F508 sequence (Figure 6).

Contrary to the expectation that the F508del mutation is homozygous in the cell line, the negative control showed the corrected wild type sequence with CTT in approximately 83% of the reads. Accounting for these results, the total amount of editable genes is only 17%. The percentage of edited cells is around 5%, if the proportion of genes that were previously correct is subtracted. This is the same percentage range as found in the literature (Sousa et al., 2024), where between 2% and 15% of sequencing reads were found to contain the CTT insertion. To make rough statements about the primary editing efficiency, it is necessary to consider the transfection efficiency. With the conditions and cells used in this study the transfection efficiency is between 10% and 15%. By calculating the number of edited cells divided per transfection rate, it could be assumed that the prime editing efficiency is around 40%. Again, pegRNA_genomic_CFTR_4 and 5 showed higher prime editing efficiency than the other three tested variants.

Targeted gene correction is a promising approach for treating CF by directly addressing its genetic cause. The pPEAR_CFTR model in CFBE-X cell line demonstrates that prime editing can precisely correct mutations in the CFTR gene like model. With further modifications basal lung cells could be targeted with even higher efficiency. The results of the in vitro experiments must undergo extensive in vivo experiments in a suitable animal model to validate the results. This is needed to ensure efficacy and security of the system. This also includes the investigation of potential long-term effects as well as possible side effects of the therapy. The implementation into a clinical application will depend on these results (European Medicines Agency, 2018).
