Genomic Editing of a Pathogenic Sequence Variant in ACTA2 Rescues Multisystemic Smooth Muscle Dysfunction Syndrome in Mice

The aim of this study was to develop a therapeutic strategy for MSMDS by using CRISPR-Cas9 nucleotide base editing in human cells and a mouse model of MSMDS. Various editing approaches were evaluated, and the most efficient sgRNA was selected to correct the sequence variant. All histological analyses, ultrasound experiments, and BP measurements were conducted and analyzed by blinded operators. Each experiment was performed with biological replicates.

All experimental procedures involving animals in this study were reviewed and approved by the University of Texas Southwestern Medical Center (UTSW) institutional animal care and use committee. All mice used in this study were housed in the pathogen-free animal resource center at UTSW. All mice were bred inside a specific pathogen-free facility with 12-hour light:dark cycles with a temperature of 18 °C to 24 °C and humidity of 35% to 60% and monitored daily. The mice had no health problems. Use of iPSC lines was reviewed and approved by the UTSW Stem Cell Research Oversight Committee.

The pSpCas9(BB)-2A-GFP (PX458) plasmid, a gift from Feng Zhang (Addgene plasmid No. 48138),was used as the primary scaffold for cloning base editors and Cas9 nickases, as previously described.For ABE correction of thesequence variant in iPSC lines, the sgRNAs () were subcloned into engineered vectors using NEBuilder HiFi DNA Assembly (New England Biolabs) to construct all-in-one vectors. For in vivo ABE correction, the N- and C-terminal ABE constructs were modified from Cbh_v5 AAV-ABE N terminus (Addgene plasmid no. 137177) and Cbh_v5 AAV-ABE C terminus (Addgene plasmid No. 137178). ²⁶ ,, ^{16 24 27} R179H ²⁸ ACTA2 Table S1

To monitor expression of the base editor within smooth muscle, we generated a series of AAV9 constructs expressing a tdTomato reporter driven by various smooth muscle–specific promoters. These promoters include a 510-bp mouse SM22 promoter fragment (−445 to +65; p445); a 594-bp chimeric promoter in which a rabbit MyHC enhancer was fused to the SM22 promoter fragment (−440 to +42; p594); a 582-bp chimeric promoter in which the telokin AT/CArG region was fused to the SM22 promoter fragment (−475 to +61; AT-CArG/SM22); and a 543-bp chimeric promoter in which a fragment of the SM22 promoter (−288 to −116) was fused to the telokin promoter fragment (−190 to +180; SM22/Telokin).All promoter sequences were synthesized by Integrated DNA Technologies. Cloning was performed using NEBuilder HiFi DNA Assembly into restriction enzyme-digested destination AAV vectors. ^{29 30 30}

Human iPSC lines were generated and maintained as previously described.In brief, iPSCs were maintained on Matrigel (Corning)–coated 6-well plates in mTeSR plus medium (STEMCELL Technologies) and passaged using Versene (Thermo Fisher Scientific) at ≈70% confluence. One hour before nucleofection, the cells were changed to fresh mTeSR Plus medium supplemented with Rock inhibitor (10 μM). Single-cell suspensions were prepared using Accutase (Innovative Cell Technologies). A total of 8×10wild-type (WT) iPSCs were nucleofected with a mixture of a single-stranded oligodeoxynucleotide template carrying the target sequence variant and pSpCas9(BB)-2A-GFP (PX458) plasmid containing the sgRNA for exon 6 of, using the Primary Cell 4D-Nucleofector X kit (Lonza) following the manufacturer's protocol. Forty-eight hours after nucleofection, GFPiPSCs were sorted by fluorescence-activated cell sorting and expanded in mTeSR Plus medium supplemented with Rock inhibitor (10 μM) and Primocin (100 μg/mL; InvivoGen). Single GFPiPSC clones were then picked and genotyped by Sanger sequencing. ³¹ 5 + + ACTA2

For base editing correction, 8×10iPSCs were nucleofected with 5 μg of engineered all-in-one vector, as described previously. GFPiPSCs were sorted by fluorescence-activated cell sorting 48 hours after nucleofection and expanded in mTeSR Plus medium supplemented with Rock inhibitor (10 μM) and Primocin (100 μg/mL; InvivoGen). The cells were cultured for ≈1 week before single clones were picked and genotyped by Sanger sequencing. 5 R179H/+ + ACTA2

Genomic DNA from iPSCs was extracted using Viagen Direct PCR Lysis reagent (Viagen), freshly supplemented with proteinase K (1 μg/μL). PCR amplification of the target sites was performed using PrimeSTAR GXL DNA polymerase (Takara) with the primers listed in. The PCR products were cleaned up using ExoSap-IT Express (Thermo Fisher Scientific) before undergoing Sanger sequencing on an ABI 3730XL Genetic Analyzer. The sequencing results were analyzed using EditR software to determine editing efficiencies. Table S2 ³²

Human iPSCs were differentiated into SMCs as previously described.In brief, iPSCs were cultured in mTeSR Plus medium on Matrigel-coated plates with daily medium changes until reaching confluence. Differentiation into mesodermal-lineage cells was initiated on day 0 by treating the cells with CHIR99021 (5 μM) and BMP-4 (10 ng/mL) in RPMI1640 medium supplemented with 2% B27. Differentiation into SMCs was initiated on day 3 by culturing the cells with 25 ng/mL VEGF-A and FGFβ in RPMI1640 and 2% B27 minus insulin from day 3 to day 7. Cells were then cultured in RPMI1640 and 2% B27 supplemented with 5 ng/mL PDGF-BB and 2.5 ng/mL transforming growth factor β1 (TGF-β1) from day 7 to day 14, with medium changed every 2 days. The differentiated cells were enriched for SMCs by culturing them in Human Vascular Smooth Muscle Cell Basal Medium and Smooth Muscle Growth Supplement (Gibco). ³³

For the SMC proliferation assay, a total of 1×10iPSC–derived SMCs (iPSC-SMCs) were seeded in a Matrigel-coated 12-well plate. When the cells reached ≈70% confluence, they were pulsed with 10 µM 5-EdU for 24 hours. Then, the cells were washed with PBS and fixed with 4% paraformaldehyde in PBS for 10 minutes at room temperature. After fixation, the cells were permeabilized with 0.5% Triton X-100 in PBS for 10 minutes, followed by incubation with the reaction cocktail for 30 minutes at room temperature. After EdU staining, the cells were stained with an antibody against SMA (1:200; Abcam) and counterstained with DAPI (Thermo Fisher Scientific Inc). Imaging was performed using a Keyence BZ-X700 microscope. The analysis was conducted by calculating the average percentage of EdU and α-SMA double-positive cells relative to the total α-SMA–positive cells in the immunofluorescent staining images. For TGF-β1 treatment, SMCs were serum-starved for 24 hours, followed by treatment with TGF-β1 (3 ng/mL) for 48 hours. Subsequent EdU assays were performed. 5

The wound-healing migration assay was used to assess the migratory ability of SMCs, as previously described.In brief, SMCs were plated in 6-well plates and allowed to grow to confluence followed by 24 hours of starvation. A scratch wound was made across the midline of each well using a sterile 200-µL pipette tip, and suspended cells were washed away with PBS. Human Vascular Smooth Muscle Cell Basal Medium without Smooth Muscle Growth Supplement was added. Images of each well were captured at 0 and 24 hours using a Keyence BZ-X700 microscope. The area covered by cells that migrated across the wound line was quantified using ImageJ software. , ^{34 35}

The SMC contraction assay was performed using the CytoSelect 24-Well Cell Contraction Assay Kit according to manufacturer instructions (Cell Biolabs). A collagen gel working solution was prepared by mixing collagen solution, 5X medium, and neutralization solution in a cold sterile tube. A total of 5×10iPSC-SMCs were then mixed with the cold collagen gel working solution and added to the 24-well cell contraction plate. The plate was incubated at 37 ºC and 5% COfor 1 hour to allow collagen polymerization, followed by adding 1 mL of culture medium with or without contraction inhibitor (2,3-butanedione monoxime). The change in collagen gel size was observed 24 hours later. 5 2

The G-actin/F-actin in vivo assay kit (Cytoskeleton) was used to isolate both G-actin and F-actin fractions from SMCs. In brief, SMCs were lysed using Lysis and F-actin Stabilization Buffer for 10 minutes at 37 °C, followed by centrifugation at 350×for 5 minutes to pellet unbroken cells and debris. The supernatant was transferred into ultracentrifuge tubes and centrifuged at 100 000×at 37 °C for 1 hour. Soluble actin (G-actin) was collected from the supernatant. The insoluble F-actin in the pellet was resuspended in F-actin depolymerization buffer and incubated on ice for 1 hour, with gentle mixing every 15 minutes to convert F-actin into soluble G-actin. Samples from the supernatant (G-actin) and pellet (F-actin) fractions were then analyzed by Western blotting using an actin antibody provided in the kit. g g

Proteins were isolated using RIPA buffer (Sigma-Aldrich) supplemented with protease and phosphatase inhibitors (Roche). Samples were then centrifuged for 15 minutes at 10 000×at 4 ºC and supernatant was stored at −80ºC. Protein concentration was measured with a bicinchoninic acid assay (Thermo Fisher Scientific) and equal amounts of protein were loaded on a Mini-PROTEAN TGX gel (Bio-Rad). Proteins were transferred on a polyvinylidene fluoride membrane (Millipore), blocked in 5% milk in TBS-Tween 0.1%, and incubated at 4 ºC overnight with the primary antibody: anti–α-SMA (Abcam; 1:1000), anti-Transgelin (SM22; Abcam; 1:1000), or anti-vinculin (Sigma-Aldrich; 1:20000). Secondary antibodies were horseradish peroxidase–conjugated goat anti-rabbit (Bio-Rad; 1:3000) and horseradish peroxidase–conjugated goat anti-mouse (Bio-Rad; 1:3000), which were incubated for 1 hour at room temperature. Immunodetection was done on a ChemiDoc MP Imaging System (Bio-Rad) using Western Blotting Luminol Reagent (Santa Cruz Biotechnology). Mean densitometric analysis was performed using ImageJ. g

Total RNA was extracted, and cDNA was reverse transcribed using iScript reverse transcription supermix (Bio-Rad Laboratories) according to manufacturer protocol. For quantitative reverse transcription polymerase chain reaction, gene expression was measured using KAPA SYBR FAST Master mix. GAPDH was used as the housekeeping gene. Quantitative reverse transcription polymerase chain reaction primers are listed in. Table S2

Deep amplicon sequencing was used to assess potential off-target editing by ABE8e-VRQR and sgRNA3 in iPSCs. The top 8 candidate off-target sites in the human genome were identified using the cutting frequency determination score from CRISPOR.Genomic DNA from iPSCs was extracted as described previously. A first round of PCR was performed to add a 67-bp adaptor sequence (forward: TCGTCGGCAGCGTCAGATGTGTATAAGAGACAG; reverse: GTCTCGTGGGCTCGGAGATGTGTATAAGAGACAG) to the target PCR amplicon. A second round of PCR was conducted to add Illumina flow cell binding sequences and barcodes. Primers are listed in. , ^{36 37} Table S2

knock-in mice were generated by microinjection of zygotes with a mixture of Cas9 mRNA, sgRNA, and single-stranded oligodeoxynucleotide, following a modified protocol.Female B6C3F1 mice (6 weeks old) were treated for superovulation and mated with male B6C3F1 mice to induce zygote production. F0 mosaic mice were genotyped, and positive founders were bred with C57BL/6N mice for germline transmission. F1 knock-in mice were confirmed by Sanger sequencing. Both male and female mice were included in this study. ACTA2 R179H ³⁸

WT C57BL/6N mice at postnatal day 3 (P3) were injected through the facial vein with 20 µL AAV9 (9×10vg/kg) expressing a tdTomato reporter driven by different smooth muscle–specific promoters using an ultrafine BD insulin syringe (Becton Dickinson).mice at P3 were injected through the facial vein with 20 µL of AAV9-containing N-terminal and C-terminal ABE8e-VRQR-SpCas9-sgRNA (total of 9×10vg/kg) using an ultrafine BD insulin syringe (Becton Dickinson). 13 R179H/+ 13 ACTA2

Transthoracic 2-dimensional ultrasound was conducted to assess aortic morphology using a VisualSonics Vevo2100 imaging system.During the imaging, mice were anesthetized with 1% to 3% isoflurane (vol/vol) and placed on a heating platform to minimize procedural stress and prevent hypothermia. The maximum internal diameter of the ascending thoracic aorta was measured using longitudinal images of the aortic arch. All measurements were performed by an operator blinded to the study. ³⁹

BP of mice was measured using a noninvasive small animal BP monitoring system (CODA Monitor).In brief, the system parameters and corresponding experimental series were set on the detection software interface. Mice were placed in a holder in a quiet room and warmed on a heating platform. An occlusion tail cuff was gently placed through the tail root, and a VPR sensor cuff was positioned within 2 mm of the occlusion cuff. The mice were allowed ≥5 minutes to acclimate to their surroundings. Three days of acclimation measurements followed by another 2 days of data collection measurements were conducted to ensure accurate readings. All measurements were performed by an operator blinded to the study. ⁴⁰

Total RNA from iPSC-SMCs was extracted by using TRIzol (Thermo Fisher Scientific). RNeasy Mini Kit (Qiagen) was used to purify RNA following manufacturer recommendations. RNA-seq libraries were prepared using the KAPA mRNA HyperPrep kit (Kapa Biosystems) according to manufacturer instructions. High-output, 50-cycle pair-ended sequencing was performed using an Illumina NextSeq2000 sequencer at the UTSW CRI Sequencing Facility. For the bulk RNA-seq analysis, adaptors were trimmed using Trim Galore (v0.6.4). The trimmed reads were aligned to the human genome (GRCh38) using STAR (v2.7.3a). Gene expression quantification was performed using the featureCounts function from the Subread package (v1.6.3). Genes with 0 expression in >30% of samples were filtered out before downstream analysis. Expression data were normalized using the Voom method from the limma package (v3.50.3), which was also used to identify differentially expressed genes.

Male wild-type (WT), saline-treated, and AAV9-SM22/Telokin-ABE–treatedmice (4 mice for each group) were subcutaneously administered angiotensin II (Ang II; 1 μg·kg·min) for 2 weeks by using the implanted osmotic pump (Alzet model 2002).After the Ang II infusion, aortic diameters were measured by ultrasound. Aortas were harvested and histological analyses were performed. ACTA2 ACTA2 R179H/+ R179H/+ ⁴¹

Aortas were harvested and fixed in 4% paraformaldehyde in PBS overnight, followed by dehydration in 30% sucrose, and embedded in a 1:1 solution of 30% sucrose:tissue freezing medium. Blocks of embedded tissues were cryosectioned to a thickness of 10 µm and stored at −80 °C. For immunostaining, selected slides were rewarmed at room temperature and the tissues were outlined with a hydrophobic PapPen barrier. Next, the slides were washed in PBS twice and blocked for 1 hour at room temperature in a solution of 10% normal goat serum, 0.3% Triton X-100, and 1% BSA in PBS. After blocking, primary antibodies were diluted in blocking solution and incubated on the tissue overnight at 4 °C. The primary antibody used in this experiment was α-SMA (Abcam; 1:200). The following day, the slides were washed at room temperature with PBST and incubated for 1 hour at room temperature with secondary antibody (goat anti-mouse AlexaFluor488; Invitrogen; 1:200) and mounted using Prolong Gold Antifade Reagent (Cell Signaling Technology). Images were captured on a Zeiss LSM 800 Confocal Laser Scanning microscope. The aorta sections were also subjected to Hart staining or Masson's trichrome for elastin and collagen staining. Small intestine, bladder, and kidney were dissected and fixed in 4% paraformaldehyde in PBS overnight, followed by dehydration in 70% ethanol and paraffin embedding. Serial sections were cut and mounted on slides, followed by hematoxylin & eosin staining. Images were captured on a Keyence BZ-X700 microscope.

Deep amplicon sequencing with MiSeq V3 600 cycles was used to measure the on-target editing efficiency forin tissues from mice treated with and without ABE. Genomic DNA from mice was extracted using DNeasy Blood & Tissue Kit (Qiagen). PCR products from genomic DNA were generated using PrimeSTAR GXL DNA polymerase (Takara) with the primers listed in. ACTA2 Table S2

All data are presented as mean±SEM. The Shapiro-Wilk normality test was used to assess normality. If a variable was not normally distributed, or if the sample size was too small to assess normality, nonparametric tests were applied. For comparisons between 2 groups, an unpaired, 2-tailed Studenttest was used for normally distributed data; the Mann-Whitney test was used for non-normally distributed data. For comparisons involving >2 groups, 1-way or 2-way ANOVA followed by Tukey multiple comparisons test was used for normally distributed data. For non-normally distributed data, the Kruskal-Wallis test followed by Dunn multiple comparisons test was applied. Data analyses were performed with GraphPad Prism software (version 10.4.2).values <0.05 were considered statistically significant. t P

Thesequence variant (c.536G>A) is caused by a nucleotide substitution from guanine to adenine, resulting in an amino acid change from arginine to histidine, which can be edited precisely using ABE. To identify optimal CRISPR-Cas9 base editing components for correcting thesequence variant, we first deployed homology-directed repair to generate human iPSC lines carrying the pathogenic missense sequence variant from healthy control iPSCs. We established an isogenic heterozygous clone () that recapitulates the heterozygous genotype identified in patients and an isogenic homozygous clone () that has not been previously reported in patients (). ACTA2 ACTA2 ACTA2 ACTA2 R179H R179H R179H/+ R179H/R179H Figure S1

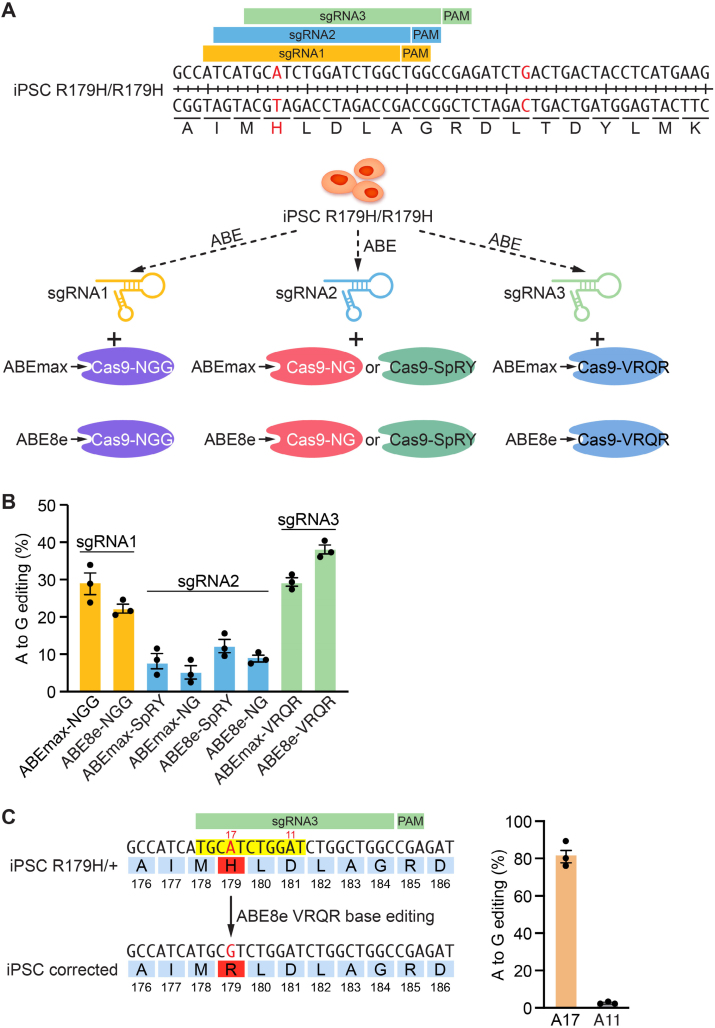

To identify an optimal base editing strategy, we fused 2 engineered deaminases–ABEmax and ABE8e–with different variants of SpCas9 nickase: SpCas9-NG, which targets an NG protospacer adjacent motif; SpRY, which targets an NRN protospacer adjacent motif; and SpCas9-VRQR, which targets an NGA protospacer adjacent motif. We screened these ABEs for their efficiency of correction of ouriPSC line through transient transfection with each of the 3 sgRNAs, respectively (FigureA). The results showed that sgRNA3 combined with ABE8e-SpCas9-VRQR had the highest editing efficiency at the on-target site (FigureB). We then introduced the combination of sgRNA3 and ABE8e-SpCas9-VRQR into theiPSC line through plasmid nucleofection, followed by fluorescence-activated cell sorting of GFPcells, and obtained high efficiency of A-to-G editing at the on-target site (81.67%) with little bystander editing (2.50%) (FigureC;). To evaluate possible off-target editing, we further performed genomic deep sequencing analysis of the sorted GFPcells. We observed minimal to no off-target DNA editing (0.1% or less) at all adenine bases for 8 tested candidate off-target loci, which were identified using the bioinformatic tool CRISPOR(). After genomic editing, the corrected iPSC line displayed a normal karyotype (). These results demonstrated that sgRNA3 with ABE8e-SpCas9-VRQR can efficiently and precisely correct the target pathogenic missense variant with minimal bystander editing and little to no DNA editing at tested off-target sites. ACTA2 ACTA2 R179H/R179H R179H/+ + + ³⁷ 1 1 1 Figure S2 Figure S3 Figure S4

Sequence variants in genes encoding smooth muscle contractile proteins impair the normal functions of vSMCs, leading to a switch from a quiescent, contractile phenotype to a proliferative, synthetic, and migratory phenotype.This phenotypic switch of vSMCs has been observed in AAA, TAA, and TAAD in both human and rodent studies. vSMCs derived from patients with heterozygoussequence variants exhibit significantly increased proliferation compared with control cells.To determine whether thesequence variant causes phenotypic switching of SMCs, we differentiated WT,, and, as well as the corrected human iPSC lines (all derived from single clones), into SMCs and evaluated their proliferation, migration, and contractility.iPSCs from all 4 groups differentiated readily into SMCs, as confirmed by the expression of multiple SMC-specific genes (). , ^{42 43 44} R179H R179H/+ R179H/R179H ³³ ACTA2 ACTA2 ACTA2 ACTA2 Figure S5

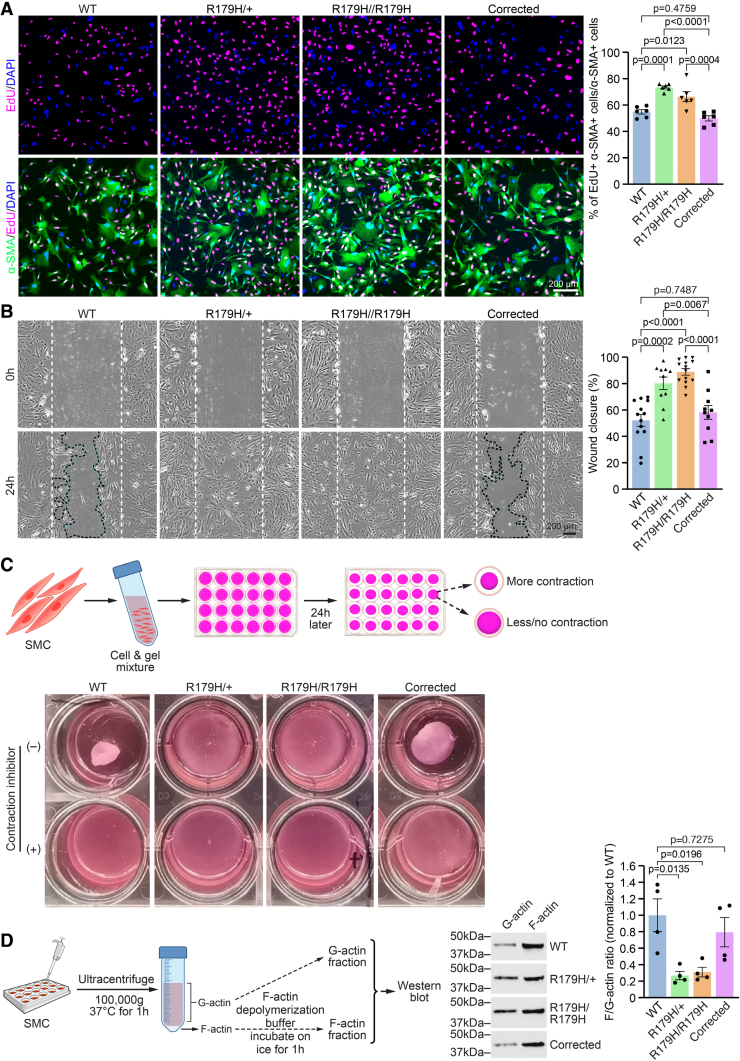

We first conducted EdU incorporation assays to assess SMC proliferation.The SMCs were pulsed with 5-EdU for 24 hours and subsequently costained with an antibody against α-SMA. We then calculated the percentage of EdU and α-SMA double-positive cells relative to total α-SMA–positive cells. The results indicated a 30% increase in EdU incorporation iniPSC-SMCs compared with WT iPSC-SMCs, and a 20% increase iniPSC-SMCs compared with WT iPSC-SMCs. Conversely, corrected iPSC-SMCs showed a 40% and 30% reduction in EdU incorporation compared withiPSC-SMCs andiPSC-SMCs, respectively (FigureA). There was no significant difference between corrected and WT iPSC-SMCs, demonstrating that ABE correction reduced the abnormally high proliferation of variant iPSC-SMCs (FigureA). ⁴⁵ R179H/+ R179H/R179H R179H/+ R179H/R179H ACTA2 ACTA2 ACTA2 ACTA2 2 2

SMCs are highly sensitive to several growth factors, which regulate SMC phenotypes. TGF-β promotes SMC differentiation, converting synthetic SMCs into contractile SMCs.To further investigate whether the R179H sequence variant causes different responses to stimuli, we treated SMCs with TGF-β1 for 48 hours, followed by an EdU assay. Exposure to TGF-β1 reduced the proliferation of SMCs across all 4 groups compared with unstimulated cells (), indicating a phenotype shift toward contractile SMCs. No difference in proliferation was observed among all 4 TGF-β1–treated groups. One possible explanation is that these SMCs are derived from iPSCs and may not have fully differentiated into mature SMCs, thereby failing to completely recapitulate their functional capacities. Notably, in a recent study of another ACTA2 sequence variant, R179C, TGF-β1 treatment increased the expression of contractile proteins to similar levels in both WT and variant groups. ^{46 47} Figure S6

We next performed wound-healing migration assays to evaluate the migratory capacity of SMCs. SMCs were seeded in 6-well plates and allowed to grow to full confluence. A scratch wound was made across the midline of each well, and images were captured at 0 and 24 hours after wounding. The area covered by cells migrating across the wound line was then quantified. As shown in FigureB,iPSC-SMCs exhibited a 50% increase in migration compared with WT iPSC-SMCs, andiPSC-SMCs displayed a 70% increase in migration relative to WT iPSC-SMCs. In contrast, corrected iPSC-SMCs showed a 40% and 50% reduction in the covered area compared withiPSC-SMCs andiPSC-SMCs, respectively. No significant difference was observed between corrected and WT iPSC-SMCs (FigureB). 2 2 ACTA2 ACTA2 ACTA2 ACTA2 R179H/+ R179H/R179H R179H/+ R179H/R179H

Contractility of vSMCs within the aortic wall is vital for maintaining vSMC/extracellular matrix integrity and plays a key role in mechanotransduction. Impaired vSMC contractility has been observed in patients with AAA compared with healthy vSMCs.We evaluated cell contractility by mixing a freshly polymerized collagen matrix with SMCs. Changes in collagen gel size were observed 24 hours later. WT iPSC-SMCs exhibited robust contraction, as evidenced by a reduced gel area; bothandiPSC-SMCs displayed minimal contraction (FigureC). The corrected iPSC-SMCs displayed a gel area comparable with that of WT iPSC-SMCs. In the presence of the contraction inhibitor 2,3-butanedione monoxime, the contraction of all groups was prevented (FigureC). ¹ R179H/+ R179H/R179H ACTA2 ACTA2 2 2

Smooth muscle contraction depends on actin polymerization. In vitro assays have demonstrated that the R179H actin sequence variant disrupts actin polymerization, and cells expressing R179H actin have increased levels of monomeric G-actin.To assess actin polymerization, we isolated both F-actin and G-actin from iPSC-SMCs and performed Western blot analysis.andiPSC-SMCs showed a markedly decreased F-actin to G-actin ratio compared with WT SMCs, whereas ABE correction restored the normal F-actin to G-actin ratio (FigureD). Taken together, these findings suggest that the R179H sequence variant drives a phenotypic switch in SMCs from a contractile to a synthetic state, a process associated with aneurysm formation, and ABE correction effectively normalizes these phenotypic alterations. ^{48 49} R179H/+ R179H/R179H ACTA2 ACTA2 2

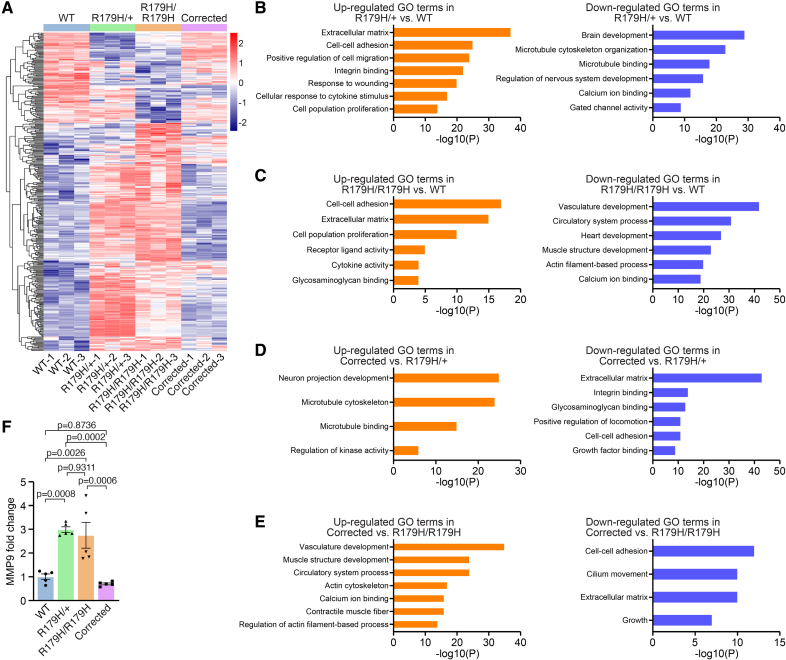

We next assessed transcriptome-wide changes in variant and ABE-corrected SMCs using RNA-seq. Differentially expressed genes were analyzed and heatmaps showed that the transcriptome profiles of ABE-corrected SMCs more closely resembled those of WT SMCs than the profiles ofandSMCs (FigureA). Gene Ontology analyses showed increased regulation of the extracellular matrix, cell–cell adhesion, and cell proliferation, alongside decreased regulation of cytoskeleton organization inSMCs compared with WT SMCs (FigureB). Gene Ontology analysis comparingand WT SMCs revealed dysregulation in extracellular matrix organization and vasculature development (FigureC). These abnormalities were partially reversed after ABE correction (FigureD andE). In addition, we observed that expression of matrix metalloproteinase-9, a key enzyme in vSMC phenotype switching and AA formation, was 2.9-fold higher inand 2.7-fold higher inSMCs compared with WT SMCs (FigureF). In contrast, matrix metalloproteinase-9 expression in ABE-corrected SMCs was not significantly different from that of WT SMCs (FigureF). ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 R179H/+ R179H/R179H R179H/+ R179H/R179H R179H/+ R179H/R179H 3 3 3 3 3 3 3

To dissect the heterogeneity in gene expression and cell phenotypes at the single-cell level, we compared our bulk RNA-seq data with published single-cell RNA-seq data sets.We observed increased expression of markers of the synthetic SMC population, such as,,, and, iniPSC-SMCs compared with WT iPSC-SMCs (). The corrected iPSC-SMCs exhibited expression of these synthetic markers similar to those of WT iPSC-SMCs, indicating normalization of the synthetic SMC phenotype. Fibromyocytes are a modulated type of SMC commonly found in AAs.They exhibit properties of both fibroblasts and muscle cells, expressing higher levels of collagen and proteoglycan-related genes compared with other SMC clusters. We found thatiPSC-SMCs exhibited marked upregulation of fibromyocyte marker genes, including,,,, and. Corrected iPSC-SMCs demonstrated expression patterns of these markers that closely resembled those of WT iPSC-SMCs, indicating a reversion toward the normal SMC phenotype (). These data suggest that our ABE system effectively normalizes gene expression and cell states in variant SMCs. , ^{46 50} R179H/+ , ^{51 52} R179H/+ MMP-9 VIM COL1A1 GJA1 ACTA2 ACTA2 SPP1 FN1 LUM TIMP1 TNFRSF11B Figure S7 Figure S7

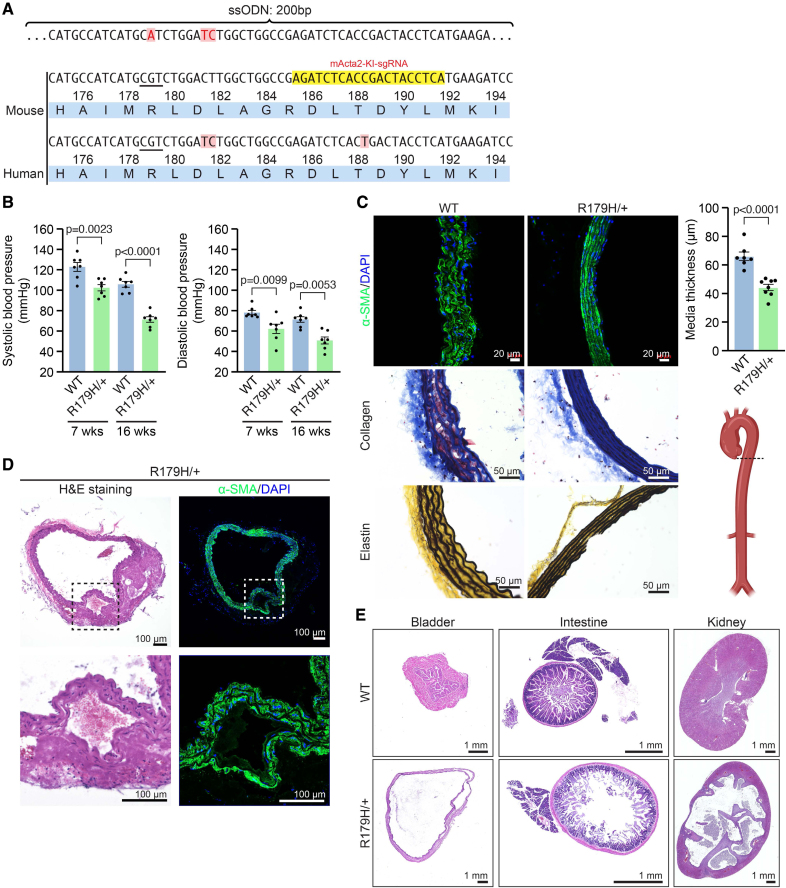

Encouraged by the findings in human iPSC-SMCs, we further investigated whether the base editing strategy developed for the human genome could be applied to a mouse model of human MSMDS. Although the amino acids are identical between human ACTA2 and mouse Acta2, the DNA sequence encoding the R179 region of the protein is different. Thus, sgRNAs and editing strategies developed for the human genome are not directly applicable to mice. To perform preclinical studies using our human sequence–specific base editing strategy, we generated partially humanized mice containing thec.536G>A (p.R179H) human missense variant within exon 6 of the mousegene, allowing for the testing of human genome–specific ABE strategies. In brief, a 200-bp nucleotide oligo containing the humanmissense sequence variant along with 2 downstream human nucleotides was co-injected with a knock-in sgRNA into mouse zygotes to generate the partially humanized R179H mouse line (FigureA). ACTA2 Acta2 c.536G>A 4

The humanized mice were viable, but ≈40% of these mice (both male and female) were infertile. When crossing 2 heterozygous parents, we obtained both heterozygous and homozygous offspring; however, the proportion of homozygous offspring (≈10%) was lower than the expected mendelian ratio of 25%. Given that patients with the R179H sequence variant are heterozygous, we opted to usemice for our subsequent studies. Thesemice recapitulated many of the phenotypes observed in patients with the same sequence variant. Themice displayed significantly reduced systolic and diastolic BPs as early as 7 weeks of age compared with their littermate controls (FigureB). Thoracic aortas from themice were harvested at ≈24 weeks of age and tissue sections were subjected to histological analysis to characterize the aortic lesions using immunofluorescence, Hart staining (for elastin), and Masson's trichrome staining (for collagen). Immunofluorescence staining with α-SMA revealed a reduction in media thickness inmice compared with WT mice, indicating weakness of the media layers of the aorta inmice (FigureC). Masson's trichrome staining revealed increased collagen deposition (blue) within the medial layer ofaortas, along with noticeable elastin fiber (black) fragmentation in the aortas ofmice (FigureC). Notably, ≈30% (5 out of 16) ofmice exhibited tears in the middle aortic layer by 24 weeks of age, as evidenced by hematoxylin & eosin and immunofluorescence staining with α-SMA, although no visible aneurysms or bleeding were observed during aorta harvest in some of these mice (FigureD). ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ 4 4 4 4

mice also exhibited systemic abnormalities indicative of visceral smooth muscle dysfunction, including enlarged bladder, dilated gut, and hydronephrosis (FigureE). The bladders of ≈80% ofmice were markedly dilated, with reduced muscle wall thickness compared with WT mice. Hematoxylin & eosin staining of the WT small intestine revealed a well-preserved intestinal structure with densely organized villi. In contrast, the small intestines of ≈70% ofmice showed an increased lumen size, and the villi were disorganized, atrophied, or fragmented. In addition, the kidneys of ≈40% ofmice were larger with a thinner cortex compared with WT kidneys. The medullary regions ofkidneys were dilated and severely damaged, and hydronephrosis was apparent. We conclude that themice replicate the phenotypes observed in patients carrying the same sequence variant. ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ 4

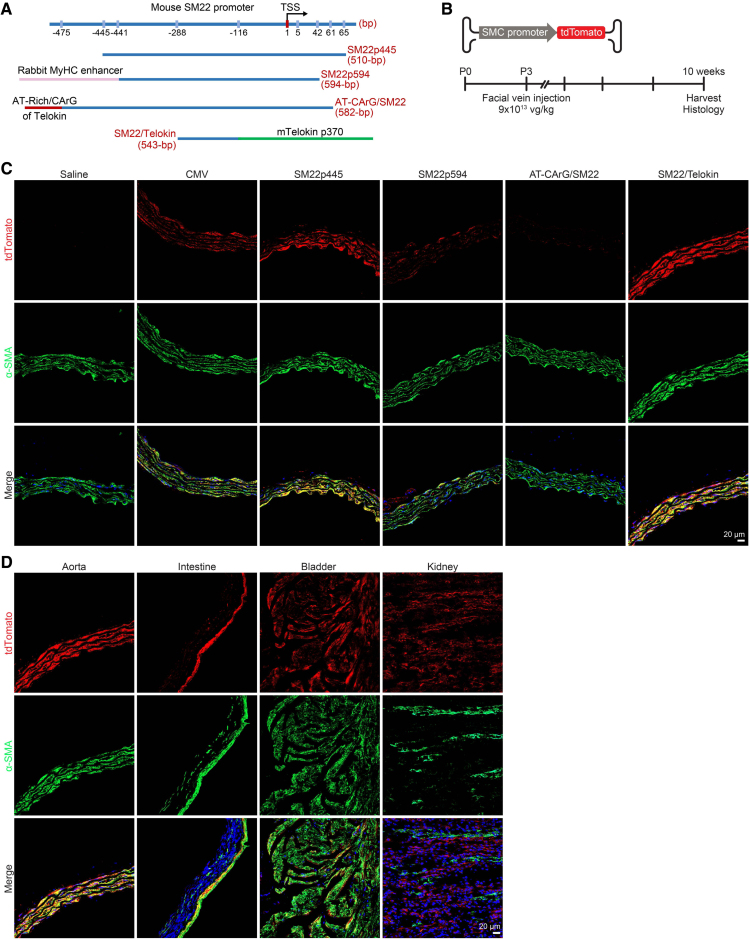

Although several promoters for vSMCs have been developed to study smooth muscle gene expression,few studies have attempted to transduce vSMCs in vivo using AAV.This may be attributable to the limited packaging capacity of AAV and the lack of suitable promoters for efficient vascular smooth muscle transduction. To ensure specific expression of the base editor within smooth muscle, we generated a series of AAV9 constructs expressing a tdTomato reporter driven by various smooth muscle–specific promoters (FigureA andB). We selected AAV9 because of its broad tissue tropism and its transduction in the aorta.We tested a series of promoters for their ability to direct strong and specific expression in smooth muscle, including a 510-bp mouse SM22 promoter fragment (−445 to +65; p445); a 594-bp chimeric promoter in which a rabbit MyHC enhancer was fused to the SM22 promoter fragment (−440 to +42; p594); a 582-bp chimeric promoter in which the telokin AT/CArG region was fused to the SM22 promoter fragment (−475 to +61; AT-CArG/SM22); and a 543-bp chimeric promoter in which a fragment of the SM22 promoter (−288 to −116) was fused to the telokin promoter fragment (−190 to +180; SM22/Telokin) (FigureA). The cytomegalovirus (CMV) promoter (584-bp) was used as a positive control. – ^{53 55} , ^{56 57 57 29 30 30} 5 5 5

AAV virus at a dose of 9×10vg/kg was injected into WT mice at P3 through the facial vein (FigureB). Ten weeks after injection, aorta, intestine, bladder, kidney, heart, and liver tissues were harvested and stained for α-SMA and tdTomato to assess AAV transduction efficiency. Among the promoters tested, the chimeric mouse promoter SM22/Telokin showed the highest expression of the tdTomato reporter in both vascular and visceral smooth muscle (FigureC andD). Compared with the CMV promoter, the SM22/Telokin promoter exhibited minimal tdTomato expression in the liver or heart (). We therefore selected the SM22/Telokin promoter for in vivo base editing applications. 13 5 5 5 Figure S8

To evaluate whether ABE correction could rescue aortic defects and prevent the onset of MSMDS, we packaged expression cassettes encoding the ABE components, including ABE8e-SpCas9-VRQR and sgRNA3, into AAV vectors. Because the full-length base editor (≈5.1 kb) exceeds the packaging limit of a single AAV9 (≈4.7 kb), we split the base editor into 2 AAV9 vectors and used trans-splicing inteins to reassemble the base editor within cells during protein expression.Expression of the base editor was driven by the SM22/Telokin promoter to restrict its expression to SMCs and expression of sgRNA3 was under the control of the U6 promoter (FigureA). The CMV promoter was also included as a positive control (). ⁵⁸ 6 Figure S9

We injectedpups at P3 through the facial vein with either saline or 4.5×10vg/kg of each AAV virus (total of 9×10vg/kg) (FigureB). BP measurements were conducted at 7 weeks of age. The results showed that saline-treatedmice had significantly lower systolic and diastolic BPs compared with WT mice (96.70±3.66 versus WT 132.89±6.13 mm Hg for systolic;57.10±2.89 versus WT 87.33±6.77 mm Hg for diastolic). In contrast, the systolic and diastolic BPs were normalized to WT levels in both AAV9-CMV-ABE–treated mice (131.14±5.54 and 86.40±4.99, respectively) and AAV9-SM22/Telokin-ABE–treated mice (129.00±3.66 and 88.11± 4.44, respectively) (FigureC). ACTA2 ACTA2 ACTA2 ACTA2 R179H/+ 13 13 R179H/+ R179H/+ R179H/+ 6 6

Ultrasound measurements were conducted at 8 weeks of age to measure the aortic diameters. We observed a 13% increase in ascending aortic diameter in saline-treatedmice compared with WT controls (1.49±0.05 versus 1.32±0.03 mm). AAV9-CMV-ABE–treatedmice showed a slight reduction in aorta diameter compared with saline-injectedmice (1.43±0.02 versus 1.49±0.05 mm). AAV9-SM22/Telokin-ABE–treatedmice displayed aortic diameters similar to WT controls (1.33±0.03 mm versus 1.32±0.03 mm) (FigureD). ACTA2 ACTA2 ACTA2 ACTA2 R179H/+ R179H/+ R179H/+ R179H/+ 6

We next harvested aortas at 10 weeks of age and analyzed tissue sections by histological analysis (FigureE). Immunofluorescence staining for α-SMA demonstrated reduced media thickness in saline-injectedmice compared with WT mice (48.47±0.95 versus 64.82±2.65 µm). In contrast, both AAV9-CMV-ABE–treated (62.37±1.82 µm) and AAV9-SM22/Telokin-ABE–treated (62.07±1.56 µm)mice showed similar media thickness to WT mice. In addition, increased collagen deposition in the media layer and elastin fiber fragmentation were observed in saline-injectedaortas, whereas AAV9-CMV-ABE–treated and AAV9-SM22/Telokin-ABE–treated aortas exhibited similar collagen and elastin staining to those of WT mice. 6 ACTA2 ACTA2 ACTA2 R179H/+ R179H/+ R179H/+

Angiotensin II (Ang II) contributes to the development of AAs, leading to increased wall thicknesses, dilation, and potential rupture of the aorta.To further evaluate the stability of ABE-corrected aortas under stress, we administered Ang II (1 μg·kg·min) to WT, saline-treated, and AAV9-SM22/Telokin-ABE–treatedmice for 2 weeks. Ultrasound measurements showed that saline-treatedmice had an increased ascending aortic diameter compared with WT mice (1.71±0.07 versus 1.54±0.02 mm), whereas AAV9-SM22/Telokin-ABE–treatedmice exhibited aortic diameters similar to WT mice (1.53±0.08 versus 1.54±0.02 mm) after Ang II infusion (). No obvious aneurysms were observed in WT and AAV9-SM22/Telokin-ABE–treatedmice after Ang II infusion; one saline-treatedmouse (1 out of 4) exhibited an obvious aneurysm throughout the thoracic and abdominal aorta, accompanied by thrombus formation, after 2 weeks of Ang II infusion (). Immunofluorescence and hematoxylin & eosin staining demonstrated increased thoracic and abdominal aortic wall thickness induced by Ang II in saline-treatedmice compared with WT mice (). In contrast, AAV9-SM22/Telokin-ABE–treatedmice showed thoracic and abdominal aortic wall thickness similar to WT mice after Ang II infusion. These results indicate thatmice are more vulnerable to Ang II infusion than WT mice. However, ABE correction mitigated this vulnerability, suggesting that ABE-corrected aortic tissues are capable of maintaining normal contractility and structure under stress conditions. Thus, correction of the pathogenic nucleotide inmice by base editing was sufficient to rescue aortic structure and function. ⁵⁹ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ R179H/+ ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 ACTA2 Figure S10A Figure S10B Figure S10C

The defects in visceral organs ofmice developed more slowly than those in the aorta, possibly becauseis not the primary actin isoform in these tissues. We harvested intestine, bladder, and kidney at ≈20 weeks of age for histological analysis. As shown in FigureF, the saline-injectedmice exhibited a dilated small intestine with increased lumen size and disorganized villi. The bladder was highly dilated, and the kidneys displayed enlarged medullary regions. In contrast, these organs from AAV9-CMV-ABE–treated and AAV9-SM22/Telokin-ABE–treatedmice displayed morphologies similar to those of WT mice, indicating that ABE successfully mitigated these abnormalities. ACTA2 ACTA2 ACTA2 ACTA2 R179H/+ R179H/+ R179H/+ 6

To assess tissue-level gene editing efficiency, we collected aorta, intestine, bladder, and kidney samples from saline-treated, AAV9-CMV-ABE–treated, and AAV9-SM22/Telokin-ABE–treatedmice and evaluated on-target DNA editing efficiencies by deep amplicon sequencing. In AAV9-SM22/Telokin-ABE–treatedmice, the DNA editing efficiency at the target pathogenic adenine was 2.10±0.74% in the aorta (up to ≈5%), 1.11±0.29% in the bladder (up to ≈2%), 1.45±0.91% in the intestine (up to ≈5%), and 1.16±0.50% in the kidney (up to ≈3%). AAV9-CMV-ABE–treatedmice exhibited similar editing efficiencies in the aorta and bladder, with 1.65±0.65% in the aorta (up to ≈5.5%) and 1.09±0.55% in the bladder (up to ≈3%). However, these mice showed lower editing efficiencies in the intestine and kidney, with only 0.02±0.01% in the intestine and 0.001±0.001% in the kidney (FigureG). These modest efficiencies likely reflect the heterogeneity of cell types in these tissues, such that only a fraction of cells express the editors. ACTA2 ACTA2 ACTA2 R179H/+ R179H/+ R179H/+ 6

To evaluate the potential safety of the AAV treatment, we measured liver and kidney functions. Our findings revealed no significant elevation in aspartate aminotransferase, alanine aminotransferase, blood urea nitrogen, or creatinine levels in AAV9-ABE–treatedmice, suggesting minimal to no systemic toxicity (). ACTA2 R179H/+ Figure S11

These data suggest that our dual AAV9 ABE system safely and effectively corrects the pathogenicnucleotide in genomic DNA, thereby preventing the onset of MSMDS. ACTA2 R179H

Whereas this study highlights the potential therapeutic application of adenine base editing to treat MSMDS and restore aortic smooth muscle function, several limitations should be noted. First, themouse model did not consistently replicate all abnormalities observed in human patients. The AAs and aortic dissections were milder than those seen in human patients. A possible explanation for this difference is that the hybrid genetic background of our mice may reduce the penetrance of the autosomal dominant effects associated with theR179H sequence variant. It is possible that themice may develop more severe MSMDS symptoms over a longer timeframe, potentially mirroring the progression seen in human patients. It also seems likely that anatomic differences between mice and humans contribute to differences in aortic phenotypes. AAV, which was used to deliver the editing components, may cause adverse events. Although we did not observe systemic toxicity after AAV treatment, it will be of interest to test nonviral-based delivery methods in the future, such as the use of lipid nanoparticles or viral-like particles. In addition, the unexpectedly large benefits of modest DNA editing suggest that edited cells may influence tissue function disproportionately. Further studies are needed to elucidate the molecular basis of this phenomenon. Addressing these limitations in future studies will be imperative for translating these findings into safe and effective clinical applications. ACTA2 ACTA2 ACTA2 R179H/+ R179H/+

The authors thank Dr Rhonda Bassel-Duby and other members of the Olson Laboratory for discussions, Jose Cabrera for graphics, Dr Damir Alzhanov for assistance with iPSCs, the Boston Children's Hospital Viral Core and the University of Michigan Vector Core for AAV9 production, the Children's Medical Center Research Institute Sequencing Facility for performing the Illumina NextSeq sequencing, the UTSW McDermott Center Sanger Sequencing Core, and the Molecular Histopathology Core for help with histology.

This study was supported by the National Institutes of Health (grants R01HL130253, R01HL157281, and P50HD087351), the Robert A. Welch Foundation (grant 1-0025), The Leducq Foundation Transatlantic Networks of Excellence, the British Heart Foundation Big Beat Challenge award to CureHeart (grant BBC/F/21/220106), and the American Heart Association (grant 25POST1372779) to Dr Ding.

Dr Olson is a consultant for Vertex Pharmaceuticals, Tenaya Therapeutics, Prime Medicine, and Cardurion Pharmaceuticals. The other authors have no conflicts of interest.
