What this is
- This research investigates the role of ATF-7, a transcription factor, in the innate immune response of C. elegans.
- Using RNA sequencing and chromatin immunoprecipitation, the study reveals how ATF-7 regulates gene expression during bacterial infection.
- Findings indicate that PMK-1 signaling significantly influences the activity of ATF-7, impacting a majority of pathogen-induced genes.
Essence
- ATF-7 regulates the majority of genes activated during C. elegans infection by Pseudomonas aeruginosa, driven by PMK-1 signaling.
Key takeaways
- ATF-7 occupancy at gene promoters is crucial for immune response regulation. It binds to 23.7% of genes and 24% of transcription start sites, indicating extensive control over transcription during infection.
- Approximately 70% of genes upregulated during infection require PMK-1 for their induction, while 53% need ATF-7, demonstrating a strong dependency on these pathways for immune activation.
- Functional analysis shows that RNAi knockdown of ATF-7 target genes increases susceptibility to P. aeruginosa, confirming their role in host defense.
Caveats
- The study relies on a single model organism, which may limit the generalizability of findings to other species or contexts.
- Further validation of ATF-7 target genes is needed, as the study suggests associations that require additional experimental evidence.
Simplified
Introduction
Convergent genetic studies of host defense of Drosophila melanogaster and mammalian innate immune signaling revealed a commonality in signaling pathways of innate immunity that has helped motivate the study of pathogen resistance mechanisms in genetically tractable host organisms such as Caenorhabditis elegans [1]. The simple C. elegans host has enabled the genetic dissection of integrative stress physiology orchestrating host defense of C. elegans[2 –5]. Genetic analysis of resistance of C. elegans to infection by pathogenic Pseudomonas aeruginosa has defined an essential role for a conserved p38 mitogen-activated protein kinase pathway that acts on a CREB/ATF family bZIP transcription factor, ATF-7, in immune responses [6,7]. A complementary approach to characterizing the host response has been organismal transcriptome-wide characterization of genes induced upon infection by a number of different bacterial pathogens [8 –15]. Putative effector genes encoding lysozymes and C-type lectin domain (CTLD)-containing proteins have been identified that have also served as useful markers of immune induction. Here, we report the genome-level characterization of the C. elegans response to P. aeruginosa that is mediated by ATF-7 activity downstream of PMK-1 activation, combining RNA-seq analysis of pathogen-induced gene expression with ChIP-seq analysis of ATF-7 binding, which suggests global regulation of the immune response of C. elegans through a single MAPK- transcription factor pathway.
Results and discussion
We performed RNA-seq on wild-type (N2), pmk-1 mutant, or atf-7 mutant animals exposed to E. coli OP50 or P. aeruginosa PA14 to identify genes that are differentially regulated upon infection that also require PMK-1 or ATF-7 for induction (Fig 1A). We found that in wild-type animals, 890 genes were two-fold upregulated (adjusted p-value <0.05), and 803 genes were two-fold downregulated upon P. aeruginosa exposure, compared to animals exposed in parallel to E. coli (Fig 1B; S1 Table). Many of these upregulated genes have been previously implicated in the C. elegans immune response, including genes encoding C-type lectin domain (CTLD)-containing genes and lysozymes, corroborating prior microarray-based gene expression studies (Fig 1C) [8 –10,12 –14]. In contrast, gene ontology analysis of genes that are decreased in expression upon P. aeruginosa exposure shows enrichment for genes associated with homeostasis with significant ontology terms consistent with growth, development and reproduction (S1A Fig). Of note, many of the genes upregulated in response to P. aeruginosa exposure exhibit relatively low expression when animals are propagated on E. coli, whereas genes that are decreased in expression upon P. aeruginosa exposure are expressed at a higher basal level during normal growth conditions on E. coli (Fig 1D, S1B Fig). In parallel, we analyzed P. aeruginosa-mediated gene expression changes in pmk-1 and atf-7 mutants to identify the proportion of gene changes induced by P. aeruginosa exposure that required PMK-1 and/or ATF-7 for induction (S2 Fig). We classified genes that failed to significantly meet a two-fold expression change cutoff upon exposure to P. aeruginosa in the pmk-1 or atf-7 mutant background as being PMK-1- or ATF-7-dependent, respectively. We observed that 70% of genes significantly induced two-fold or greater by P. aeruginosa exposure were no longer fully induced upon loss of pmk-1, and that 53% of upregulated genes were no longer fully induced upon loss of atf-7 (Fig 1E, S1 Table). We also found that 41% of genes reduced two-fold or more by P. aeruginosa required PMK-1, and 50% required ATF-7 for reduction of expression (S2B Fig, S1 Table). These data suggest a high degree of involvement of PMK-1-ATF-7 signaling in the majority of changes in gene expression induced in response to infection by P. aeruginosa.
To evaluate the role of ATF-7 in the direct regulation of genes induced by P. aeruginosa infection, we performed chromatin immunoprecipitation followed by sequencing (ChIP-seq) of animals carrying a GFP-tag fused to the C-terminal end of the endogenous atf-7 locus. Using a GFP polyclonal antibody for immunoprecipitation, we generated ChIP binding profiles for animals in either the wild-type background (atf-7(qd328[atf-7::2xTY1::GFP])) or the pmk-1 mutant background (pmk-1(km25);atf-7(qd328[atf-7::2xTY1::GFP])) after a four hour exposure to either E. coli OP50 or P. aeruginosa PA14, for a total of four conditions, similar to the treatment described in Fig 1A. In all conditions analyzed, ATF-7 exhibited abundant association throughout the genome, with 8,962 total peaks identified as enriched by MACS2, which map to a +/- 1.5 kB region corresponding to 23.7% of genes and 24% of transcription start sites (TSSs) in the C. elegans genome (WS258) (S2 Table).
Analysis of the ATF-7 binding profile across all genes associated with enriched TSSs, as well as the subset altered in expression by P. aeruginosa in wild-type animals according to our RNA-seq data, revealed that ATF-7 is preferentially located at the promoter regions of genes that are increased in expression by P. aeruginosa, and that this enrichment for ATF-7 is lessened by pmk-1 loss (Fig 2B, S3A Fig). Strikingly, this dependence of ATF-7 promoter occupancy on PMK-1 exists on P. aeruginosa, but not on E. coli. This finding is consistent with our previously published model, whereby ATF-7 occupancy of its target promoters is not simply controlled by pathogen-dependent PMK-1 activity [7]. MEME analysis of the most enriched loci identified significant enrichment for the motif GACgTCA, which corresponds to the Jun D bZIP motif expected for ATF-7 (Fig 2A, S3B Fig). This motif is present in as many as 80% of the most highly enriched regions of the genome and its abundance is positively correlated with enrichment levels.
To identify the most likely immediate downstream targets of ATF-7, we set a peak threshold based on the fraction of peaks containing the bZIP motif after ranking ATF-7 peaks by enrichment (S3C Fig). This resulted in ~1500–4000 highly enriched locations per experiment. Overlap of the of the retained ATF-7 binding profile compared to the RNA-seq data from P. aeruginosa infection revealed consistent 2–4 fold enrichment of ATF-7 binding in genes that depend on ATF-7 for expression changes stimulated by P. aeruginosa exposure (S4A and S4B Fig). We further assessed the significance of these enrichments using a Gene Set Enrichment Analysis (GSEA), which showed that ChIP peaks were enriched for association with transcripts that are upregulated upon pathogen exposure in both E. coli and P. aeruginosa ChIP conditions (Fig 2C, S4C Fig). This association remains in the pmk-1 mutant, although at a weaker significance level (Fig 2D, S4D Fig). Moreover, we also evaluated ATF-7 binding at individual genomic loci induced by P. aeruginosa infection that were dependent on ATF-7 for full upregulation. Examinations of distinct genetic loci further support the conclusions drawn from the metagene analyses described above (Fig 3). These observations suggest a direct transcriptional regulatory role for ATF-7 in the induction of broad transcriptional changes upon immune challenge involving activation of p38/PMK-1 MAPK signaling in response to P. aeruginosa infection.
For functional validation of putative ATF-7-regulated immune response target genes, we focused on transcripts that were upregulated at least two-fold by P. aeruginosa exposure in an ATF-7-dependent manner and that were also bound by ATF-7 in any of our four ChIP-seq conditions. We chose to concentrate on genes upregulated in response to pathogen exposure (Fig 1C) in contrast to downregulated genes, which appear to reflect a reduction in general growth and metabolism as is reflected in our RNA-seq data (S1A Fig) [10]. Included among these putative ATF-7 targets were genes encoding antimicrobial effector molecules, such as CTLD-containing proteins and lysozymes (S3 Table). We determined whether RNAi-mediated knockdown of these genes resulted in enhanced susceptibility to killing by P. aeruginosa and observed that RNAi of 13 of 43 genes conferred enhanced sensitivity to killing by P. aeruginosa, without affecting survival on non-pathogenic E. coli (S3 Table, S4 Fig).
Our data suggest that ATF-7 is a direct regulator of immune effector genes that is regulated by PMK-1 p38 MAPK. We previously proposed a model in which PMK-1 phosphorylates ATF-7 in response to pathogen infection, switching the activity of ATF-7 from that of a transcriptional repressor to that of an activator, allowing the induction of immune response genes [7]. Our data here are consistent with this model, showing a strong dependence of pathogen-induced gene induction on PMK-1 and ATF-7, and a high degree of occupancy of regulatory regions of pathogen-induced genes by ATF-7 under basal and pathogen-induced conditions, with ATF-7 occupancy of pathogen-induced genes being strongly dependent on PMK-1. Moreover, our data reveal that PMK-1-ATF-7 signaling regulates over half of all pathogen-induced genes at the genome-wide level.
PMK-1 signaling has also been implicated in a number of non-infection contexts in C. elegans [2,16,17]. Interestingly, we observed that ATF-7 binds quite strongly to several key regulators of stress response pathways. We found that ATF-7 exhibits binding affinity to regulators of autophagy (lgg-1), the Unfolded Protein Response (xbp-1), and the oxidative stress response (skn-1), as well as several immunity regulators (hlh-30, zip-2, and interestingly, atf-7) (Fig 4). These observations suggest that initiation of other stress responses may be integrated with the immune response. For example, we have previously shown that immune response activation in developing larva is lethal without compensatory XBP-1 activity, establishing an essential role for XBP-1 during activation of innate immunity during infection of C. elegans [2]. Comparison of ATF-7 target genes identified by ChIP-seq with published target gene lists inferred from transcriptional profiling studies indeed suggests statistically significant overlap of ATF-7 regulation with SKN-1 (p<0.001, hypergeometric test with Bonferroni correction) and ZIP-2 (p<0.001, hypergeometric test with Bonferroni correction) (S6 Fig) [18]. However, caution should be taken when comparing these datasets, as they were collected by methods distinct from our intersection of ChIP-seq and RNA-seq results, and consequently additional experimental evidence is needed to corroborate these associations. We speculate that ATF-7 may function to activate anticipatory stress responses that can be activated in concert with innate immunity to promote host survival during microbial infection in a context-dependent manner. Our genomic and genetic findings in the simple, genetically tractable C. elegans host reveal a striking degree of global regulation of the organismal response to pathogenic bacteria through a single p38 MAPK-regulated transcriptional regulator. Our data support the idea that host defense, on a genome-wide and organism-wide level, is under the control of a limited number of stress-activated signaling pathways that regulate global regulators of gene transcription.

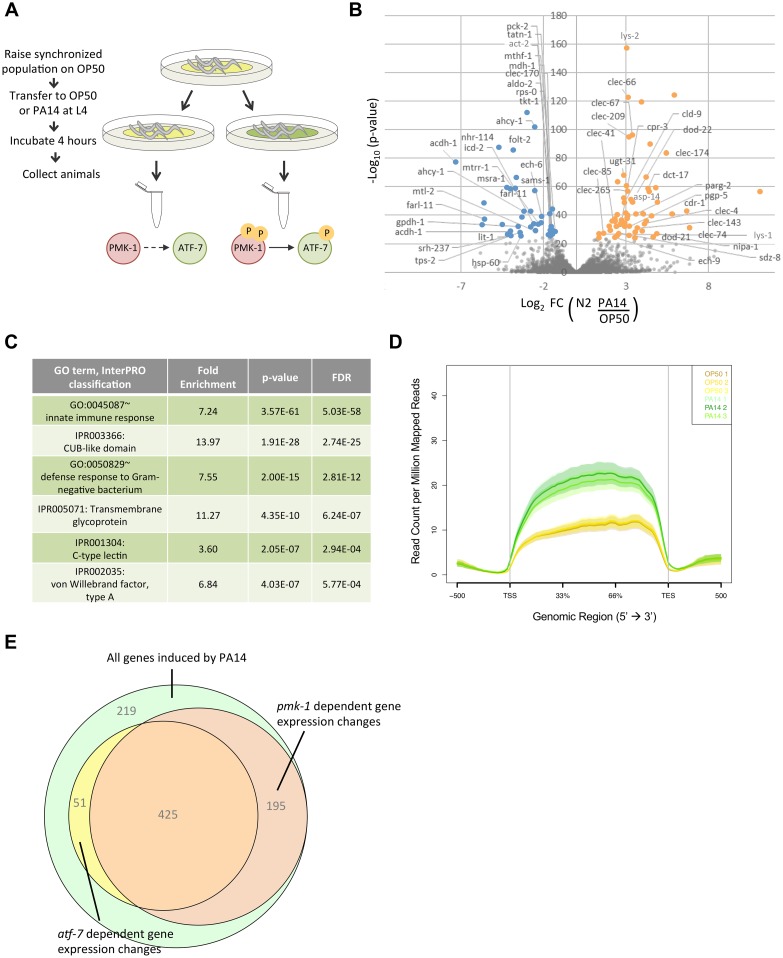

Exposure to.prompts gene expression changes. P aeruginosa Schematic of experimental design. Yellow bacterial lawn indicates.OP50, green bacterial lawn indicates.PA14. PMK-1 and ATF-7 activation states are indicated below each condition.Volcano plot of transcripts corresponding to differentially expressed protein-coding genes by exposure to.PA14 versus.OP50 in N2 animals. Orange and blue colored dots denote the top 100 outliers that are increased or decreased, respectively, and are annotated with their gene names.Top GO terms and InterPRO classifications of transcripts that are significantly upregulated (adjusted p-value < 0.05) in N2 animals exposed to PA14 versus OP50.Average expression (RPM) across the gene body of genes that are two-fold upregulated by exposure to pathogenic PA14.Venn diagram of induced genes that are dependent uponorfor complete (i.e. greater than two-fold, adjusted p-value < 0.05) upregulation by PA14. (A) (B) (C) (D) (E) E coli P aeruginosa P aeruginosa E coli pmk-1 atf-7

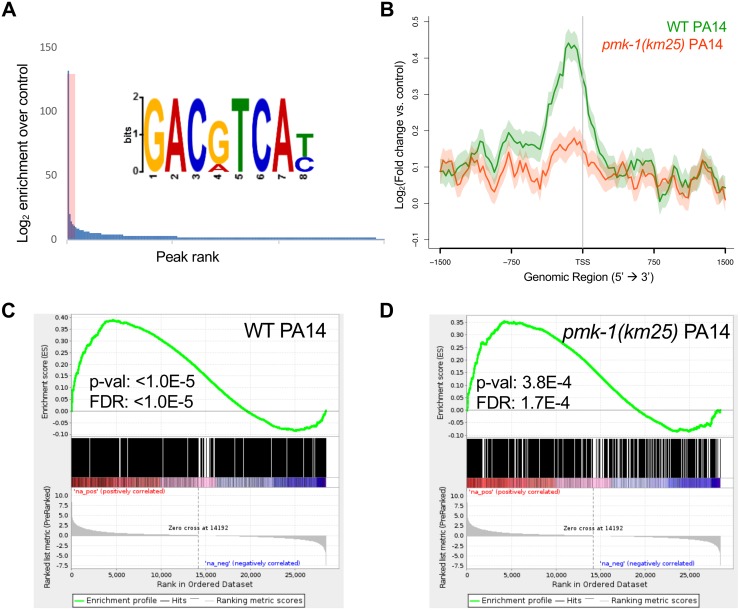

ATF-7 associates with genes that are differentially expressed upon exposure to pathogenic.. P aeruginosa Motif analysis of ATF-7::GFP ChIP peaks. The top 400 peaks (indicated by red shading) were considered for motif analysis.Metagene analysis of ATF-7::GFP binding profile in WT ormutant animals exposed to PA14 across genes that are two-fold upregulated (by RNA-seq) upon exposure to PA14. Shading represents standard error among replicates. () Gene Set Enrichment Analysis (GSEA) of transcripts detected by RNA-seq (ranked from most upregulated to most downregulated upon PA14 exposure in N2 animals) for association with ATF-7::GFP peaks in WT (C) ormutant (D) animals exposed to PA14. (A) (B) C,D pmk-1(km25) pmk-1(km25)

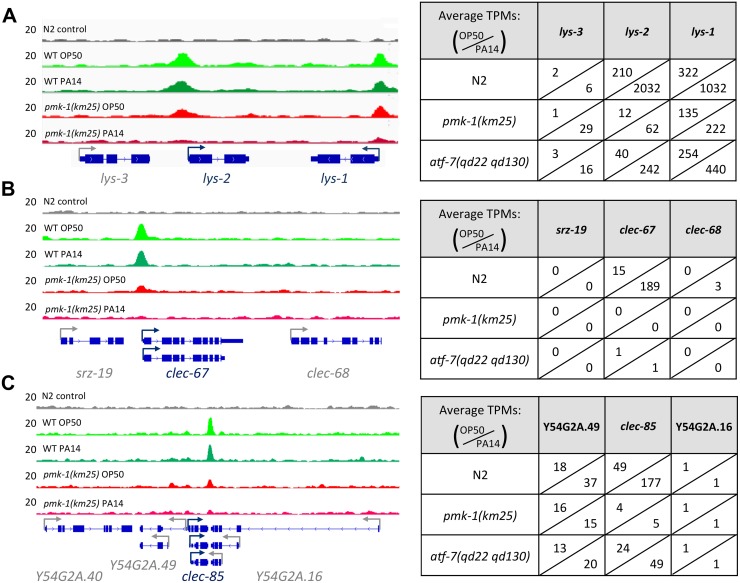

ATF-7 binding at PA14-induced genes. Examples of ATF-7::GFP read pileup in all four ChIP conditions at innate immune response loci(A),(B), and(C). Expression in transcripts per kilobase million (TPM) in all RNA-seq conditions are displayed to the right of each locus. For genes with multiple isoforms, the most highly abundant transcript is displayed. lys-2 clec-67 clec-85

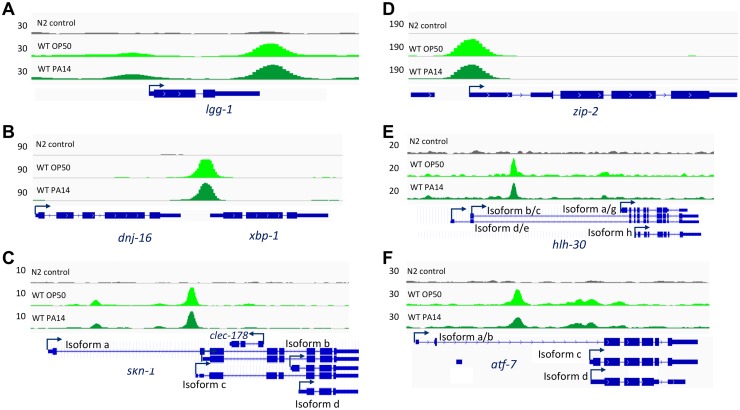

ATF-7 binds to regulatory regions of key regulators of stress physiology. Examples of ATF-7::GFP read pileups in promoter regions of stress response (A-C) and immune (D-F) regulators.
Materials and methods
.strains C elegans
Strains used: N2, ZD386 (atf-7(qd22 qd130)), KU25 (pmk-1(km25)), ZD1807 (atf-7(qd328[atf-7::2xTY1::GFP])), ZD1976 (atf-7(qd328[atf-7::2xTY1::GFP]);pmk-1(km25)). C. elegans were maintained at 16°C on E. coli OP50 as described [19]. The atf-7(qd328) allele was generated by the CRISPR-Cas9 system as described [19,20] and verified by Sanger sequencing. GFP expression in ZD1807 (atf-7(qd328)) was verified by immunobloting, and pull-down was assessed by IP-IB. The atf-7(qd238) allele was confirmed to function as wild-type, as assayed by susceptibility to P. aeruginosa strain PA14 in a slow kill assay, and then crossed into the pmk-1(km25) mutant background.
Preparation of animals for sequencing experiments
Slow Kill Assay (SKA) plates were prepared as previously described [20]. P. aeruginosa strain PA14 or E. coli OP50 was grown overnight in Luria Broth (LB), seeded onto SKA media and then grown overnight at 37°C, followed by an additional day at room temperature as previously described [21]. Large populations of animals were synchronized by egg-preparation of gravid adult worms in bleach, followed by L1 arrest overnight in M9 buffer. L1 animals were dropped onto concentrated OP50 lawns seeded onto Nematode Growth Media (NGM) and raised to the L4 larval stage at 20°C (about 40 h). Upon reaching L4, worms were washed off growth plates with M9 and placed on SKA plates prepared as described above, seeded with either PA14 or OP50 and incubated at 25°C for four hours. At this time, worms were harvested by washing for downstream applications.
Chromatin immunoprecipitation followed by sequencing
After three washes in M9 buffer, animal pellets were resuspended in an equal volume of PBS + complete ULTRA protease inhibitor tablets (Roche), flash frozen in liquid nitrogen, and stored at -80°C until chromatin immunoprecipitation (ChIP). ChIP was preformed as described [22,23] using Ab290, a ChIP-grade polyclonal GFP antibody (Abcam). Libraries were prepared using the SPRIworks Fragment Library System (Beckman Coulter) and single-end sequenced on an Illumina HiSeq2000 sequencer. Three biological replicates of at least 15,000 animals were prepared and sequenced for each condition, with the exception of only two replicates for atf-7(qd328) on PA14, as one of the samples failed to pass quality control.
ChIP-seq reads were aligned against the C. elegans WBPS9 assembly using bwa v. 0.7.12-r1039 [24] and the resulting bam files were sorted and indexed using samtools v. 1.3 [25]. Sorted bam files were pooled by strain and microbial treatment, and peaks were called using MACS2 (v. 2.1.1.20160309), as follows: callpeak on specific strain bam file ("-t" flag) against the N2_PA14 control sample bam file ("-c" flag) callpeak -c N2_PA14_control.sorted.bam -g ce—keep-dup all—call-summits—extsize 150 -p 1e-3—nomodel -B. Peak locations were intersected with regions +/-0.5kb around annotated TSS based on the WBPS9/WS258 annotation using bedtools intersect (v2.26.0) [26], and in cases of multiple peaks associated with a given TSS, peaks with maximal enrichment over N2 control were retained. For the purpose of motif identification, peaks were ranked by fold-enrichment over N2 control in descending order and the top 400 peaks were retained, regions +/- 200 bps around the summit were retrieved and sequences were obtained with bedtools getfasta. MEME-ChIP v. 4.12.0 [27] was used to call motifs using the following parameters: meme-chip -oc. -time 300 -order 1 -db db/JASPAR/JASPAR2018_CORE_nematodes_non-redundant.meme -meme-mod anr -meme-minw 5 -meme-maxw 30 -meme-nmotifs 8 -dreme-e 0.05 -centrimo-local -centrimo-score 5.0 -centrimo-ethresh 10.0. Presence of the top motifs under each peak called by macs2 was assessed using Mast v.5.0.1 [28] on the same +/- 200bp region around the summit of each peak. The number of peaks with one or more occurrences of the motif was tallied using a 200-peak window, and plotted across all peaks ranked either by log-fold enrichment over N2 or–log-transformed p-values. Inflection points in the motif density function were used to narrow down the number of peaks retained for downstream analyses.
RNA sequencing
After three washes in M9 buffer, TRIzol Reagent (Invitrogen) was added to worm pellets and flash frozen in liquid nitrogen. Following an additional round of freeze-thaw, RNA was isolated using the Direct-zol RNA MiniPrep kit (Zymo Research). Libraries were prepared using the Kapa mRNA Hyperprep kit and paired end reads were sequenced on the Illumina NextSeq500 sequencer. Three biological replicates of at least 1,000 animals were prepared and sequenced for each condition, with the exception of only two replicates for atf-7(qd22 qd130) on PA14, as one of the samples failed to pass quality control.
Reads were aligned against the C. elegans WBPS9 assembly/ WS258 annotation using STAR v. 2.5.3a [29] with the following flags: -runThreadN 16—runMode alignReads—outFilterType BySJout—outFilterMultimapNmax 20—alignSJoverhangMin 8—alignSJDBoverhangMin 1—outFilterMismatchNmax 999—alignIntronMin 10—alignIntronMax 1000000—alignMatesGapMax 1000000—outSAMtype BAM SortedByCoordinate—quantMode TranscriptomeSAM. with—genomeDir pointing to a low-memory footprint, 75nt-junction WBPS9/WS258 STAR suffix array. Gene expression was quantitated using RSEM v. 1.3.0 [30] with the following flags for all libraries: rsem-calculate-expression—calc-pme—alignments -p 8 against an annotation matching the STAR SA reference. Posterior mean estimates (pme) of counts and estimated "transcript-TPMs" were retrieved for genes and isoforms. Subsequently, counts of isoforms sharing a transcription start site (TSS) were summed, and differential-expression analysis was carried out using DESeq2 [31] in the R v3.4.0 statistical environment, building pairwise models of conditions to be compared (microbial exposures within each genotype). Sequencing library size factors were estimated for each library to account for differences in sequencing depth and complexity among libraries, as well as gene-specific count dispersion parameters (reflecting the relationship between the variance in a given gene's counts and that gene's mean expression across samples).
Differences in gene expression between conditions (expressed as log2-transformed fold-changes in expression levels) were estimated under a general linear model (GLM) framework fitted on the read counts. In this model, read counts of each gene in each sample were modeled under a negative binomial distribution, based on the fitted mean of the counts and aforementioned dispersion parameters. Differential expression significance was assessed using a Wald test on the fitted count data (all these steps were performed using the DESeq() function in DESeq2) [31]. P-values were adjusted for multiple-comparison testing using the Benjamini-Hochberg procedure [32].
Data availability
Raw data presented in this manuscript have been deposited in NCBI's Gene Expression Omnibus [33] and are accessible through GEO SuperSeries accession number GSE119294, which contains SubSeries GSE119292 (RNA-seq data, including count files) and SubSeries GSE119293 (ChIP-seq data, including wig files and peak calls).
Evaluation of ATF-7 binding and modulation of gene expression
Metagene analyses of gene expression and ATF-7 binding enrichment were generated by ngs.plot as described [34], using ChIP .bam files from each condition normalized to N2 control as input. Genes considered two-fold upregulated or downregulated are listed in the "N2_up" and "N2_down" tabs of S1 Table, respectively.
Correlations between ATF-7 binding and regulation of gene expression were interrogated using the gene set enrichment analysis (GSEA) framework [35]. Briefly, all transcription start sites (TSSs) associated with a protein-coding transcript were ranked based on differential expression results from DESeq2 (log2 fold-changes), which is a measure of the correlation between their expression and the host response to infectious agents. Biases in expression of ATF-7-bound TSSs were assessed using a walk down the list tallying a running-sum statistic, which increases each time a TSS is part of the list and decreases otherwise. The maximum of this metrics (i.e. where the distribution if furthest away from the background) is called the enrichment score (ES). Significance is estimated using random permutations of the TSSs to generate p-values gauging how often the observed ES can be seen in randomized gene sets, for each direction of the expression biases independently. Multiple-testing correction is addressed using a false-discovery rate calculation on permuted datasets.
Gene ontology analysis
Genes with adjusted p-values <0.05 were considered for Gene Ontology enrichment analysis using the DAVID online webtool, considering as a background the union of all genes with a non-zero baseMean value across any of the DE comparison, based on unique WormBase IDs.
Killing assays and bacterial strains
PA14 plates were prepared as described as above. N2 animals were grown on NGM, supplemented with 25 ug/mL carbenicillin and 2mM isopropyl b-D-1 thiogalactopyranoside (IPTG), that was seeded with either the E. coli HT115 expressing plasmids targeting the gene of interest or the empty L4440 vector backbone for two generations prior to each experiment. Animal populations were synchronized by egg lay. At the L4 larval stage, approximately 30 worms were transferred to prepared SKA plates and incubated at 25°C. Animals were scored for killing twice daily until the majority of animals had died. Within each experiment, three plates were prepared and scored per RNAi treatment. All clones were obtained from the Ahringer [36] or Vidal [37] RNAi libraries and were verified by sequencing. For a list of all RNAi clones used, see S4 Table.
