Lipid nanoparticle delivery of gene editing corrects Agxt to treat primary hyperoxaluria type 1

Updated

Abstract

Essence

Lipid nanoparticle delivery of an adenine base editor corrected Agxt in rats and reversed key biochemical and kidney injury features of primary hyperoxaluria type 1.

Evidence

This preclinical in vivo gene-editing study gave a single dose of LNP-delivered spG-ABE8e to a PH1 rat model and measured Agxt correction, urinary oxalate, calcium oxalate deposits, and renal injury-associated gene expression.

Caveat

The cure claim is limited to a rat model after single-dose treatment, so clinical efficacy and safety in humans are still unknown.

Simplified

Key numbers

44%
Correction Efficiency Threshold
Minimum correction efficiency required for therapeutic outcomes in rats.
49.8% to 83.6%
Urinary Oxalate Reduction
Percentage reduction in urinary oxalate levels in -Corrected rats over six months.

Key figures

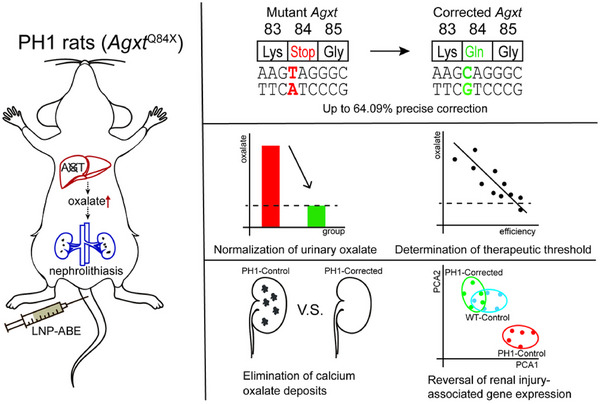

FIGURE 9
rats treated with : gene correction, oxalate normalization, and kidney improvements
Highlights precise gene correction and oxalate normalization linked to kidney improvement in treated PH1 rats
CTM2-15-e70533-g001
  • Panel top right
    DNA sequences showing mutant codon 84 (Stop) corrected to normal codon (Gln) with up to 64.09% precision
  • Panel middle right left
    Bar graph showing urinary oxalate levels normalized (reduced) after treatment compared to mutant group
  • Panel middle right right
    Scatter plot correlating Agxt correction efficiency with urinary oxalate levels, defining therapeutic threshold
  • Panel bottom left
    Kidney images comparing PH1-Control and PH1-Corrected rats showing elimination of calcium oxalate deposits in corrected
  • Panel bottom right
    plot showing reversal of renal injury-associated gene expression in PH1-Corrected rats closer to WT-Control than PH1-Control

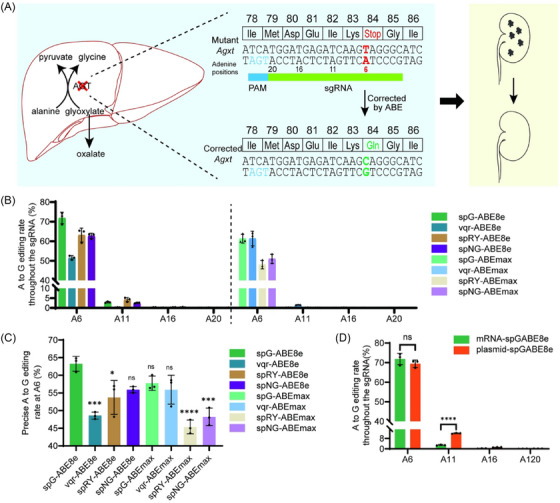

FIGURE 1
variants correcting a pathogenic mutation in cell lines in vitro
Highlights higher precise correction efficiency at the target site by spG-ABE8e variant, guiding optimal base editor selection
CTM2-15-e70533-g003
  • Panel A
    Schematic of the pathogenic mutation and its correction by base editors targeting adenine A6 with bystander adenines A11, A16, and A20 indicated
  • Panel B
    DNA editing efficiency at adenine sites A6, A11, A16, and A20 in 72 hours post-transfection with eight base editor variants; A6 editing appears highest with spG-ABE8e
  • Panel C
    Precise correction efficiency at target site A6 by different base editor variants; spG-ABE8e shows significantly higher precise correction than some variants
  • Panel D
    Comparison of efficiency at adenine sites after transfection with spG-ABE8e plasmid or mRNA; A6 editing efficiency is similar, while A11 editing is significantly lower with mRNA

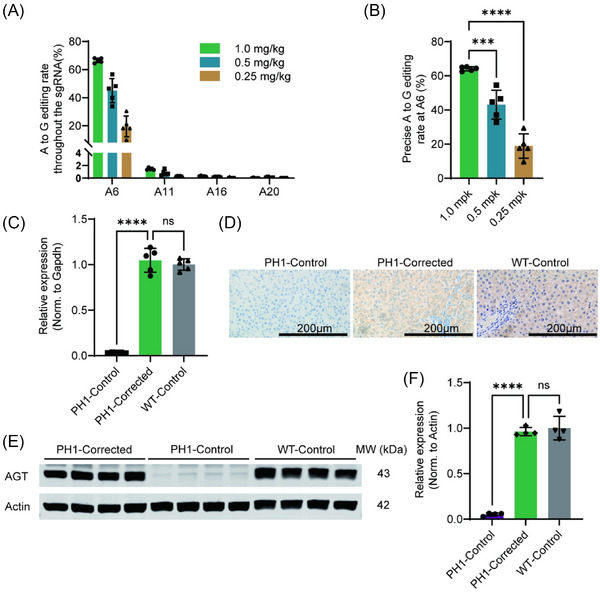

FIGURE 2
treatment effects on DNA editing and protein expression in rats
Highlights higher precise DNA editing and restored AGT protein expression in treated PH1 rats versus controls
CTM2-15-e70533-g006
  • Panel A
    DNA editing efficiency at all adenine (A) sites within the 7 days after LNP-ABE injection at doses 1.0, 0.5, and 0.25 mg/kg
  • Panel B
    Precise on-target rate at site A6 for different LNP-ABE doses, with highest editing at 1.0 mg/kg and lowest at 0.25 mg/kg
  • Panel C
    Relative mRNA expression levels in whole liver tissues for PH1-Control, PH1-Corrected, and WT-Control groups, showing increased expression in PH1-Corrected versus PH1-Control
  • Panel D
    Immunohistochemical staining of liver tissue showing elevated AGT protein expression in PH1-Corrected and WT-Control compared to PH1-Control
  • Panel E
    of AGT protein expression in liver tissue from PH1-Corrected, PH1-Control, and WT-Control rats
  • Panel F
    Quantitative analysis of AGT protein levels normalized to Actin, showing significantly higher expression in PH1-Corrected compared to PH1-Control

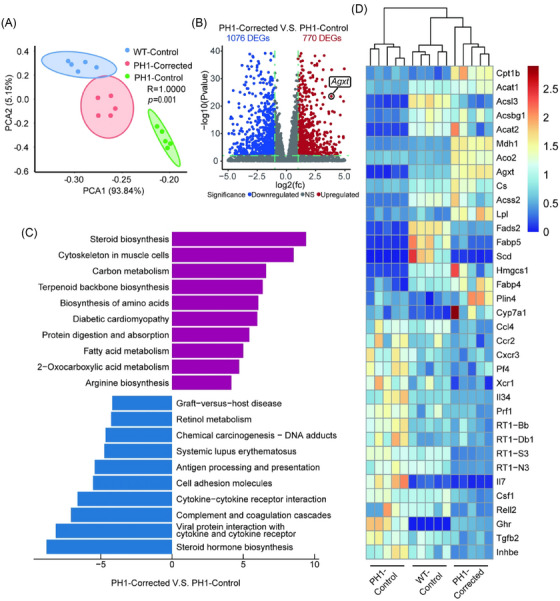

FIGURE 3
Gene expression changes in livers of -Corrected, PH1-Control, and WT-Control rats
Highlights gene expression shifts and pathway changes linked to liver function improvement in PH1-Corrected rats versus controls
CTM2-15-e70533-g005
  • Panel A
    () of liver RNA-seq data showing distinct clustering of WT-Control, PH1-Corrected, and PH1-Control groups
  • Panel B
    Volcano plot of (DEGs) between PH1-Corrected and PH1-Control livers, with 1076 upregulated (red) and 770 downregulated (blue) genes
  • Panel C
    Top 10 enriched pathways for upregulated (red) and downregulated (blue) DEGs comparing PH1-Corrected and PH1-Control livers
  • Panel D
    of DEGs related to liver function and injury across PH1-Corrected, PH1-Control, and WT-Control livers showing varied expression patterns

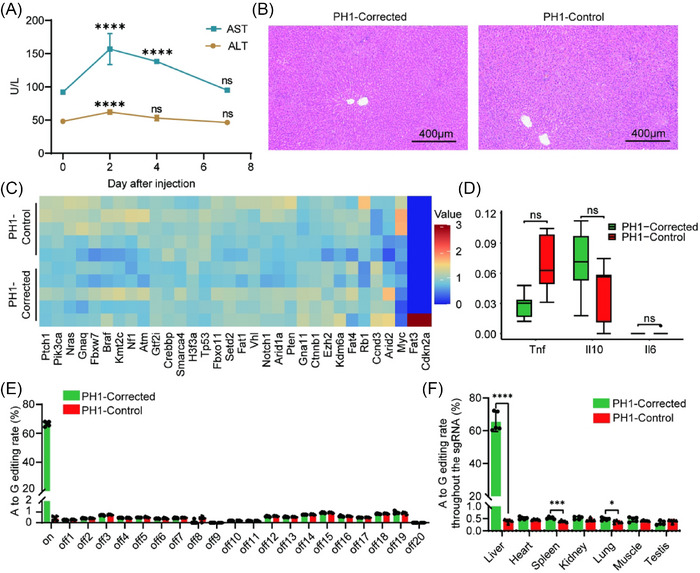

FIGURE 4
Liver toxicity markers, tissue appearance, gene expression, and off-target editing in -Corrected vs PH1-Control rats
Highlights minimal liver toxicity and low off-target editing while showing higher targeted editing in PH1-Corrected rat livers
CTM2-15-e70533-g008
  • Panel A
    Changes in and enzyme levels over time after 1 mg/kg treatment in PH1-Corrected rats; AST peaks visibly higher at day 2 and 4, ALT remains stable
  • Panel B
    H&E-stained liver tissue sections from PH1-Corrected and PH1-Control rats 1 week post-injection showing similar tissue morphology and no obvious damage
  • Panel C
    of cancer-associated gene expression in liver biopsies 7 days after treatment showing similar transcriptional profiles between PH1-Corrected and PH1-Control rats
  • Panel D
    Boxplots of Tnf, Il10, and Il6 gene expression in liver biopsies 7 days post-treatment showing no significant differences between PH1-Corrected and PH1-Control rats
  • Panel E
    Cumulative rates at top 20 predicted off-target sites in liver tissue of 6-month-old rats showing low editing in both PH1-Corrected and PH1-Control groups
  • Panel F
    A-to-G editing rates at the targeted site (A6) across various organs in 6-month-old rats; liver of PH1-Corrected rats shows visibly higher editing rates than controls
1 / 5

Full Text

What this is

  • Primary hyperoxaluria type 1 (PH1) is a genetic disorder causing kidney damage due to excess oxalate production.
  • This study evaluates lipid nanoparticle (LNP)-mediated as a potential treatment for PH1.
  • Using a rat model, a base editor variant was delivered to correct the AGXT gene mutation, leading to significant therapeutic effects.

Essence

  • LNP-mediated delivery of a base editor effectively corrected AGXT mutations in PH1 rats, normalizing urinary oxalate levels and reversing kidney damage. Approximately 44% correction efficiency was identified as necessary for therapeutic outcomes.

Key takeaways

  • LNP-ABE treatment achieved a high correction efficiency of AGXT mutations in PH1 rats, restoring hepatic AGT expression to normal levels. This led to normalized urinary oxalate excretion and prevented kidney damage.
  • The study established that a minimum of 44% correction efficiency is required to normalize urinary oxalate levels, providing a critical benchmark for future clinical applications.

Caveats

  • The findings are based on a rat model, which may not fully replicate human disease mechanisms or responses to treatment. Further validation in human studies is necessary.
  • The study primarily focuses on a specific AGXT mutation; results may vary for other mutations or genetic backgrounds.

Definitions

  • base editing: A precise gene-editing technology that allows for targeted single-nucleotide changes in DNA.
  • lipid nanoparticles (LNPs): Nanoparticles made of lipids used to deliver genetic material into cells, enhancing the efficiency of gene therapies.

Simplified

Funding

Competing interests

0 of 12
authors report competing interests
12 report none
