Airway size relative to lung volume linked to lung function and symptoms in chronic obstructive lung disease

Chronic obstructive pulmonary disease (COPD) is characterized by expiratory airflow obstruction that is caused by a combination of emphysematous destruction of the parenchyma and disease of the small airways [1]. Because obtaining pathological samples of lung tissue is too invasive to perform in clinical practice, chest computed tomography (CT) has been used to obtain separate estimations of these two pathological lesions [2]. Emphysematous changes measured by CT is associated with worsening of lung function [3] and symptoms [4], frequent exacerbation [5], and poor prognosis [6]. In addition, loss of elastic recoil due to emphysema causes lung hyper-expansion that can also be quantified as total lung volume in CT [7]. The CT-measured total lung volume has been used for evaluating the effects of pharmacological, bronchoscopic, and surgical lung volume reduction, as well as lung growth [8 –11].

Although small airways cannot be visualized by CT due to the resolution limitation [3, 12], measurements of the central airway dimensions are informative because these dimensions reflect the histological features of small airway disease [13]. In particular, a small airway lumen area in COPD is an important CT finding that is closely correlated with airflow obstruction, as assessed by forced expiratory volume in 1 s (FEV₁) [14, 15] and gas trapping, as assessed by residual volume (RV), or its ratio to total lung capacity (TLC) [RV/TLC] [7]. Moreover, these smaller lumens of the airways reduce the number of airways visible on CT, and this impaired visibility is currently assessed as total airway count (TAC) [16], which has been shown to be associated with FEV₁, dyspnoea, exercise tolerance and future lung function decline [16, 17].

Since the outer wall of the airways is connected with the lung parenchyma, the mechanical properties of the parenchyma affect the behaviour of the airways [18]. This airway-parenchyma interdependence allows the elastic recoil of the lung to maintain airway calibre, indicating that any disease condition inducing loss of elastic recoil could reduce airway calibre [19]. Indeed, histological and microCT analyses have shown that loss of the alveolar attachments to the outer wall of the small airways is closely correlated with lumen narrowing in emphysema [20 –22]. A CT study by Diaz et al. [23] also showed that segmental and subsegmental airways are distended during breathing up to the TLC level in healthy lungs, but this distensibility is diminished in hyper-inflated emphysematous lung and further reduction of the lumen area occurs at full inspiration. Moreover, physiological and CT imaging studies have shown that the association between airway and lung sizes is not constant even in healthy subjects [24, 25], and suggested that dysanaptic lung growth that is characterized by an increase in lung size without change in airway size in early life might impair lung function [9, 25], supporting a recent notion that abnormal lung growth potentially affects COPD development [26]. However, little is still known about the interaction between airway and lung sizes on lung function and symptoms in COPD.

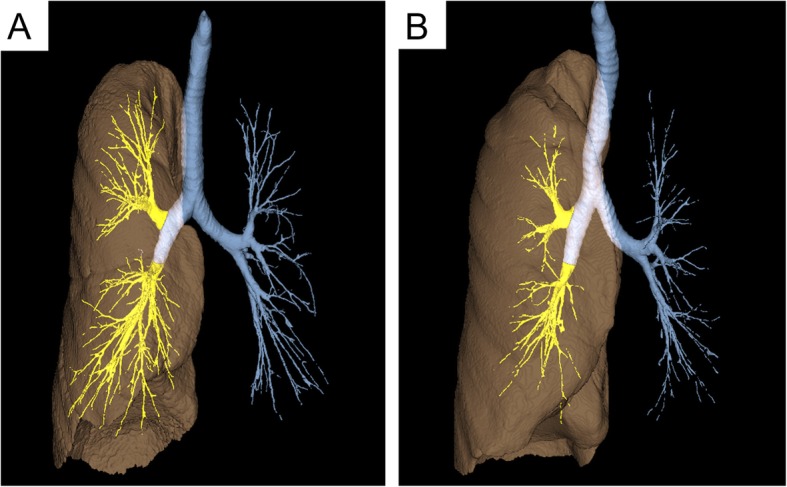

It was hypothesized that a reduction in the ratio of airway tree volume to lung volume could be a major determinant of impaired pulmonary function and clinical symptoms in COPD. To test this hypothesis, the present study aimed to establish a novel CT marker, namely, airway volume percent (AWV%), that was defined as a percentage ratio of the airway tree volume to the entire lung volume and to explore the associations of the AWV% with lung function and symptoms assessed by the COPD Assessment Test (CAT).

Data are expressed as the mean ± SD. BMI body mass index, FEV₁ forced expiratory volume in 1 s, FVC forced vital capacity, RV/TLC residual volume / total lung capacity, D_LCO diffusion capacity, CAT COPD Assessment Test, LAV% low attenuation volume percent, WA% wall area percent, TAC total airway count.

Ai luminal area of subsegmental airways, pTLC predicted TLC, rLV right lung volume, AWV airway volume, AWV% airway volume percent, LAV% low attenuation volume percent, FEV₁ forced expiratory volume in 1 s, RV/TLC residual volume / total lung capacity, D_LCO diffusion capacity. ^a and ^b indicate p < 0.05 and p < 0.005, respectively

FEV₁ forced expiratory volume in 1 s, RV/TLC residual volume / total lung capacity, LAV% low attenuation volume percent, WA% wall area percent, TAC total airway count, and AWV% airway volume percent. β^a indicates standardized β. ^b adjusted by age, BMI, pack-years, and CT-measured total lung volume. VIF indicates variance inflation factor

This is the first study to assess the interaction of three-dimensionally measured airway tree and lung volumes on lung function and symptoms in COPD. Although many CT studies have shown that small lumen area of the airways and large lung volume are major features of COPD and physiological studies have emphasized the importance of the relationship between airway and lung size in terms of structure-function, little attention has been paid to airway to lung volume ratio in COPD. Therefore, the present study is important as it established the AWV% as a novel CT biomarker in COPD by showing that a reduction of AWV% is significantly associated with lower FEV₁ and higher RV/TLC independent of previously reported CT indices such as WA%, LAV%, and TAC. This suggests that a disproportionally small airway tree for a relatively large lung can be a major determinant of airflow obstruction and gas trapping.

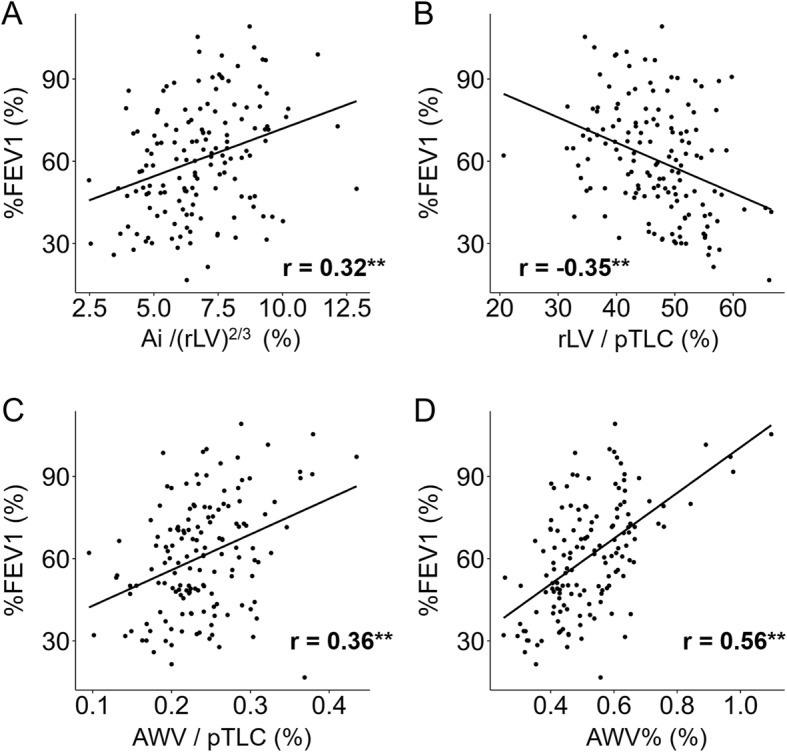

The present finding that AWV% is more closely correlated with %FEV₁ and RV/TLC than simple measurement of lumen area, airway tree volume, and lung volume, as well as the ratio of lumen area to the cubic root squared right lung volume (Table 2), indicates the advantage of this new CT index. These results also confirm the concept that not only each structural change of airway and lung but also the interaction between these factors determines lung function. Because the visibility of airways on CT varies among individuals, it can be challenging to compare the lumen areas of spatially matched airways [36]. Thus, our findings suggest that the use of airway tree volume is more reasonable for assessment of airway size than that of lumen area.

The demographic data showing that %D_LCO was 53 ± 14% and LAV% was 29 ± 9% suggest that the majority of the subjects had emphysema in this study. Parenchymal destruction of emphysema could increase lung volume through loss of elastic recoil and induce thoracic gas compression during forced expiration on spirometry [37]. Thus, the increased lung volume due to emphysema might have partially accounted for the close association between decreased AWV% and FEV₁.

In addition, considering that emphysema can be one of the causes of the airway volume reduction due to loss of alveolar attachments to the outer wall of the small airways [21, 22], one would hypothesize that lower AWV% may be closely associated with higher LAV%. However, the hypothesis is not well supported by the present data that showed the weak association between AWV% and LAV% (r = − 0.24) and no association between AWV% and diffusion capacity. This might be because in addition to the impaired airway-parenchymal tethering due to emphysema, the luminal narrowing due to the mucus occlusion, bronchoconstriction, and wall remodeling may also contribute to the reduction in the airway volume measured on CT.

The results of multivariate analysis show that AWV% was associated with airflow limitation and gas trapping independent of LAV%, WA%, and TAC. This finding suggest that in terms of assessment of the structure-function relationship, measuring the airway tree to lung volume ratio is complementary to measuring emphysematous change, impaired visibility of the airways and wall remodelling of the visible central airways, which are established CT findings in COPD lungs [14 –17, 38].

The univariate and multivariate analysis (Table 2 and Table 3) show that both AWV% and LAV% had greater impacts on %FEV₁ and RV/TLC than the other CT indexes. Furthermore, the statistical model including both AWV% and LAV% accounted for more variation of %FEV₁ (R² = 0.47) than the models including either AWV% (R² = 0.34) or LAV% (R² = 0.21). While emphysema is visually and quantitatively evaluated in clinical setting, the presence and severity of emphysema is not directly linked to airflow obstruction [39, 40], which is measured on spirometry for diagnosis of COPD. Thus, the present findings propose the potential clinical implication of AWV% by showing that combining AWV% to LAV% may allow more accurate estimation of airflow obstruction than emphysema measurement alone. Furthermore, because AWV% reflects both airway dimension and lung volume, and bronchodilation and lung deflation are main targets for standard therapy using long-acting bronchodilators in COPD [41], AWV% might sensitively detect an effect of bronchodilator therapy. A future research is needed to test this possibility.

Abnormal lung growth has recently been proposed as a major contributor to COPD development [26]. Studies have shown that a variability in associations between airway and lung size due to dysanaptic lung growth in early life is associated with lung function [24, 25], and an increase in lung size without change in airway size due to chronic hypoxia at higher altitude is associated with poor lung function [9]. These findings raise the possibility that the present finding that lower AWV% is correlated with lower FEV₁ and higher RV/TLC might have been affected by abnormal lung growth. Whether the combined presence of smaller airways and larger lung is associated with the early onset of COPD should be examined in a future study.

With respect to clinical symptoms, the present study showed that the AWV% was significantly lower in subjects with a CAT score ≥ 10 than in those with a CAT score < 10. We also performed multivariate logistic regression analysis to test whether a decrease in AWV% was associated with the presence of symptoms after adjusting %FEV_1, age, BMI, smoking status, and CT-measured total lung volume but could not detect significant contribution of the AWV% to symptoms (data not shown). Because clinical symptoms are influenced by multiple factors including not only airway disease but also emphysema and systemic comorbidities, such as cardiovascular disease and depression [42], a larger sample size would be necessary to clarify the relationship between the decreased AWV% and symptoms. It might also be useful to apply a specific questionnaire for respiratory symptoms, such as Cough and Sputum Assessment Questionnaire (CASA-Q) [43].

Some limitations need to be described. First, because the lumen size is underestimated in smaller airways due to the resolution of CT [12, 44] and measurement of the AWV% is based on the volumes of all visible airways, including these smaller airways, the AWV% might be underestimated compared to the actual ratio of the airway volume to the lung volume. However, we think that the use of AWV% is valid because the influence of this underestimation should be equally applied in all CT scans. Moreover, the fact that all the CT scans were obtained with one CT scanner under one condition increases the validity of the results. Second, the present study did not use both lungs for measurement of the AWV% because cardiac motion artefacts could increase the measurement error for airway volume in the left lung. Finally, because all the included patients were male, and since the size of airways and extent of airway remodelling differ between males and females [45, 46], whether the present findings are applicable to female patients is unclear.

This study established a novel CT marker to evaluate airway tree to lung volume ratio, AWV%, and showed that a disproportionately small airway tree volume for a given lung volume is associated with worsening of airflow obstruction and gas trapping. This index is a promising CT biomarker that is easily measured and allows for improved understanding of the interaction between airway disease and lung hyperinflation on lung function and clinical outcomes in COPD.
