Influence of circadian clocks on adaptive immunity and vaccination responses

To investigate the validity of these time-of-day differences, we assessed whether rhythmicity in the response also applied to another stimulus at a different skin site. Exogenous LPS-activated bone marrow-derived dendritic cells (BMDCs) were subcutaneously injected into the hock of the leg and the response was quantified in the draining popliteal LN. This experimental setup further allowed us to better control for potential differences in numbers and activation status of skin residing leukocytes, since we administered the same batch of BMDCs injected into phase-shifted recipient mice that were housed under shifted lighting regimes. This ensured microenvironmental timing and not timing in the DCs to be the only variable. These experiments yielded a similar rhythmicity in the expansion of the draining LN compared to FITC-painting (Fig. 1b and Supplementary Fig. 1b–d). This demonstrated draining LN responses to be highly time-of-day dependent, even with respect to different stimuli elicited at distinct skin sites. Analyses of the cell populations within the LN showed that CD4⁺ and CD8⁺ T cell numbers as well as B cells increased strongly after stimulation during the day in contrast to the night, representing the predominant leukocyte subsets, while overall LN composition did not change (Supplementary Fig. 1e–g). Notably, titration of the amount of injected exogenous BMDCs showed ZT19 (night) injection of 10⁶ cells to exhibit similar efficacy as injection of ten times fewer cells, while ZT7 (day) injection still showed increased efficacy (Fig. 1c and Supplementary Fig. 1g). This demonstrated that the time-of-day effect could not be overcome simply by injecting a higher number of BMDCs, indicating that a plateau effect had been reached during the night phase in these assays.

Since in these experiments of BMDC injection, timing in the recipient was the only variable, our results indicated that the microenvironment governed the response, potentially by affecting the migration kinetics of BMDCs and/or by shaping their phenotype^15–17. While we did not detect changes in the phenotype of donor BMDCs recovered from the draining LN (Supplementary Fig. 2a, b), we observed a pronounced time-of-day difference with respect to their numbers, with more BMDCs having drained to the LN when experiments were performed during the day (Fig. 1d, e). There was no change with respect to the location of injected cells after 24 h; at both time points, BMDCs were found to predominantly locate to the T cell area of the LN (Supplementary Fig. 2c, d). These data demonstrate migration of dendritic cells (DCs) from the skin to the draining LN to occur in a diurnal manner with a strong influence on the level of LN expansion, providing a functional relevance for the temporal migration phenotype of DCs into afferent skin lymphatics recently described¹⁸.

Using 2-photon intravital microscopy (2P-IVM) we analyzed the migration of adoptively transferred T cells within the draining LN at the single-cell level and detected an increased velocity during the day, both in steady-state conditions and after FITC painting (Fig. 1f, g). Building on our previous data with respect to circadian rhythms in T cell trafficking to LNs⁷ (Supplementary Fig. 3, Supplementary Table 1), we developed a mathematical model to combine these dynamics in LN infiltration and migration velocity with the observed rhythmic DC migration from the skin to the draining LN (Supplementary Fig. 4, Supplementary Table 1). This allowed us to quantitatively assess the probability of LN encounters between DCs and T cells across a diurnal cycle, generating an oscillatory likelihood in their interactions, with a peak occurring in the afternoon (Fig. 1h). This indicated that in-phase migration of DCs from skin epithelial barrier sites and infiltration of T cells from blood to the draining LNs would be beneficial for the encounter of the respective antigen-bearing and antigen-recognizing cells, with a ~2-fold higher interaction probability compared to constant, non-rhythmic leukocyte trafficking behavior. In contrast, simulations that rendered LN immigration of DCs and/or T cells arrhythmic reduced the amplitude in the likelihood of DC-T cell interactions (Fig. 1i).

To directly validate these predictions experimentally, we measured T cell activation after FITC painting using the surface marker CD69 as proxy. When the stimulus occurred during the day, the amount of CD69⁺ CD4⁺ and CD8⁺ T cells was significantly higher 48 h after FITC application, compared to nighttime (Fig. 1j and Supplementary Fig. 5a). Together, this demonstrates a benefit of circadian rhythmicity in adaptive immunity to the host as the probability for functional encounters between DCs and cognate T cells is increased when both cell types enter LNs and are present in this tissue around the same time of day.

Loss of rhythmic LN cellularity upon ablation of integrin function indicated that migration of DCs to the LN at specific times of the day rendered the latter more permissive for leukocyte infiltration from blood. Indeed, we detected higher mRNA levels of Icam1, the β2 integrin counter receptor and critical homing molecule for LN trafficking in inflammation¹⁹, in the LN after stimulation during the day compared to the night (Fig. 2c). We further observed increased ICAM-1 protein expression by quantitative imaging at this time, specifically in high endothelial venules (HEVs), the sites of leukocyte infiltration into the LN (Fig. 2d and Supplementary Fig. 5d). ICAM-1 was functionally involved in the recruitment phenotype, since treatment with an antibody directed against ICAM-1 reduced LN expansion and abrogated the time-of-day differences (Fig. 2e). Interestingly, the Icam1 gene exhibits several canonical and non-canonical E-box binding sites for the core circadian transcription factor BMAL1, indicating the potential for direct control by the circadian clock machinery (Supplementary Fig. 5e). Indeed, Cdh5^CreERT2:Bmal1^flox mice, exhibiting an inducible deficiency in endothelial cell BMAL1 (BMAL1^ΔEC), failed to rhythmically upregulate ICAM-1 expression in HEVs in this inflammatory scenario, demonstrating a role for the endothelial circadian clock in driving time-of-day-differences in ICAM-1 expression (Fig. 2f). In line with these data, chromatin immunoprecipitation (ChIP) assays of LNs after FITC painting demonstrated BMAL1 to directly bind the canonical E-box regions R4 (and to a lesser extent R3) in the Icam1 promoter, and this interaction exhibited rhythmic occupancy, being higher after stimulation during the day than at night (Fig. 2g and Supplementary Fig. 5f). To further investigate the mechanism by which DC drainage to the LN would increase ICAM-1 expression¹⁵, we quantified levels of pro-inflammatory cytokines in draining LNs. Q-PCR analyses showed Tnf levels to be rhythmically expressed in LNs after FITC painting—but not of other cytokines or chemokines (Fig. 2h and Supplementary Fig. 6a–c). Furthermore, blocking TNF with an anti-TNF antibody downregulated ICAM-1 expression and rendered it arrhythmic (Fig. 2i). This treatment furthermore reduced LN expansion and abrogated the time-of-day differences (Fig. 2j). These data demonstrate rhythmic draining of DCs into the LN to induce a time-of-day gated infiltration of leukocytes from the blood. This LN expansion is functionally associated with an increase in TNF and ensuing ICAM-1 expression in HEV, the latter of which represents a phenomenon directly controlled by the endothelial cell circadian clock machinery.

To obtain a global overview of the time-of-day-dependent changes responsible for this effect, we performed proteomics analyses by mass spectrometry of highly purified CD4⁺ T cells isolated from the LN during the day peak (ZT1) and night trough (ZT13). Our results indicated CD4⁺ T cells to exhibit a strong difference in the time-of-day-dependent protein expression profile (Fig. 3d–f). Specifically, an enhanced lipid, ketone or amine metabolic and immune regulation signature was observed in the morning, in line with the proliferation differences (Fig. 3f). Comparing these temporal proteomics data with CD4⁺ T cells isolated from T cell specific Bmal1^−/− mice (BMAL1^ΔTcell) showed a strikingly different protein expression profile, with strongly reduced expression of rhythmic proteins in the latter and only few molecules exhibiting diurnal differences (Fig. 3d–h). Immune regulation and metabolism-related differences were lost in BMAL1 deficiency, resulting in an almost indistinguishable proteome between early and late times (Fig. 3e). Accordingly, numerous proteins belonging to the immune regulation and metabolism clusters were either not detected in BMAL1^ΔTcells (Fig. 3g) or displayed no diurnal differences (Fig. 3h). This demonstrated that CD4⁺ T-cell autonomous rhythms in metabolism and proliferation exhibit time-of-day differences, contributing to the functional time-of-day differences in the immune response.

All animal procedures and experiments were performed in strict accordance with all mandatory guidelines (EU and Swiss directives on the protection of animals used for scientific purposes), approved by the ministry of animal welfare of the region of Oberbayern and performed in accordance with the German law of animal welfare or approved and performed in accordance with the guidelines of the animal research committee of Geneva (Commission Cantonale pour les Expériences sur les Animaux (CCEA) and the Office fédéral de la santé alimentaire et des affaires vétérinaires (OSAV)).

C57BL/6N wild-type (WT) mice (Mus musculus, mixed sexes, 7–12 weeks old) were purchased from Charles River. The following transgenic mice were cross-bred at ENVIGO to yield T cell-specific (BMAL1^ΔTcell, Mus musculus, C57BL/6 background, mixed genders, 7–12 weeks old) and inducible endothelial cell specific (BMAL1^ΔECMus musculus, C57BL/6 background, mixed sexes, 5–12 weeks old) Bmal1-deficient mice: Bmal1^flox/flox, Cd4^Cre (both purchased from Jackson labs), Cdh5^CreERT2 (gift from Dr. Ralf Adams, Max-Planck-Institute for Molecular Biomedicine Münster, Germany). Primer sequences are provided in Supplementary Table 2. Mice were housed under a 12 h:12 h light:dark schedule, with temperature maintained between 20–22 °C and a humidity level around 50%. Mice had access to food and water ad libitum. Prior to experiments, recombination was induced in the BMAL1^ΔEC line via intraperitoneal injection of tamoxifen on 5 consecutive days. Where multiple time points were investigated simultaneously, light-tight cabinets (Tecniplast) were used to shift animals to the respective phase a minimum of 1 day/1 h shift prior to the experiments. Treatment times correspond to Zeitgeber time (ZT) and indicate timing relative to lights on in the animal facility such that ZT1 is 1 h after lights on (morning), ZT7 is 7 h after lights on (day time), ZT13 is 1 h after lights off (evening) and ZT19 is 7 h after lights off (night time).

Commercial reagents and kits, as well as antibodies used in this study are listed in Supplementary Tables and, respectively. 3 4

Bone marrow-derived dendritic cells (BMDCs) were cultured as previously described²⁶, with complete culture media (RPMI, 10% FCS, 2 mM L-glutamine, 1% penicillin & streptomycin, 50 µM β-mercaptoethanol) supplemented with 20 ng/ml recombinant mouse GM-CSF. At day 10, all non- and semi-adherent cells were transferred to a 6 cm dish in complete media with 10 ng/ml GM-CSF and stimulated with 100 ng/ml lipopolysaccharide (LPS) for 24 h. Following stimulation, cells were counted, adjusted to a concentration of 10 × 10⁶ cells/ml in PBS, and stained with a final concentration of 3 µM CFSE at 37 °C for 20 min with gentle agitation. Following staining, cells were washed twice with complete media and resuspended at 50 × 10⁶ cells/ml in PBS. Mice were anesthetized by isoflurane inhalation and 20 µl (1 × 10⁶ cells) of this solution was injected subcutaneously into the hock of each mouse. For the dose-response experiments, the cell solution was diluted with PBS to maintain the same injection volume.

Fluorescein isothiocyanate (FITC) powder was weighed and diluted to a concentration of 8 mg/ml in a 1:1 mixture of dibutyl phthalate and acetone. The mixture was thoroughly vortexed prior to use. Mice were anesthetized by isoflurane inhalation and 25 µl of this solution was applied to the ear skin.

Samples were collected at the indicated time points following stimulation. In order to obtain single-cell suspensions, organs were first finely minced with scissors and incubated in 1 ml digestion mix (PBS with Ca²⁺ and Mg²⁺, 1 mg/ml collagenase IV, and 0.2 mg/ml DNase I) for 30 min at 37 °C under constant agitation. For analysis of germinal centers following vaccination, digestion was unnecessary, and this step was omitted. Samples were processed through 70 µm cell strainers (Corning) with an excess volume of PEB (PBS with 1% BSA and 2 mM EDTA) and centrifuged at 300 g for 5 min. For spleen samples, cell pellets were resuspended in 5 ml RBC lysis buffer (155 mM NH₄Cl, 0.1 mM KHCO₃, 0.1 mM EDTA in ddH₂O) and incubated for 5 min at room temperature. 5 ml PEB was added to stop the lysis reaction and samples were centrifuged again. Cell pellets were resuspended in PEB prior to staining. Spleen samples were counted and 2 × 10⁶ cells were taken for staining to ensure saturating conditions. LN samples were stained in their entirety with a small aliquot taken for counting during staining on a Coulter Counter (Z2, Beckman Coulter; Countess II, Invitrogen).

For all staining panels, an initial blocking step was performed to reduce non-specific binding. Cells were incubated with 10 µg/ml purified rat anti-mouse CD16/32 antibody in PEB at room temperature for 5–15 min. Following this incubation, an equivalent volume of 2x concentrated antibody staining mix was added directly to the cell suspension and samples were incubated for a further 30 min at 4 °C. Antibodies used for immunostaining are listed in Supplementary Table . 4

Cells were washed and resuspended in 300 µl PEB with assay-dependent viability dye (DAPI, Propidium Iodide, or DRAQ7) and characterized using a 10-color Gallios (Beckman Coulter) or 18-color BD LSR Fortessa (BD Biosciences) flow cytometer. Acquired data was analyzed using Kaluza (Beckman Coulter), FACSDiva 8 (BD Biosciences), and FlowJo 10 (TreeStar) software. Debris was excluded based on forward and side scatter profiles, and viability dye was used to remove dead cells. Fluorescence minus one (FMO) controls were used to define gate positions. Differential cell counts were obtained by multiplying total counts (Coulter Counter Z2, Beckman Coulter; Countess II, Invitrogen) by the gated frequencies, or by using CountBright Absolute Counting Beads during acquisition.

Samples were collected at the indicated time points and immediately frozen on dry ice and stored at −80 °C. Tissues were homogenized in Trizol using a Precellys 24 (Bertin) bead mill homogeniser and CK14 tubes (Bertin). Lysed and homogenized samples were then processed for RNA extraction using a Direct-zol RNA MiniPrep kit according to manufacturer's instructions. RNA quantity and quality were analyzed by Nanodrop 2000 (ThermoFisher) and 200 ng was taken for cDNA synthesis. Reverse transcription was performed with High-Capacity RNA-to-cDNA Kit and resulting cDNA was diluted to 1 ng/µl. Q-PCR analyses were performed using PowerUp SYBR Green (Applied Biosystems): primer sequences are provided in Supplementary Table 2. Quantification of transcript was performed with StepOne v2.3 software using the 2^-ΔΔCt method using Rpl32 as an internal reference gene.

To block homing of blood leukocytes, integrin-blocking antibodies (anti-mouse CD49d, and anti-mouse CD11a, Supplementary Table ) were injected i.p. at a concentration of 100 µg/mouse 6 h prior to BMDC injection. To block ICAM-1, anti-mouse ICAM-1 was injected i.p. at a concentration of 100 µg/mouse at the time of FITC treatment. To block TNF, anti-mouse TNF was injected i.p. at a concentration of 100 or 500 µg/mouse at the time of FITC treatment. For isotype control, we combined Rat IgG2b isotype and anti-horseradish peroxidase at a concentration of 50 µg/mouse each and injected i.p. together at the time of FITC application. 4

LNs were collected 24 h after BMDC injection, embedded in cryomolds using OCT Compound, and stored at −80 °C. 10 µm sections were cut using a cryostat (Leica), with slices collected onto poly-l-lysine coated glass slides. Sections were encircled with a hydrophobic pen prior to staining, and fixed with ice-cold methanol for 10 min. Slides were then washed with PBS, and incubated in blocking solution (PBS with 0.5% Triton X-100 and 20% normal goat serum) for 1 h at room temperature. Following the blocking step, slides were washed and a fluorescent antibody mix was applied. For analysis of BMDC migration, 2 µg/ml anti-mouse CD31-APC and DAPI, diluted in blocking buffer, were used as counterstains. For analysis of ICAM-1 expression, anti-mouse CD31-APC and anti-mouse ICAM-1-PE or its corresponding Rat IgG2b,κ isotype control, diluted in blocking buffer, were used as counterstains. Slides were incubated overnight at 4 °C in the dark, and then washed in PBS prior to imaging. Images were acquired using an Axio Examiner.Z1 spinning disk confocal microscope (Zeiss) equipped with 405, 488, 561, and 640 nm laser sources and a 20× objective using Slidebook 6 software (Intelligent Imaging Innovations). Cell quantification was performed using ImageJ (version 1.51n, FIJI). Migration velocity and Euclidean distance were analyzed offline using ImageJ software (NIH, USA) and the tracking plugin TrackMate. Single-cell migration tracks were generated using chemotaxis and migration software provided by Ibidi (Germany).

For each experiment, donors and recipients were maintained in the same circadian phase. Donor mouse spleens were harvested 6 h prior to imaging time (i.e., ZT1 for the ZT7 imaging experiments and ZT13 for the ZT19 imaging experiments, to provide an experimental setup in the most physiological context, i.e., timing in the T cell and the lymph node) and homogenized by passing through a 40 µm cell strainer (Corning). After flushing with PEB (PBS supplemented with 1% bovine serum albumin and 2 mM EDTA), the sample was centrifuged at 300 × g for 5 min. The pellet was resuspended in 1 ml PEB and CD4⁺ T cells were isolated by negative selection using the EasySep^TM Mouse CD4⁺ T Cell Isolation Kit according to the manufacturer´s instructions. Purity was determined by flow cytometry. Following isolation, cells were stained with Cell Tracker Deep Red at a final concentration of 1 µM in 2 ml PEB. Cells were incubated for 20 min at 37 °C in darkness with shaking every 5 min. To remove excess dye, cells were washed three times using 5 ml PEB and finally resuspended in 400 µl PBS. Cells were counted with a ProCyte IDEXX Haematology Analyzer and 200 µl containing 4–5 × 10⁶ labeled CD4⁺ T cells were injected intravenously into the recipient mouse 4 h prior to imaging time.

Shortly before the desired imaging time, the recipient mouse was anesthetized by a i.p. injection of Ketamine and Xylazine. Hair on the back of the hindlegs was removed and the animal was transferred to an imaging stage in the prone position. After a skin incision above the knee, connective and fat tissue were moved apart to expose the popliteal LN below. Using sharp forceps, a small hole was created beneath the LN and filled with wet tissue pieces to lift the LN out of the surrounding tissue. The area was kept moist by draping wet tissues around the skin incision. A cover glass (Corning) was placed on top of the exposed LN and fixed in the imaging stage. Multi-photon microscopy was performed at the core facility bioimaging of the Biomedical Center of the LMU Munich with a Leica SP8 MP microscope (Leica Application Suite), equipped with a pulsed InSight DS + laser. Excitation of Cell Tracker Deep Red was performed at 1050 nm. Emission was filtered through a main beam splitter at 560 nm, followed by a 488 LPXR beamsplitter or RSP 620 filter. The bandpass filters used for detection were FITC: 525/50, CellTracker Deep Red: 650/50. Images were acquired using a 20x objective with a 1.0 NA, image pixel size was 200 nm and images were recorded with external, non-descanned hybrid photo detectors (HyDs). As a reference, the Second Harmonic Generation signal of the LN capsule was used. 104 µm z-stacks were recorded with a step size of 4 µm, for a duration of 10 min.

96-well plates were coated with 2 µg/ml anti-CD3 antibody in PBS (or PBS alone as control) and incubated overnight at 4 °C. Mouse spleen and LNs (pooled from inguinal, axillary, and brachial LNs) were harvested at the indicated time points and passed through a 40 µm cell strainer to obtain single-cell suspensions. Purified T cell populations (CD4⁺ or CD8⁺) were generated using EasySep^TM Mouse T Cell Isolation kits according to the manufacturer's instructions. The unbound fraction of each isolation was adjusted to 2 × 10⁶ cells/ml in PBS and stained with an equal volume of Cell Trace Violet at a final concentration of 5 µM. Cells were stained for 15 min at 37 °C in darkness with shaking every 5 min. Following staining, 10 ml of complete medium was added and cells incubated for a further 5 min to absorb any unbound dye. Cells were then centrifuged for 5 min at 300 × g, washed with complete medium (RPMI, 10% FCS, 2 mM L-glutamine, 1% penicillin & streptomycin, 50 µM β-mercaptoethanol), and resuspended at 5 × 10⁵ cells/ml in complete medium. Plate wells were then washed with PBS to remove unbound anti-CD3, and 100 µl cell suspension added. Control wells were topped up with an additional 100 µl media, and stimulated wells were given 100 µl anti-CD28 antibody diluted to 4 µg/ml in media. Plates were incubated at 37 °C with 5% CO₂ for 2.5 days to divide prior to analysis.

For flow cytometry analysis, cells were transferred to V-bottom plate and washed with PEB (PBS with 1% BSA and 2 mM EDTA). All antibodies were diluted in PEB. Non-specific binding was blocked with 10 µg/ml anti-CD16/32 for 10 min at room temperature. An equivalent volume of 2x staining mix was added, containing anti-mouse CD25-AlexaFluor488, anti-mouse CD4-APC, anti-mouse CD8-APC/Cy7, and anti-mouse-B220-PE/Cy7, and cells were incubated at 4 °C for 30 min. Wells were washed twice with PEB and cells were resuspended in 200 µl PEB + 100 µl Propidium Iodide viability dye (5 µg/ml)and analyzed on a Gallios 10-channel flow cytometer (Beckman Coulter).

Samples were collected at the indicated time points and immediately transferred into Milenyi gentleMACS M tubes (Miltenyi Biotec) filled with 500 μl of T-PER medium and supplemented with protease inhibitors. Samples were homogenized using the gentleMACS Octo Dissociator (Miltenyi Biotec) and immediately stored on ice. Proteins were quantified using the Pierce BCA Protein Assay Kit at 1:2 and 1:5 dilutions, according to the manufacturer's instructions.

Mouse LNs (pooled from inguinal, axillary, and brachial LNs) were harvested at the indicated time points and passed through a 40 µm cell strainer to obtain single-cell suspensions. Purified T cell populations (CD4⁺) were generated using the EasySep Mouse CD4⁺ T Cell Isolation kit according to the manufacturer's instructions.

Samples were subjected to in-solution digestion and purified through C18 STAGE-tip (EmporeTM, IVA-Analysentechnik, Meerbusch, Germany)^27,28. LC-MS/MS was performed on a Q Exactive HF quadrupole orbitrap mass spectrometer coupled to a nanoflow UHPLC instrument (Easy nLC; Thermo Fisher Scientific, Waltham, MA, USA). Eluted peptides were separated over a gradient for 3 h on a 50 cm C18 column.

The mass spectra obtained were processed using the MaxQuant computational platform (v. 1.5.6.2i)^29,30 and Perseus analysis software (v. 1.5.5.5)³¹. Spectra were searched against the Mus musculus Uniprot sequence databases (Aug. 2017; 53,219 sequences) using the Andromeda search engine³². Quantification was performed by using the label-free quantification (LFQ) algorithm³³ and match between runs was selected.

Protein quantities were log₂ transformed and samples were filtered for replicate reproducibility. Rows were filtered based on valid values of 3 in at least one group, and an imputation step performed to replace missing values from a normal distribution. Statistical analysis was performed using an unpaired two-sided Student's t-test to compare differentially expressed proteins between collection times, with P < 0.05 at a false discovery rate of 0.05 and background variance parameter S0 = 1. Student's t-test differences were used in a GO 1D annotation enrichment with an FDR cut-off of 0.01 to assess global de-/enrichment towards biological processes (GOBP) categories. A principal component analysis was performed on log₂ transformed LFQ intensities with an FDR cut-off of 0.05.

Samples were collected 6 h following FITC administration to the ear. Draining LNs were snap-frozen on dry ice and stored at −80 °C prior to processing. Tissue was Dounce homogenized in 1 ml of Homogenization buffer (10 mM Hepes-KOH, 10 mM KCl, 5 mM MgCl₂, 0.5 mM DTT, 1x complete TM Protease Inhibitor). The homogenate was fixed in 1% formaldehyde in PBS. Nuclei were isolated and chromatin suspensions were obtained through sonication (Diagenode Bioruptor) to obtain fragments of 0.2–0.8 kb in size. Immunoprecipitation was performed with anti-mouse/human BMAL1 antibody or control IgG. DNA concentration was determined by using a QUBIT dsDNA HS kit (Thermo Fisher Scientific). Real-time ChIP–quantitative PCR was performed by use of SYBR Green Master Mix (Roche) in LightCycler 480 II (Roche). Occupancy of BMAL1 at the Icam1 promoter region was quantified by qPCR targeting regions identified as containing E-boxes using the SCOPE motif finder (sequences are provided in Supplementary Table 2). Relative enrichment was determined as the fold change between BMAL1 and control antibody samples.

Commercial hepatitis A vaccine (HAVRIX, GlaxoSmithKline) was obtained via the clinic at the University Hospitals of Geneva (HUG). Mice were anesthetized with isoflurane inhalation and 50 µl of the proprietary vaccine formula was injected into the thigh muscle. As an adjuvant control, 50 µl of Alhydrogel adjuvant 2% diluted 1:20 in PBS was given to provide the equivalent alum content.

A SARS-CoV-2 vaccine was formulated in house using recombinant spike receptor binding domain (RBD) protein (aa319–591, kindly provided by the protein production core facility of the Ecole Polytechnique Fédérale de Lausanne (EPFL)) adsorbed to Alhydrogel adjuvant 2% to generate an emulsion with a concentration of 200 µg/ml. Mice were anesthetized with isoflurane inhalation and 50 µl of the vaccine formulation was injected into the thigh muscle.

28 days following vaccination, mice were euthanised and blood was collected from the vena cava. Blood samples were allowed to clot for 30 min at room temperature, then centrifuged at 10,000 × g for 10 min. Serum supernatant was aliquoted and frozen at −80 °C prior to analysis.

Spleens were harvested on day 28 after vaccination. Samples were processed through 70 µm cell strainers (Corning) with an excess volume of PEB (PBS with 1% BSA and 2 mM EDTA) and centrifuged at 300 × g for 5 min. Cell pellets were resuspended in 5 ml RBC lysis buffer (155 mM NH₄Cl, 0.1 mM KHCO₃, 0.1 mM EDTA in ddH₂O) and incubated for 5 min at room temperature. 5 ml PEB was then added to quench the lysis reaction and samples centrifuged again.

Splenocytes were plated at 1 × 10⁶ cells/well in a round-bottom 96-well plate in RPMI (supplemented with 10% FCS, 1% Pen/Strep, 1 mM sodium pyruvate, 50 µM β-mercaptoethanol and 20 U/ml IL-2). Cells were cultured for 72 h with the vaccine antigen (HAV antigen or recombinant spike RBD protein (aa319–591)), 1 µg/ml in 200 µl total volume. GolgiPlug™ (1:1000) was added for the final 4 h of incubation.

Following stimulation, cells were washed and processed for flow cytometry staining. Cells were resuspended in fixable viability dye in PBS for 15 min at room temperature, followed by membrane staining for 15 min at 4 °C. Cells were washed and fixed/permeabilised for 15 min at room temperature (Foxp3/Transcription Factor Staining Buffer Set). Intracellular staining was performed for 45 min at room temperature. Cells were washed and resuspended in 300 µl PEB and analyzed using an 18-color BD LSR Fortessa (BD Biosciences) flow cytometer. Acquired data was analyzed using FACSDiva 8 (BD Biosciences) and FlowJo 10 (TreeStar) software.

An ELISA to detect mouse anti-HAV IgG was established in house using HAV antigen. Briefly, 96-well plates were coated with 5 µg/ml HAV antigen and incubated overnight at 4 °C. Wells were then washed with PBS-Tween 0.05% and incubated with blocking solution (PBS-Tween 0.05% with 1% BSA) for 1 h at 37 °C. Wells were then washed and 50 µl sample or standard added to the relevant wells. Samples were assayed individually at 8 concentrations (serial 1:2 dilutions in blocking solution starting from 1:100) to ensure a readout within the assay range. A pooled sample of sera from vaccinated mice served as standard and inter-plate calibrator. Following incubation for 90 min at 37 °C, wells were washed and 50 µl HRP-conjugated goat anti-mouse IgG detection antibody applied (1:1000 in blocking buffer). The plates were incubated for 1 h at 37 °C, washed, and detection substrate solution added (1 mg/ml ABTS in 30 mM citric acid, 44 mM Na₂HPO₄.12H₂O, and 0.0001% H₂O₂). Following a 1 h incubation, the absorbance at 405 nm measured using a SpectraMax Plus plate reader and SoftMax Pro software (Molecular Devices).

All mathematical models used to analyze the data and predict varying dynamics, as well as the parameter estimation methods, are explained in detail in the corresponding Supplementary Figs. 3–4, 7 and Supplementary Note 1. The mathematical model determining the rhythmic homing dynamics of T cells (ID1) was based on a previous model⁷. Homing of DC to LNs was determined using a mathematical model describing the dynamics observed within the crawl-In assays provided by Holtkamp et al.¹⁸ (ID2). Furthermore, measurements on the division index (Fig. 3c) were used to determine the oscillating dynamics of T cell proliferation (ID3). All individual components were combined within a final model explaining individual cell interactions and influence of rhythmicity on the dynamics (ID4). Models (ID1-ID3) were fitted to the data using a Maximum-Likelihood approach with parameter estimates obtained by profile likelihood analyses³⁴. All individual parameters, especially those defining the phase-shift of the rhythmic components, were identifiable. Analyses were performed in R relying on the packages deSolve and ProfileIroning (https://github.com/GabelHub/ProfileIroning↗).

Statistical analyses were generally performed using GraphPad Prism v9 unless otherwise specified. Analyses were performed by two-way ANOVA, one-way ANOVA or Student's t-test with *P < 0.05, **P < 0.01, ***P < 0.001, and ****P < 0.0001. Data are plotted as mean ± standard error of mean (SEM).

Exact n values and number of independent experiments performed for each experiment are provided below:

Figure 1: (a) Every group is composed of n = 3 mice from 5 independent experiments. (b) For lymph nodes collected: 12 h post-treatment, n = 3 mice for all ZTs; 24 h post-treatment, n = 5 mice for ZT1, ZT17, and ZT13 and n = 3 mice for ZT19; 48 h post-treatment, n = 5 mice for ZT1, n = 9 mice for ZT7 and ZT13 and n = 6 mice for ZT19; data collected from 5 independent experiments. (c) For lymph nodes collected after injection of: 10² and 10³ BMDCs, n = 3 mice for both ZTs; 10⁴ BMDCs, n = 2 mice for both ZTs; 10⁵ BMDCs, n = 2 mice for ZT7 and n = 3 mice for ZT19. (d) For lymph nodes collected: 12h post-injection, n = 3 mice for both ZTs; 24 h post-injection, n = 10 mice for ZT7 and n = 8 mice for ZT19; 48 h post-injection, n = 14 mice for ZT7 and n = 10 mice for ZT19; data collected from 5 independent experiments. (e) Every group is composed of n = 8 mice. (f) For unstimulated lymph nodes, n = 736 tracks at ZT7 and n = 777 tracks at ZT19; while for FITC-stimulated lymph nodes, n = 512 tracks at ZT7 and n = 186 tracks at ZT19. (g) For unstimulated lymph nodes, n = 698 tracks at ZT7 and n = 689 tracks at ZT19; while for FITC-stimulated lymph nodes, n = 436 tracks at ZT7 and n = 173 tracks at ZT19. (j) Every group is composed of n = 9 mice from 3 independent experiments.

Figure 2: (a) For lymph nodes collected at ZT7 from mice that did not receive integrin-blocking treatment (control), n = 4 mice; while for all the other lymph nodes collected, n = 5 mice. (b) For lymph nodes collected from mice that did not receive integrin-blocking treatment (control), n = 3 mice at ZT7 and n = 2 mice at ZT19; for mice that received the integrin-blocking treatment n = 3 mice for both ZTs. (c) Every group is composed of n = 3 mice. (d) Every group is composed of n = 3 mice. (e) Every group is composed of n = 5 mice. (f) For lymph nodes collected from WT mice, n = 3 mice for ZT7, and n = 4 mice for ZT19; for lymph nodes collected from endothelial cell-specific Bmal1^−/− mice (BMAL1^ΔEC), n = 3 mice for both ZTs. (g) Every group is composed of n = 3 mice. (h) Every group is composed of n = 3 mice; data collected from 2 independent experiments. (i) Every group is composed of n = 5 mice. (j) For lymph nodes harvested from mice that received the isotype control antibody, n = 13 mice for ZT7, and n = 8 mice for ZT19; for lymph nodes harvested from mice that received the anti-TNF antibody, n = 10 mice for ZT7, and n = 9 mice for ZT19; data collected from 2 independent experiments.

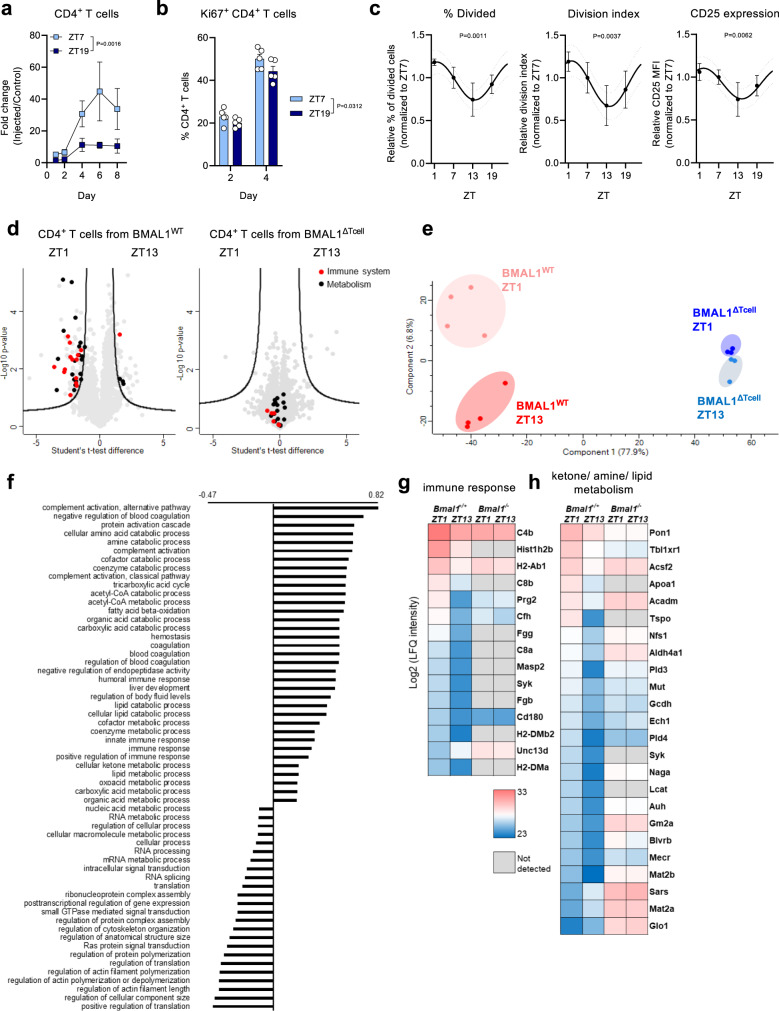

Figure 3: (a) Every group is composed of n = 5 mice. (b) Every group is composed of n = 5 mice. (c) For lymph nodes collected at ZT1, n = 3 mice; at ZT7, n = 6 mice; at ZT13, n = 6 mice; and at ZT19, n = 3 mice; data collected from 2 independent experiments. (d) For lymph nodes collected from WT animals, n = 4 mice for both ZTs; for lymph nodes collected from T cell-specific Bmal1^−/− mice (BMAL1^ΔTcell), n = 3 mice for both ZTs.

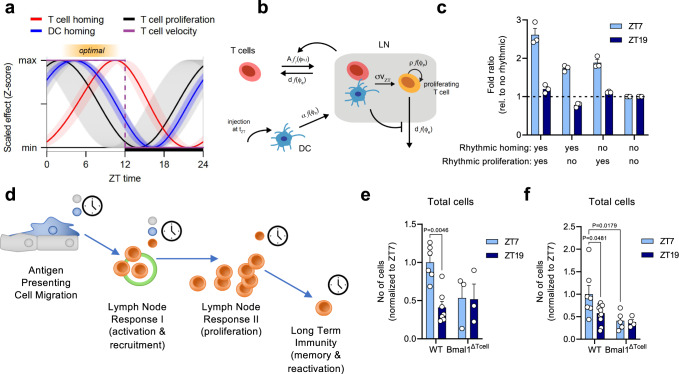

Figure 4: (c) Every group is composed of n = 3 mice. (e) For lymph nodes collected from WT animals, n = 6 mice for ZT7, and n = 7 mice for ZT19; for lymph nodes collected from T cell-specific Bmal1^−/− mice (BMAL1^ΔTcell), n = 3 mice for both ZTs; data collected from 3 independent experiments. (f) For lymph nodes collected from WT animals, n = 7 mice for ZT7, and n = 11 mice for ZT19; for lymph nodes collected from T cell-specific Bmal1^−/− mice (BMAL1^ΔTcell), n = 5 mice for ZT7, and n = 4 mice for ZT19; data collected from 2 independent experiments.

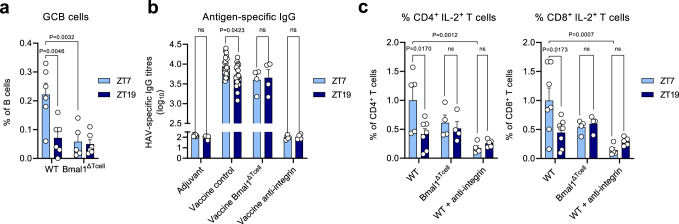

Figure 5: (a) For lymph nodes collected from WT animals, n = 6 mice for both ZTs; for lymph nodes collected from T cell-specific Bmal1^−/− mice (BMAL1^ΔTcell), n = 5 mice for ZT7, and n = 6 mice for ZT19; data collected from 2 independent experiments. (b) For WT mice vaccinated with adjuvants only, n = 6 mice for both ZTs; for WT mice vaccinated with the commercial HAVRIX vaccine, n = 22 mice for ZT7, and n = 20 mice for ZT19; for T cell-specific Bmal1^−/− mice (BMAL1^ΔTcell) vaccinated with the commercial HAVRIX vaccine, n = 4 mice for both ZTs; for WT mice vaccinated with the commercial HAVRIX vaccine and anti-integrin blocking antibodies, n = 5 mice for ZT7, and n = 4 mice for ZT19; data collected from 4 independent experiments. (c) For WT mice vaccinated with the commercial HAVRIX vaccine, n = 5 mice for ZT7, and n = 7 mice for ZT19; for T cell-specific Bmal1^−/− mice (BMAL1^ΔTcell) vaccinated with the commercial HAVRIX vaccine, n = 4 mice for both ZTs; for WT mice vaccinated with the commercial HAVRIX vaccine and anti-integrin blocking antibodies, n = 5 mice for both ZTs; data collected from 2 independent experiments.

Further information on research design is available in the linked to this article. Nature Portfolio Reporting Summary

Supplementary Info Reporting Summary
