What this is
- This research presents a new method for detecting Getah virus (GETV) using a combination of reverse transcription- (RT-) and technology.
- The method integrates a () for visual readout, allowing for rapid and sensitive detection.
- It addresses limitations of existing detection methods by being equipment-free and operationally simple, making it suitable for field use.
Essence
- A novel GETV detection method combines RT- and with , achieving high sensitivity and specificity while enabling rapid results in under 50 minutes.
Key takeaways
- The RT--- method detects GETV with a limit of detection of 10 copies/µL. This sensitivity is crucial for early identification of the virus during outbreaks.
- Validation with simulated clinical samples showed 100% concordance with RT-qPCR results, confirming the accuracy of the new detection method.
- The entire detection process takes 50 minutes, significantly reducing the time compared to traditional methods, thus facilitating timely responses to GETV outbreaks.
Caveats
- Clinical sample validation relied on simulated positive samples, which may not fully represent real-world conditions. Further testing with actual infected samples is needed.
- The method currently requires nucleic acid extraction from samples, which could limit its immediate applicability in field settings without further simplification.
Definitions
- CRISPR/Cas12a: A gene-editing tool that can be programmed to target specific DNA sequences, enabling precise detection of pathogens.
- Lateral Flow Dipstick (LFD): A simple diagnostic test that provides results visually, often used for rapid detection of pathogens.
- Recombinase Polymerase Amplification (RPA): A nucleic acid amplification technique that operates at a constant temperature, allowing rapid detection of pathogens without complex equipment.
AI simplified
Introduction
Getah virus (GETV), a mosquito-borne alphavirus belonging to the family , was first identified in mosquitoes in Malaysia in 1955 (). GETV primarily infects livestock, particularly pigs and horses, causing reproductive disorders in swine, high mortality in newborn piglets, and fever and hindlimb edema in horses (;). In recent years, GETV has re-emerged in multiple Asian countries, with frequent outbreaks reported in Chinese swine populations. The transmission of GETV is closely linked to mosquito activity, particularly during warm seasons when mosquito breeding and activity intensify, facilitating viral spread (). Furthermore, GETV infections have been detected in cattle, blue foxes, red pandas, and other animals (;;), and GETV-specific antibodies have been identified in human sera, suggesting a potential public health threat (). Togaviridae Culex gelidus [Nemoto et al., 2015] [Lu et al., 2019] [Yang et al., 2018] [Sam et al., 2022] [Shi et al., 2019] [Liu et al., 2019] [Zhao et al., 2022] [Li, Wang & Liang, 2022]
The GETV genome is a single-stranded positive-sense RNA of approximately 11.5 kb length. It encodes nine viral proteins, including four nonstructural proteins (nsP1–4) and five structural proteins (E1, E2, E3, 6K, and C). Among these,developed an enzyme-linked immunosorbent assay (ELISA) targeting the E2 protein of GETV, demonstrating its utility as a diagnostic antigen for the specific and sensitive detection of GETV antibodies in serological samples. Therefore, the E2 protein serves as a valuable diagnostic antigen for developing specific and sensitive detection assays. [Sun et al. (2022)]
Recombinase polymerase amplification (RPA), which does not require a complex thermal cycler but can be performed at a constant temperature using a simple water bath or heating block, has been shown to be a rapid, specific, sensitive and cost-effective technique for pathogen detection. The entire reaction can be completed in a short period of time (20 min) at a constant temperature (preferably 37 °C−42 °C), which makes RPA a promising field detection method (). Also, RPA has been used to detect a wide range of pathogens such as bacteria, parasites and viruses (;;). [Tan et al., 2022] [Zhang et al., 2024] [Bian et al., 2022] [Mei et al., 2023]
Clustered regularly interspaced short palindromic repeats (CRISPR) and CRISPR-associated (Cas) systems, which were first identified in the 1980s as a prokaryotic adaptive immune mechanism (), have evolved into revolutionary tools for gene editing and molecular diagnostics (;). CRISPR-based immunity utilizes programmable RNA components cursor CRISPR RNA (crRNA) that spatially orient Cas nucleases for site-specific cleavage of exogenous nucleic acid targets, particularly those derived from viral pathogens or bacteriophage infections. These systems can be classified into two categories: Class 1 systems require multisubunit Cas complexes, whereas Class 2 systems (, Cas12, Cas13, and Cas14) utilize a single effector protein for target recognition and cleavage (;). Notably, Cas12a (Cpf1), upon crRNA-guided recognition of a protospacer adjacent motif in double-stranded DNA (dsDNA), exhibits both cis-cleavage of the target dsDNA and trans-cleavage activity to nonspecifically degrade single-stranded DNA (ssDNA) (;). Similarly, Cas13a—an RNA-targeting RNase—triggers the trans-cleavage of ssRNA upon binding to its target RNA (). Leveraging these properties, the CRISPR/Cas systems have been widely applied for pathogen detection. For instance, the Specific High-sensitivity Enzymatic Reporter unLOCKing (SHERLOCK) platform employs Cas13a to detect HBV, ZIKV, and SARS-CoV-2 (;), whereas the Cas12a-based systems are preferred for DNA virus detection owing to their direct targeting of DNA without requiring any transcription. A recent study integrated Cas13a with lateral flow dipsticks (LFDs) to establish rapid, highly sensitive, and user-friendly diagnostic methods for the H5-subtype highly pathogenic avian influenza virus (HPAIV) (). This approach combines CRISPR/Cas13a-mediated RNA recognition and signal amplification with LFD-based visual readouts. [Cong et al., 2013] [Doudna & Charpentier, 2014] [Samanta et al., 2022] [Jinek et al., 2012] [Makarova et al., 2015] [Collias & Beisel, 2021] [Chen et al., 2018] [Gootenberg et al., 2017] [Myhrvold et al., 2018] [Joung et al., 2020] [Li et al., 2023] e.g.
In this study, we developed a rapid, ultrasensitive GETV detection assay by integrating reverse transcription-recombinase polymerase amplification (RT-RPA), CRISPR/Cas12a, and LFD, targeting the conserved E2 gene. The employed method demonstrated high specificity and sensitivity, which was validated using simulated clinical samples. By eliminating the need for complex instrumentation, this approach significantly reduces costs while enhancing detection efficiency through RT-RPA-CRISPR synergy. The developed methodology establishes a rapid-response diagnostic framework for GETV surveillance, thereby delivering operational capabilities essential for coordinated veterinary–epidemiological containment strategies during emerging outbreaks.
Materials & Methods
Viruses and clinical samples
Getah virus (GETV), Japanese encephalitis virus (JEV), pseudorabies virus (PRV), porcine circovirus (PCV), and classical swine fever virus (CSFV) sera were provided by the Military Veterinary Research Institute, Academy of Military Medical Sciences (Changchun, China). For clinical validation, 30 porcine serum samples were collected from a swine farm affiliated with the Jinzhou Medical University in Liaoning Province (Experimental Animal Ethics Committee of Jinzhou Medical University Approval no. 2024176-5.
Design of primers, crRNAs, and ssDNA reporters
The E2 protein gene sequences of GETV (NCBI Gene IDs:,,,,,, and) were aligned using MEGA 6.06, selecting the conserved region of GETV () E2 protein from 179 bp–479 bp as the target gene to design two crRNAs, each paired with two primers. Two types of ssDNA reporters were synthesized: a fluorescence reporter (5′-FAM-TTATT-BHQ1-3′) for CRISPR-Cas12a-based fluorescence detection and an LFD reporter (5′-FAM-TTTTTTATTTTTT-Biotin-3′) for LFD-based visualization. The reverse transcription qualitative polymerase chain reaction (RT-qPCR) primers used to simulate the clinical assay were based on the GETV RT-qPCR assay established by. All primers, crRNAs, and ssDNA reporters () were synthesized by Sangon Biotech (Shanghai, China). EU015063 EF631998 EU015061 EU015062 KY434327 KY450683 MG869691 EU015063 [Cao et al. (2022)] Table 1
| Name | Sequence (5′–3′) |
|---|---|
| GETV-PCR-F | GAACACACGAACACAACAAAATCAGGTACAT |
| GETV-PCR-R | GTAGTCAGCTGGTACGTTGTGCATGGCACTT |
| crRNA A | UAAUUUCUACUAAGUGUAGAUUACUGCACUUU GCAGGCCUGG |
| crRNA B | UAAUUUCUACUAAGUGUAGAUUCUGCCUAC UGGUGCCGGUGC |
| GETV-RPA-F1 | TTCGATACCGAAGTGGGGCCTGACGGTGAA |
| GETV-RPA-F2 | CATGGCACTTCGATACCGAAGTGGGGCCTG |
| GETV-RPA-R A1 | AACTAAAGGTCCAGTTCCAAGATGCAGAAT |
| GETV-RPA-R A2 | GGGGACGAACTAAAGGTCCAGTTCCAAGAT |
| GETV-RPA-R B1 | CACACCCAGGCCTGCAAAGTGCAGTACAAA |
| GETV-RPA-R B2 | ATGCAGAATCGCACACCCAGGCCTGCAAAG |
| DWV-FBD-ssDNA reporter | FAM-TTATT- BHQ |
| DWV-LFD-ssDNA reporter | FAM-TTTTTTATTTTTT-Biotin |
| GETV-RT-qPCR-F | AGCATTTTCGCATCTGGCTAC |
| GETV-RT-qPCR-R | TCTGGGTCTTCCGCACTTTT |
Construction of standard plasmid
First, extract RNA from the serum containing GETV using the TIANamp Virus DNA/RNA Kit (Tiangen, Beijing, China), and reverse transcribe the RNA into cDNA to use the cDNA of GETV as a template for PCR amplification. The polymerase chain reaction (PCR) system was 50 µL (50 µL reaction mixture: 25 µL 2 × Taq Mix (Seven Biotech), two µL GETV-PCR upstream and downstream primers (10 µM) (), two µL template, 21 µL ddH2O) under the following conditions: 94 °C for 2 min; 35 cycles of 94 °C (45 s), 56 °C (45 s), 72 °C (45 s) and final extension at 72 °C for 10 min. The PCR products were verified1.2% agarose gel electrophoresis, purified using the SanPrep DNA Gel Extraction Kit (Sangon Biotech), and cloned into the pEASY-T1 vector (TransGen Biotech, Beijing, China). Recombinant plasmids were transformed into DH5α-competent cells, single white colonies were screened after overnight incubation using solid medium containing kanamycin sulphate, and the white colonies were selected and plasmids were extracted using the Plasmid Extraction Kit (Tiangen Biochemical Technology Co., Ltd.). The extracted standard plasmids were sequenced and verified by Sangon Biotech. The plasmid concentration was measured by a micro UV-Vis spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA), and the copy number per unit volume of plasmid was calculated by formula and stored at −20 °C: Table 1 via
Plasmid copy number (copies/µL)=[plasmid concentation (g/µL)×10-9 ×6.02 ×1023]/
{[Vector length (bp) + fragment length (bp)]×660/gmol}.
Establishment of RT-RPA assay
RT-RPA reactions were performed using the commercially available RT-RPA Nucleic Acid Amplification Kit (Gendx Biotech, Suzhou, China) according to the manufacturer's specifications. In brief, 50 µL of reaction mixture contained 20 µL of rehydration buffer, 2.5 µL of each primer (10 µM), three µL of template, 20 µL of ddH2O, and two µL of the activator(magnesium acetate). A 48 µl premix of the reactants except activator was first prepared, and then the premix was transferred to a tube containing lyophilised enzyme RT-basic amplification reagent. After shaking and mixing, two µl of activator was added to the cap of the reaction tube, and the activator was briefly centrifuged into the premix. Finally, the reaction tube was incubated in a thermostat at 42 °C for 20 min. The amplified product (20 µL) was mixed with 40 µL of phenol, centrifuged, and screened for the best RT-RPA primers by 1.2% agarose gel electrophoresis.
Fluorescence-based RT-RPA-CRISPR/Cas12a detection (FBDA)
The CRISPR-Cas12a fluorescence assay (total 20 µL) included one µL of crRNA (10 µM), two µL of 10 × HOLMES buffer (TOLOBIO, Shanghai, China), 0.5 µL of LbCas12a nuclease (10 µM; TOLOBIO, Shanghai, China), one µL of ssDNA reporter (10 µM), 13 µL of nuclease-free water, and 2.5 µL of RPA product. The reaction mixture was incubated with QuantStudio1 (ABI, Natick, MA, United States) at 37.5 °C for 20 min, and the fluorescence (FAM) signal was detected every 20 s. The reaction tubes can be placed under an LED UV transmission unit (Tanon, Shanghai, China) to observe the fluorescence intensity with the naked eye after the test. Screening crRNA by FBDA
RT-RPA-CRISPR/Cas12a-LFD assay
For lateral flow detection, the CRISPR-Cas12a reaction mixture was diluted to 50-µL volume with nuclease-free water and applied to an LFD strip (Gendx Biotech, Suzhou, China) (results appear in 3 min and are valid within 10 min). The results were interpreted as follows: dual red bands (control line (C) and test line (T)) indicated positivity; a single C band indicated negativity. Strips lacking a C band were deemed invalid and retested.
Sensitivity and specificity testing
The constructed plasmids were diluted to 10–10copies/µL and then tested for sensitivity using FBDA and RT-RPA-CRISPR/Cas12a-LFD assays, respectively, and the fluorescence intensity could be observed visually by placing the reaction tubes under the LED UV projection after the FBDA assay. The specific detection method was consistent with the sensitivity detection method, but the samples selected for the specific detection were nucleic acids extracted from viral serum (GETV, JEV, PRV, PCV and CSFV), and the DNA of PRV and PCV, as well as the RNA of GETV, JEV and CSFV, were extracted using the TIANamp Viral DNA/RNA Kit (Tiangen, Beijing, China), and the RNA was reverse transcribed into cDNA. Nucleic acid concentrations were measured by a micro-UV-Vis spectrophotometer (Thermo Fisher Scientific) and the five nucleic acids were diluted to the same concentration of 50 ng/µL. All of the above assays were repeated three times to ensure the feasibility and reproducibility of the experiment. 6
Validation with simulated clinical samples
No cases of infection by GETV have been reported in Liaoning province, China. Due to the scarcity of true positive samples, this study used a simulated positive sample strategy to comparatively analyse the accuracy between RT-RPA-CRISPR/Cas12a-LFD and reverse transcription qualitative polymerase chain reaction (RT-qPCR). Six tubes of serum containing GETV were randomly and blindly mixed into 30 clinical samples to form a sample containing 36 cases. All samples were completed by independent operators with unknown grouping information. All samples were subjected to RT-qPCR according to the method offor comparison with the results of RT-RPA-CRISPR/Cas12a-LFD assay. [Cao et al. (2022)]
Results
Successful construction of an RT-RPA-CRISPR/Cas12a system for GETV detection () Fig. 1
The CRISPR-Cas12a detection architecture integrates recombinant LbCas12a nuclease, CRISPR array-optimized crRNA guides, fluorogenic ssDNA reporters, and RPA-amplified dsDNA targets. Leveraging the programmability of CRISPR/Cas12a, crRNA was designed to base-pair with the conserved E2 gene of GETV. The integration of RT-RPA with CRISPR/Cas12a enhanced the detection sensitivity. In this system, preincubated Cas12a–crRNA complexes specifically recognize and cleave target dsDNA amplifiedRT-RPA, activating the trans-cleavage activity of Cas12a to indiscriminately degrade ssDNA probes. Fluorescently quenched ssDNA probes served as reporters, and target-induced cleavage restored the fluorescence signals for quantitative detection. Additionally, an LFD assay was developed using FAM- and biotin-modified single-stranded DNA (ssDNA) reporters. In the negative samples, anti-FAM antibodies immobilized on the control (C) line captured uncleaved FAM-biotin reporters bound to gold nanoparticle-conjugated streptavidin. For the positive samples, the cleavage of reporters reduced the C-line intensity while enabling the accumulation of gold–streptavidin complexes at the test (T) line. The entire LFD readout was completed within 10 min, allowing for visual interpretation in field applications. via
Screening of the RT-RPA primers and crRNA
Optimal RT-RPA primers and crRNA were selected through agarose gel electrophoresis and RT-RPA–CRISPR/Cas12a fluorescence assays. According to the brightness of the target band and the amplification efficiency of the fluorescence amplification curve in the agarose gel electrophoresis image, the brightest band of interest in the agarose gel electrophoresis image () was selected as the best RT-RPA primer (GETV-RPA-F1 and GETV-RPA-R A1), and the group with the highest amplification efficiency of the fluorescence amplification curve () was selected as the best crRNA (crRNA A), that is, crRNA A was selected and the first pair of primers (GETV-RPA-F1 and GETV-RPA-R A1). Fig. 2A Fig. 2B

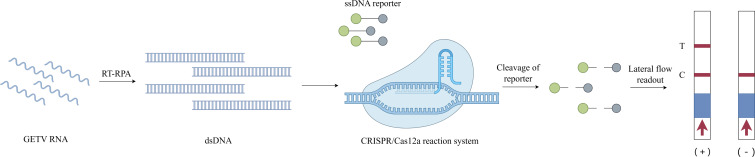

Schematic diagram of the RT-RPA-CRISPR/Cas12a-LFD workflow for GETV detection. Image credit: Figdraw.

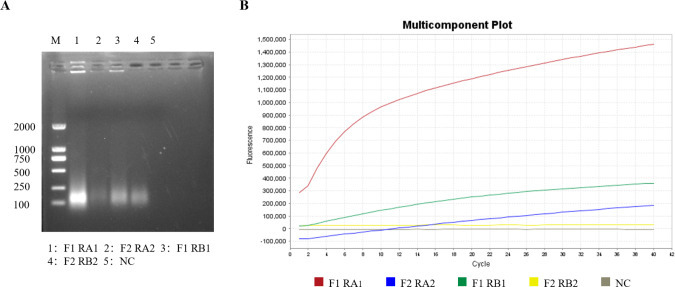

Screening of primers and crRNA for the RT-RPA-CRISPR/Cas12a-LFD system. (A) Screening of optimal primers using RT-RPA. (B) Screening of optimal crRNAs based on RT-RPA-CRISPR/Cas12a real-time fluorescence.
Sensitivity of the RT-RPA-CRISPR/Cas12a system
The sensitivity of the RT-RPA-CRISPR/Cas12a system was evaluated using serially diluted GETV standard plasmids (10–10copies/µL) and nuclease-free water as a negative control. Following RPA amplification, CRISPR/Cas12a-mediated fluorescence detection achieved a limit of detection of 10copies/µL across triplicate reactions (). Parallel testing with the LFD confirmed visible T-line signals at 10copies/µL (). Moreover, the detection sensitivity was repeated three times by LFD method, which proved the reproducibility of the experiment (), validating the system's high sensitivity. 6 1 1 Fig. 3A Fig. 3B Fig. 1S

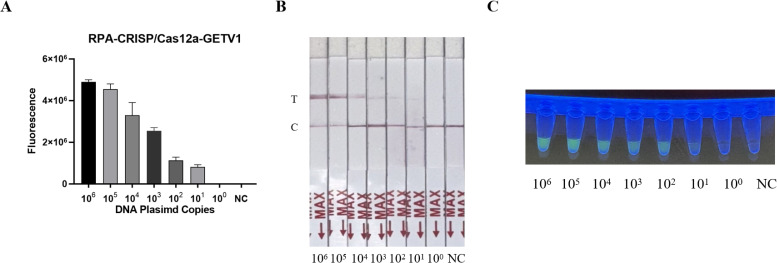

Sensitivity assessment of the RT-RPA-CRISPR/Cas12a system coupled with lateral flow detection. (A) Histogram of GETV detection limits by RT-RPA-CRISPR/Cas12a-FBDA. (B) Analytical sensitivity of RT-RPA-CRISPR/Cas12a-LFD in GETV detection. (C) Detection using a UV transilluminator allowed examination with the naked eye.
Specificity of the RT-RPA-CRISPR/Cas12a system
The specificity of the assay was validated against four common swine pathogens: JEV, PRV, PCV, and CSFV. Both the fluorescence-based and LFD assays showed no cross-reactivity (and) (), confirming the method's high specificity for GETV. Figs. 4A 4B Fig. 2S

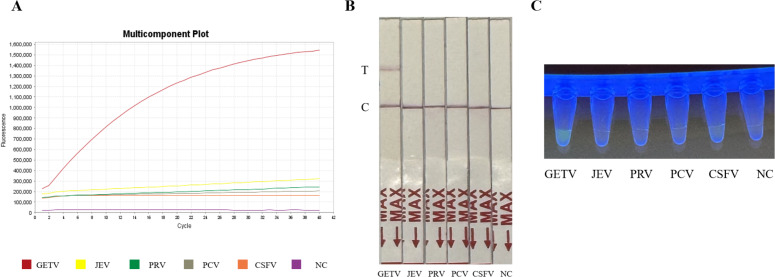

Specificity assessment of the RT-RPA-CRISPR/Cas12a assay. (A) Specificity of the GETV RT-RPA-CRISPR/Cas12a-FBDA assay. (B) Specificity of the GETV RT-RPA-CRISPR/Cas12a-LFD assay. No cross-reactivity with JEV, PRV, PCV or CSFV was observed. (C) Observation of fluorescence intensity using ultraviolet transmission illuminator test.
Detection of simulated clinical samples
To assess clinical utility, 36 simulated samples were analyzed using the RT-RPA-CRISPR/Cas12a-LFD assay and compared with RT-qPCR. Both methods identified six positive samples with 100% concordance (,). The RT-RPA-CRISPR/Cas12a-LFD assay completed detection within 50 min. Fig. 5 Table 2

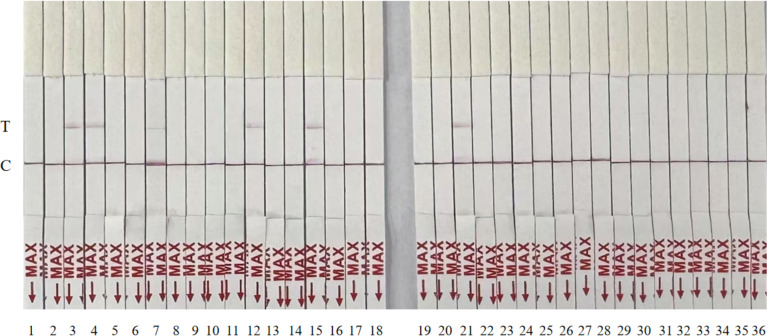

Randomized testing of 36 simulated clinical samples with the RT-RPA-CRISPR/Cas12a-LFD system.
| Assay results | ||
|---|---|---|
| Sample ID | RT–qPCR | RPA–CRISPR–Cas12a–LFD |
| 1 | – | – |
| 2 | – | – |
| 3 | 18.432 | + |
| 4 | 21.678 | + |
| 5 | – | – |
| 6 | – | – |
| 7 | 29.366 | + |
| 8 | – | – |
| 9 | – | – |
| 10 | – | – |
| 11 | – | – |
| 12 | 23.214 | + |
| 13 | – | – |
| 14 | – | – |
| 15 | 18.446 | + |
| 16 | – | – |
| 17 | – | – |
| 18 | – | – |
| 19 | – | – |
| 20 | – | – |
| 21 | 18.742 | + |
| 22 | – | – |
| 23 | – | – |
| 24 | – | – |
| 25 | – | – |
| 26 | – | – |
| 27 | – | – |
| 28 | – | – |
| 29 | – | – |
| 30 | – | – |
| 31 | – | – |
| 32 | – | – |
| 33 | – | – |
| 34 | – | – |
| 35 | – | – |
| 36 | – | – |
Discussion
As a mosquito-borne alphavirus, GETV is increasingly escalating economic losses in the livestock industry across the Asia-Pacific region by infecting pigs and horses and posing potential zoonotic risks to humans (;). To address the limitations of the current detection methods, such as insufficient sensitivity, equipment dependency, and field applicability, we successfully established a rapid GETV detection platform (RT-RPA–CRISPR/Cas12a–LFD) by integrating RT-RPA with CRISPR/Cas12a. This platform achieved a detection limit of 10copies/µL and completed the entire process within 50 min, thus providing critical technical support for early outbreak containment. [Yang et al., 2018] [Rattanatumhi et al., 2022] 1
The enhanced performance of this platform stems from the following three synergistic innovations: (1) the crRNA (crRNA A) targeting the conserved E2 gene of GETV demonstrated exceptional specificity by effectively distinguishing GETV from cocirculating pathogens, such as JEV and PRV (); (2) The optimized RT-RPA system enables nucleic acid amplification in less than 20 min at 37−42 °C using a simple heating device; (3) the trans-cleavage activity of Cas12a, coupled with a dual-labeled (FAM/biotin) ssDNA reporter system (), allowed visual interpretationLFDs within 3 min. Clinical validation revealed 100% concordance with the RT-qPCR results. i.e., via [Zhang et al., 2022] [Rananaware et al., 2023]
Currently there are many methods regarding the detection of GETV such as RT-qPCR (), RT-RAA (), RT-PCR and ELISA (). PT-qPCR, RT-PCR and RT-RAA require expensive instrumentation and these methods have poor field applicability compared to existing GETV detection techniques, and for ELISA assays, the sensitivity is only 10copies/µL, which is insufficient to cover the need for detection in the early stages of viraemia (24–48 h post-infection) (). The amount of GETV in the serum of infected animals is approximately 7.73 ×10copies/µL (), and the RT-RPA-CRISPR/Cas12a-LFD constructed here is sufficient to detect the Geta virus. In summary, the use of a combination of RT-RPA and LFD in our established CRISPR-Cas12a fluorescence detection system enables rapid visual detection of GETV. The method is simple to perform, does not require expensive equipment, provides more intuitive reaction results, has strong specificity and high sensitivity, and can be performed at a constant temperature or even at body temperature using a simple water bath or heating block. The method provides early warning of GETV transmission. The method can also be used for the detection of other pathogens. The method has promising applications in food safety, clinical diagnostics and environmental science. [Cao et al., 2022] [Nie et al., 2021] [You et al., 2024] [Shi et al., 2022] [Cao et al., 2022] 3 5
Although the method shows promising applications, clinical sample pretreatment still relies on column nucleic acid extraction, and extraction-free direct amplification technology can be developed in the future to further simplify the process.
Conclusions
In conclusion, the integration of RT-RPA, CRISPR/Cas12a, and LFD into our system enables rapid, special equipment-free, and visually interpretable GETV detection. With the advantages of high specificity, sensitivity, and compatibility with simple heating devices (, water baths and heating blocks), this method can act as an early warning tool for GETV transmission and hold broad potential for adaptation to other pathogens in fields such as food safety, clinical diagnostics, and environmental monitoring. e.g.
