How CRISPR-Cas12a protein interactions control DNA cutting and limit extra DNA cutting

The coding sequences of WT FnCas12a and AsCas12a were cloned from parent vectors (Addgene #90094 and #90095, respectively) into a pET21_6His_2NLS vector that was a kind gift of Wolfe Lab (Addgene #114366), as described previously [21]. Similarly, plasmid interference 'locus' plasmid was cloned with the In-Fusion kit (Takara Bio), as previously described [21].

Mutant sequences, such as Cas12a mutants, were generated using the Q5 site-directed mutagenesis kit according to the manufacturer's instructions (New England Biolabs—NEB), and sequences verified with Sanger sequencing (Biomolecular Resource Facility, ANU) (—primers,—'locus' oligonucleotides). Supplementary Table S5 Supplementary Table S6

All WT and mutant Cas12a proteins were purified with the following protocol. Plasmids were transformed into T7-express chemically competent cells (NEB), colonies picked, and small volumes (∼5 ml) grown overnight in Luria Broth supplemented with 100 μg/ml ampicillin. Overnight cultures were used to inoculate a 250 ml culture, grown at 37°C for ∼2 h in baffled flasks and vigorous shaking, until OD₆₀₀ ∼0.6. Flasks were put on ice for 30–45 min before addition of 1 mM isopropylthio-β-galactoside (IPTG), then transferred to an 18°C incubator for shaking at 200 rpm overnight.

Expression cultures were centrifuged for 10 min at 5000 × g, and pellets resuspended in Lysis Buffer (50 mM Tris–HCl, pH 7.5, 500 mM NaCl, 5% glycerol, 1 mM dithiothreitol [DTT]), with addition of one 'cOmplete protease inhibitor tablet' (Roche) per 50 ml of resuspension. Cells were lysed with sonication (Branson Sonifier), and supernatant clarified with 2 × 30 min centrifuge spins at 13 500 × g. We performed metal affinity chromatography by loading the supernatant on an equilibrated Ni-NTA HisTrap column (GE Healthcare, 5 ml) with an AKTA Explorer (GE Healthcare), washed with Buffer A (50 mM Tris–HCl, pH 7.5, 500 mM NaCl, 20 mM imidazole, 5% glycerol), and eluted with a stepwise addition of Buffer B (50 mM Tris–HCl, pH 7.5, 500 mM NaCl, 500 mM imidazole, 5% glycerol). Fractions were analysed with Sodium dodecyl sulphate–polyacrylamide gel electrophoresis (SDS–PAGE), and peak fractions containing Cas12a were pooled, and diluted 2.5× with diluting buffer (50 mM Tris–HCl, pH 7.5, 5% glycerol) to achieve 200 mM NaCl for cation exchange chromatography. After loading on a HiTrap Heparin column (GE Healthcare, 5 ml) pre-equilibrated with Buffer H-A (50 mM Tris–HCl, pH 7.5, 200 mM NaCl, 5% glycerol), elution was performed with a linear gradient of Buffer H-B (50 mM Tris–HCl, pH 7.5, 1 M NaCl, 5% glycerol). Again, fractions containing Cas12a were determined by SDS–PAGE and concentrated to a small volume (∼500 μl) by centrifugal molecular-weight cut-off tubes (30 kDA, Pierce Thermo Fisher). Concentrated protein was then buffer-exchanged into storage buffer (50 mM Tris–HCl, pH 7.5, 500 mM NaCl, 50% glycerol, 1 mM DTT) with 0.5 ml centrifugal molecular-weight cutoff tubes (Millipore). Protein concentration was estimated with a Nanodrop spectrophotometer (Thermo Fisher) using extinction coefficients calculated with Expasy ProtParam [36] and stored at −20°C. Yields of Cas12a varied from 2–8 g/l of expression culture.

Melt curves were conducted in 40× SYPRO Orange dye (Thermo Fisher) and a StepOnePlus quantitative-PCR machine (Applied Biosystems), following the manufacturer's detailed protocol (Thermo Fisher). Cas12a proteins (in storage buffer) were diluted in nuclease-free water (Ambion) to a concentration of ∼1 μg per well, 3 × 20 μl replicates were added to a MicroAmp Fast 96-well Reaction Plate (Applied Biosystems), and fluorescence monitored at 1°C increments from 25 to 99°C. Melting temperature was defined as the fluorescence peak.

In this assay, Cas12a was complexed with a crRNA targeting a site in a negatively supercoiled plasmid. RNAs were ordered from Integrated DNA Technologies (IDT) and resuspended in IDTE buffer (IDT) (—crRNA sequences). Cas12a–crRNA complexes were assembled by incubation at 25°C for 10 min. Complexes were diluted in 1× cleavage buffer (10 mM Tris–HCl, pH 7.5, 10 mM MgCl2, 50 mM NaCl, 5 μg/ml bovine serum albumin [BSA], 0.1 mM DTT) to a final concentration of 100 nM, and equilibrated at 30°C on a thermocycler block prior to addition of target DNA. Supplementary Table S7

'DNA solution' containing target plasmid DNA was diluted in 1× cleavage buffer to a final concentration of 10 nM, and also equilibrated at 30°C. Equal volumes (5 μl) of Cas12a complex and DNA solution were mixed and incubated for the set time-points, and reaction quenched with addition of 5 μl 'STOP solution' [15% v/v proteinase K (Bioline), 250 mM ethylenediaminetetraacetic acid, 50% v/v 5× loading dye (Bioline), in nuclease-free water (Ambion)]. To remove DNA-bound Cas12a ribonucleoprotein, all samples were incubated at 55°C for 30 min after addition of STOP solution.

DNA products were separated by gel electrophoresis (100 V for 40 min) on a 1.5% agarose gel pre-stained with 0.5× GelRed (Biotium). Gels were imaged with a Quantum geldoc (Vilber) with short exposure times to avoid oversaturation, and DNA band intensity quantified with ImageJ [37] (NIH). Changes in target plasmid topology were validated by nuclease digestion by Nt.BspQI and EcoRI (Supplementary Fig. S1), using the manufacturer's protocol (NEB). Efficiency of GelRed binding to different DNA topologies was determined as per [38], by a dilution series of equal parts supercoiled, nicked, and linear DNA. Nicked and linearized plasmid DNA was generated by Nt.BspQI and EcoRI digestion of highly pure pUC19 (NEB). The supercoiled sample was generated by incubation without nuclease. Three replicates were performed, and pixel intensity quantified with ImageJ [37] (NIH). This determined less efficient binding to supercoiled DNA (Supplementary Figs. S2 and S3). Correction factors of 0.797, 0.855, and 1.74 were determined to normalize signal from the nicked, linear, and supercoiled bands, respectively (Supplementary Fig. S3). Corrected pixel numbers from DNA fractions 'nicked', 'linear', and 'supercoiled' were summed, from which was calculated the percentage of nicked/linear/supercoiled DNA fractions. Percentage of DNA fraction at time points was used as input for kinetic modelling, where each replicate was individually fitted. Three replicates were performed for each Cas12a nuclease.

The rate of change between DNA fractions was then modelled to obtain k_obs for both NTS and TS cleavage, where ka = k_NTS and kb = k_TS. Rates were fitted in Berkeley Madonna [39], using the following equations, as previously detailed in the literature [26, 27, 40]. This models the sequential conversion of SC to NICK to LIN, while allowing incomplete reaction products unconverted-NICK (ucNICK) and unconverted-SC (ucSC) to accumulate.

d/dt (SC) = −ka*SC − kini*SC

d/dt (ucSC) = kini*SC

d/dt (NICK) = ka*SC − kb*NICK − kini2*NICK −ka*NICK1

d/dt (NICK1) = −ka*NICK1 − kini*NICK1

d/dt (ucNICK) = kini2*NICK + kini*NICK1

d/dt (LIN) = kb*NICK # used to plot %linear

TotSC = SC + ucSC # used to plot %supercoiled

TotNICK = NICK + NICK1 + ucNICK # used to plot %nicked

Init SC = input initial %SC from dataset

init LIN = input initial %LIN from dataset

init NICK1 = input initial %NICK from dataset

init NICK = 0

init ucSC = 0

init ucNICK = 0

ka = 0.50*

kb = 0.50*

kini = 0.01* # inactivation rate of NICK1 to ucNICK, SC to ucSC

kini2 = 0.01* # inactivation rate of NICK into ucNICK

Where variables 'SC', 'NICK', and 'LIN' were fitted to their corresponding dataset, being the percentage of nicked/linear/supercoiled DNA at timepoints. Variables marked with an asterisk (*) were fitted by the software.

Cas12a–crRNA complexes were prepared as described for cis cleavage (10 nM final concentration), with either 20 or 23 nt spacer-length crRNAs (Supplementary Table S7). Cis cleavage was performed by addition of 1 nM full-length or truncated target-strand DNA (Supplementary Table S6) in 1× cleavage buffer, followed by incubation at 30°C for 45 min. This active complex was then further diluted in 1× cleavage buffer, and 50 μl added to wells of a flat-clear-bottom black fluorescence 96-well plate (Thermo Fisher). Fluorescent-quencher reporter ssDNA (Supplementary Table S6) was prepared in 1× cleavage buffer to a final concentration of 75 nM, 50 μl of which was added into each well, using the dispenser pump of a Victor Nivo plate reader (PerkinElmer). Excitation and emission filters of 480/30 and 530/30 nm, respectively, were used to measure fluorescence over time. Three replicates were performed per condition.

Protein Data Bank (PDB) files for the accession codes indicated were obtained from rcsb.org, and structural alignment performed in VMD [41], using the STAMP algorithm [42]. Predicted Cas12a structures were obtained from Alphafold/EMBL [43, 44], to fill structural elements not modelled in experimental structures of LbCas12a. UniProt identifiers were A0Q7Q2 for FnCas12a, U2UMQ6 for AsCas12a, and A0A182DWE3 for LbCas12a.

This assay used three plasmids, one expressing Cas12a under a T7 promoter (AmpR), another encoding a crRNA under a T7 promoter (CmR) with a spacer sequence matching a third 'target' plasmid (KanR).

To achieve high rates of plasmid transformation, chemically competent T7Express cells (NEB) were made harbouring both the Target plasmid, and either the crRNA expressing (+ crRNA) or empty vector (no crRNA). These ± crRNA strains were transformed with 20 ng of Cas12a plasmid by heat shock at 42°C and recovered with SOC media at 37°C for 30 min. Serial dilutions were plated onto triple selective media (100 μg/ml ampicillin, 50 μg/ml kanamycin, 25 μg/ml chloramphenicol) containing 0.5 mM IPTG. Plates were incubated overnight at 37°C for ∼16 h, and colonies counted. Three replicates were performed for each transformation. Statistical significance was calculated by two-way ANOVA followed by Tukey's multiple comparisons test, using GraphPad Prism 10 (GraphPad Software, www.graphpad.com↗).

Human genome targets with previously identified off-target sites were chosen for gene editing experiments [6, 7, 45]. The target sites respectively have the canonical PAM motifs, TTTA, TTTC, and TTTG, to minimize PAM bias in editing efficiencies between Cas12a orthologues [6, 16, 46–48]. The most-represented off-target sites identified by GUIDE-seq and DIGENOME-seq were chosen for high-throughput sequencing [6, 7, 45]. crRNAs were ordered as HPLC-purified RNA (IDT) (Supplementary Table S7).

HEK293T, A549, and Jurkat cell lines were obtained from the American Type Culture Collection and tested free of mycoplasma infection. HEK293T were cultured in high glucose Dulbecco's Modified Eagle Medium (Gibco) supplemented with 10% Fetal Bovine Serum (FBS) and 1× Penicillin-Streptomycin-Glutamine (Gibco). Jurkat cells were cultured in RPMI-1640 supplemented with 10% FBS and 1× Penicillin-Streptomycin-Glutamine (Gibco). A549 were cultured in Ham's F-12K (Kaighn's) Medium (Gibco) supplemented with 10% FBS and 1× Penicillin-Streptomycin (Gibco). Cells were maintained at 37°C with 5% CO₂ in a humidified atmosphere and transfected at passage 10.

Cas12a proteins were assembled with their cognate crRNA, targeting either DNMT1–3, DNMT1–7, or AGBL1. Each RNP reaction consisted of 0.575 μM crRNA with 32 pM of Cas12a. The crRNA and Cas12a were complexed in 2.2 μl Neon Transfection System 'R' resuspension buffer (Invitrogen) at 37°C for 5 min and left at room temperature post-complexing.

Electroporation was conducted using Neon Transfection System (Invitrogen) according to the manufacturer's protocol, with the following modification that all three cell lines were resuspended in Neon Transfection System 'R' resuspension buffer (Invitrogen) to a concentration of 1 × 10⁷/ml.

For each electroporation reaction, 1 × 10⁵ cells prepared earlier were incubated with 1× RNP at 37°C for 5 min before being electroporated using the 10 μl Invitrogen Neon Transfection System. Electroporation protocols for cell lines were HEK293T; 1150 volts, 20 ms, 2 pulses; Jurkat; 1325 volts, 10 ms, 3 pulses; A549; 1230 volts, 30 ms, 2 pulses. Two reactions were seeded per well, in a 24-well plate. Cells were recovered in complete medium at 37°C with 5% CO₂ for 72 h. Controls for each cell line included no electroporation, and electroporation without RNP—labelled 'No Cas12a'. Two replicates were performed for each control and three for each Cas12a.

Samples were harvested at 72 h post transfection, including growth media to capture all cells, dead or alive. Cells were pelleted at 500 × g for 2 min at room temperature, then washed with 1× PBS. Cells were again centrifuged at 500 × g for 2 min at room temperature, PBS was removed, and samples were then stored at −20°C prior to DNA extraction. Samples were thawed on ice and genomic DNA was extracted using the ISOLATE II Genomic DNA Kit (Meridian Bioscience), and following the manufacturer's instructions, with the sole modification of eluting twice in with the same 100 μl of elution buffer.

Primers were designed for high-throughput sequencing of identified on and off-target sites of DNMT1–3, DNMT1–7, and AGBL1; positioned ∼125 bp upstream and downstream of the target site, resulting in ∼250 bp amplicon (primers in). Primers and target DNA were dispensed in 384 well plates, and Illumina Ampliseq used to perform a paired-end 250 bp library preparation. Supplementary Table S8

Quality control was performed on the ∼32 million reads obtained, using FastQC [49]. The reads were then analysed by CRISPResso2 [50], using the hg38 human genome as reference using the following parameters: –cleavage_offset 1 –quantification_window_size 20 –ignore_substitutions –default_min_aln_score 50. Samples with <1000 mapped reads were discarded. Insertions and deletions in this window were combined to calculated total percentage of indels at a given on or off-target site. Statistical significance was calculated by two-way ANOVA followed by Tukey's multiple comparisons test, using GraphPad Prism 10 (GraphPad Software).

Molecular simulations were based on three structures of Cas12a across different species: (i) the cryo-EM structure of FnCas12a (PDB: 6GTG) [14] at 3.27 Å resolution, (ii) the X-ray structure of AsCas12a from (PDB: 5B43) [15] at 2.80 Å, (iii) the X-ray structure of LbCas12a (PDB: 5XUS) [16] at 2.5 Å. Missing residues were added by homology modelling using SwissModel [51]. All systems were embedded in explicit waters, and counterions were added to neutralize the total charge, leading to periodic cells of ∼138 × 149 × 167 ų and ∼307 000 atoms for each system.

MD simulations were performed using a protocol tailored for RNA/DNA nucleases using the Amber ff19SB force field [52], including the ff99bsc1 corrections for DNA [53] and ff99bsc0+χOL3 corrections for RNA [54, 55]. The TIP3P model was employed for explicit water molecules [56], and the Li & Merz 12–6 model of non-bonded interactions was used for Mg²⁺ ions [57]. We have extensively employed these force field models in computational studies of CRISPR-Cas systems [29], showing also that they perform well for long timescale simulations [24]. The Li & Merz model also reported a good description of Mg²⁺ bound sites, in agreement with quantum/classical simulations [58]. An integration time step of 2 fs was employed. All bond lengths involving hydrogen atoms were constrained using the SHAKE algorithm [59]. Temperature control (300 K) was performed via Langevin dynamics [60], with a collision frequency γ = 1. Pressure control was accomplished by coupling the system to a Berendsen barostat [61], at a reference pressure of 1 atm and with a relaxation time of 2 ps.

The systems were subjected to energy minimization to relax water molecules and counterions, keeping the protein, the RNA, DNA, and Mg²⁺ ions fixed with harmonic position restraints of 300 kcal/mol·Å². Then, the systems were heated up from 0 to 100 K in a canonical ensemble (NVT), 120 by running two simulations of 5 ps each, imposing position restraints of 100 kcal/mol·Å² on the above-mentioned elements of the system. The temperature was further increased up to 200 K in ∼100 ps of MD in the isothermal-isobaric ensemble (NPT), reducing the restraint to 25 kcal/mol·Å². Subsequently, all restraints were released, and the temperature of the systems was raised up to 300 K in a single NPT simulation of 500 ps. After ∼ 1.1 ns of equilibration, ∼10 ns of NPT runs were carried out allowing the density of the systems to stabilize around 1.01 g cm⁻³. Finally, production runs were carried out in the NVT ensemble in four replicates, collecting ∼1 μs for each replicate. These simulations were performed using the GPU-empowered version of AMBER 20.

For distance and contact analyses, domains were defined as follows: FnCas12a, REC2 (340–591), and Nuc (1079–1254); LbCas12a, REC2 (283–521), and Nuc (998–1179); and AsCas12a, REC2 (321–526), and Nuc (1067–1262). Distance analysis considered the centre of mass of the selected regions, and a contact was considered when the distance between two heavy atoms among the regions of interest was <3.5 Å. Amino acids involved in contacts were identified by visual inspection of trajectories. Kernel density estimation plots were employed to visualize the probability density of REC2-Nuc distances and contacts, using the 'kdeplot' function from the seaborn library, a statistical data visualization package in Python [62].

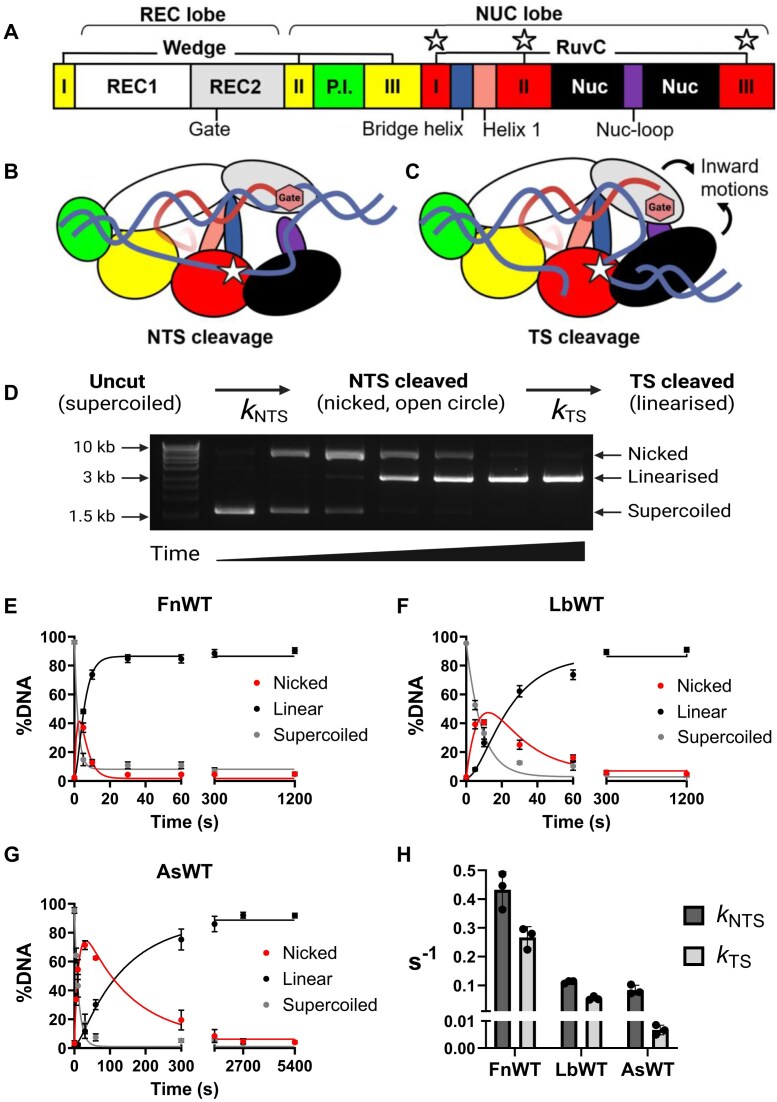

Central to the natural or applied functions of Cas12a is cis cleavage. The kinetics of sequential DNA strand cleavage have been determined for wild-type FnCas12a, LbCas12a, and AsCas12a, and have yielded rate constants that vary by several orders of magnitude (Supplementary Table S1) [14, 18, 20, 23, 26–28]. This can be attributed to a number of factors known to affect cis cleavage kinetics; temperature [63], DNA substrate topology [27], and magnesium ion concentration [20, 28]. Thus, we wished to undertake kinetic comparisons in conditions at which each three orthologues had previously been determined to be maximally active [64]; 30°C, pH 7.5, 50 mM NaCl (plus 10 mM Tris–HCl, 10 mM MgCl₂, 5 μg/ml BSA, 0.1 mM DTT).

We determined the cis cleavage kinetics of the three Cas12a orthologues using a plasmid cleavage assay [26, 27, 40]. Briefly, the sequential DNA strand cleavage of a negatively supercoiled plasmid causes sequential changes in plasmid DNA topology, transitions that are visible in gel electrophoresis [65] (Fig. 1B–D and Supplementary Fig. S1). NTS cleavage relaxes the supercoiled plasmid into the open-circle form, and TS cleavage converts the open-circle to the linearized form [26, 27, 40]. Quantification of these topological changes over time allows fitting of strand cleavage rates [26, 27, 40].

In this time-course assay of plasmid DNA cleavage, FnCas12a exhibited the fastest DNA cleavage, with the fraction of linearized DNA plateauing at 30 s (Fig. 1E). LbCas12a linearized the target plasmid by 300 s (Fig. 1F), and AsCas12a by the 2700 s time-point (45 min, Fig. 1G). Fitting a sequential-strand cleavage model to this time-course assay data yielded rate constants for NTS and TS cleavage [26, 27, 40] (Fig. 1H).

This showed the large time differences in linearizing plasmid DNA are driven by very different cis cleavage kinetics (Fig. 1G). FnCas12a exhibited a k_NTS 3.9x faster than LbCas12a, which in turn had a k_NTS 1.3× faster than AsCas12a (Fig. 1G and Supplementary Table S1). The differences were greater with k_TS; FnCas12a was 4.9× faster than LbCas12a, which was 7.9× faster than AsCas12a (Fig. 1G and Supplementary Table S1).

This order of cis cleavage speed, where FnCas12a > LbCas12a > AsCas12a, is evident in other reports (comparing FnCas12a, LbCas12a, and AsCas12a [19]; and between FnCas12a and AsCas12a [25]. Of these three orthologues, FnCas12a is generally reported to have lower gene editing efficiency in human cell lines, and weaker trans cleavage [5, 6, 9, 10, 33]. We therefore expected FnCas12a to have a defect in cis cleavage. But in the conditions tested, FnCas12a has the most robust cis cleavage. This raises the question; what drives the different cis cleavage kinetics of Cas12a orthologues, and how does it relate to genome editing and DNA detection?

The NTS cleavage mechanism of Cas12a is straightforward; a groove of DNA-binding residues across the Wedge, RuvC, and Nuc domains guides the NTS into the RuvC active site in the correct 5′ to 3′ polarity for in-line nucleophilic attack [4, 13, 14, 18]. The mechanism of TS cleavage is less simple, the scissile phosphate must traverse over 20 Å and twist 180° to enter the RuvC with the correct polarity [4, 13, 25, 26]. This conformation of the TS is allowed by unwinding at the 3′ end of the crRNA:TS R-loop [14, 18, 25, 26].

A 'gate' residue in the REC2 plays a key role in this process, stacking after the 20th position of the crRNA:TS heteroduplex and regulating the length of the R-loop [4, 13–16, 18, 26]. Removing this stacking interaction by alanine substitution increased TS cleavage rates in LbCas12a [26]. Despite increased k_TS, this mutant displayed slower trans cleavage [66, 67].

We were intrigued by this apparent trade-off between TS cleavage and trans cleavage. To explore this, we generated alanine substitutions of the REC2 gate for three Cas12a orthologues and assayed their cis and trans cleavage kinetics.

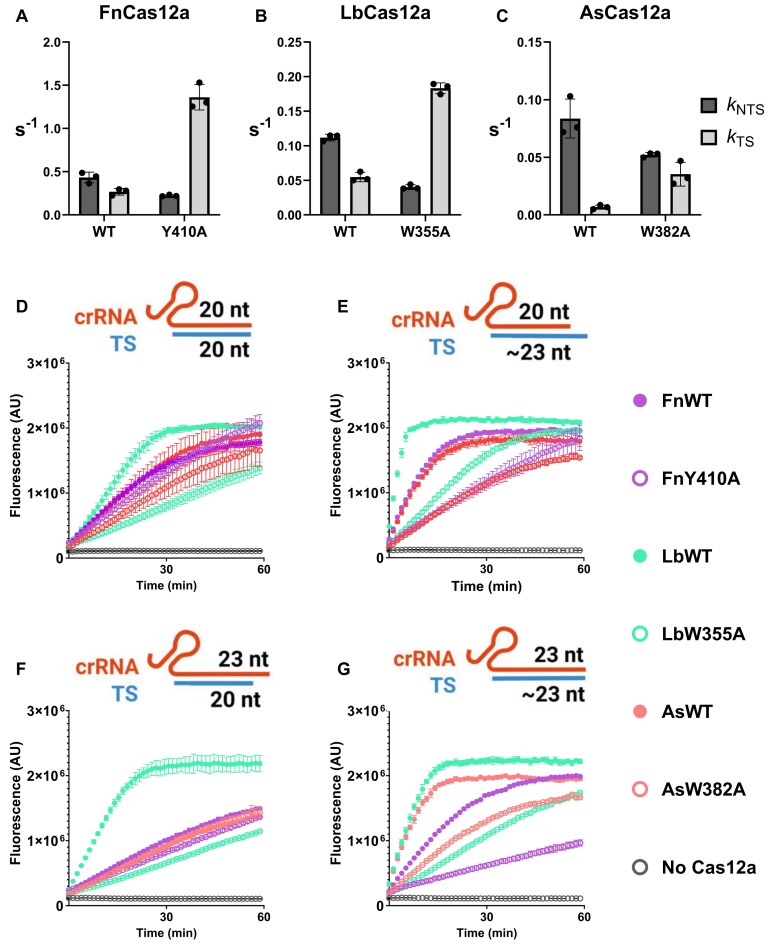

The time-course plasmid cleavage assay was performed for FnY410A, LbW355A, and AsW382A (Supplementary Figs. S4–S5). For FnCas12a, k_NTS decreased by 2.0x, and k_TS increased by 5.1× (Fig. 2A). For LbCas12a, k_NTS decreased by 2.8× while k_TS increased by 3.3×, consistent with previous reports [26] (Fig. 2B). For AsCas12a, k_NTS decreased by 1.6×, and k_TS increased by 5.0× (Fig. 2C). Given cis cleavage kinetics vary by orders of magnitude between wild-type orthologues (Supplementary Table S2), this effect is remarkably similar across REC2 mutants. Interestingly, increased k_TS came at a cost of decreased k_NTS (Fig. 2A–C and Supplementary Table S2). This suggests that the increased TS-loading of REC2 mutants can interfere with NTS-loading.

Having replicated the faster k_TS of REC2 'gate' mutants, we aimed to test their trans cleavage kinetics. LbW355A has been shown to have reduced trans cleavage, suggested to be a result of steric hindrance between loading of the already-cut TS and trans ssDNA substrates [66, 67]. To test this, we compared the trans cleavage of WT and REC2 mutants when activated by a truncated or full-length TS. When activated by a TS truncated at the 20th position (relative to the PAM), steric hindrance near the active site should be minimal, and WT and REC2 mutants should have similar trans cleavage activity. However with a longer TS, the faster TS-loading of REC2 mutants should result in slower trans cleavage than WT.

We assembled Cas12a–crRNA complexes with TS ssDNA that was either full-length (96 nt), or truncated at the 20th position relative to the PAM (68 nt) (Supplementary Table S6). These 'TS-loading/trans-active' complexes were made by a 45-min cis cleavage reaction. In this experiment, the full-length TS would be cleaved and trimmed to ∼22–24 nucleotides, depending on the orthologue [20, 22, 25, 26].

We first compared Cas12a ternary complexes with a 20 nt crRNA spacer sequence and truncated TS (Fig. 2D). In this condition, FnY410A and AsW382A had similar rates of trans cleavage activity to their WT enzyme (Fig. 2D). However, when complexed with a full-length TS, FnY410A and AsW382A had slower trans cleavage activity compared to WT (Fig. 2E). LbW355A showed slower cleavage than WT for both combinations (Fig. 2D and E).

Previous work has also demonstrated that 3′ extension of the crRNA past the 20th position also influences cis and trans cleavage rates [10, 26, 68]. We repeated the truncated/full-length TS comparison, but with crRNAs consisting of a 23 nt spacer sequence. To compare pseudo-first order trans cleavage rates, we fitted a linear regression to the first 300 s of fluorescence curves [35, 67] (Supplementary Fig. S6). We observed a similar pattern as with 20 nt crRNAs; where REC2 mutants of FnCas12a and AsCas12a have similar-to-WT rates of trans cleavage with the truncated TS (Fig. 2F), and decreased trans cleavage with the full-length TS (Fig. 2G). However, LbWT showed faster trans cleavage than LbW355A for all combinations of crRNA and TS, suggesting steric hindrance by the TS is not universal (Fig. 2D–G). Overall, these data suggest that TS-loading can indeed slow trans cleavage.

However, REC2 mutants FnY410A and LbW355A showed more incomplete DNA cleavage than WT, with greater amount of uncut plasmid DNA at the endpoint of cis cleavage reactions (Supplementary Figs S4 and S5). We tested WT and REC2 mutants for their ability to interfere with plasmids in E. coli, and found no defect in their function (Supplementary Fig. S7A and B). A previous study of LbW355A suggested incomplete target DNA cleavage was due lesser stability, as inferred from breakdown products seen in SDS–PAGE [26], however, we found no defect in the thermostability of WT or REC2 mutant apo proteins (Supplementary Fig. S7C). However, previous work showed the AsW382A mutant had decreased gene editing activity in human cell lines [15], this suggests that although REC2 mutants can retain activity in vitro and in plasmid interference, they nonetheless have a defect relative to WT.

The REC2 'gate' appears to regulate k_TS, yet there remains a ∼20 Å distance for the TS to traverse from REC2 to RuvC. Structural data at the time showed a lack of electron density between the REC2 and Nuc domains [4, 13–16]—with the exception of a single structure [14]. A 'transient state' ternary structure of FnCas12a captured a loop extending from the bulk of the Nuc domain towards the 3′ end of the crRNA–TS heteroduplex [14]. We hypothesized this Nuc-loop could be key in the TS-loading mechanism of Cas12a orthologues.

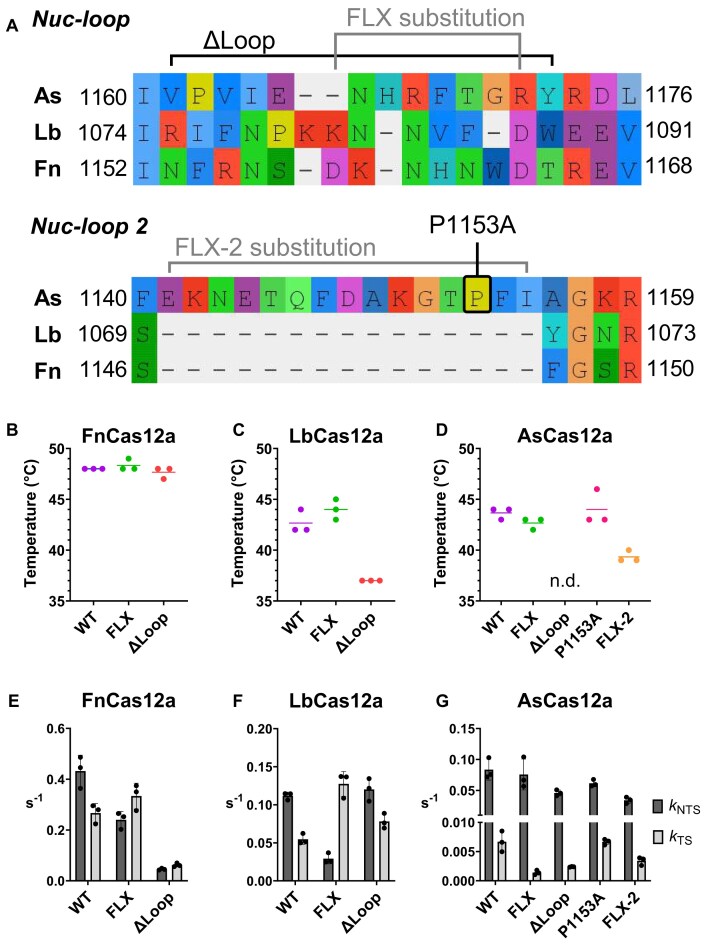

Alignment of experimentally determined and predicted structures showed the Nuc-loop has divergent amino acid composition across the three Cas12a orthologues (Fig. 3A and Supplementary Figs. S8–S11). These loops contain a variety of charged and aromatic amino acid sidechains that could interact with nucleic acids. To disrupt these potential interactions, two general mutations were designed. Firstly, to remove any specific interactions by the Nuc-loop, but retain the steric bulk, the 'head' of the loop closest to the crRNA–TS heteroduplex was substituted for a flexible linker motif of repeating glycine-serine residues (Supplementary Figs. S8–S11 and Supplementary Table S3). This was termed the 'FLX' substitution (Supplementary Fig. S8–S11 and Supplementary Table S3). Secondly, to remove both steric bulk and any protein-nucleic acid interactions, the Nuc-loop was deleted—the 'ΔLoop' mutation (Supplementary Fig. S8–S11 and Supplementary Table S3).

Notably, AsCas12a has an additional insertion in the Nuc domain, not present in FnCas12a and LbCas12a, a motif we named 'Nuc-loop 2′ (Fig. 3A and Supplementary Fig. S11). This loop does not extend towards the heteroduplex, instead, it sits on the surface of the Nuc and folds back towards the RuvC (Supplementary Fig. S11). Prolines often being crucial structural elements, we designed an alanine substitution of P1153 in Nuc-loop 2. Deletion of Nuc-loop 2 resulted in no soluble protein expression (data not shown), instead this motif was truncated and substituted with glycine-serine-glycine, a mutant we termed 'FLX-2′ (Supplementary Table S3).

We first tested the thermostability of the Nuc-loop mutants. FnFLX and FnΔLoop had thermostability similar to WT enzyme, each at ∼48°C (Fig. 3B). LbFLX had similar thermostability to LbWT, at 42–43°C, while LbΔLoop was decreased at 37°C (Fig. 3C). AsFLX and AsP1153A were as stable as AsWT at 43–44°C, while AsFLX-2 was decreased at 39°C, and AsΔLoop had no detectable fluorescence peak (Fig. 3D).

Next, we characterized the cis cleavage kinetics of Nuc-loop mutants (Supplementary Figs S12–S15 and Supplementary Table S2). The FnFLX substitution mutant had slower k_NTS by 1.8×, while k_TS slightly increased by 1.3× (Fig. 3E). A more pronounced effect was observed in LbFLX, with k_NTS decreased by 3.9×, while k_TS increased by 2.3× (Fig. 3F). This suggests the Nuc-loop may restrain TS-loading for FnCas12a and LbCas12a, similar to the REC2 'gate'. In contrast, AsFLX exhibited a very specific effect on k_TS, decreasing rates by 7×, and leaving k_NTS essentially unchanged (Fig. 3G). This indicates that AsCas12a, with already significantly slower TS cleavage rates, may use the Nuc-loop in a divergent manner.

Nuc-loop deletion had even more variable effects on DNA cleavage rates. FnΔLoop exhibited globally decreased cis cleavage compared to FnWT, k_NTS decreasing by 9.4× and k_TS decreasing by 4.3× (Fig. 3E). Interestingly, FnΔLoop only linearized ∼70% of the plasmid target, leaving a large 'nicked' fraction (Supplementary Fig. S12B and S16). This may indicate unstable target dsDNA binding. Despite its lesser thermostability, LbΔLoop showed similar k_NTS to LbWT, with k_TS slightly increased by 1.4× (Fig. 3F). AsΔLoop decreased k_NTS by 1.8×, and reduced k_TS 3.5× relative to AsWT (Fig. 3G). Both AsFLX and AsΔLoop showed incomplete cleavage of plasmid DNA, leaving ∼11% in the nicked state (Supplementary Fig. S14 and S16). This suggests the Nuc-loop of AsCas12a is important in completing TS cleavage.

Disruption of Nuc-loop 2 in AsCas12a decreased cis cleavage rates, despite its distance from any nucleic acids. P1153A substitution decreased k_NTS by 1.4×, while k_TS was unchanged (Fig. 3G). AsCas12a FLX-2 displayed very similar kinetics to AsΔLoop, with both k_NTS and k_TS 2.3× slower relative to AsWT (Fig. 3G). These latter two mutants being the least thermostable of the mutants generated, their decreased cis cleavage may stem from globally disrupted protein function, rather than from loss of specific Nuc-loop interactions.

Overall, these data suggest integrity of the Nuc-loop is important for the cis cleavage activity of Cas12a orthologues. To further characterize the role of Nuc-loops, we assayed their trans cleavage activity, their plasmid interference in E. coli, and their editing activities in mammalian cell lines.

As with REC2 'gate' mutants, the trans cleavage activity was tested with four different combinations of crRNA and TS DNA. Unlike the REC2 mutants, Nuc-loop mutants did not show consistent patterns of substrate-dependant activity (Supplementary Figs. S17–S20). For clarity, only trans cleavage reactions with the 23 nt crRNA and full-length TS are shown in Fig. 4.

Compared to FnWT, the FnFLX and FnΔLoop mutants had greatly decreased trans cleavage (Fig. 4A). To a lesser extent, LbFLX and LbΔLoop mutants had reduced trans cleavage relative to LbWT (Fig. 4B). AsP1153A showed similar trans cleavage to AsWT, while AsFLX, AsFLX-2, and AsΔLoop had moderately decreased trans cleavage activity (Fig. 4C). These data indicate the Nuc-loop plays a key role in the trans cleavage activity of FnCas12a. For LbCas12a and AsCas12a, Nuc-loop mutation decreases trans cleavage, although not to the magnitude of FnCas12a mutants.

Next, we tested the function of these Nuc-loop mutants for their ability to interfere with plasmid transformation in E. coli. Briefly, plasmids encoding Cas12a were transformed into E. coli strains harbouring either an empty vector (no crRNA) or a crRNA-encoding vector (+crRNA) that directed Cas12a to cleave a third 'target' vector. FnFLX and FnΔLoop showed as robust plasmid interference as FnWT, with no colonies observed for the '+ crRNA' condition (Fig. 4D). LbWT and LbFLX also showed strong plasmid interference, but LbΔLoop showed a loss of activity, with CFU/mL counts similar to the 'no crRNA' transformations (Fig. 4D). AsWT, AsFLX, and AsP1153A had robust plasmid interference, while AsΔLoop and AsFLX-2 lost plasmid interference activity (Fig. 4D). Notably, it is the least thermostable Cas12a mutants (LbΔLoop, AsΔLoop, and AsFLX-2) that displayed the weakest plasmid interference, highlighting the importance of protein integrity in this assay.

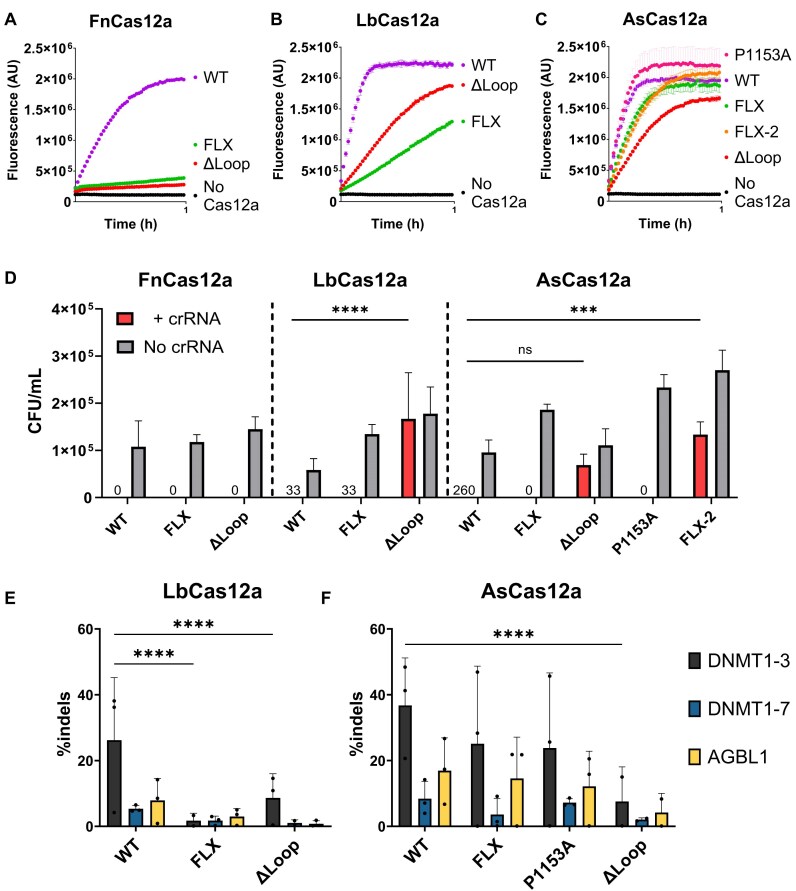

As these Nuc-loop mutants had novel effects on target dsDNA cleavage in vitro, we aimed to assess their gene editing efficiency. Cas12a ribonucleoprotein complexes were electroporated into human cell lines, and insertions and deletions (indels) at target sites were quantified by high-throughput sequencing. Cas12a mutants were tested in HEK293T, A549, and Jurkat cell lines (Fig. 4E and F; Supplementary Figs. S21–S24), for clarity, only HEK293T editing is displayed in Fig. 4. We observed lower editing efficiency for FnCas12a compared to AsCas12a and LbCas12a (Supplementary Fig. S21), in agreement with previous works [5, 6]. We therefore decided not to pursue further human cell line editing with FnCas12a mutants.

Despite the robust E. coli plasmid interference of LbFLX, it was significantly less active than LbWT in genome editing (Fig. 4E). Expected from its lower activity in E. coli, LbΔLoop exhibited much lower editing compared to LbWT (Fig. 4E and Supplementary Figs. S22–S24). AsFLX and AsP1153A displayed a similar indel rate to AsWT, across cell lines and target sites (Fig. 4E and Supplementary Figs. S22–S24). AsΔLoop showed consistently decreased editing efficiencies, as expected from its weak interference in E. coli.

Given their slower cleavage of target dsDNA in vitro, we aimed to test if AsFLX and AsP1153A exhibited less off-target editing than AsWT. The most frequent off-targets for the DNMT1–3, DNMT1–7, and AGBL1 sites were derived from [6], and indels quantified by high-throughput sequencing (Supplementary Figs. S25–S27). Off-target editing was generally low for all nucleases (Supplementary Figs. S25–S27). We observed sporadic increases in off-target indels compared to the No Cas12a control, but no nuclease showed a consistent pattern of significantly different off-target edits across all off-targets and cell lines tested (Supplementary Figs. S25–S27).

Overall, the Nuc-loop can play a critical role in the in vitro and in vivo function of Cas12a, but this varies considerably between orthologues. Strikingly, although FnΔLoop was the most disrupted of all the FnCas12a mutants generated, it still retained in vitro TS cleavage rates 9× faster than wild-type AsCas12a. To understand this difference, we looked for more global drivers of catalytic function.

Recent works have demonstrated the importance of dynamic conformational changes in catalysis by Cas12a [14, 18, 24, 28–31, 69]. On binding a matching DNA target, stable contacts are formed between the crRNA:TS heteroduplex and the REC2 domain [14, 18, 70]. These interactions constrain the flexibility of the REC2 [18]. This allows the BH domain to 'dock' with the REC2 domain and form contacts that 'open' the RuvC-lid, thus allosterically activating DNA cleavage [18, 21–23]. In the process of sequentially cleaving NTS and TS, inward motions of REC2—Nuc domains have been observed in single-molecule FRET experiments and predicted in MD simulations [14, 24, 28–31].

The inward 'clamping' motions between REC2 and Nuc are correlated with TS cleavage, in which an especially high FRET state is seen immediately before TS cleavage and substrate release [28, 30, 31]. Given the disparities in k_TS we observe, we wished to compare REC2—Nuc dynamics between wild-type Cas12a orthologues. Furthermore, as the Nuc-loop extends towards the REC2 domain, we reasoned it may make contact with the REC2 in the dynamic motions of DNA cleavage. To test this, we performed μs-length classical MD simulations of Cas12a orthologues. We employed structures of Cas12a in their ternary state, i.e. in complex with crRNA and target DNA.

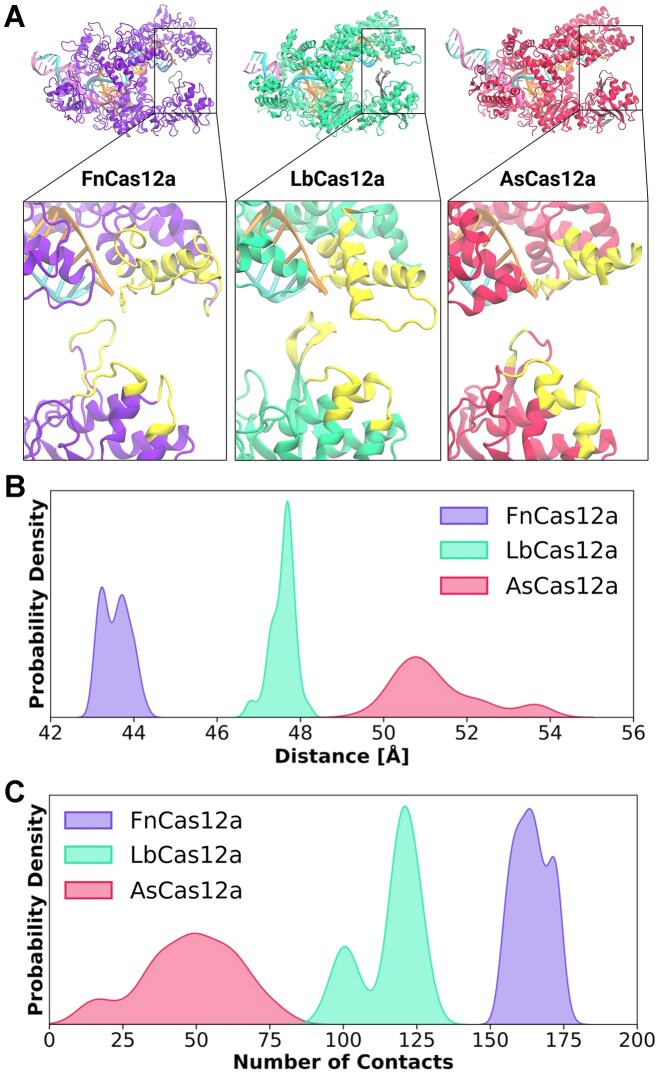

These simulations detailed the residues involved in the REC2-Nuc contacts (Fig. 5A, enumerated in Supplementary Table S4). Notable amongst these contacts is the Nuc-loop. Additionally, the PAM-distal tip of the Nuc domain also makes contact with the REC2. These Nuc regions interact with the REC2 domain in the most distal regions, where the 'gate' residue is located. Notably, extensive Nuc-loop and heteroduplex interactions were also seen in recent high-resolution simulations of FnCas12a cleaving the TS [24].

These data show the three Cas12a orthologues have distinctly different conformational distributions. FnCas12a has probability density centred at 43–44 Å, LbCas12a at 47–48 Å, and AsCas12a has a broad distribution from 50–54 Å (Fig. 5B, Supplementary Fig. S28). As the closed conformation is thought to be particularly important for TS cleavage [24, 28, 30, 31], it is intriguing to note these distributions line up with observed rates of k_TS between Cas12a orthologues.

A cause, or consequence, of these distributions are the protein–protein contacts between the REC2 and Nuc (Fig. 5C and Supplementary Fig. S29). The probability of the number of contacts between the REC2 and Nuc was quantified, and these show that FnCas12a has a high number of REC2-Nuc contacts, peaking at ∼170 (Fig. 5C). LbCas12a has two distinct peaks at ∼100 and ∼125 contacts, perhaps indicating two distinct conformations (Fig. 5C). Strikingly, AsCas12a ranged from zero to almost one hundred contacts, peaking at ∼50 (Fig. 5C).

In light of recent structural data characterizing the conformation changes of the REC2 domain of AsCas12a in DNA cleavage [18], these REC2–Nuc dynamics are significant. REC2 flexibility was observed throughout the early stages of target dsDNA binding, with stable 'docking' between REC2 and BH domain only occurring at a complete 20 bp R-loop [18]. These simulations suggest Cas12a orthologues may differ in their conformational flexibility, even at complete R-loop formation. More dynamic REC2–Nuc motions may decrease BH-docking and reduce allosteric activation of the RuvC. By enumerating the residues involved in REC2–Nuc 'pinching' motions, we find an interplay between the Nuc domain, Nuc-loop, and REC2 domain.

We observed large differences in cis cleavage kinetics between Cas12a orthologues. These differences in strand cleavage kinetics are important, given a growing body of evidence that the kinetics of R-loop formation and DNA cleavage drive the target specificity of Cas12a nucleases [20, 69, 71, 72].

For LbCas12a and AsCas12a, the values of k_NTS and k_TS were comparable to previously published values [18, 20, 25–27] (Supplementary Table S1). The rates for FnCas12a were over 10x faster than a previous study [23], which was itself over 5x faster than another report [14] (Supplementary Table S1). Notably, these studies both use half the Mg²⁺ ion concentration than herein (5 versus 10 mM MgCl₂), which has been shown to decrease both DNA binding and cis cleavage rates for AsCas12a [20, 28]. Furthermore, both previous kinetic studies for FnCas12a used short linear dsDNA substrates [14, 23]. Previous work has shown negatively supercoiled DNA substrates accelerate R-loop formation for LbCas12a compared to the unconstrained topology of linear DNA substrates [27]. Faster cleavage of plasmid DNA vs short oligonucleotides has also been observed for FnCas12a [23]. The rapid plasmid DNA cleavage by FnCas12a in this study suggests it also has more rapid R-loop formation with negatively supercoiled DNA substrates, in contrast to AsCas12a, which has very similar cis cleavage kinetics between substrates [18, 20, 25] (Supplementary Table S1).

The R-loop formation of AsCas12a has been studied in detail and is thought to occur with minimal contribution from the REC domain [18, 20]. The faster and more torque-sensitive R-loop formation by FnCas12a and LbCas12a may indicate divergent Cas12a-heteroduplex interactions in target dsDNA recognition. Supporting this are high-throughput mismatch studies on plasmid DNA targets, which show that AsCas12a is much more specific than LbCas12a and FnCas12a [71]. Critically, the kinetics of strand cleavage rates influence targeting specificity in a biological setting [72]. Our comparison of wild-type FnCas12a, LbCas12a, and AsCas12a provides a kinetic explanation for these observed differences in specificity.

We replicated and expanded on previous work studying REC2 mutations [15, 26]. We observed that alanine substitution of the REC2 'gate' resulted in consistent increases in k_TS across Cas12a orthologues, to the detriment of k_NTS (Fig. 2A–C). With rapid TS cleaving REC2 mutants, we observed slower trans cleavage when activated by full-length vs truncated TS for FnCas12a and AsCas12a (Fig. 2D–G). LbW355A had slower trans cleavage than WT for all combinations of crRNA and TS (Fig. 2D–G). However, a recent study comparing LbCas12a WT and W355A tested a target strand truncated to 19 nt, and found this resulted in a four-fold increase in trans cleavage rate compared to a full-length TS [67]. Despite LbCas12a trimming the TS to positions 22–23 relative to the PAM [26], similar to FnCas12a and AsCas12a [22, 25], it would appear a 20 nt-length target strand is sufficient to sterically inhibit loading of trans-ssDNA substrates. Overall, this suggests TS-loading of the PAM-proximal fragment can sterically hinder trans ssDNA substrates from cleavage (Fig. 6).

This agrees with the observation that excess ssDNA can slow TS cleavage [28]. A wealth of biochemical evidence has established the sequential order of NTS, TS, and then trans cleavage [9, 13, 14, 25–27]. This obligatory sequential mechanism is driven by occlusion at the narrow active site cleft, although NTS and TS are coordinated by larger networks of interactions across the RuvC and Nuc domains [4, 13, 14, 18, 25]. We suggest that the concomitant decrease of k_NTS with increased k_TS is caused by competitive binding between NTS and TS near the active site (Fig. 6). It is probable that non-productive TS-loading conformations can occur before the NTS is cleaved, given that dynamic unwinding of the TS from crRNA is observed in the absence of DNA cleavage [26]. Similarly, we suggest reduced trans cleavage with REC2 mutants is driven by competition between TS and trans ssDNA substrates. Notably, the TS is already cleaved and trimmed to its maximum extent (after a 45 min incubation), suggesting steric hindrance is not in the active site itself but at nearby residues (Fig. 6).

Given REC2 mutants have faster TS cleavage than WT, it has been questioned why this aromatic interaction is conserved across the Cas12a family [26]. Although we observed no defect in thermostability or in E. coli plasmid interference (Supplementary Fig. S7), these mutants had incomplete cis cleavage compared to WT (Supplementary Fig. S5). Others have suggested instability of mutant proteins as a cause of incomplete DNA cleavage, on the basis of protein degradation visible on SDS–PAGE [26]. We observe similar protein degradation products in SDS–PAGE (Supplementary Figs. S30–S31), which do not correspond to lessened thermostability (Supplementary Fig. S7C).

We suggest this incomplete cis cleavage is a symptom of lessened R-loop stability. Incomplete cis cleavage has been previously observed for LbW355A, but only when using a 20 nt spacer crRNA (∼20% of supercoiled target dsDNA uncut) [26]. In our assays with a 23 nt spacer crRNA we observed ∼12% of supercoiled DNA left uncut for LbW355A and FnY410A, significantly more than seen for WT nucleases and AsW382A (∼5%) (Supplementary Fig. S5).

Similar to LbW355A, the LbFLX mutant increased k_TS and decreased k_NTS, with ∼12% of target plasmid uncut (Supplementary Fig. S16). LbFLX had showed very different activity between E. coli plasmid interference and human cell line editing, with significantly reduced activity in the latter (Fig. 4D and E). We suggest that FLX substitution in LbCas12a weakens critical Nuc-loop target dsDNA interactions, resulting in disrupted strand cleavage kinetics similar to REC2 mutants (k_TS > k_NTS) and lower editing activity in human cell lines. This may have parallels to the lower of gene editing observed for AsW382A [15].

For AsCas12a, AsFLX had a specific effect on k_TS only (Fig. 3G). This mutant retained wild-type levels of activity in E.coli plasmid interference and in editing human cell lines (Fig. 4D and F). We propose this mutation minimally disrupts the R-loop formation process of AsCas12a. Likewise, but more trivally, the AsP1153A mutant was not significantly different to wild-type AsCas12a. LbΔLoop, AsΔLoop, and AsFLX-2 mutants had relatively active cis and trans cleavage at 30°C (Figs 3F and G and 4B and C) and poor activity in E. coli and/or human cell line editing at 37°C (Fig. 4E and F). Any interpretation regarding the effect of Nuc-loop disruption on their function is confounded by their globally lower stability (Fig. 3C and D).

The FnΔLoop mutant showed partial cis cleavage, leaving ∼20% of the target plasmid in the nicked state (Supplementary Fig. S16). This activity is not likely to be caused by non-specific nicking by excess nuclease present in the single-turnover conditions, as this mutant is minimally trans-active (Fig. 4A). Unlike the deletion mutants of LbCas12a and AsCas12a, this mutant displayed wild-type levels of thermostability and plasmid interference in E. coli (Figs 3B and 4D). Similar to REC2 mutants, the incomplete cis cleavage of FnΔLoop did not impair its plasmid interference ability (Fig. 4D). We suggest the FnΔLoop has incomplete target dsDNA cleavage through R-loop collapse and target DNA dissociation, caused by loss of critical Nuc-loop interactions. Partial cleavage of target dsDNA (i.e. NTS nicking only) has also been observed at mismatched target sites [71, 73]. These studies use negatively supercoiled target plasmids [71, 73], a substrate topology that can allow rapid R-loop formation [27]. Mismatches between crRNA and TS decrease R-loop stability and can lead to dissociation of Cas12a [20]. In target-dependent nicking, Cas12a appears to form stable-enough ternary complexes to permit NTS cleavage but dissociate before TS cleavage [71, 73]. Notably, it was shown each orthologue has different levels of incomplete target cleavage, where FnCas12a > LbCas12a > AsCas12a [71], perhaps indicative of general R-loop stability across matched and mismatched target sites.

In this study and elsewhere, it is notable that plasmid interference in E. coli does not correlate to activity in human cell line editing [5]. We propose the mutations causing faster k_TS may decrease the stability of target dsDNA binding and cause loss of function in gene editing. As the conformation of TS-loading requires unstacking of the REC2 gate [26] and downstream unwinding of the crRNA:TS heteroduplex [25], we propose the TS-loading conformation of Cas12a must be tightly regulated to avoid R-loop instability. Kinetic and biophysical studies have shown R-loop formation is reversible before NTS cleavage [20, 26]. Loss of REC and Nuc-loop interactions may license premature TS-loading, an unstable state that competes with NTS loading near the RuvC. In this way, we speculate that high k_TS variants of Cas12a (AsW382A, LbFLX, LbW55A, FnWT, FnFLX, and FnY410A) also have weaker initial target dsDNA binding, causing incomplete target cleavage (Fig. 6).

In a similar vein, two biophysical studies have shown FnCas12a has weaker target dsDNA interactions than LbCas12a and AsCas12a [19, 69]. An smFRET study of target dsDNA interrogation determined FnCas12a has a lower K_D compared to LbCas12a and AsCas12a, driven by a slow k_ON [19]. In target dsDNA search, FnCas12a has notably slower one-dimensional diffusion rates than LbCas12a and AsCas12a [69]. This latter work showed diffusion relies on an alpha helix in the REC2, rich in positively charged residues, alanine substitution of which reduced diffusion rates and genome editing in HEK293T cells [69]. This suggests the weak target dsDNA search and binding of FnCas12a is not problematic in E. coli plasmid interference but critical in human cell line editing.

MD simulations showed the REC2 and Nuc domain make numerous contacts in their dynamic motions, the REC2 'gate' and Nuc-loop notably amongst them (Fig. 5A and Supplementary Table S4). This lends credence to the notion that the Nuc-loop aids the TS to traverse the distance between REC2 'gate' and RuvC. The predicted distance distributions, FnCas12a < LbCas12a < AsCas12a, fit well with observed TS cleavage rates (Figs 1H and 5B). Given the importance of the close REC2–Nuc conformation in TS cleavage [14, 24, 28–31], we propose this is a major driver of different TS cleavage rates between Cas12a orthologues.

Stable 'docking' of the REC2 to the BH domain upon 20 bp R-loop formation has recently been described as critical to the allosteric activation of the RuvC [18, 21–23]. This reduction in conformational flexibility of the REC2 first licenses NTS cleavage, TS cleavage, then trans cleavage [18]. MD performed on ternary complexes suggests Cas12a orthologues may differ substantially in their conformational flexibility when bound to a 20 bp R-loop. The lesser flexibility of FnCas12a may drive its rapid k_NTS and k_TS, which in turn slows its trans cleavage of ssDNA through steric hindrance near the RuvC. The greater flexibility of AsCas12a may drive its slow k_NTS and k_TS. The hypothesis of TS-loading as inhibitory to trans cleavage would predict higher trans cleavage rates for AsCas12a than LbCas12a, due to its lower k_TS. However, we see consistently higher trans cleavage by LbCas12a. We propose that the low k_TS of AsCas12a is driven by the higher conformational flexibility of its REC2 domain, as observed in larger REC2-Nuc distances in our MD simulations, and lack of resolution in cryo-EM studies [18]. This high flexibility likely reduces trans cleavage by weakening the allosteric activation of the RuvC, which requires stable contacts between the BH and REC2 domains. The intermediate REC2-Nuc distances of LbCas12a may result in a more optimal trade-off between TS and trans cleavage than the conformations of AsCas12a and FnCas12a.

In total, we propose that REC2-Nuc dynamics are important drivers of the catalytic activation of Cas12a orthologues.
