Gene Control System Using CRISPRi for Bifidobacteria

Escherichia coli strains were routinely cultured in Luria‐Bertani (LB) broth at 37°C with agitation at 200 rpm. Bifidobacterial strains were routinely cultured under anaerobic conditions in a Modular Atmosphere Controlled System (Davidson and Hardy Ltd., Dublin, Ireland) at 37°C in modified de Man Rogosa Sharpe (mMRS) medium (de Man et al. 1960; Watson et al. 2013) prepared from first principles and supplemented with 1% glucose and 0.05% cysteine‐HCl with the exception of B. longum subsp. longum strains which were cultured in mMRS with 1% lactose and 0.05% cysteine‐HCl. Where appropriate, alternative carbon sources were used at a final concentration of 1% (w/v) and growth medium was supplemented with ampicillin (Amp; 100 μg/mL for E. coli), erythromycin (Em; 250 μg/mL for E. coli, 150 μg/mL for B. breve), chloramphenicol (Ch; 25 μg/mL for E. coli, 10 μg/mL for B. breve) or 5‐fluorouracil (0.1–5 μM) (Sigma‐Aldrich, Steinheim, Germany). All bacterial strains used in this study are listed in Table S1. For CRISPRi growth assays in B. breve and B. animalis subsp. animalis, strains were cultured in 200 μL of media in a 96‐well plate reader with OD_620nm readings taken every 30 min. For CRISPRi growth assays in B. longum subsp. infantis and B. longum subsp. longum, strains were cultured in 5 mL static cultures under anaerobic conditions with periodic measurement at OD_600nm.

A 500 bp fragment of the native CRISPR locus from B. breve UCC2003 (position 1,747,801–1,748,301 of the deposited genome sequence (accession number: PRJNA13487)) was amplified by PCR using B. breve UCC2003 genomic DNA as a template. All primer sequences used in this study are listed in Table S2. The generated PCR products were ligated into pFREM28 (Hoedt et al. 2021) using AatII and NotI (New England Biolabs, Ipswich, MA, US). The coding sequences of catalytically dead Cas9 (dCas9) from Streptococcus pyogenes and Streptococcus thermophilus were codon optimized for expression in B. breve and designed to exclude restriction modification motifs present in B. breve (Bottacini et al. 2018) prior to being chemically synthesized (Twist Biosciences, San Francisco, CA, US) and cloned into pFREM28 using AatII and XhoI (New England Biolabs). A codon optimized BetI transcriptional repressor‐encoding gene was also cloned into pFREM28 using EcoRI and XhoI (New England Biolabs) resulting in dCas9 expression being under the control of a pBet promoter. The resulting pFREM28‐betI‐dCas9 plasmids were cloned and propagated in E. coli EC101 which contains the required replicase‐encoding gene for plasmid replication (Law et al. 1995). All plasmids used in this study are listed in Table S3. B. breve UCC2003 was transformed as previously described with minor adaptations (Fanning et al. 2012). Briefly, a single colony was grown in mMRS supplemented with 1% glucose and 0.05% cysteine under anaerobic conditions at 37°C for 16 h, subcultured and grown until an OD_600nm of 0.4–0.6 was reached. Cells were harvested by centrifugation (10 min at 4500 × g) and washed twice with 0.5 M sucrose in 1 mM citrate buffer before a final resuspension in 200 μL of 0.5 M sucrose in 1 mM citrate buffer. Competent cells were electroporated (2.5 V, 20 kW, 300 Ω) and recovered in Reinforced Clostridium Medium (RCM) (Oxoid, Hampshire, UK) for 2.5 h at 37°C, plated on RCA with 150 μg/mL of erythromycin for 48 h. PCR was used to validate the insertion of dCas9 constructs into the native CRISPR locus and subsequently corroborated by DNA sequencing of the PCR products to confirm the genome‐insertion boundaries (Genewiz, Leipzig, Germany).

An alternative integrating vector for B. breve pFREM29 was created by replacing the origin of replication in pFREM28 with a modified ColEI origin. The erythromycin resistance marker was then replaced with a chloramphenicol resistance marker to generate pFREM29‐CAT. A 500 bp fragment of the integrated erythromycin resistance marker present in B. breve dCas9 strains was amplified by PCR and cloned into pFREM29‐CAT using NotI and XbaI (New England Biolabs) to generate pFREM29‐CAT‐E500. The coding sequence of nanoluciferase was codon optimized for expression in B. breve and designed to exclude restriction modification motifs present in B. breve UCC2003 (Bottacini et al. 2018) prior to being chemically synthesized (Twist Biosciences) and cloned into pFREM29‐CAT‐E500 with EcoRI and NotI to generate pFREM29‐CAT‐E500‐nanoluciferase. This plasmid was transformed into B. breve‐dCas9 strains by electroporation and the presence of integrated nanoluciferase in resulting clones was verified by PCR and by DNA sequencing of the PCR products to confirm the genome‐insertion boundaries (Genewiz).

The vector pNZ000 was generated by removing the B. breve UCC2003 restriction modification motifs from pNZ44 (McGrath et al. 2001) using PCR mutagenesis. A gRNA expression cassette was chemically synthesised (Integrated DNA Technologies, Coralville, IA, US) and cloned into pNZ000. Plasmids were constructed containing the gRNA scaffold sequence from S. pyogenes and S. thermophilus. All gRNA expression cassettes contain two BbsI restriction sites to facilitate cloning of protospacer target sequences. Complementary gRNA oligonucleotides (Integrated DNA Technologies) were annealed, phosphorylated with T4 polynucleotide kinase (New England Biolabs), and ligated using T4 DNA ligase (New England Biolabs) into the corresponding gRNA expression vector pNZ000‐gRNA_Spy or pNZ000‐gRNA_Sth1 using a BbsI‐based Golden Gate cloning reaction. gRNA targeting sequences are listed in Table S4.

For each sample, overnight cultures were diluted back to OD_600nm of 0.1 with mMRS with or without 10 mM choline chloride to induce CRISPRi. Nanoluciferase knockdown was allowed to proceed for 4 h corresponding to the log phase of B. breve UCC2003. Five hundred microlitre of culture was harvested by centrifugation and processed for nanoluciferase assays as follows. Bacterial cells were pelleted by centrifugation and resuspended in 50 μL of CellLytic B lysis reagent (Sigma‐Aldrich) supplemented with 0.2 mg/mL of lysozyme (Sigma‐Aldrich) and incubated at 37°C for 15 min. 8 μL of the resulting lysate was added to 8 μL of ONE‐Glo reagent buffer in a white opaque 384‐well plate. 8 μL of Nano DLR Stop 'N' Glo reagent buffer (Promega, Madison, WI, US) was added to each well and incubated at room temperature with shaking for 10 min. Luciferase activity was quantified using a Synergy 2 plate reader (Biotek, Winooski, VT, US).

B. breve UCC2003, a Bbr_0430 mutant strain and EPS CRISPRi clones were grown in culture overnight at 37°C under anaerobic conditions. All cultures were brought into suspension via vortexing. The OD_600nm values were recorded, and the culture tubes were incubated vertically at room temperature without agitation or movement. At each timepoint a 200 μL sample was taken from the air‐liquid interface of the cultures and the OD_600nm values were measured.

The B. breve UCC2003 genome was searched for all potential gRNA sequences using the open‐source tool GuideFinder (Spoto et al. 2020) with the following modifications. The permissible PAM sequence was changed to search for all functional Sth1 PAMs (Rock et al. 2017) and the RE_site filter was modified to remove gRNAs containing the B. breve UCC2003 sequences CTGCAG, RTCGAY, and GGCGCC (Bottacini et al. 2018). Finally, all gRNAs targeting redundant or repeat sequences were removed resulting in a list of Sth1 gRNAs with a unique target site within the B. breve UCC2003 genome (Table S5).

The S. thermophilus dCas9 gene sequence was cloned into pBC1.2 (Álvarez‐Martín et al. 2008) under the control of the constitutive promoter J23119 (Registry of Standard Biological Parts) using NotI and BamHI (New England Biolabs) to generate the plasmid pCL007. To facilitate gRNA cloning, an intermediate E. coli–Bifidobacterium shuttle vector (pCL001) was created by cloning the Bifidobacterium origin of replication from pBC1.2 into pFREM29 containing a chloramphenicol resistance gene. A Sth1 gRNA expression cassette containing two SapI restriction sites to facilitate cloning of gRNA spacer sequences was cloned into pCL001 to generate pCL002. For all‐in‐one gene targeting plasmids gRNA target sequences were cloned into pCL002 (Figure S1) using a SapI‐based Golden Gate cloning reaction. The resulting gRNA expression cassettes were cloned into pCL007 (Figure S2) using EcoRI and KpnI.

B. breve, B. longum subsp. infantis, and B. animalis subsp. animalis were grown in mMRS supplemented with 1% glucose and 0.05% cysteine under anaerobic conditions at 37°C for 16 h, subcultured and grown until an OD_600nm of 0.4–0.6 was reached. Cells were harvested by centrifugation (10 min at 4500 × g) and washed twice with 0.5 M sucrose in 1 mM citrate buffer before a final resuspension in 200 μL of 0.5 M sucrose in 1 mM citrate buffer. Competent cells were electroporated (2 V, 20 kW, 200 Ω) after which B. breve and B. longum subsp. infantis were recovered in Reinforced Clostridium Medium (Oxoid) for 2.5 h at 37°C and plated on RCA with 10 μg/mL of chloramphenicol for 48 h. B. animalis subsp. animalis was recovered in mMRS supplemented with 1% glucose and 0.05% cysteine for 2.5 h at 37°C and plated on mMRS agar with 10 μg/mL of chloramphenicol for 48 h.

To obtain competent cells for B. longum subsp. longum NCIMB8809, this strain was grown in MRS supplemented with 7% sucrose (Fisher Scientific) and 34 μg/mL Iron (II) Sulfate Heptahydrate (Fisher Scientific) and 0.05% cysteine under anaerobic conditions at 37°C for 16 h, subcultured twice, and grown until an OD_600nm of 0.9–1.1 was reached, before further subculturing in MRS with the addition of 7% sucrose, 1% lactose, 0.05% cysteine and 20 mM NaCl and grown until an OD_600nm of 0.35–0.5 was reached. Cells were harvested by centrifugation (10 min at 4500 × g) and washed 3 times (1 min at 15,000 × g) with 0.5 M sucrose in 1 mM citrate buffer before a final resuspension in 200 μL of 0.5 M sucrose in 1 mM citrate buffer. Competent cells were electroporated (2.5 kV, 20 kW, 300 Ω) after which they were recovered in MRS supplemented with 100 ng/mL CaCl₂ (w/v) and 50 ng/mL (w/v) 1,4‐dihydroxy‐2‐naphthoic acid (DHNA; Sigma‐Aldrich) for 3 h at 39°C, and plated on RCA with 100 ng/mL CaCl₂ (w/v) and 50 ng/mL (w/v) DHNA and 10 μg/mL of chloramphenicol for 48 h at 39°C. Plasmids used to transform B. longum NCIMB8809 were propagated in an E. coli strain EC101‐pNZEM‐M.blmncII which contains a B. longum methylase (O'Callaghan et al. 2015).

To assess the effects of CRISPRi on bacterial growth (OD_600nm measurements), a repeated measures ANOVA was used. Initially, outliers were identified, and extreme outliers were removed to prevent distortion of statistical assumptions and results. Outliers were defined as extreme if they were more than three times the inter quartile range beyond the first or third quartile. Data normality was evaluated using Shapiro–Wilk tests and if all groups did not meet the threshold for normality the data was log transformed prior to ANOVA testing. Post hoc pairwise t‐tests were conducted to explore growth differences between strains in each sugar with Bonferroni adjustment to reduce Type I errors. For growth curve data obtained from 96‐well plate assays (OD_620nm measurements) the R package Growthcurver was used (Sprouffske and Wagner 2016). Growthcurver computes the area under the logistic curve by integrating information from the following logistic parameters: K (carrying capacity), r (intrinsic growth rate), and N₀ (population size at the beginning of the growth curve). The area under the curve (AUC) of growth curves in the test sugar media was normalised to the AUC of growth curves in media containing glucose. The resulting normalised AUC data was analysed by ordinary one‐way ANOVA and post hoc pairwise t‐tests were conducted to explore growth differences between strains in each sugar with Bonferroni adjustment to reduce Type I errors. Colony count data was analysed using t‐tests for independent samples of equal variance.

RNAseq was performed on B. longum subsp. longum NCIMB 8809 strains expressing dCas9 or dCas9 and axuA‐targeting gRNAs from n = 2 replicates. Strains were grown overnight in mMRS with 0.06% cysteine‐HCl, 1% lactose and then subcultivated in mMRS with 0.06% cysteine‐HCl and 0.5% arabinose for 7 h. Cells were harvested by centrifugation and resuspended in 300 μL RNA shields (Zymo Research, Orange, CA, USA). The resulting cell suspensions were sent to the University of Groningen where RNA extraction, rRNA depletion, library construction and subsequent RNA sequencing were performed. To eliminate ribosomal RNA from the 250 ng total RNA, the RiboCop rRNA depletion kit (Lexogen Vienna, Austria) was employed. Subsequently, the NEBNext Ultra II Directional RNA Library Prep Kit (E7765, New England Biolabs) was utilised to prepare the library preps for Illumina sequencing. The sequencing process was performed on an Illumina NexSeq 1000 sequencing instrument, generating 100 bases single‐end reads (100SE) with an average read depth ranging between 8 and 12 million reads per sample. The quality of the resulting fastq reads was assessed using FastQC v0.11.9 (Babraham Bioinformatics, Cambridge), followed by mapping on the reference genome using Bowtie2 v2.4.2 with default settings. The resulting SAM files were converted to BAM format using SAMtools 1.11, and gene counts were obtained using featuresCounts 2.0.1 (Subread/2.0.2). Differential gene expression analysis was performed using the R statistical platform and the LIMMA package available as part of the Bioconductor release (v.3.21). As a preprocessing step lowly expressed genes were discarded prior to differential gene expression analysis. The resulting data was transformed using the voom function and genes with an adjusted p‐value < 0.05 and a log2‐fold change > 1.5 were considered significantly up‐ or down‐regulated.

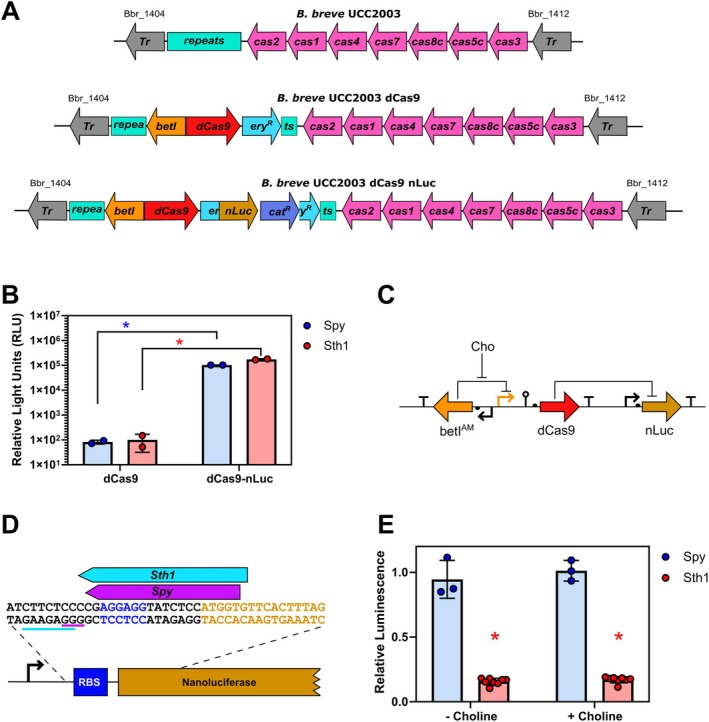

To evaluate CRISPRi systems in bifidobacteria we engineered B. breve UCC2003 to express a catalytically dead Cas9 from Streptococcus pyogenes (Spy dCas9) or Streptococcus thermophilus (Sth1 dCas9) under the control of a choline‐inducible betI regulated promoter (Meyer et al. 2019; Nielsen et al. 2016; Stanton et al. 2014). The coding sequences of Spy dCas9, Sth1 dCas9 and betI were codon optimised (Puigbò et al. 2007) and known B. breve restriction modification motifs (Bottacini et al. 2018) were removed from the open reading frames. The resulting sequences were synthesized and cloned into the suicide vector pFREM28 (Hoedt et al. 2021). To avoid disrupting any endogenous genes, the resulting plasmids were designed to integrate dCas9 into a non‐coding region of the native CRISPR locus of B. breve UCC2003 via a 500 bp region of homology generating B. breve UCC2003‐Spy dCas9 and B. breve UCC2003‐Sth1 dCas9 (Figure 1A). These CRISPRi strains were further engineered using pFREM28 to integrate a codon‐optimized nanoluciferase expression cassette into the chloramphenicol resistance gene to create B. breve UCC2003‐Spy dCas9‐nLuc and B. breve UCC2003‐Sth1 dCas9‐nLuc which express functional nanoluciferase (Figure 1A,B). The betI‐encoded regulator allows for choline‐inducible gene expression of dCas9 (Figure 1C). To test the ability of the CRISPRi systems to repress target gene expression plasmids containing Spy and Sth1 gRNAs targeting the 5′ end of the non‐template strand of the nanoluciferase reporter gene were used (Rock et al. 2017) (Figure 1D), while the non‐targeting gRNA NT1 (Table S4) was used as a negative control. Repression of the nanoluciferase reporter was observed with the Sth1 dCas9 system; however, no apparent repression of luciferase activity was observed with the Spy dCas9 system (Figure 1E). The superior performance of Sth1 dCas9 is in agreement with previous studies in another GC‐rich microbe (Rock et al. 2017). Despite dCas9 being placed under the transcriptional control of a BetI‐inducible promoter repression of luciferase expression was observed in the absence of the inducer compound choline (Figure 1E), indicating that this promoter system is constitutively active in B. breve UCC2003. All subsequent experiments were carried out using the Sth1 dCas9 system. The consensus Cas9_Sth1 PAM sequence NNAGAAW presents limited targeting functionality in GC‐rich bifidobacterial genomes; however, recent studies have demonstrated that deviations within this sequence are tolerated with minimal loss of targeting efficiency (Rock et al. 2017; Esvelt et al. 2013; Kleinstiver et al. 2015; Leenay et al. 2016; Karvelis et al. 2015) resulting in 28,085 possible target sites within the B. breve UCC2003 genome or approximately one target site every 86 base pairs (Table S5).

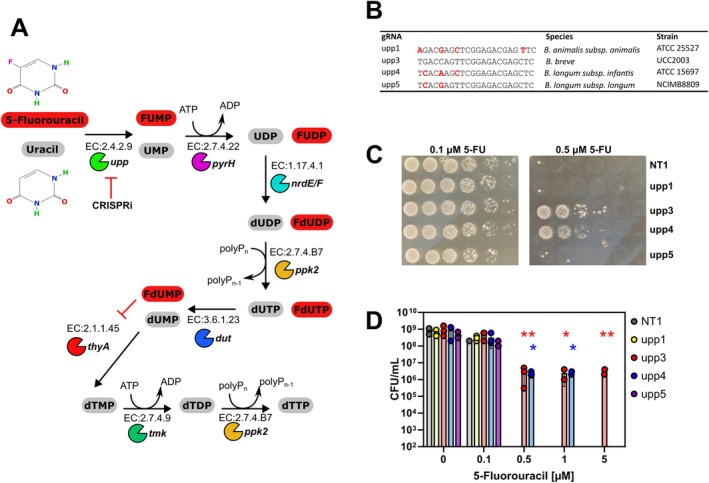

gRNAs targeting endogenous genes were designed to determine if native B. breve genes could be repressed. First, uracil phosphoribosyltransferase (upp), which is an essential component of the uracil salvage pathway, was targeted (Figure 2A) using gRNAs specific for upp in B. breve UCC2003, gRNAs designed to target other bifidobacterial orthologs of upp (Figure 2B) and the non‐targeting control gRNA NT1 5‐fluorouracil (5‐FU) is an analogue of uracil with a fluorine atom at the C‐5 position. It can enter the uracil salvage pathway after being metabolised by upp resulting in the production of active metabolites such as fluorodeoxyuridine monophosphate (FdUMP), which inhibits thymidine synthase (thyA), and fluorodeoxyuridine triphosphate (FdUTP) and fluorouridine triphosphate (FUTP), which disrupt DNA and RNA synthesis, respectively (Longley et al. 2003), resulting in inhibition of bacterial growth and reproduction. Bacterial toxicity of 5‐FU treatment is also mediated through reduced cell wall biosynthesis due to the presence of 5‐FU‐containing sugar nucleotides (Singh et al. 2015). Using growth media containing increasing concentrations of 5‐FU it was determined that the presence of 0.5 μM 5‐FU is sufficient to inhibit the growth of B. breve UCC2003 (Figure 2C). CRISPRi knockdown of upp in B. breve UCC2003 confers resistance to 5‐FU up to 5 μM and this high degree of resistance was dependent on a perfectly matched gRNA sequence (Figure 2C,D). Mismatch tolerance within the gRNA sequence has been observed when using CRISPR‐Cas editing tools in organisms across different kingdoms of life (Park, Lee, et al. 2019; Sturme et al. 2022; Cui et al. 2018). Similarly, we observed that a mismatched gRNA (upp4) was capable of inducing resistance to 5‐FU demonstrating that off‐target effects could result from CRISPRi targeting in B. breve UCC2003 (Figure 2D). However, the upp5 gRNA with fewer mismatches did not confer any resistance demonstrating that the position and nature of the mismatch also influence target specificity.

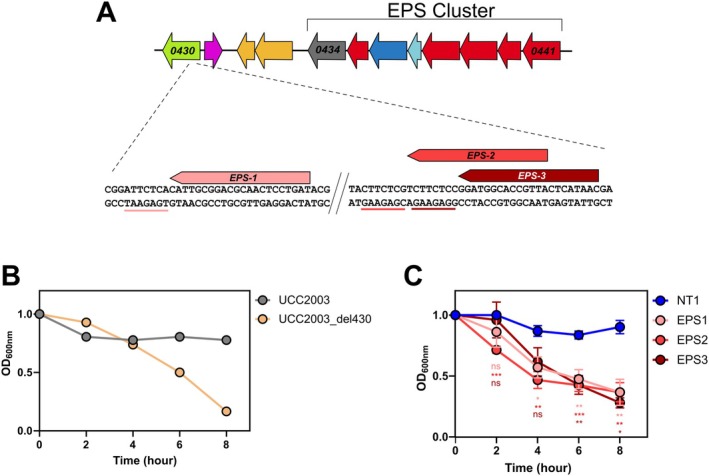

Next we targeted exopolysaccharide (EPS) production in B. breve UCC2003 using 3 separate gRNAs targeting the priming glycosyltransferase responsible for EPS production (Bbr_0430) (Fanning et al. 2012) (Figure 3A). All three gRNAs target the non‐template strand of Bbr_0430 at varying distances from the transcription start site. A previously characterised EPS‐negative mutant strain of B. breve UCC2003 displays a sedimentation phenotype after growth in liquid medium (Fanning et al. 2012) (Figure 3B). When Bbr_0430 is targeted with the Sth1 CRISPRi system the resulting loss of EPS expression results in an obvious sedimentation phenotype with all three distinct gRNAs targeting Bbr_0430 whereas no sedimentation is observed with the non‐targeting gRNA NT1 over the time frame of the assay (Figure 3C). Successful repression of upp and EPS production demonstrate this CRISPRi system can be used to model both gain of function and loss of function phenotypes in B. breve.

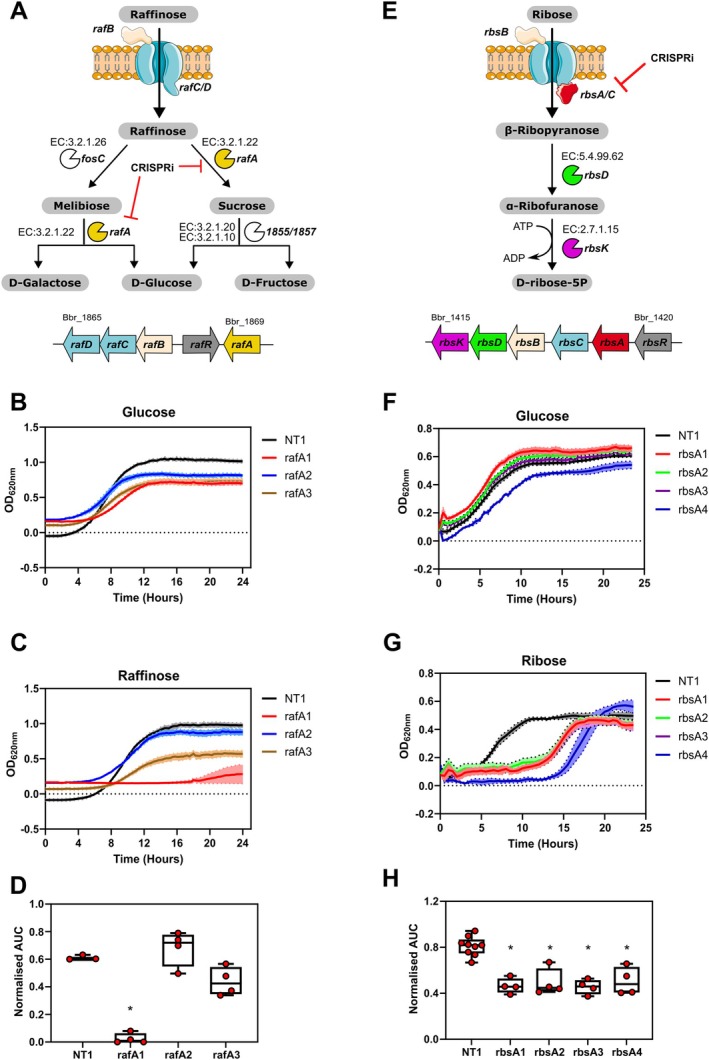

Bifidobacteria are known to metabolise a wide range of sugars and over 8% of genes identified in bifidobacteria are predicted to be involved in carbohydrate metabolism (Pokusaeva et al. 2011; Ventura et al. 2009). The availability of different carbohydrates in the human intestinal environment influences the ability of different bifidobacterial species to grow and colonise the intestinal tract which has a direct effect on bifidobacterial fermentation end product production such as acetate and lactate that are believed to impact directly and indirectly on host health (Friess et al. 2024). Given the importance of carbohydrate metabolism to Bifidobacteria we used the CRISPRi system to target genes in B. breve UCC2003 involved in ribose and raffinose metabolism. Bbr_1869 (rafA) encodes an α‐galactosidase involved in the metabolism of raffinose, stachyose and related carbohydrates (O'Connell et al. 2014) (Figure 4A), whereas Bbr_1419 (rbsA) encodes for a ribose‐specific transport system ATP‐binding protein, being involved in ribose metabolism (Pokusaeva et al. 2010) (Figure 4E). gRNAs were designed to target both genes and transformed into B. breve UCC2003‐dCas9_Sth1. The resulting clones were grown in the presence of glucose, ribose, or raffinose as the sole carbohydrate source. Two of three gRNAs targeting rafA resulted in decreased growth (rafA3) or lack of growth (rafA1), whereas rafA2 had no impact on the growth of B. breve in the presence of raffinose (Figure 4C). However, the rafA CRISPRi clones also had reduced growth in the presence of glucose (Figure 4B) and only the rafA1 gRNA had a significantly reduced growth rate in the presence of raffinose when growth rates were normalised to the glucose control condition (Figure 4D). The rafA2 and rafA3 gRNAs target the template strand of the rafA open reading frame and are not expected to have a strong impact on gene expression (Qi et al. 2013; Rock et al. 2017). The successful repression of rafA with CRISPRi and the resulting phenotype, i.e., lack of bacterial growth in the presence of raffinose relative to glucose validates rafA as an essential component of the raffinose metabolic pathway (O'Connell et al. 2014) and demonstrates specific targeting with the Sth1 CRISPRi system. When rbsA was targeted, delayed growth and an increased lag phase were observed in the presence of ribose, while a slight reduction in the growth rate was observed in the presence of glucose (Figure 4F,G). When the growth rate in the presence of ribose was normalised to the glucose control condition all four independent clones containing an rbsA targeting gRNA had significantly reduced growth in the presence of ribose compared to clones containing a non‐targeting gRNA sequence (Figure 4H). This carbohydrate‐specific effect demonstrates specific targeting of rbsA with the CRISPRi system. The reduced efficacy of targeting rbsA compared to rafA could arise due to different efficiencies of the gRNA sequences or the essentiality of each gene to its respective metabolic pathway; for example, rbsA is a transporter whereas rafA is the metabolic enzyme that acts directly on raffinose.

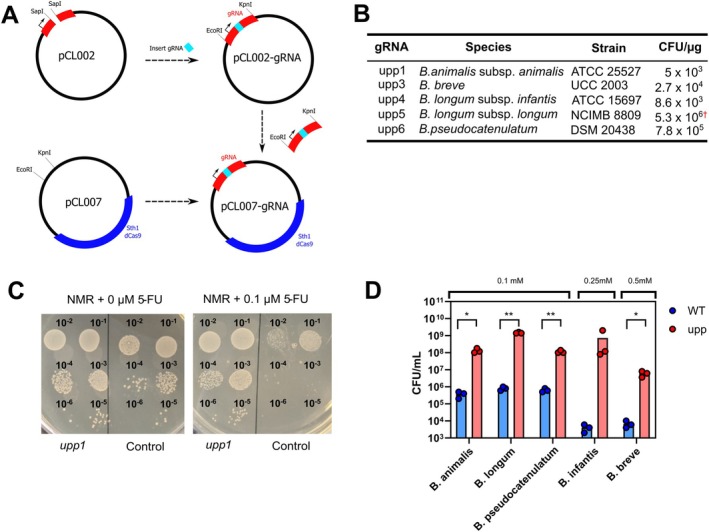

Having demonstrated proof‐of‐concept for CRISPRi in B. breve UCC2003 we next focused on applying dCas9_Sth1 for effective gene repression in other species of the genus Bifidobacterium. The use of nonreplicating vectors for the generation of dCas9_Sth1 strains via homologous recombination is limited in bifidobacteria by low transformation efficiencies and the presence of diverse restriction‐modification systems. Therefore, we decided to develop an all‐in‐one CRISPRi plasmid system containing a constitutively expressed dCas9_Sth1 and a targeting gRNA (pCL007‐gRNA) capable of achieving efficient gene repression independent of the need for high transformation efficiencies (Figure 5A). When pCL007 plasmids containing upp targeting gRNAs were transformed into different bifidobacterial species the transformation efficiency ranged from 5 × 10³ to 7.8 × 10⁵ CFU/μg (Figure 5B). The exception was B. longum subsp. longum NCIMB8809 which did not yield any colonies following transformation of pCL007 propagated in E. coli. However, propagation of the plasmid in an E. coli strain expressing the B. longum subsp. longum methylase B8809_607 (O'Callaghan et al. 2015) resulted in a transformation rate of 5.3 × 10⁶ cfu/μg of DNA indicating that the type II restriction enzyme B8809_606 was acting as an effective barrier to plasmid transfer (Table S6). gRNAs targeting the upp gene in each species were used to determine if CRISPRi could induce resistance to 5‐fluorouracil. All tested bifidobacterial species were shown to exhibit sensitivity to 5‐FU ranging from 0.1 μM to 0.5 μM 5‐FU. In all species tested the CRISPRi system targeting upp had increased resistance to 5‐FU with 1 × 10³–1 × 10⁵ fold higher colony counts observed in clones expressing CRISPRi with an upp‐targeting gRNA compared to parental WT strains (Figure 5C,D). The increase in resistance was significant in all cases except for B. longum subsp. infantis where there appears to be a large effect size, but it does not reach statistical significance (p = 0.156). Overall, this demonstrates efficient gene targeting across several species of Bifidobacterium without the requirement for extensive optimization of transformation.

Human milk contains a large proportion of non‐digestible human milk oligosaccharides (HMOs) (Ballard and Morrow 2013) which can participate in innate immunity by directly interfering with pathogen colonization (Newburg 2009) and indirectly by acting as a prebiotic to HMO‐utilising bacteria including several species of Bifidobacterium (Wang et al. 2015; di Gioia et al. 2014). Although there are over 200 structurally distinct HMOs (Sela and Mills 2010) most females primarily produce fucosylated HMOs with the fucosylated trisaccharide 2′‐fucosyllactose (2‐FL) being the most abundant (Asakuma et al. 2011; Kobata 2010). B. longum subsp. infantis ATCC 15697 is not only capable of metabolising 2‐FL but can also take up free fucose via a fucose permease and utilise it via a shared pathway with 2‐FL (Figure S3). A previously characterised insertion mutagenesis mutant of the fucose permease (fucP) in B. longum subsp. infantis ATCC 15697 demonstrated that this was essential for uptake and utilisation of fucose (Higgins and Ryan 2021). Two distinct gRNAs were designed to target the fucose permease fucP with one gRNA (fucP1) resulting in complete inhibition of growth when fucose was used as a sole carbon source (Figure 6C) (p < 0.001, repeated measures ANOVA), with minimal impact on growth in the presence of glucose (Figure 6B) (p = 0.06, repeated measures ANOVA) demonstrating specific targeting of the fucose utilisation pathway.

B. animalis subsp. animalis ATCC 25527 is capable of growth in the presence of raffinose and contains a gene cluster (Figure 6D) orthologous to the raffinose cluster found in B. breve UCC2003 (Figure 4A). We used the one‐plasmid CRISPRi system to target the putative alpha‐galactosidase Banan_07690 responsible for raffinose metabolism (rafA) with 2 gRNAs and assessed the impact on B. animalis growth in the presence of different sugars. No impact on growth was observed in the presence of glucose (Figure 6E) or in the presence of raffinose with both rafA gRNAs (Figure 6F).

Recently two genes responsible for the degradation of arabinoxylan by certain B. longum subsp. longum strains have been described: axuA and axuB (Friess et al. 2024) (Figure 7A). Here we targeted the α‐arabinofuranosidase‐encoding gene axuA with 2 gRNAs. In both cases clones transformed with CRISPRi targeting axuA had a slight reduction in the growth rate in the presence of arabinose compared to B. longum transformed with sth1 dCas9 alone although this did not reach significance (axuA1—p = 0.055; axuA2—p = 0.21, repeated measures ANOVA) (Figure 7B). The axuA1 gRNA inhibited growth in the presence of arabinoxylan isolated from rye (Figure 7C) or wheat (Figure 7D) resulting in an increased lag time; although this was only significant in the case of arabinoxylan from wheat (p < 0.001) and not with arabinoxylan from rye (p = 0.18). The axuA2 gRNA did not significantly reduce growth in the presence of arabinoxylan from rye (p = 1) or wheat (p = 0.06). In all cases CRISPRi strains were able to overcome growth inhibition to reach a final OD equivalent to the dCas9‐only strain. Similar to the delayed growth profiles observed here, previous reports have shown that when an essential gene is repressed in bacteria, loss‐of‐function mutations arise in the CRISPRi system which results in recovery of bacterial growth after an extended lag phase (de Bakker et al. 2022; Liu et al. 2021). To determine the effect of CRISPRi at the transcriptional level, an RNA‐seq analysis was carried out on B. longum subsp. longum strains transformed with dCas9 alone or in combination with the axuA targeting gRNAs and grown on arabinose. In total 12 genes were differentially expressed across both axuA gRNAs with 8 genes downregulated and 4 genes upregulated (Figure 7E and Table S7). The top differentially expressed genes include the target gene axuA and axuB which is in the same operon (Figure 7E,F). The other differentially expressed genes do not contain any predicted off‐target sites for either gRNA and the strong overlap in differentially expressed genes with two different gRNAs suggests that changes in the expression of these non‐target genes are more likely an adaptation of these strains to the loss of axuA/axuB expression.
