Fibre supplementation alters the gastrointestinal microbiome, the microbial metabolites and indicators of neurodegeneration in a mouse model of Alzheimer´s disease

In the study, we used 41 male 5xFAD mice (purchased from Charles River Laboratories GmbH, Sulzfeld, Germany) in accordance with the appropriate European and German animal welfare legislations (5.1–231 5682/LMU/BMC/ project reference number CAM 2023-011). The project was approved by the animal welfare body of the Core Facility Animal Models, BMC, LMU, and all conditions regarding the use of animals are reported in accordance with the ARRIVE guidelines. After delivery from the breeder (Charles River), the animals were housed under specified-pathogen-free conditions in husbandry rooms with defined climate (room temperature 20–22 °C, relative humidity 45–55%, light cycle 12 h light:12 h dark, room air exchange 11x per hour) in individually ventilated cages (HEPA-filtered air flow). The mice were kept in Type II long cages (Tecniplast S.p.A., Buggugiate, Italy) with aspen bedding material (LAS bedding PG3, Altromin Spezialfutter GmbH Co., Lage, Germany), a red corner house (Tecniplast) and enrichment (5 × 5 cm nestlet, Datesand, UK; plastic tunnel). The enrichment items were standard equipment for every mouse cage in the facility at the time so that every cage received the same items. Room air was exchanged 11 times per hour and filtered with HEPA-systems. The hygiene monitoring adhered to the FELASA-14 recommendations (every three months). Two mice were kept per cage. Cages were changed to fresh bedding every two weeks, while daily checks were made to ensure sufficient feed and water availability. Daily feed and water intake were not quantified during the complete study, but no major deviations from the routine observations were noted. These housing conditions were upheld during the period of adaptation to the husbandry until the start of the study and throughout the study.

All animals in the study had ad libitum access to the regular diet in the facility at all times. This was the pelleted breeding diet for rats and mice by Altromin (1314P, irradiated, 89.5% dry matter, 23.5% crude protein, 4.0% crude ash, 5.4% crude fat, 4.6% crude fibre, 52.0% N-free extracts). In addition, the AD + F group received an inulin-containing fibre supplement (FiberBites, Clear H₂O Inc., Westbrook, UK; 1.6 g fibre per piece of FiberBite, mainly from chicory root fibre. Further ingredients according to manufacturer: Sugar, water, pectin, natural flavours, citric acid, sodium citrate, colourants, coconut oil, carnauba wax). Demineralized, filtered water was available at all times.

The animals were adapted to the facility and the standard diet for 7 weeks. At the start of the study (t0, age 3 months), 11 randomly selected mice, the Basis group, were sacrificed and dissected (brain, caecum, colon for histology; ingesta of caecum and colon for SCFA analysis). The other mice were randomly allocated to two experimental groups: group AD (n = 15) was fed the standard diet without any additional treatment or supplement. Group AD + F (n = 15) was fed the standard diet and received the FiberBite supplement for additional free consumption. The FiberBite is a gelatinous feed item (called "gummy" by the manufacturer) with about 1 cm diameter. It was offered separately to the regular diet in the AD + F group. The consumption was monitored qualitatively by regular visual checks to the FiberBites for bite marks.

The mice were weighed weekly. After 7 weeks of the respective feeding regimen (t7, age 4.5 months), the mice were sacrificed by intraperitoneal injection of an overdose of ketamine and xylazine, and dissected. On the days of sacrifice, one mouse was sacrificed and dissected immediately before the next mouse was sacrificed. The sequence of the mice (i.e. distribution of groups) was randomized so as not to have a pattern throughout the day.

Cardiac blood samples were taken and blood glucose was measured (FreeStyle Lite glucometer, Abbott, Canada). The glucose measurement was repeated at least two times and the arithmetic mean of the values was calculated. Samples of gastrointestinal content at defined sites were taken for 16 S rRNA sequencing or SCFA analysis, respectively. The brain was extracted in toto and processed as described below.

Ingesta samples were obtained at t7 from stomach (STO), ileum (ILE), caecum (CAE), and colon (COL) from 15 mice of the AD and AD + F group, respectively, as described in detail previously³⁰ and stored in 600 µl DNA stool stabilizer (Invitek Molecular GmbH, Berlin, Germany) at -20 °C until further use.

To extract DNA, samples were thawed on ice and a protocol was conducted as described in detail previously ("modification of Godon protocol"^31,32. Negative controls were extracted along the samples together with a mock community as positive controls (D6300; Zymo Research Europe GmbH, Freiburg, Germany). The library preparation targeting the V3/V4-region of the 16S rRNA gene amplicon was conducted using a two-step PCR with the primers 341F-ovh (5'-CCTACGGGNGGCWGCAG-3') and 785r-ovh (5'-GACTACHVGGGTATCTAATCC-3') as previously reported³². Sequencing of the generated amplicons was conducted on an Illumina MiSeq system (Illumina Inc., San Diego, CA, USA) platform conducted in a paired-end mode (PE300; using reads of 275 each) with the v3 reagent kit according to the manufacturer's instructions.

Samples of the intestinal content from the caecum and the colon were used for SCFA analysis (for each site: n = 11 at Basis, n = 15 for group AD and n = 15 for group AD + F). The samples were stored at -80 °C until analysis. The concentrations of acetic acid, propionic acid, n- and iso-butyric acid, n- and iso-valeric acid, and n-caproic acid in caecum or colon digesta, respecticely, were determined by gas chromatography (GC) using a Shimadzu GC2010 (Shimadzu Corp., Kyoto, Japan) fitted with a flame ionization detector. The analytes were separated on an SGE BP21 column (30 m × 0.53 mm × 0.5 μm) (Trajan Scientific and Medical, Ringwood, Australia). A sample weight of 0.02 to 0.47 g was diluted to a 1.8 to 4.1-fold with deionised water. The individual dilution was recorded. The diluted samples were centrifuged for 5 min at 4,000 rpm. An internal standard solution (1.5 g 4-methyl-valeric acid/100 mL formic acid, 80%) was added to the supernatant and the samples were centrifuged for another 5 min at 4,000 rpm. Next, 0.5 µL of the supernatant was injected on-column. The following GC settings were used: 180 °C injection temperature, a constant pressure of 22.7 kPa (i.e., 29.7 cm/s linear velocity and 3.64 mL/min column flow), 85 °C initial oven temperature, raised up by 8 °C/min to 200 °C and held for 6 min, and 200 °C detection temperature. Helium was used as carrier and make-up gas. A 6-point external standard calibration was performed to calculate target SCFA concentrations (quality control data in Supplementary Table T1).

The brain was removed in toto, fixed in cryo-medium (Tissue Tek O.C.T. Compound, Sakura) in cryomolds and stored at -80 °C. Sagittal brain sections of 5 μm thickness were cut using a Thermo fisher cryotome (Model HM 355 S; Thermo fisher, Life Technologies GmbH, Darmstadt, Germany) and stained with haematoxylin-eosin. Immunohistochemical methods were performed as follows: The sections were blocked with 3% BSA / PBS Tween for 30 min at room temperature. The primary antibody Beta Amyloid Polyclonal Antibody (1:600 dilution, Invitrogen #715800) was incubated overnight at 4 ℃. The next day, a SignalStain^® Boost IHC Detection Reagent (HRP, Rabbit) (Cell Signal #8114) was applied undiluted for 1 h at room temperature, followed by a Liquid DAB + Substrate Chromogen System (DAKO #K3467) for the final staining procedure. The samples were counterstained with haematoxylin and finally mounted by using ROTI^®Histokitt (Roth #6638.1). For negative controls, the primary antibodies were either omitted or replaced by non-immune serum. Images were acquired using an Axiovert 5 microscope connected to an Axiocam 205 camera system (Zeiss, Germany).

Five cryo-fixed brains of each experimental group were chosen randomly. Tissues were sectioned on a Cryostar NX50 (Leica Biosystems) into 12 μm coronal sections and thaw-mounted onto indium-tin-oxide (ITO) Slides (Bruker Daltonics GmbH) coated with polyL-Lysine (1:1 water, 0.1% NP40). Sections were stored at -80 °C in a sealed container. The sections were washed according to a pre-established protocol to remove interfering salts and lipids¹. Briefly, proteins were precipitated in situ by 30 s incubations in 70% ethanol (EtOH) and 100% EtOH. Interferants were removed by 3 min incubation in modified Carnoy's fluid (60% EtOH, 30% acetic acid, 10% chloroform (v/v/v)) followed by 1 min incubation in 0.1% trifluoroacetic acid (TFA) to acidify the samples. The sections were dried in vacuum. To facilitate Aβ ionization from the tissue, the sections were subjected to formic acid (FA) vapour according to an adapted version of a pre-established protocol³³. Accordingly, an incubation chamber was heated to 60 °C. On a tissue paper, 3 mL FA were added to a petri dish and incubated for 8 min within the chamber to allow vapour generation. The slides were placed inside the chamber and incubated within the FA vapour for 6 min. Subsequently, the sections were dried in the vacuum chamber. After drying, sections were sprayed with matrix (10 mg/mL sinapic acid (SA) in 50% acetonitrile (ACN); 0.1% TFA) using a HTX TM Sprayer (HTX Imaging, HTX Technologies) using the manufacturers method. Aβ measurements were performed on a rapifleX MALDI tissuetyper MALDI-TOF/TOF mass spectrometer (Bruker Daltonics GmbH). Samples were measured within a mass range of 2000–6000 Da and a spatial resolution of 50 μm using positive reflector mode. A mix of synthetic Aβ peptide species [kindly provided by Prof. Dr. Gerhard Rammes] was spotted at different positions onto the same slide for calibration prior to measurement and as internal standard for peptide identification. The haematoxylin-eosin stained images were co-registered to the software IMS data to enable histological correlation. Aβ peptides were identified by matching with the synthetic Aβ mixture as well as theoretical masses. A list of all potential Aβ peptide masses and intensities were exported for quantification. Intensities of all Aβ peptides were normalized to the internal standard.

Three brains per group were chosen randomly to be sectioned on a Cryostar NX50 (Leica Biosystems) into 50 μm sections and mounted onto metal frame PET slides (Leica Biosystems). Brain regions were visualized using haematoxlin. In brief, tissue sections were incubated in haematoxylin (Roth #T865.1) for 4 min, followed by blueing under running tap water for 2 min and an ethanol wash for 30 s. A Leica LMD 7000 with a 10x objective was used for LCM. The laser setup was configured as follows: Pulse frequency − 120, maximum pulse energy − 50, aperture − 17, Speed − 10, Head current − 100%, Offset − 65. For every biological replicate, the thalamus and hippocampal areas of dentate gyrus cell layer (G) and cornu ammonis pyramidal layer (CA) were manually selected and pooled over three technical replicated. For proteome extraction, the PreOmics iST Kit was used following the manufacturers guide for mammalian tissues (PreOmics GmbH). For effective tissue lysis, the sections were manually homogenized using Micro-homogenizers PP (Carl Roth GmbH + Co KG) after the lysis buffer had been added. Protein digestion was achieved by addition of trypsin/LysC digestion solution and incubation for 3 h at 37 °C. Resulting peptides were desalted, purified, and dried in a vacuum concentrator, followed by resuspension in 12 µL loading buffer for LC-MS/MS measurement.

The LC-MS/MS analysis was carried out on a timsTOF pro (Bruker Daltonics) coupled to a Dionex Ultimate 3000 nanoLC system (Thermo Fisher Scientific). Prior to sample analysis, the instrument was calibrated using a sodium formate solution for mass calibration and Bruker tune mix for mobility calibration. For reversed phase HPLC separation of peptides, 5 µL of the solution were loaded onto a 15 cm analytical column (Bruker PepSep C18 15 cm x 75 μm, 1.5 μm pore size) and separated applying a linear gradient from 3% ACN to 80% ACN over 50 min. Eluting peptides were ionized via Captive Spray ion source (CSI) and analysed in data-independent acquisition mode coupled to parallel accumulation-serial fragmentation (DIA-PASEF) mode. High sensitivity mode was enabled. MS data acquisition was performed in the range from 100 to 1700 m/z with an ion mobility range from 0.6 1/K0–1.6 1/K0. The TIMS analyser was operated in a 100% duty cycle with 100 ms accumulation and ramp times each and a total cycle time of 1.17 s. To monitor instrument performance, quality control samples (50 ng HeLa standard) were included in regular intervals throughout the run (Supplementary Table T2).

Protein identification was carried out using DIA-NN v1.9³⁴. Default DIA-NN conditions were used; allowance of missed cleavages was set to 2. For the searches the reviewed mouse canonical protein database from UniProt was used; minimum peptide length was set to 5. DIA-NN output was processed using the R package MS-DAP³⁵. Only proteins present in 75% of samples per group were considered. Samples were normalized by "vsn" and "modebetween" and differential expression analysis (DEA) was carried out based on DEqMS algorithm. A list of inflammatory response proteins was generated by filtering the total mouse proteome for the Gene Ontology (GO) term "Inflammatory response" from Uniprot. Volcanoplots were generated by plotting fold change enrichments of the respective proteins between groups using R.

For statistical analysis, GraphPad Prism^® v5.04 was used (Graphpad Software, San Diego, CA, USA). The level of statistical significance was set to α = 0.05. To compare two groups, unpaired t-tests with Welch´s correction were performed. If all three experimental groups were compared, a one-way analysis of variance (ANOVA) was chosen.

Samples of 15 animals in the AD group and 15 animals in the AD + F group were analysed for 16 S rRNA amplicon data. Paired-end reads generated by the Illumina MiSeq (Illumina Inc.) were quality-controlled using fastp v0.23.2³⁶, which is included in the AQAMIS pipeline that was executed with the -no assembly mode³⁷. Thereafter, fastq files were re-multiplexed using a PEARL script provided on the IMNGS website and processed using IMNGS³⁸, an UPARSE-based pipeline³⁹, with the following parameters (barcode mismatches: 1; quality score for trimming: 20; minimum ID alignment during merging: 90%; trimming at the forward and reverse side: 20; minimum relative abundance cutoff: 0.25%). Operational taxonomic units (OTUs) were generated by USEARCH v11.0⁴⁰ with an identity of 97% and zero-radius operational taxonomis units (zOTU) by UNOISE2⁴¹. Non-16 S rRNA sequences were removed using SortMeRNA v4.2⁴² and taxonomic classification was conducted with SINA v1.6.1 using the taxonomy of SILVA release 138⁴³. The taxonomy was refined to contain taxa by sequence comparison using EzBioCloud⁴⁴ and a comparison with the LPSN database according to the International Code of Nomenclature of Prokaryotes⁴⁵. The final OTU and zOTU tables for all samples are provided as Supplementary Tables T3 and T4, respectively. In total, 2.7 × 10⁶ sequences with a mean of 21,311 (SD 7787) sequences per sample including negative and control samples were available. All negative controls displayed below 55 reads in total, while all bacterial genera present in the mock community were detected (i.e. Bacillus subtilis, Listeria monocytogenes, Staphylococcus aureus, Enterococcus faecalis, Lactobacillus fermentum, Salmonella enterica, Escherichia coli, and Pseudomonas aeruginosa).

Downstream analysis was conducted with Rhea, a modular R pipeline for microbial profiling⁴⁶ (https://github.com/Lagkouvardos/Rhea↗; accessed on December 21, 2024). The parameter α-diversity was analysed using OTUs using effective richness⁴⁷, while all further analyses were conducted using zOTUs. The parameter β-diversity was calculated via generalized UniFrac distances⁴⁸ using a neighbour joining tree generated with RapidNJ⁴⁹. Significant differences of taxa and zOTUs between experimental groups were calculated using four statistical tests: ALDEx2⁵⁰, ANCOM-BC⁵¹, Wilcoxon Rank-Sum test⁵², and a linear model⁵³, which in combination reveal the most robust results^54,55. For ALDEx2 v1.34.0 and ANCOMBC2 v2.4.0 count data were analysed with default parameters. The Wilcoxon Rank-Sum test was performed using the stats package v4.1.1 on the normalized relative abundances and the linear model was fitted on TSS normalized counts and log-transformed abundances using lm function of the stats package v4.1.1. The scripts used in this process can be found on github (https://gitlab.com/bfr_bioinformatics/rbvd-study↗). The p-values were corrected using the Benjamini-Hochberg⁵⁶ correction and assumed as significant when below 0.05. Correlations were calculated using Rhea with an adaptation to use the Spearman correlation. Figures were created with R using the functions dplyr v1.1.4, ggplot2 v3.5.1, gridExtra v2.3, readr v2.1.5, reshape2 v1.4.4, tibble v3.2.1, tidyr v1.3.1 and refined using Adobe Illustrator v29.5.1 (Adobe Inc., San José, CA, USA).

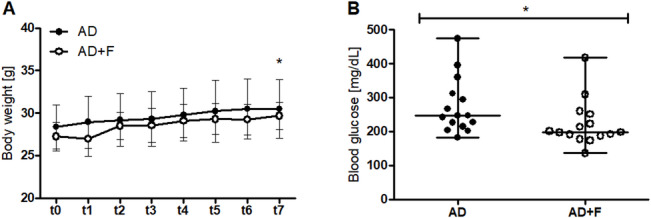

While there was no significant difference at t0 (p = 0.23), the body weight (BW) at t7 differed significantly between the groups AD and AD + F (AD: 30.47 ± 3.46 g; AD + F: 29.67 ± 1.62 g: p < 0.01; Fig. 1A). The mice in group AD + F had significantly lower blood glucose levels at t7 than the AD mice (AD: 273.4 ± 81.27 mg/dL; AD + F: 222.1 ± 67.69 mg/dL; p < 0.05; Fig. 1B).

There were significant differences between the SCFA concentrations in the ingesta samples of the caecum and colon of Basis, AD and AD + F mice.

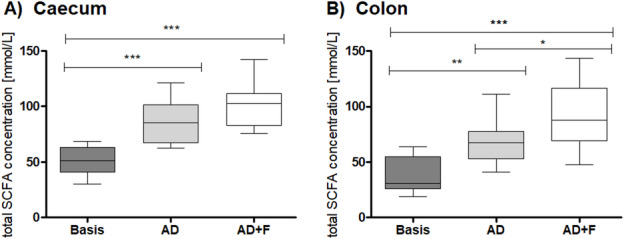

In the caecum content, the total SCFA concentration was highest in AD + F (101.4 ± 20.7 mmol/L), with intermediate values in group AD (85.8 ± 17.7 mmol/L) and significantly lowest values in the Basis group (52.4 ± 12.7 mmol/L; p < 0.0001; Fig. 2A). The concentration of acetic acid, n-butyric acid and propionic acid was significantly lowest in the Basis group and significantly highest in the AD + F group (Supplementary Table T5). The concentration of i- and n-valeric acid was significantly higher in the AD group than both Basis and AD + F. There was a significant difference in the concentration of i-butyric acid between AD + F and AD with AD having higher concentrations, but not compared to Basis.

In the colon content, the concentration of total SCFA differed significantly between all three groups (Fig. 2B; Basis: 37.2 ± 15.7 mmol/L; AD: 66.1 ± 18.1 mmol/L; AD + F: 93.1 ± 30.6 mmol/L; p < 0.0001). There were no significant differences in the concentration of i-butyric acid, i- and n-valeric acid between the three groups (see Supplementary Table T5). Acetic acid, n-butyric acid and propionic acid were significantly higher in the AD + F group with lowest values in the Basis group. The pattern of SCFA was not systematically different between the three groups (Supplementary Figure S1).

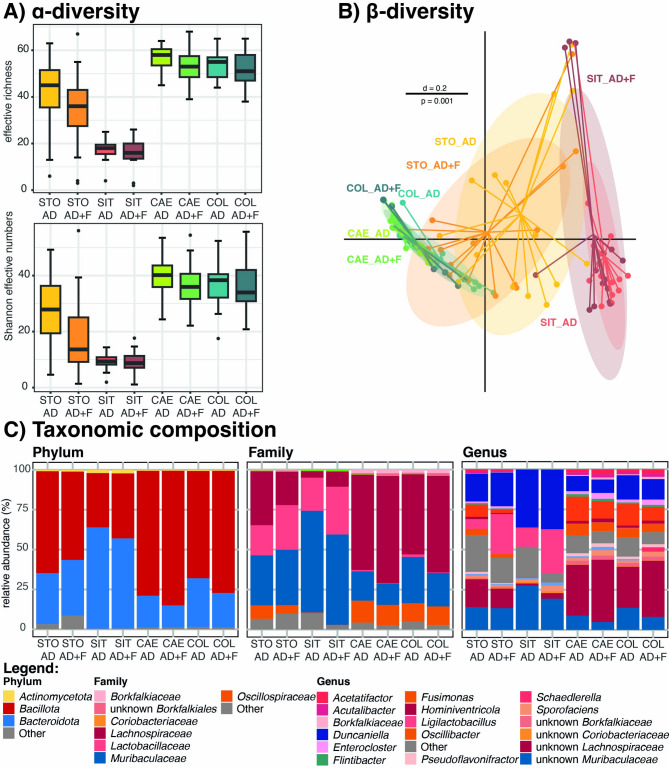

When comparing the bacterial richness of all gastrointestinal regions, slightly lowered values were found in the AD + F group as compared to AD (Fig. 3A). A distinct separation of microbial profiles from small intestine and large intestine was observed, with samples from stomach clustering in between (Fig. 3B). The gastrointestinal site explained 15% of variation among bacterial communities (BC) of the individuals, while the experimental group explained only 3%. The taxonomic composition of all gastrointestinal sites and between the two experimental groups is displayed in Fig. 3C.

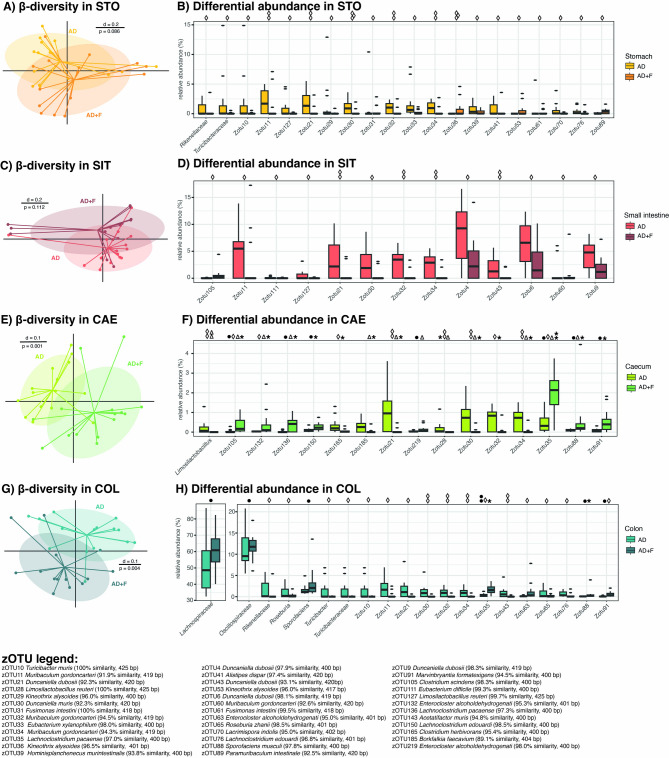

In the samples obtained from stomach and small intestine, microbial profiles displayed no significant difference between the BC of AD and AD + F (Fig. 4A and C). Nevertheless, some taxa and zOTUs differed significantly between these two groups when tested with ANCOM-BC2 (Fig. 4B and D). In the stomach, most significant zOTUs were of higher abundance in the BC of AD, while only zOTU36 and zOTU53, two unknown species of the family Lachnospiraceae were of higher abundance in the BC of AD + F (Fig. 4B). In the caecum samples, the microbial profiles differed significantly between the two experimental groups (Fig. 4E) and various taxa and zOTUs were found differing significantly between the two experimental groups´ BCs in at least two of the statistical tests conducted on this dataset (Fig. 4F). Among these, two zOTUs (zOTU35 Lachnoclostridium pacaensae, 97.0% similarity, and zOTU105 Clostridium scindens, 98.3% similarity) with a higher abundance in AD + F displayed a significant difference in all four tests. It is noteworthy that unknown members of the Muribaculaceae family were found to be significantly higher in AD in at least two tests (zOTU21, zTOU30, zOTU32, and zOTU34), while most unknown members of the Lachnospiraceae family, Hominiventricola spp., and Enterocloster spp., were of higher abundance in AD + F BCs. Further taxa that displayed significant differences in their relative abundance between AD and AD + F are displayed in Supplementary Table T6. In the colon samples, a significant difference in the microbial profiles of the two experimental groups BCs (Fig. 4G) was observed. However, only few zOTUs displayed significant differences among multiple statistical tests (e.g. zOTU35 Lachnoclostridium pacaensae, 97.0% similarity, zOTU88 Sporofaciens musculi, 97.8% similarity, and zOTU91 Marvinybyantia formatexigens, 94.5% similarity), while the general composition on family level displayed significant differences in the families Lachnospiraceae and Oscillospiraceae (Fig. 4H). Considering the significant differences between the four sampling sites, some observations on unknown members of the Muribaculaceae family were made throughout all gastrointestinal regions (e.g., zOTU11, zOTU21, zOTU30, zOTU32, zOTU34, and all unknown members of the Muribaculaceae family; Fig. 4B, D, F, H). In the hindgut (i.e., CAE and COL), significant results for zOTU35 (Lachnoclostridium pacaensae, 97.0% similarity), zOTU88 (Sporofaciens musculi, 97.8% similarity), and zOTU91 (Marvinybyantia formatexigens, 94.5% similarity) were observed to be significantly different with more than one statistical test were observed in both regions. In addition, significant differences were found with only one test for zOTU63 (Enterocloster alcoholdehydrogenati) and zOTU143 (Acetatifactor muris); Fig. 4F and H).

Immunohistochemical analysis of the brain sections showed an accumulation of plaques in the hippocampus formation, predominantly in the subiculum region in all three regions. In addition, plaques could be detected in all three groups in the cortex and thalamus regions of the brain slices. Supplementary Figureshows exemplary images of the immunohistochemical brain sections. S2

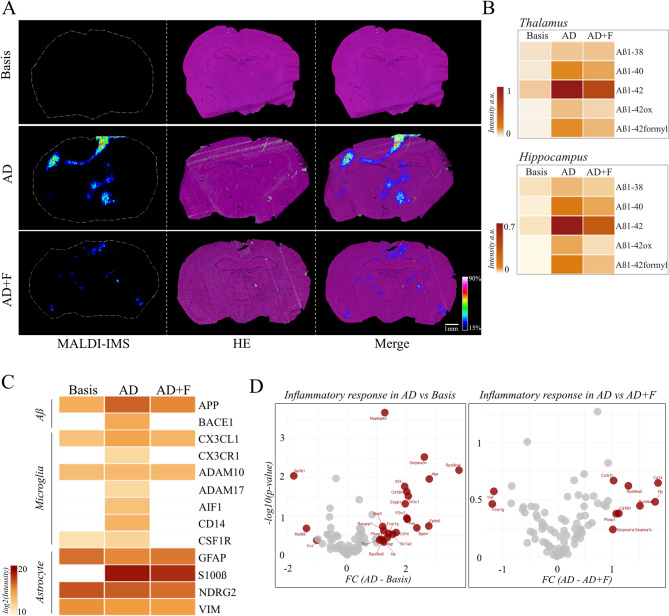

Spatial distribution of amyloid depositions was mapped in situ using a specialized protocol for MALDI-Mass Spectrometry Imaging. Treatment with formic acid enabled extraction of amyloid peptides directly from the tissue while degrading other interfering proteins. Consequently, multiple co-localizing Aβ species were detected consistently across animals. They displayed the expected localized distributions of senile plaques across the tissue, being mainly present in thalamus, hippocampus and cortex (Fig. 5A). Most abundant were m/z 4515.4 and m/z 4331.4, matching the theoretical masses of hAβ1–42 (m/z 4514.07) and hAβ1–40 (m/z 4329.86), respectively, as well as the internal standard (Fig. 5A). Additional masses at m/z 4134.9, m/z 4534.4 and m/z 4543.4 were assigned to theoretical masses of hAβ1–38, hAβ1-42ox and hAβ1-42formyl, respectively. Due to lack of inclusion, they could not be further verified by the internal standard mix. Quantification of amyloid peptides in thalamus and hippocampus revealed highest abundance of hAβ1–40, hAβ1–42, hAβ1-42ox and hAβ1-42formyl in AD mice with a marked reduction in AD + F (Fig. 5B). hAβ1–38 levels followed the same trend in hippocampus but showed no difference between AD and AD + F in thalamus (Fig. 5B). All detected peptides showed minor or no presence in the basis group (Fig. 5B).

The majority of analysed proteins in the brain regions were present in all three experimental groups, however, region-specific differences could be found (Supplementary Figure). As amyloid deposition and treatment-associated reduction was most prominent in thalamus, the region was isolated using laser capture microdissection (LCM) and the proteomic landscape characterized. S3

APP (Amyloid-beta precursor protein) and BACE1 (Beta-Secretase 1), the rate limiting enzyme in Aβ production, were quantified to profile Aβ generation. APP and BACE1 levels were notably increased in thalamus of AD mice in comparison the basis group, potentially a manifestation of disease onset. This effect was ameliorated in AD + F (Fig. 5C), where BACE1 could not be detected.

As glial cells play a crucial role in AD development by directly influencing Aβ production and clearance, but also contributing substantially to overall neuronal health⁵⁷, glial cell presence was investigated. Microglia are commonly profiled by expression of AIF1/Iba1 (Allograft inflammatory factor1), CD14 (Monocyte differentiation antigen CD14), CSF1R (Macrophage colony-stimulating factor 1 receptor) and CX3CR1 (CX3C chemokine receptor 1)^58–60. The release of membrane-bound CX3CL1 (Fractalkine) by ADAM10 or ADAM17 (disintegrin and metalloprotein domain-containing protein 10/17) and recognition by microglial CX3CR1 induces microglial activation⁶¹ and was therefore considered as well. Astrocytes were identified by presence of GFAP (Glial fibrillary acidic protein), NDRG2 (Protein NDRG2), VIM (Vimentin) and S100β (Protein S100-B)⁶². AIF1, CX3CR1, ADAM17, CD14 and CSF1R were exclusively detected in AD. CX3CL1 levels are highest in AD, while ADAM10 expression showed no difference between groups (Fig. 5C). The expression of astrocytic markers GFAP, NDRG2 and VIM is comparable across groups with a minor reduction of GFAP in AD mice, while S100β levels were highest is AD with a reduction in AD + F (Fig. 5C).

In line with that, overall inflammatory response proteins were enriched in AD mice upon disease onset (Fig. 5D, left). This effect persisted when comparing AD with AD + F, indicating an attenuation of the inflammatory response in AD + F (Fig. 5D, right).

In addition to the thalamus, hippocampal neuronal populations (DG and CA) were profiled for inflammatory markers (Supplementary figure). Less microglial and astrocytic markers were detected there as compared to the thalamus, but the proteins present in DG and CA display a similar trend as in the thalamus (Supplementary figureA). The overall inflammatory response proteins display less pronounced enrichments than observed in the thalamus (Supplementary figureB). S4 S4 S4

For all measured SCFA, the concentration in the caecum content was higher than that in the colon content. This can be explained by the high fermentative activity of the microbiota in the caecum and a subsequent reduction of the metabolite concentration by both cross-feeding⁷⁵ and intestinal absorption⁷⁶. The pattern of higher and lower concentration in the three experimental groups was consistent in caecum and colon. The mice in group AD + F had the significantly highest overall SCFA concentration, followed by group AD. This is in accordance with literature reports of reduced faecal SCFA levels in mouse models of AD⁷⁷ and studies on human patients⁷⁸, even though the limitation of faecal SCFA analysis in those studies needs to be taken into account. Differentiation between SCFA concentrations in caecum and colon as performed in this study renders a better interpretation of the processes involved.

The acetic acid concentration was significantly higher in the caecum and colon content of the AD + F mice as compared to that of the other two groups. This is consistent with the reports of in vivo fermentation experiments with inulin as substrate showing the production of mainly acetate and to lesser extents butyrate and propionate⁷⁹. A study in horses fed inulin and fructo-oligo-saccharides from Jerusalem artichoke meal also showed increased acetate and n-butyrate concentrations in stomach and colon⁸⁰. It has been shown that acetate has neuroprotective and anti-inflammatory effects that can even attenuate cognitive impairment⁸¹. Among the microbially derived SCFA, acetate seems to be the major factor for microglia maturation and homeostasis⁸². The exact mode of action is not known, but there is evidence that acetate metabolism contributes to a reduction of inflammatory signalling in vitro^83,84 and in a rat model⁸⁵. Microglia are essential for brain health and tissue regeneration, and their function is impaired in neurodegenerative disease like AD^86,87. Considering these links, the observed increase in digesta acetate in the AD + F mice might be associated with the results of the Aβ quantification and beneficially altered brain proteome as compared to the AD mice of the same age. However, we cannot prove this potential explanation with the data from the study.

The present study investigated the bacterial communities in different parts of the gastrointestinal tract by 16 S rRNA sequencing. In comparison to methods like metagenomics, this can only give an overview of the members of the microbial community with limited information about the functions. However, it is a standard method that is well suited to get an overview and there is a lot of literature to reference to. Further metagenomic analyses are certainly desirable in the future.

It is well known that the microbial community strongly differs throughout the gastrointestinal tract^88–91. This allows for an integrated view of diet-induced changes in the microbial community. The examination of faecal samples was omitted as they do not represent the microbial community or metabolic pattern present in the gastrointestinal tract^30,91–93, so that the method employed in this study has clear benefits. It is of special importance given that mice are hindgut fermenting rodents⁹⁴, which depend on prae-caecal enzymatic degradation and absorption of easily digestible nutrients as well as microbial fermentation mainly of fibre in caecum and colon. The digestive physiology leads to different digesta and microbiota profiles in the gastrointestinal regions. Indeed, the influence of the inulin supplementation in this study was strongest in the large intestine and especially in the caecum, also supported by β-diversity results (including adonis) and the higher number of statistical tests agreeing in the significance of results in the differential abundance analysis. The use of multiple statistical tests as proposed for microbiome studies^95,96, and as conducted here, allows for a more robust biological interpretation when multiple tests indicate significance.

Our results of the α-diversities do not agree with a reduction in molecular strain diversity that has been associated with Alzheimer´s disease in human patients^10,97 and 5xFAD mice⁹⁸. However, a comparison of α-diversities across studies may be limited, especially when non-effective measures are reported. Nevertheless, changes in the microbial profiles of all gastrointestinal regions tested in this study after fibre supplementation are corroborated by previous studies^99,100.

Most differences on zOTU level were observed for the families Muribaculaceae and Lachnospiraceae. Unfortunately, many genera and species of these two families have currently not been described or even cultured, which impairs proper discussion. However, it is known that Muribaculaceae are main members of the murine gastrointestinal microbiome and can be divided into three subgroups by the expression of the enzyme glycoside hydrolase, which is either specified for α-glucans, host or plant glycans¹⁰¹. Similarly, members of the family Lachnospiraceae contain glycoside hydrolases, which enable them to degrade various complex carbohydrates (e.g. pectin, hemicellulose, cellulose, starch, alpha-glucans and xylans)¹⁰² and produce SCFA as fermentation end products¹⁰³. The increased production of SCFA seems to slow down the pathogenesis of Alzheimer´s disease.

Further research in the yet undescribed members of the family Muribaculaceae (zOTU21, zOTU30, zOTU32, zOTU34) found in the AD group is required. If these species are, for instance, capable of host glycan and especially mucus degradation, they might be the central link from microbiota to compositional changes of the intestinal mucus layer, a pathomechanism associated with various pathological processes including Alzheimer´s disease¹⁰⁴. The difficulties in assigning the findings of microbiome studies to functional processes highlight the importance of continued cultivation of members of the mouse intestinal tract to further characterize them, including their capacity to degrade mucin in vitro^105–107. 16 S rRNA gene amplicon sequencing is not well suited for making statements much beyond genus level, since functions as they are mostly species-, if not strain-specific⁹⁶. Nevertheless, a comparison of the present data with literature might already shed some light in the pathomechanism linked to Alzheimer´s disease.

Of the molecular strains that displayed a similarity over 97% to known species, some were found enriched in relative abundance in the AD group (i.e., zOTU10 Turicibacter muris, 100% similarity, 425 bp; zOTU33 Eubacterium xylanophilum, 98.0% similarity, 400 bp; zOTU4 Duncaniella dubosii, 97.9% similarity, 400 bp; zOTU41 Alistipes dispar, 97.4% similarity, 420 bp; zOTU6 Duncaniella dubosii, 98.1% similarity, 419 bp; zOTU9 Duncaniella dubosii, 98.3% similarity, 419 bp; zOTU111 Eubacterium difficile, 99.3% similarity, 400 bp; zOTU127 Limosilactobacillus reuteri, 99.7% similarity, 425 bp). While an increase in relative abundance might be associated to the disease onset or progression, opposing results for these bacteria exist in literature. For example, Turicibacter spp. have been described to be related to the pathogenesis of Alzheimer's disease or not^98,108. This contradiction might be explained by strain-specific functions in bile acid and lipid metabolism¹⁰⁹. However, for other genera the picture might be clearer. For instance, the genus Alistipes – known for its proinflammatory potential¹¹⁰ – has regularly been associated with Alzheimer's disease, cognitive impairment and mental disorders^{10,98,110–114}. In contrast, Limosilactobacillus reuteri was found to be more abundant in healthy controls than patients with mild cognitive impairment¹¹⁵. A relationship between Alzheimer's disease and Eubacterium spp. or Duncaniella spp. has not been described previously to the best of the authors´ knowledge.

The species enriched in the mice of group AD + F might allow for some insight into microbiota possibly counteracting the onset or progression of Alzheimer´s disease. The molecular species were, for example, (i.e., zOTU35 Lachnoclostridium pacaense (97.0% similarity, 400 bp), zOTU61 Fusimonas intestini (99.5% similarity, 418 bp), zOTU88 Sporofaciens musculi (97.8% similarity, 400 bp), zOTU105 Clostridium scindens (98.3% similarity, 400 bp), zOTU136 Lachnoclostridium pacaense (97.3% similarity, 400 bp), zOTU150 Lachnoclostridium edouardi (98.5% similarity, 400 bp), and zOTU219 Enterocloster alcoholdehydrogenati (98.0% similarity, 400 bp). In general, Enterocloster spp. exert anti-inflammatory and immunomodulatory effects¹¹⁶, hinting at a potentially beneficial effect also in the 5xFAD mouse model. The genus Lachnoclostridium is part of the Lachnospiraceae family known for its capacity for fibre degradation and production of SCFA^102,103, possibly providing anti-inflammatory effects. Other taxa (e.g. zOTU35, zOTU88, zOTU105, zOTU136, and zOTU21), which were found significantly enriched in AD + F, no matching species information is available. While they have been identified as closely related to each other, their link to Alzheimer´s disease or it´s prevention in 5xFAD mice has not been described yet.

A central part of Alzheimer´s pathogenesis is the formation of amyloid plaques. In our study, formation of these senile plaques was profiled in situ using Imaging Mass Spectrometry, detecting several amyloid fragments. Among these, the extracellular fragment 1–42 is considered the most important in Alzheimer´s disease in humans¹¹⁷. Thereby, localized deposition of the amyloid proteins hAβ1–40, hAβ1–42, hAβ1-42ox and hAβ1-42formyl was observed in AD and AD + F, but not the younger basis group (Fig. 5A). This effect of ageing matches the known timepoint of disease onset and Aβ deposition in the 5xFAD mouse model, confirming that our method enables tracking disease progression as well as plaque composition^18,118,119. Figure 5A shows the pattern of plaque deposition in the AD mice, which might be similar to a subpial, band-like plaque in the neocortical layer of the brain described by Walker¹²⁰ in human brains. Furthermore, immunohistochemical staining revealed the formation of plaques in all three groups, which is in accordance with the results of the proteome analysis. The described modified forms of hAβ1–42 may be a product of sample processing. While hAβ1-42ox can also occur naturally, hAβ1-42formyl does not, and is likely a result of the dietary treatment. All detected Aβ species show reduced abundance in AD + F in comparison to AD, with the exception of hAβ1–38, which remains stable across groups (Fig. 5B). This observation hints at a positive effect of inulin supplementation on the brain. The mechanism behind this may be a reduced Aβ production or increased Aβ clearance. Aβ clearance can be promoted via microglia^121,122, which in turn are beneficially influenced by acetate. The increase in intestinal acetate production discussed above might improve microglia function and in turn contribute to Aβ clearance. To further elucidate the molecular effect of diet intervention, we performed shotgun proteomics. We found increased levels of both APP and BACE1 in AD mice compared to AD + F, indicating that Aβ production seems to be reduced in AD + F mice. Additionally, AD mice displayed elevated inflammatory markers, indicating increased infiltration of microglia and reactive astrocytes. Increased detection of fractalkine together with ADAM 10/17 and CX3CR1 may indicate microglial activation in AD mice (Fig. 5C). The dietary intervention seemingly dampened the overall inflammatory response.

Hippocampal neuronal populations display less pronounced enrichments of inflammatory markers than thalamus. This may indicate less infiltration of microglia and reactive astrocytes. However, as these are dense neuronal populations, proteomic signatures may be diluted by the substantial neuronal contribution. Nonetheless, we could not find an indication for pronounced inflammation in those neuronal populations.

The increased production of SCFA, particularly acetate, in the AD + F group can be connected to these observations. This SCFA can cross the blood-brain barrier and directly influence brain health. Particularly microglial maturation and activity is positively influenced by either acetate directly or its product butyrate^123–125. As microglia play a pivotal role in avoiding amyloid plaque formation by both active plaque clearance and by stimulating neurons towards non-amyloidogenic pathway of APP processing^123–125, this matches our observation of reduced Aβ load as well. However, the identification of exact mechanisms behind these observations is beyond the scope of this study and requires further investigation. The present findings are the basis for future translational studies for a targeted nutritional intervention to beneficially influence the gut-microbiota-brain axis in neurodegenerative disease. The overall goal could be to establish nutritional recommendations or personalized supplementation for human risk patients to prevent or slow down the progression of Alzheimer´s disease.
