IL-19 as a potential treatment and diagnostic target to change the immune-suppressing environment in glioblastoma

This study was comprised of three cohorts. First, this study enrolled a local Taiwanese cohort consisting of 28 patients with GBM with complete MRI sets and microarray genomic data obtained from intratumoral and peritumoral tissues through stereotactic sampling. The second cohort was obtained from TCGA database, which included the genomic and survival data of 225 patients with GBM. The third cohort was obtained from CGGA database (mRNA_array_301). All GBM had wild-type isocitrate dehydrogenase 1 (IDH-1). This study was approved by the Institutional Review Board of Taipei Medical University (approval no. N201603086).

GBM RNA-seq datasets from TCGA level 1 data were processed and analyzed using HISAT2 or StringTie [69]. The array platform employed for the GBM cohort was Agilent 244 K custom gene expression (G4502A-07–2; Agilent, CA, USA). The gene intensity was normalized using locally weighted scatterplot smoothing. The enrichment levels of various immune subsets, namely T_H1, T_H2, T_H17, cytotoxic T lymphocytes (CTLs), and MDSCs, were evaluated through gene set enrichment analysis based on TCGA Level 1 data. A metagene list is presented in Supplementary Table S1.

A total of 8,901 immune-related genes were selected from ImmPort, InnateDB, GO, and the Panther database. Putative survival-associated immune-related genes were ranked and filtered using stringent criteria (hazard ratio [HR] > 1; Wald test, p < 0.01). The association between IL-19 expression level and patient prognosis was assessed using the Cox proportional hazards model, implemented through the coxph function in the R package survival. The HR derived from this model quantified the effect of a one-unit increase in IL-19 expression on the risk of an event occurring. To further examine the impact of IL-19 expression, the cutp function from the R package survMisc was used to identify the optimal cut-off point for stratifying patients into high- and low-expression groups. Using this cut-off value, Kaplan–Meier survival curves were generated to visualize the survival differences between the two groups. The statistical significance of these differences was evaluated using the log-rank test.

Tissue samples were collected from the intratumoral solid T1 contrast-enhanced tissue and the peritumoral region (tumor-free resection margins of 1–2 cm), which was defined using multimodal magnetic resonance (MR) images (T1, T1 contrast-enhanced tissue (T1 + C), T2 Fluid Attenuated Inversion Recovery, and apparent diffusion coefficient maps); the samples were then obtained using MR-guided stereotaxic surgery. All RNA was extracted from the tumor tissue and hybridized to an Agilent SurePrint Microarray (Agilent Technologies, Design ID: 039494), and the signals were analyzed using feature extraction software (v10.7.3.1; Agilent). An Ingenuity Pathway Analysis (IPA) system (version 42012434, Ingenuity Systems; Qiagen, China) was used for the bioinformatics analysis.

The tumor tissues were fixed with 4% paraformaldehyde for approximately 3 days, then were embedded in paraffin and cut into 5-µm-thick sections, which were deparaffinized and rehydrated using a graded ethanol series. The sections were then exposed to an antigen retrieval process, and sections were stained using IL-19 antibody (R&D systems, #AF1035, 100X dilution), CD206 antibody (Cell signaling, E2L9N, 800X dilution), Iba1 antibody (Cell signaling, E4O4W, 200X dilution). The secondary antibodies were Alexa Fluor 488 AffiniPure donkey anti-rabbit IgG (Jackson ImmunoResearch Laboratories, 500X dilution), and Cy3 donkey anti-goat antibody (Abcam, #ab150, 600X dilution). The sections were observed by a light microscope (Olympus/Bx43).

Human GBM cell line, including U87, GBM8401, GBM8901, and DBTRG-05MG cell lines were purchased from the Bioresource Collection and Research Center (Taiwan). U118 and LN18 cells were purchased from (American Type Culture Collection, ATCC). Mouse GBM cell line, GL261 cell line, was purchased from the German Collection of Microorganisms and Cell Cultures (Leibniz Institute, DSMZ, Germany). Human glioblastoma stem cells (GSC) were purchased from Celprogen (USA). GL261 cells were transfected with the plasmid vector PGL4.51 (luc2/CMV/Neo). GL261 TMZ-resistant subline (GL261/TMZ-R) cells were established according to our previous study [35]. The DBTRG TMZ-resistant subline (DBTRG/TMZ-R) was generated by long-term incubation with 50 μM TMZ. TMZ-resistance activity was confirmed by a colony formation assay (Supplementary Fig. 1).

C57BL/6JNarl male mice (National Laboratory Animal Center, Taiwan) were used to establish a GBM-bearing animal model. NBSGW mice (NOD, B6.SCID Il2rγ^−/− Kit^W41/W41 mice, Jackson Lab) [45] were used for human GBM-bearing animal model. The tumor cell inoculation assay was performed as previously described in another study [30]. Briefly, 100,000 GL261 or 150,000 GL261/TMZ-R cells were slowly injected into the right brain of C57BL/6JNarl male mice. IL-19 antibody (R&D Systems) or an isotype control antibody was intravenously administered on days 12, 15, 19, and 22 (15 μg/mouse). Tumor volume was analyzed using a Spectrum In Vivo Imaging System (IVIS Lumina III XRMS, PerkinElmer), and the animals were monitored daily to ensure humane endpoints for animal survival experiments. This animal study was approved by the Institutional Animal Care and Use Committee of Taipei Medical University (LAC 2018-0478) and conducted in accordance with the Animal Research: Reporting of In Vivo Experiments (ARRIVE) guidelines and the Guide for the Care and Use of Laboratory Animals of the National Institutes of Health.

The cytokine profiles of the tumor homogenates were analyzed using the Proteome Profiler Mouse XL Cytokine Array Kit (ARY028; R&D Systems, USA) in accordance with the manufacturer’s instructions. We used 200 μg of the tissue lysates of tumor homogenates to determine cytokine expression profiles. All data were acquired using the ChemiDoc Touch Imaging System (Bio-Rad, USA) and signals were quantified using ImageJ software.

ScRNA-seq analysis was performed on day 25 after tumor inoculation to isolate tumor-infiltrating leukocytes from tumor-bearing mice. Mice were anesthetized with zoletil and xylazine and transcardially perfused with cold phosphate-buffered saline (PBS). Tumor tissues were dissociated into single-cell suspensions using a tumor dissociation kit (Miltenyi Biotec) in combination with a gentleMACS Octo Dissociator with Heaters (Miltenyi Biotec). The BD Rhapsody Express Single-Cell Analysis System was used for all the targeted transcriptomic experiments. We first isolated CD45⁺ live tumor-infiltrating leukocytes and then labeled specific markers (AbSeq Oligo anti-mouse CD3, CD4, CD8, NKp46, CD11b, and CD11c) using a BD Single-Cell Multiplexing Kit (BD Biosciences, #633781, USA) and BD AbSeq Ab-Oligos reagents according to the manufacturer’s protocol. The final libraries were sequenced using the HiSeq 2500 sequencing system (Illumina, USA), which generated paired-end reads of 150 base pairs. The final mean read depths for the two experiments were as follows: Experiment 1 had 8467 reads/cell for the AbSeq library (saturation: 96.5%) and 12,204 reads/cell for the mRNA library (saturation: 67.4%). Experiment 2 had 9950 reads/cell for the AbSeq library (saturation: 97.1%) and 26,728 reads/cell for the mRNA library (saturation: 76.6%). Whole-transcriptome FASTQ files were processed using the standard Rhapsody WTA Analysis Pipeline (version 1.9.1; BD Biosciences) on the Seven Bridges platform, and immune subset clustering was implemented using the Seurat plugin (version 3.8.1) in SEQGEQ software (BD Bioscience). Raw scRNA-seq data were deposited in PRJNA1036784. The DEGs of immune subsets were showed in supplementary file 1.

Il-19 knockout (IL-19KO) GL261/TMZ-R cells were generated using CRISPR/Cas9. Two single-guided RNAs (sgRNAs) targeting the second and fourth coding exons of Il-19 were separately cloned into pAll-Cas9. The pPpuro plasmid was obtained from the National RNAi Core Facility (Academia Sinica, Taipei, Taiwan). The sequences of the targeting sites were as follows: 5′- AGAGAATCAACGTCATGCCCAGG -3′ for sgRNA#1, and 5′- GTAGAATGTCAGCAGGTTGTTGG -3′ for sgRNA#2. A control sgRNA targeting EGFP was cloned and used in this study. The two sgRNA plasmids used to generate the Il-19 gene KO GL261/TMZ-R cells were transfected into GL261 cells using the Lonza 4D Nucleofector X Unit (Lonza). Two days post-transfection, the cells were cultured with 2 μg/mL puromycin for 1 week. Viable cells were subjected to limiting dilution in a 96-well plate to isolate single-cell clones. IL-19KO cells were verified by western blot analysis and DNA sequencing of genomic regions.

Il-19^−/− mice were generated using CRISPR/Cas9-mediated fragment deletion. Two crRNAs (IDT) targeting introns 1 and 4 were used to generate the Il-19 knockout allele. The crRNA sequences used were 5′-TAGGGATCCTGAAAATGTAG and 5′-GGACTTGGTCCCATGCTAAG, respectively. Super-ovulated 3–4-week-old C57BL/6JNarl female mice were mated with male mice, and one-cell stage zygotes were collected the following day. A mixture of crRNA-tracrRNA and Cas9 recombinant protein (IDT#1,081,061) at concentrations of 0.15 μM, 0.15 μM, and 1.8 μM, respectively, was injected into the cytoplasm of the zygotes. Injected zygotes were transferred into the oviducts of 0.5-dpc pseudo-pregnant ICR female mice (BioLASCO Taiwan). To confirm the knockout allele, three primers (Il19-Fw: 5′-CTACAGTCTTAGGAGATGTCTGATTTCTGT; Il19-Rv: 5′-GTCTACCCAAACATCACACAGC; and Il19 int2-Rv: 5′-CCAAGCCACTGAAATTCTGCCC) were used to differentiate the knockout and wild-type (wt) alleles. The knockout allele and wt allele resulted in amplicons of 278 bp and 531 bp, respectively. Two knockout mouse lines (Il-19^−/−-K1 and Il-19^−/−-K2) were generated.

Lentiviral clones expressing a non-overlapping shRNA against human IL-19 (TRCN58725) and LacZ (TRCN0000231722) were obtained from the National RNAi Core Facility (Academia Sinica, Taiwan). 293 T cells were co-transfected with pLKO.1, pCMV-R8.91, and packaging plasmids (pPAX/pMD.2G) using PolyJet (SignaGen Laboratories, USA). After 72 h, the viruses were concentrated by precipitation with the Speedy Lentivirus Purification Kit (Abcam, USA), following the manufacturer’s instructions. For lentiviral transduction, human GSCs were transduced with lentivirus expressing the shRNA and selected with puromycin for 72 h.

Bone marrow-derived macrophages (BMDMs) were differentiated from WT and Il-19^−/− bone marrow using M-CSF (100 ng/mL) and then polarized into M2 BMDMs through IL-4 stimulation [38]. CD8⁺ T cells were isolated from the spleens of C57BL/6JNarl mice using a CD8⁺ T cell isolation kit (MACS, USA). M2-enriched BMDM supernatants were collected and used to culture 2 × 10⁵ CD8⁺ T cells in the presence of biotinylated CD3 and CD28 antibodies and anti-biotin MACSiBead particles (MACS, USA) for 3 days. The amount of IFN-γ in the CD8⁺ T cell culture supernatant was measured using an enzyme-linked immunosorbent assay (ELISA) Max Deluxe Mouse IFN-γ Kit (BioLegend).

2000 DBTRG and DBTRG/TMZ-R cells were cultured for 9 days in the presence or absence of 50 μM TMZ. 2000 control (Ctrl) and IL-19KO GL261/TMZ-R cells (KO#1 and KO#2) cells were cultured for 10 days. The cells were then fixed with 4% paraformaldehyde and stained with 0.5% crystal violet. The number of colonies was subsequently counted.

The invasion abilities of GL261/TMZ-R, U118, and DBTRG/TMZ-R cells were analyzed using transwell chambers (Corning Costar 3422, USA) in accordance with the manufacturer’s protocol. A total of 2000 cells were loaded into Matrigel-coated Transwell upper chambers and incubated with IL-19 (100 ng/mL) in the lower wells, which acted as a chemoattractant. The number of cells per field was counted in five random fields of each membrane under an optical microscope. In some experiments, 1 μg/mL WISP1 antibody (R&D Systems) or isotype control antibody was added to the upper and lower chambers.

The expression levels of pAkt (Ser473), GAPDH, Phospho-β-Catenin Ser552 (Cell Signaling Technology, USA), IL-20RA and IL-20RB (Thermo, USA), and IL-19 and WISP1 (R&D Systems) were determined in cell lysates by western blotting. Cell lysates were prepared using the PRO-PREP protein extraction solution (iNtRON Biotechnology, Korea) with 2 mM Na₃VO₄. Horseradish peroxidase-conjugated goat antirabbit, antimouse, or antirat IgG antibody (GoalBio, Taiwan) was used as secondary antibody. All data were acquired using a ChemiDoc Touch Imaging System (Bio-Rad, USA).

T cells were isolated from the spleens of C57BL/6JNarl mice using a Pan T Cell Isolation Kit (MACS, USA). TCs were activated using plate-bound CD3 antibody (2C11, 10 μg/mL) and soluble CD28 antibody (37.51, 2 μg/mL) in the presence or absence of IL-19 (50 ng/mL). After 2 days of incubation, the TCs were stimulated with phorbol myristate acetate (PMA, 100 ng/mL) and an ionophore (A23187, 1 μg/mL) for 3 h. Brefeldin A (5 μg/mL) was added during the last 2 h of culturing. The cells were stained with IFN-γ, CD8, and CD4 antibodies in accordance with standard protocols and then analyzed using flow cytometry.

Cell surface molecules were stained with specific antibodies in accordance with standard protocols and analyzed using a CytoFlex Flow Cytometer (Beckman Coulter, USA). The following fluorochrome-conjugated antibodies were used to detect IL-19 expression in the tumor-infiltrating cells: IL-19-Alexa Fluor 647 (152112), Ly6G-PB (RB6-8C5), CD45-APC-Cy7 (30-F11), CD11b-PE (M1/70), Ly6C-FITC (HK1.4), CD8-PE (53–6.7), and CD4-PE-Cy7 (GK1.5). The antibodies were purchased from BioLegend or R&D Systems.

First, 1 × 10⁷ GL261 and GL261/TMZ-R cells from each cell line were lysed using 0.5 mL protein extraction buffer (Abcam, USA) with a mass spectrometry-safe protease and phosphatase inhibitor (Sigma, USA). The protein lysates were subsequently reduced and alkylated by adding 2 M urea and 5 mM dithiothreitol (Thermo Scientific, USA) and incubated for 30 min at 37 °C. The mixture was alkylated with 15 mM iodoacetamide (Sigma, USA) for 30 min in the dark at room temperature. The proteins were digested by adding trpsin/LysC (Promega, USA) overnight at room temperature at a 1:50 enzyme-to-protein ratio. The digested samples were acidified with trifluoroacetic acid to achieve a final volumetric concentration of 0.5% and then centrifuged at 15,000 g for 10 min to clear the precipitated urea from the peptide lysates. The samples were dried using a SpeedVac system and desalted using peptide desalting spin columns (Pierce, Thermo Scientific, USA). The peptides were then subjected to reversed-phase fractionation using a high-pH reversed-phase peptide fractionation kit (Pierce, Thermo Scientific, USA) and dried using a SpeedVac system. The dried peptides were desalted using a Ziptip-C18 column (Merck Millipore). Liquid chromatography with tandem mass spectrometry (LC–MS) was performed using a Thermo LTQ Orbitrap Elite mass spectrometer. The peptide mixtures were loaded onto a C18 BEH column 25 cm in length with an inner diameter of 75 μM and packed with 1.7-μM particles with a pore width of 130 Å. The peptides were then separated for 150 min using a segmented gradient from 5 to 35% solvent B (acetonitrile with 0.1% formic acid) at a flow rate of 300 nL/min. The LC–MS raw data were aligned using Progenesis QI software (Waters Corporation), and the proteins were identified using Mascot software.

The CHOL-PEG-SPIO-IL19 nanoparticles were constructed in our previous study [34] with some modifications. Briefly, 0.25 mL of amine-functionalized SPIO nanoparticles (1 mg/mL [Fe] = 0.86 nmol/mL nanoparticles, 10 nm in size; Ocean NanoTech, USA) was reacted with 37.5 μL of sulfo-SMCC (10 mg/mL, 858 nmol) at room temperature for 1 h to obtain maleimide-functionalized SPIO nanoparticles. The maleimide-functionalized SPIO nanoparticles were washed with 10 mL of phosphate-buffered saline (PBS) to remove excess free sulfo-SMCC using an LS column (Miltenyi Biotech, Germany) and then eluted in 800 μL of PBS. Subsequently, human IL-19 antibodies (0.5 mg/mL; R&D Systems, USA) were treated with iminothiolane (1.2 μg, 8.7 nmol; Thermo Fisher Scientific, USA), dissolved in 200 μL of Traut’s reagent (50 mM NaHCO3, 150 mM NaCl, and 10 mM EDTA, pH 8.6), and reacted at room temperature for 60 min. After thiolation, 200 μL of 10 mM tris(2-carboxyethyl)phosphine (TCEP; Sigma-Aldrich, USA) was added at room temperature for 30 min. The solution was replaced with 5 mM EDTA in PBS using Vivaspin (10-kDa MWCO polyethersulfone, Sartorius, USA). Finally, the precursor cholesterol poly(ethylene glycol)-thiol (Cholesterol-PEG-SH, MW 2000, 1 mg/mL; NSP, USA), the thiolated antibodies, and the maleimide-functionalized SPIO nanoparticles were mixed and reacted at 4 °C overnight. The unused maleimide-functionalized groups were blocked with excess cysteine for 15 min at room temperature. The CHOL-PEG-modified IL-19 antibody-conjugated SPIO nanoparticles were separated using an MS column and washed with PBS at a volume 25 times greater than the column bed volume to remove unconjugated antibodies. The nanoparticles were then eluted in 600 μL of PBS. The number of immobilized IL-19 antibodies per SPIO nanoparticle was estimated to be two, based on the molarities of the components in the reaction. The total amount of SPIO in the CHOL-PEG-SPIO-IL19 nanoparticles was determined using a spectrophotometric technique (absorption at 500 nm). The fluorescence and absorption signals were measured using the Thermo Varioskan Flash (Thermo Fisher Scientific, USA) and the Multiskan GO Microplate Spectrophotometer (Thermo Fisher Scientific, USA), respectively. CHOL-PEG-SPIO-isotype control nanoparticles were generated using the same procedures, but the IL-19 antibody was replaced with an isotype control antibody (mouse IgG2B, R&D Systems). Unmodified SPIO nanoparticles were used to generate SPIO-IL-19 nanoparticles and followed the same conjugation procedures.

The measurements of hydrodynamic diameter of the SPIO and SPIO conjugate nanoparticles were determined by Zetasizer Nano ZSP (Malvern Instruments, UK), which using a process called Dynamic Light Scattering (DLS) according to manufacturer instructions. The dispersant of SPIO conjugate nanoparticles was 10 mM NaCl solution. The infrared spectrometer of the SPIO, carriers (Cholesterol-PEG and human IL19 antibody), and SPIO conjugate nanoparticles was determined by subjecting the samples to Fourier-Transform Infrared (FT-IR) Spectroscopy using PERKINELMER FRONTIER (Waltham, USA). The measurement of IR spectrum for the disc of each sample over a wavelength scanning range of 4000 cm⁻¹ to 400 cm⁻¹ to observe the conversion of the functional groups of the copolymer.

To prepare liquid samples containing particles for transmission electron microscopy (TEM), the negative staining technique was employed. Formvar/carbon-coated 200-mesh nickel grids were used as the substrate for sample deposition. A drop of the particle-containing liquid sample was applied onto the grid and allowed to stand for 3 min at room temperature. Excess liquid was carefully removed using filter paper to minimize background interference. Subsequently, the grid was stained with 2% uranyl acetate for 1 min to enhance contrast. After staining, excess uranyl acetate was similarly removed with filter paper. The grid was then air-dried completely before being mounted for TEM observation. TEM images had been acquired by using an HT-7700 scope (Hitachi, Japan), and the analysis was performed according to the manufacturer’s instructions.

To detect the IL-19 expression in human GBM cells, we determined the IL-19 signals through flow cytometry and immunofluorescence assay. The intracellular staining with specific antibodies according to the standard protocols. DBTRG cells were stained with CHOL-PEG-SPIO-IL19 nanoparticles, unconjugated SPIO nanoparticles, IL-19 antibodies (MAB1035, R&D, USA) and isotype control antibodies (402202, BioLegend, USA), followed by FITC-conjugated goat anti-mouse IgG (H + L) antibodies (A-11029, Thermo, USA) by standard protocols and analyzed on a CytoFLEX flow cytometer (Beckman Coulter, USA). Data were analyzed using FlowJo software. The signal of IL-19 expression in DBTRG cells were also determined by immunoflurosence assay with a mounting medium containing 4′6-diamidino-2-dole (DAPI) (Vectashield, USA).

MRI images were obtained using a 7 T Bruker PharmaScan MRI scanner having a volume coil with an inner diameter of 72 mm (Bruker BioSpin, MA, USA). T2-weighted images were acquired using spin-echo sequences with an echo time (TE) of 8 ms, a repetition time (TR) of 3000 ms, 50 echoes, a field of view (FOV) of 50 × 50 mm², a resolution of 256 × 256, and a slice thickness of 1 mm. The MRI samples were CHOL-PEG-SPIO-IL19 nanoparticle phantoms suspended in 1% agarose gel.

20,000 human GSC cells were injected into the brain of NBSGW mice. In vivo MRI images of mouse brains were obtained using a 7 T Bruker PharmaScan MRI scanner using a volume coil with an inner diameter of 72 mm (Bruker BioSpin). The MRI scanning protocol was followed our previous study [34]. Briefly, MRI was performed in mice anesthetized using 2% isoflurane in the coronal plane. The MRI protocol included a T1 image (TR, 341.3 ms; TE, 4.5 ms; flip angle, 30°; FOV, 16 × 16 mm²; matrix, 256 × 256; 2D; slice thickness, 0.75 mm; number of excitations, 8; resolution, 0.0625 × 0.0625 × 0.75 mm³), a T2-weighted image (TR, 2500 ms; TE, 33 ms; flip angle, 45°; FOV, 16 × 16 mm²; matrix, 256 × 256; 2D; slice thickness, 0.75 mm; number of excitations, 8; resolution, 0.0625 × 0.0625 × 0.75 mm³), a T2*-weighted image (TR, 1000 ms; TE, 12 ms; flip angle; FOV, 16 × 16 mm²; matrix, 256 × 256; 2D; slice thickness, 0.75 mm; number of excitations, 2; resolution, 0.0625 × 0.0625 × 0.75 mm³), SWI (TR, 39 ms; TE, 51.8 ms; flip angle, 15°; FOV, 50 × 50 mm²; matrix, 128 × 128; 3D; slice thickness, 0.5 mm; number of excitations, 3; resolution 0.39 × 0.39 × 0.5 mm³), and T2* mapping (16-echo gradient echo sequence; TR,1150 ms; minimum TE, 3.3 ms; ∆TE, 3 ms; flip angle, 80°; FOV, 16 × 16 mm²; matrix, 256 × 256; 2D; slice thickness, 0.5 mm; number of excitations, 2; resolution, 0.0625 × 0.0625 × 0.5 mm³). The initial T2* mapping scan was performed before injection of CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO nanoparticles. The second T2* mapping session was started 4 h after injection. The T2* value of each voxel was calculated through exponential fitting performed in-house by using MATLAB (version R2023b, MathWorks, Sherborn, MA, USA). The T2* map was first converted to an R2* relaxivity map by taking its reciprocal. The increase in R2* value (∆R2*) after CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO injection was calculated using the following formulas: ∆R2* = R2* _{4 h} − R2* _{0 h}. R2* values measured in MR images following CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO administration. The ∆R2* value, which indicates the change in relaxivity due to the local aggregation of CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO nanoparticles, has a linear relationship with the local CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO nanoparticle concentration. The coefficient of the linear transformation function between ∆R2* and the local CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO nanoparticle concentration was estimated through linear regression analysis of agarose phantoms containing various concentrations of CHOL-PEG-SPIO-IL19 nanoparticles. The ∆R2* map was then converted into a local CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO concentration map by using the estimated linear transformation function. A disk of nickel-coated neodymium iron boron (Nd2Fe14B) with a diameter of 8 mm, a height of 5 mm, and a 0.43-T N42 grade magnet was placed on the tumor site of tumor-bearing mice. After placing the magnet, 50 μg of CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO nanoparticles was administered via tail vein injection. The magnet was maintained on the tumor site for 1 h and then removed. A radiologist evaluated the MRI images to identify dark signals due to CHOL-PEG-SPIO-IL19, SPIO-IL-19, CHOL-PEG-SPIO-isotype ctrl, or SPIO nanoparticles on T2-weighted images, T2*-weighted images, SWI, and T2* mapping. The tumor volume and hypointense areas in the tumor from T2* and SWI images were calculated using MATLAB. To measure tumor volumes derived from shLacZ and shIL-19 GSCs, T1 MRI images were acquired following administration of the contrast agent Gadovist 1.0 (1 mmol/kg body weight). Post-contrast T1 images were used to delineate tumor boundaries. Tumor margins were manually contoured using the MRIcro software, ensuring precise identification of the enhanced regions corresponding to the tumors. The total tumor volume was calculated by integrating the contoured areas across all relevant image slices using MATLAB, providing a quantitative 3D assessment of tumor size.

To test the binding of CHOL-PEG-SPIO-IL-19 nanoparticles to tumor tissue, CHOL-PEG-SPIO-IL-19 nanoparticles were detected by Abcam iron stain kit (Abcam, USA). After human GSC tumor-bearing mice were injected with CHOL-PEG-SPIO-IL-19 or CHOL-PEG-SPIO-isotype for 4 h, the brains were fixed and embedded in paraffin and cut into 5-μM-thick sections. Brain sections were then deparaffinized, rehydrated through a graded series of ethanol, then directly subjected to a Prussian blue assay to detect the presence of iron caused by CHOL-PEG-SPIO-IL-19 nanoparticles in the tumor tissue. These sections were observed through microscopy (Olympus/BX43).

This study conducted Unpaired t-tests and one-way analyses of variance (ANOVA) were used for all data using GraphPad Prism software. Error bars represent the standard deviation from the means.

This analysis comprised patients from the TCGA and Taiwan GBM study cohorts. Supplementary Table 2 lists the clinical characteristics of patients with GBM from the TCGA database and the Taiwan GBM study cohort. Most of the patients (86–92%) in the TCGA database had GBM that was associated with poorer overall survival (mean survival days 502–407 days) than IDH1-mutant glioma in both the RNA-seq and microarray datasets (mean survival 969–723 days); these results are consistent with those of another study [6]. The mean survival days of patients with IDH1-wt GBM is 571 days in the Taiwan study cohort. Thus, the survival rate of our Taiwan GBM cohort was consistent with that of patients in TCGA GBM dataset.

To explore the function of IL-19 in GBM, we first examined Il-19 expression levels in human GBM tissue and its peritumoral region. RNA-seq data indicated that the expression levels of Il-19, Il-20RA, and Il-20RB were higher in GBM tissues than in normal brain tissue (Supplementary Fig. 2A). We obtained peritumoral tissue through MR-guided stereotaxic surgery and performed microarray analysis to investigate the Il-19 and its receptors expression levels in intratumoral and peritumoral region of human GBM tumor tissue. Microarray analysis revealed that Il-19 was expressed in both the intratumoral and peritumoral regions and that Il-20RB was more highly expressed in the intratumoral region than in the peritumoral region (Supplementary Fig. 2B, 2D), indicating that Il-19 was expressed in the tumor core and the adjacent peritumoral region of GBM. Next, we identified cell types with high expression of Il-19 in the GBM microenvironment, which included human and murine GBM cells (GBM8401, GBM8901, U87, and GL261) and two tumor-infiltrating subsets (microglia-like cells and MDSCs) in GL261 tumor-bearing mice (Fig. 1E). To identify the major IL-19-expressing cell types in the intratumoral and peritumoral regions of GBM, we found that most cells in the intratumoral region express IL-19. Additionally, M2-like cells (CD206⁺) and macrophage/microglia (Iba1⁺) also expressed IL-19 in the intratumoral region of tumor tissue from patients with GBM (Fig. 1F). In the peritumoral region, macrophage/microglia cells, but not M2-like cells, expressed IL-19 (Fig. 1F). The expression of IL-19, IL-20RA, and IL-20RB in human GBM cell lines (LN18, DBTRG, and U118) was confirmed by Western blot analysis (Supplementary Fig. 2C). These results indicate that GBM tumor cells, microglia, and MDSCs are sources of IL-19 in GBM tumors.

To determine whether IL-19 expression levels affect peritumoral immune responses that correlate with patient survival, we examined the peritumoral immune profiles of GBM patients with available survival data by comparing RNA microarray data between peritumoral GBM tissue with high IL-19 expression and low IL-19 expression. IPA analysis demonstrated that high IL-19 expression in the peritumoral region was associated with the inhibition of immune-related pathways (Fig. 2C; Z-score < 0 and log P < 0), including CTL-mediated apoptosis of target cells, NK cell signaling, and the T_H1 pathway. These pathways are known to drive antitumor immune responses. Next, we identified the association of immunophenotypes with Il-19 expression levels in GBM tumors and found that higher Il-19 expression in the peritumoral region was associated with lower CTL levels (Fig. 2E). Additionally, high Il-19 expression was associated with a considerably lower ratio of the enrichment score of CTLs to MDSCs (Fig. 2F), as well as a lower cytolytic activity score (CYT) in the peritumoral region (Fig. 2G). These results indicate that high Il-19 expression is associated with reduced antitumor immunity in the peritumoral region.

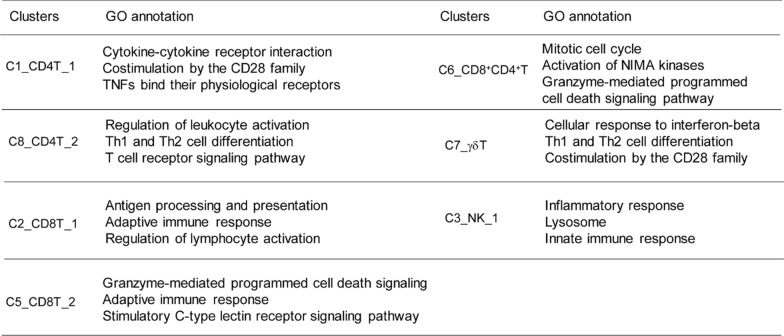

Since our scRNA data reveal that IL-19 blockade increased the MC04 macrophage and MC08_DC_1 clusters, both of which are associated with IFN-γ signaling and T cell activation, the activation and effector function of T cell subsets could be modulated in the tumors of IL-19 antibody-treated mice. Our results demonstrated that blocking IL-19 indeed promoted T cell activation, as evidenced by violin plots showing higher Cd69 expression in the CD4⁺ T cell cluster (C1_CD4T_1) and the CD8⁺CD4⁺ T cell cluster (C6_CD8⁺CD4⁺ T) in TMZ-sensitive GBM-bearing mice treated with the IL-19 antibody compared to those treated with the isotype control antibody (Fig. 5B). Cd69 expression levels were also elevated in the CD8⁺ T cells (C2_CD8T_1) and CD8⁺CD4⁺ T cell clusters in TMZ-resistant GBM-bearing mice treated with IL-19 antibody (Fig. 5B). To further investigate whether IL-19 acts as an immune suppressive gene for CD8⁺ T cell, we used CRISPR/Cas9-mediated genome editing to silence Il-19 in GL261/TMZ-R cells (IL-19KO GL261/TMZ-R cells), and co-cultured Ctrl or IL-19KO GL261/TMZ-R cells with CD8⁺ T cells undergoing T cell receptor activation. IFN-γ levels were significantly higher in the IL-19KO GL261/TMZ-R cells co-cultured with CD8⁺ T cells (KO + CD8T) compared to the control GL261/TMZ-R group (Ctrl + CD8T; Supplementary Fig. 6A). Additionally, IL-19 treatment inhibited IFN-γ production in both CD8⁺ and CD4⁺ T cells under T cell activation conditions (Supplementary Fig. 6B). Taken together, these results indicate that blocking IL-19 promotes T cell activation in tumors.

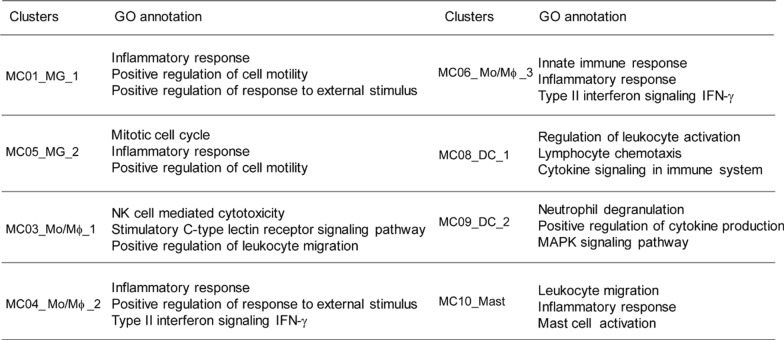

Metascape analysis revealed that microglia-like subsets (MC01_MG_1 and MC05_MG_2) are associated with the regulation of immune effector processes and leukocyte-mediated immunity, while TAM-like subsets (MC04_Mo/MΦ_2) are linked to the negative regulation of the immune system (Supplementary Fig. 4). This suggests that these subsets play a regulatory role in antitumor responses. Given that IL-19 stimulation upregulates Arg1 expression in BMDMs [72], we hypothesized that IL-19 might promote Arg1 expression in TAMs. Violin plot analysis demonstrated that Arg1 expression in both microglia-like subsets (MC01_MG_1 and MC05_MG_2) and the TAM-like subset (MC04_Mo/MΦ_2) was significantly downregulated in IL-19 antibody-treated mice (Fig. 5C, D), suggesting that IL-19 blockade reduces TAM-mediated Arg1-driven immune suppression.

To further explore IL-19’s effect on TAM function, we generated Il-19^−/− mice (Supplementary Fig. 7) and used their bone marrow to differentiate into Arg1-expressing M2-like BMDMs, which mimic the Arg1-expressing TAMs. The results showed that Il-19^−/− M2-like BMDMs had lower Arg1 expression compared to WT BMDMs (Fig. 5E), suggest that Il-19^−/− BMDMs have reduced Arg1-mediated suppression activity. To validate this hypothesis, we collected the culture supernatants of WT and Il-19^−/− M2 BMDMs and used them to culture CD8⁺ T cells under T cell activation conditions. The results demonstrated that the supernatant from WT M2 BMDMs significantly inhibited IFN-γ production by CD8⁺ T cells, whereas the supernatant from Il-19^−/− M2 BMDMs lost its inhibitory effects on IFN-γ production from activated CD8⁺ T cells (Fig. 5F). Finally, to assess whether host’s Il-19 affects GBM progression, we observed that the GL261 tumor burden was significantly lower in Il-19^−/− mice compared to WT mice 21 days after tumor inoculation (Fig. 5G), indicating that host IL-19 promotes GBM progression. In conclusion, silencing IL-19 weakens the immunosuppressive activity of TAMs and slows tumor progression in GBM.

To further analyze the temporal dynamics of macrophage subset remodeling, Seurat-defined clusters were superimposed on a pseudo-time trajectory constructed using the Monocle algorithm, and the results revealed that the root of the trajectory was primarily populated by MC06_Mo/Mϕ_3 and differentiated into MC04_Mo/Mϕ_2 or MC03_ Mo/Mϕ_1 (Fig. 5H). IL-19 antibody treatment increased the percentages of MC04_Mo/Mϕ_2 and MC06_Mo/Mϕ_3 in both TMZ-sensitive and TMZ-resistant GBM cells (Fig. 5A), suggest that blocking IL-19 promoted the Mo/Mϕ subsets differentiation into MC04_Mo/Mϕ_2 and MC06_ Mo/Mϕ_3 cells, which are associated with anti-tumor IFN-γ signaling (Table 1). Lastly, IL-19 antibody treatment reduced the percentage of the dominant MC03_Mo/Mϕ_1 subset (Fig. 5A), proliferative gene ki67 (Fig. 5I), and STAT3-regulated immunosuppressive genes (Cd274 and S100a4 [1, 41, 44]) expression level in dominant MC03_ Mo/Mϕ_1 (Fig. 5J), suggesting that blocking IL-19 inhibited immunosuppressive macrophage proliferation and its effector function.

Since our cytokine array data showing IL-19 blockade downregulated WISP1 expression (Fig. 3D), and this result is consistent with the observation that WISP1 expression is higher in human GBM tissues with high Il-19 expression compared to those with low Il-19 expression (Fig. 2H), suggesting a novel regulatory role of IL-19 in WISP1 expression in GBM. WISP1 is a secreted cysteine-rich protein belonging to the CCN (CYR61, CTGF, and NOV) family and is a target gene of the Wnt/β-catenin pathway [39]. To validate the regulatory link between IL-19 and WISP1 expression, we found that IL-19 treatment upregulated WISP1 expression in the human GBM cell line U118 and in TMZ-resistant GBM cells (GL261/TMZ-R, DBTRG/TMZ-R) (Fig. 6B). Since WISP1 is an oncogene that promotes GBM proliferation and invasion [28], we next validated whether IL-19 could positively regulate GBM invasion via WISP1 signaling. Our data demonstrated that IL-19 promotes cell migration and invasion through WISP1 signaling, as blocking WISP1 with antibodies significantly inhibited IL-19-mediated invasion in GBM cells (U118 and DBTRG/TMZ-R) (Fig. 6C). Since AKT drives phosphorylation of β-catenin [11] which can activate the WISP1 oncogenic pathway, we hypothesized that IL-19 promotes WISP1 expression via AKT phosphorylation. Western blot data confirmed that IL-19 promoted the phosphorylation of AKT and β-catenin, while this phosphorylation was inhibited by an AKT VI inhibitor in U118 cells (Fig. 6D). These findings indicate that IL-19 triggers the AKT/β-catenin/WISP1 axis in GBM cells. To further validate the intrinsic role of the IL-19/WISP1 axis in GBM invasion, we used CRISPR/Cas9-mediated genome editing to silence Il-19 in GL261/TMZ-R cells (two Il-19 KO clones: KO#1 and KO#2) since GL261/TMZ-R cells exhibited higher migration and invasion activity than parental GL261 cells by proteomic analysis (Supplementary Fig. 8). Our data revealed that Il-19 KO cells displayed significantly reduced migration and invasion capabilities (Fig. 6E) as well as markedly lower expression of IL-19, pAKT, and WISP1 (Fig. 6F). In conclusion, these findings indicate that IL-19 promotes GBM migration and invasion via the IL-19/AKT/WISP1 axis.

IL-19 has been implicated in promoting breast cancer cell proliferation; however, its influence on glioblastoma cell proliferation remains ambiguous. We conduct colony formation assay and found that silencing IL-19 in GL261/TMZ-R cells (two IL-19KO clones, KO#1 and KO#2) substantially reduced the number of colonies compared with the control GL261/TMZ-R cell line (Ctrl) (Supplementary Fig. 9A). This result indicates that silencing IL-19 inhibits clonogenic survival in TMZ- resistant GBM cells. Whether tumor cell-derived IL-19 in driving in vivo tumor progression remains unaddressed. Thus, we established a human GBM tumor-bearing mouse model using immunocompromised NBSGW mice. Initially, we evaluated various human GBM cell lines, including U118 and DBTRG; however, these lines failed to establish tumors in the brains of NBSGW mice (data not shown). In contrast, human GSCs successfully formed tumors in these mice. Thus, we knocked down IL-19 in GSCs and found that the tumor volume of shIL-19 GSC-derived tumors was smaller than that of shLacZ tumors 13 days post-GSC inoculation (Supplementary Fig. 9B). The number of Ki67⁺ cells in shIL-19 GSC-derived tumors was less than that in shLacZ tumors (Supplementary Fig. 9C), suggesting that tumor-derived IL-19 positively regulates tumor cell proliferation.

To evaluate the IL-19 targeting specificity of CHOL-PEG-SPIO-IL19, we determined that the amount of SPIO in the conjugate nanoparticles was 0.03 μg/μl, as measured by UV–VIS. Next, we used CHOL-PEG-SPIO-IL19 to detect IL-19 expression in the human GBM cell line DBTRG. The immunofluorescence assay demonstrated that positive signals in DBTRG cells could be detected using both CHOL-PEG-SPIO-IL19 nanoparticles and IL-19 antibodies (Fig. 7E). Flow cytometry analysis produced consistent results, showing positive fluorescence signals in DBTRG cells stained with CHOL-PEG-SPIO-IL19 nanoparticles, with fluorescence levels similar to those in the IL-19 antibody-stained group (Fig. 7F). In contrast, no significant signal was detected for the unconjugated SPIO nanoparticle control or the isotype control antibody. These data indicate that IL-19 antibodies retained their affinity for IL-19 after conjugation with CHOL-PEG-SPIO nanoparticles and can detect IL-19 in GBM cells in vitro.

To evaluate the feasibility of using CHOL-PEG-SPIO-IL19 for detecting IL-19-positive cells in MRI, phantom scans of CHOL-PEG-SPIO-IL19 were performed to assess the MRI signal intensity and its response to T2 relaxation time at various concentrations. The signal intensity and T2 relaxation time of CHOL-PEG-SPIO-IL19 suspended in agarose gel with known Fe concentrations (0–15.7 μg/mL) were measured using a 7 T MRI system. The T2-fitting curve of CHOL-PEG-SPIO-IL19 demonstrated a correlation between signal intensity and nanoparticle concentration at TE values ranging from 16 to 376 ms (Fig. 7G). Additionally, CHOL-PEG-SPIO-IL19 showed a decrease in MR T2 relaxation time as the Fe concentration increased (Fig. 7G). Specifically, the T2 relaxation time was 71.1 ms at 0.98 μg/mL of Fe, decreasing to 13.1 ms at 15.7 μg/mL. In summary, the MRI signal intensities of various concentrations of CHOL-PEG-SPIO-IL19 phantoms were positively correlated with dark signals in T2-weighted in vitro MR images, suggesting that CHOL-PEG-SPIO-IL19 can be quantitatively detected using in vitro MRI.

To further quantify the binding of CHOL-PEG-SPIO-IL19 in brain tumors, nanoparticle signals were quantified using T2* mapping before and after nanoparticle injection. ΔR2* analysis confirmed that CHOL-PEG-SPIO-IL19 was present in the tumor region of tumor-bearing mice, whereas less signal was observed in mice treated with SPIO-IL19, CHOL-PEG-SPIO-isotype, or SPIO, as seen in the T2* concentration map (Fig. 8B). These findings suggest that SPIO modification with CHOL-PEG polymers significantly improved the ability of CHOL-PEG-SPIO-IL19 to detect IL-19 expression in brain tumors by in vivo MRI. To confirm the presence of targeted CHOL-PEG-SPIO-IL19 in GBM tissue, Prussian blue staining was performed to detect Fe in tumors from GBM-bearing mice after CHOL-PEG-SPIO-IL19 or CHOL-PEG-SPIO-isotype nanoparticle injection. Prussian blue staining revealed blue signals in the tumor regions of CHOL-PEG-SPIO-IL19-treated mice but not in CHOL-PEG-SPIO-isotype-treated mice (Fig. 8B), indicating the presence of iron oxide nanoparticles in tumor tissue after CHOL-PEG-SPIO-IL19 injection (Fig. 8C).

We next determined whether CHOL-PEG-SPIO-IL19 could be used to distinguish IL-19 expression levels in human GBM tumors in vivo. To this end, we knocked down IL-19 expression in human GSC cells via lentiviral transduction. The results demonstrated that shIL-19 lentiviral transduction reduced IL-19 expression in GSC cells compared to shLacZ-transduced GSC cells (Fig. 8D). Next, we assessed the targeting efficiency of CHOL-PEG-SPIO-IL19 in shIL-19 and shLacZ tumor-bearing mice. After the injection of CHOL-PEG-SPIO-IL19, the increased percentage of hypointense volume in the shIL-19 group was significantly lower than that in the shLacZ tumor-bearing mice (Fig. 8E). In line with this observation, the signal intensity of CHOL-PEG-SPIO-IL19 in shIL-19 tumor-bearing mice was significantly lower than in the shLacZ control group, as demonstrated by the T2* concentration map (Fig. 8F). Consistent with these findings, we confirmed that IL-19⁺ areas were smaller in shIL-19-derived tumors compared to shLacZ-derived tumors in CHOL-PEG-SPIO-IL19 treated mice (Fig. 8G). These results suggest that CHOL-PEG polymers markedly enhance the targeting efficiency of SPIO in brain tumors, enabling CHOL-PEG-SPIO-IL19 to effectively quantify IL-19 expression levels in human GBM tumors via in vivo MRI.
