Navitoclax acts synergistically with irradiation to induce apoptosis in preclinical models of H3K27M-altered diffuse midline glioma

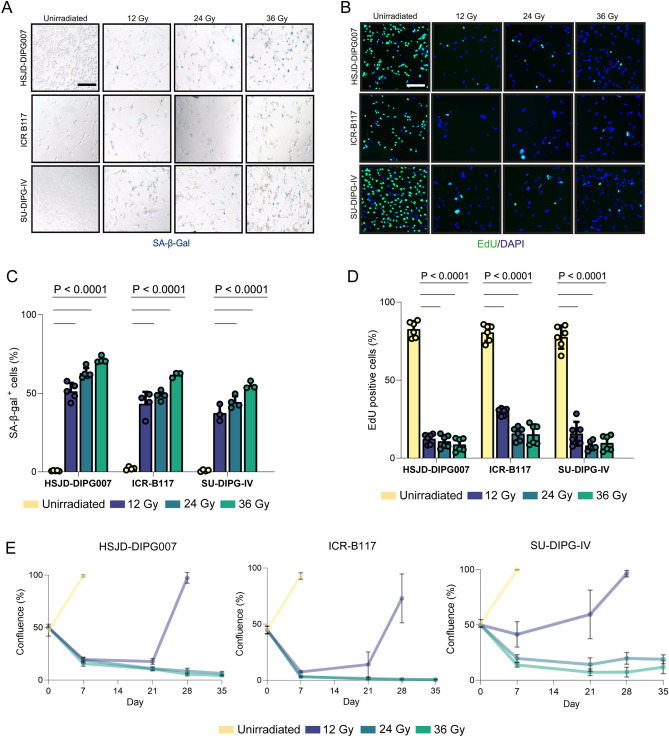

Lower doses (4 and 8 Gy) also triggered SA-β-Gal positivity and transient cell-cycle arrest in DIPG-IV and DIPG007 (Supplementary Fig. 1). However, only the higher 24 Gy and 36 Gy doses produced a durable proliferative arrest that was maintained throughout the 35-day observation period. Crucially, irradiation doses of 12 Gy or below failed to establish a stable senescent state: although these doses elicited early SA-β-Gal induction, cultures consistently re-entered the cell cycle within 2–3 weeks post-irradiation (Fig. 1E). As a result, doses ≤ 12 Gy were insufficient for generating a sustained senescent population suitable for downstream senolytic testing.

DMG patients are treated with 54 Gy in 30 fractions of 1.8 Gy²⁸. To attempt to mirror this more clinically applicable fractionation schedule, we exposed H3K27M-altered DMG cancer cells to 24 Gy, in 12 fractions of 2 Gy (Supplementary Fig. 2A). Analysis of cells 24 h after the final irradiation dose showed that this regimen elicited a response similar to that observed following a single exposure, characterized by increased SA-β-Gal staining and reduced EdU incorporation compared with non-irradiated controls (Supplementary Fig. 2B, C). Moreover, qRT-PCR analysis revealed that cell irradiation led to the upregulation of CDKN1A (encoding p21) expression and down-regulation of LMNB1, encoding Lamin B1, a component of the nuclear lamina that is downregulated in senescent cells in a variety of cell contexts²⁹ (Supplementary Fig. 2D). However, this regimen was less practical for experimental work due to logistical constraints. Therefore, we continued the study using single irradiation doses, specifically 24 Gy, as this dose produced a stable cell cycle arrest and a clear senescent phenotype. Collectively, these data indicate that both single and fractionated irradiation can induce a senescence response in DMG cancer cells, although the duration of this response is dependent on the cell type and irradiation dose.

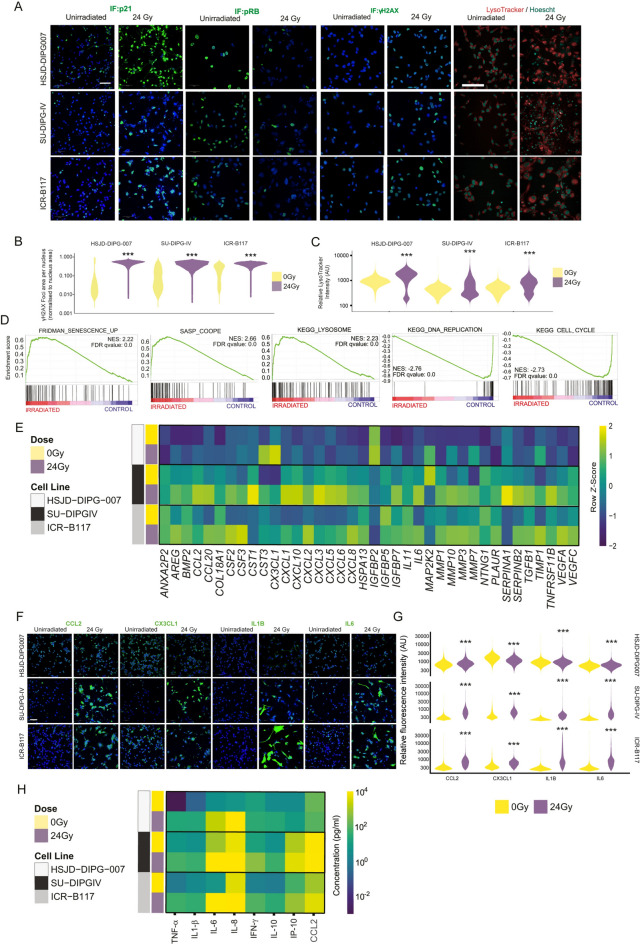

To complement our cytological analyses with a molecular characterisation, we performed bulk RNA-sequencing on ICR-B117, SU-DIPG-IV and HSJD-DIPG007 cell lines prior to and after irradiation (single dose of 24 Gy, day 5 post-irradiation). Computational analysis combining the datasets from the three DMG cell lines revealed that a total of 2153 genes were significantly differentially expressed between the irradiated and non-irradiated cell lines (adjusted P value ≤ 0.1, Fold Change ≥ ± 2), comprising 1461 upregulated genes and 692 downregulated genes (Supplementary Fig. 3E, F and Supplementary Table 5). Among the significantly upregulated genes in irradiated cells, we found a number of genes relevant to the senescent phenotype: (i) cell cycle inhibitors (e.g. CDKN1A (encoding p21, Fold change 3.2, adjusted p-value < 0.0001); (ii) lysosomal genes (e.g. GLB1, MAN2B1, HEXA; Fold change 1.5, 2.3, twofold respectively, adjusted p-value all < 0.1); (iii) SASP factors (e.g. MMP3 (Fold change: 98, adjusted p < 0.0001), IL1B (Fold change: 311), CXCL8 (Fold change: 267) CX3CL1 (Fold change 34) and FGF7 (Fold change: 85) (all adjusted p-values < 0.0001). Importantly, in corroboration with our qRT-PCR and immunofluorescence data we did not observe an up regulation in CDKN2A (Fold change 1.27, adjusted value p = 0.6). In agreement with a senescence phenotype, genes normally associated with proliferation, such as E2F2, MYBL2, and ZWINT were downregulated in irradiated cells (Fold change 6, 6, 5 respectively, adjusted p-value < 0.0001), as well as LMNB1 (Fold change 4.7, p-value < 0.0001)) (Supplementary Fig. 3E-H; Supplementary Table 5).

Gene set enrichment analysis (GSEA) revealed a significant enrichment for senescence³⁵, SASP³⁶ and KEGG Lysosome signatures in irradiated compared with non-irradiated control cells (Fig. 2D). Conversely, gene expression signatures associated with cell cycle progression were all significantly enriched in non-irradiated control cells (Fig. 2D). GSEA of the Hallmark gene set collection (from the Molecular Signatures Database, MSigDB) revealed enrichment of stress and inflammation related processes (i.e., Hypoxia, IL6-JAK-STAT3 signalling, inflammatory response and TNFα signalling) in irradiated DMG cells (Supplementary Fig. 3I) and proliferative responses (i.e., mitotic spindle, G2M checkpoint and E2F targets) in the unirradiated control DMG cells (Supplementary Fig. 3 J). In agreement, gene ontology (GO) analysis revealed similar stress and inflammatory processes in irradiated cells (Supplementary Fig. 3 K) and proliferative responses in unirradiated cells (Supplementary Fig. 3L).

From our transcriptomic analysis we also observed upregulation of a number of SASP factors in irradiated DMG cell lines (Fig. 2E). To validate these findings, we performed immunofluorescence staining against CCL2, CX3CL1, IL1β and IL6, in either irradiated or unirradiated control DMG cells, revealing the increased expression in the irradiated group (Fig. 2F, G). Moreover, ELISA analysis of conditioned medium collected on day 5 post-irradiation demonstrated the increased secretion of several senescence-associated cytokines and chemokines in irradiated DMG cells relative to control medium, including the prominent SASP factors IL1β, TNFα, IL6 and CCL2 (Fig. 2H). Importantly, clinically relevant fractionated doses of ionizing radiation were also sufficient to induce upregulation of the SASP markers IL1B and CCL2, relative to non-irradiated proliferative control cells (Supplementary Fig. 2D). Collectively, these molecular and cellular analyses demonstrate that ionising irradiation induces DNA damage, reduces proliferation, triggers senescence-associated markers, and activates a secretory phenotype in H3K27M-altered human DMG cell lines.

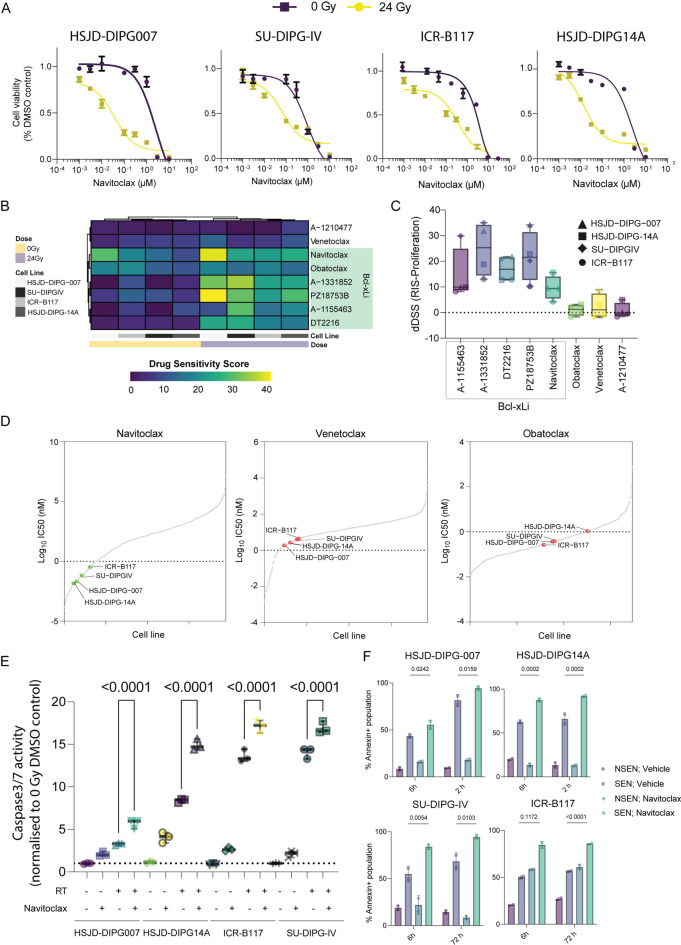

We next aimed to explore possible therapeutic implications of leveraging the senescent phenotype through the use of senotherapies to ablate senescent DMG cells. We tested four described senolytic agents, Dasatinib plus Quercetin (D + Q), Piperlongumine, Alvespimycin and Navitoclax, on senescent (irradiated) and control proliferative (unirradiated) DMG cells.

Navitoclax can inhibit Bcl-2, Bcl-xL, and Bcl-w³⁷. In order to elucidate the specific protein responsible for the senolytic effect of Navitoclax, we used several chemical BH3 mimetics with specific inhibitory profiles (Supplementary Table 2). Drug sensitivity scores (DSS) were determined from dose–response curves data obtained in irradiated and non-irradiated cells. Our findings revealed low DSS values (DSS Range: 5.8–12.5) for Venetoclax, a Bcl-2 inhibitor, A-1210477, an MCL-1 inhibitor, and Obatoclax, a pan-Bcl2 inhibitor (Supplementary Fig. 6A, B and D; Fig. 3B). These low DSS values indicate low susceptibility for these inhibitors in our experimental setup. On the other hand, DSS values obtained for all inhibitors with strong affinity to Bcl-xL (Navitoclax, A-1331852, A-1155463) indicated higher sensitivity for all cell lines in the senescent state (DSS Range: 9.9–41) (Fig. 3B; Supplementary Fig. 6C and E). Furthermore, the differential DSS (dDSS), obtained from subtracting the DSS of non-irradiated (proliferative cells) from the DSS of radiation-induced senescent cells (RIS-DSS), were positive for all cell lines treated with Bcl-xL inhibitors, indicating that senescent DMG cells exhibited a preferential susceptibility to Bcl-xL inhibition rather than to Bcl-2 or MCL-1 inhibition (Fig. 3C).

Next, we compared the IC50 values obtained in DMG cell lines in this study with those from the Genomics of Drug Sensitivity in Cancer (GDSC) study for three different BH3 mimetics, Navitoclax, Venetoclax and Obatoclax (Fig. 3D). As the DMG cell lines used in our study are not represented in the GDSC database, we estimated the sensitivity of our DMG cell lines against the 967 cell lines of the GDSC³⁸. The IC50s of Navitoclax in irradiated DMG cells were lower than 0.34 µM, ranking among the top 16% of most sensitive cell lines. Specifically, HSJD-DIPG-14A, HSJD-DIPG007, SU-DIPG-IV and ICR-B117 ranked 58^th, 76^th, 107^th and 157^th out of the 967 cell lines of reference (Fig. 3D). In contrast, the IC50s of Venetoclax were higher in senescent DMG cells (1.87–4.4 µM), and the 4 DMG cell lines ranked 119^th (HSJD-DIPG007), 154^th (HSJD-DIPG-14A), 194^th (SU-DIPG-IV) and 205^th (ICR-B117), clearly demonstrating a lower sensitivity compared with Navitoclax (Fig. 3D, Table 1). Senescent DMG cells were also less sensitive to obatoclax (ICR-B117: 394^th; HSJD-DIPG-007: 441^st; SU-DIPG-IV: 453^th; HSJD-DIPG-14A: 628^th) with IC50 of 0.27–1.07 µM (Fig. 3D, Table 1).

Finally, we sought to ascertain whether Navitoclax ablates the senescent DMG cells by apoptosis. Senescent (irradiated) and proliferative (non-irradiated) DMG cells were treated with 0.1 µM of Navitoclax or vehicle and caspase 3/7 activity quantified using either a luminescent assay or an automated real time measurement of Annexin V staining in a live-cell analysis system. Treatment with Navitoclax resulted in increased Annexin V signal and caspase activity, suggesting induction of apoptosis (Fig. 3E, F) Together, these analyses demonstrate that senescent H3K27M-altered human DMG cells are particularly sensitive to apoptosis through Bcl-xL inhibition.

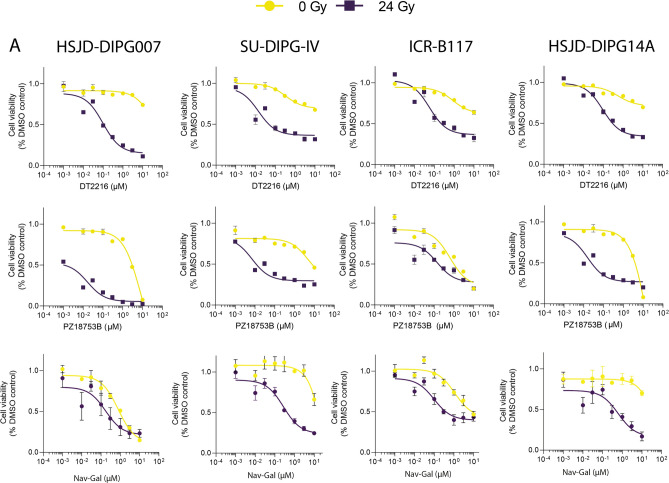

A potential limitation of using Navitoclax clinically is the on-target toxicity affecting platelets, which leads to significant thrombocytopenia³⁹. However, there have been two novel strategies to circumvent possible toxicity through the use of PROTAC-mediated Bcl-xL degradation⁴⁰ and a galacto-conjugated form of Navitoclax that is specifically activated in senescent cells (Nav-Gal)²⁰. Therefore, we sought to test the efficacy of Nav-Gal and two different senolytic PROTACs, named DT2216, targeting only Bcl-xL⁴⁰ and PZ18753B, targeting both Bcl-xL and Bcl-2⁴¹.

As the standard of care for treating DMG patients is RT, we aimed to assess the potential synergistic effect of combining radiation, which targets proliferative cells to induce cell death and senescence, with BH3-mimetics, which can ablate senescent cells. Cell viability was measured in HSJD-DIPG-14A, HSJD-DIPG-007, SU-DIPG-IV and ICR-B117, 72 h after combination of BH3-mimetic (Navitoclax, Obatoclax and Venetoclax) and increasing doses of radiation (0, 6, 12, 24, 36 Gy) (Supplementary Fig. 7A). Combinatorial effects were calculated using the Bliss independence model since the treatments combined were assumed to act independently using the Bliss independence model via SynergyFinder, the reported synergy scores represent the most synergistic values across the matrix. In this model, scores ranging from -10 to + 10 indicate an additive effect, whilst scores higher than + 10 demonstrate synergy⁴². Overall, the most synergistic (> 10) and additive (0–10) Bliss scores were obtained with a combination of RT with Navitoclax: HSJD-DIPG-14A, 22.1; HSJD-DIPG-007, 7.5; SU-DIPG-IV, 8.9; ICR-B117, 11.4 (Supplementary Fig. 7B). The combination of RT with Obatoclax was the least effective and not synergistic (HSJD-DIPG-14A, 6.3; HSJD-DIPG-007, 1.1; SU-DIPG-IV, 1.8; ICR-B117, 2.1) (Supplementary Fig. 7B). RT and Venetoclax combination led to a mixed response at inhibiting cell viability, and not synergistic HSJD-DIPG-14A, 18.3; HSJD-DIPG-007, 3.4; SU-DIPG-IV, 2.4; ICR-B117, 8.1 (Supplementary Fig. 7B). Together with the data shown previously, these results confirm that H3K27M-altered human DMG cells show a strong sensitivity to a combination therapy of RT and Bcl-xL inhibition.

We next sought to assess in vivo the efficacy of a combination therapy of Navitoclax and RT against DMG. HSJD-DIPG-14A, SU-DIPG-IV and ICR-B117 cells have previously shown very low engraftment potential, and although HSJD-DIPG-007 cells engrafted with high efficiency in our hands, tumours showed little response to RT (Supplementary Fig. 8) possibly due to the dose regime used in this study, which could not increase above 12 Gy due to unacceptable toxicity in the NSG mice). The cell line SU-DIPG-VI has previously been shown to develop DMG tumours in the pontine area upon transplantation⁴³, hence we decided to use this cell line. We first confirmed that SU-DIPG-VI cells also show a senescent phenotype in response to irradiation and sensitivity to Navitoclax in the senescent state (IC50, 0.27 mM; Senolytic index, 6.3) (Supplementary Fig. 9). In vivo pre-clinical data in aged non-human primates, has confirmed that navitoclax crosses the BBB and reaches concentration in the CSF able to ablate senescence and SASP responses⁴⁴.

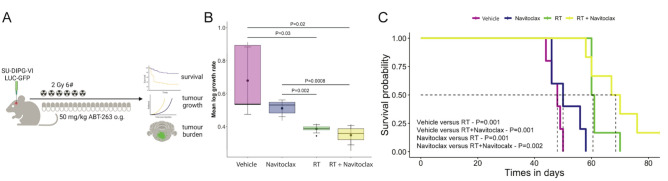

Analyses of the tumour growth rates (TGR, defined as BLI change over time) showed no significant differences between the Navitoclax-only treated and untreated control vehicle groups (groups a and b) (Fig. 5B). RT alone (group c) reduced TGR significantly in comparison with both, untreated vehicle control (group a, p = 0.03) and Navitoclax only group (group b, p = 0.002) (Fig. 5B). Likewise, the combination of RT plus Navitoclax resulted in a significant reduction of TGR in comparison with groups a and b (p = 0.02 and p = 0.0008, respectively), and led to a trend towards a reduction that did not reach significance against the RT-alone group c (Fig. 5B).

Kaplan–Meier survival curves using log-rank tests were generated to analyse the survival probability of the four groups of mice (Fig. 5C). As with TGRs, significant differences in median survival were observed only when the RT-only (group c, 60.5 days) and the RT plus Navitoclax (group d, 68.5 days) groups were compared with the vehicle (group a, 48 days) and Navitoclax-only (group b, 50 days) groups (RT-only: p = 0.001 and p = 0.001; RT plus Navitoclax: p = 0.001 and p = 0.002). Although, the median survival was increased in the RT plus Navitoclax group (68.5 days) relative to the RT-only group (60.5 days), these differences did not reach significance (p = 0.18). Together, these data suggest that in this specific experimental paradigm, combination of RT + Navitoclax did not show a significant improvement over radiotherapy (RT) alone.

These in vivo results contrasted sharply with the strong senolytic effects of Navitoclax observed in RT-induced senescent DMG cells in vitro. To address this discrepancy, we conducted a new experiment to determine whether irradiation could induce senescence and thereby create a vulnerability to Navitoclax in DMG tumours in vivo. As before, eGFP-LUCF-SU-DIPG-VI cells were orthotopically transplanted into the pons. Tumour growth was monitored by bioluminescence imaging (BLI) at 20 days post-transplantation, after which mice were divided into four treatment groups: (a) unirradiated control group; (b) Navitoclax-only group, which was not irradiated and received Navitoclax (50 mg/kg/day) via oral gavage for 10 consecutive days; (c) radiotherapy (RT)-only group, which received six fractions of 2 Gy/day (12 Gy total); and (d) combination therapy group, which was treated with both RT and Navitoclax as described for groups (b) and (c).

To assess whether RT induced a senescent response in this experimental setting, we performed immunostaining for key senescence markers, including CDKN1A (p21^Cip1), GLB1 (encoding the lysosomal β-galactosidase underlying SA-β-Gal activity), and γ-H2AX. Quantitative analysis showed a significant increase in the number of marker-positive cells in the RT-only group compared with both the vehicle control (group a; p = 0.0001) and the Navitoclax-only group (group b; p = 0.0001). Importantly, expression of all three markers was markedly reduced in the RT plus Navitoclax group relative to RT alone (p = 0.0001) (Fig. 6C–H). These results mirror our in vitro findings, suggesting that RT induces senescence in DMG cells and that Navitoclax eliminates the RT-induced senescent population.

To further investigate this finding, we performed immunostaining for cleaved caspase-3 (CC3) as a marker of apoptosis and Ki67 to assess cell proliferation (Fig. 6I,K). Ki67 expression did not differ significantly among the vehicle control, Navitoclax-only, and RT-only groups (groups a, b, and c). In contrast, the RT plus Navitoclax group exhibited a significant reduction in the Ki67 proliferative index compared with RT alone (p = 0.00023) (Fig. 6I,J). Importantly, CC3-positive cells were nearly absent in the vehicle, Navitoclax-only, and RT-only groups (0.9–2.3%). However, the RT plus Navitoclax combination resulted in a marked increase in apoptosis, with 25.7% CC3-positive cells—a significant elevation relative to RT alone (p = 0.00001) (Fig. 6K,L). Taken together, these analyses support the conclusion that RT induces senescence in DMG cells in vivo and creates a corresponding vulnerability to Navitoclax. Nonetheless, within the constraints of this experimental setting, these effects are not sufficient to produce measurable differences in tumour growth or mouse survival.

H3K27M-altered human DMG cells (Supplementary Table 1; Supplementary Methods) were grown under adherent stem cell conditions as described⁵¹. Adherent cultures were used as opposed to neurospheres to improves consistency for imaging and drug screening without significantly altering key phenotypic markers. ¹³⁷Cs γ-ray irradiation at a dose rate of 1.76 Gy/min was conducted using an IBL 437C (CIS Bio-International, Codolet, France). DMG cells were cultured to less than passage 10 prior to induction of senescence through irradiation. Cells were dissociated using accutase (Sigma), counted using Trypan blue and cells resuspended in 1 ml of TSM-C and irradiated in 15 ml falcon tubes. Cells were plated after irradiation (day 0) and left for 5 days before assessing senescent and SASP responses (Day 5), when molecular (RNA sequencing, ELISA) and immunocytochemical analyses were performed. Media was changed at Day 1 and Day 3, as cell debris due to cell death was abundant around days 2 and 3. To avoid false-positivity due to differences in confluency, irradiated (senescent) and proliferative cells were collected for molecular or cellular analyses at 70–80% confluency.

Senescence and EdU staining were performed as described²⁶. A minimum of 400 cells were counted per condition. Caspase 3/7 activity assay and Annexin V staining were used to quantify cell apoptosis. Full details can be found in Supplementary Methods.

Upon irradiation, cells were plated at a density of 5,000–10,000 cells/well on laminin-coated 96-well plates (black opaque) in a minimum of triplicates and allowed to sit for 18 h. Medium was replaced the next day and five days post-irradiation, fresh media supplemented with drugs were added to each well and incubated at 37 °C in 5% CO2, 95% humidity for 3 days (Supplementary Table 2; Supplementary Methods). Cell viability was assessed by the CellTiter-Glo luminescent cell viability assay (Promega). SynergyFinder (https://synergyfinder.fimm.fi↗) was used for interactive analysis and visualization of drug combination profiling data following the Bliss independence model⁵². To calculate drug sensitivity scores (DSS), a publicly available online platform was used (Breeze version 2.0; https://breeze.fimm.fi/94912_mc42ntaxmtywmcaxnzq0mdk4njix/index.php)↗^53,54.

Immunofluorescence staining was carried in 96 well plate at desired timepoints (usually 5 days following radiation unless otherwise stated) using previously described protocols^26,27. Full details in Supplementary Methods and Supplementary Tables 3 and 4.

RNA was extracted from both non-irradiated (proliferative) and irradiated (senescent; five days post-irradiation) human DMG cells using the Rneasy Micro kit (Qiagen). Total RNA integrity was validated using Agilent's 4200 Tapestation, with all samples having RIN values > 9.4. cDNA library preparation used 250 ng of total RNA and the KAPA mRNA HyperPrep Kit. High-quality libraries were confirmed on the Agilent TapeStation 4200. Samples from the three DMG cell lines were normalized to 4 nM using the Normalase assay, and independently sequenced on the NextSeq 500 instrument with a 75 bp pair-end run. Fastq files were aligned to the human genome UCSC hg38 using RNA-STAR 2.5.2b and differential expression (DE) analysis performed with DESeq2⁵⁵. Gene ontology analysis was performed using the GOSeq package in R⁵⁶. Gene Set Enrichment Analysis GSEA using version 4.2.3 with gene sets from MSigDB^57,58.

Collected supernatants from irradiated cells were centrifuged and stored at − 80 °C. To avoid contamination of cytosolic components of dying cells after irradiation, media was changed on one and three days after irradiation. Cytokine levels were measured in conditioned medium at day 5 post-irradiation using a Meso Scale Discovery multiplex kit (Meso Scale Diagnostics, Rockville, MD), according to the manufacturer's instructions. IFN-γ, IL-1β, IL-2, IL-4, IL-6, IL-8, IL-10, IL-12p70, IL-13 and TNF-α were measured by V-PLEX MSD assay, and MIG (CXCL9) and IL-18 were measured by U-PLEX MSD assay. The plates were analyzed on the MSD instrument (QuickPlex SQ120). Data were log transformed for visual representation.

A total of 250,000 eGFP-LUCF-SU-DIPG-VI cells in 2–3 μL were stereotactically implanted in the pontine area of NOD-SCID male mice (Charles River) using a 26SG Hamilton syringe using a rate of ~ 1 μL/min. Co-ordinates used were 1.0 mm lateral to midline, 0.8 mm posterior to lambda, and –4.2 mm deep to cranial surface. A small pocket was created for the cells, which were injected -3.2 mm deep to the cranial surface. At the completion of infusion, the syringe needle was allowed to remain in place for a minimum of 2 min, then slowly manually withdrawn to minimize backflow of the injected cell suspension. The skin was closed with VetBond™ Adhesive. Mice were weighed daily for one week, and dosed for 48 h with Metacam, at 5 mg/kg. Whole brain irradiation was carried out using a Small Animal Radiation Research Platform (SARRP, Xstrahl Inc.). Mice received a total of 12 Gy in 2 Gy fractions (six consecutive days), delivered as an arc, targeted to maximise delivery to the whole brain (the beam was directed to avoid the mouth and jaw area to reduce mucositis). ABT-263 was administered to mice by gavage at 50 mg per kg body weight per day (mg/kg/d). Tumour growth was monitored using an IVIS Spectrum in vivo imaging system (IVIS Living Image software version 4.8.2, IVIS® Lumina Series III (Perkin-Elmer, Beaconsfield, UK). Ten minutes following subcutaneous injection of D-luciferin (Perkin Elmer), bioluminescent images were acquired under isoflurane anaesthesia. Tumour size was quantified by calculating total flux (photons/sec) using IVIS software. Tumour growth rate was quantified using total flux/time, using a linear mixed-effects model. Defined end points were used to avoid suffering and mice showing moderate symptoms and deemed to be irrecoverable were humanely culled before these adverse effects progressed in severity. The mouse experiments were approved by a UCL ethical review panel and covered by a Project Licence granted to the corresponding author by the UK Home Office. All methods used on mice were in accordance with standards set by the UCL Biological Services Unit, Home Office and the ARRIVE guidelines.
