N6-Methyladenosine: a conformational marker that regulates the substrate specificity of human demethylases FTO and ALKBH5

To date, the substrate preferences and sequence requirements of the m6A demethylases have not been systematically studied. It is not clear if the G(m6A)C and A(m6A)C consensus motifs (where m6A predominantly resides) are essential for substrate recognition. Moreover, besides mRNA, recent studies have also identified m6A modifications in non-coding RNAs, such as transfer RNA (tRNA), ribosomal RNA (rRNA), small nuclear RNA (snRNA) and long non-coding RNA (lncRNA), where they are not found within the same consensus motifs45,46,47. These findings raise the question of whether FTO and ALKBH5 are able to accept m6A on non-consensus sites. Conceivably, other unidentified m6A demethylases may exist which specifically regulate m6A marks on non-coding RNAs.

To explore these interesting questions and to clarify the substrate specificity of FTO and ALKBH5, we analysed the activities of FTO and ALKBH5 against a series of m6A-containing oligonucleotides using a HPLC-based assay (Fig. 2). The m6A substrates investigated consist of short DNAs and RNAs of varying lengths and sequences (Fig. 2a). They are either based on the m6A consensus motifs G(m6A)C (i.e.2, 4–9, 11, 15) and A(m6A)C (i.e.3, 10, 12), or are based on random sequences (i.e.13, 14). We initially determine the minimum substrate length that is required for enzyme recognition. Our results revealed that the m6A nucleotide 1 itself is a very poor substrate for FTO and ALKBH5 (Fig. 2a). The 3-mer core consensus motifs, G(m6A)C 2 and A(m6A)C 3, also gave negligible demethylation yields (~2–5%), even after prolonged incubation (Fig. 2a). This implies that the residues surrounding the m6A site are likely involved in crucial interactions with the active sites of FTO and ALKBH5. Indeed, the addition of either a guanosine residue at position −2 (relative to m6A in 2i.e.4) or a uridine residue at position +2 (i.e.5) resulted in marked improvements in demethylation yields with both enzymes (~19–31%; Fig. 2a). Interestingly, short 5-mer substrates, such as 6, 8–10 (~64–70%) were found to have similar FTO demethylation yields as that of longer 14-mer substrate 11 (~78%, Fig. 2a), thus the minimum sequence that can be recognised by FTO appears to be only five nucleotides in length. Consistent with these results, kinetic analyses with FTO revealed substantial activity for 5-mer 6 (k_cat/K_m = 0.68 min⁻¹μM⁻¹), which is comparable to that of 14-mer 11 (k_cat/K_m = 0.77 min⁻¹μM⁻¹) (Fig. 2a,b and Supplementary Fig. S1). ALKBH5 also exhibited a similar activity profile, although it showed a slight preference for 11 (k_cat/K_m = 0.098 min⁻¹μM⁻¹) over 6 (k_cat/K_m = 0.060 min⁻¹μM⁻¹, Fig. 2a,c and Supplementary Fig. S1). Notably, a guanosine residue at +2 position to m6A is clearly disfavoured, as indicated by the significant reduction in activity for 7 by FTO (~11%) and ALKBH5 (~9%). This concurs with the DR(m6A)CH consensus motif, where ‘H’ is never found to be a guanosine residue. Overall, our results suggest that the short, 5-mer GG(m6A)CU sequence is likely sufficient to define a demethylation site for both FTO and ALKBH5.

We next examine if the m6A demethylases demonstrate any preference for either of the two consensus motifs G(m6A)C and A(m6A)C. Our assay data indicate that FTO and ALKBH5 are able to demethylate GG(m6A)CU 6 and GA(m6A)CA 10 with comparable efficiencies (Fig. 2b,c). In agreement with this result, the demethylation yields for 14-mer G(m6A)C-based substrate 11 were also found to be similar to that for 14-mer A(m6A)C-based substrate 12 (Fig. 2a), implying that m6A demethylases likely do not discriminate between the two consensus motifs. The m6A methyltransferases, on the contrary, strictly favour G(m6A)C over A(m6A)C consensus motifs48,49, consequently G(m6A)C-based sequences are, depending on species, two- to twelve-fold more abundant than A(m6A)C-based sequences8,9,10.

Our results further revealed that FTO and ALKBH5 do not discriminate between RNA and DNA substrates, as shown by their substantial activities towards both DNA substrates 6, and its RNA equivalent 9. Importantly, both FTO and ALKBH5 are able to recognise m6A modifications on non-consensus sites. This is clearly demonstrated by their significant catalytic activities towards the arbitrary RNA sequence 13 (k_cat/K_m (FTO) = 0.39 min⁻¹μM⁻¹, and k_cat/K_m (ALKBH5) = 0.053 min⁻¹μM⁻¹), which, notably, is only ~2-fold lower than consensus substrate 11 (Fig. 2 and Supplementary Fig. S2). In addition, there are also considerable demethylase activities towards the non-consensus DNA substrate 14 (~63% (FTO), ~32% (ALKBH5), Fig. 2a and Supplementary Fig. S2). These observations are consistent with a recent report which showed that ALKBH5 is able to demethylate the non-consensus sequence rAUUGUCU(m6A)UUGCAGC, although with reduced demethylation yields (~20%)25.

Taken together, our results suggest that the GG(m6A)CU consensus motif, while preferred, is not absolutely essential for substrate recognition by FTO and ALKBH5. It is also apparent that FTO and ALKBH5 have the potential for a high degree of promiscuity, although the efficiency of m6A demethylation varies. Hence, sequence information alone is likely insufficient in regulating the substrate specificity of FTO and ALKBH5. We, therefore, propose that additional mechanisms that do not depend exclusively on the specific recognition of the primary nucleotide sequence are likely involved.

We considered the possibility that m6A methylation might modulate substrate specificity of m6A demethylases by fine-tuning the conformation of the modified RNA. Precedence for this possibility comes from observations that conceptually similar epigenetic modifications, in particular N-methylation on histone lysine and arginine frequently result in remodelling of chromatin structures, which alters their interactions with DNA50,51. This is further supported by the number of studies (highlighted in the introduction) which showed that m6A modification can directly impact the secondary structure of RNAs both in vitro and in vivo37,38,39,40,41,42,43,44. To the best of our knowledge, to date, m6A has not been explored as a potential determinant of substrate specificity for FTO and ALKBH5.

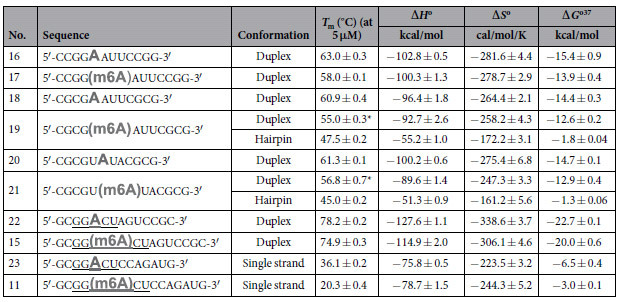

We begin by studying the effect of m6A modification on RNA conformations. To this end, we employed several 12-mer palindromic RNAs 16–23 as model sequences (Table 1 and Supplementary Table S1). Due to their self-complementary nature, they can inherently adopt two main secondary structures in solution, namely (1) duplex conformation, by engaging in intermolecular base pairing, and (2) hairpin conformation, by folding back on themselves. Such structural versatility enables them to mimic the dynamic RNA structures observed under physiological conditions, hence they are particularly suited for our study.

We first examine the secondary structure of the unmethylated RNA 16 (rCCGGAAUUCCGG) by performing UV-melting analysis under physiologically relevant conditions (i.e. in 10 mM sodium phosphate buffer containing 150 mM NaCl, pH 7.4). At a total strand concentration of 5 μM, 16 showed a monophasic, sigmoidal melting profile, indicating the presence of a single structural species (Fig. 3a). In addition, van’t Hoff plot over a concentration range of 1–100 μM 16 revealed melting temperatures (T_m) that are linearly dependent on strand concentration, suggesting that 16 likely exists as a bimolecular duplex structure (Fig. 3d and Supplementary Fig. S3). This is supported by CD analysis of 16, which shows a dominant positive UV absorption band at 264 nm and a negative absorption band at 212 nm, which are characteristics of an A-form double helix structure (Fig. 3g). The strong hyperchromicity observed in the CD spectrum and UV-melting profiles of 16 further suggests that the duplex structure of 16 is likely to be extensively, if not fully, based-paired.

To determine the structural influence of m6A, we replaced the adenine base at strand position 5 of 16 with an m6A residue, which generated 17 (rCCGG(m6A)AUUCCGG) (Table 1). As with its unmethylated form, 17 was also found to assume an A-form duplex structure, as demonstrated by a monophasic, concentration-dependent melting profile (Fig. 3a,d and Supplementary Fig. S3). In addition, the CD spectrum of 17 superimposes well with that of 16, implying that m6A modification did not cause any significant conformational change in 17 (Fig. 3g). The presence of m6A, however, did cause an overall destabilisation of the duplex structure of 17 (T_m = 58.0 °C; = −13.9 kcal/mol), as indicated by its less favourable free Gibbs enthalpy compared with that of unmethylated duplex 16 (T_m = 63.0 °C; = −15.4 kcal/mol, Table 1). The magnitude of destabilisation caused by a single m6A base is ~1.5 kcal/mol, which is consistent with measurements by others37,38,39,40,41. In particular, recent work by Kool et al.38 on multiple sequence contexts indicates that the amount of destabilisation per m6A base ranges from 0.5–1.7 kcal/mol, depending on the level of m6A substitution and sequence contexts. Early study by von Hippel et al.37 on m6A-containing RNA polymers also indicates a similar level of destabilisation (0.35–0.95 kcal/mol).

Thermodynamic analysis indicates that the observed duplex destabilisation is primarily due to a less exothermic enthalpy (ΔΔH° = 2.5 kcal/mol) which counteracts the favourable change in entropy (ΔΔS° = 2.9 cal/mol/K) (Table 1). In view of the lack of major conformational change between 16 and 17 (Fig. 3g), the introduction of m6A in 17 likely did not cause significant disruption of its duplex base-pairing. Notably, recent NMR studies suggests that m6A likely base pair with U in a Watson-Crick manner in double-stranded RNA38. Apparently, this is achieved via rotation of the N⁶-methylamino group from its energetically preferred syn-conformation (with respect to N¹ in the purine ring) to the higher-energy anti-conformation. Although this orientation is partially compensated for by hydrogen bonding and Watson-Crick geometry matching with U, the resulting m6A·U base pair is expected to be intrinsically unstable, and this introduces an element of instability in the duplex structure.

The above results are interesting because they imply that m6A can, in principle, trigger an overall conformational change in RNA if it occurs on a relatively unstable duplex, where the energy cost to form alternative structures will be relatively low. As a proof of principle, we designed a thermodynamically less stable analogue of 17 by replacing both its ‘CCGG’ segments (rCCGGAAUUCCGG; underlined) with ‘CGCG’, to generate rCGCGAAUUCGCG 19 (T_m = 55.0 °C; = −12.6 kcal/mol, Table 1). 19 is expected to be thermodynamically less stable compared to 17 due to less favourable nearest neighbour effects52.

As anticipated, the UV-melting analysis of 19 revealed an interesting biphasic melting profile, indicating the presence of two structural species under the experimental conditions (Fig. 3b). The first melt transition at T_m ~47.5 °C has significantly lower hyperchromicity (~14%) than generally observed for a duplex transition, implying a reduced number of base-pairs in this structure. Moreover, van’t Hoff analysis revealed a relatively constant T_m over 1–5 μM i.e. the concentration range at which the first melt transition was detected (Fig. 3e and Supplementary Fig. S4). These observations are indicative of a monomolecular hairpin structure. In contrast, the second melt transition (T_m ~ 55.0 °C), which dominates the melting profile of 19 at concentrations above 10 μM, showed strong hyperchromicity (~21%) and a concentration-dependent T_m, which are suggestive of a duplex transition (Fig. 3b,e and Supplementary Fig. S4). Hence, 19 likely exists as both hairpin and duplex structures under our experimental conditions. These data concur with the CD spectrum of 19 which showed characteristics of both A-form duplex and B-form hairpin (Fig. 3h).

We were unable to confirm the presence of hairpin structure with ¹H NMR study as this species was only formed at ≤5 μM. However, poly-acrylamide gel electrophoresis (PAGE) of 19 under non-denaturing conditions clearly revealed the existence of both duplex (lower mobility band) and hairpin structures (higher mobility band), particularly at low strand concentrations (Fig. 4a). Notably, the ‘hairpin bands’ are inherently faint compared with the ‘duplex bands’, due to the lower number of base-paired sites that can associate with the staining dye. We estimated that at least 20% and 35% of 19 were present as hairpin conformation at 5 μM and 2.5 μM strand concentrations, respectively. Importantly, there was no evidence of hairpin structure in the native PAGE and UV-melting analyses of unmethylated 18 (Figs 3b and 4a). Hence, hairpin formation in 19 was clearly triggered by m6A modification, and likely via duplex-to-hairpin conversion.

To obtain additional insights into factors determining m6A-induced conformational change, we further analysed 21 (rCGCGU(m6A)UACGCG), an analogue of 19 where the bases within the centre of the palindrome (underlined) were switched from ‘(m6A)AUU’ to ‘U(m6A)UA’ (Table 1). Interestingly, m6A-induced duplex-hairpin conversion was again observed in the native PAGE analysis of 21, where similar levels of hairpin formation (~30%) were detected at ≤5 μM (Fig. 4a). This observation was verified by UV-melting and CD analyses (Fig. 3 and Supplementary Fig. S5). The thermodynamic parameters derived from UV-melting experiments suggest that duplex-hairpin transformation in 21 is primarily an entropy-driven process, as apparent from the highly favourable entropy change (ΔΔS° = 86.1 cal/mol/K) (Table 1). However, due to the large enthalpy cost (ΔΔH° = 38.3 kcal/mol), the hairpin form of 21 is only marginally more stable than its duplex form at 37 °C ( = −1.3 kcal/mol). These data concur with those obtained for the hairpin and duplex structures of 19 (ΔΔH° = 37.5 kcal/mol, ΔΔS° = 86.0 cal/mol/K, = −1.8 kcal/mol).

Our combined results, therefore, demonstrate that the introduction of a single N⁶-methyl group on adenine is sufficient to induce a major overall conformational change in RNA. In addition, the conformational outcomes of m6A modification is highly dependent on sequence context. In RNAs 17, 19 and 21, m6A-induced duplex-hairpin transformation was only observed for 19 and 21, and not for 17, despite all three RNAs having the same base composition, and highly similar primary nucleotide sequences. Hence, a relatively limited sequence change can have a profound effect on the overall conformation of the RNA, and this may provide a molecular basis for substrate selectivity of m6A demethylases.

To understand the role of m6A in regulating the substrate specificity of m6A demethylases, we profiled the activities of FTO and ALKBH5 against 17, 19 and 21 using a HPLC-based assay. The assay results are summarised in Fig. 4. Overall, the activity profile is highly consistent with the structural influence of m6A on these sequences. In particular, both FTO and ALKBH5 were able to recognise and accept 19 and 21, but not 17 as substrates, suggesting that their substrate selectivity is indeed, at least partially, regulated by m6A-induced structural change (Fig. 4 and Supplementary Figs S3–S8). In line with this observation, the level of demethylation of 19 and 21 was also found to approximately correlate with the extent of m6A-induced hairpin formation under our assay conditions. At 10 μM strand concentration, where both 19 and 21 were observed to exist predominantly as duplexes, there was little or no demethylation of both substrates by FTO and ALKBH5 (Fig. 4). However, when the concentration was reduced to 5 μM and 2.5 μM, where hairpin formation was appreciable, the demethylation yields of 19 (~45% (FTO), ~25% (ALKBH5)) and 21 (~37% (FTO), ~24% (ALKBH5)) increased significantly (Fig. 4, Supplementary Figs S6 and S7). Moreover, in a negative control experiment, we observed negligible demethylase activity towards the unmethylated analogues 16, 18 and 20 at all concentrations tested (Fig. 4b). It is thus clear that m6A can critically impact the selectivity of FTO and ALKBH5 by modulating the conformation of m6A substrates. Conceptually, this mechanism could enable FTO and ALKBH5 to distinguish their bona fide targets from other potential m6A substrates, including those with very similar primary nucleotide sequences. We further postulate the structural influence of m6A may also facilitate the discrimination of substrates with the same consensus motif.

To investigate this possibility, we evaluated the activity of FTO and ALKBH5 against 15 (rGCGG(m6A)CUAGUCCGC), a palindromic substrate containing the GG(m6A)CU consensus motif (underlined). Remarkably, 15 is an extremely poor substrate for both enzymes (demethylation yields ~3% (FTO), ~4% (ALKBH5)) even though it contains the m6A consensus motif. To rationalise this result, we analysed the conformation of 15 and its binding interactions with FTO and ALKBH5. Contrary to other palindromic sequences investigated in this study, such as 19 and 21, m6A methylation of 15 did not result in any detectable duplex-hairpin conversion. Both 15 and its unmethylated analogue 22 were found to exist almost exclusively as A-form duplex structures, as determined by native PAGE, CD and UV-melting analyses (Supplementary Figs S9–S11). Apparently in its duplex form, 15 showed very poor affinity for FTO and ALKBH5, as demonstrated by biotin-labelled electrophoretic mobility shift assay (EMSA), where there was no detectable binding of biotin-15 to FTO and ALKBH5, even at 1250-fold excess of proteins (Supplementary Fig. S12). Hence, 15 was not recognised and accepted as substrate by both m6A demethylases. This enables the discrimination of 15 from other substrates containing the same consensus motif, as exemplified by 11 (rGCGG(m6A)CUCCAGAUG) and 25 (rGCGG(m6A)CUCCACCGC) (Fig. 4). In the sequence contexts of 11 and 25, m6A modification promotes a random coil and hairpin conformations, respectively, both of which are able to bind significantly stronger with FTO and ALKBH5 than duplex 15 (Supplementary Figs S11–S13). Consequently, 11 and 25 are selectively targeted by m6A demethylases (Fig. 4). Results from microscale thermophoresis (MST)-based experiments53,54 indicate that FTO and ALKBH5 have similar binding affinities for 11 (K_D (FTO) ~ 97.1 μM; K_D (ALKBH5) ~ 52.9 μM) and 25 (K_D (FTO) ~ 91.3 μM; K_D (ALKBH5) ~ 75.3 μM) (Figs 5 and 6), although their demethylation yields are significantly higher for 11 than 25 (Fig. 4). This implies that the catalysis of hairpin substrate is likely slower compared with single-stranded substrates.

Intriguingly, selectivity for 11 over 15 was also observed for other m6A-binding proteins, in particular the YTH-domain proteins YTHDF255, which showed significant binding with biotin-11, but very little or no binding to biotin-15 (Supplementary Fig. S14). Our combined results revealed that m6A achieves substrate selectivity by regulating the affinity of m6A-recognising proteins for their targets.

The DNA/RNA oligonucleotides used in this study were synthesised using standard β-cyanoethyl phosphoramidite chemistry. All synthesiser reagents and phosphoramidites were purchased from Glen Research. In brief, the oligonucleotides were synthesised on a solid support by the automated DNA/RNA synthesiser (Applied Biosystems 394) using a standard 1.0 μmole phosphoramidite cycle of acid-catalysed detritylation, coupling, capping, and iodine oxidation. Cleavage of the oligonucleotides from the solid support and deprotection was achieved by exposure to a 1:1 mixture of 28% aq. ammonium hydroxide and 40% aq. methylamine for 10 min at 65 °C. Deprotection of the 2’-O-TBDMS group and initial purification were carried out with Glen-Pak RNA purification cartridges according to the manufacturer’s procedure. The crude products were purified by reverse-phase HPLC using the Waters XBridge OST C18 column (2.5 micron, 10 mm × 50 mm). HPLC solvents used were: solvent A (100 mM triethylammonium acetate buffer, pH 6.5 with 5% acetonitrile) and solvent B (100 mM triethylammonium acetate buffer, pH 6.5 with 15% acetonitrile) with a flow rate of 5 mL/min. All purified oligonucleotides were characterized by MALDI-MS and capillary gel electrophoresis, and were found to be at least 95% pure (Supplementary Table S1).

Full length human FTO, human ALKBH5_66–292 and human YTHDF2_385–576 were expressed and purified as previously reported, with modifications30. In brief, all constructs were transformed into E. coli BL21 (DE3) Rosetta cells. The transformed cells were grown at 37 °C until an OD₆₀₀ of 0.6 was reached. Protein expression was then induced with isopropyl β-_D-1-thiogalactopyranoside (IPTG, 0.5 mM, Gold Biotechnology). Cell growth was continued at 16 °C for 16 h, after which the cells were harvested by centrifugation and the resulting cell pellet was stored at −80 °C. The frozen cell pellets were then thawed, resuspended in lysis buffer and disrupted by French Press. Further purification of the protein was achieved using Ni affinity chromatography and gel filtration, as described below. Full length human FTO was sub-cloned into pNIC28-Bsa4 to generate a His₆-tagged FTO_1–505 construct. FTO in lysis buffer (25 mM Tris, pH 7.5, 500 mM NaCl, 40 mM imidazole and 5 mM β-mercaptoethanol (β-ME)) was purified using Ni affinity chromatography (GE healthcare), followed by gel filtration using HiLoad superdex 200 26/60 (GE healthcare) into the final buffer (25 mM Tris buffer, pH 7.5, 100 mM NaCl, 5% (v/v) glycerol and 5 mM β-ME). For human ALKBH5, a His₆-tagged ALKBH5_66–292 construct in pNIC28-Bsa4 was used. ALKBH5 in lysis buffer (25 mM Tris, pH 8.0, 500 mM NaCl, 40 mM imidazole and 5 mM β-ME) was first purified using Ni affinity chromatography (GE healthcare), followed by anion chromatography using a 5 mL HiTrap Q HP column (GE healthcare) and gel filtration using HiLoad superdex 75 16/60 (GE healthcare) into the final buffer (20 mM Tris buffer, pH 8.0, 100 mM NaCl and 5 mM β-ME). Recombinant human YTHDF2_385–576 was cloned into pGEX-6P-1 from cDNA clones and transformed into E. coli BL21 (DE3) Rosetta cells. Purification of YTHDF2 in lysis buffer (50 mM Tris, pH 8.0, 500 mM NaCl, 40 mM imidazole and 5 mM β-ME) was achieved by loading the supernatant to a 5 mL GSTrap^TM HP column (GE healthcare). The protein was eluted with gluthione containing buffer (50 mM Tris, pH 8.0, 300 mM NaCl, 10 mM glutathione and 5 mM β-ME). Further purification was achieved by gel filtration using HiLoad superdex 200 26/60 (GE healthcare) into the final buffer (20 mM Tris, pH 8.0, 150 mM NaCl and 5 mM β-ME).

The assay was modified from previously reported methods30,56. The assay was performed in triplicate for each m6A substrate, in a final reaction volume of 25 μL. Reaction consisted of FTO (2 μM) or catalytically active ALKBH5_66–292 (4 μM), 2-oxoglutarate (300 μM), (NH₄)₂Fe(SO₄)₂·6H₂O (150 μM), L-ascorbate (2 mM), m6A-containing DNA/RNA (substrate, 10 μM) in 50 mM HEPES buffer, pH 7.4. The reaction was incubated at 37 °C for 30 min, after which the m6A-containing DNA/RNA was digested by treatment with 1 Unit of nuclease P1 in buffer containing 7 mM of sodium acetate, and 0.4 mM of ZnCl₂ at 37 °C for 2 h. This was followed by the addition of 1M NH₄HCO₃ (1 μL) and alkaline phosphatase (1 Unit). After further incubation at 37 °C for 1.5 h, an internal standard (10 μM, uridine or thymidine for DNA and RNA substrates, respectively) was added to the reaction mixture and the solution was analysed on a HPLC system. The nucleosides were separated using a Zorbax C18 column (4.6 mm × 250 mm) with a gradient of 98% solvent A (MilliQ water + 0.1% TFA) to 100% solvent B (methanol) over 25 min, at a flow rate of 1.0 mL/min at room temperature. The UV detection wavelength was set at 266 nm. Controls without enzyme were also set up. The percentage of demethylation was calculated based on the peak areas of N⁶-methyladenine (m6A) in the samples and in their respective controls.

The K_m and k_cat values of FTO and ALKBH5 were determined by keeping a constant enzyme concentration of 0.5 μM and varying the substrate concentrations (1, 2, 3, 5 and 10 μM), according to reported methods30,56. The percentage demethylation at different substrate concentrations was plotted as a function of time (Fig. 2 and Supplementary Fig. S1). The initial velocity (V₀) for each substrate concentration was determined from the slope of the curve at the beginning of a reaction. The Michaelis–Menten curve was fitted using non-linear regression, and the kinetic constants (V_max, K_m) of the substrate was estimated using GraphPad Prism. All reactions were performed at 37 °C in triplicate and were adjusted to ensure that less than 20% of the substrate was consumed.

The melting of each oligonucleotides was performed on a Cary 3000 UV-Visible Spectrophotometer (Varian) at a total strand concentration of 5 μM (unless stated otherwise) in 10 mM sodium phosphate buffer, pH 7.4 and 150 mM NaCl. Absorbance versus temperature profiles were recorded at 260 nm. The samples were first denatured by heating to 85 °C at 10 °C/min, followed by slow cooling to 20 °C at 0.4 °C/min to ensure a complete annealing of the strands. The melting transitions were then monitored by heating to 85 °C at 0.4 °C/min. To increase the accuracy of measurements, the sixth position was used to record the temperature data points by placing a temperature probe directly in the cuvette. Up to six melting transitions were measured for each oligonucleotide and the average T_m values were calculated using Varian Cary Software. For sample preparation, lyophilised oligos were reconstituted in the buffer and their concentrations were determined by UV absorbance at 260 nm (A₂₆₀) using a NanoDrop ND-1000 UV-Visible Spectrophotometer. Extinction coefficients were calculated using the nearest neighbour approximation. The extinction coefficient of oligos containing m6A was assumed to be the same as those containing adenosine.

Each oligonucleotide was measured at six different strand concentrations from 1–100 μM in buffer containing 10 mM sodium phosphate buffer, pH 7.4 and 150 mM NaCl. They were subjected to multiple melting-annealing cycles while monitoring UV absorbance at 260 nm as described above. The melting transitions for duplex structures were assumed to proceed in a two-state manner, and to obey the van’t Hoff’sbelow. equation (1)

A plot of 1/T_m versus ln(total strand concentration) gives a straight line, where the slope is R/ΔH° and the y-intercept is ΔS°/ΔH°. Data were fitted using linear least-squares minimisation using GraphPad Prism. The free Gibbs energy (ΔG°) were calculated at 37 °C (310.15 K) using the following equation (2).

The experimental absorbance versus temperature curves were first converted into a fraction of strands remaining hybridized (α) versus temperature curves, which were then fitted to a two‐state transition model using Varian Cary Software.

CD spectra were obtained with a JASCO J810 spectro-polarimeter. The measurements were carried out with 5 μM oligonucleotides (unless stated otherwise) in a 10 mM sodium phosphate buffer, pH 7.4 and 150 mM NaCl. The oligos solutions were first heated to 90 °C for 5 min, and re-annealed by slow cooling to 4 °C at a rate of 1 °C/min. CD spectra were then recorded in quartz cuvettes (path length 10 mm, 400 μL) from 200 nm to 350 nm using a 10 nm/min scan speed, a spectral band width of 1 nm and a time constant of 4 s. All the spectra were subtracted with the buffer blank and smoothed using the Savitsky-Golay algorithm (polynomial order 10).

Annealed oligonucleotides were loaded to 20% native polyacrylamide gel and electrophoresis was performed at 4 °C in Tris/Borate/EDTA (TBE) running buffer (90 mM Tris, pH 8.3, 90 mM boric acid and 5 mM EDTA). The gel were stained with SYBR^® Gold Nucleic Acid Gel Stain and visualized by Gel Dock XR + (Bio-Rad) and Image Lab 4.0 software (Bio-Rad). The fraction of monomolecular hairpin structures was evaluated based on the assumption that the efficiency of the staining of the base pairs in a hairpin was similar to that in a bimolecular duplex.

MST experiments53,57 were performed on a Monolith NT Label Free system (NanoTemper Technologies) at 25 °C using 40% MST power, and 60% LED power for FTO and 40% LED power for ALKBH5. Laser on and off times were set at 30 s and 5 s, respectively. Zero background standard treated capillaries (NanoTemper Technologies) were used. All experiments were performed in triplicates. Oligos for MST measurement were purchased from Dharmacon^TM. For determination of binding affinity with FTO, twelve different concentrations of RNA ranging from 1 mM to 490 nM were used. The annealed RNAs were incubated with a mixture of FTO/NiSO₄ complex (100 nM/1 mM) and NOG (500 μM) in 50 mM Tris buffer (pH 7.5; containing 150 mM NaCl and 0.05% Tween 20) at 25 °C for 20 minutes. Data derived from thermophoresis measurement and temperature-dependent change in fluorescence (T-Jump) were used to determine the binding affinities (K_D) of the RNAs. Curve fitting was performed using the NT Analysis software provided. For experiments with ALKBH5, ALKBH5/MnCl₂ complex (500 nM/1 mM) was used.

RNA probes that were labelled at their 3′-ends with biotin were purchased from Keck Foundation Biotechnology Resource Laboratory. Prior to electrophoresis, 2 μL of annealed RNA probes (4 nM final concentration) were incubated with 2 μL of FTO or ALKBH5 or YTHDF2 (0.02, 0.5, 1, 2, 5 μM, and other concentrations as indicated) at 4 °C for 30 min in a binding buffer (10 mM HEPES, pH 7.3, 5% glycerol, 20 mM KCl, 1 mM MgCl₂, 1 mM DTT and 8 U RNasin^® Ribonuclease Inhibitor (Promega)). 20 uL of the RNA-protein mixture was loaded to 7.5% native polyacrylamide gel and electrophoresis was performed at 4 °C for 90 min at 90 V using TBE running buffer. Electrophoresis for ALKBH5 and FTO were performed in buffer without EDTA. Visualisation was carried out using CL-Xposure^TM Film (Thermo Scientific), Gel Dock XR + (Bio-Rad) and Image Lab 4.0 software (Bio-Rad).
