Comparing Cas12a versions for their target DNA preferences in large-scale yeast gene editing

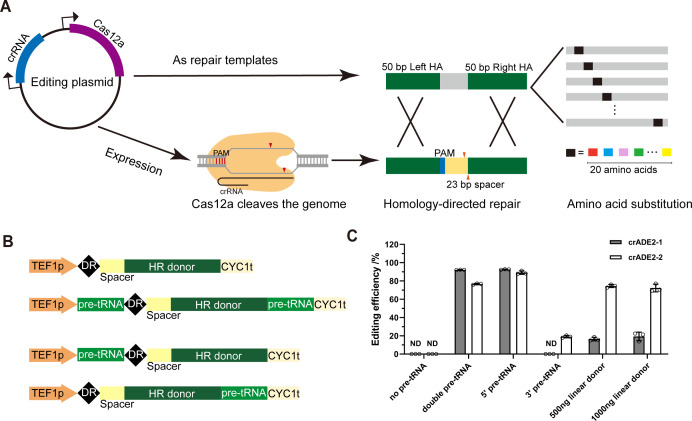

Since current Cas12a-based yeast gene editing systems are not scalable, we first aimed to develop an efficient genetic variant engineering system with plasmid HR donors instead of linear HR donors (Fig. 1A). The Cas12a ortholog from Lachnospiraceae bacterium ND2006 (LbCas12a), which showed a high DNA cutting activity in S. cerevisiae (21), was utilized for initial testing of the system. The crRNA consists of a 20-nucleotide direct repeat (DR) sequence of the LbCas12a system and a 23-nucleotide spacer sequence. Following the design of our previously developed SpCas9-based HI-CRISPR system (9), we placed the HR donor to the 3′ end of the spacer (Fig. 1B). The donor consists of 50 bp homology arms flanking the amino acid substitution mutations, which were integrated to replace wild-type codons after Cas12a cleaving the DNA and homology directed repair (Fig. 1A). This homology-integrated CRISPR/Cas12a (HI-Cas12a) system enables simple design, synthesis, and cloning, facilitating scaling up. The entire system is expressed from a single plasmid (Fig. S1).

Considering that Pol III promoter-driven crRNA expression may be terminated by T-rich sequences (36), we opted to use a Pol II promoter TEF1p to drive crRNA expression (Fig. 1B). To prevent misprocessing of the crRNA as a messenger RNA, we placed a tRNA precursor pre-tRNA^Gly (37) after the promoter and/or before the terminator to facilitate crRNA cleavage from regulatory sequences (Fig. 1B). Two crRNAs targeting ADE2 were designed for testing (Fig. S2). The donors were designed to introduce a TAA stop codon while disrupting the PAM sequence. Results indicated that only the 5′ pre-tRNA was necessary for editing, achieving up to 95% efficiency, and there was no significant difference in editing efficiencies between using 5′ pre-tRNA or both pre-tRNAs. In addition, the integrated donor design achieved higher editing efficiencies than using a linear donor (Fig. 1C). Considering that two repetitive pre-tRNA sequences may complicate cloning, we proceeded with the 5′ pre-tRNA design.

To assess editing accuracy, red colonies were randomly selected for sequencing, showing a high editing accuracy and purity (Fig. S2). The term "editing purity" denotes the proportion of correctly edited alleles. In addition, the impact of an additional duration of liquid cultivation after plasmid transformation on editing efficiency was evaluated. Higher editing efficiencies were observed without liquid cultivation (Fig. S3). Subsequent outgrowth led to a decrease in editing efficiency, which may be attributed to the growth advantage of non-edited wild-type yeast cells, especially when targeting ADE2, whose deletion is known to reduce cellular fitness and lifespan of S. cerevisiae (38). This contrasts with SpCas9-mediated editing, where further liquid cultivation gradually increased editing efficiency (9).

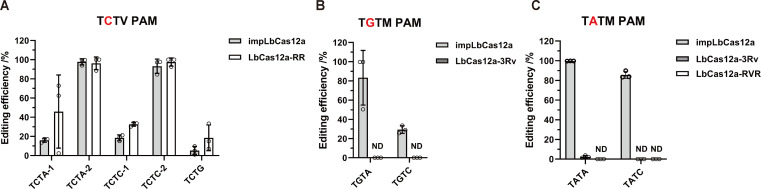

To identify a Cas12a variant with the most flexible PAM and high on-target activity, we systematically evaluated the PAM compatibility of PAM-relaxed Cas12a variants in S. cerevisiae. We focused our assessment on four LbCas12a variants, namely LbCas12a-RR, LbCas12a-RVR (32), LbCas12a-3Rv (33) and impLbCas12a (34) (Fig. S4), since LbCas12a was previously shown to be more efficient than AsCas12a in yeast (21). We tested subsets of non-canonical PAMs previously reported to be functional in introducing indels in mammalian cells (Table S1). The results with impLbCas12a showed that without liquid cultivation, most of the colonies were chimeric at a non-canonical TGTC PAM (Fig. S5A). A period of liquid cultivation was necessary to obtain pure editing at several non-canonical PAMs (Fig. S5B). In light of this, we included a 5-day period of liquid cultivation after yeast transformation in subsequent PAM characterization of Cas12a variants before assessing the editing efficiency. By comparing the editing efficiencies of impLbCas12a and LbCas12a-RR at TCTV PAMs, we found that impLbCas12a exhibited comparable or slightly lower editing efficiencies than LbCas12a-RR (Fig. 2A). At TGTM PAMs, impLbCas12a edited efficiently, whereas LbCas12a-3Rv failed to recognize these PAMs (Fig. 2B). At TATM PAMs, impLbCas12a achieved up to 100% efficiency. In contrast, neither LbCas12a-RVR nor LbCas12a-3Rv could edit (Fig. 2C). However, LbCas12a-3Rv exhibited high editing efficiencies at ATTA and CTTA PAMs (Fig. S6), which are not recognizable by impLbCas12a (34). Besides LbCas12a variants, we also tested FnCas12a-EP16 (35), an in vitro validated PAM-relaxed variant of FnCas12a, and PrCas12a-3Rv (39) (Table S4). However, their editing efficiencies were negligible (Supplementary Text; Fig. S7 and S8). These benchmarking experiments indicated that, except for VTTV PAMs which were efficiently targeted by LbCas12a-3Rv, impLbCas12a exhibited the broadest PAM compatibility and robust genetic variant engineering efficiency in S. cerevisiae.

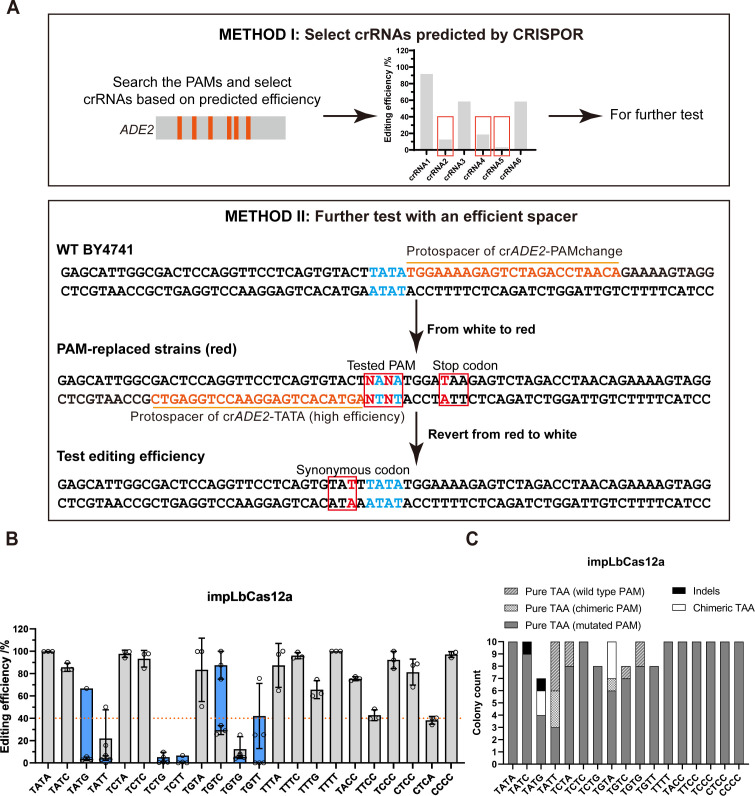

We then proceeded to comprehensively assess the PAM compatibility of impLbCas12a at TNTN and C-rich PAMs. We first screened efficient PAMs using crRNAs designed by CRISPOR (40). For PAMs showing low editing efficiencies, we further tested them with an experimentally validated high-efficiency spacer (Fig. 3A). The spacer of crADE2-TATA (Table S3) was chosen as the efficient spacer. To replace the original TATA PAM of this spacer with non-canonical PAMs to be tested, an adjacent crRNA targeting the palindromic TATA PAM on the opposite strand was used. The associated donor was designed to concurrently introduce the test PAM and a TAA stop codon. A series of red-colored PAM-replaced strains were constructed. Subsequently, crRNA-TATA was transformed into these PAM-replaced strains with a donor correcting the reading frame. Editing efficiencies at test PAMs were assessed by the percentage of colonies reverting to a white color. By combining results from both testing methods, we found that impLbCas12a effectively recognized TNTN PAMs with over 60% editing efficiency, except for TVTT and TSTG (S = C/G) PAMs. In addition, it also recognized C-rich PAMs, including TACC, TTCC, TCCC, CTCC, CTCA, and CCCC (Fig. 3B). These results largely agree with the previous study in mammalian cells (34). To evaluate editing accuracy and purity, randomly selected edited colonies were sequenced (Fig. 3C). A portion of edited colonies contained the TAA stop codon but no PAM mutation, which was originally designed as a synonymous mutation to prevent repeated Cas12a cleavage. This may be due to the longer distance between the cleavage site and the synonymous mutation in certain HR donors. Overall, impLbCas12a introduced very few indels while achieving over 40% editing efficiencies at 18 canonical and non-canonical PAMs, with over 80% efficiencies at 12 of them, affirming its superiority as a genetic variant engineering tool in yeast. This impLbCas12a editing system was also efficient in introducing stop codons into LYP1 and CAN1 genes (Fig. S9) and in performing integration at the promoters of several other endogenous genes of yeast (Fig. S10) by targeting both canonical and non-canonical PAMs (Table S3), suggesting potential for the genome-wide utility of this system. The editing purity of impLbCas12a was also higher than that of LbCas12a-RR and LbCas12a-3Rv (Fig. S11).

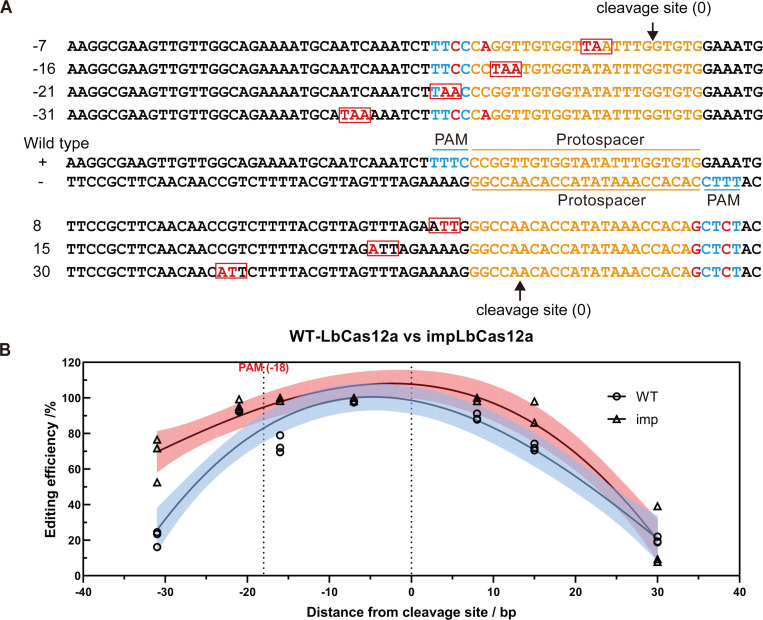

The editing efficiency tends to drop with an increasing distance from the PAM or cleavage site in SpCas9-based approaches (27). To determine the efficient editing range of impLbCas12a using a single crRNA, we explored the relationship between editing efficiencies and positions of replaced codons. Additionally, we designed synonymous mutations within and/or close to the PAM to prevent impLbCas12a from cleaving the HR donor and the edited sequence (Fig. 4A). The distance between the PAM and the cleavage site of LbCas12a is 18 bp (Fig. 4A), in contrast to a distance of 3 bp for SpCas9. Hence, we investigated whether the editing efficiency will be the highest close to the PAM or the cleavage site. To maximally reduce variations associated with sequences and locations of spacer sequences, we designed HR donors with varying distances using the same spacer. We chose two reverse-complementary spacers to account for targeting both sense and non-sense strands (Fig. 4A). Our findings revealed that the editing efficiency increased as the intended TAA codon replacement approaches the cleavage site (Fig. 4B; Fig. S12). Editing efficiencies were high (over 80% for impLbCas12a) within a 20 bp range upstream and downstream of the cleavage site. Compared to the wild-type LbCas12a, the efficiencies of impLbCas12a were higher or comparable at the tested canonical TTTC PAMs. The impact of the distance from the cleavage site on editing efficiency was consistent with wild-type LbCas12a targeting both strands. At approximately 30 bp from the cleavage site, the editing efficiencies dropped substantially for both variants (Fig. 4B). These results suggest that the editing window of impLbCas12a using the homology-integrated design is approximately 40 bp, centering around the cleavage site. This is on par with SpCas9 (27), suggesting that the editing range is mainly affected by the yeast homologous recombination process.

To test the editing efficiencies of T-rich sequences, we attempted to edit the dihydrofolate reductase gene of the malaria parasite Plasmodium falciparum (PfDHFR), which has an extremely high AT content (74%). Dihydrofolate reductase is an essential oxidoreductase that converts dihydrofolate to tetrahydrofolate. Pyrimethamine (Pyr) inhibits this enzyme by competing with dihydrofolate for binding to the substrate binding pocket, thus killing the host cell. Several mutations in the binding pocket decrease the binding affinity toward Pyr, causing resistance. The PfDHFR gene can functionally complement the yeast endogenous dihydrofolate reductase gene. To construct a PfDHFR integrated yeast strain, we first introduced a frame-shift mutation to disrupt the yeast endogenous dihydrofolate reductase (DFR1) gene. We then integrated a GAP promoter-driven PfDHFR gene to the HOmothallic switching endonuclease (HO) safe harbor locus to derive a PfDHFR expression strain (BY4741-DFR1∆8bp-HO::PfDHFR). Several crRNAs were designed to edit the PfDHFR gene in this strain to obtain drug-resistant single amino acid mutants (Fig. S13). Efficient crRNAs were identified. PfDHFR C59R, S108N, and wild-type strains were subjected to spot assay in the presence of Pyr, which inhibits the growth of the wild-type PfDHFR strain, but not the DFR1 strain BY4741 (Fig. S14). A significant increase in Pyr resistance of S108N mutants was observed, while C59R mutants did not develop resistance, consistent with a previous report (41).

To showcase high-throughput genetic variant engineering, we conducted saturation mutagenesis of five consecutive codons of PfDHFR using our system. An efficient crRNA (crPfDHFR-S108N-TATG, Fig. S15) was used to construct an NNK scanning library across codons encoding amino acid residues from Arg106 to Glu110, mutating each position to all 20 amino acids (Fig. 5A). The number of distinct plasmid constructs in the library is 160. The 15 bp editing region was designed to fall within the editing range of impLbCas12a as determined previously (Fig. 4B). We confirmed the presence of NNK at target locations in the plasmid library (Fig. S15). After yeast transformation and liquid cultivation, the yeast library was screened for mutations enhancing Pyr resistance. We first examined 24 colonies that appeared on drug-containing agar plates. All of them were mutants except for one wild-type strain. The mutants included 21 strains of S108C and 2 strains of T107R + E236* (where * indicates the stop codon). Alternatively, we enriched drug-resistant mutants in liquid cultivation containing the drug (Fig. 5A). The enriched populations as well as control populations without drug treatment were analyzed by next-generation sequencing (NGS). Results of untreated populations revealed an 89% coverage of all possible amino acid mutations (Table S5). Comparing the enriched populations with untreated populations revealed a decline in the proportions of unedited cells (59.1% in the untreated population versus 18.2% in the treated population). R106A, S108N, and T107R enriched substantially in the treated population, indicating that these mutants showed improved Pyr resistance (Fig. 5B). For the five mutations found and one double mutant, we designed crRNAs (Table S3) to reconstruct the strains and validated their increased Pyr resistance. S108N exhibited the highest resistance up to 125 µM Pyr in yeast extract peptone dextrose (YPD) media. The other mutants showed less but significant increase in resistance compared to the wild-type PfDHFR strain. The double mutant T107R + E236* exhibited a higher resistance than respective single mutants (Fig. 5C; Fig. S16). E236 is located in a flexible region near the C-terminus. We suspect that truncation at this position may have resulted in an increase in the enzyme expression level, leading to an increased drug resistance. A similar truncation, Q237*, was also found in an evolution experiment to be resistant in a previous study (42).

To test the multiplex genetic variant engineering potential of our system, we attempted to introduce two codon replacements to the PfDHFR gene using a crRNA array. Two high-efficiency crRNAs, crPfDHFR-C59R-TTTG and crPfDHFR-S108N-TTTG (Fig. S13), were used to perform duplex editing. To explore crRNA positional effects, two duplex-editing plasmids with different crRNA orders were constructed (C59R + S108N and S108N + C59R, Fig. 6A). We also introduced synSeparators (AAAT) upstream of the second DR, which was reported to enhance crRNA array processing (43). To our surprise, none of the designs can edit effectively (Fig. S16). This is non-intuitive as each crRNA is efficient in single-locus editing. We suspect that, in comparison to the single crRNA construct, the dual-crRNA precursors may have formed complex secondary structures that prevented proper crRNA processing (Fig. S17). To avoid possible sequence-related failures, we additionally constructed a yeast strain with a S. cerevisiae codon-optimized copy of PfDHFR (Sc-optDHFR). We screened efficient and accurate crRNAs targeting C59 and S108 (crSc-optDHFR-C59R-TTTG and crSc-optDHFR-S108N-TTTG, Fig. 6B; Fig. S19). These two efficient crRNAs were used to construct duplex-editing plasmids with the same crRNA array designs (Fig. 6A). Sanger sequencing of dozens of yeast colonies from each design showed that the efficiencies of duplex editing were consistent with single-locus editing (Fig. 6C), demonstrating the functionality of the crRNA arrays. In addition, crRNA positional effects were negligible, and the synSeparator is also not required. These results were further confirmed by NGS to account for more colonies (Fig. S20). Thus, our system is capable of multiplex genetic variant engineering in yeast, given that efficient crRNAs can be screened.

E. coli Trelief 5α (Cat. #TSC-C01; Tsingke, Hangzhou, China), TOP10 (Cat. #TSC-C12, Tsingke), and DH5α Electro-Cells (Cat. #9027; Takara Biotechnology, Dalian, China) were used for plasmid construction. Luria-Bertani (LB) media (10 g/L tryptone, 10 g/L NaCl, and 5 g/L yeast extract) with 100 µg/mL ampicillin was used for plasmid amplification. All E. coli strains were incubated at 37°C, 200 rpm. The S. cerevisiae strain BY4741 (MATa his3Δ0 leu2Δ0 met15Δ0 ura3Δ0) was used to derive BY4741-DFR1∆8bp, BY4741-DFR1∆8bp-HO::PfDHFR, and BY4741-DFR1∆::Sc-optDHFR. YPD medium (20 g/L tryptone, 20 g/L glucose, and 10 g/L yeast extract) and YPAD medium (YPD medium supplemented with 0.1 g/L 6-aminopurine hemisulfate) were used for yeast culture. The synthetic complete minus uracil (SC-Ura) medium was used for yeast transformant selection and growth. YPD medium with indicated pyrimethamine (Cat. #P141438; Aladdin, Shanghai, China) concentration was used for drug resistance screening and testing. All yeast strains were incubated at 30°C at 250 rpm.

The crRNA consists of a DR associated with Cas12a of different species (Table S1) and a 23 nt spacer. The pre-tRNA^Gly (77 bp) was from S. cerevisiae. The repair donor was added to the 3′ end of crRNA. The repair donor contains two 50 bp homology arms flanking the mutated region. TEF1p and CYC1t were used as the promoter and the terminator for crRNA expression. LbCas12a variants were constructed by site-directed mutagenesis of the wild-type template (pH5-NLS-LbCpf1-NLS, a kind gift from Dr. Jiazhang Lian, Zhejiang University). FnCas12a-EP16 was amplified from pET28TEV-FnCpf1-EP16 (a kind gift from Dr. Yunzi Luo, Tianjin University). PrCas12a-3Rv and ScFnCas12a-EP16 fragments (FnCas12a-EP16 with S. cerevisiae codon optimization) and all crRNAs (with repair donor) used in this study were commercially synthesized (SynbioB, Tianjin, China). LbCas12a-3Rv gene fragment was derived by referencing enAsCas12a mutations through sequence alignment. The Cas12a expression cassette and pre-tRNA fragments were first ligated into pCRCT (Addgene plasmid #60621) by Gibson Assembly (Cat. #E2611; NEB, Hangzhou, China) to generate a series of plasmids with Cas12a variants (pCRCT-impLbCas12a, pCRCT-LbCas12a-RR, pCRCT-LbCas12a-3Rv, pCRCT-LbCas12a-3Rv, pCRCT-PrCas12a-3Rv, and pCRCT-ScFnCas12a-EP16). The crRNA receiver part (with BsaI restriction sites) and the DR sequence were commercially synthesized (GenScript, Nanjing, China) and subsequently cloned into the above pCRCT-Cas12a plasmids to generate pCRCT-Cas12a-receiver plasmids. Each crRNA plus donor was assembled into the respective receiver plasmid using Golden Gate assembly (Cat. #R3733S and Cat. #M0202A, NEB). For plasmids expressing dual crRNAs, each crRNA plus donor fragment was amplified by primers containing BsaI restriction sites, purified, and assembled with receiver plasmid using Golden Gate assembly. Linear donors were PCR amplified using corresponding donor-integrated plasmids as templates. Plasmids without integrated donors were amplified using reverse-PCR and circularized to remove the donor sequence.

Yeast transformation was conducted using the LiAc/ssDNA/PEG method. For single plasmid transformation, 1 µg plasmid was used per transformation of approximately 5 optical densities (ODs) of yeast cells. For plasmid library transformation, 24 µg of the plasmid library was used per transformation of 25 ODs of yeast cells. Ten transformations were performed to maximize the library coverage. Transformed yeast cells were grown in 10 mL SC-Ura in a 50 mL flask at 250 rpm at 30°C for 4 or 5 days before pooling for storage or drug screening. For plasmid library transformation, three transformations were diluted and plated to estimate transformation efficiency. The total number of transformants was estimated to be 1.6 × 10⁴, representing a 100-fold coverage of the library size.

Genomic DNA extracts of selected yeast mutants or pools were prepared using the MightyPrep Reagent for DNA (Cat. #9182; Takara Biotechnology, Hangzhou, China). Target gene fragments were PCR amplified using corresponding primers () and the genomic DNA extract as template, purified, and sequenced using either Sanger sequencing or next-generation sequencing to determine the genotypes. Table S2

The PAM (TATA) of a high-efficiency crRNA (crADE2-TATA,) near the protospacer of crADE2-PAMchange () was selected for replacement to TNTN (TATG/TATT/TCTG/TCTT/TGTC/TGTG/TGTT/TTTT). crADE2-PAM change plus donors with TNTN PAMs and a stop codon were constructed by commercial DNA synthesis and site-directed mutagenesis on the pUC57 backbone and subcloned into respective pCRCT-Cas12a backbones. After transformation and editing, red colonies were picked to confirm the genotypes by Sanger sequencing. The editing plasmid was cured by growing an edited colony in YPD supplemented with 2 mg/mL 5′-FOA for 2 days. For specificity testing, a plasmid expressing crADE2-TATA with a sequence-correcting donor (PAMtest,) was transformed into these plasmid-cured strains to test editing efficiencies at the eight TNTN PAMs. Table S3 Table S3 Table S3

The SpiG variant (14) was used to integrate DHFR into BY4741 genome. gRNA-DFR1∆8bp (Table S1) was designed to delete eight nucleotides (GGAGGTCT) within the endogenous DFR1 gene and cloned into the pCRCT-gRNA scaffold (14). BY4741-DFR1∆8bp was obtained after transformation, editing, and genotyping. gRNA-HO (Table S1) was designed to target the HO integration locus and cloned into the pCRCT-gRNA scaffold. This plasmid was co-transformed with a commercially synthesized linear dsDNA fragment, GAPp-PfDHFR-ADH1t (Table S1), into BY4741-DFR1∆8bp to derive BY4741-DFR1∆8bp-HO::PfDHFR. Similarly, an S. cerevisiae codon-optimized DHFR fragment (Sc-optDHFR) with 50 bp flanking homology arms (Table S1) was co-transformed with the plasmid expressing SpiG and gRNA-DFR1 to derive BY4741-DFR1∆::Sc-optDHFR.

For each target codon from amino acid positions 106–110, a pair of degenerate primers (NNK at the target codon position) was synthesized and used to amplify the crRNA (crPfDHFR-S108N-TATG,) in a pUC57 plasmid backbone using KOD One PCR Master Mix (Cat#. KMM-101; TOYOBO Shanghai, Japan). The PCR cycling conditions were 98°C for 5 min (98°C for 10 s, 58°C for 5 s, and 68°C for 20 s) × 24 cycles, 68°C for 2 min, and held at 12°C. After DpnI (Cat. #R0176S, NEB) digestion and purification, each PCR product was transformed into DH5α Electro-Cells and spread on one 24 × 24 cm LB agar plate with 100 µg/mL ampicillin. After 14 h of incubation at 37°C, all colonies from the five plates were separately collected for plasmid extraction. The crRNA fragments were amplified by crRNA-amplify-F1/R1 () using 10 ng of extracted plasmid libraries as templates. The PCR cycling conditions were 98°C for 5 min (98°C for 10 s, 58°C for 5 s, and 68°C for 5 s) × 24 cycles, 68°C for 2 min, and held at 12°C. Purified crRNA fragments from all five PCR reactions were mixed in equal molar ratio. The mixture (15 ng) was used to assemble with 50 ng of pCRCT-impLbCas12a-receiver via Golden Gate assembly. Golden Gate products were purified and transformed into Electro-Cells and plated onto LB agar plates. Five such transformations were conducted to increase the library coverage. A library coverage of approximately 1,000-fold was estimated by colony counting. The final plasmid library was obtained by maxiprepping the scraped colonies. Table S3 Table S2

For selection on plate, serial dilutions of the outgrown NNK mutant library were spread on 90 mm YPD plates supplemented with 10 µM Pyr. After 5–6 days of incubation at 30°C, colonies were randomly selected for genotyping by Sanger sequencing. For selection in liquid media, the glycerol stock of the NNK mutant library was first recovered in YPD overnight. The next morning, 2 ODs of recovered cultures were inoculated into 30 mL YPD medium with and without 4 µM Pyr, for three biological replicates. After 2 days of growth, three replicates at each condition were mixed at equal OD and used to amplify genomic DNA.

The 258 bp fragment of PfDHFR was amplified with primers 106-110NNK-pool-TF1/TR1 (Table S2) using KOD Plus Neo (Cat. #KOD-401, TOYOBO Shanghai) and 10 ng yeast genomic DNA as template. The PCR procedures were 98°C for 5 min (98°C for 10 s, 58°C for 30 s, and 68°C for 6 s) × 20 cycles, 68°C for 2 min, and held at 12°C. The PCR products were gel purified (Cat. #K0702; Thermo Fisher Scientific, Hangzhou, China). Samples were paired-end sequenced for 150 cycles on Illumina Novaseq (Azenta, Suzhou, China). For comparing the editing efficiencies of impLbCas12a and hyper + impLbCas12a using NGS, three uniquely barcoded pairs of primers (Table S2) were used to amplify a 200 bp PfDHFR fragment covering the D54N edit for each biological replicate. Equal amounts of the three PCR products were mixed as NGS samples. Samples were paired-end sequenced for 150 cycles on Illumina Novaseq.

Raw NGS data were generated using Illumina bcl2fastq. Paired-end reads were merged and adapters were trimmed using Merging paired-end Illumina reads (SeqPrep) in Galaxy (https://usegalaxy.eu↗) with default settings. Clean reads were subsequently analyzed using custom codes (https://zenodo.org/records/14676182↗). Briefly, merged reads were first filtered by the presence of primer sequences and subsequently oriented according to the sense strand. For saturation mutagenesis, all types of non-wild-type codons within the 106–110 region were counted. Subsequently, the counts were converted to percentages of total counts at each position. For comparing the editing efficiencies of impLbCas12a and hyper+impLbCas12a, the read numbers of the wild-type and edited sequences were counted, and the percentage of edited sequences was calculated to determine the editing efficiency.

A streaked colony of each strain was inoculated into 2 mL YPD overnight. Minimum inhibitory concentration assay was used to measure drug resistance levels. Briefly, 50 µL of the diluted overnight cultures was added to each well containing 100 µL YPD supplemented with increasing concentrations of Pyr (from 0 to 1,000 µM final concentrations) in a 96-well plate, with an initial OD of 0.04. The OD₆₀₀ of three replicates was measured at 0 and 48 h of incubation at 30°C at 250 rpm using Agilent BioTak Synergy H1 (Agilent, Beijing, China). After averaging, the 0 h data were extracted from the 48 h data. All data were normalized to the OD numbers under 0 Pyr concentration for each strain.
