Single-Strand Annealing Plays a Major Role in Double-Strand DNA Break Repair following CRISPR-Cas9 Cleavage in Leishmania

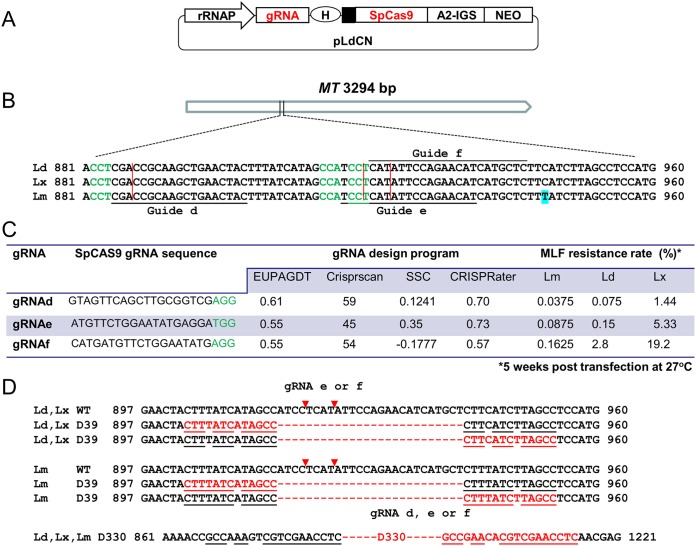

Since most gRNA design programs (algorithms) are developed using data from mammalian cells, these may not be suitable for Leishmania (18). The SpCas9-expressing Leishmania CRISPR vector (pLdCN; Fig. 1A) previously developed uses the Leishmania donovani rRNA promoter to drive gRNA expression (19), and it is unknown whether this vector functions as well in other Leishmania species. We therefore attempted to identify a gRNA design program that can more accurately predict gRNA activity in Leishmania and determine whether the gene-targeting efficiency with the pLdCN vector is similar in different Leishmania species. Three gRNAs, termed gRNAd, gRNAe, and gRNAf, that target the identical sequences of the miltefosine transporter (MT) gene in L. donovani, L. major, and L. mexicana were designed (Fig. 1B). The MT gene was chosen as the target gene because the MT proteins on the cell membrane are required to transport extracellular miltefosine (MLF) into the cell, and a deletion, a disruption, and even a single point mutation in the MT gene can block MLF uptake, resulting in Leishmania resistance to MLF (18, 19, 51, 52). The MT gene has therefore been shown to be an ideal target gene model to study the efficiency and mechanism of CRISPR-mediated genome editing in L. donovani (18, 19). The relative activities of the above-described gRNAs that were designed (Fig. 1B) were assessed with four gRNA design programs, including EuPaGDT, CRISPRscan, Sequence Scan for CRISPR (SSC), and CRISPRater (53–56). These programs predict gRNA activity mainly based on the nucleotide composition of the gRNA guide sequence, though the off-target sites in a genome could also be included as the score parameter. A higher activity score would suggest that a gRNA could be more active in assisting Cas9 with generating the specific DSB. As shown in Fig. 1C, the three gRNAs received very different activity scores on varied scales from these gRNA design programs. Although a consensus activity order for these three gRNAs could be reached between SSC and CRISPRater, the scores obtained with the latter program were clearly more clustered than the ones obtained with SSC. The guide-coding sequences of these gRNAs were cloned into pLdCN vectors and transfected into L. donovani, L. major, and L. mexicana promastigotes. At 5 weeks posttransfection, the promastigotes were subjected to MLF selection, and survival rates were determined by limiting dilution culture in 96-well plates. The MLF resistance rate (the frequency of double MT gene allele mutation) provides an estimate of the activity of each gRNA in these Leishmania species (Fig. 1C). Similar to previous observations (18), the different gRNAs had different activities in the same Leishmania species. Although the target site for gRNAf was only a 4-bp shift from the gRNAe target site, there was a 2- to 18-fold difference in activity depending on the species. The gRNA activity order (gRNAf > gRNAe > gRNAd) was the same in the 3 Leishmania species, indicating that the gRNA sequence did have an influence on the gene editing efficiency. However, none of the four gRNA design programs was able to rank these gRNA activities correctly. For example, in contrast to the actual activity, EuPaGDT and CRISPRscan gave the highest activity score to gRNAd and SSC and CRISPRater ranked gRNAf the lowest. As also shown in Fig. 1C, the same gRNA could have very different activity in different Leishmania species, with the highest activity always being observed in L. mexicana and the lowest activity always being observed in L. major, with the difference being 40- to 120-fold. Together, these results show that no gRNA design program tested could correctly predict these gRNA activities and that the same gRNA construct could have different gene-targeting efficiencies in different Leishmania species, which could reflect the variation in gRNA and Cas9 expression and DSBR efficiency in these Leishmania species (see Discussion).

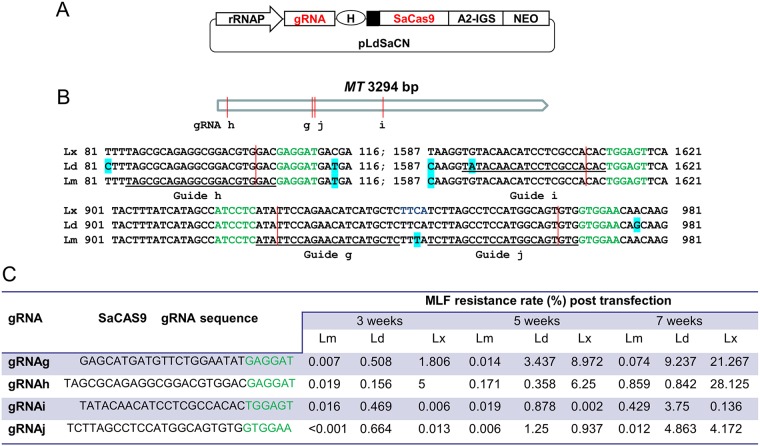

Compared with the commonly used Streptococcus pyogenes Cas9 (SpCas9; 1,368 amino acids [aa]), the smaller Cas9 orthologue derived from Staphylococcus aureus (SaCas9), with 1,053 amino acids, has been reported to be more efficient in digesting target DNA in vitro, to have a similar gene editing activity in mammalian cells, but to have fewer off-target sites since it uses a longer protospacer-adjacent motif (PAM) sequence (NNGRRT) (25). The SaCas9 ribonucleoprotein has recently been shown to have a high genome editing efficiency in transiently transfected trypanosomatidic parasites, including Leishmania (21). To determine how SaCas9 would perform when constitutively expressed in Leishmania, we developed a novel SaCas9 CRISPR vector, pLdSaCN, by replacing SpCas9 from pLdCN (19) with SaCas9 and its corresponding gRNA coding sequences (Fig. 2A). To test this vector, four gRNAs (termed gRNAg, gRNAh, gRNAi, and gRNAj) targeting conserved sequences in the MT gene in L. donovani, L. major, and L. mexicana (Fig. 2B and C) were expressed from the pLdSaCN vector, and MLF resistance rates were measured at 3, 5, and 7 weeks posttransfection. As shown in Fig. 2C, we had the following interesting observations. First, like SpCas9 gRNA, the different SaCas9 gRNAs had quite different activities in the same Leishmania species, and the gene editing frequency accumulated with time, as observed in all three Leishmania species. Second, likely because the GTGGAA PAM sequence (instead of NNGRRT) for gRNAj was not optimal, gRNAj displayed the lowest activity among these four SaCas9 gRNAs in L. major. However, a relatively high editing efficiency for gRNAj could still be observed in L. donovani and L. mexicana, indicating that these two species are more tolerant of the NNGRRN PAM sequence, which would suggest that more active sites could be available for SaCas9 targeting in these species. Third, a single nucleotide mismatch between the gRNAi guide sequence and the DNA target site, the second nucleotide A/G difference in L. mexicana and L. major (Fig. 2B), dramatically inhibited gRNAi activity in L. mexicana, but no obvious adverse effect on gRNAi activity was observed in L. major. Fourth, like SpCas9 targeting, the gene editing efficiency for the same SaCas9 gRNA construct could be very different in these three Leishmania species, with the overall activity being in the order L. mexicana > L. donovani > L. major. For example, 30- to 300-fold differences for gRNAg and gRNAh were observed between L. mexicana and L. major. Finally, as described above, the gene editing efficiency could vary greatly among the different gRNAs, and the optimal nucleotide composition for a highly active gRNA could be different between SpCas9 and SaCas9. It is therefore difficult to directly compare the efficiency between SpCas9- and SaCas9-mediated gene editing with this limited number of gRNAs tested. However, it is interesting to note that the target sites for SaCas9 gRNAg and SpCas9 gRNAf have only a 1-bp shift (Fig. 1B and 2B), and the gene editing efficiencies for these two gRNAs were similar in these three Leishmania species. Together, these observations demonstrate that pLdSaCN can be an additional useful genome editing tool for Leishmania since it expands the potential PAM sequences, though, like SpCas9, the gene editing efficiency could vary significantly among different gRNAs and Leishmania species.

Based on PCR analysis of pooled CRISPR-targeted cells and a limited number of individual clones with primers closely flanking (within 2 kb) the Cas9 cleavage sites, we have previously concluded that MMEJ could mainly be responsible for DSBR in L. donovani (18, 19). To determine whether MMEJ is also present in L. major and L. mexicana, genomic DNA was extracted from the MLF-resistant cell populations for each gRNA shown in Fig. 1 and subjected to PCR analysis with primers closely flanking the Cas9 cleavage sites. Indeed, the deletion mutants specifically caused by MMEJ were detected in all these three Leishmania species (Fig. 1D), indicating that like in L. donovani, MMEJ is also one of the DSBR mechanisms for L. major and L. mexicana.

After CRISPR gene targeting, deletions ranging from 10 to 3,280 bp caused by MMEJ were previously detected in L. donovani (18) (Fig. 1D). To determine the size limit of the deletions resulting from MMEJ, the MLF-resistant promastigotes were individually cloned and subjected to PCR analysis. Interestingly, no PCR product could be detected for most of these clones using a series of primer pairs progressively farther away from the Cas9 cleavage sites (Fig. 3A and B). As an example, no PCR product could be obtained in 10 of 13 L. donovani MLF-resistant clones with primer pair Ld1315905′F1 and 5′− and primer pair Ld1315903′+R and 3′ (Fig. 3A and B). The L. donovani131580 (Ld131580) and Ld131610 genes were, however, intact in the genomes for MLF-resistant clones 1 and 2 (Fig. 3A and C). PCR primers Ld131580 R1 and Ld131610 F2 were then used to determine the location of the deletion junction in the MLF-resistant clones. Notably, a band at 5,500 bp was observed in all 6 individual MLF-resistant clones examined but not in the wild-type (WT) promastigotes, revealing that a 9-kb sequence between these primers had been deleted (Fig. 3D).

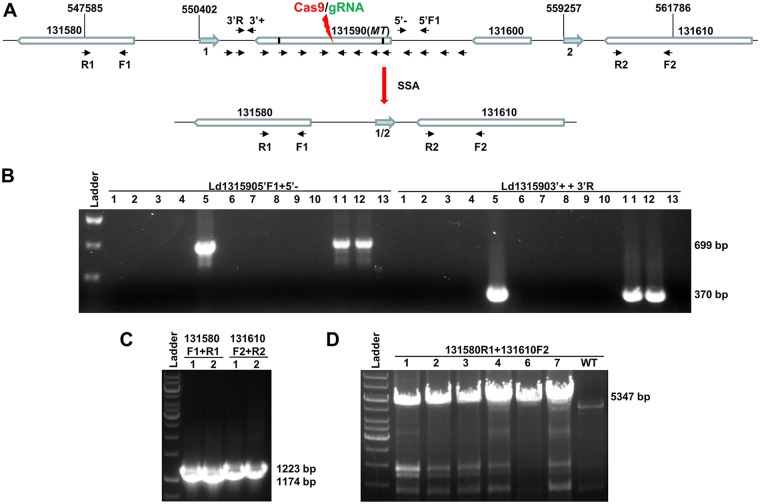

The observations presented above led us to determine whether the MT gene is flanked by homologous repeat sequences that could be used by single-strand annealing (SSA) to repair the DSBs, resulting in large deletions (42–46). Indeed, bioinformatic analysis revealed that the MT gene is flanked by two direct repeat sequences (460 and 463 bp, respectively, with 98% identities); one is in the intergenic sequence between the Ld131580 and MT genes, and other is in the intergenic sequence between the Ld131600 and Ld131610 genes (Fig. 3A). If these direct repeat sequences were indeed used by SSA to repair the DSBs in the MT gene, this would result in an 8,855-bp deletion of the chromosome, generating a 5,347-bp PCR product with primers Ld131580 R1 and Ld131610 F2, as shown in Fig. 3A and D. Sequencing analysis of these PCR products confirmed that the deletion junction contained a single 460-bp repeat sequence that resulted from the merging of these two direct repeat sequences flanking the MT gene (Fig. 3A).

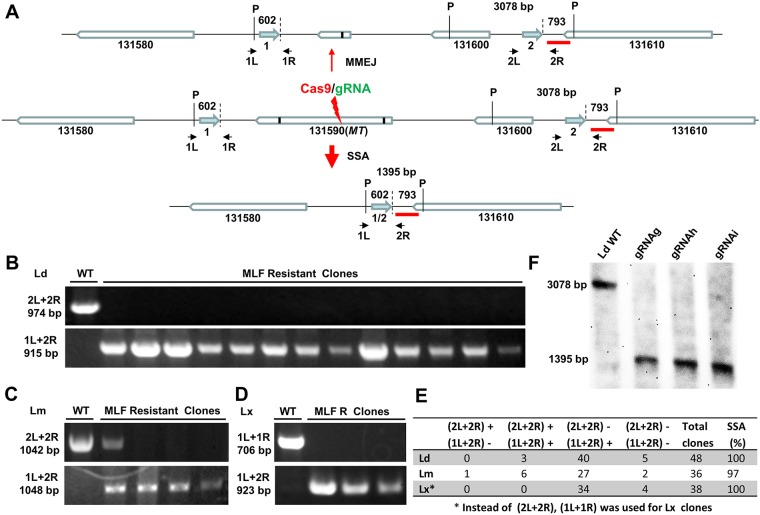

To further investigate SSA-mediated DSB repair, we designed primers immediately flanking these direct repeat sequences (Fig. 4A). If a DSB in the MT gene were repaired by SSA with these repeat sequences, a PCR product of 915 bp with primer pair 1L and 2R would be detected, but it would not be detected from WT L. donovani cells or from cells where the DSB was repaired by MMEJ (Fig. 4). However, if a longer extension time were used in PCR cycles with primer pair 1L and 2R, a nearly 10-kb PCR product would be obtained for the WT cells (see Fig. S1 in the supplemental material) and a product of >915 bp but <10 kb would be obtained for the cells following MMEJ repair. In contrast, with primer pair 1L and 1R or primer pair 2L and 2R, a PCR product would be detected only in the cells with the presence of the WT allele or MMEJ-mediated repair. The presence of both the 915-bp band by PCR with primer pair 1L and 2R and the product of PCR with primer pair 1L and 1R or primer pair 2L and 2R in an MLF-resistant clone would indicate that the DSB in one chromosome was repaired by SSA and that the one in another chromosome was repaired by MMEJ (an example of an L. major MLF-resistant clone is shown in the second lane in Fig. 4C). To our surprise, as shown in Fig. 4B and E, the 915-bp band obtained with primer pair 1L and 2R (SSA band) was detected in 43 of 48 L. donovani MLF-resistant clones examined; 40 of these clones contained only the SSA band, and only 3 of these clones had both the SSA band and the band produced by PCR with primer pair 2L and 2R (MMEJ). However, 5 MLF-resistant clones did not contain the 915-bp bands obtained with primer pair 1L and 2R and primer pair 2L and 2R because these used repeats for SSA that were further away (see results below). Since the MT gene is similarly flanked by these repeat sequences in L. major and L. mexicana, we examined 36 L. major and 38 L. mexicana MLF-resistant clones. More than 97% of these clones had used SSA to repair the DSB, and only one clone used MMEJ alone for DSBR (Fig. 4C to E). Even more strikingly, Southern blot analysis (Fig. 4F) further revealed that the 1,395-bp SSA (PstI)-specific band with an intensity similar to that of the 3,078-bp WT (or MMEJ) band could be detected in all three genomic DNA samples extracted from the L. donovani MLF-resistant population (without cloning) targeted by gRNAg, gRNAh, and gRNAi, as described in Fig. 2. Together, these results demonstrate that SSA is the major repair mechanism for DSBs occurring in the MT locus and that MMEJ is not efficient in Leishmania since there are numerous microhomology sequences present in the 9-kb sequence between these two direct repeats.

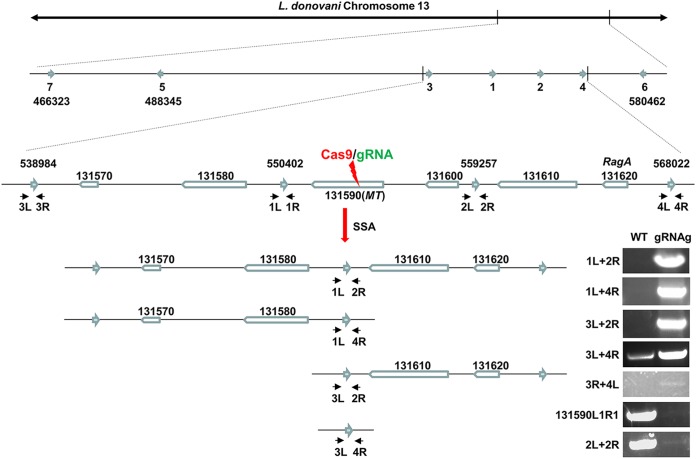

A BLAST search revealed that there are 7 repeats flanking the MT gene within a 114-kb region in chromosome 13, including 5 direct and 2 inverted repeats that are 417 to 463 bp in length with 94 to 98% identities (Fig. 5). To determine whether SSA could occur between these further up- and downstream repeats, semiquantitative PCR was performed on DNA from the pooled MLF-resistant cells with primers flanking 4 of these direct repeats (Fig. 5). In addition to the main deletion event between repeats 1 and 2 described in Fig. 4, additional deletions involving further up- and downstream repeats (1/4, 3/2, and 3/4) were observed, resulting in 18-, 20-, and 29-kb deletions, respectively. This demonstrates that SSA could also arise beyond neighboring repeats, though at a lower frequency due to the proximity effect (44). This observation also supports the notion that a collision mechanism instead of the sliding mechanism was utilized by the cell to search for the complementary homologous sequences present on the 3′ ssDNA overhangs (45).

It is interesting to note that the PCR product obtained with primer pair 3L and 4R was also detected in the WT cell population, though it was less abundant in WT cells than in the CRISPR-targeted cells. This indicates that the genomic sequence (29 kb) between repeats 3 and 4 in one of the two copies of chromosome 13 was deleted in a subset of the WT cells and that this could have resulted from the formation of an extrachromosomal circle between repeats 3 and 4. Theoretically, deletions caused by the formation of extrachromosomal circles between repeats 1/2, 1/4, and 3/2 could also occur (see below), though the corresponding deletion PCR products for the 1L and 2R, 1L and 4R, and 3L and 2R primer pairs were not detected. This may suggest that it is easier for Leishmania to form the larger (>29-kb) circles than the smaller ones in this segment of the chromosome. Interestingly, a faint 3/4 extrachromosomal circle-specific band (obtained with primer pair 3R and 4L) was observed in the MLF-resistant cells but not in the WT cell sample, which may suggest the smaller 3/4 extrachromosomal circle formed after CRISPR targeting and DSBR could facilitate its amplification in these MLF-resistant cells (see Fig. 7 for similar data).

Based on the observations presented above, we predicted that CRISPR targeting of the Ld131620 gene (RagA) could result in an MT gene deletion (Fig. S2). Indeed, MLF-resistant cells were detected following transfection of a CRISPR vector targeting the RagA gene, though at only a 10⁻⁷ resistance rate (1.6/10⁷ frequency). PCR analysis confirmed that the Ld131590 (MT) gene was deleted, but surprisingly, the RagA gene remained in these MLF-resistant cells (Fig. S2C, 131620FR band). This is consistent with our recent observation that RagA is essential for Leishmania (unpublished data). Further PCR analysis has established the following two genomic rearrangement models which could explain how the RagA gene remained in these MLF-resistant cells. In the first model (Fig. S2A), a few WT Leishmania cells in the population already have one allele of the MT gene deleted due to recombination between repeats 1 and 2 under natural conditions, which was verified by detection of the product by PCR with primer pair 1L and 2R (Fig. S2C), but retain the RagA gene in the same chromosome. CRISPR targeting of RagA and subsequent SSA between repeats 1 and 4 in the other chromosome copy of these cells, as verified by detection of the product by PCR with primer pair 1L and 4R (Fig. S2C), leads to deletion of the second RagA gene allele together with the remaining copy of the MT gene, resulting in MLF resistance. In the second model (Fig. S2B), the extrachromosomal circular element containing the Ld131610 gene and the RagA gene formed between repeats 2 and 4 already exists in some of these Leishmania cells before CRISPR targeting, and this was confirmed by detection of the product by PCR with primer pair 4L and 2R in both WT and MLF-resistant cells (Fig. S2C). Similar to the first model, CRISPR targeting of chromosomal RagA and SSA between repeats 1 and 4 in these cells, verified by detection of the product by PCR with primer pair 1L and 4R (Fig. S2C), leads to deletion of the RagA and MT genes in both chromosomes and MLF resistance. Together, these results reveal that the Leishmania genome is highly elastic and that the presence of repeat sequences flanking a target site and SSA can have dramatic effects on the end products of CRISPR targeting, which, however, can often be easily detected by the use of primers flanking these repeats. This also suggests that CRISPR targeting any of these 5 genes flanking the MT gene could lead to MLF resistance.

As the orders of genes, including the intergenic repeat sequences, are highly syntenic in Leishmania species, the 7 direct and inverted repeats flanking the MT gene are similarly present in chromosome 13 of L. major and L. mexicana. Thus, these alternative SSA events detected in L. donovani could occur as well in L. major and L. mexicana. For example, besides the main deletion between repeats 1 and 2, the deletion between repeats 1 and 4 could also be detected in L. major MLF-resistant cells with the 1L and 4R primer pair (data not shown).

A BLAST search has revealed that the Ld241510 gene, a nonessential L. donovani species-specific gene (57), together with 14 other genes, is flanked by a pair of direct repeats (1,110 bp with 4 bp differences) 77 kb apart in chromosome 24 (Fig. 6B). To determine whether SSA-mediated DSBR could still occur between these repeats, we transfected L. donovani promastigotes with plasmids pLPhygCas9 and pSPneogRNA241510+MT (Fig. 6A), which expresses two gRNAs, one targeting the Ld241510 gene and the other targeting the MT gene (19). We had previously shown that cotargeting of the MT and A2 genes and selection with MLF significantly increased the A2 gene deletion frequency (19). It was therefore interesting to determine what percentage of MLF-resistant cells had lost the Ld241510 gene after cotargeting the MT gene. Indeed, out of 48 (Ld24150+MT) MLF-resistant clones examined, the Ld241510 gene (both alleles) was deleted partially or completely (as determined by the absence of the 781-bp band by PCR with primers 241510 L and 241510 R) in 38 of these clones, and only 10 of these clones retained the Ld24150 gene. The deletion frequency was about 80% (38/48) after cotargeting of MT and MLF selection (Fig. 6C). This confirmed our previous report that cotargeting of the MT gene could significantly improve the editing frequency of the cotargeted gene (19).

To determine whether any of these Ld241510 gene deletions resulted from SSA between the repeats 77 kb apart, we performed PCR analysis on these Ld241510 gene deletion clones with primers 1L and 2R flanking these repeats. Among these 38 Ld24150 gene-deleted clones examined, one clone (clone 4) had a 77-kb sequence deletion and contained the 1,277-bp SSA-specific band (as confirmed by sequencing) (Fig. 6C). The remaining 37 clones were negative for the 1,277-bp band, indicating that the wide distance between these direct repeats did reduce the SSA frequency and that MMEJ was the main cause for Ld241510 gene deletion in this genomic locus. Further analysis of clone 4 with primers 1L and 1R and other Ld241510 gene primers revealed that only one allele of the Ld241510 gene together with the other 14 genes was deleted by SSA and that deletion of the remaining Ld241510 allele (4,704 bp) resulted from MMEJ (Fig. 6D and E). This suggests that some of the remaining 14 genes are essential for Leishmania. Together, these results demonstrate that SSA can occur between repeats that are 77 kb apart, leading to deletion of 15 genes in one of chromosome 24. In addition, it is interesting to note that the 7,879-bp deletion caused by MMEJ from clone 9 was the largest MMEJ-mediated deletion ever detected in Leishmania (Fig. 6E), further confirming that MMEJ is not efficient in Leishmania.

We also examined these MLF-resistant clones cotargeting Ld24150 and MT with primer pair 131590 1L and 2R and primer pair 131590 2L and 2R (Fig. 4). As expected, most of these clones were found to be positive for the 915-bp SSA-specific band in the MT gene locus (Fig. 6C), and only 1 of these clones was positive for the band produced by PCR with primers 131590 2L and 2R (data not shown). This further confirmed our observation, presented above, that SSA is the major DSBR pathway in the MT gene locus.

We next determined whether a chromosome linear duplication can be induced by a DSB and whether SSA can occur between two direct repeat sequences alternating with one inverted repeat. CRISPR was used to cotarget the L. donovaniLd366140 (LdBPK_366140) gene in chromosome 36 and the MT gene, as described above (Fig. 7A). The Ld366140 gene is flanked by 3 repeat sequences, with 1 inverted repeat being located between 2 direct repeat sequences (Fig. 7B). These repeats are 416 to 419 bp in length and have 99% identities. However, because the RagC protein, encoded by the Ld366140 gene, is required for healthy cell growth, though it is not essential (unpublished data), unlike cotargeting of the Ld241510 gene, the nontargeted WT RagC cells could easily overgrow the RagC gene deletion mutants in the experiment cotargeting MT. As a result, the RagC deletion mutants could represent only a small fraction of the total MLF-resistant cell population, and this was verified by PCR analysis with RagC-specific primers (366140 L and R) (Fig. 7C). Nevertheless, we were interested to determine whether the 46-kb deletion could occur between direct repeats 1 and 2 by using SSA-mediated repair after targeting the Ld366140 gene; whether a 46-kb extrachromosomal circle could be formed between repeats 1 and 2 in WT cells and, if so, whether this circle copy number could be reduced after CRISPR targeting; whether a linear duplication could occur by using inverted repeats 2 and 3; and how the copy number changed following CRISPR targeting. Surprisingly, all these three anticipated genomic rearrangements were detected by PCR analysis in both WT and CRISPR-targeted cells (Fig. 7), indicating both the extrachromosomal circular amplification resulted from genomic deletion between the direct repeats and the linear duplication obtained using the inverted repeats are commonly present for this Ld366140 locus in the WT population. The linear duplication-specific band (obtained with primers 2R and 3R) was about 2-fold more intensive in the MLF-resistant cells than in the WT cells, indicating that CRISPR targeting of the Ld366140 gene had increased the frequency of the linear duplication events. The deletion band seen by PCR with primers 1L and 2R was also stronger in the MLF-resistant cells than in the WT cells, strongly suggesting that SSA-mediated DSBR could still occur between direct repeats 1 and 2 after Ld366140 gene targeting, even in the presence of an inverted repeat between them. However, instead of decreasing, the copy number of the extrachromosomal circles increased in the MLF-resistant cells (Fig. 7C). The exact reason behind this was not clear, though this finding may suggest that the smaller extrachromosomal circle resulted from CRISPR targeting and DSBR might facilitate its amplification, as seen above (Fig. 5). Lastly, since the RagC deletion mutants represented only a small portion of the MLF-resistant cells, the linear duplications obtained using inverted repeats 2 and 3 and deletions between direct repeats 1 and 2 could be higher in the pure RagC deletion mutant population than in the total MLF-resistant cells, where the RagC deletion mutants were mixed with WT RagC cells, observed here.

The MT gene is also flanked by two inverted repeat sequences (repeats 5 and 6; Fig. 5). Therefore, to determine whether a DSB could promote chromosome linear duplication by using these inverted repeats (Fig. S3), PCR analysis was performed with primer pair 2R and 6R or primer pair 4R and 6R on genomic DNA extracted from MLF-resistant cells after gRNAg targeting. Interestingly, a similar faint band with the expected size (972 bp) was observed with the 2R and 6R primer pair in both WT and gRNAg-targeted cells, indicating a linear duplication involving inverted repeats 2 and 6 was already present in the WT cell population. The DSB created by CRISPR gRNAg targeting did not significantly increase the frequency of this specific linear duplication (Fig. S3). In addition, no band of 747 bp was detected with primer pair 4R and 6R in these Leishmania cells. Additional PCR analysis with genomic DNA extracted from pLdSaCNLd131620b-transfected cells also failed to detect this linear duplication-specific band of 747 bp with primer pair 4R and 6R. This could be partly because the Ld131620 gene is essential for Leishmania, which prevented the formation of this linear duplication using inverted repeats 4 and 6. Although these results show no strong evidence that CRISPR targeting prompted chromosome linear duplication in this MT gene locus, we did isolate an MLF-resistant clone [Polθ-hel(−) + gRNAb clone 9] which contained a linear duplication amplification by using inverted repeats 2 and 6 (see Fig. S3, results presented below, and Discussion).

As described above, in contrast to other organisms, Leishmania relies on the likely most passive SSA DSBR pathway, and this leads to the overall low CRISPR gene editing rate if a donor DNA is not provided. To determine whether this results in delayed and incomplete DSBR, resulting in cell death, L. donovani promastigotes were transfected with an equal amount of different CRISPR vectors targeted to the MT gene and two other essential genes (the RagA and Polθ polymerase genes), as described in Fig. 1 and 2 and in Fig. S2 (see Fig. 9), and the control gRNA vectors with no target in the Leishmania genome. At 2 weeks posttransfection and after G418 selection, the number of surviving transfectants for each of these vectors was counted. As shown in Fig. 8A, compared with the control gRNA vector (pLdCN or pLdSaCN)-transfected cells, all cell lines transfected with Leishmania gene-targeting CRISPR vectors, regardless of the essentiality of these genes, displayed a significantly reduced cell density. Compared with the cell density for the corresponding control cell line, the cell density for gRNAf-, gRNAg-, gRNAh-, gRNAi-, Ld131620b-, and Ld240910b-expressing Leishmania cells was reduced to 80%, 84%, 15%, 13.5%, 15.6%, and 71%, respectively. The variation in reduced cell density could reflect the difference in activity of each gRNA and may also suggest that SaCas9 is more efficient than SpCas9 in generating DSBs. Interestingly, the pLdSaCN transfectants, which expressed SaCas9 and its control gRNA, exhibited a lower cell density (71.5%) than the SpCas9 vector pLdCN-transfected cells. This suggests that Leishmania cells are more tolerant of SpCas9 than of SaCas9. However, except for the gRNAg- and gRNAi-transfected cell lines, which continued to grow slowly, the other 4 cell lines started to grow like the two control cell lines when new cultures were set up after these cell lines reached stationary phase (Fig. 8B). This could be due to the selection of Leishmania cells with suboptimal CRISPR activity. Taken together, this demonstrates that CRISPR targeting and the inefficiency of DSBR could indeed have a negative effect on Leishmania cell growth. However, Leishmania cells may quickly develop mechanisms to escape or inhibit the CRISPR activity, for example, by selective growth of cells with lower levels of expression of Cas9 and gRNA (58, 59). This may help explain why a 100% direct gene-targeting efficiency was rarely observed even with prolonged culture (several months) after CRISPR vector transfection (Fig. 2C).

We further investigated whether some of the DSBs are not repaired, resulting in cell death in CRISPR-targeted Leishmania cells. The 5 MT gene-targeted cell lines were transfected with the corresponding oligonucleotide donor DNA containing stop codons (Table S1) and subjected to MLF selection, and the viability was determined by limiting dilution. As shown in Fig. 8C, the MLF resistance rate was increased 2- to 9-fold following oligonucleotide donor transfection compared to that in nontransfected cultures. Since oligonucleotide donor transfection could improve only DSBR and not generate more DSBs, this indicates that at least half of the DSBs were not repaired in these cultures in the absence of donor DNA, resulting in cell death. This further confirms our previous observation that oligonucleotide donor DNA transfection significantly increases the gene inactivation frequency (18, 19).

DNA polymerase theta (Polθ) plays a central role in the MMEJ pathway in mammalian cells (36–41). Interestingly, unlike human polymerase (Pol), which contains an N-terminal helicase-like domain and a C-terminal polymerase domain, a BLAST search revealed two Polθ-related proteins present in Leishmania: one (LdBPK_231640) with 2,240 amino acids contains only the Polθ helicase domain at its C terminus (Polθ-hel), and the other (LdBPK_240910) is a 1,171-amino-acid protein and contains only the Polθ polymerase domain (Polθ-pol) (Fig. 9A). To determine whether these two Polθ-related proteins are involved in MMEJ or SSA in Leishmania, we attempted to disrupt both Polθ-encoding genes in L. donovani (Fig. 9B). Surprisingly, unlike in human cells, we were not able to generate the living Leishmania Polθ-pol null mutants. Though it was possible to disrupt one allele of the Polθ-pol gene with a bleomycin resistance gene donor (Fig. 9C), it was lethal to further disrupt the remaining Polθ-pol gene allele, as we had observed some of these CRISPR-targeted Leishmania cells dying within 2 weeks after cloning single allele-disrupted mutants in 96-well plates (Fig. 9D), and a 545-bp WT band persisted in all the surviving clones (Fig. 9C). We were, however, able to disrupt both Leishmania Polθ-hel alleles with bleomycin resistance gene donors (Fig. 9E). While these Polθ-hel-deficient cells grew normally until late log phase, they could not reach the same cell density as the WT cells in the stationary phase and were slightly shorter than the WT parasites (data not shown). To determine whether Polθ-hel deficiency would affect DSBR and CRISPR gene-targeting efficiency in Leishmania, we transfected the Polθ-hel-deficient cells (after removing the original Polθ-hel-targeting CRISPR vector) and WT promastigotes with CRISPR vectors expressing MT gene-targeting gRNAa, gRNAb, and gRNAc (18, 19) (Table S2). The MLF resistance rates were determined at 4 weeks posttransfection. As shown in Fig. 9F, compared with the WT cells, the MLF resistance rates (or MT diallelic mutation frequency) were dramatically reduced in all these Polθ-hel-deficient cultures targeted by gRNAa, gRNAb, or gRNAc, with the decrease being 25- to 4,500-fold.

To investigate whether MMEJ could still be detected in these Polθ-hel-deficient cells, we initially examined 36 MLF-resistant clones (12 clones for each gRNA) by PCR analysis. Not unexpectedly, 27 of these clones were found to have only SSA-mediated repair (Fig. 10C). Interestingly, one of these clones contained two different SSA events involving direct repeats 1 and 4 in one chromosome 13 and a second SSA event in another chromosome 13 involving repeats 3 and 4 (Fig. S4). We also identified a clone which contained both a linear duplication event using inverted repeats 2 and 6 in one chromosome 13 and an SSA event using direct repeats 3 and 4 in another chromosome (Fig. S3). Three clones had a single point mutation at the Cas9/gRNAa cleavage site which was also detected when the WT cells were targeted, and most likely, the error was caused by HDR (Fig. 10A) (60). Interestingly, because of the extremely low CRISPR gene-targeting efficiency, many Polθ-hel-deficient parasites were screened for MLF-resistant cells, and 6 clones contained the WT sequence on the corresponding gRNA target sites, suggesting that the MLF resistance for these 6 clones was likely caused by spontaneous mutations in the MT gene beyond the CRISPR target sites (51, 52).

Since no single MMEJ repair event was detected in any of these 36 clones, we next performed PCR analysis on genomic DNA extracted from the whole MLF-resistant cell populations without cloning. However, with this approach, apart from detection of a single point mutation at the Cas9/gRNAa cleavage site (Fig. 10A), we still could not detect any PCR bands resulted from MMEJ from the Polθ-hel-deficient MLF-resistant cell population. Since we have previously shown that a 10-bp deletion caused by microhomology sequences immediately flanking the Cas9 cleavage site in the MT gene could be rather easily detected in WT L. donovani promastigotes targeted by gRNAa (18), we designed a primer pair which was specific for detection of this 10-bp MMEJ deletion event. However, as shown in Fig. 10A, unlike in WT L. donovani cells, the 316-bp MMEJ-specific PCR band was absent in these pooled MLF-resistant cultures deficient in Polθ-hel. Oligonucleotide donors with only 25-nt homology arms flanking the Cas9 cleavage site have been shown to significantly improve the CRISPR gene editing efficiency in Leishmania (18, 19) (Fig. 8) and could be inserted by either the MMEJ, SSA, or HDR pathway. Interestingly, there was a more than 2-fold increase in MLF resistance after electroporation of the oligonucleotide donor with stop codons in these Polθ-hel-deficient cells (with the gRNAa-expressing CRISPR vector) (Fig. 10B). This suggests that Leishmania cells could just use HDR, SSA, or Polθ-pol alone to complete this oligonucleotide-directed DSBR. Finally, as expected, adding back of Polθ-hel to these Polθ-hel-deficient cells restored the MMEJ pathway and the CRISPR gene-targeting efficiency to the level in WT cells (Fig. 10D and E). Taken together, these results demonstrate that Leishmania Polθ helicase not only plays an essential role in MMEJ but also is involved in SSA, as the overall gene deletion frequencies were dramatically reduced in Polθ helicase-disrupted cells and SSA was the major DSBR mechanism in the MT locus. These results further confirm the importance of DSBR competence in determining CRISPR gene-targeting efficiency.

L. donovani 1S/Cl2D, L. major Friedlin V9, and L. mexicana (MNYC/BZ/62/M379) were used in this study. The culture medium was M199 medium (pH 7.4) supplemented with 10% heat-inactivated fetal bovine serum, 40 mM HEPES (pH 7.4), 0.1 mM adenine, 5 mg liter⁻¹ hemin, 1 mg liter⁻¹ biotin, 1 mg liter⁻¹ biopterin, 50 U ml⁻¹ penicillin, and 50 μg ml⁻¹ streptomycin. Leishmania promastigotes were routinely cultured at 27°C and passaged to fresh medium at a 40-fold dilution once a week.

The primers and oligonucleotide donors used in this study are listed inin the supplemental material. Table S1

The pSPneoSagRNAH vector was generated as follows. (i) Primers LdrRNApxho1 and LdrRNApR were used to obtain the 201-bp PCR product of the L. donovani rRNA promoter; primers SagRNAF and SagRNAR were used with the pX601 (Addgene) plasmid as the template to obtain the 144-bp PCR product of the sequence encoding S. aureus gRNA (SagRNA). Primers HDVRiboF1 and pSPneoRHind3 were used to obtain the 195-bp PCR product containing the hepatitis delta virus (HDV) ribozyme-coding sequence. (ii) Primers LdrRNApXho1 and pSPneoRHind3, along with the 3 PCR products from the first step, were used as the templates (they contained 22- to 26-bp overlapping sequences) to get the 492-bp PCR product, which consisted of the L. donovani rRNA promoter, SagRNA, and the HDV ribozyme-coding sequences. (iii) The 492-bp PCR product from the second step was digested with XhoI and HindIII and cloned into the corresponding sites of the pSPneo plasmid (75) to generate pSPneoSagRNAH.

The pNeoSagRNAH vector was generated as follows. (i) The pLPneo2 plasmid (76) was digested with HindIII and BglII to get the P-neo fragment. (ii) The P-neo fragment from the first step was inserted into the pSPneoSagRNAH vector after removing the neomycin resistance gene (neo) fragment with HindIII and BglII to generate a new SagRNA expression vector, pNeoSagRNAH.

The pLdSaCN vector was generated as follows. (i) With the pX601 plasmid as the template, primers pxSaCas9F1, pxSaCas9R1, pxSaCas9F2, and pxSaCas9R2 were used to obtain the 3,265-bp PCR product of the SaCas9-coding sequence with the internal HindIII site destroyed by a silent point mutation. This SaCas9 sequence derived from plasmid pX601 (catalog number 61591; Addgene) was humanized by use of a 53% GC content and contains the nuclear localization signal of the simian virus 40 (SV40) large T antigen at its N terminus and the bipartite nuclear localization signal from nucleoplasmin at its C terminus (25). (ii) The SaCas9 fragment from the first step was inserted into the HindIII and BamHI sites of the pNeoSagRNAH vector described above to generate the SagRNA and SaCas9 coexpression vector pLdSaCN.

The pLPhygSaCas9 vector was generated by inserting the above-described 3,265-bp SaCas9-coding sequence into the HindIII and BamHI sites of the pLPhyg2 plasmid (76).

TheDNA Polθ helicase expression vector was constructed as follows. (i) TheDNA Polθ helicase gene was PCR amplified fromgenomic DNA with primers Ld231640F and Ld231640R to get the 6,723-bp gene fragment. (ii) The PCR fragment was digested with HindIII and BglII and ligated into the HindIII and BamHI sites of pLphyg2 to generate the Polθ helicase expression vector. L. donovani L. donovani L. donovani

The gRNAs used in this study were designed manually or with the aid of the following gRNA design programs: the Eukaryotic Pathogen CRISPR guide RNA Design Tool (EuPaGDT; http://grna.ctegd.uga.edu/↗), which was developed on the basis of data from mammalian cells and ranks a gRNA on the basis of its activity score, off-target sites in the genome, and microhomology sequences flanking the DSB (53); Sequence Scan for CRISPR (SSC; http://cistrome.org/SSC/↗) and CRISPRater (https://crispr.cos.uni-heidelberg.de/↗), which were developed from human and mouse data and which can predict gRNA activity with only the guide sequence information (55, 56); and CRISPRscan (http://www.crisprscan.org/↗), which was developed on the basis of zebrafish data (54). All the gRNA sequences used in this study are listed in Table S2.

Single gRNA guide-coding sequences were ordered as standard oligonucleotides with 5′-TTGT and 5′-AAAC overhangs. It is important to note the optimal guide length for SpCas9 gRNA is 19 or 20 nt, but for SaCas9 it is 21 nt. After phosphorylation and annealing, the gRNA guide-coding sequences were ligated into the BbsI sites of the pLdCN or pLdSaCN CRISPR vector (19) (Fig. S5). The pLdCN366140MT vector, containing gRNA-coding sequences targeting Ld366140 and the MT gene, was constructed as follows: primers Ld366140a and LdMTb and the pSPneogRNA241510+MT plasmid, which was used as the template, were used to get the 276-bp PCR product, which was then digested with BbsI and cloned into the corresponding BbsI sites of the pLdCN vector.

Leishmania promastigotes (2 × 10⁷; middle log phase to early stationary phase) in 100 μl Tb-BSF buffer (90 mM Na₂HPO₄, 5 mM KCl, 0.15 mM CaCl₂, 50 mM HEPES, pH 7.3) and 2 to 5 μg CRISPR or other vectors were used for each transfection with the Lonza Nucleofector 2b device (program U33). The transfected Leishmania promastigotes were selected with 50 μg/ml G418 or 100 μg/ml hygromycin on the following day. Once the CRISPR vector-transfected cell culture was established, these cells could subsequently be transfected with the donors; 8 μl 100 μM oligonucleotide donor or 2 to 4 μg of purified PCR product was used for each transfection. For a drug resistance gene donor, drug selection was started 2 to 3 days after donor transfection to allow time for donor integration into the genome. Phleomycin (50 μg/ml) was initially added, and later, phleomycin was added to 100 μg/ml if the bleomycin resistance gene donor was used. These Leishmania cultures could sometimes be incubated at 33°C or 37°C for 2 to 3 days to improve gene editing efficiency (18).

For Leishmania promastigotes transfected with various CRISPR vectors expressing MT-targeting gRNA, the MLF resistance rate was determined by limiting dilution culture containing 40 μM MLF in 96-well plates. Depending on the estimate of the MLF resistance rate, 2,000 to 8 million Leishmania promastigotes per well were inoculated into the first column of 96-well plates in quadruplicate or all eight wells for each transfected cell line. The cells in the first column were then serially 2-fold diluted from left to right up to the last column in the plate. The MLF resistance rates (or the diallelic MT gene mutation frequencies) were calculated after the plates were sealed and incubated in a 27°C incubator for 2 to 3 weeks. The surviving Leishmania cell clones in the farthest wells after MLF selection were expanded in 24-well plates for subsequent genomic DNA extraction and PCR analysis. To increase the cloning efficiency, Leishmania cells were sometimes limited diluted in a direction from the top to the bottom rows of the plates, or the cells from the whole MLF-resistant population selected in a 4- to 10-ml culture flask at 3 days after MLF selection were diluted and directly inoculated into 96-well plates at 1 MLF-resistant cell per 100 μl culture medium per well.

The repeat sequences flanking a target gene were initially identified by alignment of the up- and downstream intergenic sequences progressively away from the target gene. The located repeat sequence was then used to perform a BLAST search against the Leishmania genome to identify the additional repeat sequences in the respective chromosome flanking the target gene. Since there are still some gaps and assembly errors in the L. donovani BPK282A1 genome sequence in TriTrypDB (http://tritrypdb.org/tritrypdb/↗), except for the gene identifiers, the complete sequences of these repeats described in this study and their chromosome locations were derived from the complete L. donovani genome sequence that we recently reported (77) and were verified by comparison with the L. infantum, L. major, and L. mexicana genome sequences (78). Primers flanking these repeats were designed using the Primer3 program (http://bioinfo.ut.ee/primer3-0.4.0/↗). The optimal primer length was 20 nucleotides with a 60°C melting temperature.

The parasite genomic DNAs were extracted from WT Leishmania promastigotes and various MLF-resistant cells with the minipreparation method (79), which includes phenol-chloroform extraction and ethanol precipitation. The purity and quantity of these genomic DNA were assessed by use of a NanoDrop spectrophotometer.

The various Taq DNA polymerases used in this study included 2× KAPA Taq HotStart DNA polymerase mix (Sigma-Aldrich), All in One 2× Green PCR master mix (ZmTech Scientific, Montreal, Canada), 2× DreamTaq Green PCR master mix and 2× Platinum SuperFi PCR master mix (Thermo Fisher Scientific), and Q5 high-fidelity DNA polymerase (New England BioLabs). The PCR program was set up according to the manufacturer's instructions with variations in annealing temperature, extension time, and the total number of PCR cycles. For semiquantitative PCR, an equal amount of genomic DNA (350 ng) was used for each 12-μl PCR mixture, with the total number of cycles ranging from 22 to 35. The PCR products were separated in a 1 to 1.5% agarose gel. The putative MMEJ-, SSA-, or linear duplication-specific bands were extracted from the gel and sent to the Genome Quebec Sequencing Center for confirmation by sequencing.

The same amount of genomic DNA extracted from WT- and pLdSaCNgRNAg-, pLdSaCNgRNAh-, and pLdSaCNgRNAi-transfected MLF-resistant cells was digested to completion with the restriction enzyme PstI and separated on a 0.8% agarose gel (5 μg per lane). After denaturation and neutralization, the DNA was transferred to a nylon membrane with 20× SSC (3 M NaCl and 0.3 M Na₃ citrate) and a stack of paper towels overnight. The membrane was prehybridized at 42°C for 2 h in a prehybridization solution, consisting of 1% SDS, 1 M NaCl, 10% dextran sulfate, and 50 μg/ml denatured salmon sperm DNA (0.2 ml/cm²). The primer pair Ld131610F3 and Ld131610R3 was used to generate the 615-bp probe, which was biotin labeled using a Thermo Scientific biotin DecaLabel DNA-labeling kit. The membrane was then incubated overnight at 42°C in hybridization solution, containing 1% SDS, 1 M NaCl, 10% dextran sulfate, and 50 ng/ml the biotin-labeled probe. The membrane was washed twice with 2× SSC, 0.1% SDS for 10 min each time at room temperature and with 0.1× SSC, 0.1% SDS once for 20 min at 65°C. The biotin-labeled DNA probe hybridized to the target DNA on the membrane was detected with alkaline phosphatase-conjugated streptavidin and the substrate BCIP-T (5-bromo-4-chloro-3-indolylphosphate, p-toluidine salt) using a biotin chromogenic detection kit (Thermo Scientific).

The pLdSaCN, pLPhygSaCas9, pSPneoSagRNAH, and pNeoSagRNAH plasmids have been deposited in Addgene with accession no. 123261↗, 123262↗, 123265↗, and 123266↗, respectively.
