Molecular basis of anti-CRISPR operon repression by Aca10

The aca10 gene from Pseudomonas citronellolis (accession code: TGC30851.1) was synthesized by Bionics (Daejeon, Republic of Korea) and then cloned into a pET21a vector (Novagen, Wisconsin, USA), which contains a C-terminal hexa-histidine tag for affinity chromatography. The NdeI and XhoI restriction sites were utilized for cloning. The resulting recombinant vector encoding full-length Aca10 (residue 1–65) was transformed into competent Escherichia coli BL21(DE3) cells for transformation. A single colony was selected and cultured in 5 ml lysogeny broth (LB) medium containing 50 μg/ml ampicillin overnight at 37°C, after which 1 ml of the culture was transferred to 1 l of LB for large culture. When the optical density measured at 600 nm reached 0.7–0.8, the temperature was adjusted to 20°C and 0.25 mM isopropyl β-d-1-thiogalactopyranoside (IPTG) was added for aca10 expression. The induced cells were further cultured for 18 h at 20°C in a shaking incubator. Cultured cells were harvested by centrifugation at 3500 g for 15 min at 20°C. Then, the pelleted cells were resuspended in lysis buffer (20 mM Tris–HCl (pH 8.0) and 500 mM NaCl) and lysed via ultrasonication at 4°C. The cell lysate and the supernatant were separated by centrifugation at 14 000 g for 30 min at 4°C. The supernatant was collected and mixed with Ni-nitrilotriacetic acid (NTA) affinity resins and incubated for 2 h at 4°C. The incubated mixture was loaded onto a gravity-flow column (Bio-Rad, Hercules, CA, USA). The resin in the gravity column was washed with 50 ml lysis buffer to remove impurities. After washing, the resin-bound Aca10 protein was eluted using elution buffer (20 mM Tris–HCl (pH 8.0), 500 mM NaCl, 250 mM Imidazole). The Aca10 sample was purified by size-exclusion chromatography (SEC) on a Superdex 200 Increase 10/300 GL column (GE Healthcare, Waukesha, WI, USA) pre-equilibrated with SEC buffer (20 mM Tris–HCl (pH 8.0) and 150 mM NaCl). The target protein Aca10 eluted from SEC was collected, pooled, and concentrated to 7.4 mg/ml for crystallization. Purity of the protein was visually assessed using sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE).

Aca10 was crystallized using the hanging drop vapor diffusion method at 20°C. Initial crystals were obtained by equilibrating a mixture containing 1 μl of protein solution (7.4 mg/ml protein in SEC buffer) and 1 μl of a reservoir solution containing 10% (v/v) 2-propanol, 0.1 M Imidazole pH 8.0, against 0.3 ml of reservoir solution. We obtained crystals in 24 h. A single crystal was selected and soaked in the reservoir solution supplemented with 30% (v/v) glycerol for cryo-protection, X-ray diffraction data were collected at −178°C on the beamline BL-5C at Pohang Accelerator Laboratory (Pohang, Korea). Data processing including indexing, integration, and scaling, was conducted using HKL2000.

The Aca10 structure was determined using the molecular replacement phasing method, which was performed using PHASER in the PHENIX package (31). The predicted structural model generated by AlphaFold2 was used as a search model (32). The initial model was built automatically using AutoBuild from the Phenix package, and further model building with refinement was performed using Coot (33) and phenix.refine (34). The structure quality and stereochemistry were validated using MolProbity (35). All structural figures were generated using PyMOL (36).

The absolute molecular mass of Aca10 in solution was measured using SEC-coupled multi-angle light scattering (SEC-MALS). Purified Aca10 protein solution was loaded onto a Superdex 200 Increase 10/300 GL 24 ml column pre-equilibrated with SEC buffer. The flow rate of the buffer was maintained at 0.5 ml/min and SEC-MALS was performed at 20°C. A DAWN-Treos MALS detector (Wyatt Technology, Santa Barbara, USA) was interconnected with the ÄKTA explorer system (GE Healthcare). The molecular mass of bovine serum albumin was used as the reference value. The absolute molecular mass was assessed using the ASTRA program (Wyatt Technology).

Site-directed mutagenesis was performed using the Quick-Change kit (Stratagene), and the resulting mutants were confirmed through sequencing. All mutant proteins were expressed and purified in the same manner as the wild type described above.

The 5′ regulatory region upstream of the acrIC7-acrIC6-aca10 operon from P. citronellolis was analyzed to identify a potential promoter using BPROM (http://www.softberry.com↗) and manual curation. The presence of potential Aca10 binding sites was determined using the Repeat Finder plugin in Geneious Prime version 2022.1.1 (https://www.geneious.com↗), followed by manual curation.

DNA oligonucleotides containing the inverted repeat sequences identified were synthesized by Bionics. To generate double-stranded DNA for EMSA assays, we incubated the top strand DNA oligo (100 μM) and bottom strand DNA oligo (100 μM) at 100°C for 3 min and slowly cooled to room temperature to anneal.

Varying concentrations of purified wildtype or mutant Aca10 were pre-incubated with 20 ng of double-stranded DNA in SEC buffer for 60 min on ice. Prepared samples were then separated by gel electrophoresis at 100 V on a 10% native 0.5× TBE (Tris-borate EDTA) polyacrylamide gel for 1 h. Afterwards, gels were stained with SYBR Gold (Invitrogen, Waltham, MA, USA) and visualized according to the manufacturer's instructions.

Amino acid sequences of Aca10 homologs from various species were analyzed using Clustal Omega (37).

The Aca10/DNA complex was modeled using the HDOCK server (38). For predicting the complex structure of dimeric Aca10/linear DNA, the IR2 sequence, 5′-AATACGCTCATTGAGCGTATT-3′, was used as the input DNA sequence. To construct the complex between dimeric Aca10 and bent DNA, the structure of bent DNA was obtained from a previously solved structure of MqsA (PDBid: 3O9X) (39) and used for this docking study. The default docking parameters provided by HDOCK server were used.

To understand anti-CRISPR regulation, the full-length Aca10 protein was purified using a quick two-step chromatography method, comprising Ni-NTA affinity chromatography followed by size-exclusion chromatography (SEC) for structural analysis. Although an aggregation peak was detected around the column void volume, the main peak produced at approximately 17–18 ml elution volume contained highly pure Aca10 protein when assessed by SDS-PAGE (Figure 1A). The pure target protein was successfully crystallized. The diffraction data were collected at a resolution of 1.76 Å at PAL synchrotron. Due to the absence of a structural homolog of Aca10 required for the molecular replacement (MR) phasing method, structure determination was first attempted unsuccessfully with ab initio phasing using ARCIMBOLDO_BORGES software (40). However, the phasing issue was resolved by MR by using an accurately generated structural model predicted by alphafold2, a recent tool that has advanced structural predictions based on machine learning (32). The final structural model of Aca10 was refined to R_work = 21.1% and R_free = 23.7%. The diffraction data and refinement statistics are summarized in Table 1. The crystal belonged to space group P4₁2₁2 and four molecules were present in the asymmetric unit (ASU) (Figure 1B). The final structural model contained most of the Aca10 sequence (residues from S3 to L60 out of 65 amino acids) for all four molecules. The first two amino acids at the N-terminus and the last five amino acids at the C-terminus were not included in the final models owing to unclear electron densities (Figure 1B).

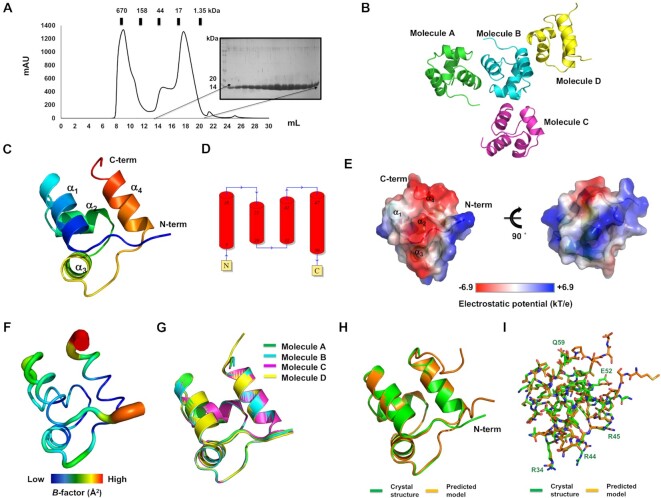

The structure of Aca10 showed that it was constructed of an α-helical bundle fold comprising four α-helices (α₁−α₄) (Figure 1C and D). Analysis of the surface electrostatic potential of Aca10 showed that most was positively charged, whereas one face composed of α₄ and a connected loop was highly negatively charged (Figure 1E). B-factor analysis showed that most of the structure was rigid with a low B-factor (average 36.58 Ų), except for both terminal regions (average 54.32 Ų) (Figure 1F). The structure of four molecules in one ASU was almost identical, with a root-mean-square-deviation (RMSD) value of 0.24–0.48 Å among each other (Figure 1G).

Because we solved the structure of Aca10 based on the predicted structural model generated by alphafold2, we were curious how similar between these structures were. To answer this, we compared the two structures with structural superposition. This structural comparison indicated that the main backbone of the predicted structure was nearly identical with that of the crystal structure except the N-terminal region (Figure 1H). In the case of the side chains of each residues of predicted model, several charged residues exposed on the surface were not identical with those of crystal structure (Figure 1I), indicating that the flexible side chains exposed to the surface were not accurately predicted. However, the overall backbone structure predicted by alphafold2 was almost identical with the crystal structure. In summary, Aca10 is a small four helical bundle protein with a highly charged surface.

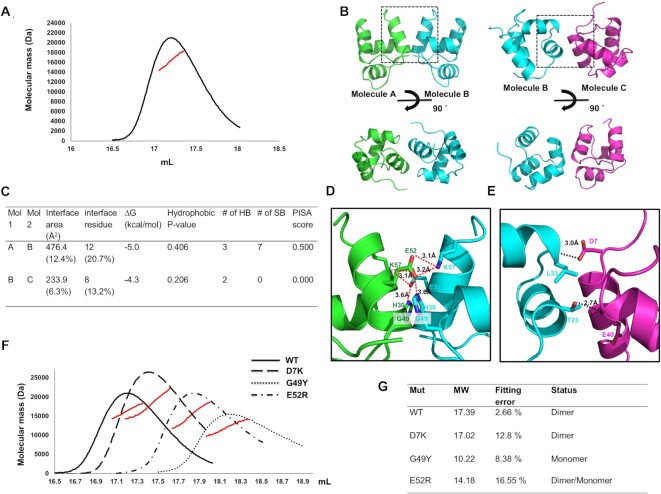

Initial genetic and biochemical studies of Aca family members suggested a dimeric form (18,19), with recent structural studies of Aca1 and Aca2 confirming that both Acas function as dimers in solution (26–28). However, it is not known if all Acas function as dimers and the stoichiometry of Aca10 is unknown. Since Aca stoichiometry likely influences their mechanism, we determined the exact stoichiometry of Aca10 in solution by calculating the absolute molecular mass using multi-angle light scattering (MALS). Although several peaks were detected in the SEC experiment, the molecular mass of the main peak was calculated as 17.39 kDa (2.66% fitting error) by MALS (Figure 2A). Considering that the theoretically calculated molecular weight of Aca10 was 8.2 kDa, the experimental molecular mass analyzed by MALS demonstrated that Aca10 formed a dimer in solution.

Because we observed Aca10 dimers in solution, we analyzed the contact features of the four molecules found in the crystallographic asymmetric unit to further understand dimerization. Two putative dimeric structures may form between molecule A and molecule B (AB dimer) or between molecule B and molecule C (BC dimer) (Figure 2B). The AB dimer was a symmetric dimer, whereas the BC dimer was asymmetric. Since DNA-binding proteins, especially those recognizing palindromic DNA sequences, are typically symmetric dimers, the AB dimer was the more likely biologically relevant form. To understand dimer formation of Aca10 in detail, we analyzed the protein-protein interactions (PPI) in both the AB dimer and the BC dimer using the PDBePISA PPI-calculating server (Figure 2C). In the AB dimer, the total dimer surface buried an area of 476.4 Ų, which represents 12.4% of the total surface area. A total of 12 residues, which represents 20.7% of the total Aca10 residues, were involved in the formation of PPI (Figure 2C). The PPI, mainly constructed by helix α₄ from both molecules, was formed by multiple hydrogen bonds and salt bridges (Figure 2D). Salt bridges formed by residues H30, E52 and K57 from each molecule were the primary forces maintaining the integrity of this dimeric interface. Residues G49 from each monomer were the most closely localized residues between the two molecules. In the case of the BC dimer, the total dimer surface buried was 233.9 Ų, which represents 6.3% of the total surface area calculated by PDBePISA (Figure 2C). Only two hydrogen bonds, formed between L33 and T23 from one molecule and D7 and E40 from another molecule, were formed in the BC dimer (Figure 2E). The PISA score, which ranges from 0 to 1 as the relevance of the interface to complex formation increases, was 0.500 for the AB dimer but 0.000 for the BC dimer, further indicating that the AB dimer was the more likely biologically relevant form.

To experimentally determine which dimer was relevant, we mutagenized Aca10 and examined dimer disruption. To test the AB dimer, a G49Y and E52R mutant were generated. Residue D7, which was predicted to be involved in the BC dimer, was also mutated to test a possible effect on dimer formation. These three mutants and wild-type Aca10 were subjected to SEC to analyze dimer formation. As expected, the D7K variant (BC dimer disruption mutant) did not affect dimer formation whereas the G49Y mutant disrupted dimer formation as evidenced by delayed elution from SEC corresponding to the size of a monomer (Figure 2F and G). The absolute molecular weight of the G49Y mutant was further examined by MALS. The calculated weight of 10.22 kDa (8.38% fitting error), confirmed that the G49Y mutation results in an Aca10 monomer and demonstrated the importance of the AB dimer interface. In the case of the E52R mutant, it produced a main SEC peak around 17.8 mL in between the dimeric wild-type peak and the monomeric G49Y mutant peak. This might be due to a weak disruption effect of the E52R mutation. Although residue E52 was the main residue that mediated the PPI formation of the AB dimer, mutagenesis to arginine was not as effective as the G49Y mutant. Because of the weak disruption effect, the E52R peak might contain a mix of both monomer and dimer, which resulted in the apparent sizes. All the experimental results from SEC-MALS are summarized in Figure 2G. Based on the structural analysis, examination of crystal packing, and mutagenesis studies followed by the dimer disruption assay, we concluded that Aca10 exists as a symmetric AB dimer in solution.

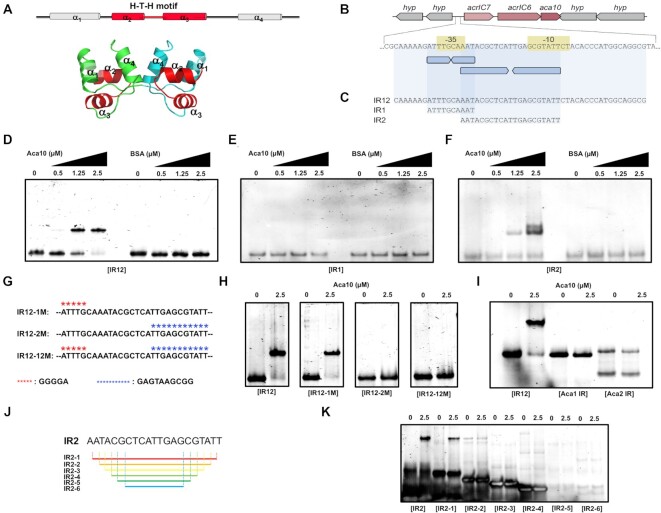

Previously studied Acas, Aca1 from P. aeruginosa phage JBD30 and Aca2 from Pectobacterium carotovorum phage ZF40, form dimers and directly interact with inverted repeats (IRs) within promoter regions of their acr operons to repress expression (18,19). Aca10 is predicted to be a helix-turn-helix (H-T-H) transcription regulator controlling the production of AcrIC7 and AcrIC6 in P. citronellolis (20) (Figure 3A). Based on this prediction and the dimeric nature of Aca10, we hypothesized that Aca10 would bind inverted repeat regions within the promoter to control transcription. To elucidate the molecular mechanism underlying promoter recognition by Aca10 for regulating the expression of acr genes, we first examined the region 5′ of the acrIC7-acrIC6-aca10 operon for a predicted promoter using BPROM. This revealed −35 and −10 regions consistent with a strong promoter (TTGCAA-N16-TATTCT) (Figure 3B). Overlapping the −35 region was a short 10 bp IR consistent of two perfectly matching 5 bp half sites (IR1; ATTTG CAAAT) (Figure 3B and C). In addition, positioned within the promoter, and overlapping the −35 and −10 elements, was a 21 bp IR consisting of two perfect 10 bp half-sites (underlined) separated by 1 bp (IR2; AATACGCTCA T TGAGCGTATT) (Figure 3B and C). The position of IR1 and IR2 strongly suggests that Aca10 binding would occlude RNAP binding and lead to transcriptional repression.

Direct interaction of Aca10 and the promoter was analyzed by EMSAs using DNAs containing the different IRs. Purified Aca10 displayed concentration-dependent binding to a DNA fragment that contained both the IR1 and IR2 sequences (IR12, Figure 3C), but this was not bound by a BSA negative control (Figure 3D). Therefore, Aca10 directly binds DNA containing this sequence in acrIC7-acrIC6-aca10 promoter of P. citronellolis. Next, we investigated the individual contributions of IR1 and IR2. No Aca10-dependent shift of the IR1 DNA was detected, demonstrating that IR1 was not sufficient for Aca10 binding (Figure 3E). In contrast, when the IR2 DNA fragment was incubated with Aca10, it produced a similar concentration-dependent shift as the entire IR12 fragment, indicating that IR2 is the relevant Aca10 binding site (Figure 3F). In summary, Aca10 is a dimeric H-T-H protein that binds to a 21-bp IR overlapping the acrIC7-acrIC6-aca10 promoter.

Next, we tested the sequence-specificity and requirements of IR1 and IR2 for Aca10 binding to the acrIC7-acrIC6-aca10 operon. For this experiment, three mutant DNA fragments, IR12-1M (IR1 disruption), IR12-2M (IR2 disruption), and IR12-12M (both IR1 and IR2 disruption), were generated (Figure 3G). Aca10 EMSAs were performed with these three mutated DNA fragments, whose inverted repeat sequences were destroyed and did not contain any inverted sequences. Although IR12 and IR12-1M produced shifts when incubated with Aca10, neither IR12-2M and IR12-12M produced shift with Aca10, indicating that Aca10 recognized the specific inverted IR2 sequence but not IR1 (Figure 3H).

We also wondered if Aca10 can only recognize the specific inverted repeat sequence identified in this study or also other recognize inverted repeat sequences of similar size. To test this specificity, we performed EMSAs with two more reverted repeat DNA oligos, Aca1 binding IR (ACAAGCGGCACACTGTGCCTATTGCGAATTAGGCACAATGTGCCTAATCTAACG) and Aca2 binding IR (CACTGTTCGCAATTGCGAACTAAGATGGAACCAGATTCGAGATTGGCTCGAATCACCTC) identified in recent studies (18,26,28). This experiment clearly showed that Aca10 failed to bind Aca1 IR and Aca2 IR (Figure3I), indicating that Aca10 specifically recognizes the IR sequence in the promoter of acrIC7-acrIC6-aca10 operon.

Finally, we determined the minimal IR2 sequence that can be recognized and bound by the Aca10 dimer. To analyze this, we generated a series of truncated IR2 oligos (Figure 3J) and performed EMSAs with Aca10 (Figure 3K). This experiment showed that truncated IR2 oligos, with one base at both ends removed, was able to still bind to Aca10 similar to the IR2 oligo. Therefore, the minimal DNA sequence required for Aca10 binding is 5′ATACGCTCATTGAGCGTAT3′ (Figure 3K).

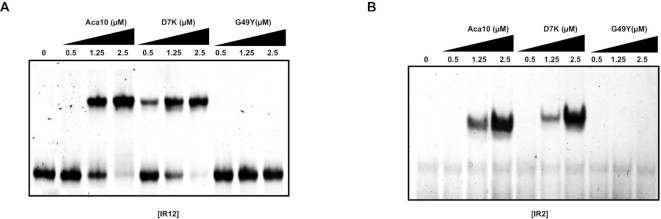

Inverted repeat binding sites are frequently recognized by dimeric proteins. To determine whether this applies to Aca10 and the dimeric state is essential for target recognition, we performed EMSAs with dimerization-defective mutants of Aca10, G49Y. The G49Y mutant was completely abrogated in its ability to bind to DNA fragments with either both IR1 and IR2 (IR12) or IR2 alone, even at high concentrations (Figure 4A and B). The D7K mutant that has no effect on dimerization was included as a negative control and, as expected, was capable of binding IR12 and IR2 similar to the wild-type Aca10. In conclusion, Aca10 dimerization is critical for the recognition of the specific IR2 DNA sequence in the acrIC7-acrIC6-aca10 promoter.

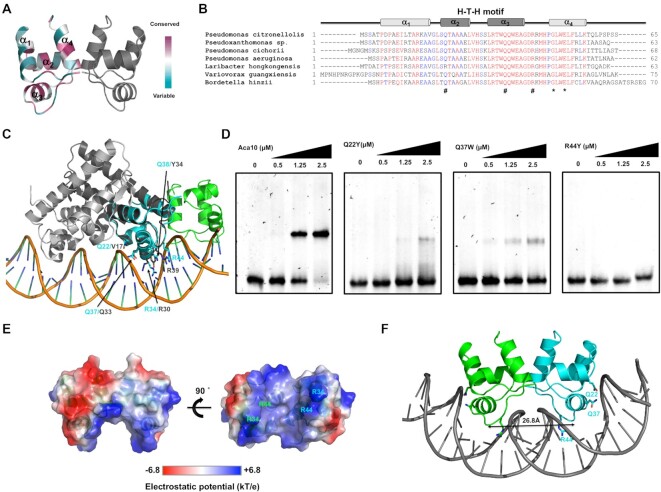

We next investigated how Aca10 recognizes DNA. A combination of sequence- and structure-based comparisons were made to identify residues that might contribute to DNA binding. Analysis of protein conservation (ConSurf) (41) showed that residues in the C-terminus (α₃, α₄ and the connecting loop) were more conserved, indicating that this region of Aca10 is likely important for its function (Figure 5A and B). Within the predicted H-T-H motif, the α₂ residues were less conserved, while α₃ residues were completely conserved, suggesting that α₃ is the key helix that interacts with DNA. Interestingly, G49 and E52, which were involved in the dimerization of Aca10, were completely conserved, confirming the importance of dimerization for DNA binding (Figure 5B). To obtain further insights into the molecular basis of Aca10 function, we compared the Aca10 structure with its structural homologs using the DALI server (42). The top five PDB matches were Aca2 (7CQ8), NE0471 (2AUW), SO3848 (2OX6), HigB2 (5JAA) and Aca1 (7C0A) (Table 2). Aca1 and Aca2 are families of anti-CRISPR-associated proteins, whereas NE0471, SO3848 and HigB2 all contained an H-T-H motif for binding nucleic acids.

Because the structure of Aca2 in complex with DNA was recently solved (28) and was the most structurally related protein to Aca10 via the DALI search, we superimposed our dimeric Aca10 structure into the Aca2/DNA complex structure. Aca2 is much longer than Aca10 and the sequence identity between the proteins is low (∼24% sequence identity). The Aca10 dimer did not superpose well with the Aca2/DNA complex; however, monomeric Aca10 superposed well with part of one Aca2 monomer (Figure 5C). In particular, the H-T-H motif composed of α₂−α₃ of Aca10 perfectly fits the H-T-H motif of Aca2 (Figure 5C). Since residues V17, R30, Q33, Y34 and R39 of Aca2 were identified as important for promoter recognition of Aca2 (18,26,28), we found the corresponding residues on Aca10 by structural and sequence alignment (Q22, R34, Q37, Q38 (Y34 on Aca2), and R44). We examined the role of Q22, Q37 and R44 by generating Q22Y, Q37W and R44Y mutants and assessing their DNA binding ability by EMSA. In agreement with the importance of R39 in Aca2 (28), the R44Y mutant of Aca10 was unable to bind to DNA fragments containing both IR1 and IR2 (Figure 5D) or IR2 alone (Supplementary Figure S1). In contrast, Q22Y and Q37W mutants still bound DNA, but binding was significantly impaired (Figure 5D and Supplementary Figure S1)). Altogether, these experiments indicated that all three residues were important for IR recognition and R44 was the most critical residue for the promoter interaction.

Finally, to examine the promoter binding strategy of Aca10 based on our experiments, we analyzed the electrostatic surface of the putative DNA binding site of the Aca10 dimer and performed structural modeling and docking using the HDOCK server (38). Electrostatic surface analysis revealed a highly positively charged pocket on the underside, formed mainly by R34 and R44, that might correspond to the position of DNA interaction (Figure 5E). Sequence and structural analysis of Aca10 demonstrated that the putative H-T-H motif, a well-known DNA binding motif, was predicted to consist of α₂, α₃ and its connecting loop. This H-T-H motif and a long loop that connects α₃ and α₄ contribute a major part of this deep bottom groove in the Aca10 dimer. When Aca10 was docked with linear DNA, it was not properly loaded into its target. When Aca10 was docked with 50° bent DNA, it fitted well in the cavity of the bent DNA double helix (Figure 5F). In the top scoring docking model, dimeric Aca10 localized the two major grooves of double strand DNA by inserting α₃ of the H-T-H motif (Figure 5F) with Q22, Q37 and R44 involved in recognition of the IR sequence. Among the interacting residues, R44 was the major DNA read-out contributor that was localized in the center of the deep major groove (Figure 5F and Supplementary Figure S2), while Q22 was localized in the upper side of the center of the major groove and was marginally involved in the DNA interaction. The distance between each α₃ of the H-T-H motif from both Aca10 molecules within the dimer was ∼26.8 Å, which was shorter than the case of Aca2, which was approximately 33.8 Å. Because the length of a complete turn of double-helical DNA is ∼34 Å, the distance of 26.8 Å suggests the importance of high DNA bending during recognition by dimeric Aca10.

In conclusion, Aca10 from P. citronellolis is a dimeric DNA binding protein and a likely transcriptional repressor of the acrIC7-acrIC6-aca10 operon. Aca10 forms a dimer in solution and the dimeric form is critical for binding specific DNA. The putative H–T–H motif composed of the α₂−α₃ helices of 10 directly recognizes a minimal 19 bp palindromic sequence (5′-ATACGCTCATTGAGCGTAT-3′), which obscures the promoter of the acr operon. R44 in the connected loop between α₃ helix and α₄ helix is a critical residue involved in the DNA binding, which likely results in a high degree of DNA bending.
