Molecular basis of dual anti-CRISPR and auto-regulatory functions of AcrIF24

Primer sequences used in this study are listed in. Supplementary Table S1

The full-length acrIF24 gene (encoding residues 1–228) from a Pseudomonas aeruginosa prophage (GenBank accession: WP_043084540↗) (23) was synthesized by Bionics (Daejeon, Republic of Korea) and cloned into a pET21a plasmid vector (Novagen, Madison, WI, USA). The NdeI and XhoI restriction sites were used for cloning. The resulting recombinant construct was transformed into Escherichia coli BL21(DE3) competent cells that were further cultured at 37°C in 1 l of lysogeny broth (LB) containing 50 μg/ml kanamycin. When the optical density at 600 nm (OD₆₀₀) reached around 0.8, the temperature was adjusted to 20°C, and 0.5 mM isopropyl β-d-1-thiogalactopyranoside (IPTG) was added for induction of acrIF24 expression. The induced cells were further cultured for 20 h in a shaking incubator at 20°C.

The cultured cells were harvested by centrifugation at 2000 × g for 15 min at 4°C, resuspended in 25 ml lysis buffer (20 mM Tris–HCl pH 8.0 and 500 mM NaCl), and lysed by ultrasonication. The cell lysate and supernatant were separated by centrifugation at 10 000 × g for 30 min at 4°C. The collected supernatant was mixed with Ni-nitrilotriacetic acid (NTA) affinity resins for 3 h, and the mixture was loaded onto a gravity-flow column (Bio-Rad, Hercules, CA, USA). The resin in the column was washed with 50 ml of lysis buffer to wash out unbound proteins. After washing, 3 ml elution buffer (20 mM Tris–HCl pH 8.0, 500 mM NaCl and 250 mM imidazole) was added to the column to elute the Ni-NTA bound target protein from the resin.

Eluted AcrIF24 was concentrated to 30 mg/ml and applied onto a Superdex 200 10/300 GL column (GE Healthcare, Waukesha, WI, USA) connected to an ÄKTA Explorer system (GE Healthcare), which had been pre-equilibrated with SEC buffer (20 mM Tris–HCl pH 8.0 and 150 mM NaCl) for polishing the protein sample by size-exclusion chromatography (SEC). The eluted peak fractions from SEC containing AcrIF24 were collected, pooled, and concentrated to 12 mg/ml for crystallization. The purity of the protein was visually assessed using sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE).

For obtaining type I-F Cascade complex, the plasmids pCsy_complex (#89232) and pCRISPR_DMS3g24 (#89244) were purchased from Addgene (36,37) and co-transformed into E. coli BL21 (DE3) cells. The Cascade complex was purified using the same method used for AcrIF24 purification. To express and purify individual subunits of Cascade, the full-length cas5, cas6, cas7 and cas8 genes were obtained by PCR using the pCsy_Complex plasmid as template DNA. Each obtained gene was cloned into a pET21a plasmid vector using NdeI and XhoI restriction sites. The purification methods used for Cas5, Cas6, Cas7 and Cas8 were the same as for purification of AcrIF24.

The sequence encoding the AcrIF24 head domain deletion mutant was synthesized by Bionics (Daejeon, Republic of Korea), cloned into a pET21a plasmid vector (Novagen) and purified using the same method as for AcrIF24.

Cas2/3 protein was prepared by a previously described purification method using the Cas2/3 expression construct obtained from the laboratory of Yue Feng (35)

The hanging drop vapor diffusion method was used for the crystallization of AcrIF24. Crystal plates were incubated at 20°C. Initial crystals were obtained by equilibrating a mixture containing 1 μl of protein solution (12 mg/ml protein in SEC buffer) and 1 μl of a reservoir solution containing 24% (w/v) polyethylene glycol 3350 (PEG 3350) and 0.4 M ammonium chloride (NH₄Cl) against 500 μl of reservoir solution. The crystallization conditions were further optimized and the best crystals were obtained by adding 50 mM sodium fluoride (NaF), after which crystals appeared within 38 days. A single crystal was selected and soaked in reservoir solution supplemented with 40% (v/v) glycerol for cryo-protection. X-ray diffraction data were collected at −178°C on the beamline BL-5C at the Pohang Accelerator Laboratory (Pohang, Korea). Data was processed using HKL2000 software (38).

The AcrIF24 structure was determined using the molecular replacement phasing method which was performed by the PHASER program in the PHENIX package (39). The predicted structural model generated by AlphaFold2 was used as a search model (40). The initial model was built automatically using AutoBuild from the PHENIX package, and further model building with refinement was performed using Coot (41) and phenix.refine (42). The structure quality and stereochemistry were validated using MolProbity (43). All structural figures were generated using PyMOL (44).

Site-directed mutagenesis was performed using a Quick-change kit (Stratagene, San Diego, CA, USA) according to the manufacturer's protocols. Mutations were then confirmed by sequencing. Primer sequences used for mutagenesis are listed in. Mutant proteins were prepared using the same method described for wildtype protein purification above. Supplementary Table S1

The absolute molecular weight of AcrIF24 in solution was measured using SEC-coupled multi-angle light scattering (SEC-MALS). The protein solution was loaded onto a Superdex 200 Increase 10/300 GL 24 ml column (GE Healthcare) pre-equilibrated with SEC buffer. The flow rate of the buffer was controlled to 0.4 ml/min, and SEC-MALS was performed at 20°C. A DAWN-TREOS MALS detector was connected to an ÄKTA Explorer system. The molecular weight of bovine serum albumin was measured as a reference value. Data were processed and assessed using ASTRA software.

The amino acid sequences of AcrIF24 across different species were analyzed using Clustal Omega (45).

Promoter elements upstream of acrIF23 (which forms an operon with acrIF24) were identified using BPROM (46) and by manual curation compared to established consensus sequences. Inverted repeat sequences were identified using the Repeat Finder plugin of Geneious Prime Version 2022 1.1 (https://www.geneious.com↗).

The gBlock PF5881 was used as a template for amplification of the acrIF23-acrIF24 promoter using primers PF138 and PF139, and of the acrIF24 gene using PF209 and PF210. Oligonucleotide sequences used in this study are listed in Supplementary Table S1. The promoter PCR product was cut with SpeI and NsiI and inserted into pPF1439, a template plasmid for eyfp reporter studies (47), digested with the same enzymes, yielding pPF2963. The gene PCR product was cut with SacI and SphI and inserted into pBAD30 digested with the same enzymes, yielding pPF2964. To generate expression constructs for AcrIF24 variants with single point mutations, PCRs of the entire pPF2964 plasmid were performed with the primer pairs PF6867 and PF6868 (W110K), PF6869 and PF6870 (K197W) or PF6871 and PF6872 (R207W). PCR products were gel-purified and digested with DpnI to degrade the template plasmid, then directly transformed into E. coli DH5α to generate the plasmids pPF3482, pPF3483 and pPF3484, respectively. To generate the construct for the AcrIF24 double-mutant (Y128K/Y217W), the gBlock PF6976 was inserted into pBAD30 via the SacI and SphI sites, yielding pPF3487. All new plasmid constructs were confirmed by Sanger sequencing.

Reporter assays were performed using the P. carotovorum derivative PCF425, which has a deletion of two restriction endonuclease genes (48). Strains containing different combinations of the reporter plasmid with the acrIF23-acrIF24 promoter (pPF2963) and the acrIF24 expression plasmid (pPF2964 for the wild type or pPF3482, pPF3483, pPF3484 or pPF3487 for the different mutants) or the corresponding empty vectors (pPF1439 and pBAD30, respectively) were grown in LB containing 100 μg/ml ampicillin, 25 μg/ml chloramphenicol, 0.1% (w/v) arabinose and 100 μM IPTG at 1,200 rpm at 25°C. After 18 h of growth, fluorescence of plasmid-encoded mCherry and eYFP was measured by flow cytometry using a BD LSRFortessa cell analyzer. Cells were first gated based on forward and side scatter and cells positive for mCherry fluorescence were detected using a 610/20-nm bandpass filter (detector gain 606 V) and further analysed for eYFP fluorescence using a 530/30-nm bandpass filter (detector gain 600 V). Results for a strain carrying two empty vectors (pPF1439 and pBAD30) were subtracted from all other results to account for background fluorescence.

Examination of the in vivo activity of AcrIF24 against a phage-targeting CRISPR-Cas system first required creating a resistant host with a phage-targeting spacer in a type I-F CRISPR array. To generate a vector to promote acquisition of spacers targeting phage ZF40 in the P. carotovorum derivative PCF425, a 2.4kb-fragment of an uncharacterized ZF40 gene (locus tag F396_gp65) was first amplified by PCR using the primers PF2910 and PF2911 with a ZF40 lysate as the template. The resulting product was inserted into pPF1123 (49) using the restriction enzymes KpnI and SacI, yielding the plasmid pPF1526. Next, the oligonucleotides PF2914 and PF2958 were annealed. The annealing product contains a protospacer targeted by the P. carotovorum RC5297 type I-F CRISPR–Cas system combined with a non-consensus protospacer-adjacent motif (5′-TG-3′) previously shown to elicit priming in a related strain (50). This annealing product, which has SphI and SpeI restriction overhangs, was inserted into pPF1526 cut with the same enzymes, resulting in the spacer acquisition plasmid pPF1527.

For spacer acquisition via priming, strain PCF425 was transformed with pPF1527 by electroporation. Plasmid uptake was expected to trigger spacer acquisition due to the presence of the priming protospacer on pPF1527, with acquisition potentially occurring from the plasmid-born ZF40 gene fragment. Resulting transformants were grown for 24 h at 30°C in LB medium without antibiotic selection to allow plasmid loss and then plated on LB-agar plates containing 100 μM IPTG to allow selection against colonies producing mCherry, which is encoded on pPF1527. Of mCherry-negative colonies, arrays of the type I-F CRISPR-Cas system were screened for spacer acquisition using PF2969 and PF2970 (array 1) or PF2971 and PF2972 (array 2). Expanded arrays were sequenced to identify the origin of the newly acquired spacers. One of the resulting strains, named PCF835, which acquired one spacer targeting phage ZF40, was selected for further experiments.

To test the activity of AcrIF24 variants against the native type I-F CRISPR-Cas system of P. carotovorum RC5297, pBAD30 or a derived construct for production of an AcrIF24 variant (pPF2964 for the wild type or pPF3482, pPF3483, pPF3484 or pPF3487 for the different mutants) was electroporated into strain PCF425 (without CRISPR immunity against phage ZF40) or PCF835 (with type I-F CRISPR immunity against phage ZF40). Each strain was grown overnight in LB medium containing 0.2% (w/v) arabinose for induction. From these cultures, 100 μl were added to top agar and poured on LB-agar plates containing 0.2% (w/v) arabinose. After solidification, 5 μl spots of a tenfold serial dilution of a ZF40 variant with its native acrIF8–aca2 operon deleted were placed on the top agar. Plaque formation was examined after 16 h of incubation at 25°C.

Varying concentrations of purified wildtype or mutant AcrIF24 were pre-incubated with 20 ng of annealed long inverted repeat DNA (IR-L) or 800 ng of annealed short inverted repeat DNA (IR-S) in binding buffer (10 mM HEPES pH 7.5, 1 mM MgCl₂ 20 mM KCl, 1 mM tris(2-carboxyethyl)phosphine (TCEP), and 5% (v/v) glycerol in a final volume of 20 μl) for 30 min on ice. Prepared samples were then separated by gel electrophoresis at 100 V on a 10% native 0.5× TBE (Tris–borate–EDTA) polyacrylamide gel. After electrophoresis, gels were stained with SYBR Gold (Invitrogen, Waltham, MA, USA) and visualized according to the manufacturer's instructions. Annealed DNA oligos, IR-L and IR-S, were generated by mixing complementary oligonucleotides synthesized by Bionix (Seoul, Republic of Korea) in a 1:1 molar ratio in annealing buffer (10 mM Tris pH 7.5, 50 mM NaCl, and 1 mM EDTA), heating to 100°C for 3 min, and cooling to 25°C for 1 h.

Purified AcrIF24 (wildtype and various mutants) at a concentration of 20 μM were pre-incubated with 1.5 μg annealed oligo DNA (IR-L or IR-S) at 4°C for 60 min in a final volume of 20 μl SEC buffer. Agarose gels (6%) were prepared with agarose LE powder (Gold Biotechnology) using 0.5× TB buffer. Prepared agarose gel was run on a Mupid-2 plus electrophoresis kit (Advance, Japan) in 0.5× TB buffer for 30 min at 100 V.

Protein-DNA complex formation between AcrIF24 (wildtype or mutants) and annealed oligo DNA (IR-L and IR-S) was evaluated via native (non-denaturing) PAGE with 8∼25% acrylamide gels. Coomassie Brilliant Blue was used for staining and detection of shifted bands. DNA and protein were used at concentrations of 10 and 20 μM, respectively.

SEC was performed to analyze complex formation between AcrIF24 and type I-F Cascade. AcrIF24 was mixed with type I-F Cascade or each individual protein component of Cascade, incubated for 30 min at 25°C, and applied to a size-exclusion column (Superdex 200 HR 10/30, GE healthcare), which was pre-equilibrated with SEC buffer. The peak fractions were collected and subjected to SDS-PAGE. Coomassie Brilliant Blue was used for staining and analyzing the pattern of co-migrated bands.

To test the anti-CRISPR activity of wildtype AcrIF24 and its mutants (W110K, ΔHead, K197Y, R207W, and Y128K/Y217W), reactions were performed in a 10 μl buffer system containing 0.64 μM Cascade complex, 0.16 μM Cas2/3, 0.04 μM dsDNA, and 100–1000 nM AcrIF24 or its mutant proteins. First, we incubated AcrIF24 or its mutants with the type I-F Cascade complex at 37°C in reaction buffer (20 mM HEPES pH 7.5, 100 mM KCl, 5% (v/v) glycerol, and 1 mM DTT) for 30 min. Then we added target DNA to a final concentration 0.04 μM and incubated at 37°C for 30 min. Cas2/3 was further added along with reaction buffer (5 mM MgCl₂, 75 μM NiSO₄, 5 mM CaCl₂ and 1 mM ATP) and the reaction was performed at 37°C for 1 h. We quenched the reaction by adding proteinase K and incubating for an additional 10 min at room temperature. The reaction products were separated by electrophoresis on 10% polyacrylamide gels and visualized by staining with SYBR GOLD.

To understand the molecular basis underlying AcrIF24 anti-CRISPR function, AcrIF24 was overexpressed in E. coli and purified using two-step chromatography, affinity chromatography and size-exclusion chromatography (SEC). During SEC, the protein eluted at bigger than ∼44 kDa from a Superdex 200 gel-filtration column, indicating that AcrIF24 (∼26 kDa for monomer) may exist as a dimer in solution (Figure 1A). The purified AcrIF24 protein sample was successfully crystallized and diffracted to 2.5 Å.

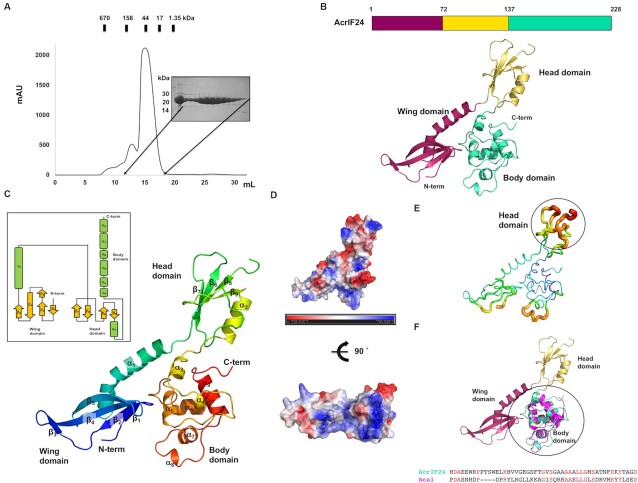

Due to the absence of structural homologues in the PDB database, we were unable to solve the phasing problem by molecular replacement (MR) at the initial stage of structure determination. However, the phasing problem was solved by molecular replacement using a structural model predicted by alphafold2 (40). The final structural model of AcrIF24 was refined to R_work = 21.66% and R_free = 28.58%. The diffraction data and refinement statistics are summarized in Table 1. The crystal belongs to space group P6₅22 with one molecule present in the asymmetric unit. The final structural model contains the complete AcrIF24 sequence (residues M1 to S228). The overall shape of the AcrIF24 structure resembled a bird and was composed of three distinct domains. Based on the domain locations in the bird shape, we named them head, wing and body domain (Figure 1B). The wing domain was formed by five β-sheets (β₁–β₅) and one long α-helix (α₁) at the N-terminal part of AcrIF24, while the body domain was composed of six α-helixes (α₃-α₈) forming a helical bundle fold at the C-terminus of AcrIF24 (Figure 1C). The head domain was formed by four β-sheets (β₆–β₉) and one α-helix (α₂) was localized between the wing and body domains (Figure 1C).

Because the electrostatic surface features are sometimes important for predicting the function of a protein, we analyzed the electrostatic surface features of AcrIF24. This analysis showed that AcrIF24 contained a highly positively charged cleft in the bottom part of the body domain, although negatively and positively charged surfaces were evenly dispersed in the AcrIF24 structure (Figure 1D). B-factor analysis showed that most of the head domain had relatively higher B-factors (average 88.25 Ų), indicating that the head domain might be flexible (Figure 1E). The α₈ helix and connecting loop at the body domain also had relatively higher B-factors (average 62.37 Ų). Because flexible protein features can become rigid upon interaction with a specific binding partner, the flexible head domain might be critical for the protein interactions for the proper function of AcrIF24.

To investigate the structural novelty of AcrIF24, structural homologues were searched using the DALI server (51). The closest related structure picked by this server was Aca1 (52), having a Z-score of 6.9 and 2.5 Å root mean square deviation (RMSD) when superimposing 68 amino acids among 73 total amino acids of Aca1 with 72 amino acids among 228 total amino acids of AcrIF24 (Table 2). The structure of Aca1 was only superposed with the body domain of AcrIF24 (Figure 1F). The sequence identity of Aca1 with the body domain of AcrIF24 was 22%. This search indicated that the structures of the wing and head domains of AcrIF24 are novel without significant similarity to previously described structures. Although the overall structure of the body domain of AcrIF24 is similar to the entire structure of Aca family, structural superposition indicated that the two structures are not identical, having a high RMSD value (2.5 Å).

Although various Acrs inhibit CRISPR-Cas activity in monomeric form, previous studies have shown that the dimeric form of Acrs is often critical for their activity (29,53,54). Similarly, some Aca proteins have been shown to function as dimers (31,33,55). Given the possible dimeric form of AcrIF24 as judged by our SEC experiment, we used multi-angle light scattering (MALS) to confirm the stoichiometry by determining the absolute molecular mass of AcrIF24 in solution. MALS showed that the experimental molecular mass was 55.76 kDa (1.86% fitting error) with 1.002 polydispersity (Figure 2A). Because the theoretically calculated molecular weight of monomeric AcrIF24 with the C-terminal histidine tag was 26.03 kDa, the molecular mass analyzed by MALS likely corresponds to dimeric AcrIF24. Based on these SEC and MALS data, we concluded that AcrIF24 forms a homo-dimer in solution.

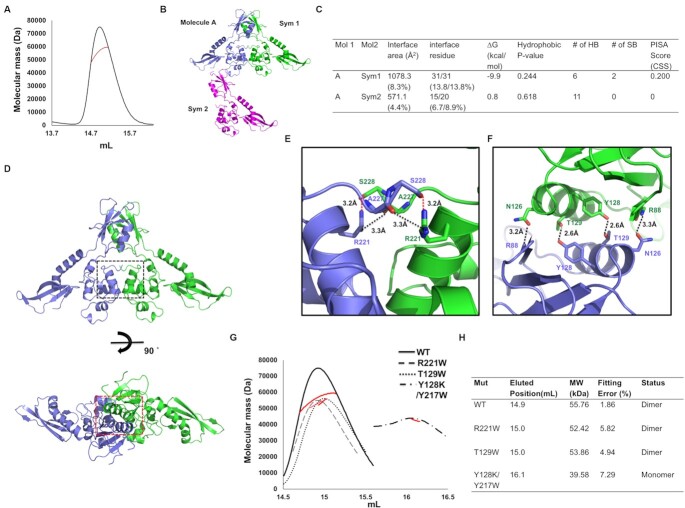

Crystallographic packing analysis showed that two types of putative dimers were detected: a MolA/Sym1 dimer or a MolA/Sym2 dimer. The MolA/Sym1 dimer was constructed via head and body domains from each molecule, while the MolA/Sym2 dimer was formed via the wing and body domains from one molecule and the head domain of another molecule (Figure 2B). To find a symmetric molecule that forms a dimer with monomeric molecule A found in the crystallographic asymmetric unit, the protein-protein interactions (PPI) in both the MolA/Sym1 dimer and the MolA/Sym2 dimer were further analyzed using the PDBePISA PPI-calculating server (Figure 2C) (56). PPI analysis showed that the complex formation significance score (CSS) of the MolA/Sym1 dimer was 0.2 (the score ranges from 0 to 1 as the relevance of the interface to complex formation increases), while that of the MolA/Sym2 dimer was 0, indicating that the MolA/Sym1 dimer might be the biologically relevant form. A total of 62 residues (31 from each molecule) were involved in the formation of PPI of the MolA/Sym1 dimer, whose total surface buried an area of 1078.3 Ų, representing 8.3% of the total surface area (Figure 2C and D). Meanwhile, 15 residues from MolA and 20 residues from Sym2 were involved in the formation of the MolA/Sym2 PPI, whose total surface buried an area of 571.1 Ų, representing 4.4% of the total surface (Figure 2C). The main forces used for the formation of the MolA/Sym1 dimer PPI were six hydrogen bonds (H-bonds) and two salt bridges, which were generated at two distinct regions, one in the body domains and another in the head domains. For maintaining the head domain-mediated PPI, salt bridges were formed in between S228 and R221 of each molecule and H-bonds were formed between residues A227 and R221 of each molecule (Figure 2D and E). For maintaining the body domain-mediated PPI, extensive H-bonds were generated by R88, Y128, T129, and N126 of each molecule (Figure 2D and F). In contrast to the MolA/Sym1 dimer, the MolA/Sym2 dimer was an asymmetric dimer that might be unlikely to form in the cellular environment. Therefore, we propose that AcrIF24 naturally occurs as a MolA/Sym1 dimer.

To confirm our hypothesis that the MolA/Sym1 dimer might be a favoured dimer model, we generated three MolA/Sym1 PPI disruption mutants, R221W (head domain-mediated PPI disrupting mutant), T129W (wing domain-mediated PPI disrupting mutant), and a Y128K/Y217W double mutant (both PPI disrupting mutant) and performed SEC-MALS with those mutants. This experiment clearly showed that the Y128K/Y217W double mutant produced a peak at a delayed position during SEC compared with that of the wildtype. The Y128K/Y217W double mutant produced a smaller-sized particle, which is likely a monomer of AcrIF24, indicating that MolA/Sym1 represents the true dimeric state (Figure 2G and H).

The dimeric nature of AcrIF24, the presence of a predicted helix-turn-helix (HTH) DNA binding motif similar to some known Aca proteins (23), and the high structural similarity of the body domain of AcrIF24 with Aca1 analysed by DALI search followed by structural superimposition (Table 2 and Figure 1F), led us to hypothesize that AcrIF24 functions analogously to an Aca protein by binding DNA and altering gene expression. Analysis of AcrIF24 using ConSurf demonstrated that the base of the body domain was highly conserved and contained the putative HTH motif within the C-terminus of the protein (Figure 3A), spanning helices α₆–α₈ (Figure 3B). Although the amino acid sequences of the head and body domains were highly conserved, the N-terminal wing domain was not conserved. Because the putative HTH motif was found in the body domain, AcrIF24 might use the body domain to recognise the specific promoter sequence for the Aca activity.

The dimeric nature of AcrIF24 suggested that it would likely recognise an inverted repeat (IR) sequence to control acr expression. In the P. aeruginosa prophage, acrIF24 is present as the second gene in an operon also including acrIF23. Therefore, we predicted that the entire acrIF23-acrIF24 operon would be regulated by AcrIF24. We examined the intergenic region upstream of acrIF23 for a predicted promoter using BPROM and manual curation, which revealed –35 and –10 regions consistent with a strong promoter (TTGCAT-N17-TATAGT) (Figure 3C). Positioned almost perfectly between the -35 and -10 elements of this promoter was an IR (TAGCTCGATTCGAGCTA) with two perfect 8 bp half-sites (underlined) separated by 1 bp (Figure 3C).

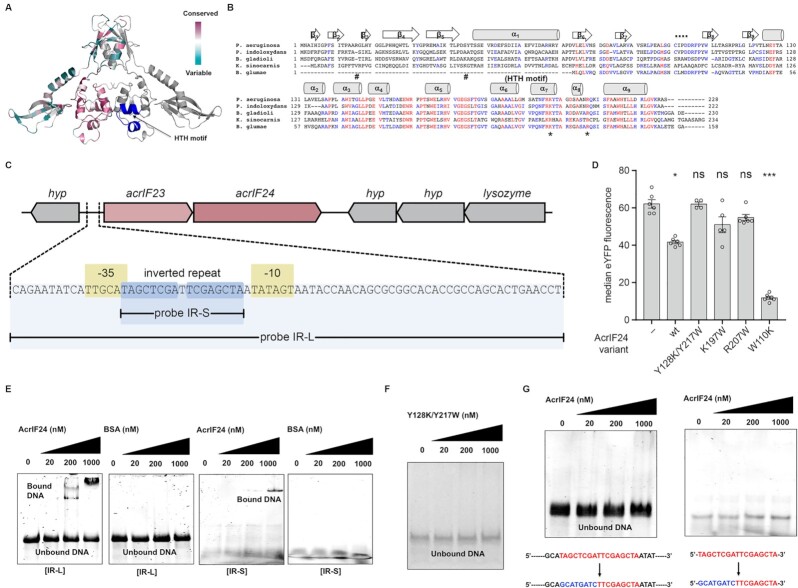

To test whether AcrIF24 functions to regulate the acrIF23-acrIF24 operon, we made a transcriptional fusion of the acr operon promoter to eyfp. Expression of acrIF24 led to a reduction in eYFP fluorescence as assessed by flow cytometry, indicating that AcrIF24 functions as an Aca to repress acr operon expression (Figure 3D). To examine if AcrIF24 binds directly to the acrIF23-acrIF24 promoter region, we performed electrophoretic mobility shift assays (EMSA) with purified AcrIF24. AcrIF24 bound in a concentration-dependent manner to a long DNA fragment [IR-L] that contained the promoter and the IR sequence, whereas BSA did not bind this DNA (Figure 3E). The IR sequence was sufficient for AcrIF24 recognition, since the protein also bound to a minimal 17 bp dsDNA fragment [IR-S] that solely contained the IR (Figure 3E). Since the dimer-disrupted mutant of AcrIF24 (Y128K/Y217W double mutant) lost its ability to form a complex with IR-L, we concluded that dimerization of AcrIF24 was critical for the recognition of IR sequence in the promoter (Figure 3F). Indeed, this mutant was unable to repress the promoter in our reporter assay (Figure 3D). The complete IR was necessary for AcrIF24 binding, because mutation of one half of the IR in either the long [IR-L] or short [IR-S] DNA fragments abrogated interactions (Figure 3G). In summary, AcrIF24 contains a C-terminal HTH motif and recognizes and binds an IR to repress acrIF23-acrIF24 operon expression.

After establishing a regulatory function for AcrIF24, we next aimed to identify the protein regions involved in DNA binding. A helix-turn-helix (HTH) domain was previously predicted at the C-terminus of the protein (23) which in our structure forms the body domain. To obtain a more detailed view of the DNA-binding residues on AcrIF24, we first used the DNA-binding residues prediction server, DRNApred (57). According to this prediction server, residues S10, T12, R16, Y20 and S45 on the wing domain and residues T177, S180, T199, R196, S191, Y198, K197, S203 and R207 on the body domain were selected as tentative DNA-binding residues (Figure 4A). Electrostatic surface features of dimeric AcrIF24, showing a highly positively charged cleft in the bottom part of the wing and body domains (Figure 4B), supported the DRNApred predictions. Based on these observations and predictions, we speculated that AcrIF24 may use its body domain to recognize and bind to the specific IR sequence of DNA and that the wing domain may also be involved in DNA recognition.

To test our hypothesis, we performed mutagenesis studies. Among the predicted tentative DNA binding residues, the highly conserved K197 and R207 on the body domain were mutated to tyrosine and tryptophan, respectively, producing K197Y and R207W mutants (Figure 3B). These two body domain mutants were hypothesized to disrupt DNA binding. For making wing domain mutants that might disrupt DNA binding, residues R16 and S45 were selected and mutated to tryptophan and tyrosine, respectively, generating R16W and S45Y mutants. These two residues were not conserved across different species (Figure 3B). All mutant proteins were purified and tested for DNA binding.

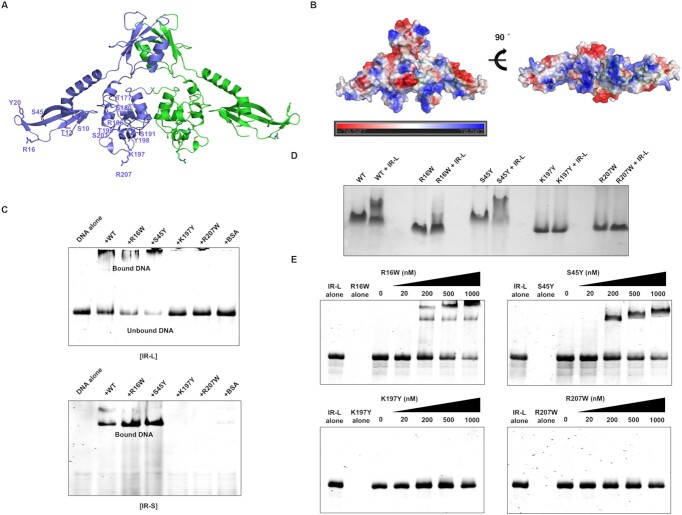

While R16W and S45Y wing domain mutants were still able to bind to DNA, the K197Y and R207W body HTH motif mutations completely abrogated binding to long and short promoter sequences (IR-L and IR-S) (Figure 4C and Supplementary Figure S1). We validated these results using EMSA in agarose gel and native-PAGE by detecting shifted protein bands generated by DNA interaction. As expected, K197Y and R207W mutants were not able to produce shifted bands, while wildtype and S45Y produced distinct shifts (Figure 4D and Supplementary Figure S2). Because the IR-L/AcrIF24 complex sometimes stuck in the well at the high concentration of AcrIF24 provided for EMSA assay, we verified the specific interaction of DNA and AcrIF24 using the same EMSA assay in a protein concentration-dependent manner (Figure 4E). These experiments more clearly showed that K197Y and R207W mutants completely lost their IR-L binding ability and R16W mutants partially lost its DNA binding capability (Figure 4E). All these binding experiments indicated that residues K197 and R207 in the body domain are critical for DNA binding. Although R16W produced a shift, the amount shifted was reduced compared with wildtype AcrIF24, indicating that R16 on the wing domain influences DNA binding (Figure 4D and E). In agreement with these results, the K197W and R207W mutant proteins were unable to repress the acrIF23-acrIF24 promoter in reporter assays (Figure 3D). In conclusion, the HTH body domain of AcrIF24 is involved in recognition of the IR in the acrIF23-acrIF24 promoter and this interaction is essential for promoter repression.

To understand how AcrIF24 functions as an anti-CRISPR, we initially tested a direct interaction of AcrIF24 with the P. aeruginosa type I-F Cascade complex. This type I-F complex is composed of the Cas proteins Cas5f1, Cas6f, six copies of Cas7f1 and Cas8f1, and includes a single 60 nt crRNA (Figure 5A). First, SEC and SDS-PAGE were performed with Cascade in the absence of AcrIF24 to obtain a SEC profile and the location of each Cascade subunit on an SDS-PAGE gel. This analysis showed that the main peak fraction of the SEC profile, containing all the Cascade subunits, was produced at a position corresponding to an ∼400 kDa size particle eluted from the SEC column (Figure 5B and C and Supplementary Figure S3A and B). Since the typical mass of type-I-F Cascade is around 400 kDa, this SEC analysis indicated that the complex used in this study was successfully purified. In addition, each subunit of Cascade, Cas5f1 (36.2 kDa), Cas6f (21.4 kDa), Cas7f1 (39.7 kDa) and Cas8f1 (50.1 kDa), was detected at the expected position on the SDS-PAGE gel as well (Figure 5C and Supplementary Figure S3B).

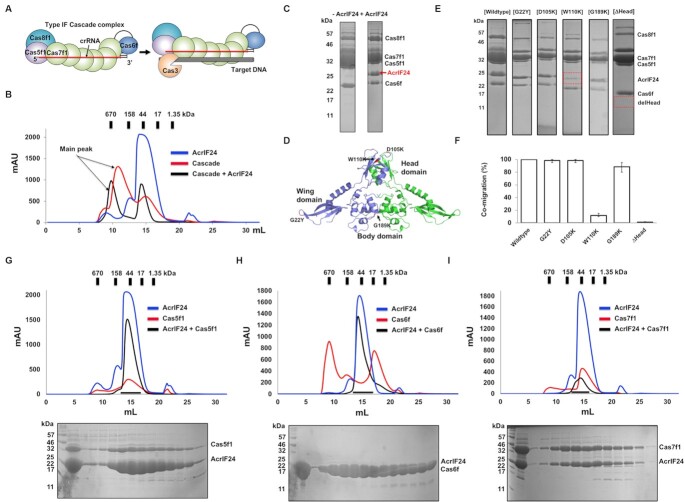

To analyze a direct interaction of AcrIF24 with type I-F Cascade, purified AcrIF24 was mixed with purified Cascade complex, incubated and loaded onto the SEC column. This SEC experiment showed that the main peak of AcrIF24-Cascade eluted 1 ml earlier than that of Cascade lacking AcrIF24, suggesting that AcrIF24 and Cascade were interacting to form a larger complex (Figure 5B). This elution volume corresponds to a mass >670 kDa, suggesting that AcrIF24 interacts with Cascade and that this interaction leads to the aggregation of more than one Cascade complex with AcrIF24. Indeed, elution fractions from this major peak contained all Cascade subunits in addition to co-eluting AcrIF24 when visualized by SDS-PAGE (Figure 5C and Supplementary Figure S4A and B). These observations clearly showed that AcrIF24 directly interacted with Cascade.

To determine which region of AcrIF24 mediates binding to Cascade, we mutagenized AcrIF24. Because AcrIF24 was divided into the three distinct domains (wing, head, and body), we selected conserved and exposed surface residues from these domains and mutated them to residues that may disrupt the interaction with Cascade. G22Y and G189K mutants represented wing domain and body domain disruption mutants, respectively, while both D105K and W110K mutants represented head domain disruption mutants (Figure 5D). To test if the mutations affected interaction with Cascade, we performed SEC and SDS-PAGE. The main peak eluted at almost the same volume on the SEC profile for each mutant (Supplementary Figure S5A-E). However, co-migration of AcrIF24 W110K with Cascade was significantly reduced (Figure 5E and F, and Supplementary Figure S5D), indicating that this head domain disruption mutant has an impaired capacity for binding to Cascade. Based on this result, we concluded that the head domain of AcrIF24 is necessary for binding to Cascade. To confirm this conclusion, we purified a head domain deletion mutant (ΔHead) and analyzed the effect of the deletion on the interaction of AcrIF24 to Cascade. As expected, the ΔHead mutant could not bind to Cascade by failing to co-migrate with Cascade on SEC followed by SDS-PAGE (Figure 5E and F, and Supplementary Figure S5F). Based on these experiments, we confirmed that the head domain of AcrIF24 is necessary for binding to Cascade.

Next, we wondered which Cascade subunit(s) were critical for the interaction with AcrIF24. To answer this question, we purified each subunit of Cascade separately (Supplementary Figure S6) and performed SEC with a mixture of each subunit with AcrIF24 (Figure 5G–I); note that an interaction with Cas8f could not be tested due to insolubility. Although an apparent peak shift by forming a complex was not detected on the SEC profiles, AcrIF24 co-migrated with Cas7f1 but not with Cas5f and Cas6f on SDS-PAGE, indicating that AcrIF24 bound specifically to Cas7f1(Figure 5I). This result is in good agreement with recent a structural study published by Yang et al (35). The cryo-EM study of the complex between AcrIF24 and Cascade showed that AcrIF24 specifically binds to Cas7f1 when AcrIF24 inhibits the Cascade activity by direct binding.

We wanted to determine how AcrIF24 inhibits type I-F Cascade activity. Since many AcrIF proteins inhibit I-F Cascade binding to complementary dsDNA targets, we first tested whether this mechanism applies here. I-F Cascade was purified with a crRNA complementary to a target dsDNA. Addition of I-F Cascade to this probe led to binding, as observed by a shift on the EMSA (Figure 6A). The addition of Cas2/3 alone, or in combination with Cascade, had no effect on these reactions. Importantly, the addition of increasing concentrations of AcrIF24 reduced the quantity of bound dsDNA (Figure 6A). Therefore, AcrIF24 inhibits the ability of I-F Cascade to bind to its specific complementary invader targets. Cas2/3 was added in these assays but no particular role was detected in our assay.

Next, we asked which domains of AcrIF24 are important for its I-F Cascade inhibitory activity. We first tested the role of the head domain by examining the ability of the W110K and ΔHead AcrIF24 variants to inhibit Cascade. Although the W110K mutant still retained function, deletion of the entire head domain rendered AcrIF24 unable to inhibit Cascade function in dsDNA binding (Figure 6B). These findings are in agreement with our binding analysis of AcrIF24 with Cascade (Figure 5E and F), where ΔHead lost complete binding activity, while the W110K mutant still possessed some binding capability. Mutations that disrupted DNA binding and promoter repression by AcrIF24 (i.e. K197Y and R207W; Figure 3D and Figure 4) had no effect on inhibition of I-F Cascade (Figure 6C), suggesting that the DNA-binding (Aca) function of AcrIF24 may be independent from its Acr activity in vitro. Furthermore, AcrIF24 dimerization was required to inhibit I-F Cascade, since the Y128K/Y217W mutant failed to disrupt DNA binding by Cascade (Figure 6D).

Finally, we examined whether these in vitro results are also valid in an in vivo phage infection model. For this, we used Pectobacterium carotovorum RC5297, which has a type I-F CRISPR-Cas system, and an acr-less variant of phage ZF40. This phage efficiently infected P. carotovorum (-CRISPR), but infectivity was drastically reduced in the presence of a ZF40-targeting spacer in the host CRISPR-Cas system (+CRISPR, Figure 6E). However, even in the presence of a targeting spacer, overexpression of acrIF24 from a plasmid allowed the phage to overcome CRISPR-Cas defense. In contrast, the W110K mutation completely abrogated the protective effect of AcrIF24 and therefore displayed a stronger phenotype in vivo than in vitro, highlighting the importance of this head domain residue for Acr activity (Figure 6E). The dimer-disruption mutations (Y128K/Y217W) also completely abrogated Acr activity, in agreement with our in vitro results, supporting that dimerization is important for inhibiting Cascade. Interestingly, the mutant proteins unable to repress the promoter (K197W and R207W) also slightly affected Acr function, albeit not as strongly as the W110K mutation in the head domain. This suggests that the Acr and Aca functions of AcrIF24 are not completely separable (Figure 3D). In summary, dimer formation and the head domain of AcrIF24 are critical for its Acr activity.
